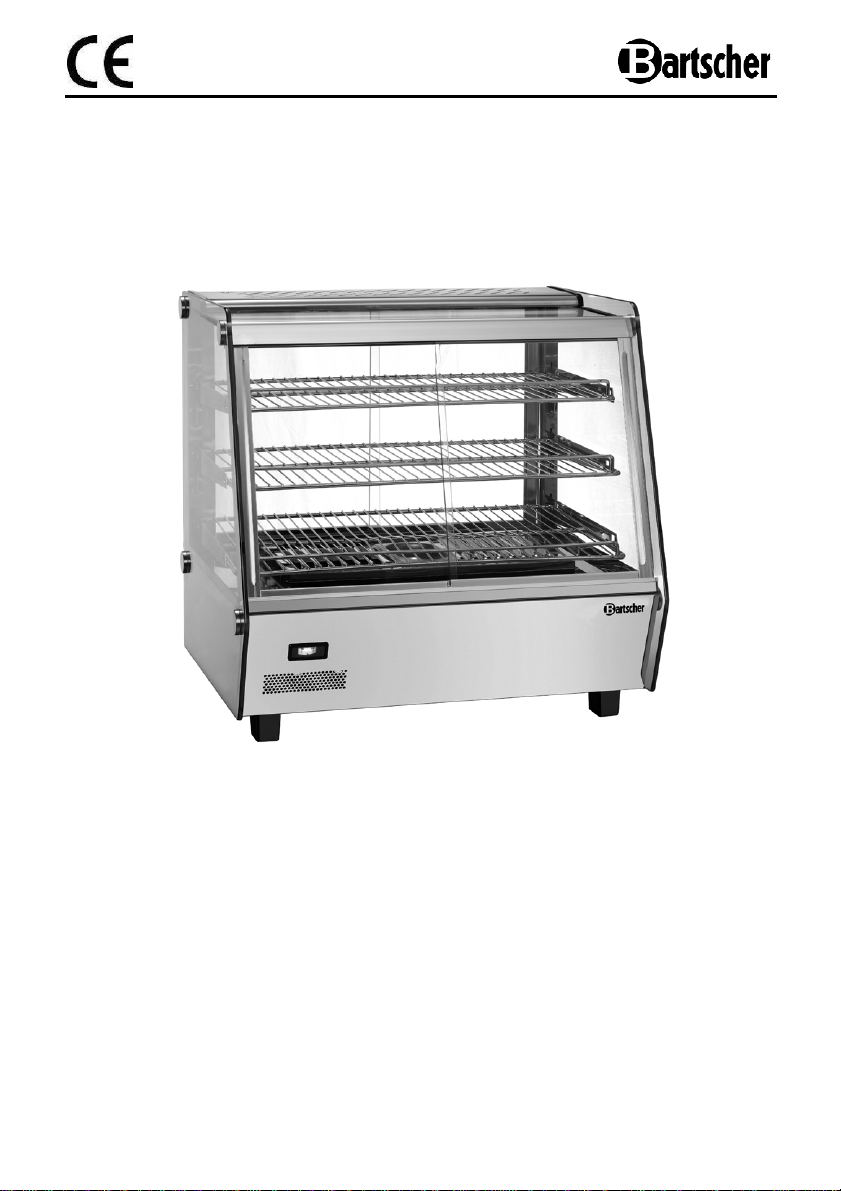

Bartscher Deli Plus I D User manual

„Deli Plus I D“
305.055
V2/0611

- 13 -
1. General Information 14
1.1 Information about the instruction manual 14
1.2 Key to symbols 14
1.3 Liability and Warrantees 15
1.4 Copyright protection 15
1.5 Declaration of conformity 15
2. Safety 16
2.1 General information 16
2.2 Safety instructions for use of the device 16-17
2.3 Intended use 17
3. Delivery, packaging and storage 18
3.1 Delivery check 18
3.2 Packaging 18
3.3 Storage 18
4. Technical data 19
4.1 Overview of parts 19
4.2 Technical specification 20
5. Installation and operation 20
5.1 Safety instructions 20-21
5.2 Installation and connection 21
5.3 Operating 21-22
6. Cleaning and maintenance 23
6.1 Safety advice 23
6.2 Cleaning 23
6.3 Safety instructions for maintenance 24
7. Waste disposal 24
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
GB/UK

- 14 -
1. General information
1.1 Information about the instruction manual
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device and
easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards, which could lead to injury.
Please follow the instructions very carefully and proceed with particular attention
in these cases.
WARNING! Electrical hazard!
This symbol draws attention to potential electrical hazards. If you do not follow
the safety instructions, you may risk injury or death.
CAUTION!
This symbol highlights instructions, which should be followed to avoid any risk of
damage, malfunctioning and/or breakdown of the device.
NOTE!
This symbol highlights tips and information, which have to be followed for
an efficient and trouble-free operation of the device.
WARNING! Hot external surface!
This symbol is a warning that the device surface is hot when in use. Ignoring this
warning may result in burns!

- 15 -
1.3 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology. If you have any
questions, you should contact the manufacturer.
NOTE!
Read the instruction manual carefully before using the device. The manufacturer
does not accept liability for any damage or malfunction resulting from not
following the instructions for use.
The instruction manual should be kept near the device, easily accessible for anyone
wishing to work with or using it. We reserve the right to make technical changes for
purposes of developing and improving the useful properties.
1.4 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any form
or by any means without permission in writing from the manufacturer. Any person who
commits any unauthorized act in relation to this publication shall be liable to claims for
damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are copyright
and subject to other protection rights. Any person unlawfully using this
publication is liable to criminal prosecution.
1.5 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity.
If required we will be glad to send you the according declaration of conformity.

- 16 -
2. Safety
This section provides an overview of all important safety aspects.
In addition every chapter provides precise safety advice for the prevention of dangers
which are highlighted by the use of the above mentioned symbols.
Furthermore, attention should be paid to all pictograms, markers and labels on the
device, which must be kept in a permanent state of legibility.
By following all the important safety advice you gain an optimal protection against all
hazards as well as the assurance of a safe and trouble-free operation.
2.1 General Information
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
Knowing the contents of the instruction manual as well as avoiding mistakes and thus
operating this device safely and in a fault-free manner is very essential to protect
yourselves from the hazards.
To prevent hazards and to ensure optimum efficiency, no modifications or alterations to
the device that are not explicitly approved by the manufacturer may be undertaken.
This device may only be operated in technically proper and safe condition.
2.2 Safety instructions for use of the device
The specifications regarding the industrial safety are based on the Regulations of the
European Union applicable at the time of manufacturing the device.
If the device is used commercially, the user is obliged to ensure that the said industrial
safety measures concur with the state of the rules and regulations applicable at the time
in question for the entire period of use of the device and to comply with the new
specifications.
Outside the European Union, the industrial safety laws applicable at the place of
installation of the device and the regional territorial provisions must be complied with.
Besides the industrial safety instructions in the instruction manual, the general safety
and accident prevention regulations as well as environment protection regulations
applicable for area of application of the device must be followed and complied with.

- 17 -
CAUTION!
oThe device is not intended for use by individuals (including children) with physical
or mental disabilities, insufficient experience, and/or insufficient knowledge unless
such persons are under the care of a person responsible for their safety or have
received instructions regarding appropriate use of the device.
oChildren should be observed to ensure that they are not playing with the device.
oPreserve this manual safely. When passing on/selling the device to a third party,
the manuals must be handed over along with the device.
oEvery person using the device must act in accordance to the manuals and under
consideration of the safety advice.
oThe device is to be used indoors only.
2.3 Intended use
Safe operation is only guaranteed when using the device for its intended purpose.
Any technical interventions, as well as assembly and maintenance are to be made by a
qualified customer service only.
The hot cabinet is only intended for heating and keeping hot food products.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the device
is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use are
impossible.
The operator is liable for all damages resulting from inappropriate use.

- 18 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately after
receipt.
In case of visible damage do not accept or accept the delivery with reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in your
country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-Do not store outdoors.
-Keep it dry and dust-free.
-Do not expose it to aggressive media.
-Do not expose it to direct sunlight.
-Avoid mechanical shocks and vibration.
-In case of longer storage (> 3 months) make sure you check the
state of the packaging and the parts regularly.
If required refresh or renew.

- 19 -
4. Technical data
4.1 Overview of parts
Temperature indicator
Water tray
Controls
Shelves
Front sliding
glass doors
ON/OFF
switch LED lighting switch
Temperature
dial
Casing
Legs
LED Lighting
Heating control light (orange)
Power cord inlet
Rear sliding glass doors

- 20 -
4.2 Technical specification
Name Hot cabinet „Deli Plus I D“
Article no.:
305.055
Model: Interior chromium plated, exterior stainless steel
Power: 230 V ~ 50 Hz 1100 W
Temperature range: 30°- 90°C
Capacity: 120 litres
Dimensions: W 695 x D 595 x H 685 mm
Equipment: 3 shelves, W 638 x D 335/370/400 mm
Space between shelves: (from top to bottom) 120 - 110 - 110 - 55 mm
Weight: 45.2 kg
We reserve the right to make technical changes!
5. Installation and operation
5.1 Safety instructions
WARNING! Electrical hazard!
The device must only be connected to a properly installed single socket with
protective contact.
Never yank cord to disconnect from outlet.
Cable must not touch any hot parts.
• See that the cable does not touch any heat sources or sharp edges. Do not let the
cable dangle over the counter edge.
WARNING! Hot surface!
During operation some elements of the device very become hot. To avoid burns,
do not touch hot elements!
• Do not use the device in case it does not function properly, has been damaged or
dropped.
• Do not use any accessory or spare parts that have not been recommended by the
manufacturer. These can be dangerous for the user or lead to damages of the
device or personal injury, and further, the warranty expires.

- 21 -
• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep
away the cable from operating range and do not dunk it into water.
• Do not move or tilt the device when in operation.
WARNING! Hazard via electrical current!
The device can cause injuries due to improper installation!
Before installation the local power grid specification should be compared with
that of the device (see type label).
Connect the device only in case of compliance!
Take note of the security advice!
5.2 Installation and connection
• Discard the complete packing material after unpacking the device.
• Place the device on top of an even and safe surface which supports the weight of the
device and is not heat sensitive.
• Not at any time should you place the device on an inflammable surface (such as:
table cloth, carpet, etc.).
• You must not position the device near open fireplaces, electric ovens/arc furnaces,
furnaces/electric heaters or other heat sources.
• Keep a minimum of 20 cm from flammable walls and other objects.
• The electrical circuit in the socket must be secured to at least 16A. Only connect the
device directly to the wall socket; do not use any extension cords or power strips.
• Place the device so that the plug is easily accessible and can be quickly removed
from its socket in case of necessity.
5.3 Operating
Before first use
CAUTION!
The unit can only be used by persons properly trained in its use.
• Remove the equipment (shelves, water tray) from the unit and wash thoroughly in
warm water with gentle washing-up liquid. Dry the clean elements thoroughly.
• Wash the inside and outside of the cabinet with a soft, moist cloth and gentle
washing-up liquid. Wash again with clean water. Dry thoroughly with a soft cloth.

- 22 -
Preparing the unit
• Insert the shelves into their guides.
• Place the water tray in its proper location.
The water tray is designed to create humidity inside the cabinet, to prevent food from
drying out too quickly (this is especially important for baked goods).
• Fill the tray with water.
NOTE!
Do not pour so much water that it spills.
Observe the level of water in the tray, and add more as needed.
• First, insert the power cord into the inlet, then into a wall socket.
• The unit is equipped with LED lighting. It may be turned on using the switch located
at the rear of the unit.
• Turn the unit on using the ON/OFF switch at the rear of the unit.
Heating food
• Set the required temperature using the temperature dial at the rear of the unit. The
temperature may be set from 30°C to 90°C.
• The orange heating control light next to the temperature dial will come on. When the
desired temperature has been reached, the heating unit will go off and the orange light
will go out. If the temperature in the unit begins to fall, the heater will come back on
and the light will come on as well.
• The temperature inside the cabinet can be checked by reading the temperature
indicator at the front of the unit.
• Place food in appropriate containers on the trays in the cabinet.
• To easily add or remove food products, the unit is equipped with sliding doors at the
front and rear. After filling the unit, close the front doors to avoid loss of heat from the
cabinet.
WARNING! Hot surface!
When in use, parts of the unit get very hot. To avoid burns, do not touch hot parts
of the unit with bare hands!
• Food will remain warm thanks to the temperature set.
• If the unit is not to be used for longer periods, turn it off using the ON/OFF switch
at the rear of the unit. First, remove the plug from its socket and remove the power
cable from the unit.

- 23 -
6. Cleaning and maintenance
6.1 Safety advice
oBefore beginning with repair or cleaning works make sure the device has been
disconnected from power socket (pull the power plug!!!) and has cooled down.
oDo not use any acid agents and make sure no water ingresses the device.
oTo protect yourself from electric shock, never immerse the device, its cables and the
plug in water or other liquids.
CAUTION!
The device is not suited for direct washing via water jets. Therefore, you must not
use any kind of pressure water jet for cleaning the device!
6.2 Cleaning
oRegularly wash the unit at the end of the day or if it will remain unused for a longer
period of time.
oPrior to washing, remove the plug from its socket and leave the unit to cool.
oRemove the shelves and water tray from the cabinet. Wash these elements in warm
water with a gentle cleaning agent. Rinse in running water and dry thoroughly.
oIf the water tray has calcium deposits, remove them regularly using commercially-
available chemicals.
oWash the inside and outside of the unit with a soft, moist cloth and gentle cleaning
agent.
WARNING!
Make sure that water does not get into the place where the water tray is
situated.
oUse only soft cloths, never use any abrasive scrapers as they may damage the
surface of the unit.
oAfter washing, dry and polish the unit’s surface with a soft, dry cloth.

- 24 -
6.3 Safety instructions for maintenance
oCheck the mains connection cable for damage from time to time. Never operate the
device when the cable is damaged. A damaged cable must immediately be replaced
by customer service or a qualified electrician to avoid dangers.
oIn case of damage or malfunction, please contact your stockist or our customer
service centre.
oOnly a qualified technician and using original spare parts and accessories should
carry out repairs and maintenance of the device. Do not attempt to repair the
device yourself.
7. Waste disposal
Discarding old devices
At the end of its service life the discarded device has to be disposed in accordance with
the national regulations. It is advisable to contact a company which is specialized in
waste disposal, or just contact the local disposal service in your community.
WARNING!
To exclude any abuse and the dangers involved make the waste device unfit for
use before disposal. For that purpose disconnect device from mains supply and
remove mains connection cable from the device.
NOTE!
For the disposal of the device please consider and act
according to the national and local rules and
regulations.
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
