Bartscher G-S7T2 User manual

G-S7T2
200297

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2023-05-03
EN
2

200297 1 / 24
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................6
1.4 Unintended Use.......................................................................................6
2General information.......................................................................................7
2.1 Liability and Warranty ..............................................................................7
2.2 Copyright Protection ................................................................................7
2.3 Declaration of Conformity ........................................................................7
3Transport, Packaging and Storage................................................................8
3.1 Delivery Check.........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical Data...............................................................................................9
4.1 Technical Specifications ..........................................................................9
4.2 Functions of the Appliance.....................................................................10
4.3 List of Components of the Appliance .....................................................11
5Installation and operation ............................................................................12
5.1 Installation..............................................................................................12
5.2 Operation...............................................................................................15
6Cleaning and Maintenance..........................................................................19
6.1 Safety Instructions for Cleaning.............................................................19
6.2 Cleaning.................................................................................................20
6.3 Maintenance ..........................................................................................21
7Possible Malfunctions..................................................................................21
8Disposal....................................................................................................... 24

Safety
2 / 24 200297
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Di e Kenntnis aller enthalt enenSic herheitshinw eiseu ndH andlungs anweisungen schafft die V oraussetzung für d as sichere und sac hgerechte Arbeite n mitd emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Un fallverhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eingehalt en werden. Diese Bedi enungsanleitung ist Bestandt eild es Produkts und muss i n unmittelbarer Nähe d es Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
200297 3 / 24
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 24 200297
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Incorrect operation of th e appliance may cause fire or explosion hazard d uet oig nition of its content.
Fire hazard / flammable materials hazard / explosion hazard!
•Do not use any electric devices in the appliance.
•Do not store nor use petrol or other flammable liquids and gases in the vicinity of
this or any other appliance. Those gases may cause fire or explosion hazard.
•Do not put into the appliance any explosive materials, like sprays filled with
flammable propellants. Contents of containers filled with flammable gases and
liquids may leak in low temperatures, and the contents may catch fire from
sparks generated by an electric appliance. Explosion hazard!
•In the case of coolant leakage, pull the plug from the socket. Remove all
sources of ignition in the vicinity, ventilate room and contact technical service.
Avoid coolant getting in contact with eyes, as it may cause serious eye damage.
•Never use any flammable liquids for cleaning the appliance or its parts. Gases
released may cause fire or explosion hazard.
•In the case of fire, disconnect the appliance from the power supply before
attempting adequate fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
•Defrosting process may not be sped up with mechanical means or heat energy
sources (candles or heaters) nor with any other means. Vapour produced may
cause short-circuit and too high temperatures may damage the appliance.
•All ventilation slots should not be obstructed during operation.
•Never attempt to damage cooling installation of the appliance.
Operating Personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.

Safety
200297 5 / 24
EN
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.
•Do not drill hole in the appliance nor install any objects on it.
•Do not place any heavy objects on the appliance.

Safety
6 / 24 200297
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Preparation and cooling of ingredients for pizza.
The appliance is intended for operation in maximum ambient temperature of 32°C
and relative humidity of 65%.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Storing flammable or explosive objects and liquids, such as ether,
petroleum or adhesives;
–Storing explosive materials, like sprays filled with flammable propellants;
–Storing pharmaceutical products or preserved blood;
–Storing live pets.

General information
200297 7 / 24
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
The warranty period for this appliance is 24 months, counted from the purchase
date.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
8 / 24 200297
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
200297 9 / 24
EN
4 Technical Data
4.1 Technical Specifications
Name:
Refrigerated Pizza Counter G-S7T2
Art. No.:
200297
Material:
stainless steel
Worktop material:
granite
Temperature range, min.–max., in °C:
-2 ˚C - +8 ˚C
Volume, in l:
360
Number of cabinets:
1
Cabinet dimensions (W x D x H), in mm:
400 x 600 x 560
Cabinet Gastro Norm:
Bakery standard EN 600 x 400 mm
Number of guide rail pairs per one side of
the cabinet:
9
Distance between guide rail pairs, in mm:
55
Max. GN container depth, in mm:
620
Number of drawers:
7
Drawer dimensions (W x D x H), in mm:
415 x 620 x 70
Drawer Gastro Norm:
1/1 GN
Load-bearing capacity per guide rail pair,
max. in kg:
30
Number of doors:
2
Border, in mm:
140
Climate class:
4
Coolant, amount in kg:
R290 / 0,095
Connected load:
0,290 kW | 230 V | 50 Hz
Dimensions (W x D x H), in mm:
2020 x 805 x 975
Weight, in kg:
302,0
We reserve the right to implement technical modifications.

Technical Data
10 / 24 200297
EN
Version / Characteristics
•Cooling: compressor
•Control: electronic
•Temperature control: electronic
•Thermostat
•Digital display
•Evaporation of condensed water
•ON/OFF switch
•Indicator light:
–ON/OFF (green)
–Automatic defrosting (yellow)
•Refrigerated cabinets / non-refrigerated drawers
•Door type: hinged door
•Door hinge: 1 x right | 1x left, non-adjustable
•Swivel castors: 6 swivel castors, 3 with brakes
•Can be optimally combined with cooling tray GL3-2005 / art No. 200298
•Important note: cake trays [600 x 400 x 70 mm] fit the drawers
•The set includes: 10 crossbars (W 20 x D 15 x H 270 mm)
4.2 Functions of the Appliance
The G-S7T2 refrigerated pizza counter, equipped with 7 dough ball drawers and a
generous granite work surface, is the perfect focal point of any pizza establishment.
At the right temperature settings, the refrigerated cabinet keeps ingredients fresh
and easily accessible for use.

Technical Data
200297 11 / 24
EN
4.3 List of Components of the Appliance
The delivery does not include decorations!
Fig. 1

Installation and operation
12 / 24 200297
EN
Description for Fig. 1
1. Worktop surface
2. Work surface border
3. Technical cabinet lock
4. Digital temperature controller
5. ON/OFF switch with integrated
power indicator light (green)
6. Indicator light (yellow) for
automatic defrosting function
7. Technical cabinet ventilation
openings
8. Castors (6 pcs)
9. Technical cabinet
10.Cabinet
11.Shelf guide rails (4 pcs)
12.Fixing rails
13.Cabinet ventilation openings
14.Shelf (2 pcs)
15.Cabinet door (2 pcs)
16.Drawer (7 pcs)
17.Housing
5 Installation and operation
5.1 Installation
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.

Installation and operation
200297 13 / 24
EN
•Do not place the applianc ein h ote nvironment or in the vicinit yo ffl ammable materials .
•The appliance requir ess ufficient airflow for proper operation. Assure a minimum later alcl earance of the appliance of 1 0c m.
•Never cover nor bloc kve ntilation openings of the appli ance.
Unpacking / Positioning
•Remove the appliance from the packaging and discard all the packing materials,
excluding the pallet.
CAUTION!
Choking hazard!
Prevent children from accessing packaging materials, for instance: plastic
bags and EPS elements.
•To install the appliance, perform the following steps:
–The appliance may only be transported to installation location in vertical
position. In order to avoid damage to the compressor, do not tilt the
appliance more than 45° when positioning or transporting it.
–Lift the appliance with the lift truck and move it to the planned installation
location. Be careful not to damage the appliance. Control the stability in
order not to lose the balance of the appliance.
–Do not drag nor push the appliance, as it may fall down. This may also
cause the damage to external elements or swivel castors.
–Remove the appliance from the pallet in the installation location and
install it.
–Attach swivel castors with brakes.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels affixed to the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on a surface that is:
–even, with sufficient load-bearing capacity, resistant to water, dry and
resistant to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•The electric socket sho uldb e easily accessible so it is possible to quickly disco nnectt he power cord whenn ecessary. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnectt he power cord when necessar y. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnectt he power cord whenn ecessary.
•Nie należy umieszcz ać urządzeni a w gorącym o toczeniu ani w pobliżu materiał ów łatwopalnych.
•The appliance requir ess ufficient airflow for proper operation. Assure a minimum lateral cl earance of the appli ance of1 0c m.
•DieÖ ffnungen am Gerät niemals abdec keno der blockieren.

Installation and operation
14 / 24 200297
EN
•Do not place the appliance in direct sunlight or in the vicinity of heat sources
(cooker, radiator, heating devices, etc.). Heat sources may negatively affect
power consumption, and restrict functions of the appliance, too.
•The electric socket sho uldb e easily accessible so it is possible to quickly disco nnectt he power cord whenn ecessary. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnect the power cord when necessar y. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnectt he power cord whenn ecessary.
•Leave at least 20 cm clearance from flammable walls and items.
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•When the electrical connection is established, check that the supply voltage
during appliance operation does not deviate by ±10% from the nominal value
indicated on the rating plate.
•For your own safety, the appliance must be correctly earthed.
•The power cord used is type H05VV-F, 3 x 1.0 mm², length 1.65 m. If the power
cord is replaced, it must be replaced with a power cord of the same or better
properties.
•Replacement of a damaged power cord must be carried out by a qualified
technician.
•The plug must be easily accessible for quick disconnection of the appliance from
the power supply if the need arises.
•If the appliance was stored or transported vertically, leave it standing
horizontally for 12 hours before it is connected to electric power.
•Following an electric power outage, wait at least 3 minutes before reconnecting
the appliance to prevent a damage to the compressor.

Installation and operation
200297 15 / 24
EN
5.2 Operation
Indications for User
•Fill the refrigerated pizza counter only when the digital display shows that the
required temperature has been reached.
•Do not put any warm food or liquids in the refrigerated pizza counter; first, cool
them to the room temperature.
•Always cover or wrap the food. Use seal-tight containers for storing food
products and beverages, to protect the aromas of the food products and
beverages and avoid mixing the aromas inside the counter.
•During the first filing or full filling of refrigerated pizza counter always open and
fill only one cabinet to avoid tilting of the appliance.
•While placing food products in the cabinet keep in mind that sufficient clearance
must be maintained between the internal walls of the appliance and stored food
products to assure free circulation of air inside the appliance.
•The more items in the refrigerated pizza counter, and the longer the cabinet
doors are kept open, the higher the energy consumption.
•To limit loss of cold air minimize the opening time of doors/drawers. Moreover,
do not open them too frequently.
•To avoid occurrence of unpleasant odour in the appliance follow the
recommended storage periods of food products.

Installation and operation
16 / 24 200297
EN
Appliance Preparation and Start-Up
1. Before use, clean the appliance and accessories thoroughly, following
indications in section 6 'Cleaning and Maintenance'.
2. Then dry the appliance thoroughly.
3. Plug the appliance into a suitable single socket.
4. Switch the appliance on by setting the switch at the front of the appliance in 'I'
(ON) position.
The green power indicator light in the ON/OFF switch lights up.
The digital display shows current temperature inside the appliance.
The LED indicator light blinks for 3 minutes during the delay between the
compressor stopping and restarting.
5. Switch the appliance on (without food products). Observe the notes in the
following chapters of the operating manual to set the desired parameters.
6. Before first use and before putting any food products into drawers and the
cabinet, the appliance should reach the set temperature.
Control Elements and Displayed Messages
Key
Functions
Showing the set value, selection of parameters in the
programming mode or confirmation of the process
Manual start of defrosting
Selection of the parameter code in the programming
mode, increase of the displayed value
Selection of the parameter code in the programming
mode, decrease of the displayed value

Installation and operation
200297 17 / 24
EN
LED Indicator Lights
The LED indicator lights in the digital display show the status of the active function:
LED
Status of the
active function
Meaning
illuminates
activated compressor
flashes
in delay
illuminates
defrosting in progress
flashes
defrosting delay
illuminates
fan activated
flashes
delay after defrosting
illuminates
degrees Celsius temperature unit indicator light
flashes
in programming mode
illuminates
degrees Fahrenheit temperature unit indicator light
flashes
in programming mode
Key Combinations
Concurrent pressing of two buttons enable activation/deactivation of a number of
functions.
+
Key locking or unlocking:
–to lock, press both keys concurrently and hold them pressed
for at least 3 seconds, until the digital display shows the 'OFF'
indication
–to unlock, press these keys and hold them pressed for more
than 3 seconds, until the digital display shows the 'ON'
indication
+

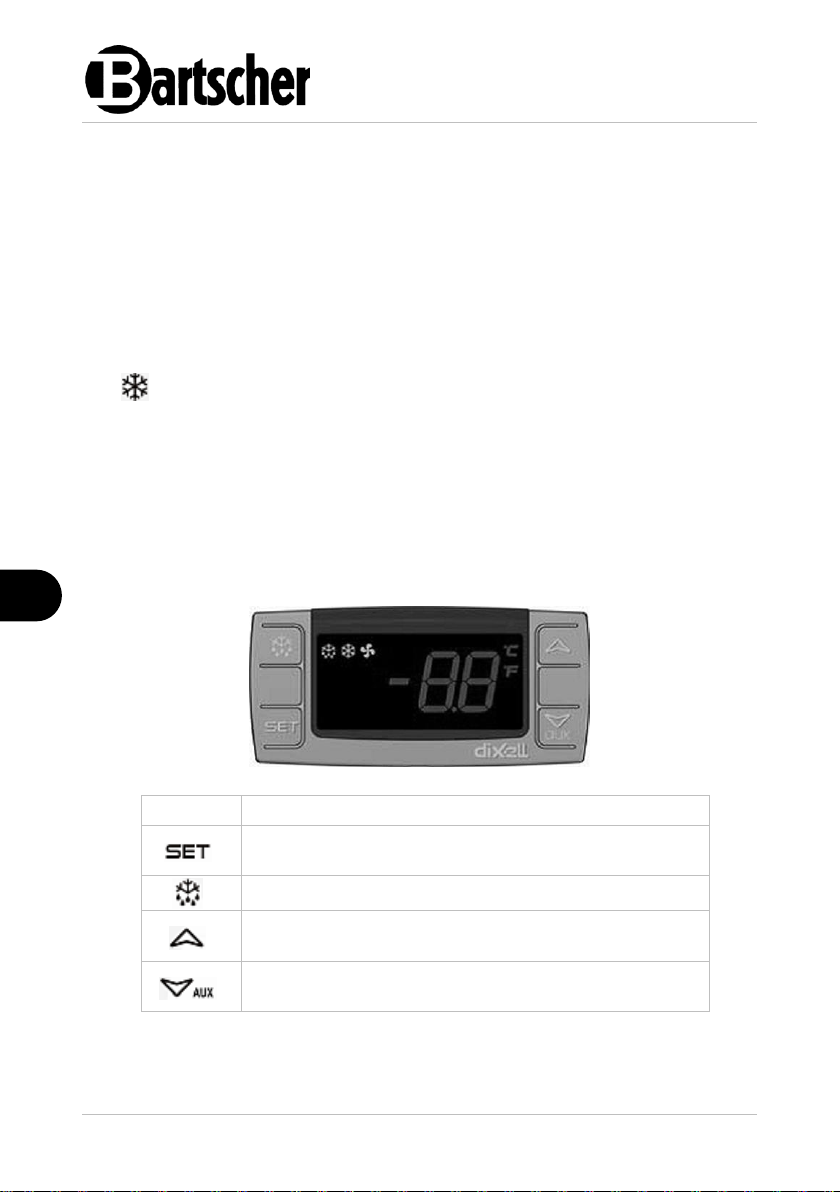

Moving to the programming mode:
–press both keys concurrently and hold them pressed for more
than 3 seconds; when the or LED indicator lights
flash, subsequent settings may be introduced
+
Return to the previously displayed message:
–press these keys, to leave the programming mode and return
to the previously displayed message (value of temperature
inside the appliance)

Installation and operation
18 / 24 200297
EN
Displaying the Set Value
1. Press the key shortly, to display the set value.
2. Press the key again or wait 5 seconds, to return to the previous message.
Changing the Set Value (i.e. the Required Temperature)
1. Press the key for more than 2 seconds.
The set value is displayed and the or LED indicator light flashes on the
digital display.
2. The value may be increased or decreased with or button until the
digital display shows the required value.
3. Confirm the new value with the key or wait 10 seconds —then, the value
will be stored automatically.
Automatic Defrosting
The appliance defrosts automatically 4 times over a 24-hour period.
The timer initiates with the first activation of the appliance.
During the automatic defrosting process, the yellow indicator light on the operating
side of the appliance illuminates.
1. If there is a need for the change of automatic defrosting phases, press the
key and hold it pressed for 5 seconds.
The defrosting cycle will start immediately.
The digital display shows the symbol.
The defrosting cycle lasts approximately 20 minutes.
Then, the subsequent defrosting cycle is initiated after 6 hours.
NOTE!
Water generated during defrosting evaporates automatically.
Manual Defrosting
Additionally, aside of the automatic defrosting, manual defrosting may be activated
any time.
1. Press the key and hold it pressed for at least 5 seconds.
The manual defrosting is initiated.
The digital display shows the symbol.
