Safety
2 / 22 700834
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ng und Wartung des G erätsu ndg ilt als wichtige Infor mationsquelle und Nach schlagewer k.Die Ken ntnis aller enthalt enenSic herheitshinw eiseu nd Handlungs anweisungen schafft die V oraussetzung für das sich ere und sachger echte Arbeite n mitd emG erät. Darüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Unfall verhütungsvorsc hriften und allgem einen Sicherheitsb estimmungen eing ehalten werden. Diese Bedi enungsanleitung ist Bestandteil des Prod ukts und muss i n unmittelbarer Nähe d es Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
700834 3 / 22
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 22 700834
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Incorrect operation of th e appliance may cause fire or explosion hazard d uet oig nition of its content.
Fire hazard / flammable materials hazard / explosion hazard!
•Do not use any electric devices in the appliance.
•Do not store nor use petrol or other flammable liquids and gases in the vicinity of
this or any other appliance. Those gases may cause fire or explosion hazard.
•Do not put into the appliance any explosive materials, like sprays filled with
flammable propellants. Contents of containers filled with flammable gases and
liquids may leak in low temperatures, and the contents may catch fire from
sparks generated by an electric appliance. Explosion hazard!
•In the case of coolant leakage, pull the plug from the socket. Remove all
sources of ignition in the vicinity, ventilate room and contact technical service.
Avoid coolant getting in contact with eyes, as it may cause serious eye damage.
•Never use any flammable liquids for cleaning the appliance or its parts. Gases
released may cause fire or explosion hazard.
•In the case of fire, disconnect the appliance from the power supply before
attempting adequate fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
•Defrosting process may not be sped up with mechanical means or heat energy
sources (candles or heaters) nor with any other means. Vapour produced may
cause short-circuit and too high temperatures may damage the appliance.
•All ventilation slots should not be obstructed during operation.
•Never attempt to damage cooling installation of the appliance.
Operating personnel
•This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching the appliance on.
•Children aged 3 to 8 may load and unload the refrigerator.

Safety
700834 5 / 22
EN
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.
•Do not drill hole in the appliance nor install any objects on it.
•Do not place any heavy objects on the appliance.

Safety
6 / 22 700834
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Cooling and preparation of suitable beverages and food products.
The appliance is intended for operation in maximum ambient temperature of 30°C
and relative humidity of 55%.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Storing flammable or explosive objects and liquids, such as ether,
petroleum or adhesives;
–Storing explosive materials, like sprays filled with flammable propellants;
–Storing pharmaceutical products or preserved blood;
–Storing live pets.

General information
700834 7 / 22
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
The warranty period for this appliance is 24 months, counted from the purchase
date.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
8 / 22 700834
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
700834 9 / 22
EN
4 Technical Data
4.1 Technical Specifications
Name:
Glass-doored refrigerator 360L
Art. No.:
700834
Material:
steel, painted / glass / ABS plastic
Inner material:
plastic
Volume, in l:
360
Temperature range, min.–max., in °C:
1 - 10
Ambient temperature, max., in °C:
30
Amount of coolant, in kg:
R600a / 0,084
Climate class:
4
Energy efficiency class:
D
Energy consumption, in kWh/year:
710
GWP index:
3
Number of doors:
1
Number of shelves:
5
Shelves dimensions (W x D), in mm:
530 x 385
Connected load:
0,225 kW | 230 V | 50 Hz
Dimensions (W x D x H), in mm:
615 x 630 x 1.760
Weight, in kg:
71,0
We reserve the right to implement technical modifications.

Technical Data
10 / 22 700834
EN
Version / Characteristics
•Colour: white
•Cooling: static / with additional fan
•Temperature control:
–mechanical
–stepless
•Thermostat
•Control: rotary control knob
•Insulation: cyclopentane, 45 mm
•Automatic defrost function
•Evaporation of condensed water
•Type of shelves (5 pcs):
–grate, plastic-coated
•Height-adjustable shelves
•With price strips, removable
•Door type:
–winged door, glass
–self-closing door
•Front pane: cased / framed
•Type of glazing: double glazing, safe glass
•Right-hand side door, with no possibility for door hinge to be changed
•Lockable
•Internal lighting
•Features:
–1 fan
–LED lighting, may be switched on separately
–2 castors, 2 feet
More information on the appliance is available in our website www.bartscher.com
or, pursuant to the Regulation (EU) 2019/2024, in our product data base at
https://energy-label.ec.europa.eu/. Enter article number for a given model.

Technical Data
700834 11 / 22
EN
4.2 List of Components of the Appliance

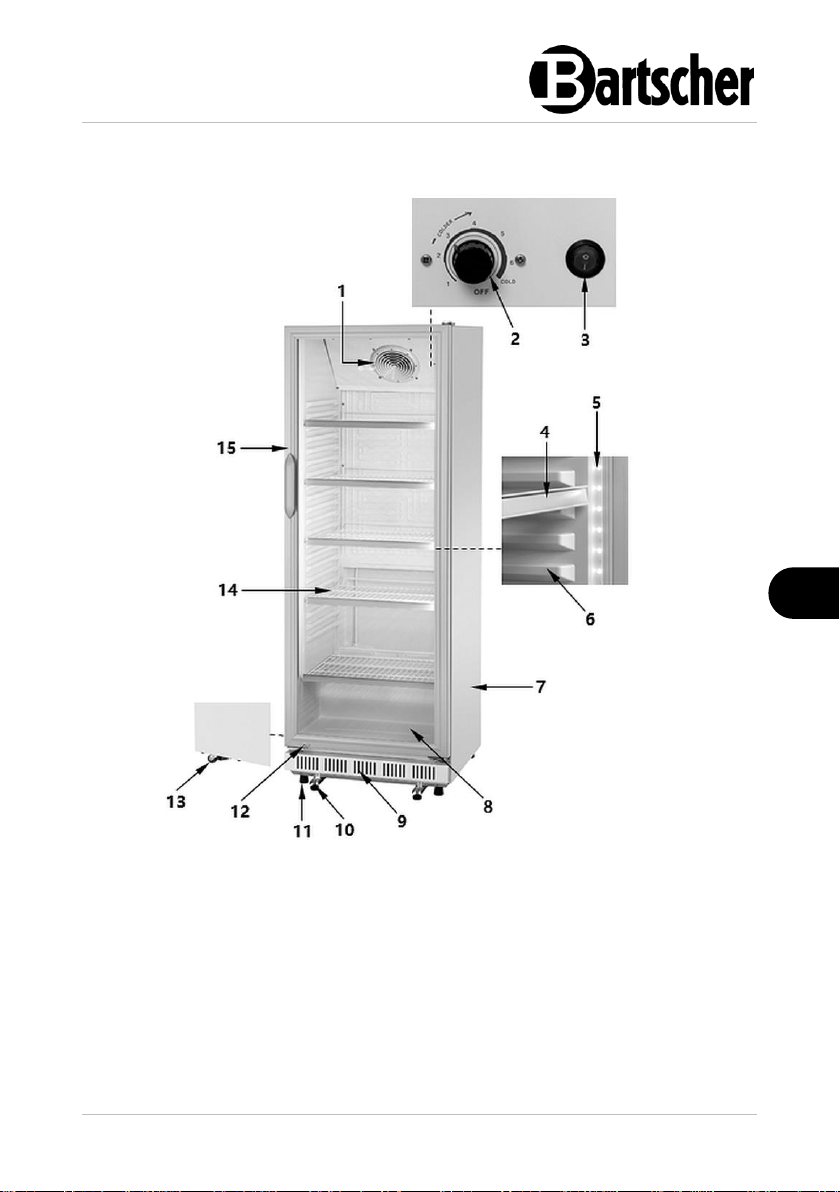

Fig. 1
1. Fan
2. Temperature controller
3. LED lighting ON/OFF switch
4. Price strip, removable
5. LED lighting
6. Guide rails
7. Housing
8. Bottom working surface
9. Ventilation openings
10. Supports (2 pcs)
11.Feet (2 pcs)
12.Lock
13. Castors (2 pcs)
14.Shelves (5 pcs)
15.Door with handle

Installation and operation
12 / 22 700834
EN
4.3 Functions of the Appliance
The refrigerated cabinet has been designed for cooling and storage of suitable
beverages and food. Equipped with a practical glass door will save time and
energy, since before opening the door you can see what is inside –the refrigerated
cabinet is perfect for both the pantry and the kitchen, as well as in various customer
zones, such as shops, canteens, rooms for guests or petrol stations.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Nie należy umieszcz ać urządzeni a w gorącym o toczeniu ani w pobliżu materiał ów łatwopalnych.
•The appliance requir ess ufficient airflow for proper operation. Assure a minimum later alcl earance of the appliance of 1 0c m.
•DieÖ ffnungen am Gerät niemals abdec keno der blockieren.
•Do not place the appliance in direct sunlight or in the vicinity of heat sources
(cooker, radiator, heating devices, etc.). Heat sources may negatively affect
power consumption, and restrict functions of the appliance, too.

Installation and operation
700834 13 / 22
EN
•Place the appliance so that sufficient air circulation is ensured. Leave 10 cm
clearance from walls and other objects.
•In order to avoid damage to the compressor, do not tilt the appliance more than
45° when positioning or transporting it.
•If the appliance is to be relocated, follow the instructions below:
–switch the appliance off;
–disconnect the plug from the socket;
–take out contents of the appliance;
–tape firmly all loose elements in the internal chamber and tape the door;
–the appliance may only be transported in vertical position.
•The electric socket sho uldb e easily accessible so it is possible to quickly disco nnectt he power cord when necessar y. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnectt he power cord whenn ecessary. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnectt he power cord whenn ecessary.
•Two front feet of the appliance may be adjusted through screwing in/out so that
the appliance stands stable.
HINWEIS IMPORTANT!
The appliance is not suitable for built-in installation.
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•If the appliance was stored or transported vertically, leave it standing
horizontally for 12 hours before it is connected to electric power.
•Following an electric power outage, wait at least 3 minutes before reconnecting
the appliance to prevent a damage to the compressor.

Installation and operation
14 / 22 700834
EN
5.2 Operation
Tips for the user
•Shelves may be positioned at various heights. Arrange them adequately to the
size of beverage/containers with food product, so that the inner space of the
appliance is used optimally.
•Beverages and food products in containers should be arranged on the shelves
so that proper distances between them allow for sufficient air circulation inside
the appliance. Insufficient distances hinder the cooling effect.
•To limit loss of cold air minimize the opening time of door during operation. Also,
do not open the door too frequently.
•If possible, in the event of a sudden power failure, avoid opening doors in order
to avoid loss of cool air.
•The power supply to the refrigerator should not be interrupted for more than 10
minutes.
•If the appliance is switched off for a longer period of time, the door of the
refrigerator should remain open.
Storing food in the refrigerator
For your appliance to operate the best way, follow the indications below:
•When inserting the food products, pay attention to free air circulation inside the
appliance.
•The more items in the refrigerator, and the longer the door kept open, the higher
the energy consumption.
•Food products or beverages should first be cooled to the suitable storage
temperature.
•If the food products are not cooled sufficiently prior to storing, the operating
efficiency of the appliance deteriorates and it may negatively influence the
cooled food products. Thus, avoid storing food products in rooms that are not
cool, for the cold might be lost when they are inserted in the refrigerator.
•The food products stored in the refrigerator should be packaged or covered.
•The food products with specific aromas, e.g.: fresh fish, foie gras, cheese,
should be stored in properly closed containers.
•Do not store bananas in the refrigerator because they are sensitive to low
temperatures.

Installation and operation
700834 15 / 22
EN
Before First Use
1. Prior to first operation, clean the appliance and its equipment according to
instructions in section 6 'Cleaning'.
2. To end with, dry the appliance and accessories thoroughly.
3. Place shelves in the appliance so that they fit the height of stored items.
4. Close the appliance door.
5. Plug the appliance into a suitable single socket.
6. Before first use, set the temperature controller to the lowest setting '7' and leave
it for 3–4 hours before you place any beverages or food in the appliance. Follow
the instructions in section 'Temperature Control'.
7. Then, you can set the temperature.
Control Elements
Fig. 2
Temperature Control
Set temperature with the use of temperature controller (2, Fig. 2). It is located inside
of the appliance.
1. Rotate the temperature controller (2) clockwise to the selected position.
The temperature may be set steplessly to a position in the range of 1 to COLD.
–position '1' is for the highest temperature setting
–position 'COLD' is for the lowest temperature setting.
NOTE!
The optimum temperature for storing food and beverages is 6°C. If you
cannot maintain the temperature for storing food and beverages, they may
turn.
2. To switch the appliance off, set the temperature controller (2) to 'OFF' position.

Cleaning and Maintenance
16 / 22 700834
EN
Manual Defrosting
The appliance must be defrosted manually in regular intervals.
1. Disconnect the appliance from mains power supply.
2. Remove beverages and food from the appliance and store them temporarily in a
cool room.
3. Leave the appliance open for some time.
Condensed water drips onto the condensed water drip tray. It is located on the
bottom, behind the compressor and condenser.
The defrost water evaporates automatically (for this a hot gas line is routed through
the condensed water drip tray).
LED Lighting
The appliance is equipped with interior LED lighting. If needed, it can be switched
on or off with the ON/OFF switch inside the appliance.
6 Cleaning and Maintenance
6.1 Safety Instructions for Cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. Clean the appliance regularly.
2. Remove all objects from the appliance and store them temporarily in a cool
room.

Possible Malfunctions
700834 17 / 22
EN
3. Remove all shelves from the appliance.
4. Clean the shelves with mild washing agent and soft cloth or sponge in warm
water.
5. Rinse the shelves with clean water and dry thoroughly with soft cloth.
Note: Never use hot water to clean the appliance.
6. Wipe the internal and external surfaces of the appliance with a soft, damp cloth.
Use mild cleaning agent if required.
7. Wipe the washed surfaces with a cloth moistened in clean water.
8. Finally, dry thoroughly all washed surfaces.
9. The interior of the appliance should be wiped regularly (once a month) with a
food-grade disinfectant.
10.Clean the door and the door seal of the appliance with a soft, damp cloth and
mild cleaning agent. To end with, dry the door and door seal thoroughly.
11.After cleaning, leave the door open for the appliance to dry completely.
12.If the appliance is not to be used for a longer period of time, clean it according to
the instructions above. Leave the appliance open to prevent generation of
unpleasant odours inside.
Maintenance
We recommend you to have the appliance serviced at least once a year; if needed,
we recommend entering into a service agreement.
The following operations should be regularly performed by a qualified specialist:
–cleaning the condenser with suitable tools (vacuum cleaner or soft
brush);
–checking of electrical connections;
–checking of the thermostat and the sensor;
–checking of door and door seal.
7 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
In such a case, provide article number, model name and serial number. These data
may be found in the rating plate.

Possible Malfunctions
18 / 22 700834
EN
Error
Possible Cause
Solution
No functions
available
Plug improperly inserted
into a socket.
Remove the plug and insert it
properly in the socket
Electric power supply safety
fuse damaged
Check the fuse, connect the
appliance to another socket
No power supply
Check the electric power
supply
Temperature inside
the appliance is too
high / too low
Condenser obstructed with
dust
Contact the service company
Icy evaporator
Defrost the appliance
Direct sunlight or heat
sources in immediate
vicinity
Move the appliance away
from heat sources
Poor air circulation around
the appliance
Keep sufficient clearance
from walls or other objects
Ambient temperature too
high
Place the appliance in the
right place
Door is not closed properly
or it has been opened for
too long
Close the door tightly; limit the
door opening time to
minimum
Damaged or deformed door
seal
Contact the service company
