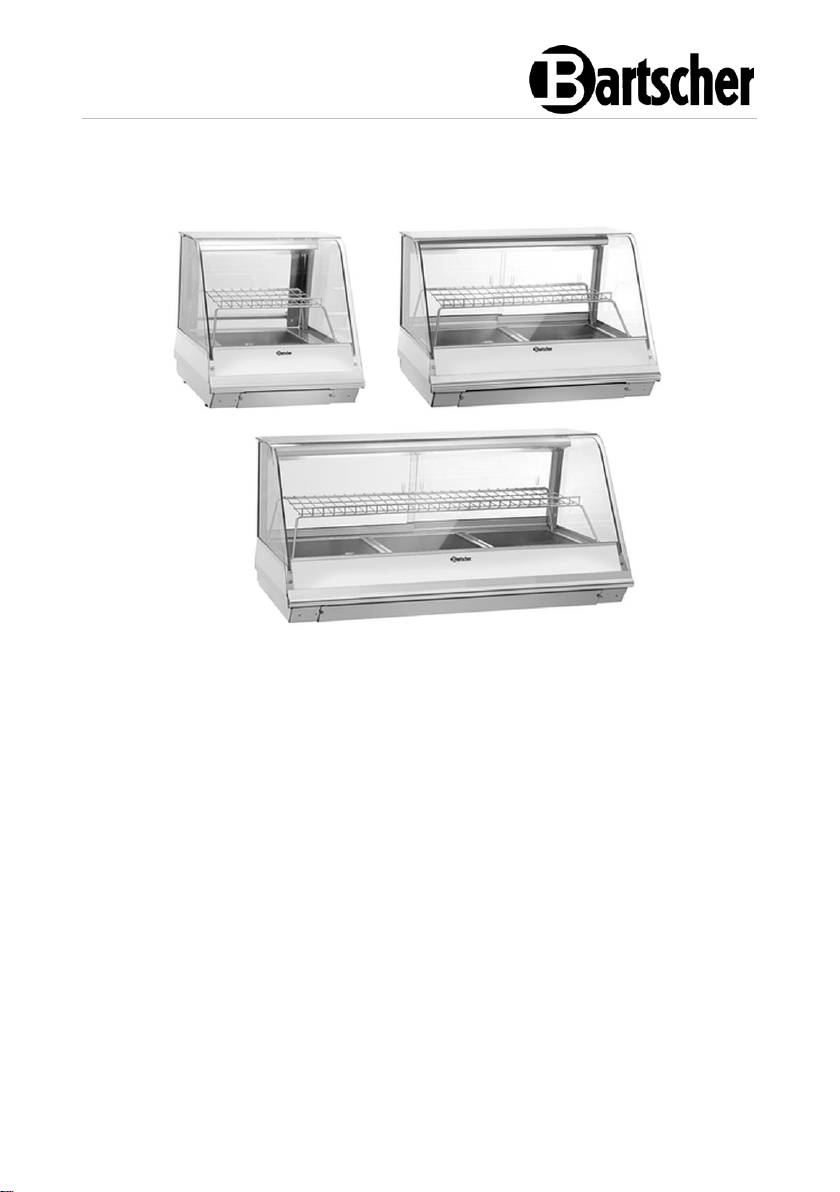

Bartscher GN2110-R User manual

GN2110-R - GN1110-R - GN3110-R
305066 - 305067 - 305068

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2023-05-22
EN
2

305066 1 / 26
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................8
1.4 Unintended Use.......................................................................................8
2General information.......................................................................................9
2.1 Liability and Warranty ..............................................................................9
2.2 Copyright Protection ................................................................................9
2.3 Declaration of Conformity ........................................................................9
3Transport, Packaging and Storage..............................................................10
3.1 Delivery Check.......................................................................................10
3.2 Packaging..............................................................................................10
3.3 Storage..................................................................................................10
4Technical Data.............................................................................................11
4.1 Technical Specifications ........................................................................11
4.2 Functions of the Appliance.....................................................................13

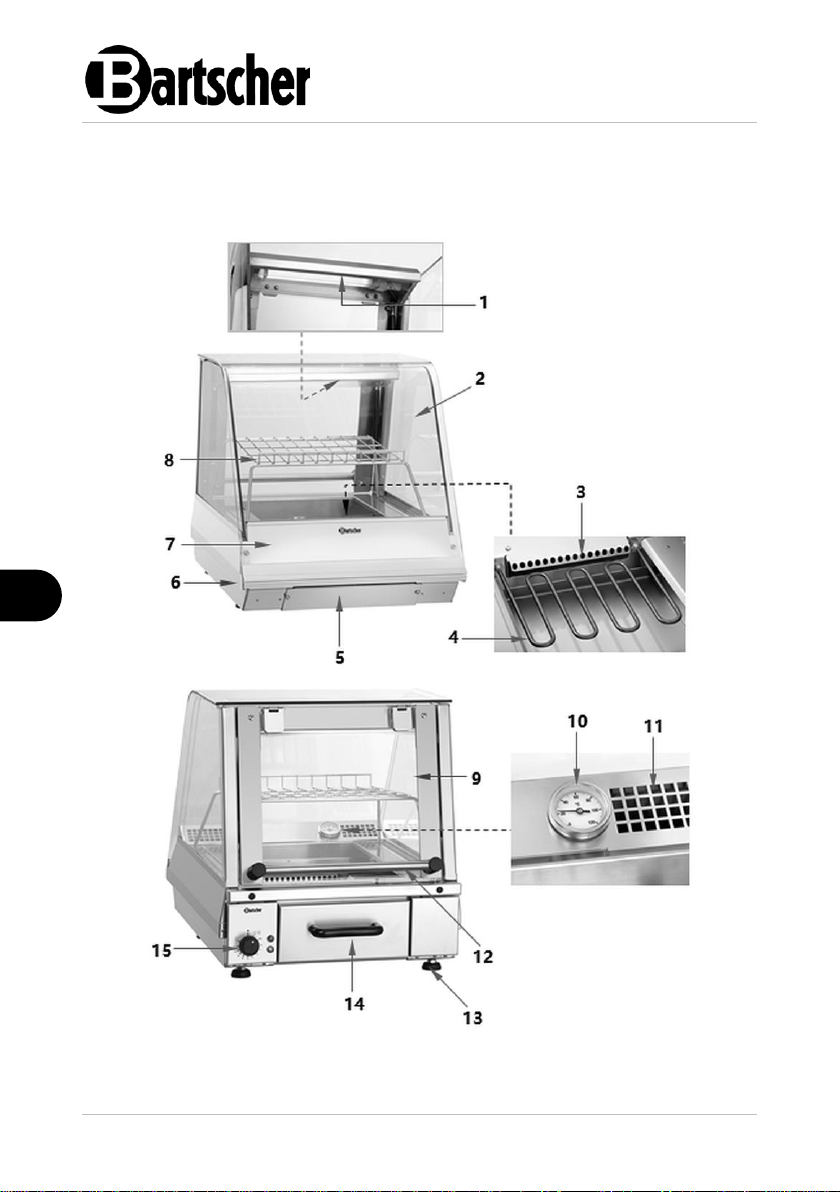

4.3 List of Components of the Appliance .....................................................14
5Installation and operation ............................................................................17
5.1 Installation..............................................................................................17
5.2 Operation...............................................................................................20
6Cleaning and Maintenance..........................................................................23
6.1 Safety Instructions for Cleaning.............................................................23
6.2 Cleaning.................................................................................................23
6.3 Maintenance ..........................................................................................24
7Disposal....................................................................................................... 26

Safety
2 / 26 305066
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ng und Wartung des G erätsu ndg ilt als wichtige Infor mationsquelle und Nach schlagewer k.Die Ken ntnis aller enthalt enen Sicherheitshin weise und Handlungs anweisungen schaf ft dieV oraussetzung f ürd as sichere und sachger echte Arbeiten mit dem Gerät. Darüb erhi naus müssen die für de nEi nsatzbereich des Gerät sg eltenden örtlichen Un fallverhütungsvorsc hriften und allge meinen Sicherheits bestimmungen eing ehalten werden. Dies e Bedienungsanleit ungis t Bestandteil des Prod ukts und muss in unmi ttelbarer Nähe d es Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
305066 3 / 26
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 26 305066
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.

Safety
305066 5 / 26
EN
Hot Surfaces
•Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
•Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
Operating Personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Supervised Usage only
•Only supervised appliance may be used.
•Always remain in an immediate vicinity of the appliance.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.

Safety
6 / 26 305066
EN
Residual Risks
Residual risks to which operating personnel may be exposed to are:
Activity performed /
position of the
operator
Dangerous situation and
hazards
Possible damage
Use of the appliance
direct or indirect contact with live
parts
electric shock
Removing prepared
food from the
appliance
contact with hot containers, dishes
burns
contact with hot surfaces (heating
elements, shelves, bars)
Personal Protective Equipment
The use of personal protective equipment and clothing is intended to protect a
specific part of body from certain work-related hazards.
As a general rule, they should only be used when measures to eliminate the hazard
at source are not sufficient to eliminate harmful substances and parts and thus
ensure the safety and health of an employee.
The use of equipment includes the use of the following personal protective
equipment:
Activity
Provided personal protective
equipment (PPE)
Relevant standard
Hot product removal
Heat protective gloves
EN 407
Mechanical
maintenance
Gloves to protect against
mechanical hazards
EN 388
Depending on conditions of the working environment in which the equipment is
installed, the above list does not exclude the possible need for other personal
protective equipment.

Safety
305066 7 / 26
EN
Warning Signs on the Appliance
DANGEROUS VOLTAGE
Dangerous voltage inside. Contact leads to electric shock or burns.
Disconnect the appliance from the power supply before carrying out
maintenance and service work.
HOT SURFACE! RISK OF BURNS!
This symbol indicates areas that become very hot during operation.
Do not touch hot surfaces nor components.
RISK OF CRUSHING caused by rotating components
Do not remove the maintenance area cover during operation.
WARNING!
Failure to observe these instructions may result in serious injury.

Safety
8 / 26 305066
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Keeping food warm in suitable containers.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Heating-up flammable, hazardous to health and volatile, etc. liquids and
materials.

General information
305066 9 / 26
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
10 / 26 305066
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
305066 11 / 26
EN
4 Technical Data
4.1 Technical Specifications
Version / Characteristics 305066 / 305067 / 305068
•Temperature control: thermostat
•Water tray for air moistening: no
•Heating type: dry-heated
•Internal lighting
•Illumination: halogens
•Front glass:
–rounded
–hinged
•Type of glazing:
–single glazing
–all-round glazing
–safety glass
•Door type:
–305067 –lift-up door
–305066+305068 –2x sliding door
•Door position: rear side
•Control: knob
•Indicator lights:
–heating-up
–operation
•Features:
–condensate drawer
–thermometer
•The set does not include: GN containers
We reserve the right to implement technical modifications.

Technical Data
12 / 26 305066
EN
Name:
Hot display GN2110-R
Art. No.:
305066
Material:
stainless steel, glass
Gastronorm:
2 x 1/1 GN
GN container depth, in mm:
40
Volume, in l:
95
Temperature range, min.–max., in °C:
30 - 110
Number of shelves:
1
Shelf type:
grid rack, stainless steel
Shelves dimensions (W x D), in mm:
580 x 325
Connected load:
2,1 kW | 230 V | 50/60 Hz
Dimensions (W x D x H), in mm:
755 x 822 x 558
Weight, in kg:
59,6
Name:
Hot display GN1110-R
Art. No.:
305067
Material:
stainless steel, glass
Gastronorm:
1 x 1/1 GN
GN container depth, in mm:
40
Volume, in l:
85
Temperature range, min.–max., in °C:
30 - 110
Number of shelves:
1
Shelf type:
grid rack, stainless steel
Shelves dimensions (W x D), in mm:
350 x 325
Connected load:
1,65 kW | 230 V | 50/60 Hz
Dimensions (W x D x H), in mm:
502 x 810 x 558
Weight, in kg:
44,8

Technical Data
305066 13 / 26
EN
Name:
Hot display GN3110-R
Art. No.:
305068
Material:
stainless steel, glass
Gastronorm:
1 x 1/1 GN
GN container depth, in mm:
40
Volume, in l:
185
Temperature range, min.–max., in °C:
30 - 100
Number of shelves:
1
Shelf type:
grid rack, stainless steel
Shelves dimensions (W x D), in mm:
920 x 325
Connected load:
3,65 kW | 230 V | 50/60 Hz
Dimensions (W x D x H), in mm:
1092 x 810 x 558
Weight, in kg:
84,0
4.2 Functions of the Appliance
The hot display is designed to keep prepared food warm at the set temperature
from 30°C to 110°C for the desired period of time.
The individual equipment with GN containers and shelf offers tailor-made use of the
hot display. The hinged front glass and removable condensate drawer allow easy
cleaning.

Technical Data
14 / 26 305066
EN
4.3 List of Components of the Appliance
305067
Fig. 1

Technical Data
305066 15 / 26
EN
Description for Fig. 1
1. Internal lighting
2. Round front glass
3. Air ventilation openings
4. Heating element (1 pcs)
5. Maintenance area cover
6. Housing
7. Advertising and price panel with
lighting
8. Shelf
9. Lifting door
10.Thermometer
11.Ventilation openings
12.Lifting door handle
13.Feet (4 pcs)
14.Condensate drawer
15.Control elements

Technical Data
16 / 26 305066
EN
305066 / 305068
Fig. 2

Installation and operation
305066 17 / 26
EN
Description for Fig. 2
1. Internal lighting (2 lights)
2. Round front glass
3. Ventilation openings
4. Thermometer
5. Heating element (2 pcs)
6. GN containers bars
7. Air ventilation openings
8. Maintenance area cover
9. Housing
10.Advertising and price panel with
lighting
11.Shelf
12.Sliding door (2 pcs)
13.Feet (4 pcs)
14.Condensate drawer
15.Control elements
5 Installation and operation
5.1 Installation
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.

Installation and operation
18 / 26 305066
EN
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Leave at least 20 cm clearance from flammable walls and items.
