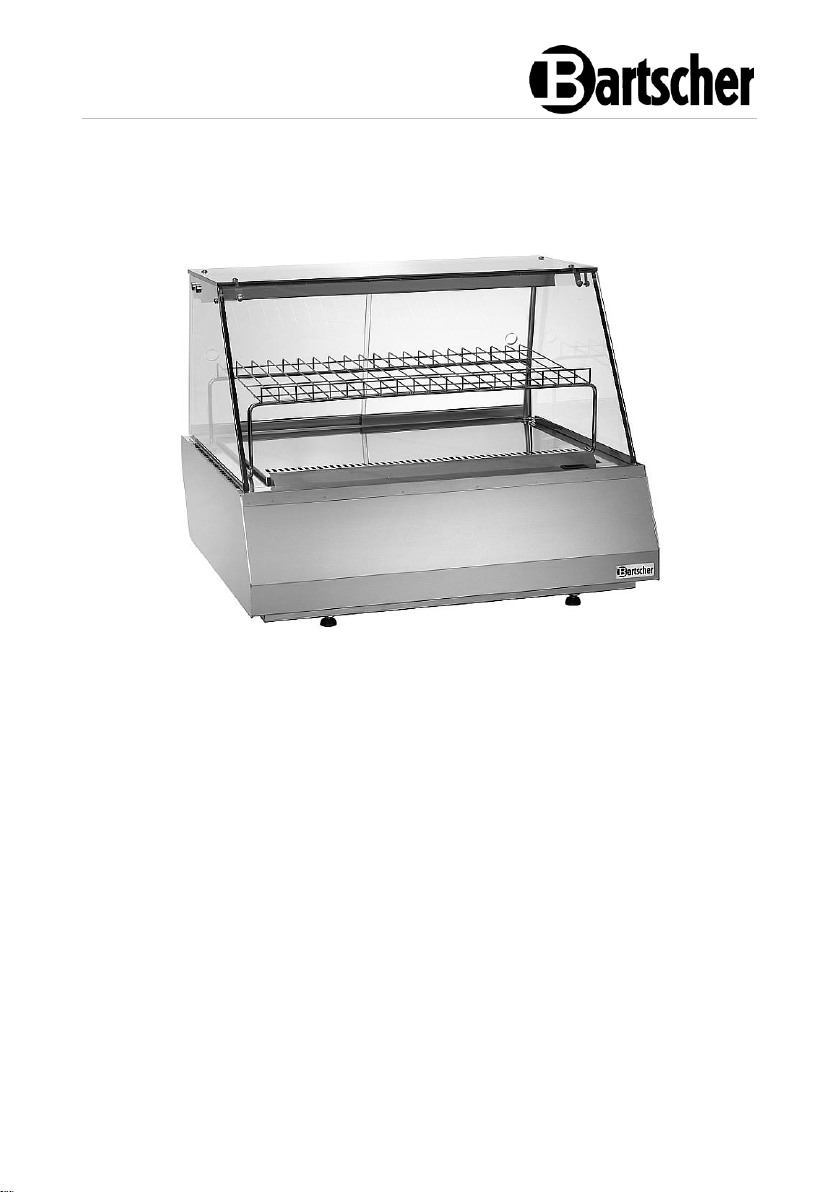

Bartscher 2/1 GN User manual

2/1 GN - 3/1 GN - 3/1 GN
406055 - 406056 - 405057

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2019-11-18
EN

406055 1 / 20
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of signal words.....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended use............................................................................................6
1.4 Unintended use........................................................................................6
2General information.......................................................................................7
2.1 Liability and warranty...............................................................................7
2.2 Copyright protection.................................................................................7
2.3 Declaration of conformity.........................................................................7
3Transport, packaging and storage.................................................................8
3.1 Delivery check .........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical data...............................................................................................9
4.1 Technical specifications...........................................................................9
4.2 List of components of the appliance.......................................................11
4.3 Functions of the appliance..................................................................... 11
5Installation and operation ............................................................................12
5.1 Installation..............................................................................................12
5.2 Operation............................................................................................... 13
6Cleaning ......................................................................................................17
6.1 Safety Instructions for cleaning..............................................................17
6.2 Cleaning.................................................................................................17
7Disposal....................................................................................................... 18

Safety
2 / 20 406055
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Di e Kenntnis aller enthalt enenSic herheitshinw eiseu ndH andlungs anweisungen schafft die V oraussetzung f ürd as sichere und sac hgerechte Arbeite n mitd emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Un fallverhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eingehalt en werden. Diese Bedi enungsanleitung is t Bestandteil des Pro dukts und muss in u nmittelbarer Nähe des Ger äts für das In¬stallations-, Bedienungs-, Wartungs- und Reinigu ngspersonal jed erzeitz ugänglich auf¬b ewahrt werden. Wenn d as Gerät an eine dritte Pers on
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of signal words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
406055 3 / 20
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.
•Always completely unwind the power cord.

Safety
4 / 20 406055
EN
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
Incorrect operation of th e appliance may cause fire or explosion hazard d uet oig nition of its content.
Fire hazard / flammable materials hazard / explosion hazard!
•Do not use any electric devices in the appliance.
•Do not store nor use petrol or other flammable liquids and gases in the vicinity of
this or any other appliance. Those gases may cause fire or explosion hazard.
•Do not put into the appliance any explosive materials, like sprays filled with
flammable propellants. Contents of containers filled with flammable gases and
liquids may leak in low temperatures, and the contents may catch fire from
sparks generated by an electric appliance. Explosion hazard!
•In the case of coolant leakage, pull the plug from the socket. Remove all
sources of ignition in the vicinity, ventilate room and contact technical service.
Avoid coolant getting in contact with eyes, as it may cause serious eye damage.
•Never use any flammable liquids for cleaning the appliance or its parts. Gases
released may cause fire or explosion hazard.
•In the case of fire, disconnect the appliance from the power supply before
attempting adequate fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
•Defrosting process may not be sped up with mechanical means or heat energy
sources (candles or heaters) nor with any other means. Vapour produced may
cause short-circuit and too high temperatures may damage the appliance.
•All ventilation slots should not be obstructed during operation.
•Never attempt to damage cooling installation of the appliance.

Safety
406055 5 / 20
EN
Operating personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Improper use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your
own.
•Do not introduce any changes in the appliance nor modify it.
•Do not drill hole in the appliance nor install any objects on it.
•Do not place any heavy objects on the appliance.

Safety
6 / 20 406055
EN
1.3 Intended use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Cooling food products in suitable GN containers, on plates, etc.
1.4 Unintended use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.

General information
406055 7 / 20
EN
2 General information
2.1 Liability and warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, packaging and storage
8 / 20 406055
EN
3 Transport, packaging and storage
3.1 Delivery check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical data
406055 9 / 20
EN
4 Technical data
4.1 Technical specifications
Version / Characteristics of refrigerated displays
•Cooling: circulating air
•Type of glazing: all-round glass, single glazing
•Safety glass
•Control: electronic
•Automatic defrosting function
•Digital display
•ON/OFF switch
•Indicator lights: ON/OFF
•Door type: sliding door
•Sliding door position: rear side
•Type of shelves: grille, CNS 18/10, without height adjustment
•Internal lighting: halogen, switched separately
Name:
Refr. display 2/1 GN, straight glass
Art. No.:
406055
Material:
CNS 18/10, Glass
Volume, in l:
110
Gastronorm:
2/1 GN
Max. GN container depth, in mm:
65
Temperature range in °C:
6 - 10
Coolant, amount in kg:
R290 / 0,090
Climate class:
4
Number of sliding doors:
2
Number of shelves:
1
Shelves dimensions (W x D), in mm:
660 x 410
Power supply:
0,43 kW / 230 V / 50 Hz
Dimensions (W x D x H) in mm:
750 x 775 x 600
Weight in kg:
78,6

Technical data
10 / 20 406055
EN
Name:
Refr. display 3/1 GN, straight glass
Art. No.:
406056
Material:
CNS 18/10, Glass
Volume, in l:
165
Gastronorm:
3/1 GN
Max. GN container depth, in mm:
65
Temperature range in °C:
6 - 10
Coolant, amount in kg:
R290 / 0,100
Climate class:
4
Number of sliding doors:
2
Number of shelves:
1
Shelves dimensions (W x D), in mm:
990 x 410
Power supply:
0,43 kW / 230 V / 50 Hz
Dimensions (W x D x H) in mm:
1.080 x 775 x 600
Weight in kg:
97,4
Name:
Refr. display 3/1GN, curved glass
Art. No.:
405057
Material:
CNS 18/10, Glas
Volume, in l:
165
Gastronorm:
3/1 GN
Max. GN container depth, in mm:
65
Temperature range in °C:
6 - 10
Coolant, amount in kg:
R290 / 0,100
Climate class:
4
Number of sliding doors:
2
Number of shelves:
1
Shelves dimensions (W x D), in mm:
990 x 410
Power supply:
0,46 kW / 230 V / 50 Hz
Dimensions (W x D x H) in mm:
1.080 x 775 x 600
Weight in kg:
80
We reserve the right to implement technical modifications!

Technical data
406055 11 / 20
EN
4.2 List of components of the appliance
Delivery without GN containers!
1. Internal lighting
2. Sliding door (2x)
3. Surface for GN containers
4. Housing
5. Feet (4x)
6. Ventilation openings
7. Internal lighting ON/OFF switch
8. Power cord
9. ON/OFF switch with integrated
power indicator light (green)
10.Digital temperature regulator
11.Shelf
4.3 Functions of the appliance
Suitable food products in GN containers, on plates, in bowls, etc. are cooled
through the required time in the set temperature.

Installation and operation
12 / 20 406055
EN
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
•Nie należy umieszcz ać urządzeni a w gorącym o toczeniu ani w pobliżu materiał ów łatwopaln ych.
•The appliance requir ess ufficient airflow for proper operation. Assure a minimum lateral cl earance of the appliance of 10 cm.
•DieÖ ffnungen am Gerät niemals abdecken o derbl ockieren.
•Do not place the appliance in direct sunlight or in the vicinity of heat sources
(cooker, radiator, heating devices, etc.). Heat sources may negatively affect
power consumption, and restrict functions of the appliance, too.
•The electric socket sho uldb e easily accessible so it is possible to quickly disco nnect the power cord whenn ecessary. The electric socket sho uldb e easily accessible so it is possible to quickly discon nectt he power cord whenn ecessary. The electric socket sho uldb e easily accessible so it is pos sible toq uickly discon nectt he power cord whe nnec essary.
•Nie należy umieszcz ać urządzeni a w gorącym o toczeniu ani w pobliżu materiał ów łatwopaln ych.
•The appliance requir ess ufficient airflow for proper operation. Assure a minimum lateral cl earance of the appliance of 10 cm.
•DieÖ ffnungen am Gerät niemals abdecken o derbl ockieren.
•Place the appliance so that sufficient air circulation is ensured. Do not block nor
cover ventilation openings in the rear wall of the appliance.
•Leave at least 10 cm clearance from walls and other objects.

Installation and operation
406055 13 / 20
EN
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•Prior to first use, the appliance should be installed and left standing upright for at
least 2 hours, before it is connected to power supply.
•After a power failure or when the plug is removed from the socket, do not
reconnect the appliance to power supply for at least 5 minutes.
5.2 Operation
Tips for the user
•To limit loss of cold air minimize the opening time of doors. Moreover, the sliding
doors should not be opened too often.
•Do not obstruct ventilation openings inside the refrigerated display. The air must
freely circulate to provide for cooling functionality.
•The food products stored in the appliance must be arranged in sufficient
distances between them. Insufficient distances hinder the cooling effect.
•Cool warm food products down to ambient temperature before placing them the
appliance.
•If possible, in the event of a sudden power failure, avoid opening sliding doors in
order to avoid loss of cool air.
Preparation of the appliance
1. Prior to first operation, clean the appliance and its equipment according to
instructions in section 6 “Cleaning”.
2. To end with, dry the appliance and accessories thoroughly.
3. Place the shelves i the appliance.
4. Close the appliance door.
5. Plug the appliance into a suitable single socket.
6. Press the ON/OFF switch to “I” position, to switch the appliance on.
The green power indicator light in the ON/OFF switch lights up.
7. Place the prepared food products only after the appropriate cooling capacity has
been reached.

Installation and operation
14 / 20 406055
EN

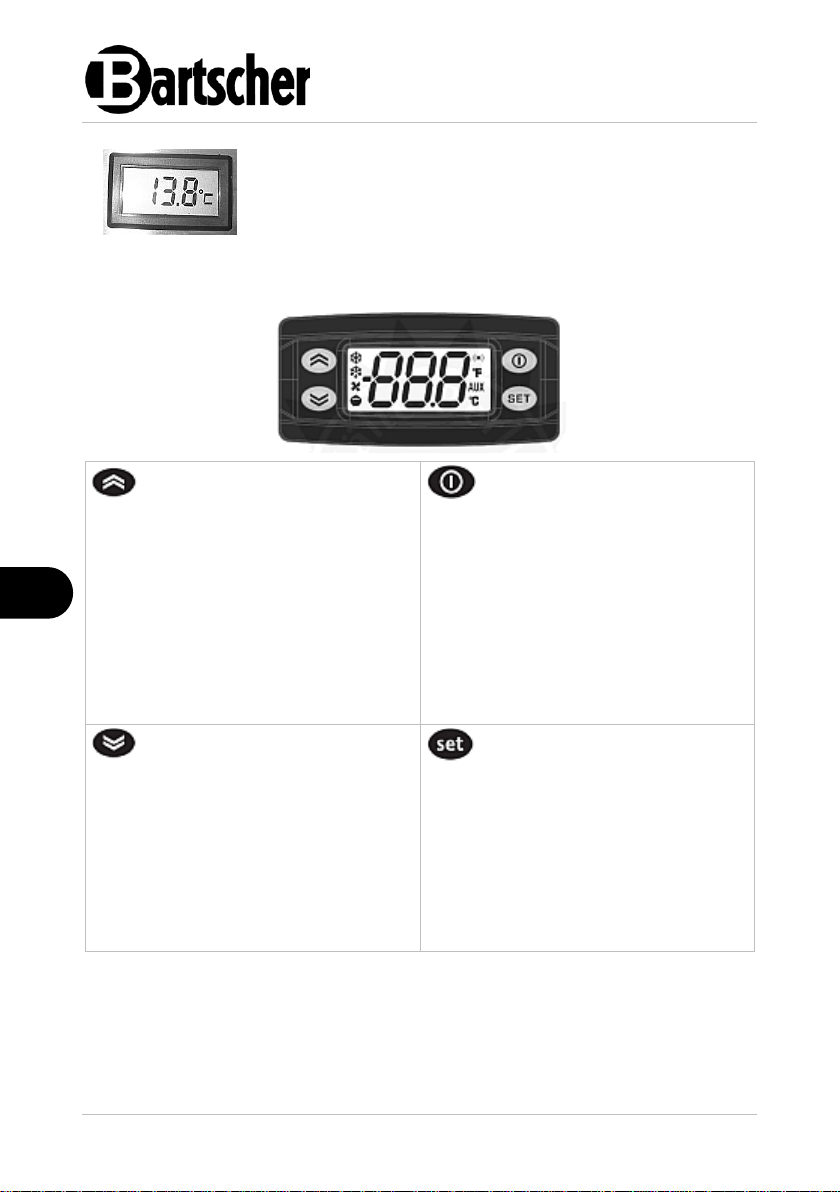

8. The temperature in the refrigerated display is shown on
the temperature display at the front of the appliance.
Functions of buttons
UP
Pressed shortly
•Scrolls through menu options
•Increases the value
Pressed and held for at least 5 sec.
•Activates manual defrosting function
STANDBY (ESC)
Pressed shortly
•One level up in comparison to the
current menu
•Confirming the parameter value
Pressed and held for at least 5 sec.
•Activates STANDBY (Off) function
(if you are not navigating through
the menu)
DOWN
Pressed shortly
•Scrolls through menu options
•Reduces the value
Pressed and held for at least 5 sec.
•User-configured function (see H32
parameter)
SET (ENTER)
Pressed shortly
•Alarm display (if available)
•Access to appliance status menu
Pressed and held for at least 5 sec.
•Access to programming menu
•Confirming orders

Installation and operation
406055 15 / 20
EN
LED Indicators
Cooling
Alarm
Lights
constantly:
Compressor is ON
Lights
constantly:
Alarm is present
Flashes:
Delay, protection or
activation blocked
Flashes:
Alarm snoozed
Defrosting function
°F
Lights
constantly:
Defrosting function
active
Lights
constantly:
°F setting (dro=1)
Flashes:
Manual activation or
via DE
Blower
AUX
Lights
constantly:
Blower is OFF
Lights
constantly:
AUX output is OFF
Flashes:
Freezing cycle
Reduced set value/Economy
°C
Flashes:
Reduced set value/
Economy
Lights
constantly:
°C setting (dro=0)
Flashes
fast:
Access to parameter
level 2
When the appliance is switched on, the indicator lights test is carried out; the
display and the LED diodes are blinking for a couple of seconds in order to
control their proper operation.
Setting the temperature (set value)
1. Press the button once for a moment.
'SET' will be shown on the display.
2. To display the set value, press the button again.
3. To set the required set value, press the or button within 15 seconds.
4. Press the button to confirm the set data.
NOTE:

Installation and operation
16 / 20 406055
EN
If no button is operated for more than 15 seconds (Timeout) or when the
button is pressed once, the last value shown on the display will be
adopted and the last message will be displayed again.
Automatic Defrosting
The appliance defrosts automatically 4 times over 24-hour period. The timer
initiates with the first activation.
If there is a need for the change of automatic defrosting phases, press the
button and hold it for more than 5 seconds. The appliance will start defrosting
immediately, and the next defrosting process will commence after 6 hours.
Manual Defrosting
Additionally, aside of the automatic defrosting, manual defrosting may be activated:
press and hold the button for more than 5 seconds. The manual defrosting is
initiated.
The process is activated only when certain temperature conditions are fulfilled. If
they are not fulfilled, the display will blink three times to communicate that the
process is not carried out.
NOTE!
If additional parameter settings are necessary, contact technical service.
Switching internal lighting ON/OFF
1. If there is the need for switching the internal lighting on, use the dedicated
ON/OFF switch (white) at the operating side of the appliance.
2. When the lighting is not to be used any more, it should be switched off with the
ON/OFF switch (white).

Cleaning
406055 17 / 20
EN
Switching the appliance off
1. When the appliance is not to be used any more, it should be switched off with
the ON/OFF switch at the operating side of the appliance.
2. Disconnect the appliance from power supply by pulling the plug out.
6 Cleaning
6.1 Safety Instructions for cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. Clean the appliance regularly at the end of a working day.
2. Remove all objects from the appliance.
3. Remove the shelf from the appliance.
4. Clean the shelf with mild washing agent and soft cloth or sponge in warm water.
Rinse the shelves with clean water and dry thoroughly with soft cloth.
5. Wash the surface for GN containers thoroughly, using warm water and a soft
cloth. Use mild cleaning agent if required. Wipe the washed surfaces with a
cloth moistened in clean water.
6. Wipe the glass panes and glass sliding doors thoroughly with a soft, damp cloth.
7. Clean the housing and power cord with a soft, damp cloth only.
8. Finally, dry thoroughly all washed surfaces.
9. Place the shelf back in the appliance.
10.Regularly remove dust and fibres from ventilation openings at the operating side
of the appliance, using a soft brush or dust brush.
11.After cleaning, leave the glass sliding doors open for the appliance to dry
completely.

Disposal
18 / 20 406055
EN
12.If the appliance is not to be used for a longer period of time, clean it according to
the instructions above. Leave the appliance open to prevent generation of
unpleasant odours inside.
7 Disposal
Electrical appliance
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
Electrical appliances should be returned to designated collection points.
Coolant
The propellant used in the appliance is flammable. It should be utilised pursuant to
national regulations in force.
