Bartscher 3x1/1 GN User guide

3x1/1 GN - 4x1/1 GN - 6x1/1 GN
125614 - 125628 - 125624

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2019-12-11
EN

125614 1 / 21
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of signal words.....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended use............................................................................................6
1.4 Unintended use........................................................................................6
2General information.......................................................................................7
2.1 Liability and warranty...............................................................................7
2.2 Copyright protection.................................................................................7
2.3 Declaration of conformity.........................................................................7
3Transport, packaging and storage.................................................................8
3.1 Delivery check .........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical data...............................................................................................9
4.1 Technical specifications...........................................................................9

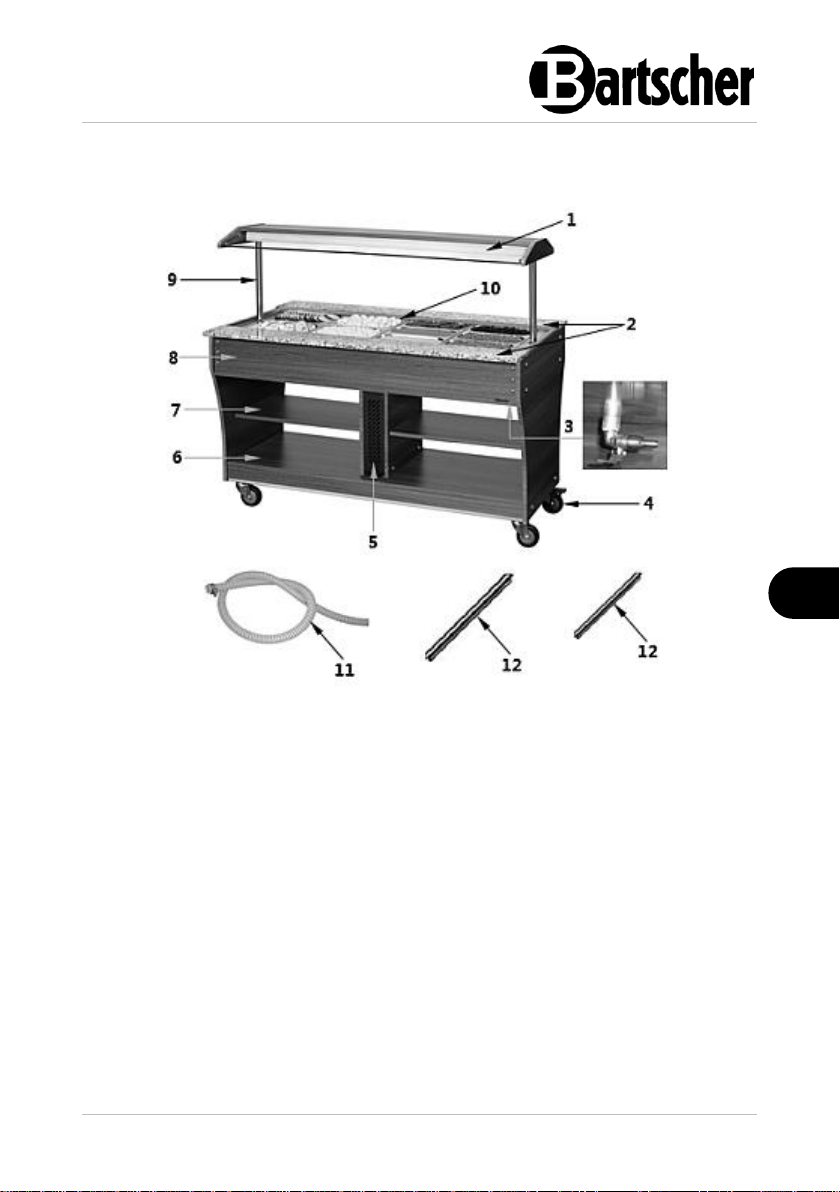

4.2 List of components of the appliance.......................................................11
4.3 Functions of the appliance..................................................................... 12
5Installation and operation ............................................................................12
5.1 Installation..............................................................................................12
5.2 Operation............................................................................................... 16
6Cleaning ......................................................................................................18
6.1 Safety Instructions for cleaning..............................................................18
6.2 Cleaning.................................................................................................19
7Disposal....................................................................................................... 19

Safety
2 / 21 125614
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des G erätsu ndg ilt als wichtige Infor mationsquelle und Nach schlagewerk. Di e Kenntnis aller enthalt enenSic herheitshinw eiseu nd Handlungs anweisungen schafft die V oraussetzung für das sich ere und sachg erechte Arbeite n mitd emG erät. Darüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Unfall verhütungsvorsc hriften und allgem einen Sicherheitsb estimmungen eingeh alten werden. Diese Bedi enungsanleitung ist Bestandteil des Prod ukts und muss i n unmittelbarer Nähe d es Geräts für das In¬stall ations-, Bedienungs-, Wartungs- und Reinigu ngspersonal jed erzeitz ugänglich auf¬b ewahrt werden. Wenn d as Gerät an eine dritte Pers on
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of signal words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
125614 3 / 21
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.
•Always completely unwind the power cord.

Safety
4 / 21 125614
EN
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
Flammable materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Hot surfaces
•Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
•Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.

Safety
125614 5 / 21
EN
Operating personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Supervised usage only
•Only supervised appliance may be used.
•Always remain in an immediate vicinity of the appliance.
Improper use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your
own.
•Do not introduce any changes in the appliance nor modify it.

Safety
6 / 21 125614
EN
1.3 Intended use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Keeping the prepared food warm in suitable GN containers.
1.4 Unintended use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Heating-up flammable, hazardous to health and volatile, etc. liquids and
materials.

General information
125614 7 / 21
EN
2 General information
2.1 Liability and warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, packaging and storage
8 / 21 125614
EN
3 Transport, packaging and storage
3.1 Delivery check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical data
125614 9 / 21
EN
4 Technical data
4.1 Technical specifications
Version / Characteristics
•Delivery form: self-assembly set (simple assembly)
•Colour: teak
•Worktop made of Rosa Porrino granite
•Stainless steel basin
•Drain tap
•Sneeze guard
•Lighting: on the sneeze guard
•4 swivel castors, 2 with brakes
•Control: knob
•Indicator light: ON/OFF, heating-up
Name:
Buffet trolley, hot, 3x1/1 GN
Art. No.:
125614
Material:
Wood
Temperature range, min.–max., in °C:
30 - 90
Number of basins:
1
Basin size, GN format
3 x 1/1 GN
Max. GN container depth, in mm:
150
Power supply:
2 kW / 230 V / 50/60 Hz
Dimensions (W x D x H) in mm:
1.200 x 880 x 1.370
Weight in kg:
112

Technical data
10 / 21 125614
EN
Name:
Buffet trolley, hot, 4x1/1 GN
Art. No.:
125628
Material:
Wood
Temperature range, min.–max., in °C:
30 - 90
Number of basins:
1
Basin size, GN format
4 x 1/1 GN
Max. GN container depth, in mm:
150
Power supply:
3 kW / 230 V / 50/60 Hz
Dimensions (W x D x H) in mm:
1.490 x 880 x 1.370
Weight in kg:
136
Name:
Buffet trolley, hot, 6x1/1 GN
Art. No.:
125624
Material:
Wood
Temperature range, min.–max., in °C:
30 - 90
Number of basins:
2
Basin size, GN format
6 x 1/1 GN
Max. GN container depth, in mm:
150
Power supply:
4 kW / 230 V / 50/60 Hz
Dimensions (W x D x H) in mm:
2.150 x 880 x 1.370
Weight in kg:
184
We reserve the right to implement technical modifications!

Technical data
125614 11 / 21
EN
4.2 List of components of the appliance
The delivery does not include GN containers and decorations!
Fig. 1
1. Sneeze guard with lighting
2. Worktops
3. Water drain tap
4. Swivel castors (4 pcs), 2 with
brakes
5. Ventilation openings
6. Lower baseplate
7. Shelf
8. Body
9. Poles for sneeze guard (2)
10.GN containers basin
11.Water drain hose
12.GN containers bars

Installation and operation
12 / 21 125614
EN
Additional accessories
Buffet trolleys are prepared for assembling suitable tray slides on both sides (at the
front and at the back). Fixing materials are included in the delivery.
The tray slides presented below (see table below) are not included in the delivery.
Fig. 2
Buffet trolley
Tray slide
125614
125502
W 1,140 x D 312 mm
125628
125503
W 1,460 x D 312 mm
125624
125504
W 2,115 x D 312 mm
4.3 Functions of the appliance
The buffet trolley is intended for displaying and serving warm food prepared in
suitable GN containers.
5 Installation and operation
5.1 Installation
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.

Installation and operation
125614 13 / 21
EN
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Leave at least 20 cm clearance from flammable walls and items.

Installation and operation
14 / 21 125614
EN
Assembly of the sneeze guard on the buffet trolley
NOTE!
2 persons are needed to assemble all components!
1. Assemble the sneeze guard with integrated lighting on the appliance (Fig. 3).
Fig. 3
2. In order to fix the sneeze guard (1), place the poles (9) in holes prepared for this
end in the body (8) of the appliance.
3. Fit the sneeze guard (1) on the poles (9) so that the factory assembled pins
would slide in the surfaces of the poles designed to this end.
4. Then, fix the sneeze guard (1) on the poles (9), using the included nuts (a), with
3 at each side.
5. Pay attention to the channels for sneeze guard (1) lighting cables.
6. Connect the lighting power cord with the designated plug.

Installation and operation
125614 15 / 21
EN
Assembly of tray slides
Fig. 4
1. To assemble the support ③(Fig. 4) of the tray slide, use 'A' and 'B' holes (the
1st and 2nd hole from the top in the wooden panel).
2. First, remove the guards from the holes.
3. Assemble the support ③on the wooden panel, by screwing together the '1'
screw with the 'A' hole and the '2' screw with the 'B' hole.
4. Fit the tray slide ①onto the supports and fix it with the enclosed distance screw
②.
5. If needed, the tray slide may be folded (Fig. 5).
Fig. 5
•When the appliance is move to the selected location, block the swivel castors
with parking brakes.

Installation and operation
16 / 21 125614
EN
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•Do not use the appliance with an external timer or remote control.
•In order to connect the 125624 model, 2 separate sockets are required.
5.2 Operation
•Przed pierwszym u życiem w yczyścić urządzeni e i wyposażenie zg odnie ze ws kazówkami za wartymi w pu nkcie 6 „Czyszc zenie”. Ma kes ure no water enters elec tric installati on and connection box. Następni e dokładnie os uszyć urządzenie i element y wyposażenia.
•Setzen Sie die Boden-A bdeckung in das Bec kenei n.T hec over acts as a spac erbet ween the heating elem ent andl eft-over foo d tray.
•Carefully insert the con nection box with the heating element at the back edge o ft he appliance. A pin in botto m parto ft hec onnecti onb ox must enter a hole in the main ap pliance. This way the con nection box is properly mounted.
Preparation of the appliance
1. Before use, clean the appliance, observing instructions in section 6 'Cleaning'.
2. Dry the appliance thoroughly.
3. Make sure the drain tap is closed.
4. Make sure that the appliance is switched off.
5. Pour water to the GN containers basin.
ATTENTION!
Never use the appliance without water.
The water level may reach maximum of 6 cm.
Check the water level in the GN container basin regularly. If needed, top up with
water.

Installation and operation
125614 17 / 21
EN
•Przed pierwszym u życiem w yczyścić urządzeni e i wyposażenie zg odnie ze ws kazówkami za wartymi w pu nkcie 6 „Czyszc zenie”. Ma ke sure no water enters electric ins tallation and co nnection b ox. Następnie do kładnie osusz yć urządzenie i elementy wyposaż enia.
•Setzen Sie die Boden-A bdeckung in das Bec kenei n.T hec over acts as a spac erbet ween the heating elem ent andl eft-over foo d tray.
•Carefully insert the con nection box with the heating element at the back edge oft he appliance. A pin in b ottom part of the connection b ox must enter a hole in the main applia nce. This way the co nnection box is prop erly mounted.
Tips for the user
•Do not place any heavy objects on the sneeze guard (for example, do not place
a stack of plates).
•To place the utensils, etc., use the shelves or lower working surfaces.
•Place warm foods into the appliance, so that they are ready to be served faster.
Control Panel
1.
Heating up indicator light
2.
Lighting switch
3.
ON/OFF switch with integrated power
indicator light
4.
Temperature controller
Fig. 6
Appliance start-up
The 125624 buffet trolley is equipped with 2 separate heaters, which independently
heat up the divided area of the GN containers basin.
The temperature regulation of individual areas is effected with two separate control
panels at the back of the appliance.
If needed, only one part of the buffet trolley may be used.
1. Switch the appliance on with the ON/OFF switch.
The green indicator light in the ON/OFF switch lights up.
2. Set the desired temperature within the range of 30°C –90°C with the
temperature controller.
The heat-up control lamp turns on.
As soon as the set temperature is reached, the heating up indicator light goes off
and lights up again, when the temperature of the GN containers basin drops and
the heater switches on again.
3. If needed, switch the lighting on the sneeze guard, using a suitable switch.

Cleaning
18 / 21 125614
EN
Heating of food
1. Fill in the GN containers with warm food and place them in the GN containers
basin.
2. Serve the warm food as needed.
Switching the appliance off / draining water
1. If the appliance is not be used any more, set the temperature controller to '0'
position.
2. Switch the appliance off with the ON/OFF switch and disconnect it from the
mains socket (pull the plug out).
WARNING! Risk of burns!
The water in the GN containers basin may heat up considerably.
Wait for the water to cool down before draining.
3. Fit the supplied water drain hose on the water drain tap under the GN containers
basin.
4. Open the water drain tap and drain the water to a suitable container.
6 Cleaning
6.1 Safety Instructions for cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
