Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................7
1.4 Unintended Use.......................................................................................7
2General information.......................................................................................8
2.1 Liability and Warranty ..............................................................................8
2.2 Copyright Protection ................................................................................8
2.3 Declaration of Conformity ........................................................................8
3Transport, Packaging and Storage................................................................9
3.1 Delivery Check.........................................................................................9
3.2 Packaging................................................................................................9
3.3 Storage....................................................................................................9
4Technical Data.............................................................................................10
4.1 Technical Specifications ........................................................................10
4.2 List of Components of the Appliance .....................................................11
4.3 Functions of the Appliance.....................................................................11
5Installation and operation ............................................................................12
5.1 Installation..............................................................................................12
5.2 Operation...............................................................................................13
6Cleaning ......................................................................................................19
6.1 Safety Instructions for Cleaning.............................................................19
6.2 Cleaning.................................................................................................19
7Possible Malfunctions..................................................................................19
8Disposal....................................................................................................... 20

Safety
2 / 22 105859
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des G erätsu ndg ilt als wichtige Infor mationsquelle und N achschlagewer k.Die Ke nntnis aller enthaltene nSic herheitshin weise und Handlungs anweisungen schaf ft dieV oraussetzung f ürd as sichere und sachger echte Arbeiten mit d emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Unfall verhütungsvorsc hriften und allgemeine n Sicherheitsbesti mmungen eing ehalten werden. Diese Bedi enungsanleitung is t Bestandteil des Prod ukts und muss in unmitt elbarerN ähe des Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
105859 3 / 22
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 22 105859
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Safety of Induction Plate Operation
•During operation, the heating area is getting very hot.
Information: Induction cooker does not generate heat in the process of
cooking. Nevertheless, the temperature of cookware heats up the heating
area and the surface remains hot after use. Do not touch any hot surfaces
of the appliance.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
•Do not put metal kitchen utensils, lids, knifes nor any other metal objects on the
heating area. These objects might heat up after switching the appliance on.
•Remember that wearable items, e.g. rings, watches etc., may heat up when they
are close to the cooker’s plate.

Safety
105859 5 / 22
EN
•In order to avoid overheating, do not place any aluminium foil or metal plates on
the heating surface of the appliance.
•Do not heat up sealed containers, e.g. canned food, on the heating area of the
induction cooker. Resulting overpressure may cause explosion (rupture) of a
container or a can. The canned food is best to open it, put it in a pot filled with
water and place the pot on a heating area in order to heat it up.
•The heating area is made of a temperature-resistant glass. In case of damage,
even if it is only a small fracture, the device should be immediately disconnected
from the power supply and you should contact the service company.
Electromagnetic Fields
•Magnetized items, e.g. credit cards, data storage devices or calculators, may
not be placed in an immediate vicinity of the switched on appliance. Magnetic
field might damage them.
•Do not open the bottom cover!
•Cookware should always be placed in the middle of the cooking area, so that
pot bottom covered the electromagnetic field to the maximum extent.
•Scientific researches proved that induction cookers pose no threat.
Nevertheless, people with cardiac pacemaker should keep a distance of at least
60 cm from the working appliance.

Safety
6 / 22 105859
EN
Supervised Usage only
•Only supervised appliance may be used.
•Always remain in an immediate vicinity of the appliance.
Operating personnel
•This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.

Safety
105859 7 / 22
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Preparing and heating-up foods with the use of suitable cookware.
This appliance is intended for use in households and similar places, e.g.:
–in employee canteens in shops, offices, and similar areas;
–on farms;
–by customers in hotels, motels, and other typical accommodation
establishments;
–in lodging-houses.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Heating of rooms.
–Heating-up flammable, hazardous to health and volatile, etc. liquids and
materials.

General information
8 / 22 105859
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
105859 9 / 22
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
10 / 22 105859
EN
4 Technical Data
4.1 Technical Specifications
Name:
Induction cooker IK 35TCKTF
Article number:
105859
Material:
stainless steel
Heating plate material:
glass
Number of hobs:
1
Glass hob dimensions (W x D), in mm:
285 x 285
Hob diameter, in mm:
240
Power output per hob:
3,5 kW
Number of power output levels:
17
Connected load:
3,5 kW | 230 V | 50 Hz
Dimensions (W x D x H), in mm:
340 x 430 x 120
Weight, in kg:
7
We reserve the right to implement technical modifications.
Version / Characteristics
•Appliance connection: ready to plug in
•Type of hob: induction
•Control: electronic, touch
•Regulation of:
–output, temperature, time
•Timer
•Thermal core probe, cable length of 50 cm
•Cookware detection
•Digital display
•Overheating protection
•ON/OFF switch
•Indicator light:
–ON/OFF, power, temperature, time

Technical Data
105859 11 / 22
EN
•Control: electronic, touch
•Dust filter and grease filter
•Thermal core probe holder
4.2 List of Components of the Appliance

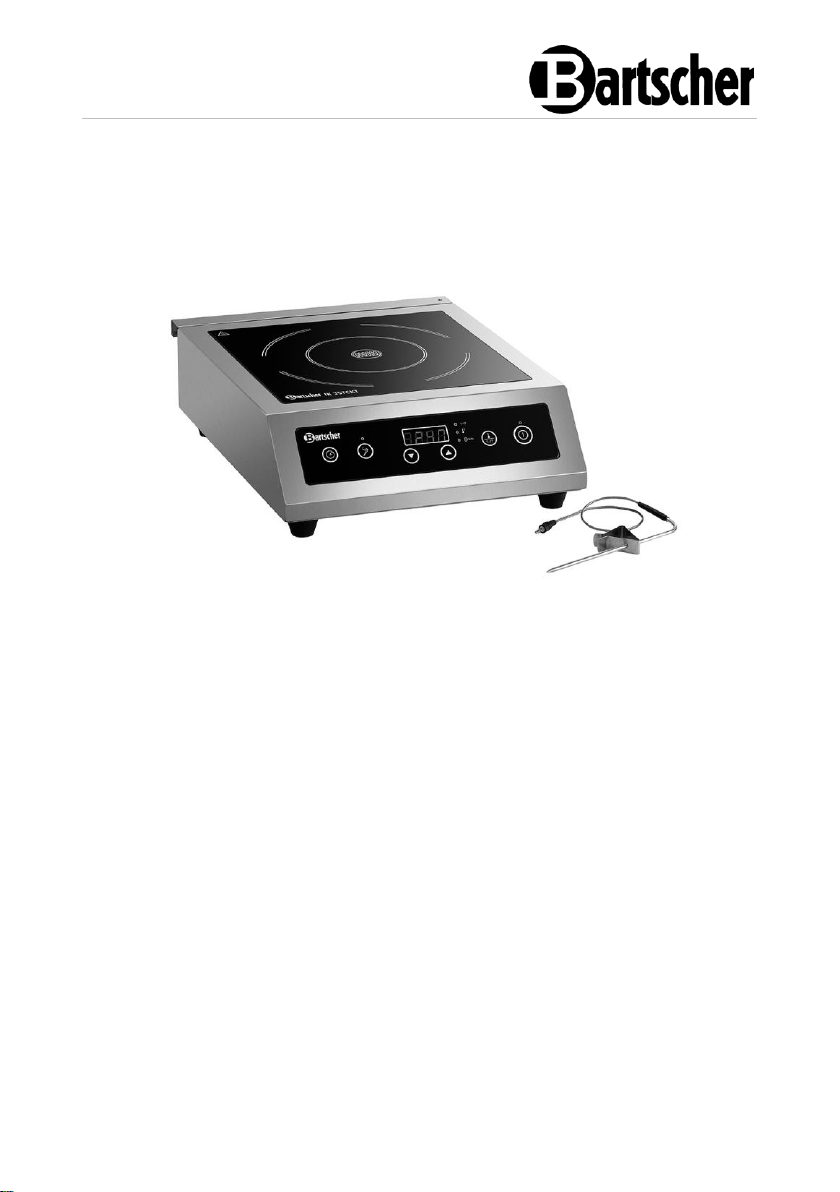

Fig. 1
1. Power cord
2. Hob
3. Control panel
4. Thermal core probe with line
5. Feet (4 pcs)
6. Housing
7. Thermal core probe connection
8. Fan (2 pcs)
4.3 Functions of the Appliance
The induction cooker is intended for preparation and heating of foods using
appropriate cookware.
The 3.5 kW induction cooker provides considerable power in any given place. The
power output is controlled in a simple way —through touch control mechanism.

Installation and operation
12 / 22 105859
EN
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
•Do not place the appliance in the vicinity of devices or objects that are sensitive
to magnetic fields (e.g. radio, television, etc.).
•Leave at least 5 -10 cm clearance from flammable walls and other objects.

Installation and operation
105859 13 / 22
EN
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•Do not use the appliance with an external timer or remote control.
5.2 Operation
Method of operation of heating plates
In induction cookers the electric voltage is applied to a conductive coil under the
glass. This generates magnetic field, which being a physical effect, heats the
bottom of a cookware directly.
This translates to savings of time and energy, as —contradictory to traditional
heating areas —there is no heating up of a heater and then of the glass heating
plate.
Another advantage of the technical features described above is the very short
cooking time.
Additionally, inflow of heat changes instantly with every change of settings and it
may be controlled precisely. The induction heating plate reacts to changes in
settings as fast a gas cooker, for the energy is delivered immediately to a pot,
without the need to prior heating up of other materials.
The induction technology combines the speed of reaction with a basic benefit of the
current, making it possible to precisely control heat inflow.

Installation and operation
14 / 22 105859
EN
Suitable Cookware
•Iron cookware
•Enamelled iron cookware
•Steel or enamelled cast iron pots/pans
•Cast iron pots/pans
•Cookware made of 18/0 stainless steel
and aluminium if marked as suitable for
induction (mind the description of the
cookware)

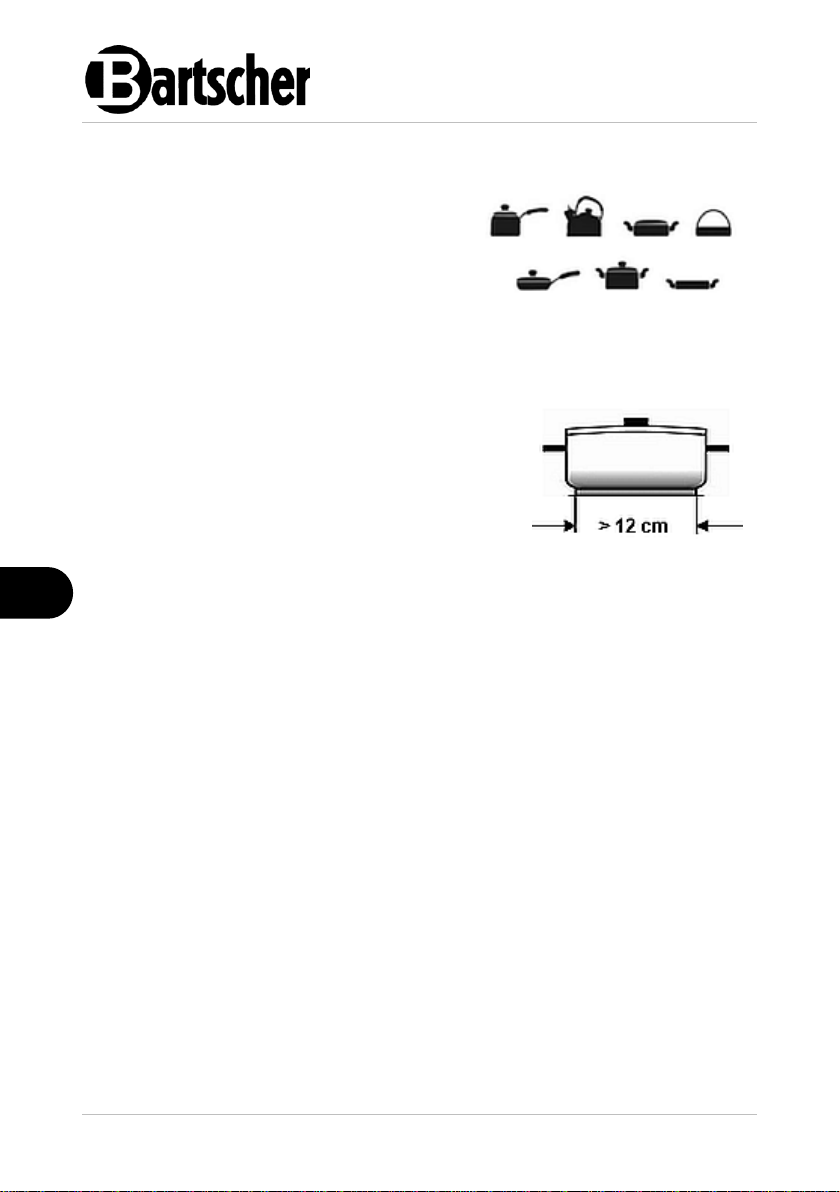

Due to a specific way the induction plate operates,
only cookware with a bottom subject to
magnetization is suitable.
To obtain better results, use only pans/pots with a
diameter of 12–26 cm.
Example:
Induction cooker cookware, Bartscher 9-piece set of cookware
Chrome-nickel steel, anti-drip edges, non-heating handles
4 pots with lids
2.0 litre, 16 cm diameter, H 10.0 cm
2.7 litre, 18 cm diameter, H 11.0 cm
5.1 litre, 24 cm diameter, H 11.5 cm
6.1 litre, 20 cm diameter, H 20.0 cm
1 pan
2.8 litre, 24 cm diameter, H 6.5 cm
Art. No.: A130442

Installation and operation
105859 15 / 22
EN
Not Suitable Cookware
•Containers with bulged bottoms
•Aluminium, brass, copper cookware
unless they are clearly indicated as
suitable for induction
•Pots/pans with a diameter below
12 cm
•Cookware with feet
•Ceramic cookware
•Glass cookware
Control Elements / Displayed Messages
Fig. 2
1. Thermal core probe indicator light
2. Digital display
3. Indicator lights: output, temperature,
time
4. ON/OFF indicator light
5. ON/OFF switch
6. Temperature mode or output
mode key
7. Time, temperature or output increase
key
8. Time, temperature or output
decrease key
9. Thermal core probe key
10.Time setting key

Installation and operation
16 / 22 105859
EN
Before Use
1. Before use, clean the appliance, observing instructions in section 6'Cleaning'.
2. Dry the appliance thoroughly.

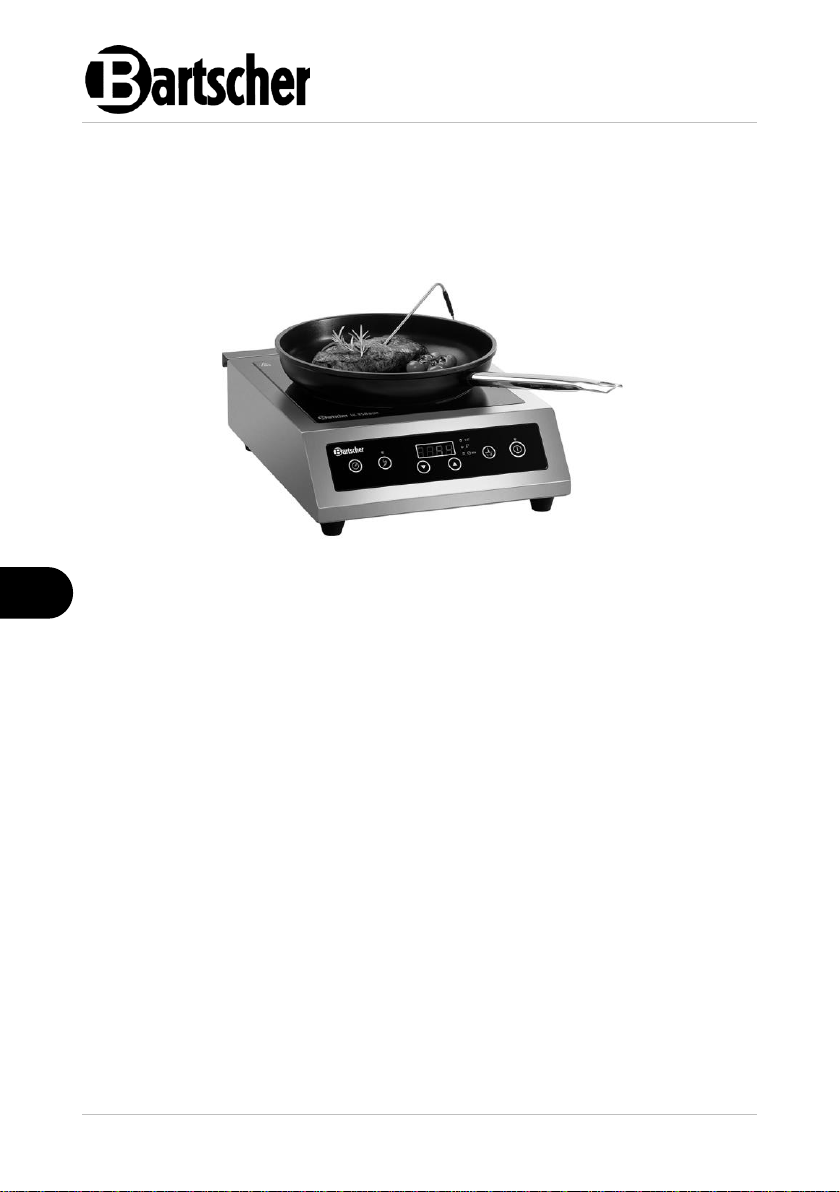

3. Place appropriate cookware with food in the middle of the hob.
Fig. 3
Settings
1. Plug the appliance into a single grounded socket.
2. Activate the ON/OFF switch (5, Fig. 2) to switch the appliance on.
Four bars are displayed in the digital display and an acoustic signal is generated.
The appliance is now in standby.
3. Operate one of the keys with an arrow (7 or 8) to switch the appliance into the
standby mode.
The appliance may operate the following way:
–in output mode (levels 1–17)
–in temperature mode (60–240°C)
Additionally, the appliance makes it possible to measure core temperature with the
thermal core probe (40–160°C).
Output Levels
After switching on, digital display shows the default output level 11.
1. Press the output mode key (6) to go to the temperature mode.
2. Using the arrow button (7 or 8), select the output level in the range of 1–17.

Installation and operation
105859 17 / 22
EN
The output level setting may be changed during operation using arrow keys (7 or 8).
Temperature Levels
1. Press the temperature mode key or output mode key (6) to go to the
temperature mode.
By default, the appliance is set to 120°C.
2. Using arrow keys (7 or 8) set the selected temperature.
The following temperature level settings are available:
60, 80, 100, 120, 140, 160, 180, 200, 220 and 240°C.
The digital display shows the selected temperature and the temperature indicator
light (3) is on.
Time
1. Press the temperature mode key or output mode key (6) to set time.
The digital display shows '0'. The time indicator light (3) lights up.
2. Using arrow keys (7 or 8) set the selected time.
Time may be set in the following intervals:
–with 1-minute increments up to 15 minutes
–with 5-minute increments up to 60 minutes
–with 10-minute increments up to 60 minutes
Time may e set from 0:00 to 3:00 hours.
During operation, at any moment, time setting may changed with arrow keys (7 or
8). Time is counted down on the digital display with 1-minute increments.
When time elapses, the appliance switches off automatically, and the fan keeps
operating for a couple of minutes in order to cool the electronics down.
Thermal Core Probe
The appliance is equipped with the thermal core probe, with cookware holder. It
makes it possible to directly measure core temperature in the range of 40–160°C.

Installation and operation
18 / 22 105859
EN

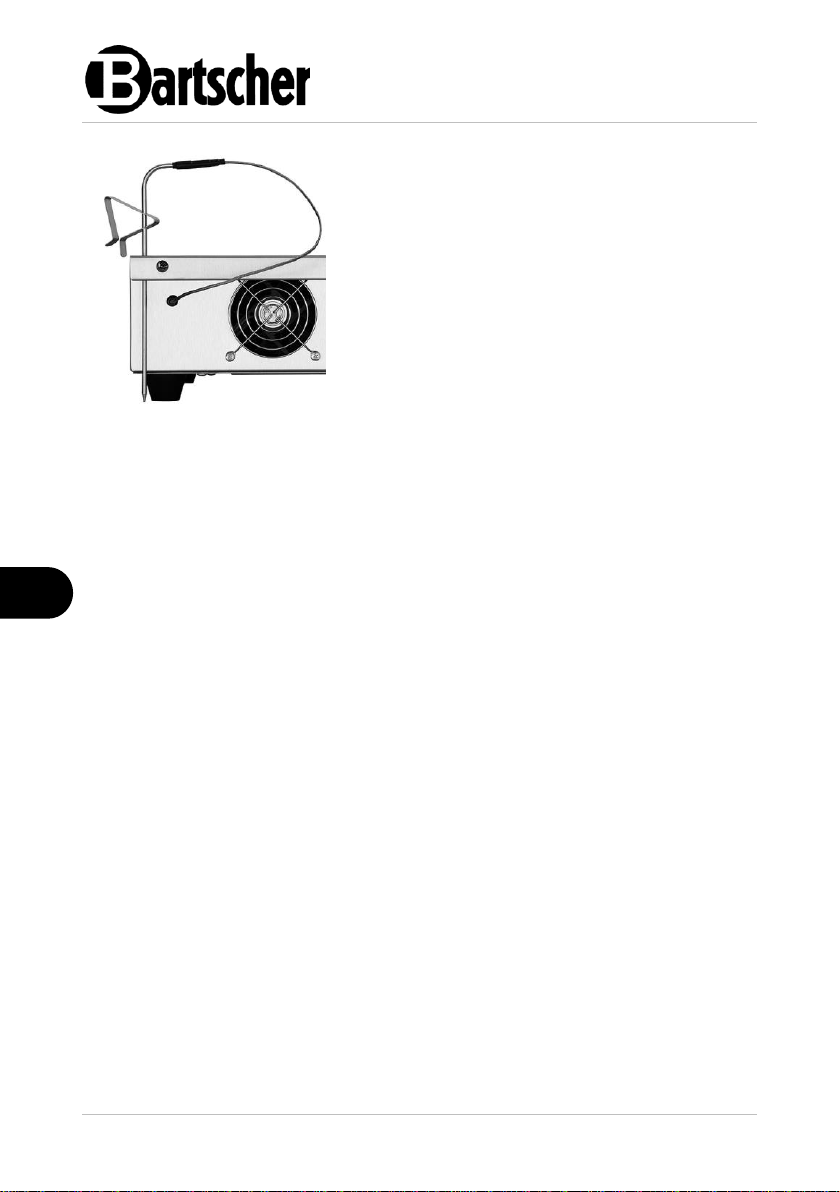

1. Insert the line of the connected thermal core
probe into the connection provided in the
rear wall of the appliance.
2. Activate the thermal core probe key (9) to
operate with the thermal core probe.
The thermal core probe indicator light (1) lights
up.
Fig. 4
3. Place the thermal core probe in a thermally processed product or between
products.
4. To this end, activate the thermal core probe key (9) again.
5. Using arrow keys (7 or 8) set the selected temperature.
The temperature setting may be changed during thermal processing.
6. To do this, press the thermal core probe key (9) and change the temperature
with arrow keys (7 or 8).
Overheating Protection
The appliance is equipped with the overheating protection. When the critical
temperature is exceeded, the appliance will switch off for safety reasons.
ATTENTION!
Heating up an empty pan or frying pan activates the overheating
protection system; a acoustic signal will sound and the appliance will
switch off.
The digital display shows 'E2'.
Never place empty cookware on the hob.
When overheating protection is activated, remove cookware from the hob and
leave the appliance for a few minutes to cool down.
Then, you may start using the appliance again.
