Basic American Slide-W-I-D-E Zenith 9000APS User manual

35"- 39"- 42"
Expandable/Retractable Sleep Deck
Supplemental Service Manual
Slide-W-I-D-E Expandable/Retractable Sleep Deck Supplement 999-0881-190G APR 2015GF Health Products, Inc. - www.grahamfield.com
This Supplemental Service Manual describes important information regarding the Expandable/Retractable Sleep Deck.
It has been included with the Primary Service Manual of your particular bed model (i.e. Zenith 9000 APS, Zenith 9000,
Zenith 7000APS, Zenith 7000, Zenith 5000APS, or Zenith 5000). To avoid personal injury or damage to the bed, read this
entire manual as well as all sections pertaining to your bed model in your bed’s Primary Service Manual before use.
42" 39" 35" 35" 39" 42"
ZZ98674 - with pedal lock
ZZ98774 - 84" Custom
APS78674 - with pedal lock
APS58674 - with low roll casters
APS586741 - with low roll casters and
underbed light
APS586742 - with low roll casters,
underbed light, and onboard
back-up battery
ZG58674 - with low roll casters
ZG78674 - with pedal lock
ZG78674 - with 4 locking casters
Shown with
Expandable/Retractable
Sleep Deck on
Zenith 7000 bed
APS98674 - with pedal lock
APS986741 - with pedal lock, backlit handset, and
underbed light
APS986742 - with pedal lock, backlit handset,
underbed light, and onboard back-up battery
APS9867406 - Export 230V

IMPORTANT NOTICE
GF Health Products, Inc. is not responsible for typographical errors. All illustrations, specifications, packaging, and warranties
contained in this Service Manual are based on the latest product information available at the time of printing. The most current
product information can be found online at www.grahamfield.com.
Check all parts for shipping damage and test before using. In case of damage, DO NOT USE.
Basic American Medical Products
336 Trowbridge Drive
Fond du Lac, WI 54937
For Slide-WIDE Expandable/Retractable Sleep Deck service parts,
contact our Customer Service Department at 770-368-4700
Manufactured by:
GF Health Products, Inc.
2935 Northeast Parkway
Atlanta, GA 30360
www.grahamfield.com
Made in the USA
To order a Slide-WIDE Expandable/Retractable Sleep Deck, contact
a GF Health Products, Inc. sales representative at 770-368-4700
CONTENTS
IMPORTANT SAFETY AND WARNING INFORMATION ..................................................................... 3
FEATURES ........................................................................................................................................... 3
SLEEP DECK POSITIONING ............................................................................................................... 4
HEADBOARD AND FOOTBOARD POSITIONS USING THE QUICK-RELEASE DETENT PINS ..... 5
MATTRESS RETAINER INSTALLATION ............................................................................................. 6
SLEEP DECK SERVICE PARTS .......................................................................................................... 7

IMPORTANT SAFETY AND WARNING INFORMATION
WARNING: Read and follow all instructions. Care must be taken when adjusting your
Slide-W-I-D-E Expandable/Retractable Sleep Deck. To avoid possible injury, keep hands
clear of deck ends when expanding or retracting, especially near the headboard or
footboard. To avoid pinching, the deck should only be adjusted from the side. Assist
devices and mattress should be removed prior to adjusting the deck.
 WARNING:Whenexpandingorretractingthedeck,makesuretorstremovethe
quick-release detent pins located on the underside of both sides of the foot deck and head
deck. Make sure to re-insert the pins into the proper width holes before allowing patient
into the bed to avoid injury to the patient and damage to the decks. Pins must be fully
seated before any operation of the bed.
WARNING: Caregivers should be aware that the corners of the deck system may extend
slightly past the headboard and footboard at the corners. Care should be taken to avoid
these areas when moving around the bed.
WARNING: Patient body weight should be evenly distributed over the sleeping surface of
the bed. DO NOT allow the patient to lie, sit, or lean in such a way that their entire body
weight is placed only on the raised head or foot section, or only one side of the bed.
This especially applies when repositioning or transferring a patient in or out of the bed.
Increased risk may occur when the patient’s size and/or weight are inappropriate for the
bed’s dimensions or weight capacity. See your service manual for proper Maximum Safe
Working Load for your model bed.

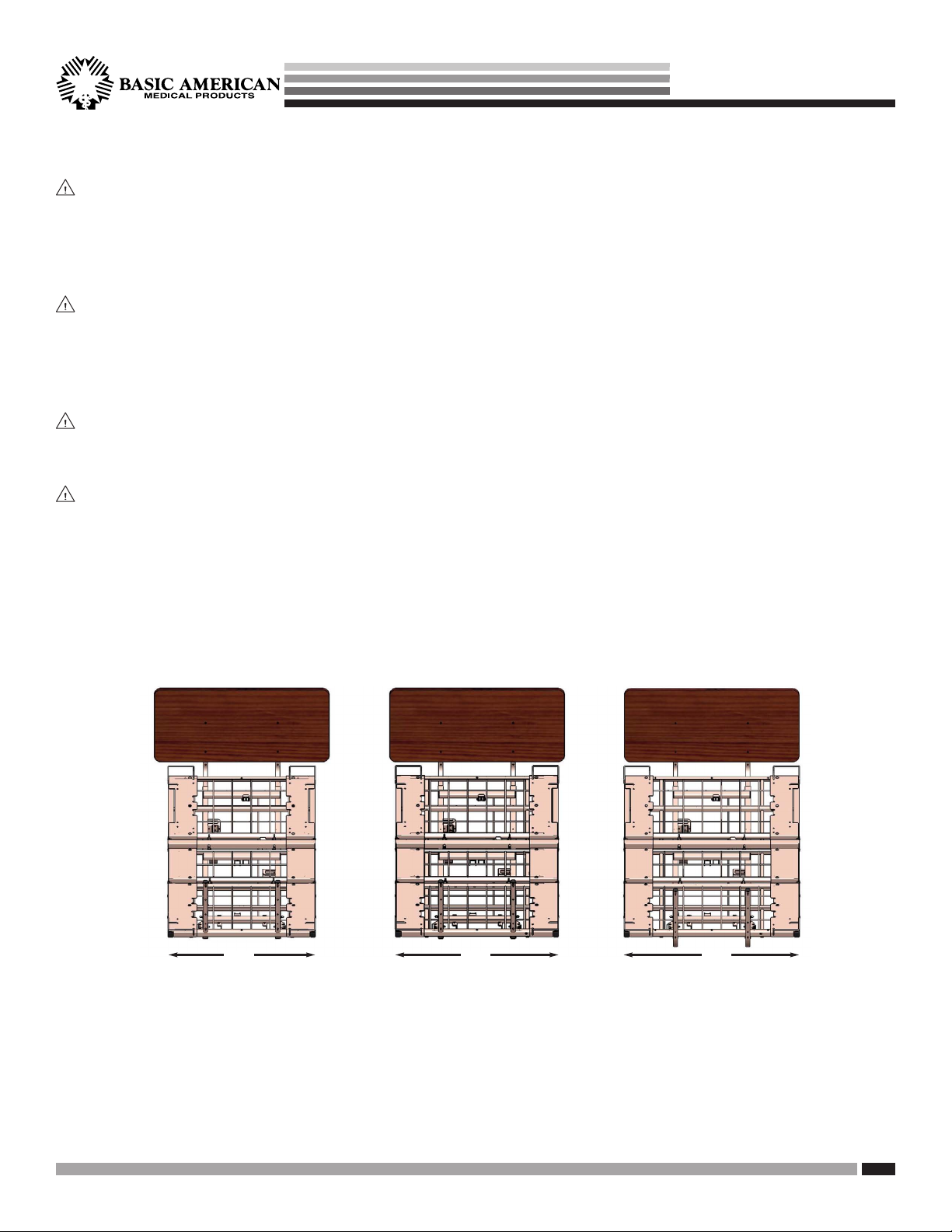

FEATURES
35"
Fully Retracted
39"
Partly Expanded
42"
Fully Expanded
• Expandable/Retractabledeckquicklyandeasilyadjuststo35”,39”,and42”withtwoquick-release
ball-detentpinsoneachside.
• Quickadjustmentisidealformovingthroughnarrowdoorways.
• Allpinsareattachedtothebedwithlanyards,eliminatinglostparts.
• Wideheadboardsandfootboardsareavailableinboth39"and42"widths(bothsoldseparately).
• Railsandassistdevicesfeaturequick-releasesystems-notoolsarerequiredforassemblyof
thesedevices(refertoyourbedmodel’sServiceManualformoredetails).
GFHealthProducts,Inc.-www.grahameld.com Slide-W-I-D-EExpandable/RetractableSleepDeckSupplement999-0881-190G
ZENITHSERIES
3

REMOVE THE MATTRESS AND ASSIST
DEVICES BEFORE ADJUSTING THE BED.
DO NOT ADJUST THE BED WHILE
OCCUPIED BY PATIENT.
35" Position
Fully Retracted
39" Position
Partially Expanded
42" Position
Fully Expanded Detent Pin Ball
Mainframe Tube
Deck Tube
Labels on deck sides indicate
locations of 4 removable
detent pins
View of underside of bed is shown below for
reference only. Sleep deck positioning is
performed while bed is upright.
SLEEP DECK POSITIONING
1. TheSlide-W-I-D-EExpandable/RetractableSleepDeckcanbesettooneofthreewidths:
 FullyRetracted=35";PartlyExpanded=39";andFullyExpanded=42".
2. Toadjustthedeckposition,rstremoveallfourquick-releasedetentpinsfromtheundersideof
bothHeadandFootDecksbypullingoutthepinsbythesmallrings.Eachdetentpinisattached
toalanyardwhichisconnectedtoascrewontheundersideofthedecktopreventmisplacement
(seeillustrationsbelow).
3. Standatthesideofthebedandplaceyourhandsnearthe
detentpinlabels(yourhandsmustbethiswidelyspaced)
andholdtheentireleftorrightsideoftheexpandabledeck
(nottheends).Pullthedeckouttowardyoutoexpand,
orpushthedeckinwardtowardcentertoretract.Onthe
underside,alignthedesiredholepositiononthedeckinsert
tubeswiththesingleholeintheendofthemainframecross
tubes(seebelow).
4. IMPORTANT:Reinsertthedetentpininallfourlocations
(A-D),ensuringtheballattheendofthedetentpin
extendsthroughtheothersideofallfourmainframe
positionholes.
GFHealthProducts,Inc.-www.grahameld.com Slide-W-I-D-EExpandable/RetractableSleepDeckSupplement999-0881-190G
ZENITHSERIES
4

HEADBOARD FOOTBOARD
Inserts
on inside
CENTER
OF BED
CENTER
OF BED
Inserts
on outside
40mm
Bolts
40mm
Bolts
IMPORTANT:
76" OR 80" HEADBOARD AND FOOTBOARD POSITIONS
MUST MATCH RETAINER AND WALLSAVER POSITIONS.
SEE BED SERVICE MANUAL.
5/16 X 1.625" Detent Pin
with Lanyard 100-7931-011
Quantity = four (two per board)
first mounting
tube hole for both
76" and 80" positions
first mounting
tube hole for both
76" and 80" positions
80" hole position
(first bottom hole
from end)
76" hole position
(second bottom hole
from end)
Detent Pin (attached
to frame with Lanyard)
76" hole position
(second bottom hole
from end)
80" hole position
(first bottom hole
from end)
Detent Pin (attached
to frame with Lanyard)
HEADBOARD AND FOOTBOARD POSITIONS USING THE
QUICK-RELEASE DETENT PINS
HEADBOARD INSTALLATION
1. Theheadboardhasfourpre-installedinsertsonthe
insidesurface.
2. Positiontwomountingtubesontheoutsideofthe
headboardwith“L”facinginwardtowardcenter
ofbed.Alignthemountingtubetopholeswiththe
headboardtopholes.
3. InsertsocketheadcapscrewsfromPanelMounting
Kitthroughtopholesintoheadboard.
4. Insertasecondsetofsocketheadcapscrews
throughthird-from-toptubeholesintoheadboard.
Handtightenonly.
5. Frombothsides,insertthelanyard-attacheddetent
pinsthroughtheframeholesasshown,ensuringthe
detentpinballsextendcompletelythroughrails.
6. Attheheadend,slidethemountingtube“L”portions
intothemainframerailhollowends.
a. FOR80"BEDLENGTH:Slidethemountingtubes
inuntilthersttubeholesalignwiththerstrail
holesasshownbelow.
b. FOR76"BEDLENGTH:Slidethemountingtubes
inuntilthersttubeholesalignwiththesecond
railholesasshownbelow.
7. Tightenthefourscrewswiththehexkeyincludedin
thekit.
FOOTBOARD INSTALLATION
1.Thefootboardhasfourpre-installedinsertsonthe
outsidesurface.
2. Positiontwomountingtubesontheinsideofthe
footboardwith“L”facinginwardtowardcenterofbed.
Alignthemountingtubetopholeswiththefootboard
topholes.
3. InsertsocketheadcapscrewsfromPanelMounting
Kitthroughtopholesintofootboard.
4. Insertasecondsetofsocketheadcapscrews
throughfourth-from-toptubeholesintofootboard.
Handtightenonly.
5. Frombothsides,insertthelanyard-attacheddetent
pinsthroughtheframeholesasshown,ensuringthe
detentpinballsextendcompletelythroughrails.
6. Atthefootend,slidethemountingtube“L”portions
intothemainframerailhollowends.
a. FOR80”BEDLENGTH:Slidethemountingtubes
inuntilthersttubeholesalignwiththesecond
railholesasshownbelow.
b. FOR76”BEDLENGTH:Slidethemountingtubes
inuntilthersttubeholesalignwiththethirdrail
holesasshownbelow.
7. Tightenthefourscrewswiththehexkeyincludedin
thekit.
GFHealthProducts,Inc.-www.grahameld.com Slide-W-I-D-EExpandable/RetractableSleepDeckSupplement999-0881-190G
ZENITHSERIES
5

MATTRESS RETAINER INSTALLATION
1. TheSlide-W-I-D-EExpandable/RetractableSleepDeckfeaturestwosetsofMattressRetainers
thatarepositionedatbedheadandfootcorners.
2. Toinstall,positionthemattressretainersabovethesleepdeckcornerswithendsperpendicularto
thesleepdecksurfaceandlongcrookedbentendsonoutsideasshownbelow.
3. Inserttherodendsintotheappropriate80"or76"bedlengthholesasshownindetailatbottom
right.
4. Oncebothendsareengaged,tilteachretainertowardthecornersothattheretainerelbowsrest
onthedeck.
IMPORTANT
MATTRESS RETAINERS MUST MATCH
HEADBOARD, FOOTBOARD, AND
WALLSAVER POSITIONS. SEE EACH
BED MODEL’S SERVICE MANUAL.
To attach the four Mattress Retainers,
insert Retainer ends into sleep deck
corner holes, then tilt Retainers down
toward corners
Outside corner
holes used for
80" bed position
Holes used for
76” bed position
NOTE: CROOKED
END IS ALWAYS
ON OUTSIDE
When in final position,
all retainer elbows rest
on sleep deck surface
Left Foot Corner
Mattress Retainer
999-0881-001
HEAD END
FOOT END
Right Foot Corner
Mattress Retainer
999-0881-002
Left Head Corner
Mattress Retainer
999-0881-002
Right Head Corner
Mattress Retainer
999-0881-001
GFHealthProducts,Inc.-www.grahameld.com Slide-W-I-D-EExpandable/RetractableSleepDeckSupplement999-0881-190G
ZENITHSERIES
6

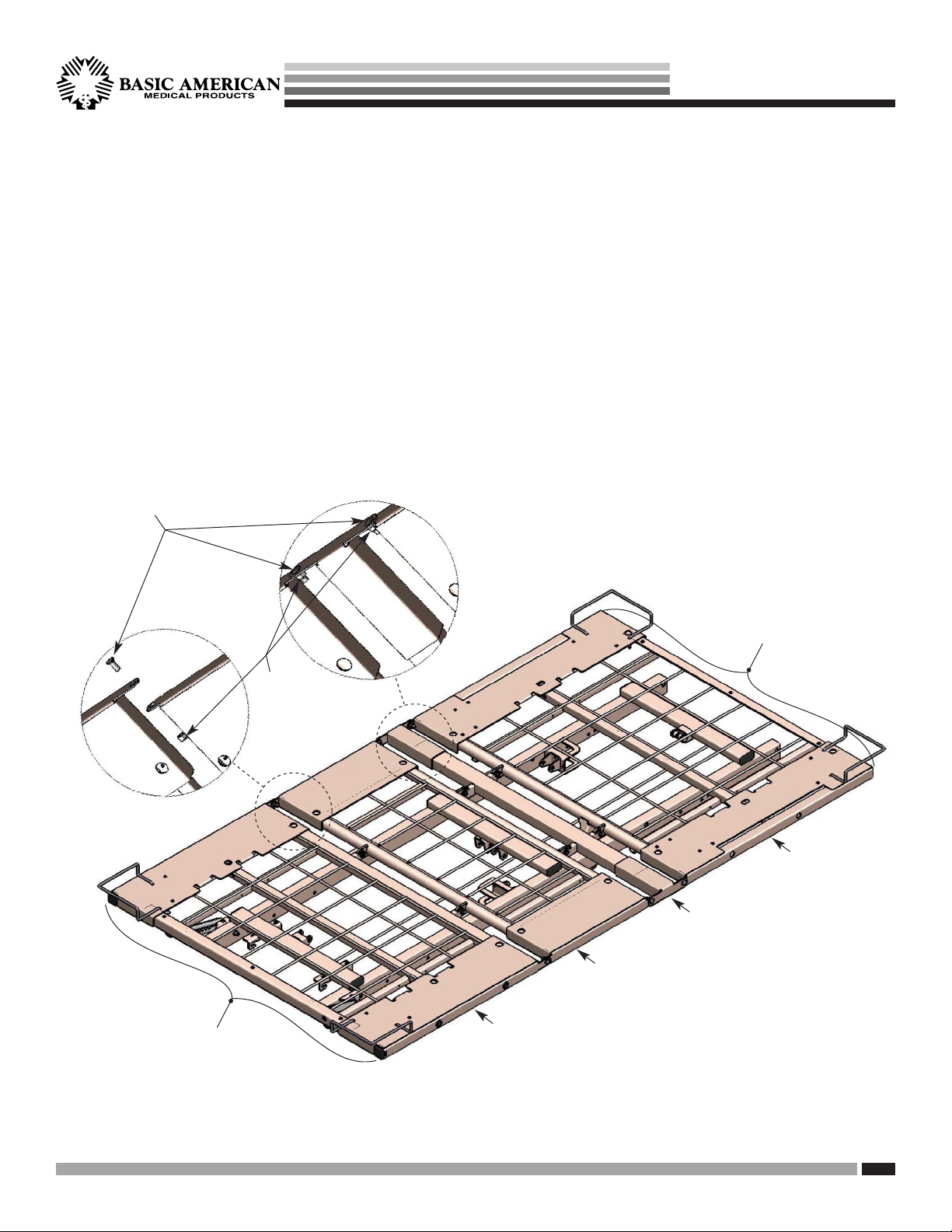

Head Section
Assembly
999-0881-920SP
Head Section
Assembly
Seat Sections
(one on each side)
999-0881-004G
Knee Sections
(one on each side)
999-0881-912G
Foot Section Assembly
999-0881-930SP
1/2" long
Carriage Bolt
100-5231-002
5/16-18
Nylock Nut
100-6731-006
HEAD END
FOOT END
DETAIL: Attachment,
Seat Pan Section to
Head and Knee
Sections
DETAIL:
Attachment,
Knee Section to
Foot Section
Foot Section
Assembly
SLEEP DECK SERVICE PARTS
1. ListedbelowaretheonlySlide-W-I-D-E
AdjustableSleepDeckserviceparts:
• (1)HeadSectionAssembly,complete
(oneperbedrequired);
• (1)FootSectionAssembly,complete
(oneperbedrequired);
• (2)KneeSection,universalsidepiece
(twoperbedrequired);and
• (2)SeatSection,universalsidepiece
(twoperbedrequired)
2. HeadSectionAssemblyandKneeSections
mustbeinstalledbeforeSeatSectionsand
FootSectionAssembly.
 SeatSectionsandFootSectionAssembly
mustbedisassembledbeforeHeadSection
AssemblyandKneeSections.
3. Carriageboltsandnylocknuts,orientedas
shownbelow,canbedisassembledand
assembledusing1/2"deepsocketor1/2"
wrench.
GFHealthProducts,Inc.-www.grahameld.com Slide-W-I-D-EExpandable/RetractableSleepDeckSupplement999-0881-190G
ZENITHSERIES
7

www.grahamfield.com
GF Health Products, Inc.
2935 Northeast Parkway
Atlanta, Georgia 30360
Customer Service: phone [phone], fax [phone]
© 2013 GF Health Products, Inc., All Rights Reserved
Basic American Medical Products, Zenith, and Slide-W-I-D-E
are registered trademarks of GF Health Products, Inc.
