Basic American Slide-W-I-D-E ZZ98674 User manual
Expandable/Retractable Sleep Deck
Supplemental Service Manual
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190B MARCH 2013
This Supplemental Service Manual describes important in ormation regarding the Expandable/Retractable Sleep Sur ace.
It has been included along with the Primary Service Manual o your particular bed Model (i.e. Zenith 9000 APS, Zenith 9000,
Zenith 7000, Zenith 5000, or Zenith 5000 APS). To avoid personal injury or damage to the bed, please read this entire manual
as well as all sections pertaining to your bed model in your bed’s Primary Service Manual be ore use.
42” 39” 35” 35” 39” 42”
With 35”- 39”- 42”
expandable/retractable deck
ZZ98674 - wi h pedal lock
With 35”- 39”- 42”
expandable/retractable deck
APS58674 - wi h low roll cas ers
APS586741 - wi h low roll cas ers &
underbed ligh
APS586742 - wi h low roll cas ers,
underbed ligh & onboard
back-up ba ery
With 35”- 39”- 42”
expandable/retractable deck
ZZ58674 - wi h low roll cas ers
With 35”- 39”- 42”
expandable/retractable deck
ZZ78674 - wi h pedal lock
ZG78674 - wi h 4 locking cas ers

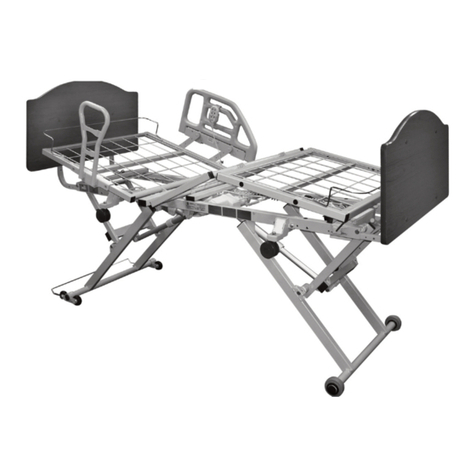

Picture shown with
Expandable/Retractable
Sleep Surface on
a Zenith 9000 bed.
With 35”- 39”- 42”
expandable/retractable deck
APS98674 - wi h pedal lock
APS986741 - wi h pedal lock, backli handse &
underbed ligh
APS986742 - wi h pedal lock, backli handse ,
underbed ligh & onboard
back-up ba ery
This supplemental Service Manual covers the Expandable/Retractable Sleep Deck
on the following bed models:
76” & 80” Full Electric with Grid Decks, Pedal ock, and Ext./Ret. Sleep Deck = ZZ98674 (on Zenith 9000 bed);
76” & 80” Full Electric with Grid Decks, Pedal ock, and Ext./Ret. Sleep Deck = ZZ78674 (on Zenith 7000 bed);
76” & 80” Full Electric with Grid Decks, 4 ocking Casters, and Ext./Ret. Sleep Deck = ZG78674 (on Zenith 7000 bed);
76” & 80” Full Electric with Grid Decks, ow Roll Casters, and Ext./Ret. Sleep Deck = ZG58674 (on Zenith 5000 bed);
76” & 80” Full Electric with Grid Decks, Pedal ock, and Ext./Ret. Sleep Deck = APS98674;
76” & 80” Full Electric with Grid Decks, Pedal ock, Underbed ight, and Ext./Ret.Sleep Deck = APS986741;
76” & 80” Full Electric with Grid Decks, Pedal ock, Underbed ight, Onboard Battery Backup System,
and Ext./Ret.Sleep Deck = APS986742.
76” & 80” Full Electric with ow Roll Caster System, Grid Decks and Ext./Ret. Sleep Deck = APS58674;
76” & 80” Full Electric with ow Roll Caster System, Grid Decks, Underbed ight, and Ext./Ret.Sleep Deck = APS586741;
76” & 80” Full Electric with ow Roll Caster System, Grid Decks, Underbed ight, Onboard Battery Backup System,
and Ext./Ret.Sleep Deck = APS586742.
IMP RTANT N TICE
GF Health Products, Inc. is not responsible for typographical errors.
All illustrations, specifications, packaging, and warranties contained in this Service Manual
are based on the latest product information available at the time of printing.
he most current product information can be found online at www.grahamfield.com.
Please check all parts for shipping damage and test before using.
In case of damage, DO NO USE.
Basic America Medical Products
336 rowbridge Drive
Fond du Lac, WI 54937
For any Expandable/Retractable Sleep Deck Bed Service Parts
please contact our Customer Service Department at
1-800-365-2338
GF Health Products, I c.
2935 Northwest Parkway
Atlanta, GA 30360
www.grahamfield.com
o order an Expandable/Retractable Sleep Deck Bed
please contact a Graham Field Sales Representative at
1-800-554-9215
Zenith SeRieS
3
TABLE F C NTENTS
STANDARD
Specifications/Width Diagrams . . . . . . . . . . . . 4
Positioning Holes for 35”, 39” and 42” . . . . . . . .5
Board Installation . . . . . . . . . . . . . . . . . . . . . . . 6
Special Mattress Retainer Installation . . . . . . . 7
Replacing Expandable/Retractable
Sleep Deck Sections if Needed . . . . . . . . . . . . 8
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
FOR SAFETY WARNINGS AND SYMBOLS PLEASE SEE YOUR BED MODEL’S
SERVICE MANUAL THAT CAME WITH YOUR BED.
EXPANDAB E/RETRACTAB E S EEP DECK SUPP EMENTA MANUA
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190B MARCH 2013
Zenith SeRieS
4
EXPANDAB E/RETRACTAB E S EEP DECK SUPP EMENTA MANUA
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190B MARCH 2013
FEATURES:
1. Expandable/Retractable deck quickly
and easily adjusts to 35”, 39”, and 42”
with two quick-release ball-detent pins
on each side.
2. Quick adjustment is ideal for moving
through narrow doorways.
3. All pins are attached to the bed with
lanyards, eliminating lost parts.
4. Wide head and footboards are available
in both 39” and 42” widths (both sold
separately).
5. Rails and assist devices feature quick-
release systems - no tools are required
for assembly of these devices. (Please
refer to your bed model’s particular
Service Manual for more details).
35.00”
Fully Retracted
39.00”
Partly Expanded
42.00”
Fully Expanded
&/26(832)
+2/(326,7,216
2181'(56,'(
2)6/((3'(&.
2XWVLGH+ROH
IRUEHG
0LGGOH+ROH
IRUEHG
,QVLGH+ROH
IRUEHG
86(48,&.5(/($6(
'(7(173,1)25
)$675(326,7,21,1*
3$57
Zenith SeRieS
5
EXPANDAB E/RETRACTAB E S EEP DECK SUPP EMENTA MANUA
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190B MARCH 2013
SLEEP DECK P SITI NING - 3 H LE VARIATI NS
1. Your Expandable/Retractable
Sleep Deck can be set into
three positions:
a. Fully retracted = 35.00”
b. Expanded partly = 39.00”
c. Fully expanded = 42.00”
2. To adjust the deck positions,
first remove the quick-release
“detent” pins from underneath
the sleep deck.
3. The outside hole in the deck’s
mounting tubes is for a 35”
bed (decks ully retracted).
Push the decks fully inward
on both sides of the bed and
re-insert all the detent pins
through the holes at all four

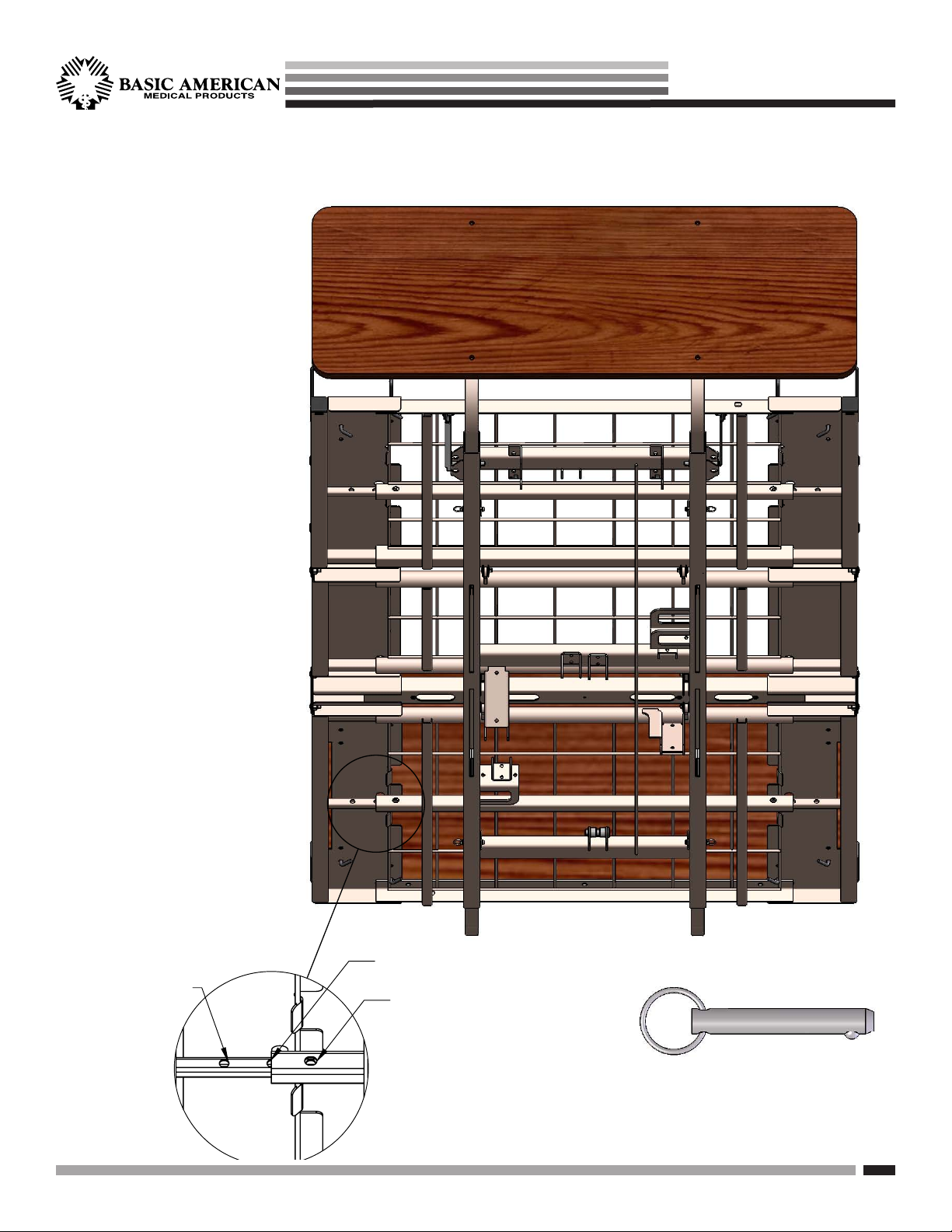

corners shown (1, 2, 3, & 4).
4. The inside hole in the deck’s
mounting tubes is for a 42”
bed (decks ully expanded).
Remove the detent pins and
pull the decks fully outward
on both sides of the bed. Now
re-insert all the detent pins
through the holes at all four
corners shown.
5. The center hole in the deck’s
mounting tubes is for a 39”
bed (decks partly expanded).
Remove the detent pins and
pull the decks outward until
the center hole aligns with the
main frame holes. Re-insert
all the detent pins.
-
USE QUICK-RELEASE
“DETENT” PIN F R
FAST REP SITI NING
(PART 100-7925-009)
Zenith SeRieS
6
EXPANDAB E/RETRACTAB E S EEP DECK SUPP EMENTA MANUA
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190B MARCH 2013
HEADB ARD AND F TB ARD P SITI NS
USING THE QUICK-RELEASE “DETENT” PINS
80” hole
position
(1st bottom
hole in)
Use 1st hole
in mounting
tubes for both
76” and 80”
positions
76” hole
position
(2nd bottom
hole in)
BOARD SHOWN AS
TRANSPARENT
FOR C ARITY
80” hole
position
(2nd bottom
hole in)
“Detent” Pin (attached
to frame with anyard)
“Detent” Pin (attached
to frame with anyard)
Use 1st hole
in mounting
tubes for both
76” and 80”
positions
76” hole
position
(3rd bottom
hole in)
CENTER
OF BED
CENTER
OF BED
IMP RTANT
HEAD & F TB ARD
MUST MATCH RETAINER
& WALLSAVER P SITI NS.
SEE EACH BED M DEL’S
SERVICE MANUAL.
HEADB ARD INSTALLATI N
1. The Headboard comes with four pre-installed inserts -
consider this the inside of the bed (toward center).
2. Attach the boards as shown using the 40mm hex drive
bolts that came with your Panel Mounting Kit.
a. Align top holes in board with TOP holes
in the mounting tubes.
b. From the outside of the tubes, insert the
hex drive bolts and screw them into the
board inserts.
c. Insert a second set in the THIRD holes
down on the tubes and screw into board.
3. Slide the “ ” portions of the Mounting Tubes into the hollow
ends of the main frame rails at the head deck end. Align
the first hole in the mounting tube with the first or second
hole in the main frame rail (see 76” and 80” positions
below). From the outside, insert the attached “detent”
pin (with Lanyard) through the holes. The recessed ball
on the pins should extend out the other side of the rail.
F TB ARD INSTALLATI N
1. The Footboard comes with four pre-installed inserts -
consider this the inside of the bed (toward center).
2. Attach the boards as shown using the 40mm hex drive
bolts that came with your Panel Mounting Kit.
a. Align top holes in board with TOP holes
in the mounting tubes.
b. From the outside of the tubes, insert the
hex drive bolts and screw them into the
board inserts.
c. Insert a second set in the FOURTH holes
down on the tubes and screw into board.
3. Slide the “ ” portions of the Mounting Tubes into the hollow
ends of the main frame rails at the foot deck end. Align
the first hole in the mounting tube with the first or second
hole in the main frame rail (see 76” and 80” positions
below). From the outside, insert the attached “detent”
pin (with Lanyard) through the holes. The recessed ball
on the pins should extend out the other side of the rail.
F TB ARD
HEADB ARD
5/16 X 1.625”
Detent Pin with anyard
(Part # 100-7931-011)
Quantity = 4 (two per board)
Zenith SeRieS
7
EXPANDAB E/RETRACTAB E S EEP DECK SUPP EMENTA MANUA
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190B MARCH 2013
SPECIAL MATTRESS RETAINER INSTALLATI N
F R EXPANDABLE/RETRACTABLE SLEEP DECK
(Part # 999-0881-001 & 999-0881-002)
IMP RTANT
1. The Expandable/Retractable Sleep Deck features two sets of two unique Mattress Retainers
that are positioned in the corners at both the head end and foot end of the bed.
2. To install, position the mattress retainer above the sleep deck corners, with rod ends
perpendicular to the sleep deck surface. ong crooked bent ends go on outside.
3. Insert the rod ends into the appropriate 80” bed or 76” bed holes
(see insert - bottom right).
4. Once engaged, tilt the retainer toward the corner so
that the retainer’s “elbows” rest on the deck.
MATTRESS RETAINERS
MUST MATCH B ARD
& WALLSAVER P SITI NS.
SEE EACH BED M DEL’S
SERVICE MANUAL.
To attach the
four (4) Mattress
Retainers insert
rod ends into
holes in corners
of sleep deck,
then lay down
toward corners.
Outside
corner
holes
used for
80” bed
position.
Inside holes
used for 76”
bed position.
N TE: CR KED
END ALWAYS
G ES N THE
UTSIDE.
When in final
position all
the retainers’
“elbows” rest
on the sleep
deck surface.
LH Foot-end
Mattress Retainer
(Part # 999-0881-001)
HEAD
END
F T
END
RH Foot-end
Mattress Retainer
(Part # 999-0881-002)
LH Head-end
Mattress Retainer
(Part # 999-0881-002)
RH Head-end
Mattress Retainer
(Part # 999-0881-001)
Zenith SeRieS
8
EXPANDAB E/RETRACTAB E S EEP DECK SUPP EMENTA MANUA
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190B MARCH 2013
6WRS
%XWWRQV
6WRS
%XWWRQV
*OLGH
%XWWRQV
+HDG$VVHPEO\
ERWKVLGHV
5LJKW6LGH
)RRW$VVHPEO\
/HIW6LGH
)RRW$VVHPEO\
.QHH$VVHPEO\
ERWKVLGHV
&/26(832)
.1((72)227
$77$&+0(17
;
6PDOO&DUULDJH%ROW
&/26(832)
+($'.1((
726($73$1
;
6PDOO&DUULDJH%ROW
6HDW([WHQVLRQ
%UDFNHW
%RWK6LGHV
;
&DUULDJH%ROW
REPLACEMENT F EXPANDABLE/RETRACTABLE SLEEP DECK
1. The Expandable/Retractable
- Sleep Deck Assembly includes
- Two (2) identical Head Sections,
- Two (2) identical Knee Sections,
- Two (2) identical Seat Sections,
- One (1) right-hand Foot Section &
- One (1) left-hand Foot Section.
2. Begin by sliding a Knee Section
(999-0881-012) into the long
cylindrical tubes on both sides
of the knee deck. Slide
all the way in.
3. Slide the left-hand Foot
Section (999-0881-011)
into the square tubes
on the left side of
the foot deck.
4. Do the same
for the right-hand
side of the bed with
Foot Section (999-0881-014).
Slide both left and right sides all
the way in.
5. Next, slide a Head Section
(999-0881-013) into the square
tubes on both sides of the
head deck. Slide all the way in.
6. From the outside, insert a small
.75” Carriage Bolt (100-5231-001)
through the square hole in the
Foot Section mounting brackets.
From the inside, screw on a
5/16-18 ock Nut. Hand tighten.
7. astly, slide a Seat Pan Extension
Bracket onto both ends of the seat
pan. The end bracket should set
over end hole in the head section
and knee section.
8. From the outside, insert a small
.75” Carriage Bolt (100-5231-001)
through each square hole in the
Seat Pan mounting brackets and,
from the inside, screw on a 5/16-18
ock Nut. Tighten all nuts using a
1/2” open wrench or socket.
Seat Extension
Bracket
(both sides)
999-0881-004
NOTES:
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
Zenith SeRieS
EXPANDAB E/RETRACTAB E S EEP DECK SUPP EMENTA MANUA
9
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190B MARCH 2013
336 rowbridge Dr. • Fond du Lac, WI 54937
Customer Service: 1.800.365.2338 • Fax: 920.929.8213
www.grahamfield.com
© 2013 GF Health Products, Inc.
All Rights Reserved
Basic American Medical Products and Zenith
are registered trademarks of GF Health Products, Inc.
GF1200058RevA13
This manual suits for next models
14
Table of contents
Other Basic American Medical Equipment manuals
Basic American
Basic American ZENITH Series User manual
Basic American
Basic American ZENITH Series User manual
Basic American
Basic American Slide-W-I-D-E Zenith 9000APS User manual
Basic American
Basic American Zenith 7000 User manual
Basic American
Basic American Slide-W-I-D-E Zenith 9000APS User manual
Basic American
Basic American Liberty User manual
Basic American
Basic American ZENITH Series User manual
