Basic American Slide-W-I-D-E Zenith 9000APS User manual

Expandable/Retractable Sleep Deck
Supplemental Service Manual
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190E AUGUST 2014
This Supplemental Service Manual describes important information regarding the Expandable/Retractable Sleep Surface.
It has been included along with the Primary Service Manual of your particular bed Model (i.e. Zenith 9000 APS, Zenith 9000,
Zenith 7000, Zenith 5000, or Zenith 5000 APS). To avoid personal injury or damage to the bed, please read this entire manual
as well as all sections pertaining to your bed model in your bed’s Primary Service Manual before use.
42” 39” 35” 35” 39” 42”
With 35”- 39”- 42”
expandable/retractable deck
ZZ98674 - with pedal lock
ZZ98774 - 84” Custom
With 35”- 39”- 42”
expandable/retractable deck
APS58674 - with low roll casters
APS586741 - with low roll casters &
underbed light
APS586742 - with low roll casters,
underbed light & onboard
back-up battery
With 35”- 39”- 42”
expandable/retractable deck
ZG58674 - with low roll casters
With 35”- 39”- 42”
expandable/retractable deck
ZZ78674 - with pedal lock
ZG78674 - with 4 locking casters

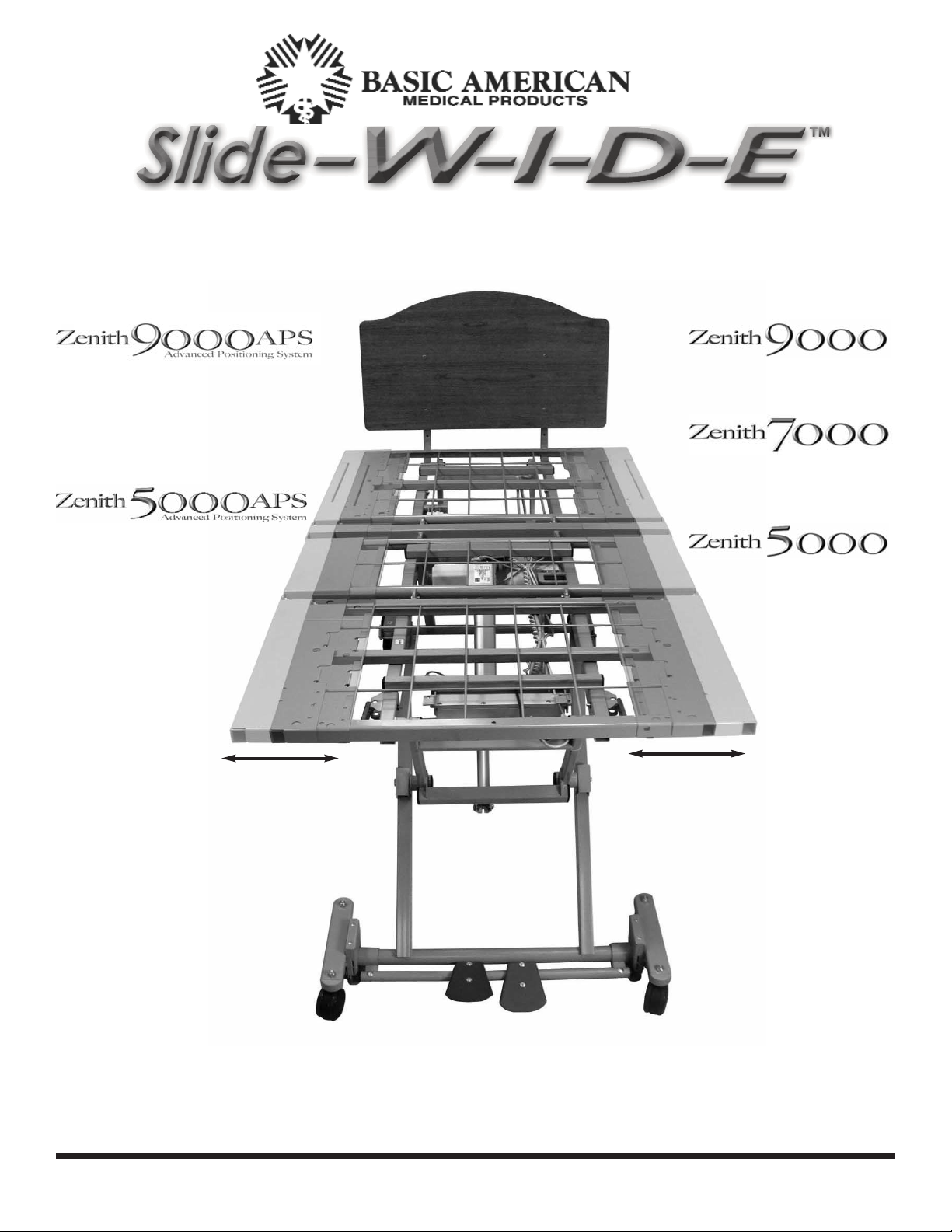

Picture shown with
Expandable/Retractable
Sleep Surface on
a Zenith 9000 bed.
With 35”- 39”- 42”
expandable/retractable deck
APS98674 - with pedal lock
APS986741 - with pedal lock, backlit handset &
underbed light
APS986742 - with pedal lock, backlit handset,
underbed light & onboard
back-up battery
APS9867406 - Export 230V

This supplemental Service Manual covers the Expandable/Retractable Sleep Deck
on the following bed models:
76” & 80” Full Electric with Grid Decks, Pedal Lock, and Ext./Ret. Sleep Deck = ZZ98674 (on Zenith 9000 bed)
84” Full Electric with Grid Decks, Pedal Lock, and Ext./Ret. Sleep Deck = ZZ98774 (on Zenith 9000 bed);
76” & 80” Full Electric with Grid Decks, Pedal Lock, and Ext./Ret. Sleep Deck = ZZ78674 (on Zenith 7000 bed);
76” & 80” Full Electric with Grid Decks, 4 Locking Casters, and Ext./Ret. Sleep Deck = ZG78674 (on Zenith 7000 bed);
76” & 80” Full Electric with Grid Decks, Low Roll Casters, and Ext./Ret. Sleep Deck = ZG58674 (on Zenith 5000 bed);
76” & 80” Full Electric with Grid Decks, Pedal Lock, and Ext./Ret. Sleep Deck = APS98674;
76” & 80” Full Electric with Grid Decks, Pedal Lock, Underbed Light, and Ext./Ret.Sleep Deck = APS986741;
76” & 80” Full Electric with Grid Decks, Pedal Lock, Underbed Light, Onboard Battery Backup System,
and Ext./Ret.Sleep Deck = APS986742.
76” & 80” Full Electric 230 V with Grid Decks, Pedal Lock, and Ext./Ret. Sleep Deck = APS9867406
76” & 80” Full Electric with Low Roll Caster System, Grid Decks and Ext./Ret. Sleep Deck = APS58674;
76” & 80” Full Electric with Low Roll Caster System, Grid Decks, Underbed Light, and Ext./Ret.Sleep Deck = APS586741;
IMPORTANT NOTICE
GF Health Products, Inc. is not responsible for typographical errors.
All illustrations, specifications, packaging, and warranties contained in this Service Manual
are based on the latest product information available at the time of printing.
The most current product information can be found online at www.grahamfield.com.
Please check all parts for shipping damage and test before using.
In case of damage, DO NOT USE.
Basic American Medical Products
336 Trowbridge Drive
Fond du Lac, WI 54937
For any Expandable/Retractable Sleep Deck Bed Service Parts
please contact our Customer Service Department at
1-800-365-2338
GF Health Products, Inc.
2935 Northwest Parkway
Atlanta, GA 30360
www.grahamfield.com
To order an Expandable/Retractable Sleep Deck Bed
please contact a Graham Field Sales Representative at
1-800-554-9215

ZENITH SERIES
3
TABLE OF CONTENTS
STANDARD
Safety & Warning Information . . . . . . . . . . . . . .4
Specifications/Width Diagrams . . . . . . . . . . . . 5
Positioning Holes for 35”, 39” and 42” . . . . . . . .6
Board Installation . . . . . . . . . . . . . . . . . . . . . . . 7
Special Mattress Retainer Installation . . . . . . . 8
Replacing Expandable/Retractable
Sleep Deck Sections if Needed . . . . . . . . . . . . 9
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EXPANDABLE/RETRACTABLE SLEEP DECK SUPPLEMENTAL MANUAL
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190D JANUARY 2014

FOR ADDITIONAL SAFETY WARNINGS AND SYMBOLS PLEASE SEE YOUR
BED MODEL’S SERVICE MANUAL THAT CAME WITH YOUR BED.
WARNING: The Slide-Wide bed MUST NOT BE USED as a transport device.
WARNING: Care must be taken when adjusting your slide-wide expansion decks.
To avoid possible injury, keep hands clear of ends of expandable/retractable decks
when moving them in or out, espcially near the headboard or footboard. Decks should
only be adjusted from the side to avoid pinching. Any assist devices and mattress
should be removed prior to adjusting the expandable/retractable decks. .
WARNING: When sliding the expandable/retractable decks in or out, make sure to
first remove the quick-release detent pins located on the underside of both sides of the
foot deck and head deck. Make sure to re-insert the pins into the proper width holes
before allowing patient into the bed to avoid injury to the patient and damage to the
decks. Pins must be fully seated before any operation of the bed. .
WARNING: Caregivers should be aware that the corners of the slide-wide deck
system may extend slightly past the headboard and footboard at the corners. Care
should be taken to avoid these areas when moving around the bed. .
WARNING: The Body weight should be evenly distributed over the sleeping surface of
the bed. DO NOT allow the patient to lay, sit, or lean in such a way that their entire
body weight is placed only on the raised head or foot sections, or one side or the other
of the bed. This especially applies when repositioning or transferring a patient in or out
of the bed. Increased risk may occur when the patient’s size and/or weight are
inappropriate for the bed’s dimensions or weight capacity. See your service
manual for proper Maximum Safe Working Load for your particular model bed.
4
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190D JANUARY 2014
ZENITH SERIES
EXPANDABLE/RETRACTABLE SLEEP DECK SUPPLEMENTAL MANUAL
IMPORTANT SAFETY AND WARNING INFORMATION

ZENITH SERIES
5
EXPANDABLE/RETRACTABLE SLEEP DECK SUPPLEMENTAL MANUAL
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190D JANUARY 2014
FEATURES:
1. Expandable/Retractable deck quickly
and easily adjusts to 35”, 39”, and 42”
with two quick-release ball-detent pins
on each side.
2. Quick adjustment is ideal for moving
through narrow doorways.
3. All pins are attached to the bed with
lanyards, eliminating lost parts.
4. Wide head and footboards are available
in both 39” and 42” widths (both sold
separately).
5. Rails and assist devices feature quick-
release systems - no tools are required
for assembly of these devices. (Please
refer to your bed model’s particular
Service Manual for more details).
35.00”
Fully Retracted
39.00”
Partly Expanded
42.00”
Fully Expanded

ZENITH SERIES
6
EXPANDABLE/RETRACTABLE SLEEP DECK SUPPLEMENTAL MANUAL
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190D JANUARY 2014
SLEEP DECK POSITIONING - FOLLOW ALL INSTRUCTIONS
1. Your Expandable/Retractable Sleep Deck can be set into three
widths: Fully Retracted = 35.00”; Expanded Partly = 39.00”; and
Fully Expanded = 42.00”.

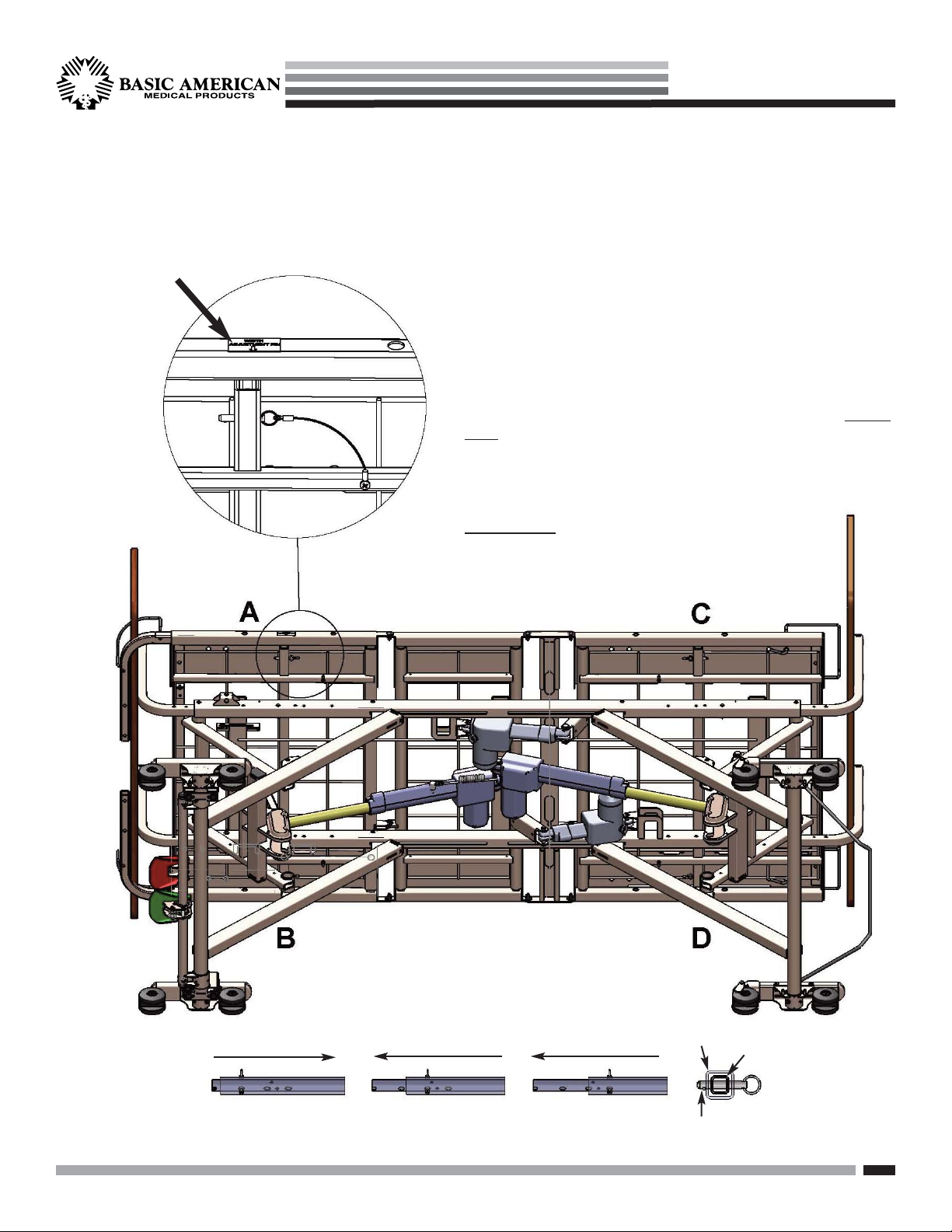

2. To adjust the deck positions, first remove all four quick-release
“detent” pins from the underside of both Head and Foot Decks
by simply pulling out the pins by the small rings. Each detent
pin is attached to a lanyard (cord) which is connected to a screw
on the underside of the decks to prevent misplacement (Please
see illustrations below and at left).
3. Grab the entire left or right side of the expandable decks (not the
ends) and either pull out toward you to expand or push inward
to center to retract. On the underside, line up the desired hole
position on the decks’ insert tubes with the single hole in the
ends of the mainframe cross tubes (See below).
4. IMPORTANT: Reinsert the detent pins in all four
locations (A - D), making sure the ball at the end
of the Detent Pin extends through the other side
of all four mainframe position holes.
IT IS RECOMMENDED TO FIRST REMOVE
YOUR MATTRESS AND ASSIST DEVICES
PRIOR TO ADJUSTING YOUR BED. PATIENT
SHOULD NEVER BE IN THE BED DURING
ADJUSTMENT!
Labels on side of decks
indicate location of 4
removable detent pins.
35.00” Position
Fully Retracted
39.00” Position
Partially Extended
42.00” Position
Fully Extended Ball of Detent Pin
Mainframe Tube
Deck Tube

ZENITH SERIES
7
EXPANDABLE/RETRACTABLE SLEEP DECK SUPPLEMENTAL MANUAL
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190D JANUARY 2014
HEADBOARD AND FOOTBOARD POSITIONS
USING THE QUICK-RELEASE “DETENT” PINS
80” hole
position
(1st bottom
hole in)
Use 1st hole
in mounting
tubes for both
76” and 80”
positions
76” hole
position
(2nd bottom
hole in)
BOARD SHOWN AS
TRANSPARENT
FOR CLARITY
80” hole
position
(2nd bottom
hole in)
“Detent” Pin (attached
to frame with Lanyard)
“Detent” Pin (attached
to frame with Lanyard)
Use 1st hole
in mounting
tubes for both
76” and 80”
positions
76” hole
position
(3rd bottom
hole in)
CENTER
OF BED
CENTER
OF BED
IMPORTANT
HEAD & FOOTBOARD
MUST MATCH RETAINER
& WALLSAVER POSITIONS.
SEE EACH BED MODEL’S
SERVICE MANUAL.

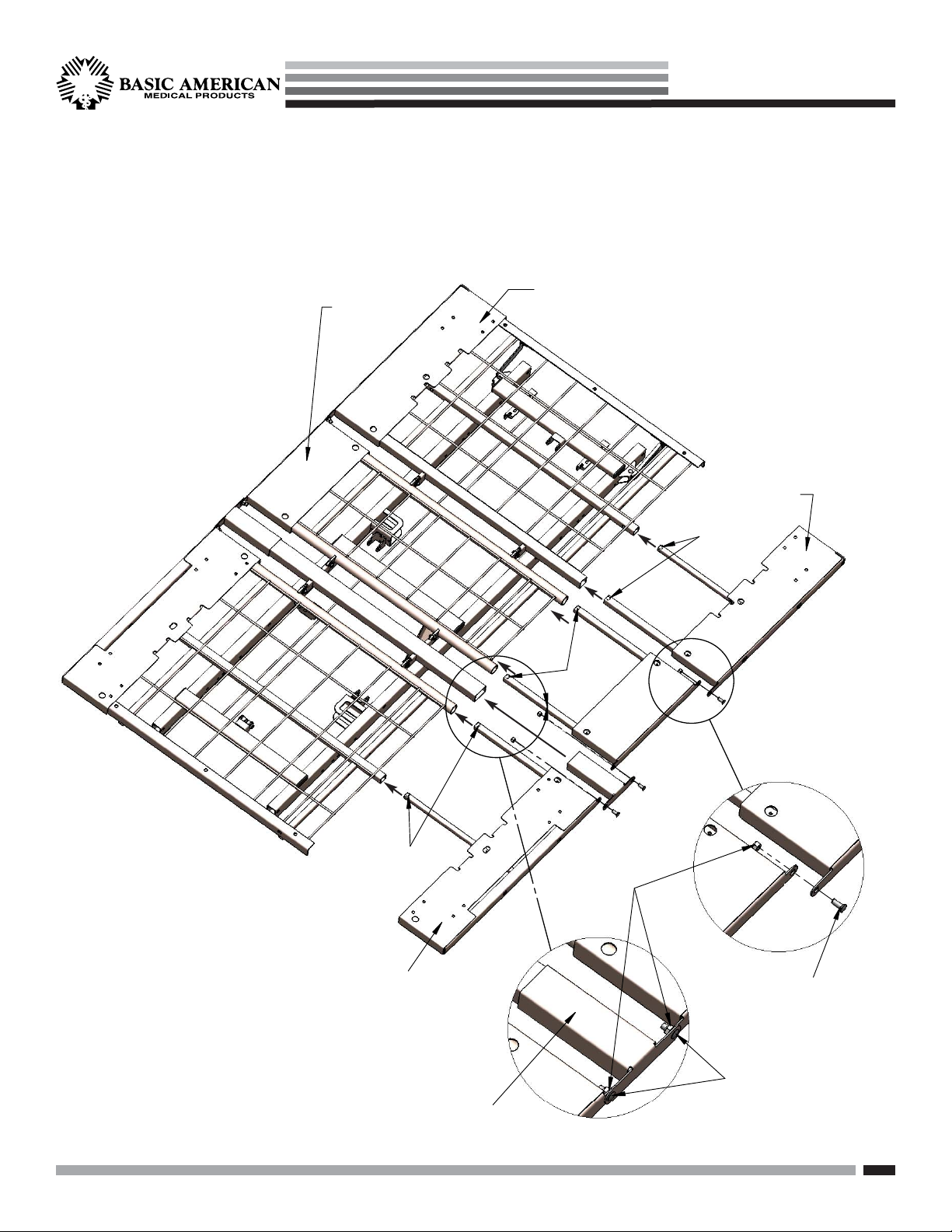

HEADBOARD INSTALLATION
1. The Headboard comes with four pre-installed inserts -
consider this the inside of the bed (toward center).
2. Attach the boards as shown using the 40mm hex drive
bolts that came with your Panel Mounting Kit.
a. Align top holes in board with TOP holes
in the mounting tubes.
b. From the outside of the tubes, insert the
hex drive bolts and screw them into the
board inserts.
c. Insert a second set in the THIRD holes
down on the tubes and screw into board.
3. Slide the “L” portions of the Mounting Tubes into the hollow
ends of the main frame rails at the head deck end. Align
the first hole in the mounting tube with the first or second
hole in the main frame rail (see 76” and 80” positions
below). From the outside, insert the attached “detent”
pin (with Lanyard) through the holes. The recessed ball
on the pins should extend out the other side of the rail.
FOOTBOARD INSTALLATION
1. The Footboard comes with four pre-installed inserts -
consider this the inside of the bed (toward center).
2. Attach the boards as shown using the 40mm hex drive
bolts that came with your Panel Mounting Kit.
a. Align top holes in board with TOP holes
in the mounting tubes.
b. From the outside of the tubes, insert the
hex drive bolts and screw them into the
board inserts.
c. Insert a second set in the FOURTH holes
down on the tubes and screw into board.
3. Slide the “L” portions of the Mounting Tubes into the hollow
ends of the main frame rails at the foot deck end. Align
the first hole in the mounting tube with the first or second
hole in the main frame rail (see 76” and 80” positions
below). From the outside, insert the attached “detent”
pin (with Lanyard) through the holes. The recessed ball
on the pins should extend out the other side of the rail.
FOOTBOARD
HEADBOARD
5/16 X 1.625”
Detent Pin with Lanyard
(Part # 100-7931-011)
Quantity = 4 (two per board)

ZENITH SERIES
8
EXPANDABLE/RETRACTABLE SLEEP DECK SUPPLEMENTAL MANUAL
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190D JANUARY 2014
SPECIAL MATTRESS RETAINER INSTALLATION
FOR EXPANDABLE/RETRACTABLE SLEEP DECK
(Part # 999-0881-001 & 999-0881-002)
IMPORTANT
1. The Expandable/Retractable Sleep Deck features two sets of two unique Mattress Retainers
that are positioned in the corners at both the head end and foot end of the bed.
2. To install, position the mattress retainer above the sleep deck corners, with rod ends
perpendicular to the sleep deck surface.Long crooked bent ends go on outside.
3. Insert the rod ends into the appropriate 80” bed or 76” bed holes
(see insert - bottom right).
4. Once engaged, tilt the retainer toward the corner so
that the retainer’s “elbows” rest on the deck.
MATTRESS RETAINERS
MUST MATCH BOARD
& WALLSAVER POSITIONS.
SEE EACH BED MODEL’S
SERVICE MANUAL.
To attach the
four (4) Mattress
Retainers insert
rod ends into
holes in corners
of sleep deck,
then lay down
toward corners.
Outside
corner
holes
used for
80” bed
position.
Inside holes
used for 76”
bed position.
NOTE: CROOKED
END ALWAYS
GOES ON THE
OUTSIDE.
When in final
position all
the retainers’
“elbows” rest
on the sleep
deck surface.
LH Foot-end
Mattress Retainer
(Part # 999-0881-001)
HEAD
END
FOOT
END
RH Foot-end
Mattress Retainer
(Part # 999-0881-002)
LH Head-end
Mattress Retainer
(Part # 999-0881-002)
RH Head-end
Mattress Retainer
(Part # 999-0881-001)

ZENITH SERIES
9
EXPANDABLE/RETRACTABLE SLEEP DECK SUPPLEMENTAL MANUAL
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190D AUGUST 2014
6WRS
%XWWRQV
6WRS
%XWWRQV
*OLGH
%XWWRQV
+HDG$VVHPEO\
ERWKVLGHV

5LJKW6LGH
)RRW$VVHPEO\

/HIW6LGH
)RRW$VVHPEO\

.QHH$VVHPEO\
ERWKVLGHV

&/26(832)
.1((72)227
$77$&+0(17
;
6PDOO&DUULDJH%ROW
&/26(832)
+($'.1((
726($73$1
;
6PDOO&DUULDJH%ROW
6HDW([WHQVLRQ
%UDFNHW
%RWK6LGHV


/RFN1XW
REPLACEMENT OF EXPANDABLE/RETRACTABLE SLEEP DECK
1. The Expandable/Retractable
- Sleep Deck Assembly includes
- Two (2) identical Head Sections,
- Two (2) identical Knee Sections,
- Two (2) identical Seat Sections,
- One (1) right-hand Foot Section &
- One (1) left-hand Foot Section.
2. Begin by sliding a Knee Section
(999-0881-012) into the long
cylindrical tubes on both sides
of the knee deck. Slide
all the way in.
3. Slide the left-hand Foot
Section (999-0881-011)
into the square tubes
on the left side of
the foot deck.
4. Do the same
for the right-hand
side of the bed with
Foot Section (999-0881-014).
Slide both left and right sides all
the way in.
5. Next, slide a Head Section
(999-0881-013) into the square
tubes on both sides of the
head deck. Slide all the way in.
6. From the outside, insert a small
.5” Carriage Bolt (100-5231-002)
through the square hole in the
Foot Section mounting brackets.
From the inside, screw on a
5/16-18 Lock Nut. Hand tighten.
7. Lastly, slide a Seat Pan Extension
Bracket onto both ends of the seat
pan. The end bracket should set
over end hole in the head section
and knee section.
8. From the outside, insert a small
.5” Carriage Bolt (100-5231-002)
through each square hole in the
Seat Pan mounting brackets and,
from the inside, screw on a 5/16-18
Lock Nut. Tighten all nuts using a
1/2” open wrench or socket.
Seat Extension
Bracket
(both sides)
999-0881-004

NOTES:
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
ZENITH SERIES
EXPANDABLE/RETRACTABLE SLEEP DECK SUPPLEMENTAL MANUAL
10
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190D JANUARY 2014

336 Trowbridge Dr. • Fond du Lac, WI 54937
Customer Service: 1.800.365.2338 • Fax: [phone]
www.grahamfield.com
© 2013 GF Health Products, Inc.
All Rights Reserved
Basic American Medical Products and Zenith
are registered trademarks of GF Health Products, Inc.
GF1200058RevA13
