DV12 Powered MicroMain
Owner’s Manual

TABLE OF CONTENTS
Overview...................................................................................... 3
Technical Specifications........................................................... 4

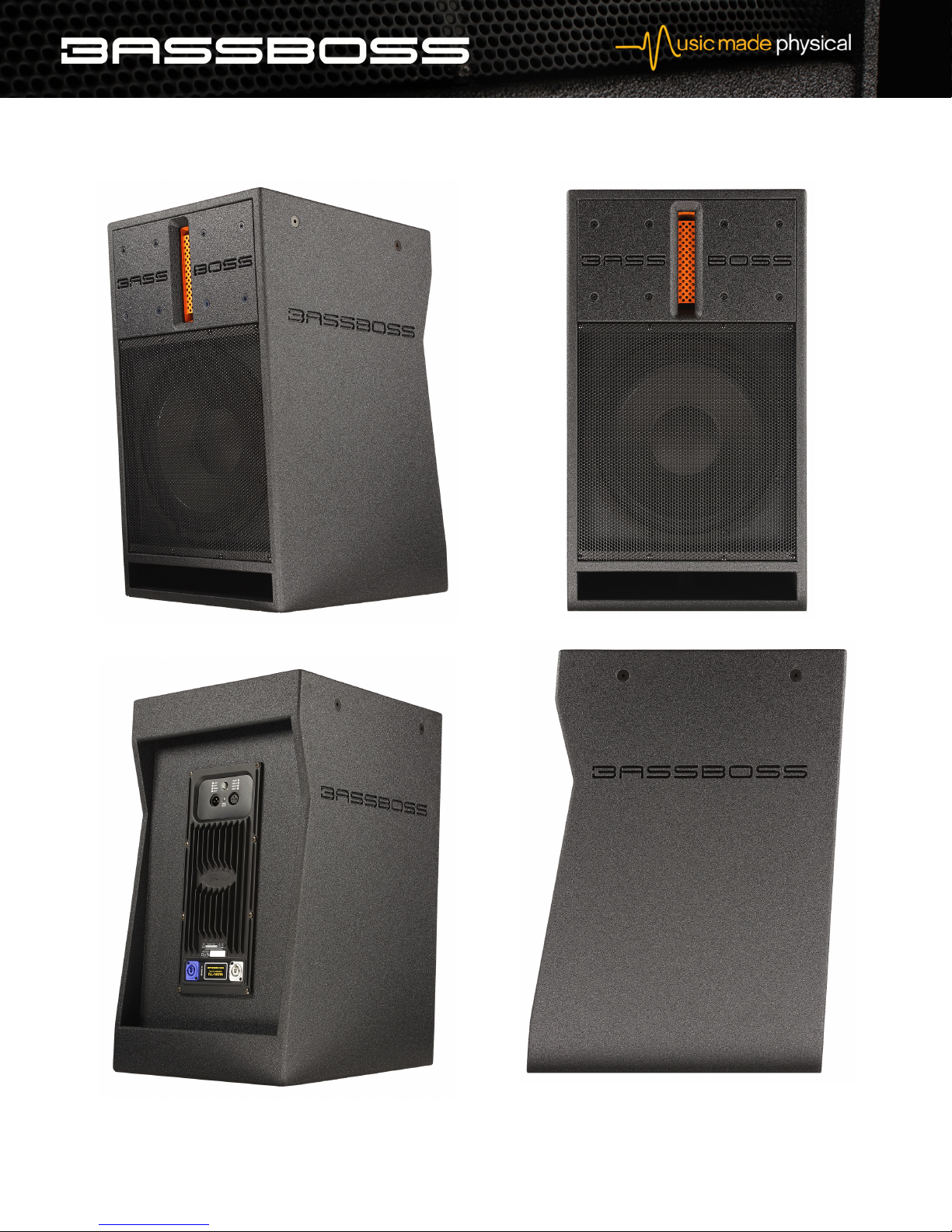

Photos.......................................................................................... 5
Setup Instructions..................................................................... 6
Troubleshooting........................................................................ 7
Safety Information.................................................................... 7
Warranty...................................................................................... 8
FCC Compliance Notice............................................................. 9
Need more assistance? Support is available via phone or email.
Email: [email protected]
Phone: [phone] toll free or 512-368-3268
Web Site: www.bassboss.com
DV12 Powered MicroMain DV12 Powered MicroMain
Owner’s Manual

Page 3
www.bassboss.com
©®2017 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free
DV12 Powered MicroMain
• High Fidelity, High Output, High SPL
• Exceptional Sound Quality
• Ultra-Wide Horizontal Coverage
• Broad Frequency Range, Long Throw
• Line-Array Performance from Pairs
• 3000 W Class D Powersoft Amp
Introducing the BASSBOSS DV12 Powered MicroMain. This new 12” top
delivers ground-breaking performance with full range response down to
45Hz (±3dB) and sustained output to 126 dB SPL. 3000 Watts of Powersoft
amplification provides extraordinary dynamic power and crystal-clear sound.
The DV12 uses a line-array derived 1.4” throat isophasic wave guide instead
of a conventional horn. The result is a combination of very wide and consistent
horizontal coverage (120°) with a tight vertical pattern (20°) that extends high
frequency projection farther than a conventional horn.
The lower frequencies are produced by a 12” woofer that features an
ultra-light carbon-fiber impregnated cone for outstanding resolution, a
cast aluminum basket for rigidity and reliability, a Neodymium magnet for
light weight and high efficiency, a 4” voice coil for high power handling and
a symmetrical, long-excursion suspension for accurate and extended bass
response.
The amplifier can deliver output peaks of 150V, to provide amazing dynamic
resolution and impact. It also has a 10,000:1 damping factor, which provides
extremely tight control over the cone. The fully integrated and comprehensive
digital processing ensures smooth response and and reliable operation thanks
to meticulous filter alignments and dual stage limiters that protect the drivers
from excessive peaks, and also from thermal overload by monitoring real power
output over time. The amplifier features a large heat sink and a temperature-
controlled fan to ensure consistent operation under even the most extreme
conditions.
The DV12 is the ultimate in plug and play, with universal voltage compatibility
and no need for any outboard gear other than a sound source. The processing
features presets that allow it to run in several configurations. The first is full-
range mode, with response down to 45Hz (-3dB) The other presets allow the
DV12 to be integrated with various types and sizes of subwoofers. Each preset
has a specific high-pass filter frequency, input sensitivity, high and low frequency
limiter setting and subwoofer alignment processing.
The DV12 can be combined with any BASSBOSS subwoofer because all the
presets are programmed to align with all the subs. Each preset offers different
advantages that suit certain applications and preferences. No matter which
preset you choose, your BASSBOSS subs and DV12 tops will always play in
harmony.
The cabinet is made in the USA from premium selected 15mm Baltic Birch
and weighs only 61 lbs. The design incorporates a 4-degree down-angle that
ensures even distribution of high-frequency energy from front-to-back of a venue
when the DV12 is placed at the appropriate height on a tripod or support pole.
Additional features include a 38mm (1-3/8”) cast metal pole socket, eight fly
points and two handles. The amplifier is recessed from the back of the cabinet
to protect it in transit. A perforated steel grill protects the woofer but the high-
frequency lens and port are left clear of the grill to minimize reflections and air
flow noise that could compromise sound quality.
Should you ever need more sound than can be produced by one DV12 per side,
the DV12’s invertible array feature allows perfect summing of two speakers,
which provides a big increase in output and projection without compromising
the crystal clarity. To further utilize the advantages of the line-array waveguides,
the DV12s are designed to stack with the HF lenses vertically aligned. This
allows the high-frequency sections of two boxes to sum perfectly as they would
in a line-array while the low-frequency sections sum in a column for improved
low-frequency directivity and greatly increased output.
There is finally a speaker that allows two completely functional stereo systems
to be combined into one without having to compromise, either when they are
together, or when they are separated.

Page 4
Performance
Loudspeaker Description: Wide dispersion compact full-range speaker
Frequency Response (±3 dB): 45 - 19,000 Hz
Maximum Sustained Output (Full-Range): 120 dB SPL, 1m, 2pi, half-space
Maximum Sustained Output (Satellite-Mode): 126 dB SPL, 1m, 2pi, half-space
Nominal Dispersion (°H x °V): 120 x 20
Amplification: 3000 Watt Two-Channel Powersoft Class D Amplifier
DSP: Integrated comprehensive DSP for High-pass, Low-pass, time alignment, EQ and limiting
Electrical Connectors, Amplifier: Neutrik Powercon in and through
Electrical Connector, Mains: NEMA5-15 (Edison) or Powercon loop-through jumper (for use above subwoofer) on request
Voltage Operating Range: 90-250V. Auto-sensing, auto switching universal supply
Current Draw, Nominal: 600W, 5A @ 120 volts (typical 1/8 max power)
Controls: Level control from +12 dB to -12 dB, preset selector button
Display: LEDs for Power/ready, Signal, Clip and Protect. LED indicating selected preset
Signal Input Connector: XLR-F
Signal Output Connector: XLR-M pass-through
Power
Enclosure Type: 2-way full-range. Direct radiating vented LF section, horn-loaded HF section
Transducers, LF: 1 x 12 inch diameter (304 mm) neodymium motor woofer with 4 inch (101mm) diameter aluminum winding voice coil
Transducer, HF: 1 x 2.5 inch (64mm) diaphragm neodymium motor compression driver on 1.4 inch throat isophasic wave guide
Cabinet Construction: 15 mm Baltic Birch plywood. Equipped with 2 handles. Includes 4 internally braced fly points and a 35mm pole socket mount
Suspension Points: 8 x 3/8 inch - 16 TPI internally braced threaded mounting points
Dimensions (HxWxD): 24.5 in. (62.23 cm) high x 14.5 in. (36.83 cm) wide x 17 in. (43.18 cm) deep
Net Weight: 61 lbs (27.6 kg)
Shipping Weight: 66 lbs (29.9 kg)
Exterior Finish: Rugged, weatherproof, black textured, bonded high-pressure polyurethane coating
Grill: Perforated, powder coated steel
Physical
Stacking Bracket: Adjustable bracket set, mounts second cabinet inverted for near-perfect summed response, provides splay-angle adjustment
from 0 to 8 degrees
Shoulder Eye Bolts: For use when flying cabinets vertically
Side-pull Anchors For use when flying 2 cabinets connected by Stacking Bracket
Cover: Heavy-duty padded nylon transport cover
Online Information: bassboss.com/powered-micromain-dv12
Optional

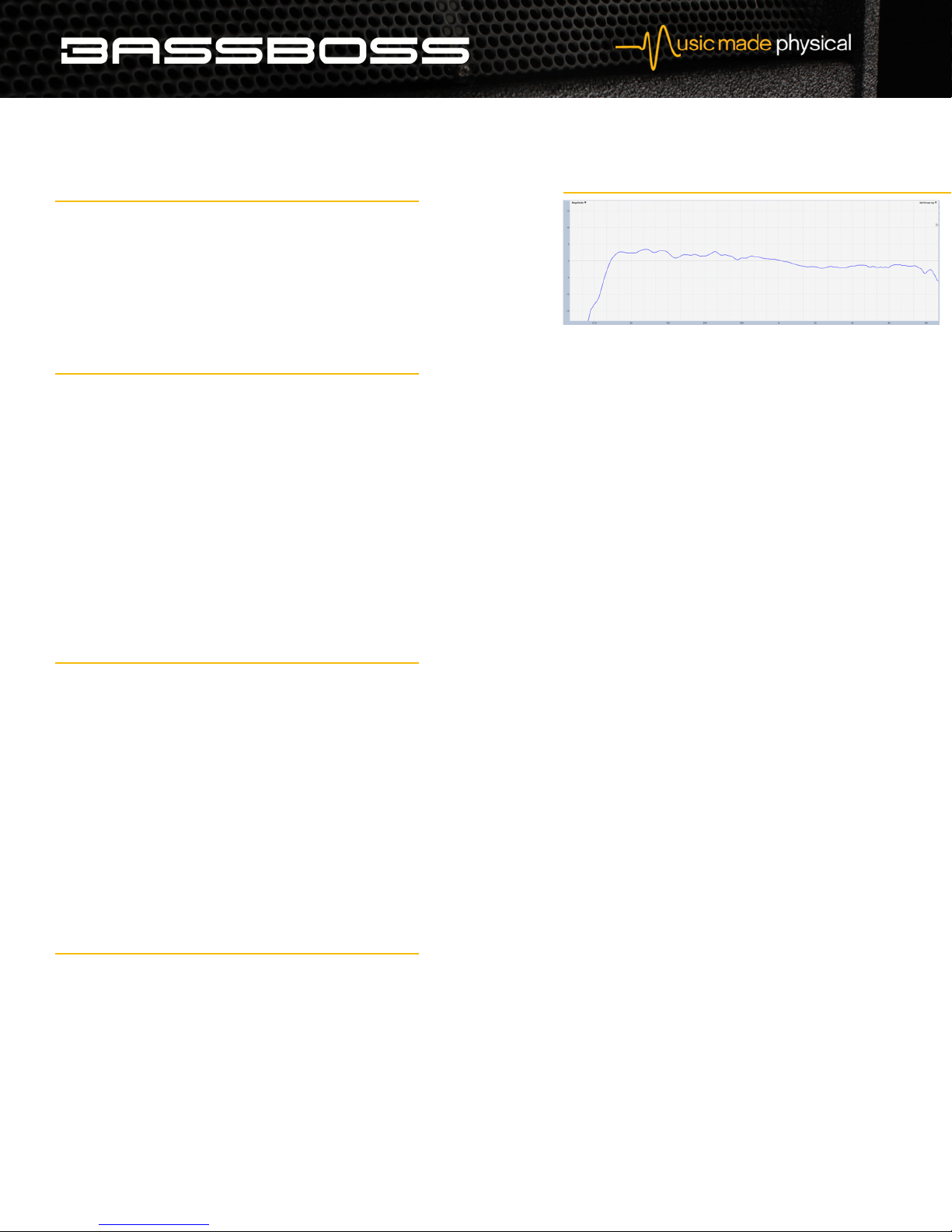

Response Graph
Our proactive philosophy causes specifications to be subject to change whenever improvements are made.

Page 5
www.bassboss.com
©®2017 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free

SET UP INSTRUCTIONS
1. Place loudspeaker in the desired location. Ensure that it is secure and stable.
2. Rotate the input attenuator knob counterclockwise to the lowest setting.
3. Connect signal via the XLR input jack.
4. Connect the amplifier module’s power supply cord using the blue PowerCON connectors. To insert, align the indexing tabs on the
PowerCON connector, insert it into the socket and rotate clockwise until the latch catches.
5. Connect the electrical plug to a power source. Check that the “Ready” LED is illuminated.
6. Select the desired preset via the PRESET SELECT button.
7. Rotate the input attenuator clockwise to achieve the desired sound level.
CONTROLS:
Preset Select:
The DV12 compact full-range loudspeaker’s DSP is equipped with 4 presets. All four presets contain limiter settings to ensure safe operation. The presets are
accessed via the preset select button on the amplifier interface, between the XLR input and output connectors. When the button is pressed, each preset loads in
sequence, from 1 to 4, and then cycling back to 1. A green LED indicates the active preset.
Gain:
The level knob provides a range of control from OFF to +12dB within each preset.
Indicators:
Ready - Green LED - Indicates that the amplifier has power and is operational.
Signal - Green LED - Indicates the presence of signal reaching the amplifier inputs.
Temp - Amber LED - Indicates the amplifier is actively reducing level to prevent overheating.
Limit - Red LED - Flashing - Indicates that the loudspeaker is being overdriven.
Limit - Red LED - Solid or rapid blinking - Indicates amplifier is in protect mode.
Preset Functions:
Preset 1: Stand-alone Full-Range Operation. 40Hz high-pass filter. Recommended for use when no sub is available. Peak output is restricted to prevent low
frequencies damaging the loudspeaker.
Preset 2: Intermediate Stand-Alone setting, 60Hz high-pass. Recommended for use with a single sub or when subwoofers are separated from DV12s, such as when
subs are center-placed.
Preset 3: Intermediate High-Output setting. 80Hz high-pass. Recommended for use when single subwoofers are co-located with the DV12s, such as if the DV12s are
on a speaker pole above a subwoofer or on a tripod adjacent to a subwoofer.
Preset 4: Maximum SPL Setting, 100Hz high-pass. Recommended for use when outdoors, in larger venues and/or when multiple or larger subwoofers are co-located
with the DV12s.
Presets 2, 3 and 4 allow the DV12s to be combined with various subwoofer configurations and allow the sound to be tailored to different environments. It is
recommended to listen to the appropriate presets in each new setting and choose the one that works best in that environment.
DV12 Arrayed Pairs:
The DV12s can be arrayed in pairs, with the second cabinet inverted above the first. Any preset can be chosen provided both cabinets are set to the same preset and
the gains are matched. Optional hardware is required to attach the two boxes together. The hardware allows for adjustment of the total vertical coverage of the
array. The DV12 is also equipped with a power pass-through facility that allows two boxes to be connected on a single power source. An optional PowerCON jumper
cable is available for this purpose. Using the signal and power pass-through connectors allows the minimum number of cables to be run to the array.
NOTE: Arrayed pairs must be set to the same preset number and level to achieve phase-coherent summing. Cont-

System Setup Addendum:
When connecting multiple BASSBOSS loudspeakers in a system, signal can be passed through from one powered loudspeaker to another using balanced, shielded
XLR cables. No processing is applied to the signal as it passes through from the input to the output connectors in each loudspeaker. Signal can be routed in
any sequence because each loudspeaker receives a full-range signal and applies the necessary processing in order to operate as part of the overall system. It is
recommended to run signal to the nearest box first and patch to the next nearest box in sequence.
TROUBLESHOOTING
If after following the above instructions for setup you have no output from the loudspeakers, please check the following:
Verify that the green power (PWR) LED is on. If not, check the following:
1. Is the power cord plugged into a live outlet?
2. Is the Neutrik PowerCON connector rotated into the locked position?
If the power LED is on, check the following:
Is the green “signal present” LED (SIG) illuminating? If not:
1. Is the signal cable connected to the input?
2. Is the signal cable connected to an operating output at the other end?
3. Is the signal flowing to the input? Check the integrity of the cable.
SAFETY INFORMATION
Important information regarding safety and the use of your loudspeakers:
Never stand in the immediate vicinity of loudspeakers driven at a high level. Professional loudspeaker systems are capable of causing a sound pressure level
detrimental to human health. Seemingly non-critical sound levels (from approx. 95 dB SPL) can cause hearing damage if people are exposed to it over a long period.
To prevent potentially dangerous exposure to high levels of acoustic pressure, anyone who is exposed to these levels should use adequate protection devices.
When a transducer capable of producing high sound levels is being used, it is therefore necessary to wear ear plugs or protective earphones.
See the manual technical specifications to know the maximum sound pressure level.
In order to prevent accidents when setting up the loudspeakers or loudspeaker stands, make sure they are standing on a firm surface.
Ensure that all additional hardware, fixings and fasteners used for installation or mobile deployment are of an appropriate size and load
safety factor.
Pay attention to the manufacturers’ instructions and to the relevant safety guidelines.
Regularly check the loudspeaker housings and accessories for visible signs of wear and tear, and replace them when necessary.
Regularly check all load bearing bolts in the mounting devices.
Caution: Loudspeakers produce a static magnetic field even if they are not connected or are not in use. Therefore make sure when erecting and transporting
loudspeakers that they are nowhere near equipment and objects which may be impaired or damaged by an external magnetic field. A distance of 3 feet (1m) should
be maintained between loudspeakers and sensitive equipment such as CRT monitors or magnetic storage media.
Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual.
Contact your dealer or BASSBOSS support if the product is not functioning properly.
BASSBOSS strongly recommends this product be installed by a qualified, professional installer who can ensure correct installation and certify that it is installed
in compliance with the regulations in force.
The entire audio system must comply with the current local standards and regulations regarding electrical systems.
IMPORTANT NOTES
To prevent the occurrence of noise on signal cables, use shielded cables only. Avoid routing signal cables close to equipment that produces high-intensity
electromagnetic fields such as transformers, power cables and loudspeaker wires. Do not coil excess power cable. Do not coil or wrap power cables and signal
cables together.

Page 8
www.bassboss.com
©®2017 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free
Thanks for your BASSBOSS purchase!
WARRANTY INFORMATION
Beyond ensuring your satisfaction, our extensive “Sound Defense” transferable warranty covers all BASSBOSS products.
STANDARD CABINET WARRANTY
BASSBOSS loudspeaker cabinet integrity, including all joinery, fasteners, handles and wood, is warranted against defects in materials and workmanship for a period
of six (6) years from the date of purchase. This warranty does not cover items that are intended to wear and can be replaced if worn or damaged. Examples of items
not covered by this warranty are cabinet feet, grills and the finish or coating applied to the cabinet.
ENHANCED COMPONENT WARRANTY
BASSBOSS amplifiers and electronic components are covered against failures due to defects in materials and/or workmanship for a period of three years from the
date of purchase.
NO WORRIES WOOFER WARRANTY
Transducers, including burned or open voice coils in subwoofers, are covered for two years from the date of purchase.
OUR SUPPORT
It is our goal to provide trouble-free loudspeakers. That objective begins as part of the design phase and continues on through to any service you may require. In order
to be able to provide the lowest possible failure rate, the best possible warranty service and the fastest turn-around time, we request that you contact us immediately
if you notice any problem with your system, and before you attempt any repairs. We can provide the best and fastest solution if we know the details of the problem
before any repair attempts are made. Often BASSBOSS technicians can troubleshoot problems that may arise and no repair or further service will be necessary.
Warranty support is a service, and part of that service includes helping you prevent failures and minimize repair and shipping costs. Please do not ship products
without first obtaining a return authorization number by calling 512-368-3268 (855-822-7770 toll-free) or by emailing [email protected]. BASSBOSS service
technicians will provide assistance and instructions on shipping and packaging requirements specific to your service needs.
WARRANTY LIMITATIONS
During the warranty period, if your loudspeaker malfunctions or fails due to any defect in components or manufacturing, the failed parts will be repaired or replaced.
This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. Warranty coverage and eligibility will be determined upon
inspection by BASSBOSS personnel. This warranty does not cover labor other than that authorized and performed by BASSBOSS personnel. Service will be performed
upon the return of the failed unit, together with its original sales receipt or other proof of purchase, to BASSBOSS or an Authorized Service Facility. Purchaser is
responsible for all costs of shipping and handling. Cosmetic damage is specifically excluded from this warranty. This warranty is rendered void if service, repairs
and/or modifications are attempted or made by anyone not specifically authorized by BASSBOSS to perform said services. Please contact BASSBOSS or your local
BASSBOSS dealer before attempting any repairs and before shipping parts in for service.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. For more information concerning BASSBOSS service
and warranty policies please contact us at 512-368-3268 or [phone] toll-free.
EXPORT WARRANTY
BASSBOSS products can be purchased worldwide. In countries without local BASSBOSS distributors, product requiring service must be shipped back to the US for
warranty repairs. In most cases, the entire cabinet will not need to be shipped. Generally only the individual affected parts will need to be shipped to the factory for
servicing. Please contact BASSBOSS before attempting any repairs and before shipping parts in for service.
SHIPPING AND PACKAGING
Please package your returns safely and securely. BASSBOSS does not cover damage that occurs in transit. Freight insurance is recommended.

Page 9
www.bassboss.com
©®2017 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free
FCC COMPLIANCE NOTICE
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
EC DECLARATION OF CONFORMITY
Manufacturer:
BASSBOSS 9501 Cargo Ave Ste 600 Austin TX 78719
We declare that under our sole responsibility the product: DV12 MicroMain
Intended use: Professional Audio Loudspeaker
Are in conformity with the provisions of the following EC Directives, including all amendments, and with national legislation implementing these directives:
• 2006/95/EC Low Voltage Directive
• 2004/108/EC Electromagnetic Compatibility Directive
• 2002/95/CE RoHs Directive
