BassBoss DiaMon 112 User manual

User’s manual
DiaMon112 12”Powered
MicroMain

2
bassboss.com bassboss.com
Photos 2
Description 3
Specifications 4
Setup Instructions 5
Controls 5
Preset Functions 5
Troubleshooting 6
Safety Information 6
Warranty 7
FCC Compliance Notice 8
Table of Contents

3
bassboss.com bassboss.com
The DiaMon 112 is a very compact, high-output, self powered loudspeaker. It features a 12” woofer and a co-axial 1.4” exit
compression driver that plays through the center of the woofer, making it a true point-source cabinet. Both the woofer and
tweeter coils share the same magnetic structure to keep size and weight to a minimum.
Because the tweeter exits through the middle of the woofer, the extra area that the tweeter would ordinarily take up on the
front of the loudspeaker is eliminated, which helps make the DiaMon extremely compact. It’s barely bigger than a 12” woofer
but also incorporates a 1.4” exit compression driver with a 3” voice coil. The DiaMon 112 includes a 1500-watt Class D Powersoft
amplier with built-in digital signal processing, is bi-amped and has a full complement of protections, limiters and equalizers
that ensure consistent, accurate and reliable operation. It is fully self-contained and needs no more than power and signal to
be ready to go.
Even though the box is very small and very lightweight, there is nothing small or lightweight about its performance.
This box is literally packed with the best components and technology money can buy, the whole point of which is to do more
with less. The output of this little box is totally out of proportion to its size. It’s extremely loud, but it’s capable of being loud,
not struggling to be loud. It sounds much bigger than it looks and has the ability to maintain crystal clarity even at the upper
limits of its very remarkable capabilities.
The DiaMon 112 is a mid-high loudspeaker, so in order to deliver the BASSBOSS experience with full system sound it’s best
to combine it with a very powerful BASSBOSS subwoofer. It has the output to keep up with several subs and for system usage
is intended to be mounted on a pole-stand above one or more BASSBOSS subs. Used with a subwoofer system, the DiaMon is
an extraordinarily size-conscious and yet very powerful main speaker.
Any speaker that has the tweeter horizontally or vertically oset from the mid-frequency driver produces very dierent
response as one moves through its coverage area from the tweeter side to the woofer side. This is due to the dierent
distances the sound has to travel to reach the ears. Due to the co-axial construction the path length dierence between lows
and highs is the same in any direction, allowing extremely consistent o-axis response regardless of which direction you move
away from directly on center.
The DiaMon 112 has a unique angle-cut corner that allows it to be placed on a table and used as a DJ monitor without pole-
mounting. It also has a securely attaching threaded pole-mounting system for when it is used attached to a socket-equipped
BASSBOSS subwoofer or on a similarly equipped tripod stand. An adjustable mount bracket is also available for alternative
placements and for permanent installations on walls or ceilings.
As a main speaker, the DiaMon 112 can be used with two double 18” subwoofers and deliver all the mid-high you need to keep
up with them. As a DJ monitor it provides tight, punchy performance and doesn’t distort at high levels. As a live reinforcement
speaker, this versatile box provides consistent sound quality over a wide dispersion pattern with excellent resistance to feedback.
Description:
Stunning Output-To-Size Ratio
Ultra Small Size And Lightweight
Consistent Off-Axis Response
1500 W Digital Class D Amplifier
DiaMon112
12” Powered MicroMain

4
SPECIFICATIONS
12” Powered MicroMain
DiaMon112
Loudspeaker Description: 12 inch co-axial, bi-amplified, self-powered MicroMain
Frequency Response (±3 dB): 80 – 18,000 Hz
Maximum Sustained Output: 123 dB SPL, 1m, 2pi, half-space
Max SPL (Peak)* 133 dB
Nominal Dispersion (H° x V°): 80 x 80 (Conical)
Acoustical
Amplification: 1500 Watt 2 Channel Powersoft Class D Amplifier
Processing: Integrated comprehensive including high-pass, low-pass, parametric EQ, phase alignment and limiting
Electrical Connectors, Amplifier: Neutrik powerCON Input (Blue) NAC3FCA
Electrical Connector, Mains: Standard US 3-pin 120V electrical plug: NEMA 5-15 (Edison), NEMA 5-15 (Edison) or powerCON loop
through jumper for use above subwoofer on request
Voltage Operating Range: 90-250V. Auto-sensing, auto-switching, PFC universal power supply
Current Draw, Nominal: 432 W, 3.6A @ 120 Volts (typical, 1/8 max power)
Signal Input Connector: XLR-F
Signal Output Connector: XLR-M (pass-through only)
Controls: Rotary Level Control with adjustment from Off to +12dB, Push-button Preset Select
Display: LEDs for Power/ready, Signal, Clip and Protect. LED indicating selected preset
Electrical
Enclosure Type: 2-way mid-high. Direct radiating vented 12” LF, co-axial horn-loaded HF
Transducer (Low Frequency): 1 x 12” diameter (300 mm) neodymium motor woofer with 3” (76 mm) copper winding voice coil
Transducer (High Frequency): 1 x 3” (76 mm) diaphragm compression driver on 1.4” throat concentrically mounted wave guide
Cabinet Construction: 16 mm Baltic Birch plywood. Equipped with an integrated handle and a 35 mm pole socket mount with
M20 threaded insert
Dimensions (HxWxD): 14” x 14” x 11.5” (35.56 cm x 35.56 cm x 29.21 cm)
Net Weight: 30.6 lbs. (14 kg)
Shipping Weight: 36 lbs. (16 kg)
Exterior Finish: Rugged, weatherproof, black textured, bonded high-pressure polyurethane coating
Grill: CNC Waterjet cut 1/8 inch aluminum over Black perforated, powder-coated steel
Pole Sockets: 1 (35 mm, M20 threaded insert)
Handles: 1 Integrated Handle
Physical
Pole Options: Threaded Pole for DiaMon 112, CCM112 – 26” length and 48” lengths available
Stand: 35mm Pole Stand – Supports loudspeaker above subwoofer equipped with pole socket;
Tripod Stand – Supports loudspeaker from ground
Mounting Brackets: Wall, Ceiling and Desk Mount options
Covers: Heavy-duty padded nylon transport cover with carrying handles
Faceplate: Special Edition Custom Chaos Grill (No Charge)
Online Information: bassboss.com/diamon112
Optional
Our proactive philosophy causes specifications to be subject to change whenever improvements are made.
*Peak output is calculated using “industry standard” techniques. These calculation methods create theoretical specications that are inated over what can actually be
achieved. BASSBOSS real world output specications are provided as “Maximum Sustained Output” ratings, which reect actual measured, continuous output levels.

5
bassboss.com
Preset 1: Warm/Near-eld setting featuring HF output attenuated to -4dB
Preset 2: Warm/intermediate distance setting featuring HF output attenuated to -2dB
Preset 3: Flat response setting
Preset 4: Far-eld setting featuring HF output elevated to +2dB
Preset Functions:

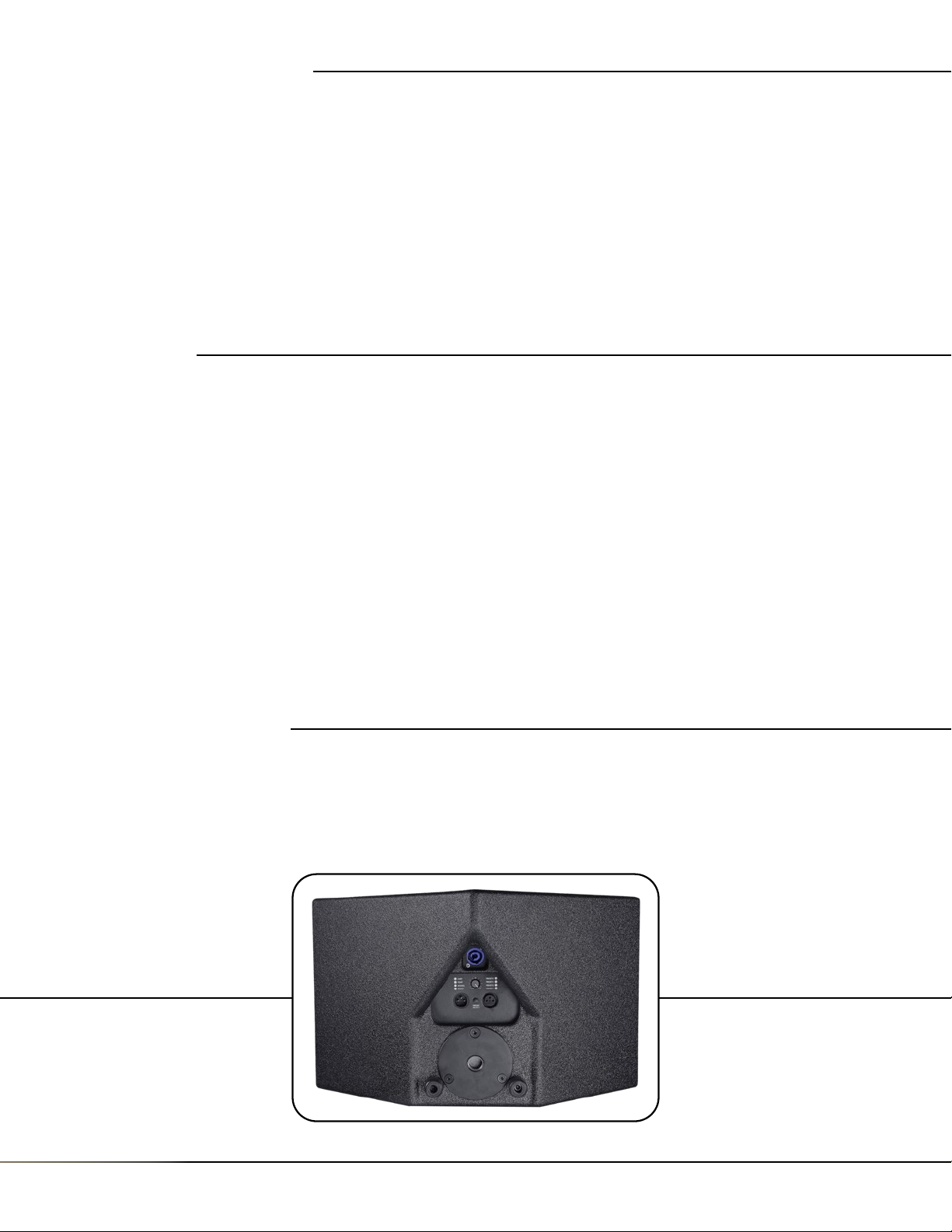

Preset Select: The DiaMon 112 compact monitor loudspeaker’s DSP is supplied with 4 presets. All four presets
contain limiter settings to ensure safe operation of the unit. The presets are accessed in sequence via the preset
select button on the bottom of the unit. A green LED indicates the active preset. The level knob provides a range
of control from OFF to +12dB within each preset.
Gain: The level knob provides a range of control from OFF to +12dB within each preset.
Indicators:
Ready - Green LED - Indicates that the amplier has power and is operational.
Signal - Green LED - Indicates the presence of signal reaching the amplier inputs.
Temp - Amber LED - Indicates the amplier is actively reducing level to prevent overheating.
Limit - Red LED - Flashing - Indicates that the loudspeaker is being overdriven.
Limit - Red LED - Solid or rapid blinking - Indicates amplier is in protect mode.
Controls:
Setup Instructions:
1. Place loudspeaker in the desired location. Ensure that it is secure and stable.
2. Rotate the input attenuator knob counter-clockwise to the lowest setting.
3. Connect signal via the XLR input jack.
4. Connect the amplier module’s power supply cord using the blue PowerCON connectors. To insert, align the
indexing tabs on the PowerCON connector, insert into socket and rotate clockwise until the latch catches.
5. Connect the electrical plug to a power source. Check that the “Ready” LED is illuminated.
6. Select the desired preset via the PRESET SELECT button.
7. Rotate the input attenuator clockwise to achieve the desired sound level.

6
bassboss.com bassboss.com
If after following the above instructions for setup you have no output from the loudspeakers, please check the following:
Verify that the green power (PWR) LED is on. If not, check the following:
1. Is the power cord plugged into a live outlet?
2. Is the Neutrik PowerCON connector rotated into the locked position?
If the power LED is on, check the following:
Is the green “signal present” LED (SIG) illuminating? If not:
1. Is the signal cable connected to the input?
2. Is the signal cable connected to an operating output at the other end?
3. Is the signal owing to the input? Check the integrity of the cable.
Troubleshooting:
Safety Information:
Important information regarding safety and the use of your loudspeakers:
Never stand in the immediate vicinity of loudspeakers driven at a high level. Professional loudspeaker systems
are capable of causing a sound pressure level detrimental to human health. Seemingly non-critical sound levels
(from approx. 95 dB SPL) can cause hearing damage if people are exposed to it over a long period. To prevent
potentially dangerous exposure to high levels of acoustic pressure, anyone who is exposed to these levels
should use adequate protection devices.
When a transducer capable of producing high sound levels is being used, it is therefore necessary to wear ear
plugs or protective earphones.
See the manual technical specications to know the maximum sound pressure level.
• In order to prevent accidents when setting up the loudspeakers or loudspeaker stands, make sure they are standing on a
rm surface.
• Ensure that all additional hardware, xings and fasteners used for installation or mobile deployment are of an appropriate
size and load safety factor.
• Pay attention to the manufacturers’ instructions and to the relevant safety guidelines. Regularly check the loudspeaker
housings and accessories for visible signs of wear and tear, and replace them when necessary.
• Regularly check all load bearing bolts in the mounting devices.
System Setup Addendum: When connecting multiple loudspeakers in a system, signal can be passed through
from one loudspeaker to another using XLR cables. No processing is applied to the signal as it passes through
from the input to the output connectors in each loudspeaker. Signal can be routed in any sequence because
each loudspeaker receives a full-range signal and applies the necessary processing in order to operate as part
of the overall system. It is recommended to run signal to the nearest box rst and patch to the next nearest box
in sequence. It is recommended to run the DiaMon 112 as the last box in the sequence when it is mounted on a
pole or tripod stand.

7
bassboss.com bassboss.com
To prevent the occurrence of noise on signal cables, use shielded cables only. Avoid routing signal cables close to equipment
that produces high-intensity electromagnetic elds such as transformers, power cables and loudspeaker wires. Do not coil
excess power cable. Do not coil or wrap power cables and signal cables together.
Important Notes:
Thanks for joining the BASSBOSS Family!
WARRANTY INFORMATION – Our fully-transferable warranty covers all BASSBOSS products.
STANDARD CABINET WARRANTY
BASSBOSS loudspeaker cabinet integrity, including all joinery, fasteners, handles and wood, is warranted against defects in materials and
workmanship for a period of six (6) years from the date of purchase. This warranty does not cover items that are intended to wear and can be
replaced if worn or damaged. Examples of items not covered by this warranty are cabinet feet, grills and the nish or coating applied to the cabinet.
ENHANCED COMPONENT WARRANTY
BASSBOSS ampliers and electronic components are covered against failures due to defects in materials and/or workmanship for a period of
three years from the date of purchase.
NO WORRIES WOOFER WARRANTY
Transducers, including burned or open voice coils in subwoofers, are covered for two years from the date of purchase.
OUR SUPPORT
It is our goal to provide trouble-free loudspeakers. That objective begins as part of the design phase and continues on through to any service you
may require. In order to be able to provide the lowest possible failure rate, the best possible warranty service and the fastest turn-around time, we
request that you contact us immediately if you notice any problem with your system, and before you attempt any repairs. We can provide the best
and fastest solution if we know the details of the problem before any repair attempts are made. Often BASSBOSS technicians can troubleshoot
problems that may arise and no repair or further service will be necessary. Warranty support is a service, and part of that service includes helping
you prevent failures and minimize repair and shipping costs. Please do not ship products without rst obtaining a return authorization number by
calling [phone] toll-free or by emailing [e-mail]. BASSBOSS service technicians will provide assistance and instructions on
shipping and packaging requirements specic to your service needs.
WARRANTY LIMITATIONS
During the warranty period, if your loudspeaker malfunctions or fails due to any defect in components or manufacturing, the failed parts will be
repaired or replaced. This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. Warranty coverage
and eligibility will be determined upon inspection by BASSBOSS personnel. This warranty does not cover labor other than that authorized and
performed by BASSBOSS personnel. Service will be performed upon the return of the failed unit, together with its original sales receipt or other
proof of purchase, to BASSBOSS or an Authorized Service Facility. Purchaser is responsible for all costs of shipping and handling. Cosmetic damage
is specically excluded from this warranty. This warranty is rendered void if service, repairs and/or modications are attempted or made by anyone
not specically authorized by BASSBOSS to perform said services. Please contact BASSBOSS or your local BASSBOSS dealer before attempting
any repairs and before shipping parts in for service. This warranty gives you specic legal rights, and you may also have other rights, which vary
from state to state. For more information concerning BASSBOSS service and warranty policies please contact us at [phone] toll-free.
EXPORT WARRANTY
BASSBOSS products can be purchased worldwide. In countries without local BASSBOSS distributors, product requiring service must be shipped
back to the US for warranty repairs. In most cases, the entire cabinet will not need to be shipped. Generally only the individual aected parts will
need to be shipped to the factory for servicing. Please contact BASSBOSS before attempting any repairs and before shipping parts in for service.
SHIPPING AND PACKAGING
Please package your returns safely and securely. BASSBOSS does not cover damage that occurs in transit. Freight insurance is recommended.
Caution: Loudspeakers produce a static magnetic eld even if they are not connected or are not in use. Therefore make sure when
erecting and transporting loudspeakers that they are nowhere near equipment and objects which may be impaired or damaged
by an external magnetic eld. A distance of 3 feet (1m) should be maintained between loudspeakers and sensitive equipment such
as CRT monitors or magnetic storage media.
Never attempt to carry out any operations, modications or repairs that are not expressly described in this manual.
Contact BASSBOSS support if the product is not functioning properly. Do not attempt to repair the product - We can help!
BASSBOSS strongly recommends this product be installed by a qualied, professional installer who can ensure correct installation
and certify that it is installed in compliance with the regulations in force.
The entire audio system must comply with the current local standards and regulations regarding electrical systems.

famil[email protected]
855-822-7770 toll free
www.bassboss.com
Need more assistance?
Support is available via phone or email.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
CAUTION: Changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Compliance Notice
Manufacturer:
True Lee Loudspeakers | BASSBOSS
2620 S. Hill St. Los Angeles CA 90007
We declare that under our sole responsibility the product: DV12-MKII MicroMain
Intended use: Professional Audio Loudspeaker
Are in conformity with the provisions of the following EC Directives, including all amendments, and with national
legislation implementing these directives:
• 2006/95/EC Low Voltage Directive
• 2004/108/EC Electromagnetic Compatibility Directive
• 2002/95/CE RoHs Directive
EC Declaration of Conformity
