BassBoss AT312 Attuned Top User manual

AT312 Attuned Top
Owner’s Manual
www.bassboss.com

ABLE OF CON EN S
verview..................................................................................... 2
Technical Specifications............................................................ 3
Safety Information..................................................................... 4
Setup Instructions..................................................................... 5
Troubleshooting......................................................................... 6
Dimension Drawings, Frequency Graph.............................. 7
Photos.......................................................................................... 8
Warranty..................................................................................... 9
FCC Compliance Notice......................................................... 11
AT312 Attuned Top
Owner’s Manual
BASSBOSS At312 Attuned Top OWNER’S MANUAL

AT312 Attuned Top
Owner’s Manual
BASSBOSS At312 Attuned Top OWNER’S MANUAL
2
Page

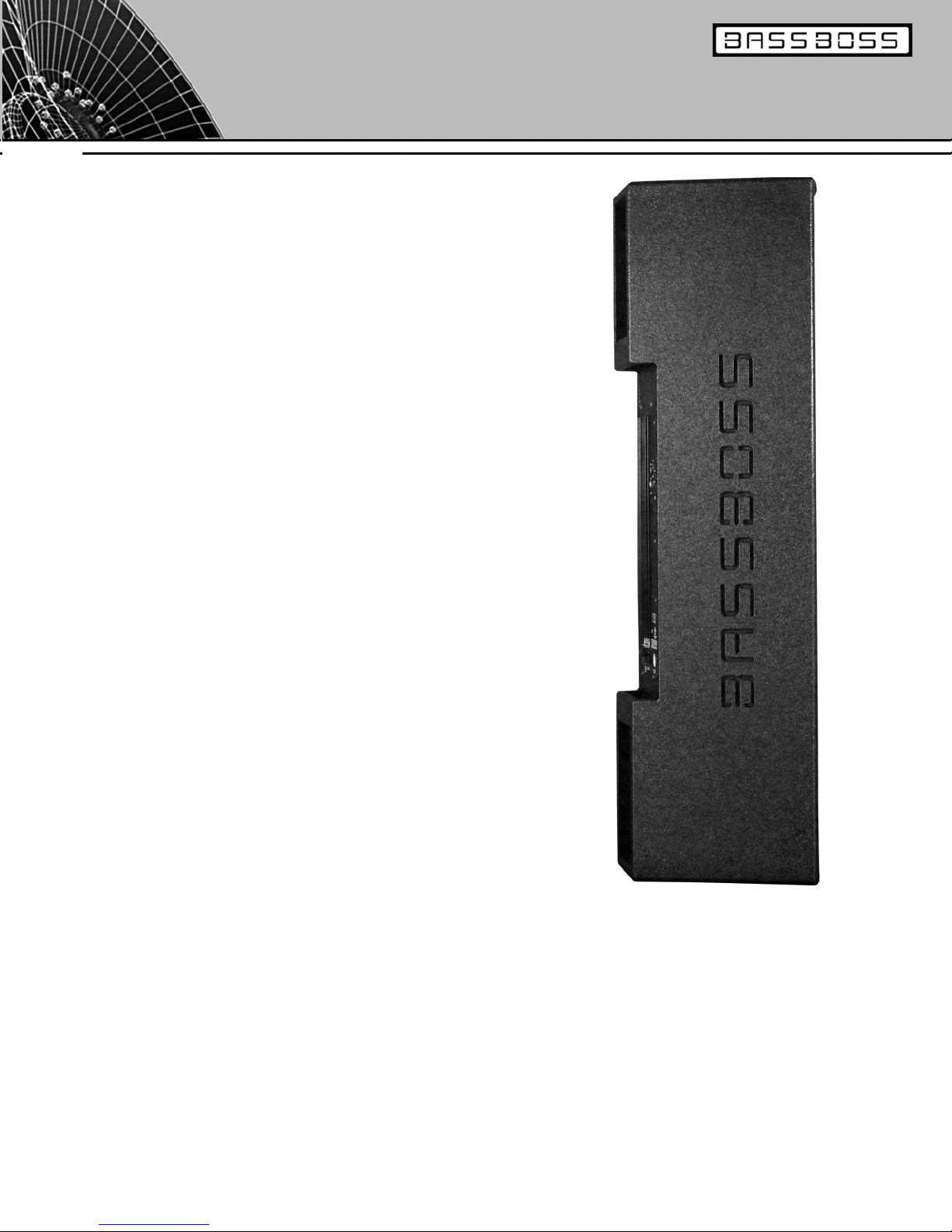

• Outstanding Sound Quality
• Lightweight and Low-Profile
• Usable Singly or In an Array as a Main or Side-Fill
• Tall, Thin Design Gets Mids and Highs Above Audience
• Permits One Person Set-Up of a emarkable System
The AT312 Attuned Top is a co-axial source array cabinet for
medium to short distance coverage where high output, a small
footprint and very high fidelity are required. It’s compact, simple
to use, easy to set up, attractive and capable of very high output
with superbly uncolored sound and natural musical character.
When combined with subwoofers like the SSP218 Profundo “Dub-ill”
Subwoofer, the result is an extremely high-resolution 4-way active loudspeaker
system with virtually unparalleled frequency response and dynamic power for
its size. Its driver compliment incorporates dual 12” woofers in a vented
enclosure for low frequencies and a 12” closed-back midrange driver with a co-
axially mounted 1.4” exit compression driver coupled to a 40 by 60 degree
horn. The 40-degree horizontal coverage per box allows arrays to be
configured for 80, 120, 160, 200 degrees or more of horizontal coverage. One-
man set up of a substantial system is made easy because the AT312 cabinets
weigh only 86 lbs each.
Dual 12” low frequency drivers were chosen to minimize cabinet frontal area
while delivering the best possible speed and impact in their operating range.
Thanks to the narrow frontal area, the low frequency drivers couple coherently
when multiple cabinets are arrayed, providing powerful mid-bass impact from
a small, lightweight box. The 12” coaxial drivers also serve to minimize frontal
area while maximizing output. The 12” midrange drivers are tightly spaced
and the high-frequency lens is adapted to minimize midrange comb filtering.
The cabinets are built with a 20-degree taper on each side, allowing them to
be tightly packed and maintain the correct 40-degree splay angle to match
the high frequency lens pattern. The 48” tall box elevates the mid and high
frequency radiators to a minimum of 7’6” on center when stacked on the
corresponding subwoofer systems.
Transportation and set-up of the SSP218/AT312 combination is made easy
because the subwoofers serve as a carrier for the tops. In most venues it’s
possible to roll the system into place, lock the casters, tilt up the tops, plug in
the power and signal and have an extremely substantial system ready to play
in a few short minutes by just one person.
When an AT312 is used with a BASSBOSS powered subwoofer the result is
a very effective, practical, high fidelity 3-way active loudspeaker system. In
most venues it’s possible to roll the system into place, lock the casters, tilt up
the tops, plug in the power and signal and be ready to play in a few short
minutes on almost any scale. The simplicity and ease of these components
together will delight anyone who is regularly moving gear, coupled with fidelity
and reliabilty that are industry leading .

AT312 Attuned Top
Owner’s Manual
BASSBOSS At312 Attuned Top OWNER’S MANUAL
Performance
Loudspeaker Description: High-fidelity multi-use compact co-axial point-source mid-high cabinet
Frequency Response (±3 dB): 100 Hz – 18 kHz
Frequency Range (-10 dB): 80 Hz-20 kHz
Sensitivity: LF: 100dB; MF: 96dB; HF:107dB
Maximum Sustained Output: 125dB
Short-term peak Output: 131dB
Input Power Rating: 2000W RMS
Nominal Dispersion (°H x °V): 40 x 60
Nominal Cabinet Impedance: LF 4 ohms, MF 4 ohms, HF 8 ohms (8+8+8 optional)
Input Power Rating, LF, MF, HF: 1400W, 700W, 160W
Enclosure Type: 3-way mid-high. Helmholz resonator LF section, acoustic suspension MF section with co-axially mounted, horn-loaded HF section
Low Frequency transducer: 2 x 12 " dia (300 mm) neodymium motor woofer with 3" (76 mm) voice coil, waterproof cone
Mid Frequency Transducer: 12" dia. (300 mm) neodymium motor midrange driver with co-axial HF exit
High Frequency Transducer: 1.4" exit 3' (76 mm) voice coil compression driver mounted to 40 by 60 wave guide
Cabinet Construction: 18mm Baltic Birch plywood, dado joinery, integrated handles, 20 degree side angle trapezoid
Suspension System: 16 x 3/8"-16tpi threaded flypoints
Dimensions (HxWxD): 48" x 15"(f) x 14"
Net Weight Passive: 79 lbs
Net Weight Active: 88 lbs
Shipping Weight: 100 lbs
Exterior finish: Weatherproof bonded polyurethane
Grill: Perforated, powder-coated steel
Physical
Output power rating, channel 1: 1600W @ 8Ω
Output power rating, channel 2: 700W @ 4 Ω
Output power rating, channel 3: 350W @ 8 Ω
Compatible Subwoofers: BASSBOSS Motiv Bass Horn and Profundo Subwoofers
Electrical input connector: Neutrik Powercon
Voltage operating range: 90-250V. Auto-sensing, auto switching universal supply
Current draw, nominal: 3A @ 1/8 power
Current draw, peak: 20A
Signal input connector: XLR-F
Signal output connector: XLR-M pass-through only
DSP: T
Amplification: Available with dedicated amplification for installation
Power
Ground Stack Array Bracket: Holds cabinets in tight-pack array when stacked on subs
Flying array bracket: Allows arrays of cabinets to be flown from two points
Shoulder Eye Bolts: For use when flying single cabinets
Cover: Heavy-duty padded nylon transport cover
Matched system components: BASSBOSS Profundo Subs and Motiv Horns
Online Information: http://www.bassboss.com/products/tops/at312
Optional
3
Page

SAFE Y INFORMA ION
Read with special attention, as they provide important information. Information regarding use of loudspeakers:
Never stand in the immediate vicinity of loudspeakers driven at a high level. Professional loudspeaker systems are capable
of causing a sound pressure level detrimental to human health. Seemingly non-critical sound levels (from approx. 95 dB
SPL) can cause hearing damage if people are exposed to it over a long period.To prevent potentially dangerous exposure
to high levels of acoustic pressure, anyone who is exposed to these levels should use adequate protection devices.
When a transducer capable of producing high sound levels is being used, it is therefore necessary to wear ear plugs or
protective earphones.
See the manual technical specifications to know the maximum sound pressure level.
In order to prevent accidents when setting up the loudspeakers or loudspeaker stands, make sure they are standing on
a firm surface.
Ensure that all additional hardware, fixings and fasteners used for installation or mobile deployment are of an appropriate
size and load safety factor.
Pay attention to the manufacturers' instructions and to the relevant safety guidelines.
Regularly check the loudspeaker housings and accessories for visible signs of wear and tear, and replace them when
necessary.
Regularly check all load bearing bolts in the mounting devices.
Caution: Loudspeakers produce a static magnetic field even if they are not connected or are not in use.Therefore make
sure when erecting and transporting loudspeakers that they are nowhere near equipment and objects which may be
impaired or damaged by an external magnetic field.
Generally speaking,a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards,
etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors.
Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual.
Contact your dealer or BASSB SS support if the product is not functioning properly.
BASSB SS strongly recommends this product is only installed by professional qualified installer who can ensure correct
installation and certify it according to the regulations in force.
The entire audio system must comply with the current standards and regulations regarding electrical systems.
IMPOR AN NO ES
To prevent the occurrence of noise on line signal cables, use screened cables only.All the precautions, in particular the
safety ones, must be and avoid putting them close to equipment that produces high-intensity electromagnetic fields,
power cables and loudspeaker lines.
AT312 Attuned Top
Owner’s Manual
BASSBOSS At312 Attuned Top OWNER’S MANUAL
4
Page

SE UP INS RUC IONS
1. Place loudspeaker in the desired location. Ensure that it is secure and stable.
2. Rotate the input attenuator knob counterclockwise to the lowest setting.
3. Connect signal via the XLR input jack.
4. Check voltage selection switch to ensure it is in the correct position for the AC line voltage being supplied.
WARNING: Severe damage will result if over 140V is applied while switch is in 115V position. If the
voltage selection switch is in 230V position and 115V line voltage is applied, no damage will occur however the
unit will not power on.
5. Check that the Power switch is in the FF position.
6. Connect the amplifier module’s power supply cord using the blue PowerCon™ connectors.To insert, align the
indexing tabs on the Powercon™ connector, insert it into the socket and rotate clockwise until the latch catches.
7. Connect the electrical plug to a power source.
8. Select the desired preset via the PGM SEL button.
9. Turn N the power switch.
10. Check that the MUTE buttons are pressed IN to un-mute the channels.
11. Rotate the input attenuator clockwise to achieve the desired sound level.
The AT312 is equipped with 2 presets. The presets are selected using the PGM SEL button. The button has 2
positions, in for preset 1 and out for preset 2.The presets load into the DSP when the amplifier module is powered
on. Changing the preset select button position while the amplifier is in operation will N T change the setting.To
change the setting, select the position for the desired preset and then power on the amplifier.
Preset 1 includes all the required processing for normal operation. It is recommended that preset 1 be used for initial
setup and under most operating conditions. Preset 2 offers increased high frequency output and is appropriate for
use where greater distances must be covered such as outdoors or in other locations where additional high frequency
content is desirable.
System Setup Addendum:
When connecting multiple loudspeakers in a system, signal can be passed through from one loudspeaker to another
using XLR cables. No processing is applied to the signal as it passes through from the input to the output connectors
in each loudspeaker. Signal can be routed in any sequence because each loudspeaker receives a full-range signal and
applies the necessary processing in order to operate as part of the overall system. It is recommended to run signal
to the nearest box first and patch to the next nearest box in sequence.
The AT312 is equipped with a power pass-through facility that allows multiple boxes to be connected on a single
power source. The total power draw of all units connected through one power input connector cannot exceed
20A.This limits the number of AT312s that can be connected on one power inlet to 2 when using 115V line voltage
and 4 when using 230V line voltage.
AT312 Attuned Top
Owner’s Manual
BASSBOSS At312 Attuned Top OWNER’S MANUAL
5
Page

T OUBLESHOOTiNG
If after following the above instructions for setup you have no output from the loudspeakers, please check
the following:
Verify that the green power (PWR) LED is on. If not, check the following:
1. Is the power cord plugged into a live outlet?
2. Is the Neutrik Powercon connector rotated into the locked position?
3. Is the amplifier power switch on?
If the power LED is on, check the following:
Is the green “signal present” LED (SIG) illuminating? If not:
1. Is the signal cable connected to the input?
2. Is the signal cable connected to an operating output at the other end?
3. Is the signal flowing to the input? Check the integrity of the cable.
If the signal LED is illuminating:
1. Is the attenuator turned all the way down or at a very low level?
2. Are the mute buttons engaged?When the button is out, the channel is muted. Make sure that the mute
buttons are pressed IN for normal operation. The mute buttons are next to the program select
(PGM SEL) button.
3. Is the signal flowing to the input full-range? Filters in the signal may remove the operating frequencies
of the loudspeaker receiving them.The signal LED will illuminate at the presence of any signal so while
high-frequency signal will illuminate the LED on a subwoofer, no or very little sound will be heard.
AT312 Attuned Top
Owner’s Manual
BASSBOSS At312 Attuned Top OWNER’S MANUAL
6
Page

FREQUENCY RESPONSE GRAPH, DIMENSION DRAWINGS
AT312 Attuned Top
Owner’s Manual
BASSBOSS At312 Attuned Top OWNER’S MANUAL
Single Cabinet Response
Response with Subwoofer
7
Page

PHOTOS
AT312 Attuned Top
Owner’s Manual
BASSBOSS At312 Attuned Top OWNER’S MANUAL
8Page

AT312 Attuned Top
Owner’s Manual
BASSBOSS At312 Attuned Top OWNER’S MANUAL
WA ANTY INFO MATION
Beyond ensuring your satisfaction, our extensive "Sound Defense" transferable warranty covers your purchases for a period of two years.
BASSBOSS cabinet integrity, (the wood, joinery and fasteners,) is warranted for a total of six years. All drivers, amps and electronic components
are covered against failures due to defects in materials and/or workmanship for a period of three years from the date of purchase. Burned or
open voice coils in subwoofers are also covered for two years. See the details and limitations below:
It is our goal to provide trouble-free loudspeakers. That objective begins as part of the design phase but it continues on through to any service
you may require. In order to be able to provide the lowest possible failure rate, the best possible warranty service and the fastest turn-around
time, we request that you contact us immediately if you notice any problem with your system, and before you attempt any repairs. We can
provide the best and fastest solution if we know the details of the problem before any repair attempts are made. Often BASSBOSS technicians
can troubleshoot problems that may arise and no repair or further service will be necessary.
Warranty support is a service, and part of that service includes helping you prevent failures and minimize repair and shipping costs.
Please do not ship products without first obtaining a return authorization number by calling 512-368-3268 (855-822-7770 toll-free) or by
emailing [email protected]. BASSBOSS service technicians will provide assistance and instructions on shipping and packaging
requirements specific to your service needs.
STANDA D CABINET WA ANTY
BASSBOSS loudspeaker cabinet integrity, including all joinery, fasteners, handles and wood, is warranted against defects in materials and
workmanship for a period of six years from the date of purchase. This warranty does not cover items that are intended to wear and can be
replaced if worn or damaged. Examples of items not covered by this warranty are cabinet feet, grills and the finish or coating applied to the
cabinet.
ENHANCED COMPONENT WA ANTY
BASSBOSS self-powered loudspeaker components, including their amplifiers, digital processors, drivers and voice coils, are warranted for
a period of two years from the date of purchase, subject to the limitations outlined below.
WA ANTY LIMITATIONS
During the warranty period, if your loudspeaker malfunctions or fails due to any defect in components or manufacturing, the failed parts will
be repaired or replaced. This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. Warranty
coverage will be determined upon inspection by BASSBOSS personnel. This warranty does not cover labor other than that authorized and
performed by BASSBOSS personnel. Service will be performed upon the return of the failed unit, together with its original sales receipt or
other proof of purchase, to BASSBOSS or an Authorized Service Facility. Purchaser is responsible for all costs of shipping and handling.
Cosmetic damage is specifically excluded from this warranty. This warranty is rendered void if service, repairs and/or modifications are
attempted or made by anyone not specifically authorized by BASSBOSS to perform said services. Please contact BASSBOSS or your local
BASSBOSS dealer before attempting any repairs and before shipping parts in for service.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. For more information
concerning BASSBOSS service and warranty policies please contact us at 512-36-3268 or [phone] toll-free.
9
Page

EXPO T WA ANTY
BASSBOSS products can be purchased worldwide. In countries without local BASSBOSS distributors, product requiring service must be
shipped back to the US for warranty repairs. In most cases, the entire cabinet will not need to be shipped. Generally only the individual
affected parts will need to be shipped to the factory for servicing. Please contact BASSBOSS before attempting any repairs and before
shipping parts in for service.
SHIPPING AND PACKAGING
Please package your returns safely and securely. BASSBOSS does not cover damage that occurs in transit. Freight insurance
is recommended.
BASSBOSS Service Information:
Email: [email protected]
Phone: [phone] toll free or 512-368-3268
Web Site: www.bassboss.com
Thanks for your BASSBOSS purchase!
AT312 Attuned Top
Owner’s Manual
BASSBOSS At312 Attuned Top OWNER’S MANUAL
10
Page

FCC COMPLIANCE NOTICE
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC ules.These limits are designed to provide reasonable protection against
harmful interference in a residential installation.This equipment gener- ates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• eorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
EC DECLA ATION OF CONFO MITY
Manufacturer:
BASSBOSS 9501 Cargo Ave Ste 600 Austin TX 78719
We declare that under our sole responsibility the product:AT312
Intended use: Professional Audio Loudspeaker
Are in conformity with the provisions of the following EC Directives, including all amendments, and with
national legislation implementing these directives:
• 2006/95/EC LowVoltage Directive
• 2004/108/EC Electromagnetic Compatibility Directive
• 2002/95/CE oHs Directive
AT312 Attuned Top
Owner’s Manual
BASSBOSS At312 Attuned Top OWNER’S MANUAL
11
Page
