Bauhn ACSB-0122 User manual

User Manual
MODEL: ACSB-0122
2.0 Channel Soundbar
AFTER SALES SUPPORT
1300 002 534
tempo.org/support
MODEL: ACSB-0122 PRODUCT CODE: 707915 01/2022
AUS

2
Welcome
Congratulations on your purchase!
This manual tells you all you need to know about using your new BAUHN®product.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by BAUHN®are manufactured to the highest standards of performance and safety and,
as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.
Domestic use only: This product is intended for indoor domestic use only. It is not suitable for commercial, industrial
or outdoor use. Do not use this product for anything other that its intended purpose, and only use it as described in
this manual.
We hope you will enjoy using your purchase for many years to come.

3
Operation 17
General Operation 17
Input Modes 17
Bluetooth® 18
Pairing Bluetooth®Devices 18
Bluetooth®Playback 19
Troubleshooting 20
Specications 22
Compliance and Responsible Disposal 23
Contents
Welcome 2
Unpack and Prepare 4
What's in the box 4
Important Tips 5
Installation - Free Standing 6
Installation - Wall Mounted 7
Wall Mounting Instructions 8
Connect to Power 10
Controls and Connections 11
Get to know your Soundbar 11
Buttons on the Soundbar 11
Rear Ports on the Soundbar 12
Remote Control 14
Setup 14
Using the Remote Control 15
Remote Control Overview 16
Warranty Information 24
Repair and Refurbished
Goods or Parts Notice 25

4 | UNPACK AND PREPARE

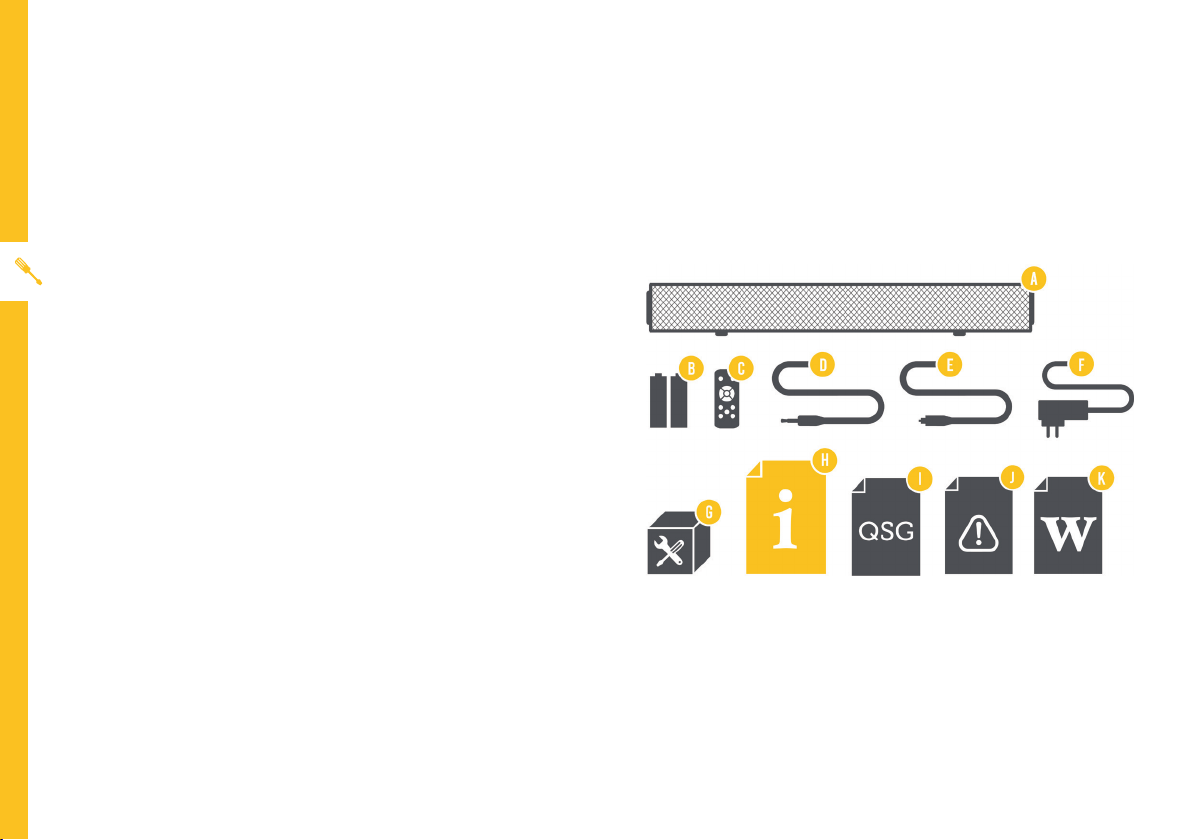

Before setting up your new Soundbar, check you have everything:
A. 2.0 Channel Soundbar
B. AAA Activ Energy Batteries
C. Remote Control
D. 3.5mm to RCA Audio Cable
E. Optical Cable
F. AC Power Adaptor
G. Wall Mount Installation Kit
(See next page for more information.)
H. User Manual
I. Quick Start Guide
J. General Safety Warnings
K. Warranty Certificate
You will need:
• Phillips-head screwdriver and a drill (for wall mount installation.)
• HDMI Cable, if you want to set up and use HDMI CEC. (Otherwise
you can use the included optical cable if you don't use HDMI.)
Unpack and Prepare
What's in the box

UNPACK AND PREPARE | 5

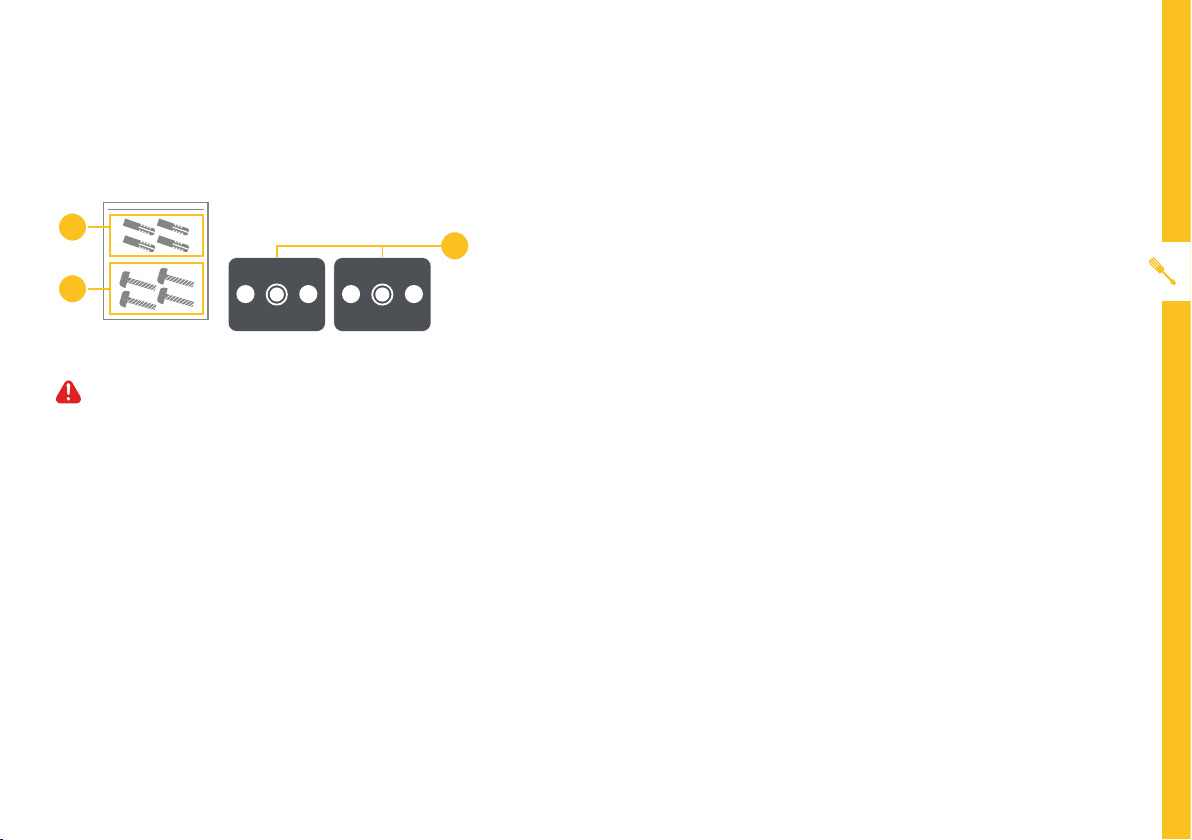

The illustration below shows the contents of the wall mount installation kit. These are the parts you
will need when wall mounting the soundbar. Some parts are not shown at the same scale.
1. Plastic anchor (4)
2. Screw (4)
3. Wall-mounting adaptor (2)
Wall Mount Installation Kit
Important Tips
• Place the Soundbar on a level surface.
• Place the Soundbar away from any source that may generate heat or vibrations.
• Make sure there is enough space around the Soundbar for airflow.
• The remote control works up to 6 metres away from the Soundbar.
• Unplug the Soundbar before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• Keep liquid, children and pets away from the Soundbar at all times.
1
3
2

6 | UNPACK AND PREPARE
Installation - Free Standing

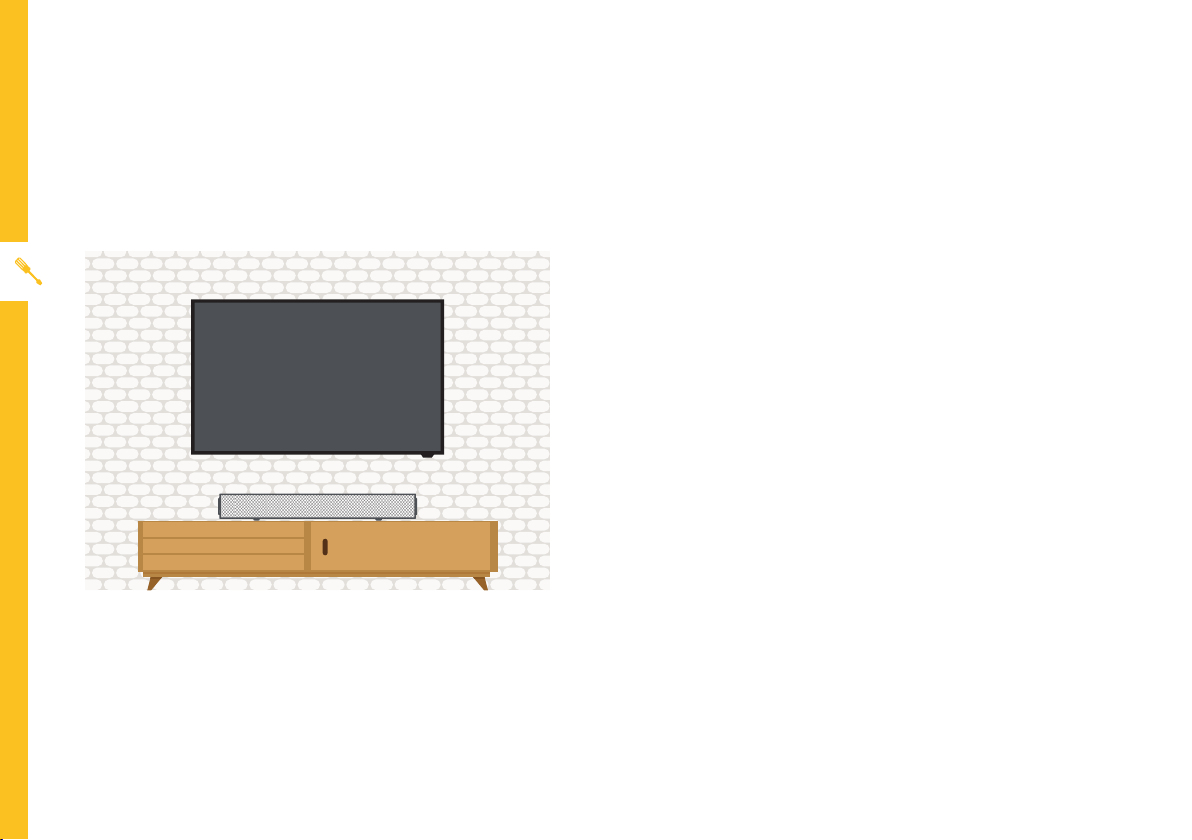

This soundbar can sit free-standing on a surface, or it can be mounted to a wall.
Free standing
Place on a secure, flat surface. Make sure the soundbar
is standing on its rubber pads (on the left and right sides
of the soundbar) and no other area of the bottom of the
soundbar is touching the surface.

UNPACK AND PREPARE | 7
Installation - Wall Mounted
Wall mounted
Wall mounting instructions are on the following pages.
• Wall mounted installation must be carried out
by qualified personnel only. Incorrect assembly
can result in severe personal injury and property
damage! If you intend to install this product yourself,
you must check for installations such as electrical
wiring and plumbing, which may be hidden inside or
behind the wall.
• It is the installer’s responsibility to verify and confirm
that the wall will safely support the total load of the
soundbar and wall brackets.
• Additional tools (not included) are required for the
installation.
• Do not overtighten screws.
• If mounting on a wood stud wall, use an electronic
stud finder to locate the centre of the framing studs
before drilling and mounting.

8 | UNPACK AND PREPARE
Use a pencil to make drill hole marks on the wall
for the plastic anchors. Make sure the marks are
level before drilling. Use a 6mm bit and power
drill (not supplied) to drill holes on the marks.
Note: For a wood stud wall, use an electronic
stud detector to locate the centre of the framing
studs before marking and drilling the holes.
570mm
30mm
30mm
Wall Mounting Instructions
1

UNPACK AND PREPARE | 9
For a concrete or brick wall:
Insert the supplied plastic anchors into the holes
and push in until they are flush with the wall. Drive
the supplied long screws through the wall mount
adaptors and into the plastic anchors and tighten until
the screw head is approximately 3mm from the wall.
For a wood stud wall:
Drive the screws through the wall mount adaptors
and into the wall and tighten until the screw head is
approximately 3mm from the wall.
Slide the soundbar onto the fixed
screws. Make sure that the soundbar is
secure and attached firmly to the wall.
2
3
Slide the soundbar onto the screws
which are fixed to the wall. Make sure
the soundbar is secure and attached
firmly to the wall.
570mm
30mm30mm

10 | UNPACK AND PREPARE

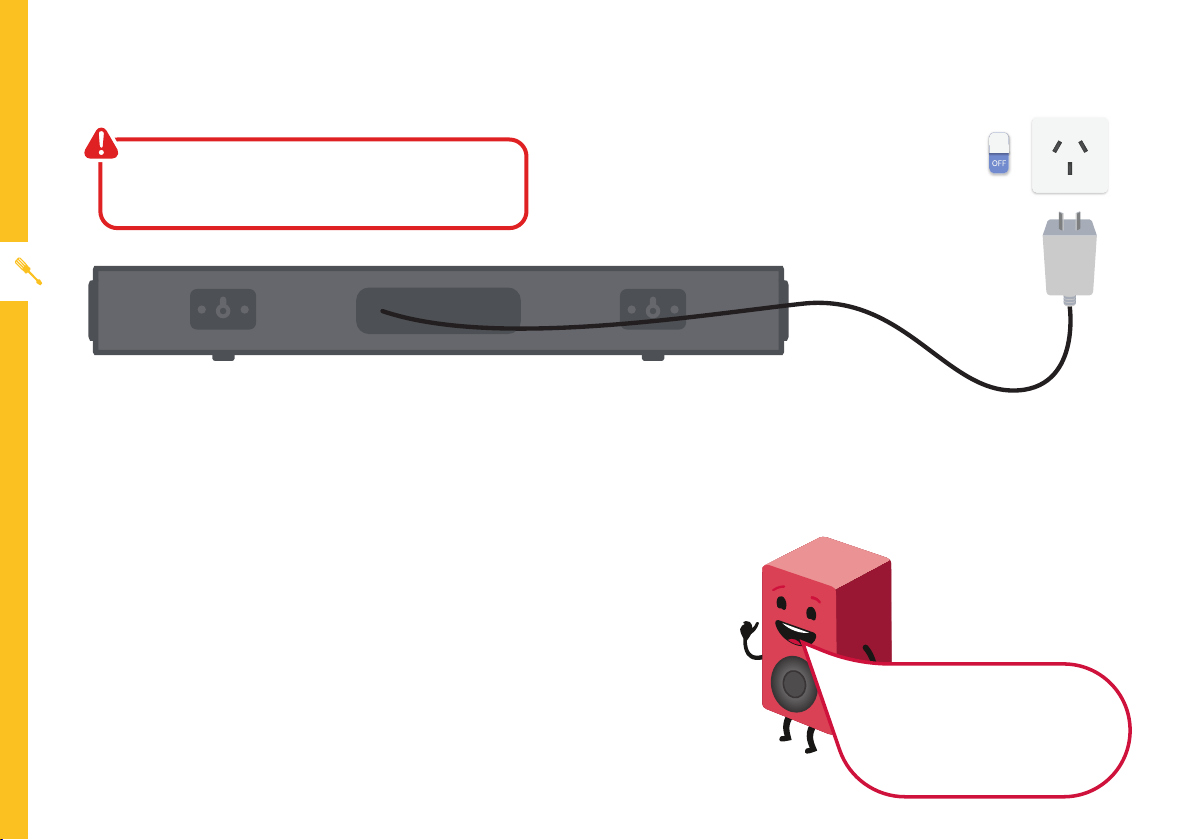

Connect to Power
Make sure the power switch is switched off at the
power outlet until you have finished connecting your
cables.
Rear view
Don't forget to plug in the
soundbar to the power outlet.
Leave the power switched off until
installation is finished.

CONTROLS AND CONNECTIONS | 11
POWER MODE VOL+VOL EQ
Controls and Connections
Buttons on the Soundbar
Get to know your Soundbar
1. POWER : Press to turn on/off.
2. MODE : Press to select preferred input source.
Press and hold to enter Bluetooth®pairing.
3. VOL : Press to play the next song. Press and
hold to increase volume level.
4. VOL : Press to play the previous song. Press
and hold to decrease volume level.
5. EQ : Press to change EQ modes.
1 2 3 4 5
Right Side
Front view
Remote control sensor
LED status indicator

12 | CONTROLS AND CONNECTIONS
1DC IN POWER
Before connecting the AC power adaptor cord, ensure you have
completed all other connections.
Connect the AC power adaptor cord to the DC IN socket first, then
plug in the AC power adaptor to the mains supply socket.
2LINE IN SOUND Use the supplied 3.5mm to RCA cable to connect Audio to your TV
for AV or Component video inputs.
3COAXIAL IN SOUND
Connect a Coaxial cable (not included) to the COAXIAL OUT socket
of your device (e.g. TV, DVD player) and the COAXIAL socket on the
soundbar.
4OPTICAL IN SOUND
Connect an Optical cable (included) to the OPTICAL OUT socket of
your device (e.g. TV, DVD player) and the OPTICAL socket on the
soundbar.
5USB IN STORAGE Plug in a USB stick to play media files stored on your USB storage
device.
6HDMI (ARC) SOUND
The ARC (Audio Return Channel) function allows you to send audio
input from an ARC-compliant TV to an ARC-compliant audio device
(e.g. soundbar) without the need for an additional audio cable
connection.
Rear Ports on the
Soundbar
1 2 4 5 63

CONTROLS AND CONNECTIONS | 13
Rear Ports on the Soundbar
HDMI (ARC)
To use the ARC function, make sure the soundbar's
HDMI (ARC) socket is connected via a HDMI cable
(not included) to the HDMI (ARC) socket of your ARC
compliant TV. Then just use your TV's remote control to
adjust the volume output (VOL +/– and MUTE) of the
connected audio device. In the TV settings menu, turn
on the ARC and CEC function (when CEC is turned on,
the sound bar will turn on/off automatically when the TV
is turned on/off).
When you use ARC, Optical or
Coaxial connection to your TV
or DVD, the audio output in the
TV or DVD settings menu must
be set to PCM mode (instead of
Auto mode, RAW mode or etc.).

14 | REMOTE CONTROL
2
3
1
Setup
Insert two AAA size batteries according to the polarity
markings (+ / -) inside the compartment. Make sure the
batteries are correctly aligned and properly pushed into
place.
Precautions When Using Batteries
• Do not use old and new batteries together.
• Do not use different types of batteries (e.g.
Manganese and Alkaline batteries) together.
• Remove the batteries from the remote if you do not
intend to use it for a long time.
• When discarding used batteries, follow any
guidelines for recycling and disposal of batteries
that apply in your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them to
extreme heat.
Remote Control
AAA size
batteries
included

REMOTE CONTROL | 15
Remote Control Use
• Do not drop, step on or otherwise
impact the remote control. This
may damage the parts or lead to
malfunction.
• Do not place objects between the
remote control and the remote
control sensor.
• Do not use this remote control while
simultaneously operating a remote
control for other devices.
Using the Remote Control
To use the remote control, point it towards the remote
control sensor at the front of the soundbar. The remote
control will not operate if its path is blocked.
The remote control has a range of up to about 6 metres
from the soundbar at an angle of up to 30 degrees to
either side of the sensor, as illustrated below.

16 | REMOTE CONTROL

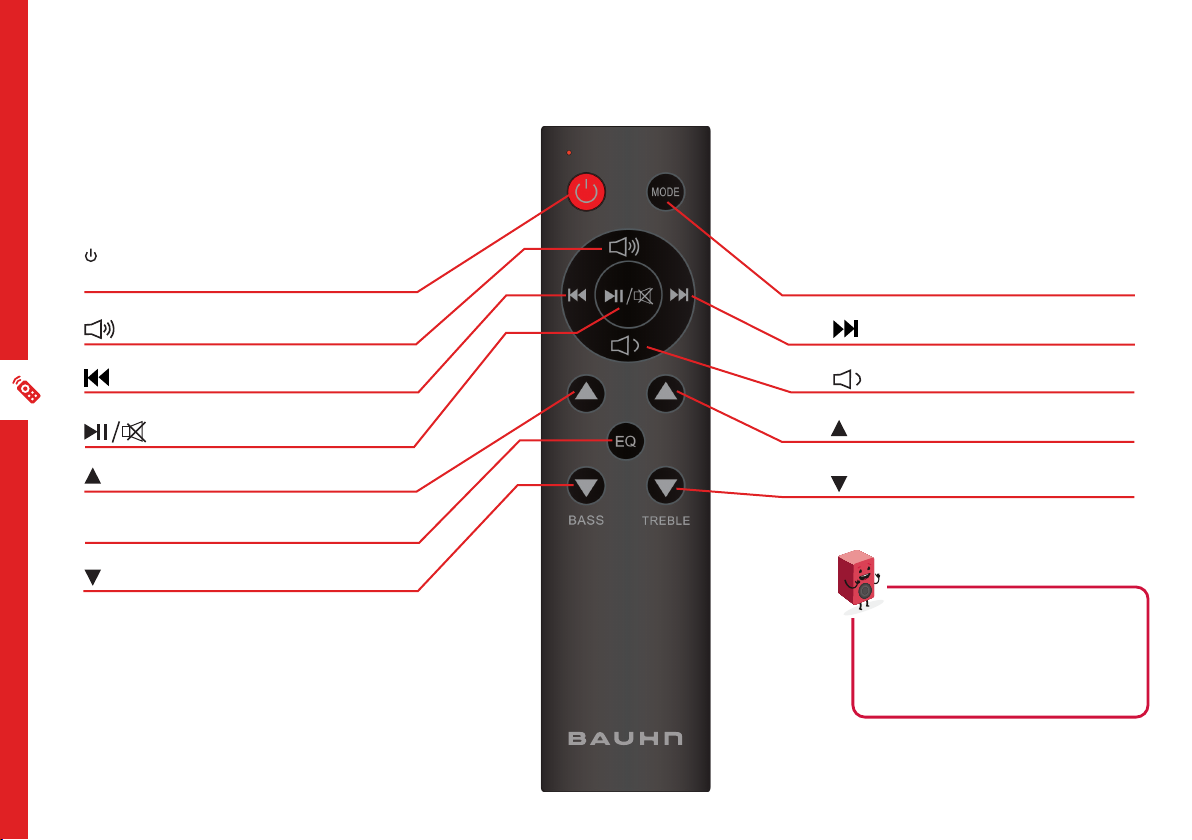

Remote Control Overview
Tips
Press and hold the MODE button
for 3 seconds to un-pair the
connected Bluetooth®device.
(POWER) : Switch the
soundbar to On or Standby
BASS: Increase the bass
EQ: Change EQ modes
BASS: Decrease the bass
: Skip to the previous track
: Play/Pause/Mute/Unmute
: Increase the volume level
MODE : Switch between
the input sources
: Skip to the next track
: Decrease the volume level
TREBLE : Increase the treble
TREBLE : Decrease the treble

OPERATION | 17
Function Action
Turn the Soundbar On
Press the POWER button on
the soundbar, or press the
(POWER) button on the remote
control.
Turn the Soundbar Off
Press the POWER button on
the soundbar or press the
(POWER) button on the remote
control.
Change the Input
Source/Mode
Press the MODE button
repeatedly on the soundbar to
change between modes or press
the MODE button on the remote
control repeatedly to change the
input source.
Increase/Decrease the
Volume
Press and hold the VOL+/-
buttons on the soundbar or the
/ buttons on the remote
control to adjust the volume level.
Operation
General Operation
Input LED Status Indicator
Bluetooth® pairing ready Flashing blue
Bluetooth® connected Blue
Optical Red
Coaxial Yellow and Green
Line In Green
USB Blue and Green
HDMI (ARC) Purple
Input Modes
Front view
LED status
indicator
Note: LED status indicator will light up red when on standby.

18 | BLUETOOTH
Bluetooth®
You can listen to tracks from a media device if connected
to the soundbar via Bluetooth®wireless technology.
The first time you use your Bluetooth®device with the
soundbar, you will need to pair them with one another.
Activate Bluetooth®on your compatible device, and set
it to search for compatible devices.
Select 'BAUHN ACSB-0122' from the list of found
devices.
Note: Only one playback unit can be connected to
the soundbar. If the soundbar is already connected to
another playback unit, the soundbar will not appear in
the Bluetooth®selection list. To disconnect the existing
paired device, press and hold the MODE button on the
remote for 3 seconds.
If your device asks for a passkey (depending on the
device manufacturers, model and software version), then
enter the digits “0000” and press OK.
Pairing Bluetooth®Devices
The operational range between this soundbar and
a Bluetooth®device is approximately 10 metres
(without any object between the Bluetooth®enabled
device and the soundbar). Any obstacles between
the devices can reduce the operational range.
Before you connect a Bluetooth®enabled device
to this soundbar, ensure you know the device’s
capabilities. Compatibility with all Bluetooth®devices
is not guaranteed.
If the signal strength is weak, your Bluetooth®
receiver may disconnect, but it will re-enter pairing
mode automatically.
If a mobile phone on which you are playing music
receives a call, the music will be interrupted. The
phone call audio however is not played via the
soundbar. Once you end the call, the devices
are connected to each other again and playback
resumes.
Your device will also be disconnected when your
device is moved beyond the operational range. If
you want to reconnect your device, place it within
the operational range.
If the connection is lost, follow the instructions (left)
to pair your device to the soundbar again.
Remote control sensor

BLUETOOTH | 19
Bluetooth®Playback
Function Action
Increase the Volume Press and hold the VOL +button on the soundbar or the button on the remote control.
Decrease the Volume Press and hold the VOL -button on the soundbar or the button on the remote control.
Play/Pause Press the button on the remote control.
Rewind/Skip Press the VOL +/VOL -buttons on the soundbar or press the / buttons on the
remote control to rewind/skip tracks.
Un-pair a Bluetooth®
device Press and hold the MODE button on the remote control for 3 seconds.

20 | TROUBLESHOOTING
If you have problems with the soundbar, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 002 534.
Troubleshooting
Problem Solution
No power
• Ensure that the AC power adaptor is properly connected.
• Ensure that there is power at the DC outlet.
• Press the POWER button on the soundbar or (POWER) button on the remote control to turn the soundbar on.
Remote control
does not work
• Use the remote control closer to the soundbar. Aim directly at the sensor on the front of the soundbar.
• Insert the battery with its polarities (+/-) aligned as indicated. Please check the battery is installed correctly.
• Replace the battery.
No response from
the unit • Disconnect and reconnect the AC power adaptor, then turn the soundbar on again.
Soundbar not
found in the
Bluetooth®device
list when pairing
• Ensure you have unpaired the previously paired Bluetooth®device from the soundbar.
• Ensure the Bluetooth®function is activated on your Bluetooth®enabled device.
General sound
issues
• Make sure the soundbar is connected to power and turned on, and that it’s set to the correct mode; use the
MODE button on the soundbar or the remote control to change the input mode.
• To check the system hasn't frozen, press the volume buttons.
• If only a specific input mode is not working, it’s likely the setting is wrong or the cable used is not working.
No sound from
Netflix/other apps
• Go to the TV settings menu, find Audio Output settings, and change the audio output mode to 'PCM' mode
(instead of Auto, RAW, etc.)
