Bauhn ACSB-1022-B User manual

User Manual
MODEL: ACSB-1022-B, ACSB-1022-C
2.0 Channel Soundbar
AFTER SALES SUPPORT
1300 002 534
tempo.org/support
MODEL: ACSB-1022-B, ACSB-1022-C PRODUCT CODE: 709794 10/2022
AUS

2
Welcome
Congratulations on your purchase!
This manual tells you all you need to know about using your new BAUHN®product.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by BAUHN®are manufactured to the highest standards of performance and safety and,
as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.
Domestic use only: This product is intended for indoor domestic use only. It is not suitable for commercial, industrial
or outdoor use. Do not use this product for anything other that its intended purpose, and only use it as described in
this manual.
We hope you will enjoy using your purchase for many years to come.

3
Operation 16
General Operation 16
Input Modes 17
Function Display 17
Bluetooth® 18
Pairing Bluetooth®Devices 18
Bluetooth®Playback 19
Troubleshooting 20
Specications 22
Compliance and Responsible Disposal 23
Contents
Welcome 2
Unpack and Prepare 4
What's in the box 4
Wall Mount Installation Kit 5
Important Tips 5
Installation - Free Standing 6
Installation - Wall Mounted 7
Wall Mounting Instructions 8
Connect to Power 9
Controls and Connections 10
Get to know your Soundbar 10
Buttons on the Soundbar 10
Rear Ports on the Soundbar 11
Remote Control 13
Setup 13
Using the Remote Control 14
Remote Control Overview 15
Warranty Information 24
Repair and Refurbished
Goods or Parts Notice 25

4 | UNPACK AND PREPARE
Before setting up your new Soundbar, check you have everything:
A. 2.0 Channel Soundbar
B. Remote Control
C. AAA Activ Energy Batteries
D. 3.5mm to 3.5mm Audio Cable
E. Optical Audio Cable
F. AC Power Adaptor
G. Warranty Certificate
H. General Safety Warnings
I. User Manual
J. Quick Start Guide
K. Wall Mount Installation Kit (See next page for more information.)
You will need:
• Phillips-head screwdriver and a drill (for wall mount installation.)
• HDMI Cable, if you want to set up and use HDMI CEC. (Otherwise
you can use the included optical audio cable if you don't use HDMI.)
Unpack and Prepare
What's in the box

UNPACK AND PREPARE | 5

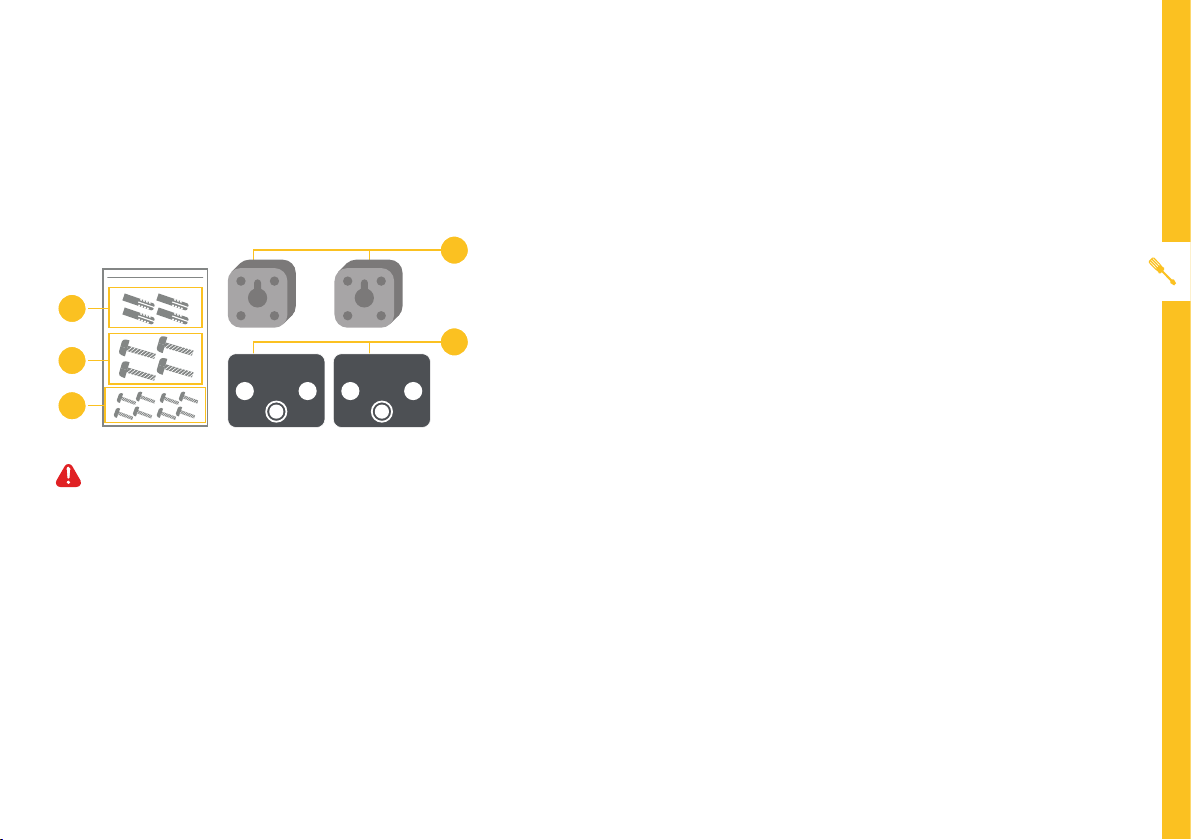

The illustration below shows the contents of the wall mount installation kit. These are the parts you
will need when wall mounting the soundbar. Some parts are not shown at the same scale.
Note: If you choose to wall mount the soundbar, you will find that a standard HDMI cable will not fit properly.
Please contact our After Sales Support on 1300 002 534 and we will provide you with a HDMI adaptor.
1. Plastic anchor (4)
2. Long screw (4)
3. Short screw (8)
4. Wall-mounting bracket (2)
5. Wall-mounting adaptor (2)
Wall Mount Installation Kit
Important Tips
• Place the Soundbar on a level surface.
• Place the Soundbar away from any source that may generate heat or vibrations.
• Make sure there is enough space around the Soundbar for airflow.

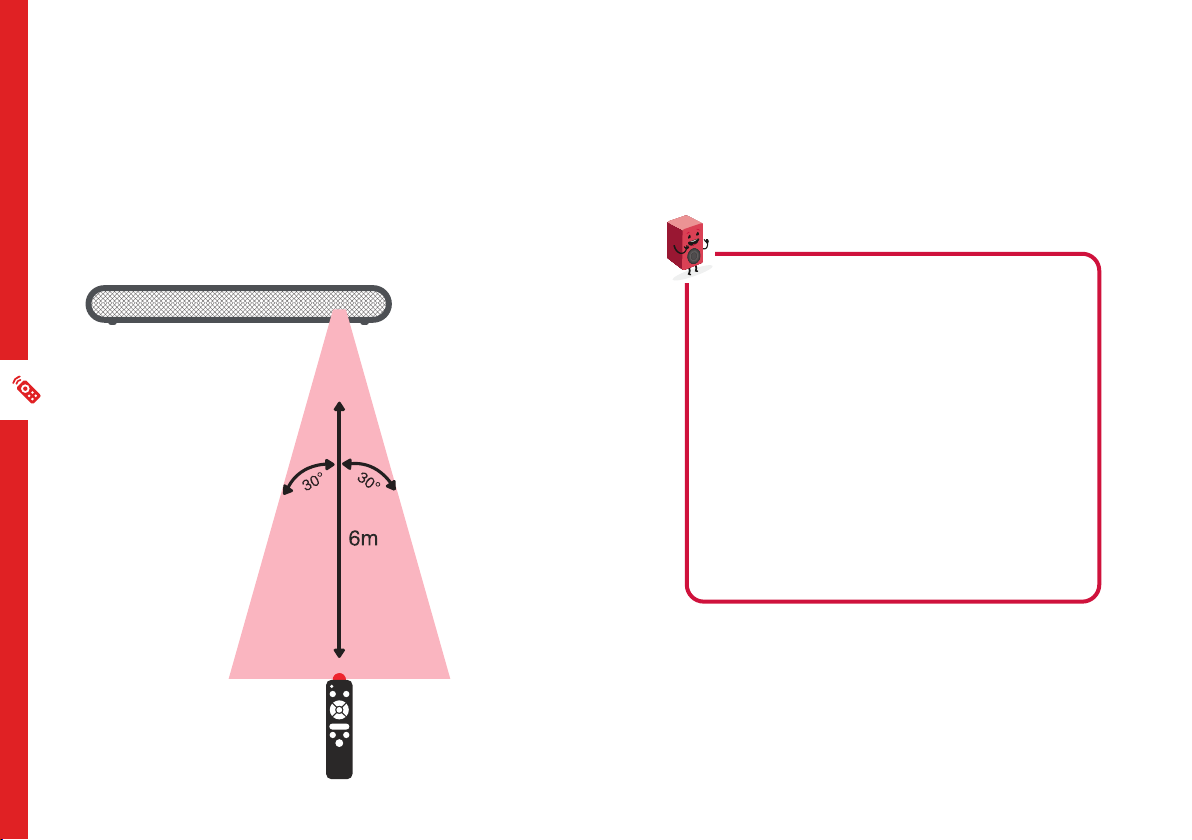

• The remote control works up to 6 metres away from the Soundbar.
• Unplug the Soundbar before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• Keep liquid, children and pets away from the Soundbar at all times.
5
1
4
3
2

6 | UNPACK AND PREPARE
Installation - Free Standing
This soundbar can sit free-standing on a surface, or it can be mounted to a wall.
Free standing
Place on a secure, flat surface. Make sure the soundbar
is standing on its rubber pads (on the left and right sides
of the soundbar) and no other area of the bottom of the
soundbar is touching the surface.

UNPACK AND PREPARE | 7
Installation - Wall Mounted
Wall mounted
Wall mounting instructions are on the following pages.
• Wall mounted installation must be carried out
by qualified personnel only. Incorrect assembly
can result in severe personal injury and property
damage! If you intend to install this product yourself,
you must check for installations such as electrical
wiring and plumbing, which may be hidden inside or
behind the wall.
• It is the installer’s responsibility to verify and confirm
that the wall will safely support the total load of the
soundbar and wall brackets.
• Additional tools (not included) are required for the
installation.
• Do not overtighten screws.
• If mounting on a wood stud wall, use an electronic
stud finder to locate the centre of the framing studs
before drilling and mounting.

8 | UNPACK AND PREPARE

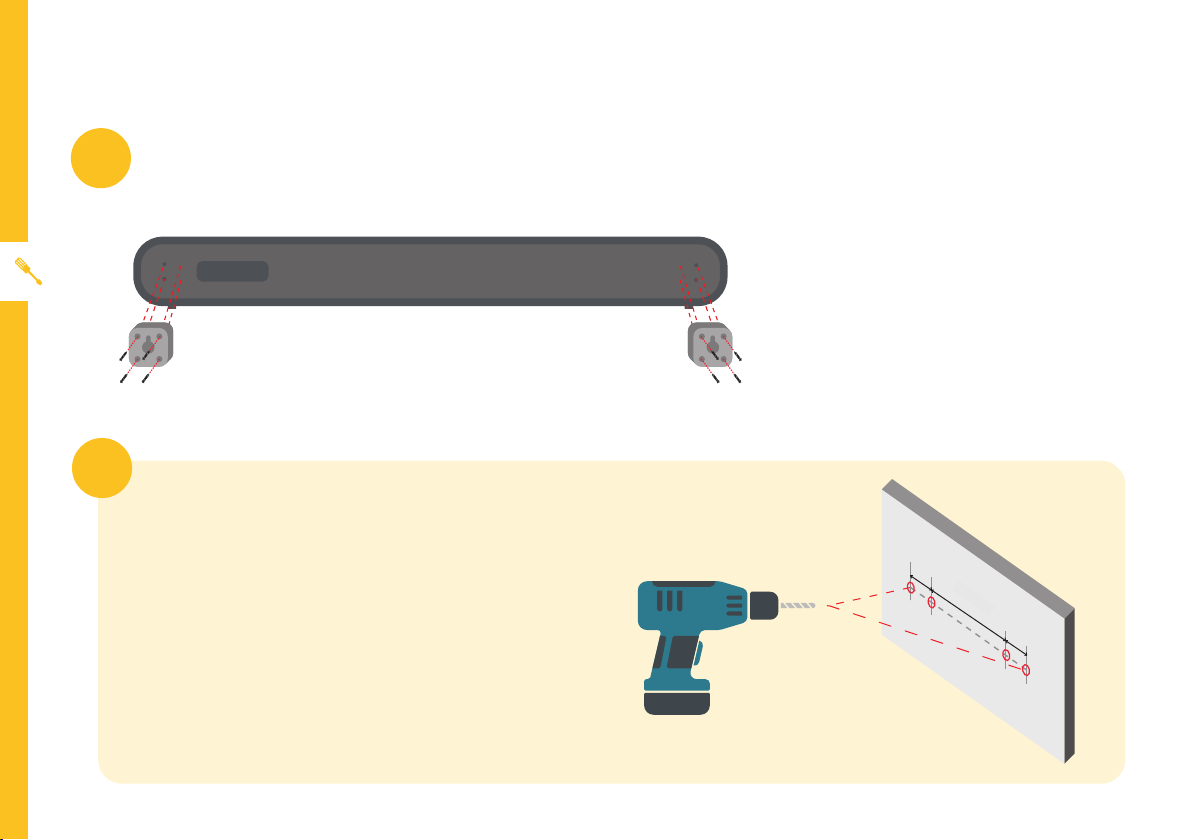

Wall Mounting Instructions
1
2
Fix the supplied wall-mounting
brackets to the bracket fixing holes
on the back of the soundbar with
the supplied short screws.
Affix the brackets as shown in the
illustration (left).
Use a pencil to make 4 drill hole marks on the
wall for the adaptors. Make sure the marks are
level before drilling. Use a 6mm bit and power
drill (not supplied) to drill holes on the marks.
Note: For a wood stud wall, use an electronic
stud detector to locate the centre of the framing
studs before marking and drilling the holes.
24mm 24mm
425mm
889mm

UNPACK AND PREPARE | 9
3
Use the supplied screws and plastic anchors to
fix the wall mount adaptors onto the drilled hole
marks. Once fixed to the wall, hang the soundbar
onto the wall mount adaptors.
Connect to Power
Make sure the power switch is switched off at the
power outlet until you have finished connecting your
cables.
Rear view

10 | CONTROLS AND CONNECTIONS
See next page for more info on the connections.
Controls and Connections

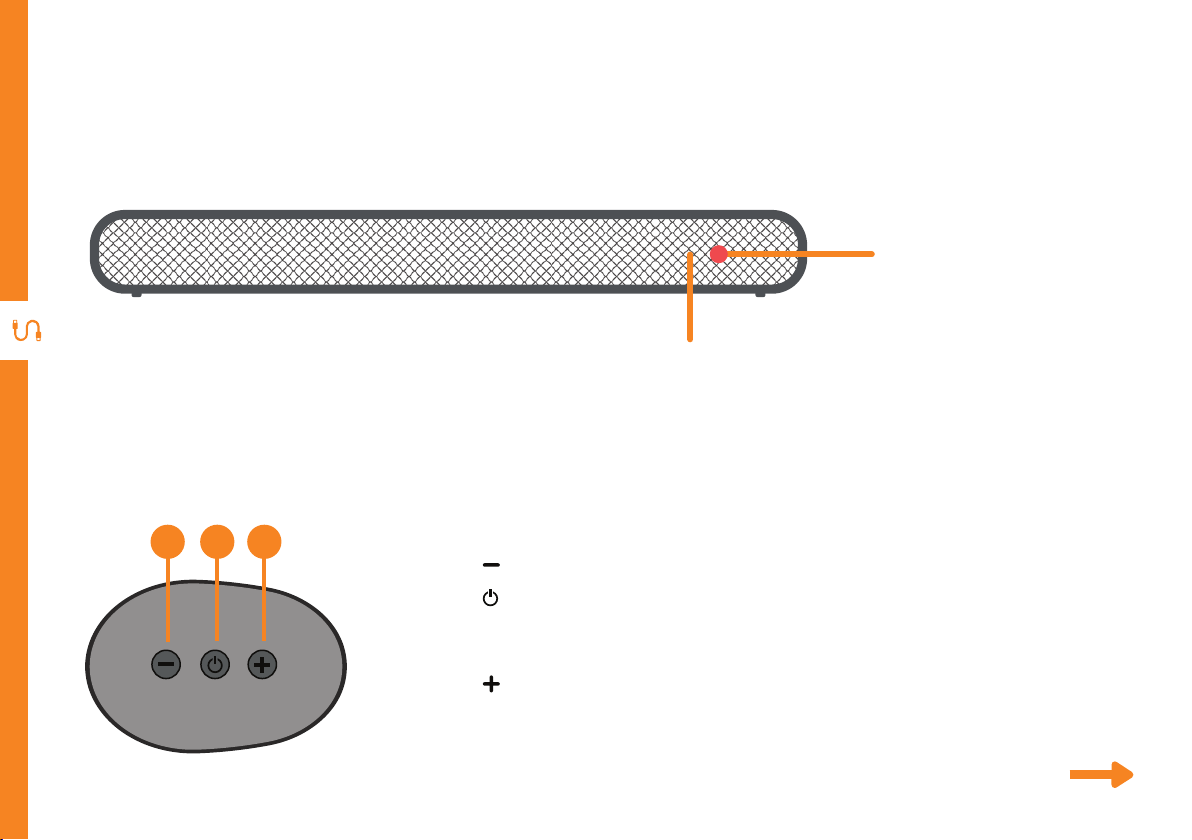

Buttons on the Soundbar
Get to know your Soundbar
1. : Decrease the volume level.
2. (POWER/SOURCE): Press to turn on.
Press again to select your preferred input source.
Press and hold to put into Standby mode.
3. : Increase the volume level.
1 2 3
Right Side
Front view
LED display
Remote control sensor
