Baumatic PCG7110SS User manual

That
PCG7110SS 70cm
Single cavity gas oven
cooker

1

User Manual for your Baumatic
PCG7110SS
70 cm Single cavity gas oven cooker
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 09/12/08
2

3
Contents
Environmental note 4
Important safety information 5 – 9
Specifications 9 – 10
Controlpanel 11
Using your gas cooking theatre 12–18
Beforefirstuse 12
Switching the gas oven on 12–13
Switching the gas grill on 13–14
Using and assembling the rotisserie 14–15
Usingtheminuteminder 15
Theovenlight 15
Cookingguidelines 16
Warnings 16
Usingthehobtop 17
Automaticelectricignition 17
Energysavingtips 18
Cleaning and maintenance 19–21
Cleaning the hob burners 20
Replacing the oven bulb 20
Removing the oven doors for cleaning 21
Installation 22–35
Positioning 22–24
Gas connection 24–25
Ventilationrequirements 25
Gas Safety (Installation and Use) Regulations 26
Gas connection 26–27
Gas adjustment (Conversion to LPG for the hob top) 28-29
Minimum flow adjustment for hob gas taps 29
Gas adjustment (Conversion to LPG for the oven and grill) 30–31
Minimum flow adjustment for the oven and grill burners 31
Fitting a stability chain 32
Electricalconnection 33
Connecting the mains supply cable 34
Replacing the mains supply cable 34–35
My appliance isn’t working correctly 35–36
Contactdetails 37

Environmental note
4
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
oPlease discard

5
Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If yo
are unsure of any of the information contained in t u his
ooklet, please contact the Baumatic Advice Line.
tic household use and for
in
ient temperature of the
n at
20 mm to the appliance, will be
rmation given in the installation instructions
hat this
f Baumatic Ltd.
uarantee. The foregoing does not
affect your statutory rights.
Service
Engineers or their authorised service agent.
b
General Information
oThis appliance is designed for domes
the cooking of domestic foodstuffs.
oIMPORTANT: The adjacent furniture and all materials used
the installation must be able to withstand a minimum
temperature of 85°C above the amb
room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouratio
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than
the liability of the owner.
oFor use in leisure accommodation vehicles, please refer to
the appropriate info
for this appliance.
oIMPORTANT: Baumatic Ltd. DO NOT recommend t
appliance is installed on any type of marine vessel.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement o
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of G
oRepairs may only be carried out by Baumatic

6
arning and safety instructions
iance
become hot during use and retain heat after operation.
hild Safety
d
ny time. During and after use, all
surfaces will become hot.
se ensure that they are kept under close supervision
at all times.
eneral Safety
W
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compl
does not remove the fact that the appliance surfaces will
C
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowe
to touch the appliance at a
oIf it is necessary for younger family members to be in the
kitchen, plea
G
Make sure that you understand the controls before using the
appliance.
Check that all of the controls on the appliance are turned off
after use.
when opening the oven door, this will allow
eat to disperse.
Always stand back
h
Take care when removing items from the oven, as the contents
may be hot.
Always keep the oven doors closed when the oven is not in use.
Always follow the basic principles of food handling and hygiene;
this will prevent the possibility of bacterial growth.
Always keep ventilation slots clear of obstructions.
Keep fingers away from the hinge areas when closing the door,
otherwise you may trap them.
Oven gloves should be used when placing food in the oven ca
and when removing it. Care should be tak vity en to avoid direct
contact with the inside of the appliance.
T LEAVE THE APPLIANCE UNATTENDED WHILST IN
USE.
oDO NO

7
oDo not place heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
door hinges. Nobody should be allowed to sit or stand on any
part of the cooker.
oDo not store chemicals, food stuffs, pressurised containers in or
on the cooker or in cabinets immediately above or next to the
cooker.
oDo not heat up unopened food containers, as pressure can build
up which may cause the container to burst.
oDo not place flammable or plastic items on or near the hob
burners, these types of materials should also not be placed in
the oven or the compartment below the oven.
oDo not leave heated oil or fat unattended, as this is a fire risk.
You should not fill a deep fat frying pan more than one third full
of fat or oil; you should also not use a lid.
oDo not allow fat or oil to build up in the oven trays, grill pan or
oven base.
oDo not place pans or baking trays directly on the base of the
oven cavity, or line it with aluminium foil.
oDo not grill food containing fat without using the grill trivet. The
grill trivet should never be covered with aluminium foil.
oDo not place hot enamel parts in water, leave them to cool first.
oDo not allow vinegar, coffee, milk, saltwater, lemon, tomato
juice or any liquid with high sugar content to remain in contact
with the enamel parts of the appliance. Spillages should be
wiped up immediately.
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not use the appliance to heat the room it is located in or to
dry clothing. No clothing should be placed over or near to the
hob burners or oven door.
oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the
oven door or handle, as this may cause damage to the appliance
or result in injury to the person lifting the appliance.
Cleaning
oCleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.
oIMPORTANT: Care must be taken when cleaning between
the door glasses, and inside the inner frame as some of
the edges maybe sharp due to the manufacturing process.
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions. Please see
the specific section of this booklet that refers to
installation.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
This appliance complies with the following European Directives:
-73/23/EEC regarding “low voltage”
-89/336/EEC regarding “electromagnetic disturbances”
-90/396/EEC regarding “gas appliances”
-89/109/EEC regarding “materials in contact with food”.
8

oThe above directives comply with 93/68/EEC regarding CE
marking.
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
Specifications
Product dimensions:
Height: 870 - 920 mm
Width: 700 mm
Depth: 600 mm
Product specifications:
o5 burner gas hob:
o1 x 3.60 kW wok burner
o1 x 3.00 kW rapid burner
o2 x 1.75 kW semi-rapid burners
o1 x 1.00 kW auxiliary burner
oHeavy duty cast iron pan stands
oUnderknob auto-ignition
oMain oven: gas oven with grill
oMain oven capacity: 65 litres
oStorage compartment capacity: 15 litres
oMinute minder
oCooling fan
oFlame failure safety device in the oven and grill
oDouble glazed removable door
oAdjustable feet
9

10
Standard accessories:
o2 x Enamelled drip trays
oSafety shelf
oRotisserie skewer with removable handle and rack
oMotorised turnspit
oLPG conversion jets
oTrivet
oWok stand
Optional extras:
oBPS1 Pizza stone
oBTGRID Double-sided griddle plate
Electrical details
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 13 A (double pole switched fused
outlet with 3mm contact gap)
Fuse Rating: 3 amp
Mains Supply Lead: 3 x 0.75 mm²
Gas details
Gas Connection Type: 1/2” BSP
Gas Type (Natural Gas): 20 mbar
Gas Type (LPG): See tables on page 28 and 30 for
thisinformation.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening the door of the storage compartment.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

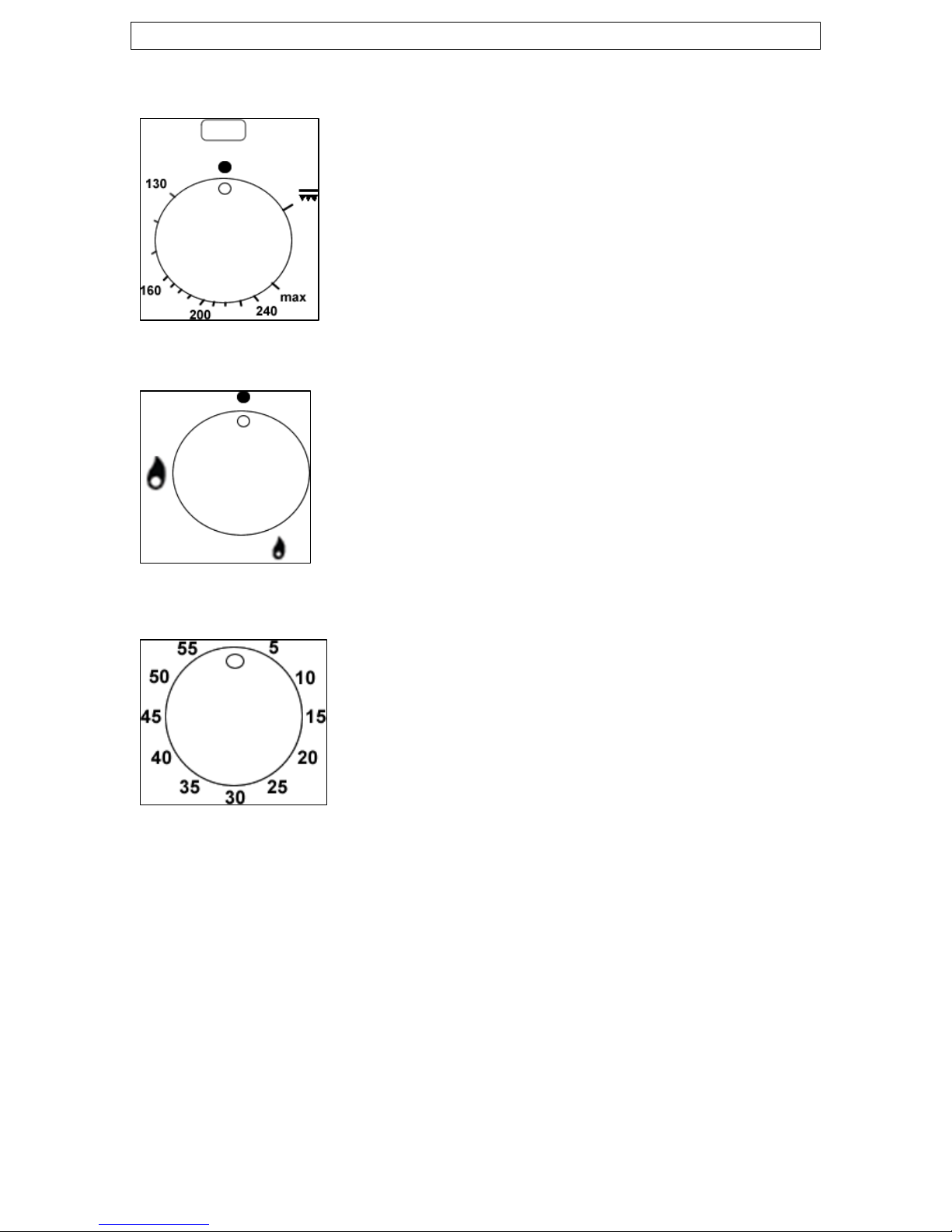

Control Panel
Main oven and grill control knob
oUse this control knob to light and set the
temperature of the main oven. It should
also be used to light the grill in the main
oven.
Hob control knobs
oUse these control knobs to light and control
the hob burners.
Minute minder control knob

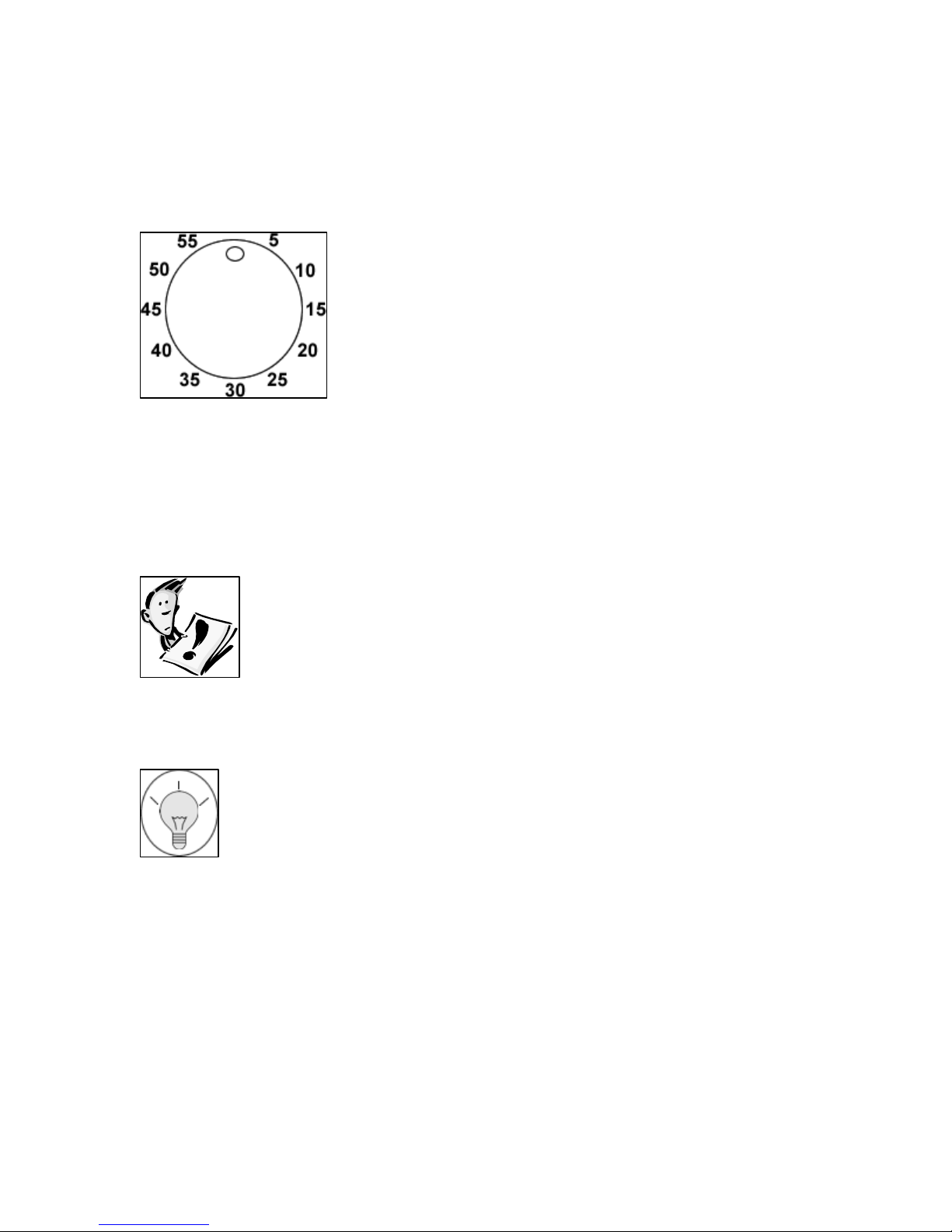

oUse this control knob to set the minute
minder countdown.
11

12
Using your gas cooking theatre
Before first use
oTo remove any residue from the oven cavity that may have been
left from the manufacturing process, you should light the gas
oven and set it to its maximum temperature.
oIt is perfectly normal for a smell to be produced during this
process.
oYou should make sure that any windows in the room are left
open during this process.
oIt is advisable for you not to remain in the room whilst the
burning off process is taking place.
oYou should leave the oven on maximum setting for 30 – 40
minutes.
Switching the gas oven on
The oven has electric ignition, to light it you should do the following:-
oOpen the oven door.
oPush the main oven control knob down slightly and then turn it
anticlockwise to the word Max.
oWhilst it is pointed to the word Max., fully push down the control
knob and hold it down.
oThe gas oven should light within 15 seconds.
oOnce the burner has lit, continue to keep the control knob held
down for a further 10 seconds. Otherwise the safety cut off will
operate and block the flow of gas.
oIMPORTANT: When you are certain that the oven burner is fully
lit, close the oven door. Turn the control knob clockwise until it
reaches the temperature that you desire.
oDO NOT turn the control knob past the 130°C position,
otherwise the burner may go out.
oIf the gas oven does not light within 15 seconds, then release
the control knob. IMPORTANT: YOU MUST TURN THE
CONTROL KNOB BACK TO ITS ORIGINAL POSITION;
OTHERWISE GAS WILL CONTINUE TO BE RELEASED.

oWait for 1 minute, before repeating the ignition procedure again.
When lighting the oven for the first time, it may take
several times until the electric ignition operates. This is
due to there being air in the gas pipe.
Switching the gas grill on
The grill has electric ignition, to light the grill you should do the
following:-
oOpen the door of the oven and fit the grill deflector to the
front of the appliance.
oPush the main oven control knob down slightly and
then turn it anticlockwise to the grill symbol (shown
opposite)
oWhilst it is pointed to the grill symbol, fully push down this
control knob and hold it down.
oThe gas grill should light within 15 seconds.
oOnce the burner has lit, continue to keep the control knob held
down for a further 10 seconds. Otherwise the safety cut off will
operate and block the flow of gas.
oTHE OVEN DOOR MUST BE LEFT OPEN WHILST YOU ARE
GRILLING AND THE GRILL DEFLECTOR SHOULD ALWAYS
BE FITTED.
oIf the gas grill does not light within 15 seconds, then release the
control knob. IMPORTANT: YOU MUST TURN THE CONTROL
KNOB BACK TO ITS ORIGINAL POSITION; OTHERWISE
GAS WILL CONTINUE TO BE RELEASED.
oWait for 1 minute, before repeating the ignition procedure again.
When lighting the grill for the first time, it may take
several times until the electric ignition operates. This is
due to there being air in the gas pipe.
13

oIMPORTANT: You should allow the oven to cool completely
before attempting to remove the grill deflector. If you
attempt to remove the grill deflector before the oven is
cool, the deflector will be hot.
Using and assembling the rotisserie
oPlace the food on the spit (L); making sure that it is placed
centrally between the two forks (F). Otherwise excess strain will
be placed on the motor (R).
oPlace one end of the spit (L) onto support (G) and put the
opposite end into the hole of the motor (P).
oFill the drip tray with a little water and place this under the spit
(L).
oFit the grill deflector (S) into position and leave the door half
way open.
oLight the gas grill (as described previously) and
then press the rotisserie on/off button (pictured
opposite).
14

oTo rotate the spit in the opposite direction, whilst wearing a
protective oven glove, turn the rotation knob (A).
oMake sure that you press the rotisserie on/off button, and then
turn the main oven control knob to 0 before attempting to
remove the spit (L).
Using the minute minder
The minute minder can be used independently of
the oven or grill for a time period of up to 60
minutes.
oTo set the timer, turn the knob fully clockwise until it stops and
then turn it back anticlockwise to the required time.
oThe time period that has been set will expire when the control
knob reaches zero, a brief audible signal will sound.
IMPORTANT: If you have the oven or grill in use
whilst the timer is counting down. When the
countdown ends, the oven will continue to heat. You
must turn off the oven/grill using the relevant
control knob.
The oven light
oThe oven light button (pictured opposite), switches the
light bulb on and off. Press this button down to switch
the light on, then press the same button again to
switch the light off.
oThe oven light can be switched on, regardless of whether the
oven/grill is in use.
15

16
Cooking guidelines
oPlease refer to the information given on food packaging for
guidance on cooking temperatures and times. Once familiar with
the performance of your appliance, temperatures and times can
be varied to suit personal preference.
oPreheat the oven for at least 15 minutes before placing food into
the cavity.
oMake sure that frozen foods are thoroughly thawed before
cooking, unless the instructions on the food packaging advise
that you can “cook from frozen”.
oBefore cooking, check that any unused accessories are removed
from the oven.
oPlace cooking trays in the centre of the oven and leave gaps
between the trays to allow air to circulate.
oTry to open the door as little as possible to view the dishes.
Warnings
oKeep the oven door open when using the grill function and make
sure that the grill deflector is fitted.
oDo not use aluminium foil to cover the grill pan or heat items
wrapped in aluminium foil under the grill. The high reflectivity of
the foil could potentially damage the grill element.
oYou should also never line the base of your oven with aluminium
foil.
oDuring cooking, never place pans or cookware directly onto the
bottom of your oven. They should always be placed on the shelf
provided.
oThe grill becomes extremely hot during operation, avoid touching
it inadvertently when handling the food which you are grilling.
oImportant: Be careful when opening the door, to avoid contact
with hot parts and steam.

Using the hob top
The following symbols will appear on the control panel, next to each
control knob:
Black circle: gas off
Large flame: maximum setting
Small flame: minimum setting
oThe minimum setting is at the end of the anti-clockwise rotation
of the control knob.
oAll operation positions must be selected between the maximum
and minimum positions.
oNever select a knob position between the maximum and off
position.
Automatic electric ignition
To ignite a burner:
oPress in the control knob of the burner that you wish to light and
turn it anti-clockwise to the maximum position.
oIf you keep the control knob depressed, the automatic ignition
for the burner will operate.
oIn case of power failure, the burners can be lit by carefully using
a match.
17

Energy saving tips
oThe diametre of the bottom of the pan should correspond to that
of the burner.
oThe burner flame must never extend beyond the diametre of the
pan.
oUse flat bottomed pans only
oWhen possible, keep a lid on the pan whilst cooking.
oCook vegetables with as little water as possible, to reduce
cooking times.
IMPORTANT: Always place pans centrally over the hob burners and
position them so that the handles cannot get accidentally caught or
knocked off. You should also make sure that the handle is not over one
of the other hob burner flames.
18

Cleaning and maintenance
Cleaning operations must only be carried out
when the oven is cool.
The appliance should be disconnected from your
mains supply before commencing any cleaning
process.
oThe oven should be thoroughly cleaned before it is operated for
the first time and after each use. This will avoid residual food
stuffs becoming baked on the oven cavity. After residues have
been baked on several times, they are far more difficult to
remove.
oNever clean the oven surfaces by steam cleaning.
oThe oven cavity should only be cleaned with warm soapy water,
using either a sponge or soft cloth. No abrasive cleaners should
be used.
oAny stains that may appear on the bottom of the oven will have
originated from food splashes or spilt food, these splashes occur
during the cooking process. These could possibly be a result of
the food being cooked at an excessively high temperature or
being placed in cookware that is too small.
oYou should select a cooking temperature that is appropriate for
the food that you are cooking. You should also ensure that the
food is placed in an adequately sized dish and that you use the
drip tray where appropriate.
oOuter parts of the oven should only be cleaned with warm soapy
water, using either a sponge or soft cloth. No abrasive cleaners
should be used.
oIf you use any form of oven cleaner on your appliance, then you
must check with the manufacturer of the cleaner that it is
suitable for use on your appliance.
oAny damage that is caused to the appliance by a cleaning
product will not be fixed by Baumatic free of charge, even
if the appliance is within the guarantee period.
19
