User Manual for the
BO612.5SS-BL /
BO616.5SS / BO624.5SS
/ BO636.5SS-BL-R-W
60 cm OVEN

User manual for your Baumatic
BO612.5SS-BL / BO616.5SS
60 cm Fan oven
BO624.5SS / BO636.5SS-BL-R-W
60 cm Multifunction oven
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 22/05/12
2

3
Contents
Environmental note 4
Important safety information 5-7
ProductSpecifications
BO612.5SS-BL 8
BO616.5SS 9
BO624.5SS 10
BO636.5SS-BL-R-W 11
Coolingfan 12
Controlpanel 12
Initial set up of your oven 13–15
Beforefirstuse 13
Setting the Minute Minder (BO612.5SS-BL & BO624.5SS) 14
Oven programmer/Timer display (BO616.5SS & BO636.5SS-BL-R-W) 15
Setting the time of day 15
Timer functions (BO616.5SS & BO636.5SS-BL-R-W) 16-21
The minute minder function 16
The semi-automatic cooking function 17
The end of cooking function 18
The automatic cooking function 19
Cancelling the semi-automatic and automatic function 20
Cancelling the minute minder function 20
Adjusting the volume of the audible signal 20
Changing the time of day 21
Selecting oven function and temperature 21-26
BO612.5SS-BL & BO616.5SS 21
BO624.5SS 22
BO636.5SS-BL-R-W 23
Thermostatcontrolknob 24
Oven operating light 24
Cookingguidelines 24-25
Warnings 25
Shelfpositions 26
Cleaning and maintenance 26-28
Replacing the oven bulb 27
Removing the oven door forcleaning 28
Installation 29-31
Electricalconnection 29
Installing the oven into the kitchen cabinet 31
Positioningtheappliance 31
Ventilationrequirements 32
My appliance isn’t working correctly 33-34
Baumatic consumables 35
Contactdetails 36

Environmental note
4
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
oPlease discard

5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Customer Care
epartment.
eneral Information
ambient temperature
scolouration at
han 4mm to the appliance, will be the
nt of Baumatic Ltd will
Guarantee. The foregoing does not
affect your statutory rights.
atic Service
arning and safety instructions
ill
ng use and retain heat after operation.
D
G
oThis appliance is designed for domestic household use and can
be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or di
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer t
liability of the owner.
oThe use of this appliance for any other purpose or in any other
environment without the express agreeme
invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of
oRepairs may only be carried out by Baum
Engineers or their authorised service agent.
W
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces w
become hot duri

6
babies and young children
are prevented from being near to the appliance and not allowed
ssary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
oDo not place pans or baking trays directly on the base of the
oDo not allow electrical fittings or cables to come into contact
oDo not use the appliance to heat the room it is located in or to
y using the
oven door or handle, as this may cause damage to the appliance
sult in injury to the person lifting the appliance.
Great care should be taken whilst using this appliance and when
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.
Child Safety
oBaumatic strongly recommend that
to touch the appliance at any time.
oIf it is nece
at all times.
General Safety
oDo not place
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
oven cavity, or line it with aluminium foil.
with areas on the appliance that get hot.
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not attempt to lift or move cooking appliances b
or re
Cleaning
oCleaning of the oven should be carried out on a regular basis.
ofollowing the cleaning procedure.

7
s appliance must be correctly installed by a
suitably qualified person, strictly in accordance with
sibility for injury or
damage, to person or property, as a result of improper
ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
oPlease consult with your qualified installer if you are in any doubt
ntilation that you will require.
uropean Directives:
C regarding “electromagnetic disturbances”
-Regulation (EC) N° 1935/2004 regarding “materials in contact
oThe above directives comply with 93/68/EEC regarding CE
in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
Installation
Thi
the manufacturer’s instructions.
oBaumatic Ltd declines any respon
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately
required.
about the amount of ve
Declaration of conformity
This appliance complies with the following E
-2006/95/EC regarding “low voltage”
-2004/108/E
with food”
marking.
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed

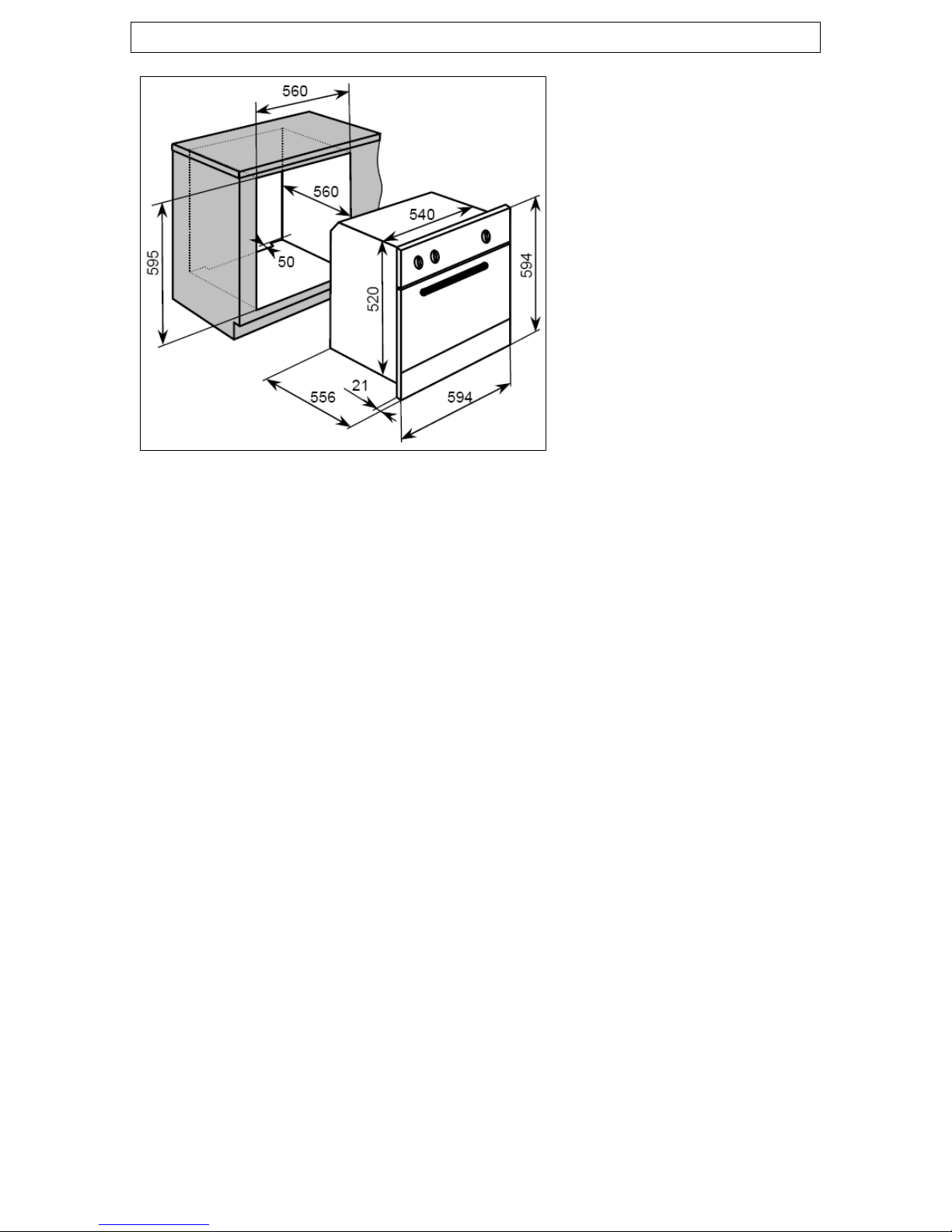

Specifications – BO612.5SS-BL
Product Dimensions
8
Height: 594 mm
Width: 594 mm
Depth: 556 mm
Aperture Dimensions
H
W
eight: 595 mm
idth: 560 mm
epth: 560 mm
ovable door
ntrolled grill
helf
baking tray with handle
ne
e pole switched fused
:x 1.5mm²
ven Light Bulb: 25 W/300°C screw type pygmy
D
Product specifications
o4 oven functions
oEnergy efficiency class: A
oOven gross capacity: 67 litres
Oven net capacity: 58 litreso
oMinute minder
oDouble-glaze Coolingfan
od rem
oThermostatically co
Standard accessories
oSafety s
oEnamelled
oTrivet
Optional extra
oBPS2 Pizza sto
Electrical details
220 - 240 Vac 50/60 HzRated Voltage:
Supply Connection: 16 A (doubl
outlet with 3mm contact gap)
Max Rated Inputs 2.40 kW
Mains Supply Lead: 3
O

Specifications – BO616.5SS
Product Dimensions
9
Height: 594 mm
Width: 594 mm
Depth: 556 mm
Aperture Dimensions
H
W
eight: 595 mm
idth: 560 mm
epth: 560 mm
ovable door
ntrolled grill
helf
baking tray with handle
ne
e pole switched fused
:x 1.5mm²
ven Light Bulb: 25 W/300°C screw type pygmy
D
Product specifications
o4 oven functions
oEnergy efficiency class: A
oOven gross capacity: 67 litres
Oven net capacity: 58 litreso
oLED full programmer
oDouble-glaze Coolingfan
od rem
oThermostatically co
Standard accessories
oSafety s
oEnamelled
oTrivet
Optional extra
oBPS2 Pizza sto
Electrical details
220 - 240 Vac 50/60 HzRated Voltage:
Supply Connection: 16 A (doubl
outlet with 3mm contact gap)
Max Rated Inputs 2.40 kW
Mains Supply Lead: 3
O

Specifications – BO624.5SS
Product Dimensions
10
Height: 594 mm
Width: 594 mm
Depth: 556 mm
Aperture Dimensions
H
W
eight: 595 mm
idth: 560 mm
epth: 560 mm
ovable door
ntrolled grill
helf
baking tray with handle
ne
e pole switched fused
:
ven Light Bulb: 25 W/300°C screw type pygmy
D
Product specifications
o5 oven functions
oEnergy efficiency class: A
oOven gross capacity: 67 litres
Oven net capacity: 58 litreso
oMinute minder
oDouble-glaze Coolingfan
od rem
oThermostatically co
Standard accessories
oSafety s
oEnamelled
oTrivet
Optional extra
oBPS2 Pizza sto
Electrical details
220 - 240 Vac 50/60 HzRated Voltage:
Supply Connection: 16 A (doubl
outlet with 3mm contact gap)
Max Rated Inputs 2.20 kW
Mains Supply Lead: 3 x 1.5mm²
O

11
WSpecifications – BO636.5SS-BL-R-
Product Dimensions
Height: 594 mm
Width: 594 mm
Depth: 556 mm
Aperture Dimensions
H
W
eight: 595 mm
idth: 560 mm
epth: 560 mm
ovable door
ntrolled grill
helf
baking tray with handle
ne
e pole switched fused
:
Lead: 3 x 1.5mm²
lb: 25 W/300°C screw type pygmy
D
Product specifications
o7 oven functions
oEnergy efficiency class: A
oOven gross capacity: 67 litres
Oven net capacity: 58 litreso
oLED full programmer
oDouble-glaze Coolingfan
od rem
oThermostatically co
Standard accessories
oSafety s
oEnamelled
oTrivet
Optional extra
oBPS2 Pizza sto
Electrical details
220 - 240 Vac 50/60 HzRated Voltage:
Supply Connection: 16 A (doubl
outlet with 3mm contact gap)
Max Rated Inputs 2.40 kW
Mains Supply
Oven Light Bu

12
ted inside of this appliance, to make
the internal temperature of the oven stable and the external
time afterwards.
The length of time will depend on how long the oven has been
switched on for and at how high a temperature.
les invoice. The rating plate for your oven can be
cated by opening the oven door and looking around the outer edge of
e oven chassis.
odel Number ……………………………….
erial Number ……………………………….
se ……………………………….
Cooling fan
oA tangential cooling fan is fit
surface temperature lower.
oAfter you have finished cooking and switched off the oven, the
cooling fan will continue to run for a period of
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sa
lo
th
M
S
Date of Purcha

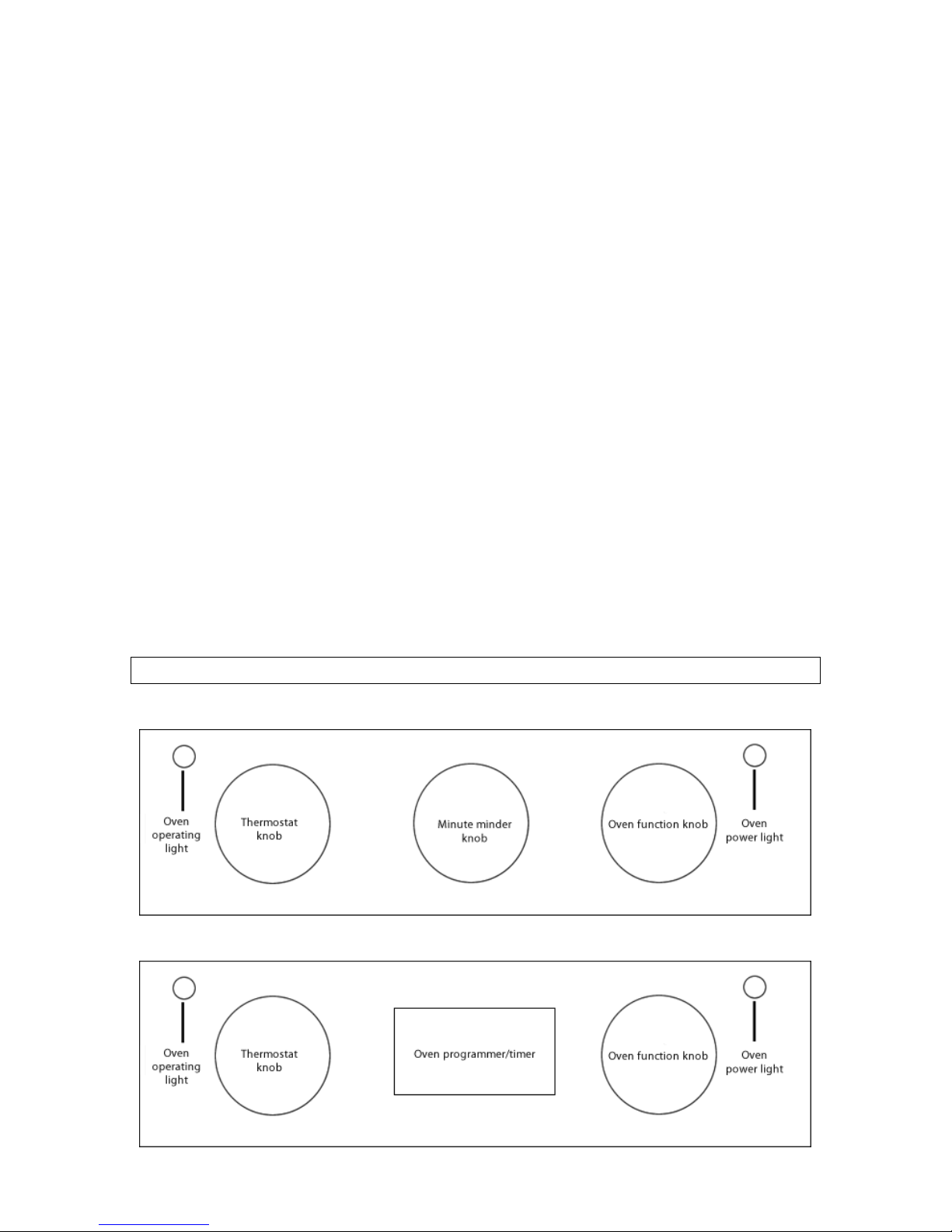

Control Panel
BO612.5SS-BL & BO624.5SS
BO616.5SS & BO636.5SS-BL-R-W

13
Using your oven
Before first use
oTo remove any residue from the oven that may have been left
from the manufacturing process, you should select the
conventional or fan oven function and set the thermostat to its
maximum temperature setting.
oIt is perfectly normal for a smell to be produced during this
process.
oYou should make sure that any windows in the room are left
open during this process.
oIt is advisable for you not to remain in the room whilst the
burning off process is taking place.
oYou should leave the oven on maximum setting for 30 – 40
minutes.
oAfter the oven cavity has cooled, it should then be cleaned with
warm soapy water, using either a sponge or soft cloth. No
abrasive cleaners should be used.
oOuter parts of the oven should be cleaned with warm soapy
water, using either a sponge or soft cloth. No abrasive cleaners
should be used.
oWe would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance (BO612.5SS, BO616.5SS, BO624.5SS, BO636.5SS).

Setting the minute minder function:
(BO612.5SS-BL & BO624.5SS only)
You are able to set the minute minder at any time, regardless
of whether an oven function has been selected. You can set a
period of time using the minute minder function and a buzzer
will sound when that period of time has elapsed.
oThe minute minder can be set for any length of time between 0
and 60 minutes.
oTo set a period of time, first rotate the knob fully clockwise to
activate the minute minder function.
oYou can then turn the knob back to the desired countdown time.
The countdown will then begin immediately.
o
A buzzer will sound when the countdown time has elapsed.
oImportant: The oven will continue to heat once the alarm has
been silenced. If you have finished cooking, then you should turn
the oven function selector and thermostat control knob to 0.
14

Oven programmer/timer display:
(BO616.5SS & BO636.5SS-BL-R-W only)
1) Auto cooking symbol
2) Oven in use symbol
3) Decimal point symbol
4) Minute minder symbol
5) Minus button
6) Programme button
7) Plus button
Initial set-up of your oven (BO616.5SS & BO636.5SS-BL-R-W)
Setting the time of day
After your appliance is connected to your mains supply for the first
time, you must set the time of day before you can use the oven.
oWhen the oven is connected to your mains supply for the first
time (or after a power cut), the digits on the LED display and
the automatic cooking symbol (1) will flash.
oPress and hold down the programme button (6) for a couple of
seconds. The automatic cooking symbol will go out and the
digits will remain steady.
oWhen the oven in use symbol (2) appears, use the plus (7) and
minus (5) buttons to set the correct time of day.
oWhen the correct time of day is shown on the LED display,
release the plus and minus buttons and wait a few seconds. A
beep will sound indicating that the time is set and the oven is
ready to use.
15

16
Timer functions (BO616.5SS & BO636.5SS-BL-R-W)
The minute minder function
The minute minder function is a countdown time that can be set on the
oven programmer/timer. When the countdown time has finished, an
audible signal will sound.
oPress and hold down the programme button (6) until the
decimal point starts to flash to enter programming mode.
oUse the plus (7) and minus (5) buttons to set the countdown
time that you require.
oThe maximum countdown time that can be set is 23 hours and
59 minutes.
oWhen the correct countdown time appears on the LED display,
release the plus and minus buttons and the countdown will start
immediately.
oThe minute minder symbol (4) will appear on the LED display to
show that a countdown time is in progress.
oAfter a few seconds the LED display will return to showing the
time of day.
oAt the end of the countdown time, an audible signal will sound
and the minute minder symbol will go out. You can silence it by
pressing any of the oven programmer/timer buttons.
oIMPORTANT: If the oven is in use whilst using the minute
minder function, the oven WILL NOT switch off at the end of the
countdown time. YOU MUST turn the oven function selector
knob and the thermostat control knob to their OFF positions.

17
The semi-automatic cooking function
This function will allow you to set a countdown time similar to the
minute minder function, however the oven will switch off at the end of
the cooking time.
oPlace the food that you want to cook inside of the oven and
close the door.
oSelect an oven function and cooking temperature using the
relevant control knobs.
oPress and hold down the programme button (6) until the
decimal point starts to flash to enter programming mode, the
oven in use symbol (2) will appear on the LED display.
oRelease the programme button and then press it again. The
automatic cooking symbol (1) will flash and “dur” will appear
briefly on the LED display before showing “0.00”.
oUse the plus (7) and minus (5) buttons to set the cooking time
that you require.
oThe maximum countdown time that can be set is 10 hours.
oWhen the correct countdown time appears on the LED display,
release the plus and minus buttons. Cooking will begin
immediately, after a few seconds the countdown time will start.
oThe automatic cooking symbol (1) and the oven in use symbol
(2) will appear on the LED display.
oAt the end of the cooking time, an audible signal will sound and
the automatic cooking symbol will flash on the LED display.
oTo reset the oven and cancel the audible alarm, press the
programme button until the oven in use symbol appears on the
LED display and the automatic cooking symbol goes out.
oIMPORTANT: If you have not turned the oven function selector
knob and thermostat control knob to their OFF positions, when
you reset the oven it will continue to heat.

18
The end of cooking function
This function is similar to the semi-automatic function, however
instead of setting a countdown time, you select the time of day that
you want the oven to switch off at.
oPlace the food that you want to cook inside of the oven and
close the door.
oSelect an oven function and cooking temperature using the
relevant control knobs.
oPress and hold down the programme button (6) until the
decimal point starts to flash to enter programming mode, the
oven in use symbol (2) will appear on the LED display.
oRelease the programme button and then press it again. The
automatic cooking symbol (1) will flash and “dur” will appear on
the LED display.
oRelease the programme button and then press it for a third
time, “end” will appear briefly on the LED display before
showing “0.00”.
oUse the plus (7) and minus (5) buttons to set the time of day
that you want the oven to switch off at.
oThe maximum countdown time that can be set is 10 hours.
oWhen the correct time of day appears on the LED display,
release the plus and minus buttons. Cooking will begin
immediately, after a few seconds the countdown time will start.
oThe automatic cooking symbol (1) and the oven in use symbol
(2) will appear on the LED display.
oAt the end of the cooking time, an audible signal will sound and
the automatic cooking symbol will flash on the LED display.
oTo reset the oven and cancel the audible alarm, press the
programme button until the oven in use symbol appears on the
LED display and the automatic cooking symbol goes out.
oIMPORTANT: If you have not turned the oven function selector
knob and thermostat control knob to their OFF positions, when
you reset the oven it will continue to heat.

19
The automatic cooking function
This function will allow you to set the time of day that you want the
oven to switch off at and how long you want the oven to cook for.
oPlace the food that you want to cook inside of the oven and
close the door.
oSelect an oven function and cooking temperature using the
relevant control knobs.
oPress and hold down the programme button (6) until the
decimal point starts to flash to enter programming mode, the
oven in use symbol (2) will appear on the LED display.
oRelease the programme button and then press it again. The
automatic cooking symbol (1) will flash and “dur” will appear
briefly on the LED display before showing “0.00”.
oUse the plus (7) and minus (5) buttons to set the cooking time
that you require.
oThe maximum cooking time that can be set is 10 hours.
oWhen the correct cooking time appears on the LED display,
release the plus and minus buttons and wait a few second for
the time to be set.
oPress the programme button again for a few seconds. Then
press the programme button again twice and “end” will appear
briefly on the LED display before showing “0.00”.
oUse the plus (7) and minus (5) buttons to set the time of day
that you want the oven to switch off at.
oThe automatic cooking symbol and the time of day will appear
on the LED display.
oThe appliance will automatically calculate what time of day it
needs to switch the oven on at, so that it runs for the cooking
time that you set.
oWhen the oven switches on, the oven in use symbol (2) will
appear on the LED display, as well as the automatic cooking
symbol.
oAt the end of the cooking time, an audible signal will sound and
the automatic cooking symbol will flash on the LED display.

20
oTo reset the oven and cancel the audible alarm, press the
programme button until the oven in use symbol appears on the
LED display and the automatic cooking symbol goes out.
oIMPORTANT: If you have not turned the oven function selector
knob and thermostat control knob to their OFF positions, when
you reset the oven it will continue to heat.
Cancelling the semi-automatic and automatic function
oPress and hold down the minus (5) and plus (7) button
simultaneously, until the automatic cooking symbol (1) goes out
and the oven in use symbol (2) is lit.
oIMPORTANT: If you do not turn the oven function selector
knob and thermostat control knob to their OFF positions, when
you reset the timer function, it will continue to heat.
Cancelling the minute minder function
oPress and hold down the programme button (6) until the
decimal point starts to flash to enter programming mode.
oPress and hold down the minus (5) and plus (7) buttons
simultaneously.
oThe minute minder symbol (4) will go out.
oIMPORTANT: If you do not turn the oven function selector
knob and thermostat control knob to their OFF positions, when
you reset the timer function, it will continue to heat.
Adjusting the volume of the audible signal
The volume of the audible signal has 3 levels, low, medium and high.
To adjust the volume, you should proceed as follows:-
oIMPORTANT: The oven timer/programmer must not be in any
form of countdown mode and the oven in use symbol (2) must
be lit.
oPress and hold down the minus (5) and plus (7) buttons
simultaneously until the decimal point starts to flash.
oPress the programme button (6) and the LED display will show
“ton” followed by a number (e.g. “ton1”). 1 is the loudest
volume, 2 is the middle volume and 3 is the quietest volume.
