Baumatic P611BS User manual

1
P611BS/SS 60 cm Built in fan
oven
P622BS/SS & P632BS/SS 60cm
Built in multifunction oven.

2
User Manual for your Baumatic
P611BS/SS 60 cm 4 Function fan oven
P622BS/SS 60 cm 7 Function multifunction oven
P632BS/SS / W 60 cm 9 Function multifunction
oven
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 09/02/12

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 - 11
P611BS/SS 8
P622BS/SS 9
P632BS/SS/W 10
Coolingfan 11
Control panel 12-13
Oven programmer/timer display 13
Setting and using the oven programmer/timer 13 - 19
Selecting manual operation mode 13
Setting the time of day 13
Theoventimer 13
Before first use 14
Setting the minute minder function 15
Setting the duration function 16
Setting the end cook function 17
Setting the start and end time function 18
Adjusting the audible signal 19
Selecting a cooking function and temperature 19 - 23
Selecting manual operation mode 19
Selectinganovenfunction 19
P611BS/SS, P622BS/SS and P632BS/SS/W standard oven functions 20
P611BS/SS additional functions 20
P622BS/SS and P632BS/SS/W additional functions 20 -21
P632BS/SS/W additional functions 21
Thermostatcontrolknob 21
Ovenoperatinglight 21
Cooking guidelines 22
Shelf levels 22 -23
Warnings 23
Cleaning and maintenance 24 - 26
Removable oven roof liner (P622BS/SS and P632BS/SS/W only) 25
Replacing the oven bulb 25
Removing the oven door for cleaning 26
Installation 27 - 29
Electricalconnection 27
Installing the oven into the kitchen cabinet 28
Positioning the appliance 28
Ventilation requirements 29
My appliance isn’t working correctly 30 -32
Baumaticconsumables 33
Contact details 34

4
Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Customer Care
Department.
General Information
oThis appliance is designed for domestic household use and can
be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the ambient temperature
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than 4mm to the appliance, will be the
liability of the owner.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
oRepairs may only be carried out by Baumatic service
engineers or their authorised service agent.
Warning and safety instructions
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.

6
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
General Safety
oDo not place heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
oDo not place pans or baking trays directly on the base of the
oven cavity, or line it with aluminium foil.
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not use the appliance to heat the room it is located in or to
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not attempt to lift or move cooking appliances by using the
oven door or handle, as this may cause damage to the appliance
or result in injury to the person lifting the appliance.
Cleaning
oCleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.

7
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
This appliance complies with the following European Directives:
-2006/95/EC regarding “low voltage”
-2004/108/EC regarding “electromagnetic disturbances”
-Regulation (EC) N° 1935/2004 regarding “materials in contact
with food”
oThe above directives comply with 93/68/EEC regarding CE
marking.
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.

8
Specifications
P611BS/SS

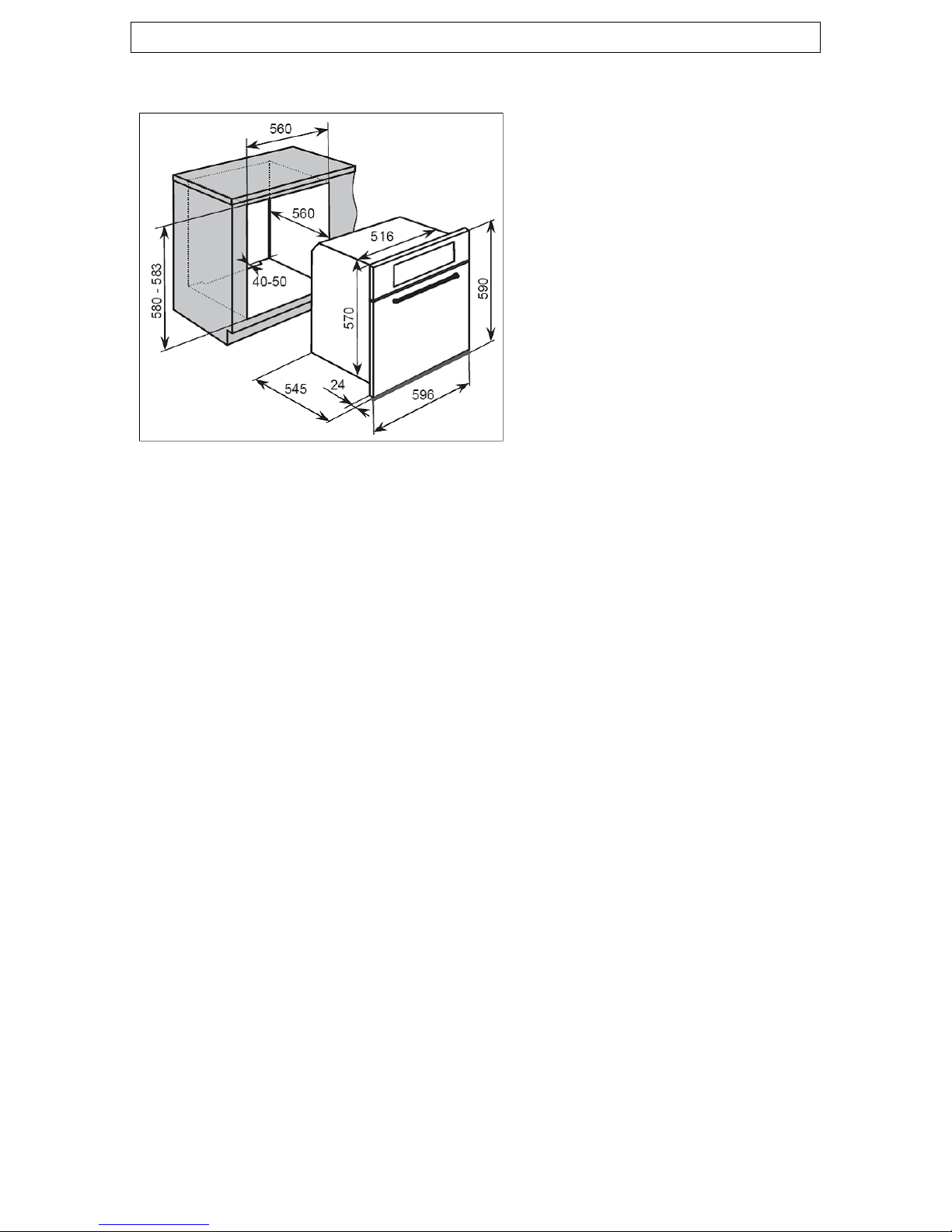

Product Dimensions
Height: 590 mm
Width: 596 mm
Depth: 545 mm
Aperture dimensions
Height: 580 – 583 mm
Width: 560 mm
Depth: 560 mm
Product specifications
o4 oven functions
oEnergy efficiency class: A
oGross oven capacity: 59 litres
oNet oven capacity: 50 litres
oOven light
oLED full programmer
oCooling fan
oThermostatically controlled grill
oTriple-glazed removable door
oMark resistant coating (P611SS only)
oWipeclean enamel cavity
Standard accessories
oRemovable side racks
oSafety shelf
oEnamelled baking tray with
handle
oTrivet
Optional extras
oTEL2KIT Telescopic runners
kit
oSCL4KIT Stay-clean liners
kit
oBPS2 Pizza stone
Electrical details
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 13 A (double pole switched fused
outlet with 3mm contact gap)
Max Rated Inputs: 2.40 kW
Mains Supply Lead: 3 x 1.5mm²

9
Oven Light Bulb: 25 W/300°C screw type pygmy
P622BS/SS

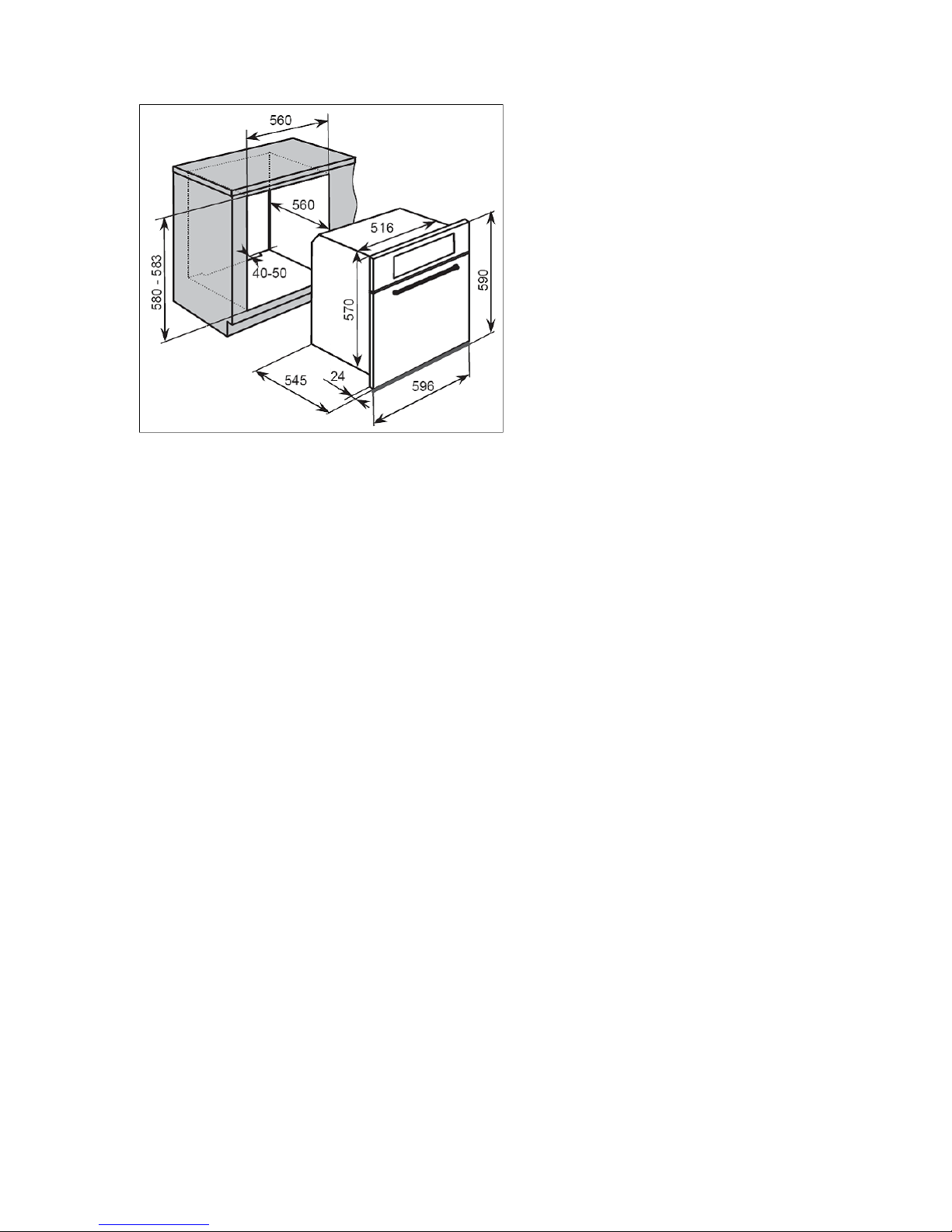

Product Dimensions
Height: 590 mm
Width: 596 mm
Depth: 545 mm
Aperture dimensions
Height: 580 – 583 mm
Width: 560 mm
Depth: 560 mm
Product specifications
o7 oven functions
oEnergy efficiency class: A
oGross oven capacity: 59 litres
oNet oven capacity: 50 litres
oOven light
oLED full programmer
oCooling fan
oThermostatically controlled grill
oTriple-glazed removable door
oMark resistant coating
oWipeclean enamel cavity
Standard accessories
oRemovable side racks
o2 x Safety shelves
oEnamelled baking tray
with handle
oTrivet
Telescopic runners- 1 level
Optional extras
oSCL4KIT Stay-clean liners
kit
oBPS2 Pizza stone
Electrical details
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 13 A (double pole switched fused
outlet with 3mm contact gap)
Max Rated Inputs: 2.40 kW
Mains Supply Lead: 3 x 1.5mm²

10
Oven Light Bulb: 25 W/300°C screw type pygmy
P632BS/SS/W
Product Dimensions
Height: 590 mm
Width: 596 mm
Depth: 545 mm
Aperture dimensions
Height: 580 – 583 mm
Width: 560 mm
Depth: 560 mm
Product specifications
o9 oven functions
oEnergy efficiency class: A
oGross oven capacity: 59 litres
oNet oven capacity: 50 litres
oOven light
oLED full programmer
oCooling fan
oThermostatically controlled grill
oTriple-glazed removable door
oMark resistant coating (P632SS only)
oWipeclean enamel cavity
Standard accessories
oRemovable side racks
o2 x Safety shelves
o2 x Enamelled baking trays with handle
oTrivet
oRemovable roof liner
oTelescopic runners- 2 levels
oBPS2 Pizza stone
Electrical details
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 16 A (double pole switched fused
outlet with 3mm contact gap)
Max Rated Inputs: 3.30 kW

11
Mains Supply Lead: 3 x 1.5mm²
Oven Light Bulb: 25 W/300°C screw type pygmy
Cooling fan
oA tangential cooling fan is fitted inside of these appliances, to
make the internal temperature of the oven stable and the
external surface temperature lower.
oAfter you have finished cooking and switched off the oven, the
cooling fan will continue to run for a period of time afterwards.
The length of time will depend on how long the oven has been
switched on for and at how high a temperature.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening the oven door and looking on the right hand side of
the oven chassis.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

12
0
50
100
150
200
250

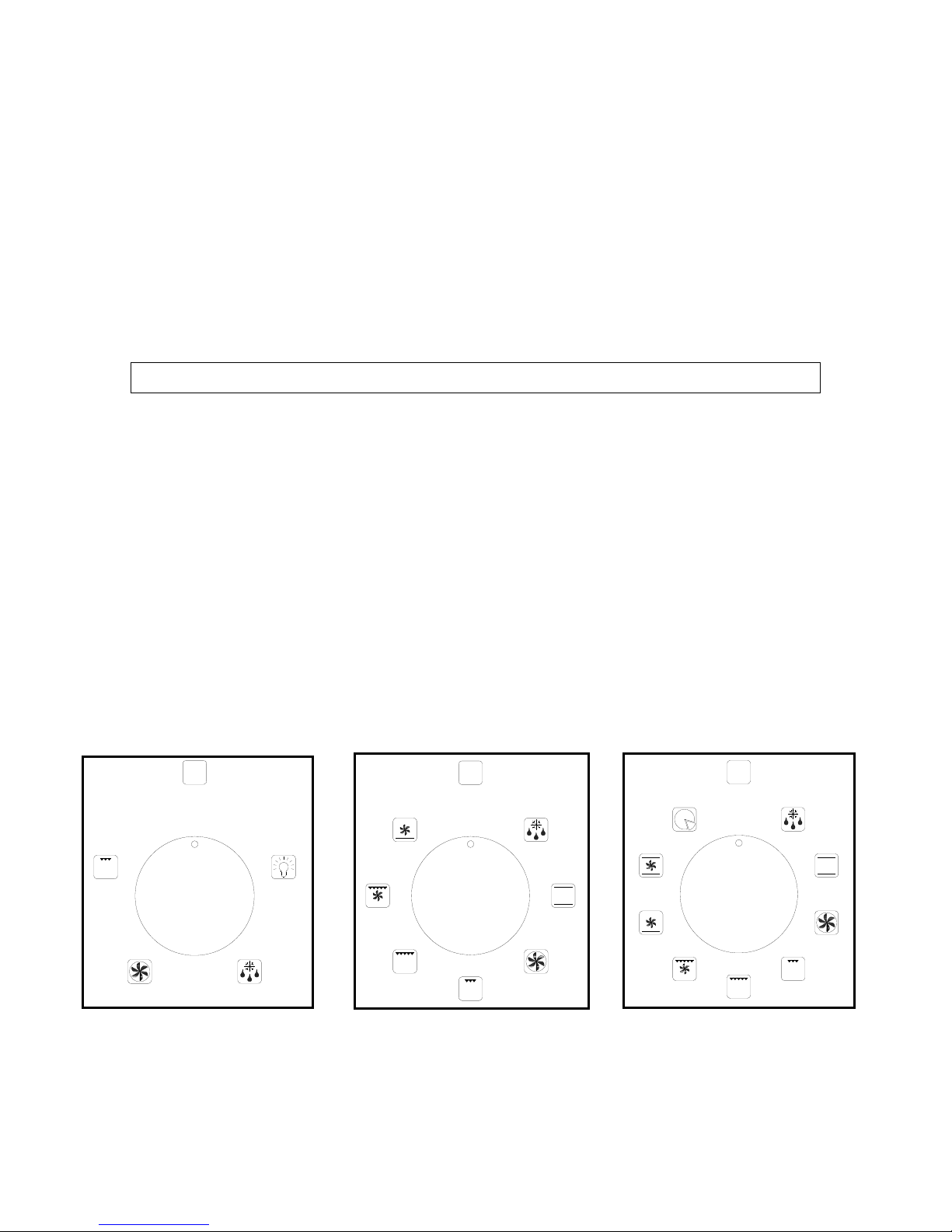

Control Panel
P611BS/SS
P622BS/SS
P632BS/SS/W
0
50
100
150
200
250
0
50
100
150
200
250

13
1) Oven function selector knob
2) LED display
3) Thermostat control knob
4) Power indicator light
5) Oven operating light
6) Timer minute minder button
7) Timer duration button
8) Timer end cook button
9) Timer manual operation button
10) Timer minus button
11) Timer plus button

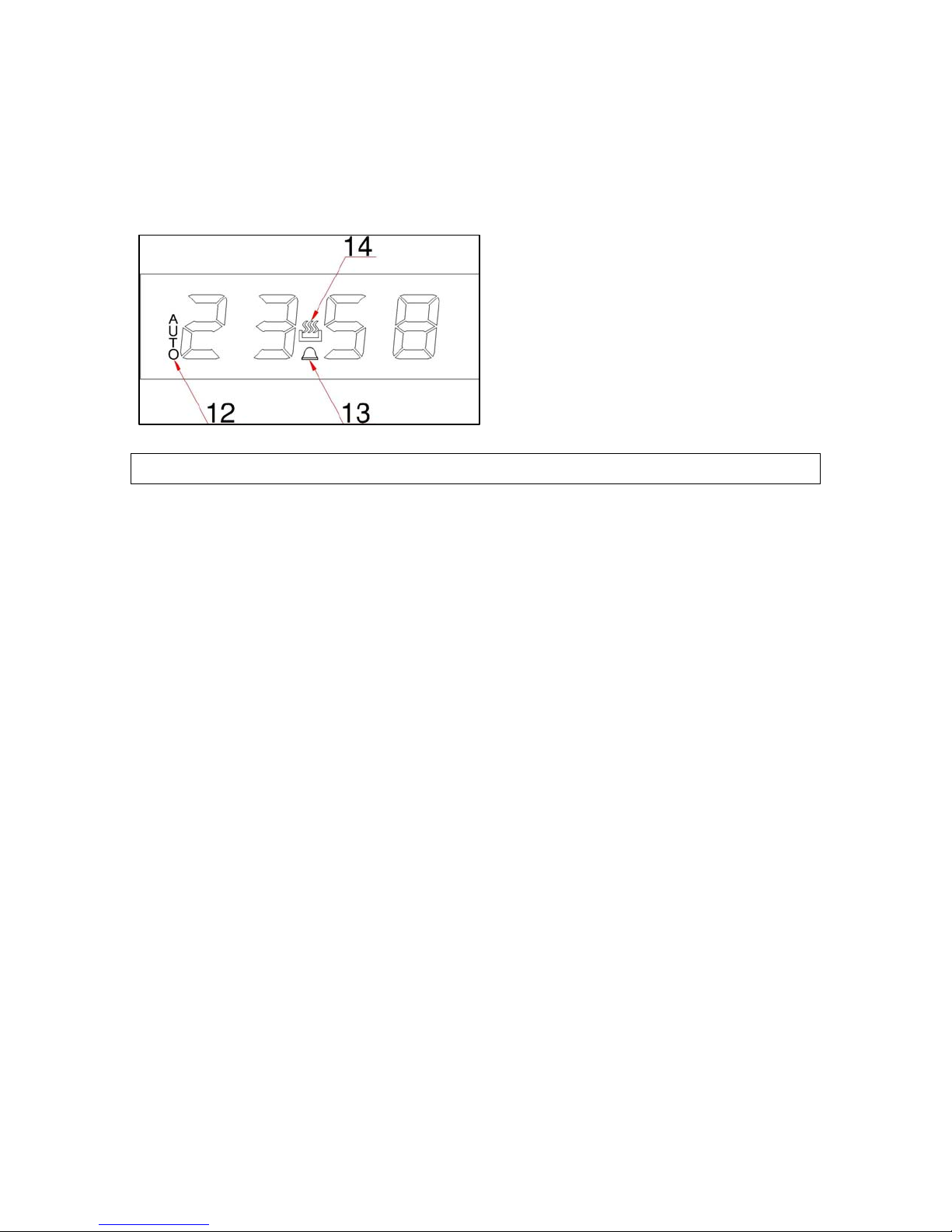

Oven programmer/timer display
12) Auto function symbol
13) Minute minder symbol
14) Manual operation symbol.
Setting and using the oven programmer/timer
Selecting manual operation mode
After your appliance is connected to your mains supply for the
first time, the numbers on the timer display will flash. Before
you can select a cooking function or set a temperature, you
must set the appliance into “manual operation” mode.
oTo select manual operation mode, press the manual operation
button (9) on the control panel.
Setting the time of day
After setting your oven for manual operation, you should also
set the time of day.
oAfter pressing the manual operation button (9), use the minus
button (10) and plus button (11) to adjust the time that
appears in the display. After getting the display to the correct
time, release the minus and plus buttons. After a few seconds
the time will fix in the display and you will be able to use your
oven.
The oven timer
oOnly the minute minder can be used with the defrost oven
function. None of the other timer modes will work with the
defrost function.

14
Before first use
oTo remove any residue from the oven that may have been left
from the manufacturing process, you should select the fan oven
function and set the thermostat to its maximum temperature
setting.
oIt is perfectly normal for a smell to be produced during this
process.
oYou should make sure that any windows in the room are left
open during this process.
oIt is advisable for you not to remain in the room whilst the
burning off process is taking place.
oYou should leave the oven on maximum setting for 30 – 40
minutes.
oAfter the oven cavity has cooled, it should then be cleaned with
warm soapy water, using either a sponge or soft cloth. No
abrasive cleaners should be used.
oOuter parts of the oven should be cleaned with warm soapy
water, using either a sponge or soft cloth. No abrasive cleaners
should be used.
oWe would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance.

15
Setting the minute minder function
You are able to set the minute minder at any time, regardless
of whether an oven function has been selected. You can set a
period of time using the minute minder function and an alarm
will sound when that period of time has elapsed.
oPress the minute minder button (6), the display will show a
value of 00:00. Set the period of time that you wish the minute
minder to countdown for, by using the minus (10) and plus
(11) buttons.
oOnce the display has got to your desired countdown time, let go
of the minus and plus buttons. The minute minder symbol (13)
will appear on the timer display.
oOnce a countdown time has been set, it is possible to shorten or
lengthen the time by using the minus or plus buttons.
oAn alarm will sound when the countdown time has elapsed. The
alarm can be silenced by pressing the minute minder button.
oImportant: The oven will continue to heat once the alarm has
been silenced. If you have finished cooking, then you should turn
the oven function selector and thermostat control knob to 0.

16
Setting the duration function
This function will allow you to set a countdown time similar to
the minute minder function. However the oven will no longer
continue to heat, once the countdown period has elapsed.
oUse the thermostat control knob (3) to set the temperature that
you require. The manual operation symbol (14) will appear on
the display.
oUse the oven function selector knob (1) to select the mode of
cooking that you require.
oIt is then possible to set the duration of the cooking time that
you require.
oPress the duration button (7) and the display will show a value
of 00:00. Set the period of time that you wish the duration
function to countdown for, by using the minus (10) and plus
(11) buttons.
oOnce the display has got to your desired countdown time, let go
of the minus and plus buttons. The countdown will start
immediately and the word AUTO will appear on the timer display.
oOnce a countdown time has been set, it is possible to shorten or
lengthen the time by using the minus or plus buttons.
oAn alarm will sound when the countdown time has elapsed and
the oven will switch off. The word AUTO will flash and the
heating symbol will disappear. The alarm can be silenced by
pressing the duration button.
oYou will need to return the oven to manual operation mode, once
the duration function has been used. To do this you should press
the “manual operation” button, the word AUTO will disappear
from the display and the manual operation symbol will appear
instead.
oImportant: If you do not turn the thermostat control knob and
oven function selector knob to 0, then the appliance will continue
to operate as soon as you press the manual operation button.

17
Setting the end cook function
This function is similar to the duration function, however
instead of selecting a period of time that you wish the oven to
switch off after. You select the time of day that you wish the
oven to switch off at.
oUse the thermostat control knob (3) to set the temperature that
you require. The manual operation symbol (14) will appear on
the display.
oUse the oven function selector knob (1) to select the mode of
cooking that you require.
oPress the end cook button (8) and the display will show a value
of 00:00. Set the time of day that you wish the oven to stop
cooking at by using the minus (10) and plus (11) buttons. The
timer will calculate how long the cooking time will be, based on
the time of day that you have selected and show it on the
display.
oOnce the display has got to the time of day that you want the
oven to stop cooking at, let go of the minus and plus buttons.
The countdown will start immediately and the word AUTO will
appear on the timer display.
oWhen the time is set, it can be modified by pressing the minus
and plus buttons.
oWhen the time of day reaches the end of cooking time that you
set, the oven will switch off and an alarm will sound. The word
AUTO will flash and the heating symbol will disappear. The
alarm can be silenced by pressing the “end cook” button.
oYou will need to return the oven to manual operation mode, once
the end cook function has been used. To do this you should
press the manual operation button, the word AUTO will
disappear from the display and the manual operation symbol will
appear instead.
oImportant: If you do not turn the thermostat control knob and
oven function selector knob to 0, then the appliance will continue
to operate as soon as you press the “manual operation” button.

18
Setting the start and end time function
This function will allow you to set a time in the future that the
oven switches on at and a time that the oven will switch off at.
oUse the thermostat control knob (3) to set the temperature that
you require. The manual operation symbol (14) will appear on
the display.
oUse the oven function selector knob (1) to select the mode of
cooking that you require.
oPress the duration button (7) and the display will show a value
of 00:00. Set the period of time that you wish to cook for, by
using the minus (10) and plus (11) buttons. The word AUTO
will appear on the timer display.
oImmediately press the end cook button (8) and the timer
display will show the value 00:00. Set the time of day that you
want the oven to switch off at, using the minus and plus buttons.
oThe oven will calculate what time it needs to switch on at, so
that your food will cook for the length of time that you selected.
It will automatically switch itself on, once it reaches the time of
day that it has calculated.
oWhen the time of day reaches the end of cooking time that you
set, the oven will switch off and an alarm will sound. The word
AUTO will flash and the heating symbol will disappear. The alarm
can be silenced by pressing the end cook or duration button.
oYou will need to return the oven to manual operation mode, once
the start and end time function has been used. To do this you
should press the manual operation button, the word AUTO will
disappear from the display and the manual operation symbol will
appear instead.
oImportant: If you do not turn the thermostat control knob and
oven function selector knob to 0, then the appliance will continue
to operate as soon as you press the manual operation button.

19
Adjusting the audible signal
oThe audible signal has three different settings, low, medium and
high.
oTo adjust the level of the audible signal, make sure that the
timer is in manual mode. Then press and hold the minus button
and you will hear the current level that is set.
oPress the minus button again and the audible signal will adjust to
the next level.
oWhen the required level of audible signal is reached, release the
minus button and it will be set.
Selecting a cooking function and temperature
Selecting manual operation mode
After your appliance is connected to your mains supply for the
first time, the numbers on the timer display will flash. Before
you can select a cooking function or set a temperature, you
must set the appliance into “manual operation” mode.
oTo select manual operation mode, press the manual operation
button (9) on the control panel.
Selecting an oven function
P611BS/SS P622BS/SS P632BS/SS/W
oThe oven function selector knob should be used to select the
particular mode of cooking that you require. The appliance will
utilise different elements within the oven cavity, depending on
the oven function that you select. When a function is selected,
the power indicator light will come on.
0
00

20

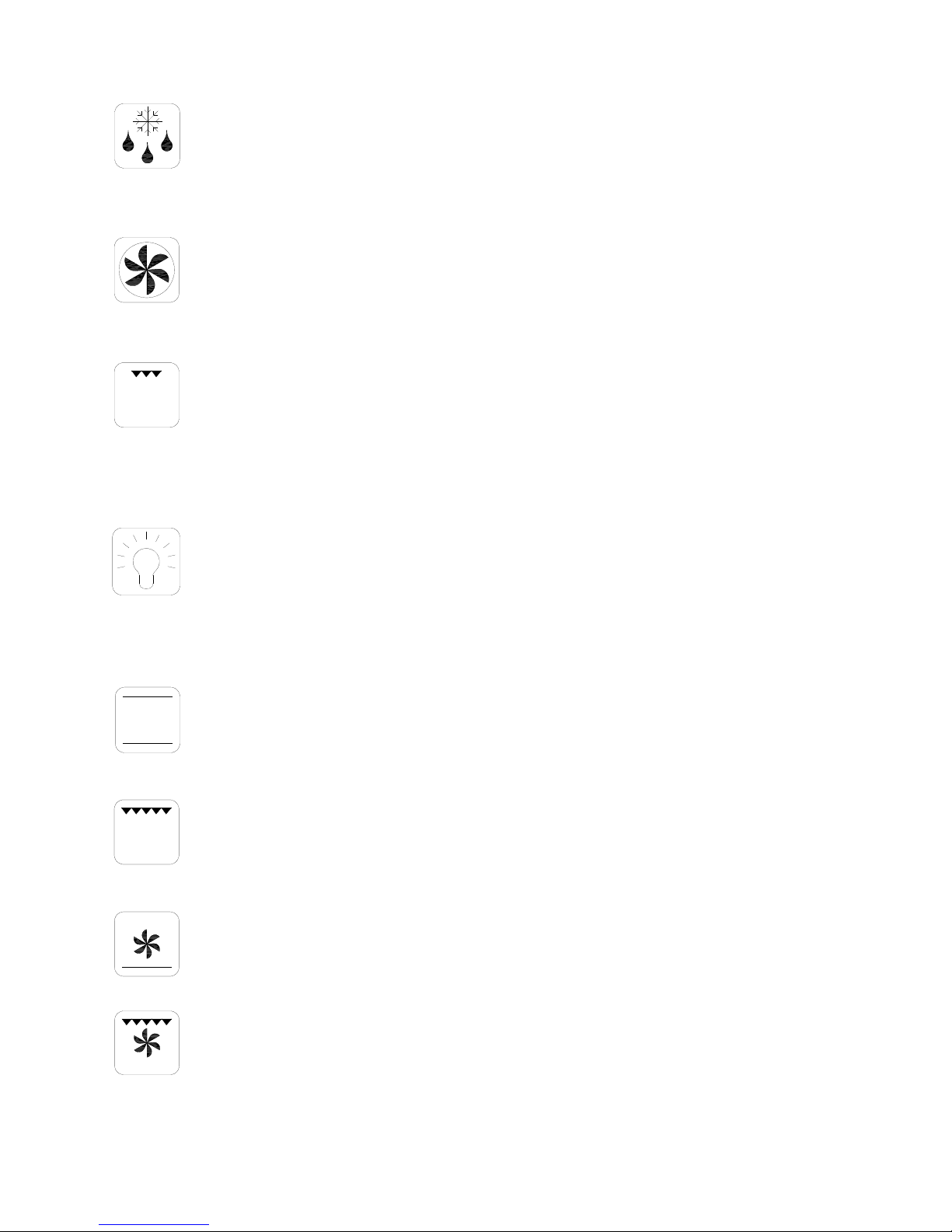

P611BS/SS, P622BS/SS and P632BS/SS/W standard oven
functions
DEFROST MODE: The fan runs without heat to reduce the
defrosting time of frozen foods. The time required to defrost the
food will depend on the room temperature, the quantity and type of
food. Always check food packaging for the defrosting
instructions.
FAN OVEN: This method of cooking uses the circular element while
the heat is distributed by the fan. This results in a faster and more
economical cooking process. The fan oven allows food to be cooked
simultaneously on different shelves, preventing the
transmission of smells and tastes from one dish on to another.
GRILL MODE: This method of cooking utilises the inner sections of
the top element, which directs heat downwards onto the food. This
function is suitable for grilling portions of bacon, toast and meat
etc.
P611BS/SS additional functions
LIGHT MODE: Separate light control which allows the oven light
to be switched on, even when the oven is not heating.
P622BS/SS and P632BS/SS/W additional functions
CONVENTIONAL OVEN (top and lower element): This method
of cooking provides traditional cooking, with heat from the top and
lower elements. This function is suitable for roasting and baking on
one shelf only.
FULL GRILL: This method of cooking utilises the inner and outer
parts of the top element, which directs heat downwards onto the
food. This function is suitable for grilling medium or large portions
of sausages, bacon, steaks, fish etc.
FAN AND LOWER ELEMENT: This method of cooking utilises the
bottom element in conjunction with the fan, which helps to circulate
the heat. This function is suitable for sterilizing and preserving jars.
FAN AND GRILL: This method of cooking utilises the top element
in conjunction with the fan, which helps to provide a quick
circulation of heat. This function is suitable where quick browning is
required and “sealing” the juices in, such as steaks, hamburgers,
some vegetables etc.
P632BS/SS/W additional functions
