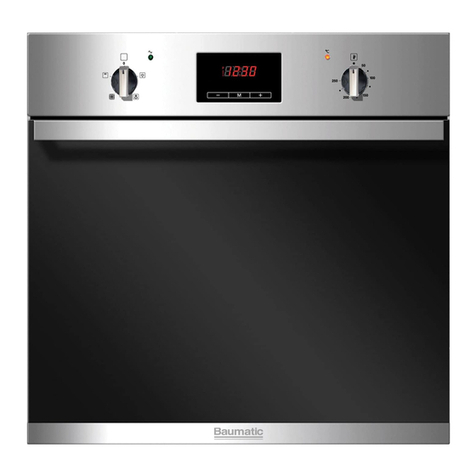

Baumatic BO616.6 SS User manual

User Manual - Quick Start Quide
Instructions for operating your oven
BO616.6 SS

Note: Please refer to the Installation and Maintenance
manual which accompanies this user manual for important
instructions regarding the correct installation and
maintenance of your oven and important safety instructions.

3
1Function selector.
2Electronic clock.
3Temperature selector.
4Heating indicator light. Indicates that heat is
being passed to the food and it goes out
when the set temperature is reached. The
light will cycle on and off during cooking.
Control Panel
2 41 3

4
Oven Functions
Switch off oven
Grill
For preparing dishes with superficial roasting.
It allows the outer layer to be browned without
affecting the inside of the food. Ideal for flat
food, such as steaks, ribs, fish, toast.
Grill with fan
Allows uniform roasting at the same time as
surface browning. Ideal for grills. Special for
large volume pieces, such as poultry, game etc.
It is recommended to put the item on a rack with
a tray beneath to collect the stock and juices.
Caution
While using the Grill or Grill with fan, the door
must be kept closed.
Turbo
The fan distributes the heat produced by an
element located at the rear of the oven. Due to
the uniform heat distribution, it allows roasting
and baking to take place at two heights at the
same time.
Defrosting
This cooking mode is suitable for gently
defrosting of delicate food to be consumed
unwarmed, e.g.: cream, custard, pastry, tarts,
cakes, fruit,...
Note
The pilot light remains on in any cooking
function.

5
Setting the time on the clock
On connecting the oven, you will notice that
12:00 appears on the clock and that a light
begins to flash above the symbol. Pressing
the “+” and “-“ buttons the correct time can be
set on the clock, which is subsequently stored
and the flashing light goes out.
Manual use
After setting the correct time, the oven is ready
for use. Select a temperature and a cooking
function.
To switch off the oven, set the controls to the
position .
Functions of the Electronic Clock Programmer
arning function: This function generates a
warning tone at a specified time.
Cooking time: This function allows to
programme the oven to cook for a specified
time, after which it will switch itself off.
End of cooking time: This function allows to
establish the exact hour, after which the oven
will switch itself off.
Duration and automatic stop: This function is
used to control the duration and the time at
which the oven will turn itself off. This function
allows the oven to start and stop
automatically.
arning function
1Press the MODE button until the signal
above the symbol begins to flash.
2Choose the time when you want the alarm to
sound, pressing the “+” or “-“ buttons.
3Subsequently, the light will remain on
indicating that the alarm is programmed.
4At the end of the programmed time, an
alarm will sound and the light will begin to
flash.
5Press any button to turn off the alarm and
the screen shows the current time again.
Programming the cooking time
1Press the MODE button until the indicator
above the symbol begins to flash.
2Select the length of time, pressing the “+”
or “-“ buttons.
3Subsequently, the indicator that was
flashing will light, indicating that the oven
will switch itself off automatically.
4The clock will then show the current time.
5Select a temperature and cooking function.
6When the set time has elapsed, the oven
will disconnect, an alarm will sound and the
indicator will begin to flash.
7Press any button to switch off the alarm,
reconnecting the oven.
8Set the controls in the position to switch
off the oven.
Programming the end of cooking time for the oven
1Press the MODE button until the indicator
above the symbol begins to flash.
2Select the time that cooking is to finish,
pressing the “+” or “-“ buttons.
3Subsequently, the indicator that was
flashing is lit, indicating that the oven will
switch itself off automatically.
4The clock will then show the current time.
5Select a temperature and a cooking
function.
6When the programmed time is reached, the
oven will disconnect, an alarm will sound
and the indicator will begin to flash.
7Press any button to switch off the alarm and
the oven will reconnect.
8Set the controls to the position to switch
off the oven.
This function may be used even though you are
already cooking in your oven. To do so, follow
the instructions given except Nº 5.
Use of the Oven

6
Tray Handle
The tray handle is used when you need to remove the tray to check the food. See figures. To lift
the tray out of the oven, you need to use gloves to protect yourself.
Cake tray handle position. You must put the
short hook over the tray.
Short hook ong hook
Roasting tray handle position. You must put
the long hook over the tray.
Programming the duration and automatic stop
1Press the MODE button until the indicator
above the symbol begins to flash.
2Select the length of cooking time pressing
the “+” or “-“ buttons.
3Subsequently, the indicator that was
flashing will remain lit.
4Press the mode button until the indicator
above the symbol begins to flash.
5Select the time that cooking should finish
pressing the “+” or “-“ buttons.
6Subsequently, the indicator that was
flashing will remain lit.
7Select a function and cooking temperature.
8The oven will remain disconnected with the
indicators above the and symbols
lit. Your oven is programmed.
9When the time to begin cooking is reached,
the oven will switch itself on and will
continue cooking during the programmed
time.
10 When the programmed finishing time is
reached, the oven will disconnect, an alarm
will sound and the light above the
symbol will begin to flash.
11 Press any button to switch off the alarm
and the oven will reconnect.
12 Set the controls to the position to switch
of the oven.
Caution
Pressing the MODE button the display on the
screen shows any function programmed. It can
be changed by pressing the “+” or “-“ buttons.
On selecting the desired function, the indicator
above the corresponding signal will light.
In the event of a power cut, all the
programming of the electronic clock will be
erased. The correct time has to be reset and
the watch reprogrammed.
09:05

7
Energy
efficiency
class on a
scale of A
(more efficient)
to G (less
efficient).
Heating
function.
Conventional.
Forced air
convection.
Energy
consumption.
Conventional.
Forced air
convection.
Usable volume
(litres).
Size:
Small
Medium
arge
Time to cook
standard load.
Conventional.
Forced air
convection.
Baking area.
Noise (dB (A)
re 1 pW).
A
—
0,79
Kwh
59
—
48 min.
1250 cm2
BROCHURE
