Baumatic P615SS User manual

1
P615SS, P616SS, P621SS,
P625SS, P626SS and
P631SS
60 cm Multifunction built in
oven

User Manual for your Baumatic
P615SS, P616SS, P621SS, P625SS,
P626SS and P631SS 60 cm multi-
functional oven
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 18/05/10
2

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8-16
Dimensions 8
P615SS 8
P616SS 9
P621SS 10
P625SS 11
P626SS 12
P631SS 13
Electricaldetails 13-14
Coolingfan 15
Controlpanel 15
Ovenprogrammer/timerdisplay 16
Setting and using the oven programmer/timer 16-21
Selecting manual operation mode 16
Settingthetimeofday 16
Before first use 16-17
Setting the minute minder function 17
Setting the duration function 18
Setting the end cook function 19
Setting the start and end time function 20
Adjusting the audible signal 21
Selecting a cooking function and temperature 21-27
Selecting manual operation mode 21
Selectinganovenfunction 21
P615SS and P616SS standard oven functions 21-22
P621SS, P625SS, P626SS and P631SS standard oven functions 22-23
P625SS, P626SS and P631SS additional oven functions 23
Thermostatcontrolknob 23-24
Ovenoperatinglight 24
Cooking guidelines 24-26
Warnings 26-27
Cleaning and maintenance 27-33
Removable oven roof liner 28
Replacing the oven bulb 29
Removing the oven door for cleaning 30
Removing the inner door glass for cleaning 31-33
Installation 34-37
Electricalconnection 34-35
Installing the oven into the kitchen cabinet 35
Positioningtheappliance 35
Ventilationrequirements 36
Installing the oven into the housing unit 37
My appliance isn’t working correctly 38-39
Contact details 40

Environmental note
4
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Advice Line.
General Information
oThis appliance is designed for domestic household use and can
be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the ambient temperature
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than 4mm to the appliance, will be the
liability of the owner.
oFor use in leisure accommodation vehicles,please refer to
the appropriate information given in the installation instructions
for this appliance.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
oRepairs may only be carried out by Baumatic Service
Engineers or their authorised service agent.
5

6
Warning and safety instructions
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
General Safety
oDo not place heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
oDo not place pans or baking trays directly on the base of the
oven cavity, or line it with aluminium foil.
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not use the appliance to heat the room it is located in or to
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not attempt to lift or move cooking appliances by using the
oven door or handle, as this may cause damage to the appliance
or result in injury to the person lifting the appliance.
Cleaning
oCleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
oIn the parts destined to come into contact with foodstuffs, this
appliance is in accordance with the requirements of the EC
directive 89/109 transposed in the Italian Legislative Decree No.
108 of 25/01/92.
oCE:Appliance conforming to the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions
and “RoHS” directive 2002/95/CE.*
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
*The RoHS directive stands for “the restriction of the use of
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market of
new electrical and electronic equipment containing more than
the agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated
diphenyl ether (PBDE) flame retardants.
7

Specifications
All models

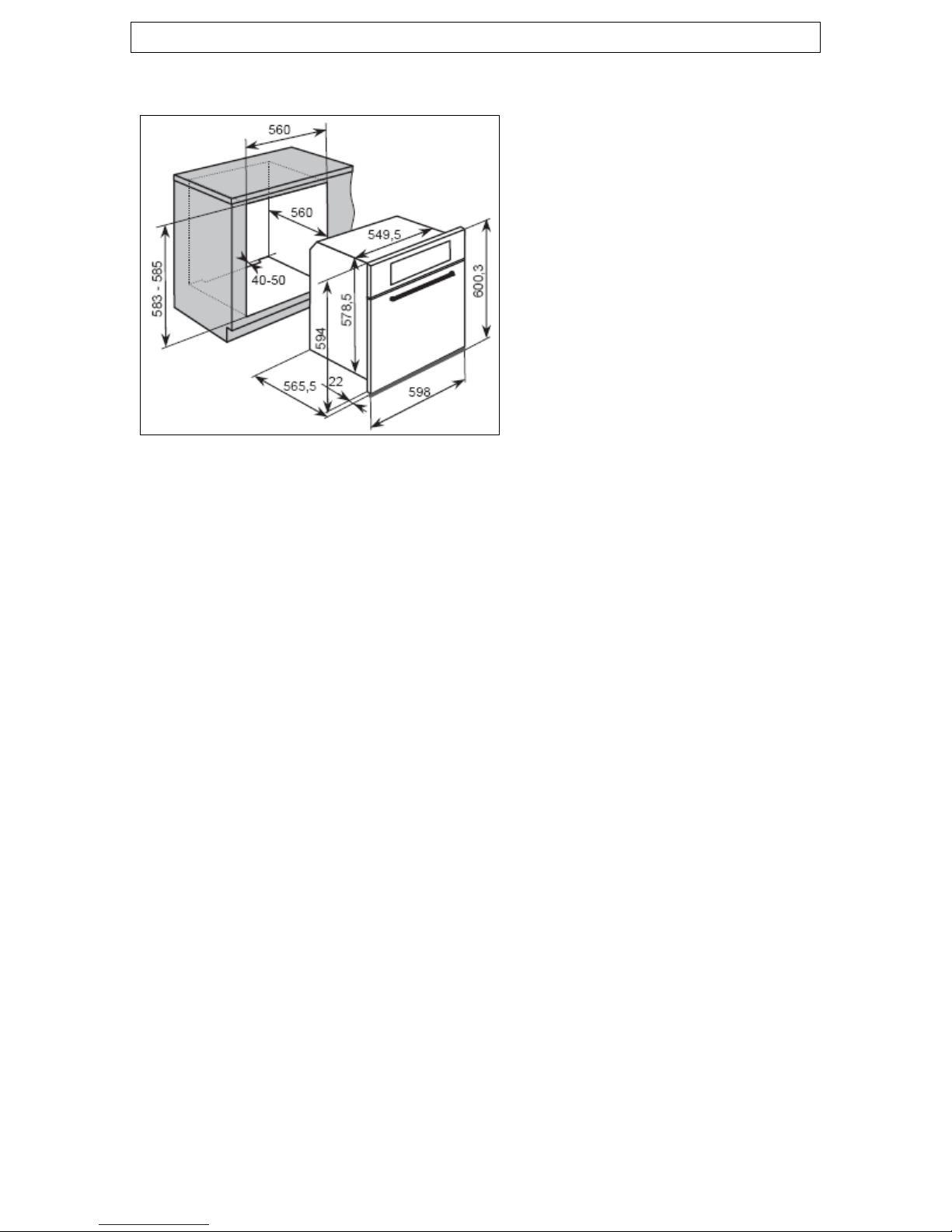

Product Dimensions
Height: 600.3 mm
Width: 598 mm
Depth: 565.5 mm
Aperture dimensions
Height: 583 - 585 mm
Width: 560 mm
Depth: 560 mm
P615SS
Product specifications
oEnergy efficiency class: A
o5 oven functions
oOven capacity (gross): 68 litres
oOven capacity (net): 61 litres
oLED full programmer
oPushbutton / knob control operation
oOven light
oMark-resistant coating
oCooling fan
oThermostatically controlled grill
oMechanically controllable thermostat
oDouble-glazed removable door
oRemovable inner glass door
Standard accessories
o1 x Enamelled baking tray
o1 x Safety shelf
o1 x Deep baking tray
oRemovable side racks
oRemovable roof liner
Optional extras
oBPS2 Pizza stone
oTEL6KIT Telescopic runners – 2 levels
oSCL6KIT Stay-clean liners*
* Please note that the TEL6KIT and SCL6KIT cannot be used together.
8

9
P616SS
Product specifications
oEnergy efficiency class: A
o5 oven functions
oOven capacity (gross): 68 litres
oOven capacity (net): 61 litres
oLED full programmer
oPushbutton / knob control operation
oMark-resistant coating
oOven light
oCooling fan
oThermostatically controlled grill
oMechanically controllable thermostat
oDouble-glazed removable door
oRemovable inner glass door
Standard accessories
oEnamelled baking tray
o1 x Safety shelves
o1 x Deep baking tray
oRemovable side racks
oRemovable roof liner
oTelescopic runners – 1 level
Optional extras
oBPS2 Pizza stone
oTEL6KIT Telescopic runners – 2 levels
oSCL6KIT Stay-clean liners*
* Please note that the TEL6KIT and SCL6KIT cannot be used together.

10
P621SS
Product specifications
oEnergy efficiency class: A
o7 oven functions
oOven capacity (gross): 68 litres
oOven capacity (net): 61 litres
oLED full programmer
oOven light
oMark-resistant coating
oThermostatically controlled grill
oMechanically controllable thermostat
oPush / pull knob control operation
oCooling fan
oDouble-glazed removable door
oRemovable inner door glass
Standard accessories
o3 x Enamelled baking trays with handle
o2 x Safety shelves
o1 x Trivet
oRemovable side racks
oRemovable roof liner
oTelescopic runners – 1 level
Optional extras
oBPS2 Pizza stone
oTEL6KIT Telescopic runners – 2 levels
oSCL6KIT Stay-clean liners*
* Please note that the TEL6KIT and SCL6KIT cannot be used together.

11
P625SS
Product specifications
oEnergy efficiency class: A
o9 oven functions
oOven capacity (gross): 68 litres
oOven capacity (net): 61 litres
oLED full programmer
oMark-resistant coating
oKnob control operation
oMechanically controllable thermostat
oCooling fan
oTriple-glazed removable door
oThermostatically controlled grill
Standard accessories
o1 x Enamelled baking tray
o1 x Safety shelf
oRemovable side racks
oRemovable roof liner
Optional extras
oBPS2 Pizza stone
oSCL6KIT Stay-clean liners
oTEL6KIT Telescopic runners – 2 levels*
* Please note that the TEL6KIT and SCL6KIT cannot be used together.

12
P626SS
Product specifications
oEnergy efficiency class: A
o9 oven functions
oOven capacity (gross): 68 litres
oOven capacity (net): 61 litres
oLED full programmer
oMark-resistant coating
oPushbutton / knob control operation
oMechanically controllable thermostat
oDouble-glazed removable door
oCooling fan
oRemovable inner door glass
oThermostatically controlled grill
Standard accessories
o1 x Enamelled baking tray with handle
o2 x Safety shelves
o1 x Trivet
oRemovable side racks
oRemovable roof liner
oTelescopic runners – 1 level
Optional extras
oBPS2 Pizza stone
oSCL6KIT Stay-clean liners
oTEL6KIT Telescopic runners – 2 levels*
* Please note that the TEL6KIT and SCL6KIT cannot be used together.

13
P631SS
Product specifications
oEnergy efficiency class: A
oOven capacity (gross): 68 litres
oOven capacity (net): 61 litres
oLED full programmer
oPushbutton / knob control operation
oWipe-clean enamelled cavity
oMark-resistant coating
oElectronically controllable thermostat
oTriple-glazed removable door
oCooling fan
oThermostatically controlled grill
Standard accessories
o2 x Safety Shelves
o1 x Trivet
o3 x Wipe-clean enamelled baking trays with handle
oRemovable side racks
oRemovable roof liner
oTelescopic runners – 1 level
Optional extras
oBPS2 Pizza stone
oTEL6KIT Telescopic runners – 2 levels
oSCL6KIT Stay-clean liners*
* Please note that the TEL6KIT and SCL6KIT cannot be used together.
Electrical details
P615SS
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 13 A (double pole switched fused
outlet with 3 mm contact gap).
Max Rated Input: 2.98 kW
Mains Supply Lead:3 x 1.5 mm²
Oven Light Bulb:25 W / 300°C screw type pigmy

14
P616SS
Rated Voltage: 220 – 240 Vac 50 – 60 Hz
Supply Connection: 13 A (double pole switched fused
outlet with 3 mm contact gap).
Max Rated Input:1.95 – 2.30 kW
Mains Supply Lead:3 x 1.5 mm²
Oven Light Bulb:25 W / 300°C screw type pigmy
P621SS
Rated Voltage: 220 – 240 Vac 50 -60 Hz
Supply Connection:13 A (double pole switched fused
outlet with 3 mm contact gap).
Max Rated Input:2.15 – 2.55 kW
Mains Supply Lead:3 x 1.5 mm²
Oven Light Bulb: 25 W / 300°C screw type pigmy
P625SS
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 16 A (double pole switched fused
outlet with 3 mm contact gap).
Max Rated Input: 2.98 kW
Mains Supply Lead: 3 x 1.5 mm²
Oven Light Bulb: 25 W / 300°C screw type pigmy
P626SS
Rated Voltage: 220 – 240 Vac 50 – 60 Hz
Supply Connection:13 A (double pole switched fused
outlet with 3 mm contact gap).
Max Rated Input:2.15 – 2.55 kW
Mains Supply Lead:3 x 1.5 mm²
Oven Light Bulb:25 W / 300°C screw type pigmy
P631SS
Rated Voltage: 220 – 240 Vac 50 – 60 Hz
Supply Connection: 13 A (double pole switched fused
outlet with 3 mm contact gap).
Max Rated Input:2.15 – 2.55 kW
Mains Supply Lead:3 x 1.5 mm²
Oven Light Bulb:25 W / 300°C screw type pigmy

For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening the oven door and looking on the right hand side of
the oven chassis.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….
Cooling fan (all models)
oA tangential cooling fan is fitted inside of this appliance, to make
the internal temperature of the oven stable and the external
surface temperature lower.
oAfter you have finished cooking and switched off the oven, the
cooling fan will continue to run for a period of time afterwards.
The length of time will depend on how long the oven has been
switched on for and at how high a temperature.

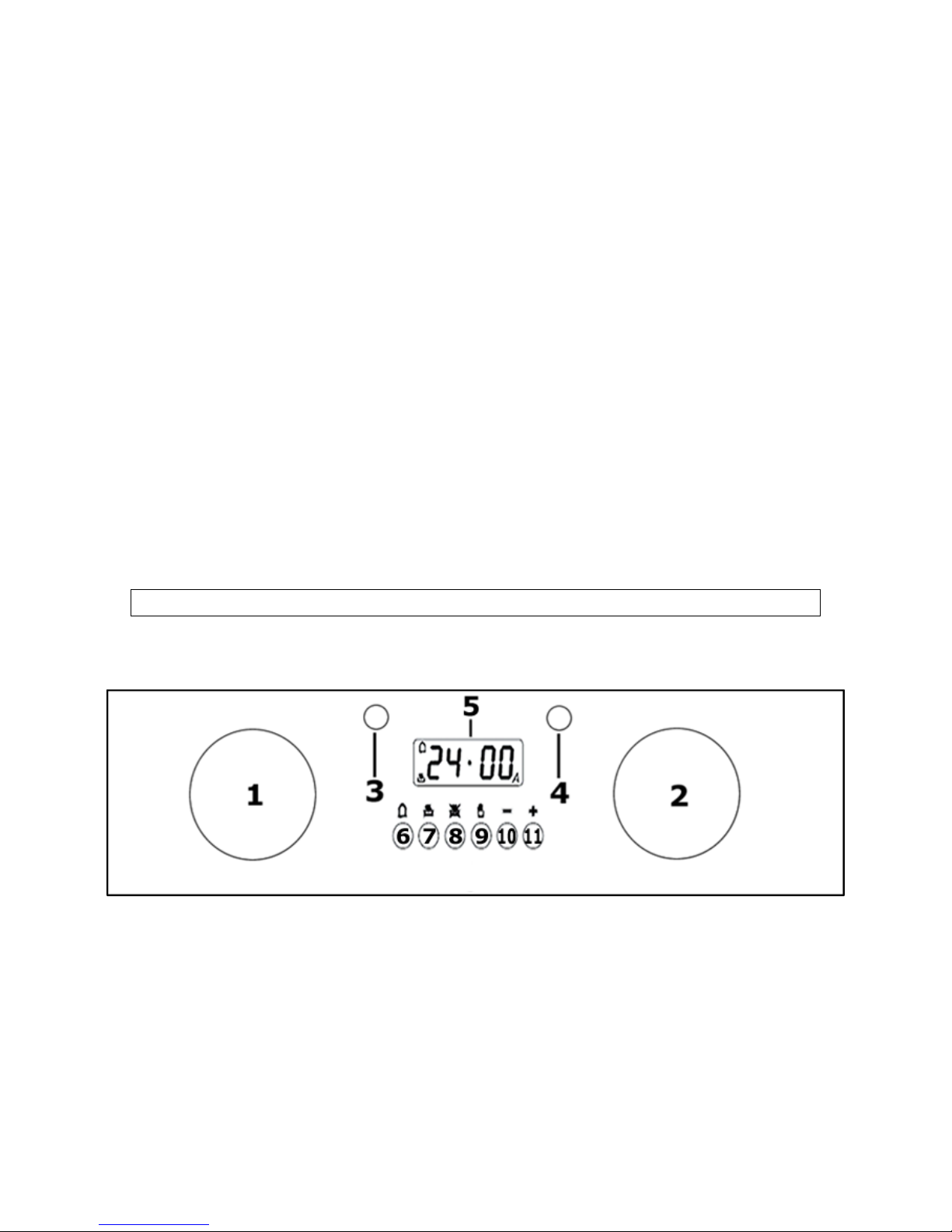

Control Panel
All models
1) Oven function selector knob
2) Thermostat control knob
3) Power indicator light
4) Oven operating light
5) LED display
6) Timer minute minder button
7) Timer duration button
8) Timer end cook button
9) Timer manual operation
button
10) Timer minus button
11) Timer plus button
15

Oven programmer/timer display
12) “Auto” function symbol
13) “Minute minder” symbol
14) “Manual operation” symbol
Setting and using the oven programmer/timer
Selecting manual operation mode
After your appliance is connected to your mains supply for the
first time, the numbers on the timer display will flash. Before
you can select a cooking function or set a temperature, you
must set the appliance into manual operation mode.
oTo select manual operation mode, press the manual operation
button (9) on the control panel.
Setting the time of day
After setting your oven for manual operation, you should also
set the time of day.
oUse the minus button (10) and plus button (11) to adjust the
time that appears in the display. After getting the display to the
correct time, release the minus and plus buttons. After five
seconds the time will fix in the display and you will be able to
use your oven.
oThe manual operation symbol (14) will light on the oven
programmer/timer display.
Before first use
oTo remove any residue from the oven that may have been left
from the manufacturing process, you should select either the fan
or conventional oven function and turn the thermostat dial to its
maximum temperature setting.
oIt is perfectly normal for a smell to be produced during this
process.
16

17
oYou should make sure that any windows in the room are left
open during this process.
oIt is advisable for you not to remain in the room whilst the
burning off process is taking place.
oYou should leave the oven on maximum setting for 30 – 40
minutes.
Setting the minute minder function
You are able to set the minute minder at any time, regardless
of whether an oven function has been selected. You can set a
period of time using the minute minder function and an alarm
will sound when this period of time has elapsed.
oPress the minute minder button (6), the display will show a
value of 00:00. Set the period of time that you wish the minute
minder to countdown for, by using the minus (10) and plus
(11) buttons.
oOnce the display has got to your desired countdown time, let go
of the minus and plus buttons. The minute minder symbol (13)
will appear on the timer display.
oOnce a countdown time has been set, it is possible to shorten or
lengthen the time by using the minus or plus buttons.
oAn alarm will sound when the countdown time has elapsed. The
alarm can be silenced by pressing the minute minder button or
manual operation button.
oImportant: The oven will continue to heat once the alarm has
been silenced. If you have finished cooking, then you should turn
the oven function selector and thermostat control knob to 0.

18
Setting the duration function
This function will allow you to set a countdown time similar to
the minute minder function. However the oven will no longer
continue to heat, once the countdown period has elapsed.
oUse the oven function selector knob (1) to select the mode of
cooking that you require.
oUse the thermostat control knob (2) to set the temperature that
you require. The manual operation symbol (14) will appear on
the display.
oIt is then possible to set the duration of the cooking time that
you require.
oPress the duration button (7) and the display will show a value
of 00:00. Set the period of time that you wish the duration
function to countdown for, by using the minus (10) and plus
(11) buttons.
oOnce the display has got to your desired countdown time, let go
of the minus and plus buttons. The countdown will start
immediately.
oOnce a countdown time has been set, it is possible to shorten or
lengthen the time by using the minus or plus buttons.
oAn alarm will sound when the countdown time has elapsed and
the oven will switch off.
oTo silence the audible signal and return the oven to manual
operation mode, once the duration function has been used. You
should press the manual operation button (9).
oImportant: If you do not turn the thermostat control knob and
oven function selector knob to 0. Then the appliance will
continue to operate as soon as you press the manual operation
button.

19
Setting the end cook function
This function is similar to the duration function, however
instead of selecting a period of time that you wish the oven to
switch off after. You select the time of day that you wish the
oven to switch off at.
oUse the oven function selector knob (1) to select the mode of
cooking that you require.
oUse the thermostat control knob (2) to set the temperature that
you require. The manual operation symbol (14) will appear on
the display.
oPress the end cook button (8) and the display will show a value
of 00:00. Set the time of day that you wish the oven to stop
cooking at by using the minus and plus buttons. The timer will
calculate how long the cooking time will be, based on the time
of day that you have selected and show it on the display.
oOnce the display has got to the time of day that you want the
oven to stop cooking at, let go of the minus and plus buttons.
The countdown will start immediately.
oWhen the time is set, it can be modified by pressing the minus
and plus buttons.
oWhen the time of day reaches the end of cooking time that you
set, the oven will switch off and an alarm will sound.
oTo silence the audible signal and return the oven to manual
operation mode, once the end cook function has been used. To
do this you should press the manual operation button (9).
oImportant: If you do not turn the thermostat control knob and
oven function selector knob to 0. Then the appliance will
continue to operate as soon as you press the manual operation
button.

20
Setting the start and end time function
This function will allow you to set a time in the future that the
oven switches on at and a time that the oven will switch off at.
oUse the oven function selector knob (1) to select the mode of
cooking that you require.
oUse the thermostat control knob (2) to set the temperature that
you require. The manual operation symbol (14) will appear on
the display.
oPress the duration button (7) and the display will show a value
of 00:00. Set the period of time that you wish to cook for, by
using the minus (10) and plus (11) buttons.
oImmediately press the end cook button (8) and the timer
display will show the value 00:00. Set the time of day that you
want the oven to switch off at, using the minus and plus buttons.
oThe oven will calculate what time it needs to switch on at, so
that your food will cook for the length of time that you selected.
It will automatically switch itself on, once it reaches the time of
day that it has calculated.
oWhen the time of day reaches the end of cooking time that you
set, the oven will switch off and an alarm will sound.
oTo silence the audible signal and return the oven to manual
operation mode, once the start and end time function has been
used. To do this you should press the manual operation button
(9).
oImportant: If you do not turn the thermostat control knob and
oven function selector knob to 0. Then the appliance will
continue to operate as soon as you press the manual operation
button.
