Manual
Absolute Encoder with shaft and Interbus
Version from 1.10

Manual_GXP6W_EN.doc 2/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
Contents
1Introduction 3
1.1 Scope of delivery 3
1.2 Product assignment 3
2Illustration of Encoder Data within Master 4
2.1 Position of the Encoder Data within the 2-word Addresses 4
2.2 Significance of the OUT Data (Data from the Master to the Encoder) 4
2.3 Significance of the IN Data (Data from Encoder to Master) 4
3Possible Modes of Operation 5
4Behavior of Encoder after Power ON 5
5Parameterization 5
6Examples 8
7Disturbance messages 10
8Contact description 10
8.1 Description for bus cover 10
8.2 Contact descriptions for bus cover 10
8.3 Settings of user adresses 11
8.4 EMV-cable gland 11
8.5 Contact description for C-plug 12
8.6 Pin assignment for C-plug 12
9Technical data 13
9.1 Part number 13
9.2 Accessories 13
9.3 Dimensions 14

Manual_GXP6W_EN.doc 3/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
Disclaimer of liability
The present manual was compiled with utmost care, errors and omissions reserved. For this reason
Baumer IVO GmbH & Co. KG rejects any liability for the information compiled in the present manual.
Baumer IVO nor the author will accept any liability for direct or indirect damages resulting from the use of the
present information.
At any time we should be pleased receiving your comments and proposals for further improvement of the
present document.
1 Introduction
1.1 Scope of delivery
Please check the delivery upon completeness prior to commissioning.
Depending on encoder configuration and part number delivery is including:
•Encoder
•Manual available as download in the Internet
1.2 Product assignment
Shaft encoder
Product Product family
GXP6W Multiturn

Manual_GXP6W_EN.doc 4/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
2 Illustration of Encoder Data within Master
The IN as well as OUT data of the encoder are assigned 2-word addresses within the master (control). The absolute
position of these word addresses depends on the position of the encoder on the Interbus ring.
2.1 Position of the Encoder Data within the 2-word Addresses
Please find below the value of the encoder data relating to the relative word address.
Word 0 (Byte 0,1) 231 2
30 2 29 2 28 2 27 2 26 2 25 2 24 2 23 2 22 2 21 2 20 2 19 2 18 2 17 2 16
MSB LSB
Word 1 (Byte 2,3) 215 2
14 2 13 2 12 2 11 2 10 2 92 82 72 62 52 42 32 22 12 0
MSB LSB
2.2 Significance of the OUT Data (Data from the Master to the Encoder)
D31
D25
D24
D0
OUT Data: Control word Parameter
Control
word: Enable
operation
Set zero
offset
Specific to
manufacturer
Parameter No.
D31 D30 D29 D28 D27 D26 D25
2.3 Significance of the IN Data (Data from Encoder to Master)
D31
D25
D24
D0
IN Data: Status word Actual position value or disturbance number
Status
word:
Actual
position value
not valid
Parameterizat
ion
Specific to
manufacturer
Disturbance number in case of error
otherwise 0000
D31 D30 D29 D28 D27 D26 D25

Manual_GXP6W_EN.doc 5/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
3 Possible Modes of Operation
Normal Operation
Control
word:
Actual
position value
not valid
Set zero
offset
Specific to
manufacturer
Parameter No.
D31 D30 D29 D28 D27 D26 D25
Operation 0 0 0 0
Parameterization
Control
word:
Actual
position value
not valid
Set zero
offset
Specific to
manufacturer
Parameter No.
D31 D30 D29 D28 D27 D26 D25
Parameteri
zation
0 0 X 1...7 or 15
Enable
operation
0>1 0 X 0
4 Behavior of Encoder after Power ON
After power has been turned on, the following steps will take place during the initialization phase of encoder:
Test of battery tension
Switch to parameter mode
Loading of the most recent parameter data from EEPROM
Checking of parameter data as to their validity
After initialization the encoder switches to the OPERATION state and emits the current position value. In case of an
error (battery tension too low or parameter loss), however, the encoder commutes to the ERROR state.
5 Parameterization
The parameters of a profile K3 encoder can be transferred via the bits 0 to 24 of the process data channel to the
encoder. To this effect, the encoder has to be set to the parameterization state by a allotting parameter number not
equal to zero to the bits 9 to 12 of the control word (bit 25 to 28 of the process data channel).
Parameter No.
D28 D25
Function Value range
maximum
Factory
setting
0 0 0 1 Resolution: Sub-parameter Steps 1..33554431 8192
0 0 1 0 Resolution: Sub-parameter Revolutions 1..4096 1
0 0 1 1 Coding of actual position value 1..6 3
0 1 0 0 Preset value 0..33554431 0
0 1 0 1 Zero offset 0..33554431 0
0 1 1 0 Offset 0..33554431 0
0 1 1 1 Reset of encoder - -
1 1 1 1 Measuring range 1..4096 4096
Resolution
The resolution of the encoder is adjusted via the sub-parameters „Steps“ and „Revolutions“ and the resolution is
calculated according to the formula: Resolution = Steps / Revolutions.
The parameters Steps = 1000 and Revolutions = 3 result in a resolution of 333.333.. steps/revolution.

Manual_GXP6W_EN.doc 6/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
Coding of Actual position value
The parameter defines the coding of the actual value of the position allotted during OPERATION state.
Dual code with plus/minus sign (Integer)
Ascending code for sense of rotation 'right' (clockwise) with view on shaft
Dual code with plus/minus sign (Integer)
Ascending code for sense of rotation 'left' (counter-clockwise) with view on shaft
Dual code without plus/minus sign (Unsigned)
Ascending code for sense of rotation 'right' (clockwise) with view on shaft
Dual code without plus/minus sign (Unsigned)
Ascending code for sense of rotation 'left' (counter-clockwise) with view on shaft
Gray code without plus/minus sign
Ascending code for sense of rotation 'right' (clockwise) with view on shaft
Gray code without plus/minus sign
Ascending code for sense of rotation 'left' (counter-clockwise) with view on shaft
Preset Value
The value of the parameter 'Preset Value’ is used to find out the zero offset.
If the control command Set Zero Offset (control bit D30) is triggered by the master, the parameter Zero Offset is set
within the encoder to the value resulting from the following formula:
NPV = PW - API
The abbreviations stand for:
NPV Zero offset
PW Preset value
API Absolute actual value of position
Remark:
The calculated NPV value is not stored in E²Prom if activated by control bit D30. Due to the limited writing
cycles of the E²Prom, this value gets lost in case of power loss. However, when setting parameters, for
example preset, also the current NPV value is stored in E²Prom.

Manual_GXP6W_EN.doc 7/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
Zero Offset
The parameter Zero Offset refers to the difference between the zero point of the installation and the zero point of the
encoder. The actual position value is calculated according to the following formula:
PI = API + NPV
The abbreviations stand for:
PI Actual position value (is transferred)
API Absolute actual value of position
NPV Zero set off
Offset
The parameter 'Offset' is an additional possibility to offset the actual position value.
The actual position value is calculated according to the following formula:
PI = API + NPV + O
The abbreviations stand for:
PI Actual position value (is transferred)
API Absolute actual value of position
NPV Zero offset
O Offset
Resetting Encoder
When the parameter 'Reset Encoder' is transmitted to the encoder, all parameters are set back to their factory setting.
Measuring Range
It is possible to adjust the entire range of the position value via the parameter 'Measuring Range’. The unit for the
measuring range is the number of revolutions. If, for example, a resolution of 200 steps per revolution and a
measuring range of 5 revolutions are chosen, there ensues a total range of:
Total range = Resolution * Measuring range = 200 * 5 = 1000 steps
The total range of the position value thus stretches in the process data output without plus/minus signs from 0..999
and in the process data output with plus/minus signs from -500..499.

Manual_GXP6W_EN.doc 8/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
6 Examples
Example 1: Example for a parameter transfer
Host to Encoder Encoder to Host Remarks
Control word Status word
D3
1
D25-
D28
D0-D24 D30-
D31
D25-
D28
D0 -
D24
1 0 0 x 0 0 0 Actual
value
Normal operation
2 0 P. No. Parameter 0 0 0 Actual
value
Host sends parameter to encoder,
encoder shows no reaction yet
3 0 P. No. Parameter 0 0 0 Actual
value
Host continues to wait for encoder
confirmation
4 0 P. No. Parameter 1 1 1) Para-
meter
Encoder has taken over parameter and
starts processing
5 0 P. No. Parameter 1 1 1) Para-
meter
Parameter processing within encoder is
still running
6 0 P. No. Parameter 1 1 P. No. Para-
meter
Parameter processing has been finished,
encoder remains in "Parameterization"
state
7 1 0 0 1 1 P. No. Para-
meter
Device control command "Enable
operation " from Host to encoder. Encoder
shows no reaction yet
8 1 0 0 0 0 0 Actual
value
Encoder is again in "Operation" state
9 0 0 0 0 0 0 Actual
value
Back again to normal operation state of
both participants
1): It must be ensured not to transfer the same parameter number as already confirmed by the encoder when
transmitting a parameter. It is not allowed to repeat the transfer of the same parameter without leaving the
"Parameterization" state.
The parameter number must be consistent.
When transferring several parameters, steps 4 to 6 must be repeated.
It must be ensured when transmitting a parameter that the parameter number is not allotted by the
parameter.
If parameters are transferred that are not valid or do not harmonize, the encoder will turn to the "Disturbance"
state when trying to enable operation.

Manual_GXP6W_EN.doc 9/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
Example 2: Procedure when transferring non-harmonizing parameters
Host to Encoder Encoder to Host Remarks
Control word Status word
D3
1
D25-
D28
D0-D24 D30-
D31
D25-
D28
D0 -
D24
1 0 0 x 0 0 1) Actual
value
Normal operation
2 0 2 20 000 0 0 1) Actual
value
Host sends value in order to program
resolution (number of revolutions)
3 0 2 20 000 0 0 1) Actual
value
Host continues to wait for encoder
confirmation
4 0 2 20 000 1 1 1) 20 000 Encoder has taken over parameter and
starts processing
5 0 2 20 000 1 1 1) 20 000 Parameter processing within encoder is
still running
6 0 2 20 000 1 1 2 20 000 Parameter processing has been
finished, encoder remains in
"Parameterization" state
7 0 3 1 1 1 2 20 000 Host sends value to program coding of
actual position value
8 0 3 1 1 1 2 20 000 Host continues to wait for encoder
confirmation
9 0 3 1 1 1 2 1 Encoder has accepted parameter and
starts processing
10 0 3 1 1 1 3 1 Parameter processing has been
finished, encoder remains in
"Parameterization" state
11 1 0 0 1 1 3 1 Device control command "Enable
operation " from Host to encoder.
Encoder shows no reaction yet
12 1 0 0 0 1 1 0 Encoder switches to "Disturbance"
state, the disturbance code is "1". The
actual position value is not allotted on
the process data channel.
Here a try has been made to set the resolution of the encoder to 20 000 revolutions. The encoder reacts to
this inadmissible parameter setting by switching to the "Disturbance" state and by emitting the disturbance
code "1".

Manual_GXP6W_EN.doc 10/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
7 Disturbance messages
If there occurred an error when turning power on or during parameterization, the encoder switches to the
DISTURBANCE state after the user has passed the device control command ENABLE OPERATION and allots a
disturbance number to the bits D25-D28 of the status word. If an error occurs within the encoder during the
OPERATION state (e.g.: disturbance number 15), the encoder automatically switches to the DISTURBANCE state.
Disturbance No.
D28 D25
Significance
0 0 0 0 No disturbance
0 0 0 1 Inadmissible parameter from Master
0 0 1 0 Unknown parameter number
0 0 1 1 Parameter loss
1 1 0 1 Error when storing into EEPROM
1 1 1 0 Warning: Battery tension too low
1 1 1 1 Faulty value of encoder disk
8 Contact description

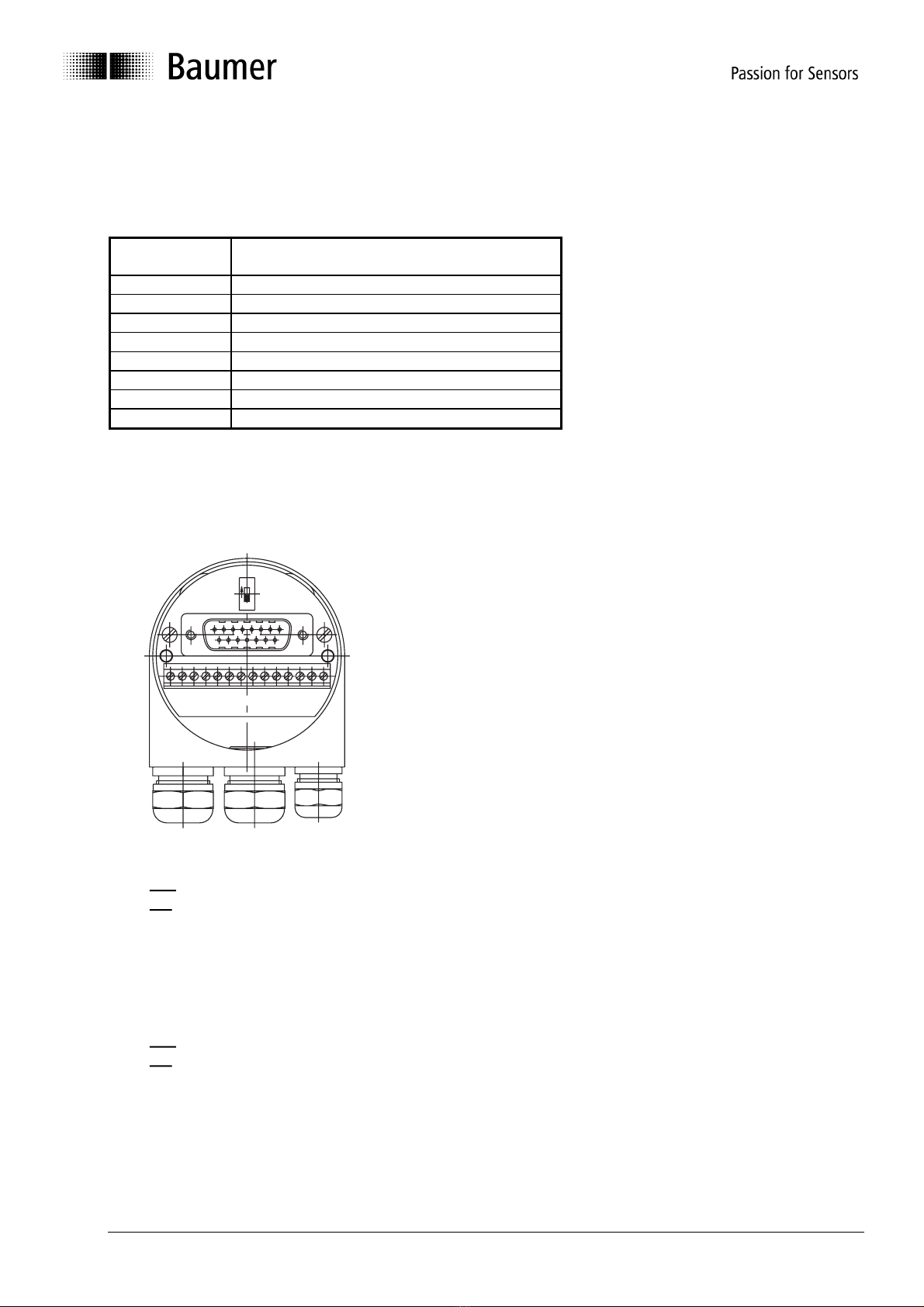

8.1 Description for bus cover
1
O N
GNDB
10-30V D01/ DI1 DI1/ GNDI D02 D02/ D12 D12/ GND
GNDB
10-30V D01
8.2 Contact descriptions for bus cover
D01, D01 Incoming long-distance bus (A1) galvanically
DI1, DI1 separated from remaining encoder electronics
GND I Galvanically separated reference mass for incoming long-distance bus (A1).
Models without electrical isolation combined with GND.
UB Contacts for encoder supply
GND B incorporated within the bus (A1), UB = 10...30 VDC
D02, D02 Relaying long-distance bus (W1)
DI2, DI2
GND Reference mass for relaying long-distance bus (W1)
UB Contacts for GND B encoder supply either
GND B incorporated within bus (W1) or furnished via PG7, UB = 10 ... 30 VDC. Connected
internally with UB/GND B from A

Manual_GXP6W_EN.doc 11/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
8.3 Settings of user adresses
Last user User X
ON ON
11
8.4 EMV-cable gland
The shielding of the contact cables must be done at the PG cable glands (PG7 and PG9).
The following are used:
1 x PG7 for voltage supply
2 x PG9 for data lines
Mounting: Strip the oversheath of the cable to ca. 35 mm (Picture 1), use connector sleeves
with litz cables. Push cap nut and seal insert onto cable sheath, shorten aluminum
foil,
if available, put braided screen over seal insert and shorten to 15 mm (Picture 2),
slide seal with cable into EMC PG cable gland and fix with cap nut.
Picture 1 Picture 2
The following cable cross-sections are admitted for the PGs:
PG7: Cable cross-section - 4,0mm - 6,0mm
PG9: 2-piece seal insert: - 5,0mm - 7,0mm
- 7,0mm - 10mm
ca. 5 15
Cable
Wire Screen
20
Cable
Wire
Screen
SealAlu film

Manual_GXP6W_EN.doc 12/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
8.5 Contact description for C-plug
D01, D01 Incoming long-distance bus (A1) galvanically
DI1, DI1 separated from remaining encoder electr.
GNDI Galvanically separated reference mass for incoming long-distance bus (A1).
Models without electrical isolation combined with GND.
UB Contacts for encoder supply incorporated
GNDB within the bus (A1), UB = 10...30 VDC. Current load max. 700 mA
D02, D02 Relaying long-distance bus (W1)
DI2, DI2
GND Reference mass for relaying long-distance bus (W1)
UB Contacts for encoder supply within bus
GNDB (W1), UB = 10 ... 30 VDC. Connected internally with UB/GND B from A1
PE Screening combined with encoder housing
RBST Recognition of further bus users
Open contact: Last user
Contact to GND: User X
8.6 Pin assignment for C-plug
12
3
4
5
6
789
1
2
3456
7
8
9
Incoming interface Outgoing interface
(pin) (socket)
Pin Assignment Pin Assignment
1 D01 1 D02
2 D01 2 D02
3 DI1 3 DI2
4 DI1 4 DI2
5 GNDI 5 GND
6 PE 6 PE
7 UB 7 UB
8 GNDB 8 GNDB
9 – 9 RBST

Manual_GXP6W_EN.doc 13/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
9 Technical data
9.1 Part number
Order no. Flange / Shaft
0 Clamping flange / 10 mm IP 54
A Clamping flange / 10 mm IP 65
1 Synchro flange / 6 mm IP 54
B Synchro flange / 6 mm IP 65
Voltage
10 10 ... 30 VDC with electr. isolation
20 10 ... 30 VDC without electr. isolation
Connection
A0 C-plug 2 x 9 pins axial
A1 C-plug 2 x 9 pins radial
A2 C-plug 2 x 9 pins axial, with 4 LED´s
A3 C-plug 2 x 9 pins radial, with 4 LED´s
20 Bus cover, 2 LED´s
Software
01 Profile K3
GXP6W. 
9.2 Accessories
Order no.
Z 119.015 Mounting bell for synchro flange
Z 119.017 Angular fixing for clamping flange
Z 119.018 Eccentric fixing + screws
Z 121.C01 Spring-washer coupling, bore holes 6 mm / 10 mm
Z 121.C02 Spring-washer coupling, bore holes 6 mm / 6 mm
Z 121.C03 Spring-washer coupling, bore holes 10 mm / 10 mm
Z 153.B01 Connector socket, 9 pins
Z 153.S01 Connector plug, 9 pins

Manual_GXP6W_EN.doc 14/14 Baumer IVO GmbH & Co. KG
04.05.11 Villingen-Schwenningen, Germany
9.3 Dimensions
GXP6W clamping flange and bus cover
M4 / 7 deep
120°
42 ±0.1
50h7
58
14.3
3
3
90 10
4
9.
5.5 ø6f8
62
ca.17
GXP6W clamping flange and 2 C-plugs radial
120°
M3 / 7 tief
48 ±0.1
80 10 20
15
ø58
ø36 f8
ø10 h6
9
33
Incoming
interface (pin)
outgoing
interface (socket)
59
GXP6W clamping flange and 2 C-plugs axial
120°
M3 / 7 tief
48 ±0.1
70 10 20
15
ø58
ø36 f8
ø10 h6
9
33Incoming
interface (pin)
outgoing
interface (socket)
GXP6W optional: As above versions but with synchro flange and square flange
M4 / 7 deep
120°
42 ±0.1
50h7
58
3
3
10
4
9.
5.5 ø6f8
620
15
4(0.16")
8.76
ø9.52h7ø31.75h7
(0.375") (1.25")
(0.34")
Window for LED:
green: Maintained light for stand-by
red: Maintained light in case of
disconnection of relaying long-
distance bus
