Beka Hospitec NORA Pro Operation instructions

WARNING
Before commissioning and
using the medical device, the user /
operator must familiarize himself with
the scope of functions of the medical
device by carefully reading this
operating manual!
NORA Pro
Sit-to-stand lift
Version 0.1 / E
Subject to technical modifications
2022-05-05
Operating manual /
Information for use
Original operating manual

BEKA Hospitec GmbH
Operating manual NORA Pro V0.1 E Page 2 of 60
Table of contents
1Imprint ................................................................................................................... 4
1.1 Acknowledgement........................................................................................ 4
1.2 Manufacturer’s address................................................................................ 4
2Introduction............................................................................................................ 5
2.1 Preface......................................................................................................... 5
2.2 Liability and warranty.................................................................................... 5
3Operating manual.................................................................................................. 6
3.1 Validity.......................................................................................................... 6
3.2 Type plate .................................................................................................... 6
3.3 Description ................................................................................................... 6
3.4 Variants of the NORA Pro............................................................................ 6
4Safety.................................................................................................................... 7
4.1 Intended and appropriate use ...................................................................... 7
4.2 Electrical safety............................................................................................ 7
4.3 Follow / observe the operating instructions.................................................. 8
4.4 List of used safety and warning signs........................................................... 8
4.5 General warning and safety instructions ...................................................... 9
5Transport and storage..........................................................................................13
5.1 Unpacking the product ................................................................................13
5.1.1 Removing the cardboard..........................................................................13
5.1.2 Loosening the product from the pallet......................................................13
6Installation ............................................................................................................14
6.1 Electrical connection ...................................................................................14
6.2 First start-up................................................................................................14
7Operating elements and their function..................................................................15
7.1 Hand control................................................................................................16
7.2 Functions and connections of the control unit .............................................17
7.2.1 Control panel............................................................................................17
7.2.2 Connections of the control unit.................................................................18
7.3 Battery unit..................................................................................................18
7.4 Charging the battery unit.............................................................................19
7.5 Manual emergency lowering system...........................................................20
7.6 Emergency stop switch ...............................................................................21
7.7 Motor safety measures................................................................................22
7.8 Impact and jamming protection (hoist motor) ..............................................22
7.9 Spreader bar and sling attachment points...................................................23
7.10 3D-Comfort-System.....................................................................................24
7.10.1 Detachable leg separator (option).........................................................24

BEKA Hospitec GmbH
Operating manual NORA Pro V0.1 E Page 3 of 60
7.11 Leg straps ...................................................................................................25
7.12 Detachable footplate ...................................................................................26
7.13 Castors........................................................................................................27
8Operation..............................................................................................................28
8.1 Sling operating manual................................................................................28
8.1.1 Prior to use...............................................................................................28
8.1.2 During use................................................................................................28
8.1.3 After use...................................................................................................30
8.2 Raising the patient from a chair or the bed (sitting position)........................30
8.3 Raising the patient from a wheelchair .........................................................32
8.4 Putting the patient/resident down................................................................33
8.5 Operation of the sit-to-stand lift ...................................................................34
8.6 Operation of the leg separator (option)........................................................35
8.7 Maintenance and care of the battery...........................................................35
9Cleaning / disinfection ..........................................................................................36
9.1 Cleaning the sit-to-stand lift.........................................................................36
9.2 Disinfecting the sit-to-stand lift.....................................................................36
9.3 Sterilising the sit-to-stand lift .......................................................................36
10 Maintenance, safety checks and servicing.........................................................37
10.1 Prior to each use.........................................................................................38
11 Environmental protection / waste disposal.........................................................38
11.1 Disposal of the packaging material..............................................................38
11.2 Disposal of the product................................................................................38
12 Troubleshooting / After-sales service.................................................................39
13 Appendix............................................................................................................41
13.1 Technical description...................................................................................41
13.2 Dimensions of the NORA Pro......................................................................43
13.3 Connection and assembly diagram.............................................................44
13.4 Declaration of Conformity............................................................................45
13.5 Additional equipment, accessories, and spare parts...................................49
13.6 Mounting instructions ..................................................................................51
13.6.1 Replacing the battery............................................................................51
13.6.2 Replacing the hand control...................................................................52
13.6.3 Replacing the control unit with holder for the battery unit .....................53
13.7 Electromagnetic compatibility......................................................................54
13.8 Journal ........................................................................................................58

Imprint
Operating manual NORA Pro V0.1 E Page 4 of 60
1 Imprint
1.1 Acknowledgement
Dear customer, we would like to express our sincere thanks for the trust you have placed
in us by purchasing this BEKA Hospitec GmbH product. Our products are manufactured
and tested according to stringent quality criteria.
1.2 Manufacturer’s address
We will be happy to advise you on questions about our products and to help you with
any problems. For this purpose, please contact:
BEKA Hospitec GmbH
Am Rübenmorgen 3
35582 Wetzlar
Phone: [phone]
Fax: [phone]
[email protected]
BEKA Hospitec GmbH is certified according to DIN EN ISO
13485 by TÜV SÜD Product Service GmbH.
Therefore, the development, manufacturing, quality
assurance and service of our entire product range is subject
to high quality standards.
ATTENTION
Before each use, check that all visible parts are undamaged. If
parts are damaged, the product must NOT be used!
Before each use of the device and its accessories, the user must
make sure that they are safe to operate and in proper condition
(visual inspection, function).

Introduction
Operating manual NORA Pro V0.1 E Page 5 of 60
2 Introduction
2.1 Preface
A correct use of the device is imperatively in order to ensure its proper and safe
functioning. Please read the provided operating manual carefully and observe in
particular the therein contained safety instructions.
The maintenance, inspection, assembly and installation as well as well as further
technical interventions on the product must only be executed by BEKA Hospitec or by
specialised companies authorised to this effect by BEKA Hospitec. The operation of the
product as well as technical interventions on the product must only be carried out by
specially trained personnel.
The NORA Pro is a medical device according to DIN EN 60601-1 / IEC 60601-1 and
DIN EN 60601-1-2 / IEC 60601-1-2 as well as MDR Medical Device Regulation (EU)
2017/745. The product is used for raising and transferring patients and care-dependent
persons.
If a serious incident should occur in connection with the use of the product or its
accessories involving a patient or user, contact your distributor or the manufacturer. In
the European Union, you are obliged to report serious incidents to the competent
authority of the respective member state. Other regulations may apply in other regions.
2.2 Liability and warranty
▪On the basis of the information contained in this manual, the publisher accepts
no liability for damages resulting from improper, incorrect or inappropriate use of
the product. The product must only be operated by persons, who are familiar with
the manual and the product as well as the national regulations, laws and
prescriptions related to work, safety and accident prevention.
▪The manufacturer of the product is only responsible for the safety and the
reliability of the product, if regular functional tests and checks are conducted.
Operate the product only with original accessories, otherwise the manufacturer’s
liability will expire.
▪In case of technical interventions, such as extensions and fittings to our products,
which are not carried out by BEKA Hospitec either by a specialist company
authorised by BEKA Hospitec, all warranty rights on the modifications as well as
on the device or on the device function, which are related to the modification,
shall expire.
▪For damages resulting from the use of spare parts and accessories, which are
not authorized by the manufacturer, any further liability of the manufacturer shall
be excluded.
▪Please note that there might be minor differences between the images and
explanations contained in this manual and the actually supplied device. Subject
to technical modifications and error.
▪The product is equipped with “B”-Type applied parts. All exposed, touchable,
conductive parts are thereby considered as applied part.

Operating manual
Operating manual NORA Pro V0.1 E Page 6 of 60
3 Operating manual
3.1 Validity
This operating manual contains information, which is required for the operation and use
of the product. In addition to the description of the equipment, the operating manual also
includes a number of abstractions and exemplary illustrations. The equipment of the
product therefore may differ in part from the descriptions and illustrations. Furthermore,
please observe also the manuals with regard to the cleaning and the disinfection as well
as the assembly and the disassembly of individual components of the product.
Please read the operating manual and the safety instructions before starting to use the
product. Keep the operating manual near the device for future reference.
3.2 Type plate
This image shows the type plate.
The type plate is located at the column
support of the NORA Pro.
The shown serial number (SN) is just an
example. In case of queries, please
mention the serial number printed on the
type plate of your device.
Note: Because of legal regulations, it might
be required that the article number and the
serial number should be computer-readable
as well and therefore they might be printed
on the type plate in the form of a bar code
as well.
3.3 Description
In this manual, the product is called NORA, NORA Pro, sit-to-stand lift, or device. These
names always refer to the same product.
3.4 Variants of the NORA Pro
Sit-to-stand lift
Description
Note
NORA Pro, model BAROLO
Incl. external charger
Incl. 1x sling size M
Colour design „BAROLO“
RAL 3007
921077000
NORA Pro, model RUBIN
Incl. external charger
Incl. 1x sling size M
Colour design „RUBIN“
RAL 3004
Especially suitable for people
with dementia
921078000

Safety
Operating manual NORA Pro V0.1 E Page 7 of 60
4 Safety
4.1 Intended and appropriate use
The product was specially developed for use in medical technology. It has been
designed for raising and transferring patients and residents. The patient is raised from
a sitting position. The NORA Pro is to be used exclusively for the indoor transfer of
residents on level floorings. The NORA Pro is designed for short-term use and any
contact with injured skin must be avoided.
The sit-to-stand lift is suitable for patients with a body height of 1.48 m to 1.97 m (4'10"
to 6'6") and a maximum body weight of 205 kg (451 lbs).
Please note that the product is not protected against the effects of greater mechanical
forces and only to a limited extent against the penetration of splash water into the
housing, motor, control unit and battery. The product is not intended for operation in
atmospheres with flammable mixtures!
The product may only be used for the specified purpose. Also observe the general
warning and safety instructions in section 4.5.
CAUTION
Before the product is used, adequately qualified nursing staff
must assess the physical and mental condition of the
patient/resident.
In order to facilitate this, corresponding assessments/routines
must and should be used in the daily care processes.
CAUTION
The patient/resident must have sufficient core stability (capability
of sitting autonomously on the edge of the bed is an indicator for
a sufficient core stability).
Furthermore, he/she must be able to bear his/her body weight
with one leg.
4.2 Electrical safety
The product meets the current VDE-prescriptions 0100 for installing low-voltage
systems and 0100-710 on requirements for special types of operating sites, rooms and
systems - medical areas. However, have a specialist company check the compliance of
your electrical installation with the applicable prescriptions prior to operating and using
the product. This requirement is only applicable for Germany. In other countries, other
requirements might be applicable. Ask a qualified electrician to proceed with the
installation in accordance with the regulations applicable in your country.

Safety
Operating manual NORA Pro V0.1 E Page 8 of 60
4.3 Follow / observe the operating instructions
Please read the following safety instructions prior to using the product. All notes,
specifications and warnings mentioned on the device as well as in the present operating
manual must be imperatively respected and observed. The manufacturer BEKA
Hospitec shall not accept any liability for any damages, failures or faults caused by
improper operation or handling.
4.4 List of used safety and warning signs
Follow the operating instructions
/ observe the instructions.
General Recycling Symbol.
Medical device.
Air pressure limits
(minimum air pressure /maximum air pressure).
CE-label in accordance with
MDR.
Humidity limits
(minimum humidity/maximum humidity).
Name and address of the
manufacturer.
Temperature limits
(minimum temperature /maximum temperature).
Date of production.
Do not push/pull the motor.
Do not push/pull the spreader
bar.
Warning hazardous area.
Washing temperature max.
60 °C. Normal cycle.
Caution.
Do not bleach.
Protection against harmful
ingress of water or solid
substances: Protected against
splashing water.
Line dry.
Applied part “Type B” in
accordance with DIN EN 60601-
1.
Do not tumble dry.
Protection class II.
Do not iron.
Solely intended for indoor use.
Professional wet cleaning.
Gentle cycle.
Must not be disposed of with
household waste.
Do not put the treatment system
and packaging materials in the
household waste.

Safety
Operating manual NORA Pro V0.1 E Page 9 of 60
4.5 General warning and safety instructions
General notes
▪The product may only be used for the purpose specified in chapter 4.1 Intended and
appropriate use.
▪The product may only be installed, maintained, and put into operation by persons
authorised by the manufacturer who meet the requirements according to §2 Para. 2
the MPBetreibV (German Medical Devices Operator Ordinance). Observe your
applicable national / local legislation on operating medical devices.
▪The company reserves the right to make modifications to the device without prior
notice.
▪When using the device, observe all regulations of the German Medical Devices
Implementation Act (MPDG) and all related ordinances as well as the occupational
health and safety regulations, the accident prevention regulations (UVV) and the
generally recognised rules of technology. For use outside Germany, observe the
respective national legislation.
▪This product is a medical device according to Medical Device Regulation (EU)
2017/745 (MDR) and DIN EN 60601-1. For operators in Germany, the MPBetreibV
(German Medical Devices Operator Ordinance) is binding. In other countries, the
corresponding national laws apply. The insulation distances present in the product
meet the requirements of the standard: DIN EN 60601-1 (IEC 60601-1) Medical
electrical equipment, Part 1: General requirements for safety.
Operating Environment
▪The product is exclusively fit for indoor use.
▪The product is not protected against the effects of greater mechanical forces and only
to a limited extent against the penetration of splash water into the housing, motor,
control unit and battery.
▪The device is not authorised for use in potentially explosive atmospheres or in
atmospheres with flammable mixtures or increased oxygen content.
▪Electromagnetic or other interference between the product and other devices cannot
be ruled out. If there is a risk of alternating influences, disconnect the product / battery
charger from the mains. The use of short-wave or microwave therapy devices in the
immediate vicinity of the device is strictly forbidden. Cellular phones can also cause
interference.
▪Protect the product against direct sunlight and heat.
Functional safety
▪The product as well as the slings may only be used and operated by trained staff.
▪Supervision of the caregiver is required throughout the treatment. Never leave the
resident unattended in the sling.
▪The patient must not be the user / operator!
▪Prior to each use of the device and its accessories, the user must check their
functional safety and good condition (visual check, functioning). Also check the used
sling for visible damage. The product and the accessories must not be used if any
parts are damaged or malfunctioning. There is a risk of injury!
▪Only operate this medical device with original accessories according to chapter 13.5.

Safety
Operating manual NORA Pro V0.1 E Page 10 of 60
▪Make sure that the sling form and size match the patient’s body. Respect and observe
the size and weight specifications for each sling.
▪In case of differences in the maximum load for the sit-to-stand lift and sling system,
always observe the lowest maximum load.
▪Each lifting or transfer procedure must be adequately planned to ensure an optimal
protection for the caregiver and the resident.
▪Lift the patient/resident into a safe standing position and keep the transfer as short
as possible.
▪Avoid slippery surfaces and thresholds and do not move the product over sloping or
uneven floors.
▪Make sure that the resident is not hurt by the door frame when passing through doors.
▪Activate the brakes of the castors of the wheelchair, the healthcare bed, the stretcher,
etc. to ensure a safe lifting and positioning of the resident.
▪Check prior to lifting that all clips or loops are correctly fixed to the spreader bar.
▪Make sure that the patient seizes the handles provided to that effect with both hands.
▪Make sure that no one grabs in the hazardous areas (bracket, carrier frame) during
the adjustment procedure. Only use the adjustment of the carrier frame when there
is nothing in its range of movement. Pay particular attention to your feet and those of
the patient. Risk of crushing!
▪Please check before and during the height adjustment procedure that your feet are
not located in the area of the castors or in the resident’s area.
▪The operating time and the maximum load of the lifting unit must not be exceeded
(see 13.1 Technical description).
▪During the movement of the sit-to-stand lift, the carrier frame must be closed.
▪Do not stand between the sit-to-stand lift and an obstacle during the transfer
procedure.
▪Ensure that the power supply is always switched on throughout the usage.
▪Hazardous substances are enclosed in the battery. To avoid the risk of fire and
explosion as well as leakage of these substances, do not open the batteries or handle
them mechanically in any way! Never expose the batteries to open fire, excessive
heat (e.g. over heaters) or solar radiation!
▪Do not use the product when the battery is charging.
▪Make sure that the battery is charged in a well-ventilated room.
▪Route the mains connecting cable of the charger so that it cannot be damaged.
Damaged mains cables could cause fire or lead to electrocution and must not be
used.
▪Never cover up, oversticker or change the slots and holes of the device.
▪The housing of the product must not be opened! There are no user-serviceable parts
inside the product. Never insert foreign objects into the product.
▪Do not carry out any repairs or modifications to the product! Otherwise, the correct
functioning of the product and safety may be jeopardized. This will also void your
warranty claims! Repairs may only be carried out by trained specialist personnel
authorised by the manufacturer. Be sure to contact BEKA Hospitec’s customer
service or that of its authorised distributors.
▪The product must be disinfected after each treatment.

Safety
Operating manual NORA Pro V0.1 E Page 11 of 60
▪Cleaning and disinfection are only allowed without patient presence!
▪The caregivers must protect their skin and eyes against concentrated disinfecting and
cleaning products. Use a face mask to protect yourself against aerosols.
Maintenance
▪To ensure a safe use of our product, the product must be subjected annual
inspections, safety check and maintenance by persons authorised by the
manufacturer who fulfil the requirements according to MPBetreibV (German Medical
Devices Operator Ordinance). Outside Germany, observe the local laws and
regulations. For more details, see chapter 10. If in doubt, contact your supplier or
manufacturer. Non-observance may result in injuries or an unsafe product.
▪Installation, maintenance, servicing and testing activities are only permitted without
the patient being present!
▪The product contains detachable parts. Observe chapter 7 for correct identification of
the parts to avoid the risk of confusion and malfunction.
▪The product contains non-removable parts. If necessary, these may only be replaced
by personnel authorised by the manufacturer. Observe the assembly instructions in
chapter 13.6.
Environmental protection / waste disposal
▪The manufacturer is aware of its responsibility towards the environment. The product
must not be disposed of with household waste!
▪In accordance with WEEE, the manufacturer takes back all equipment placed on the
market by him for the purpose of proper disposal. Please contact us in this regard if
necessary and inform your customers in the case of resale.
Notes for operation
▪When used together with other medical devices, watch out for catching points and
pinching as well as crushing of the patient's body or parts of the patient's body! Also
watch out for instability / tipping during transfer of the patient!

Safety
Operating manual NORA Pro V0.1 E Page 12 of 60
CAUTION
In case of unusual noises, damages or malfunctions, the product no
longer must be used.
CAUTION
Repairs to components of the product are to be carried out only by
trained expert personnel, authorized by the manufacturer. Please
contact the after-sales service.
The opening the device or other accessorieswill lead to the expiration
of all guarantee, warranty and liability claims.
WARNING
Any unauthorized repairs, reconstructions and
modifications/alterations are not permitted for safety reasons and
shall exclude all liability of the manufacturer for the resulting
damages.
For damages resulting from the use of spare parts or accessories,
which are not authorized by the manufacturer, any further liability of
the manufacturer shall be excluded.
CAUTION
Do not leave the patient/resident unattended at any time, to avoid
injuries, falls or similar.
CAUTION
This device could contain small parts, which could be inhaled or
swallowed, thus representing a chocking/suffocation hazard to small
children. Keep children and domestic animals away from the device.
The hand control represents a strangulation hazard. Take all
precautions to avoid this.

Transport and storage
Operating manual NORA Pro V0.1 E Page 13 of 60
5 Transport and storage
For safe transport, storage and operation, observe the permissible ambient conditions
in chap. 13.1 Technical description.
Use a lift truck or similar for the transport.
5.1 Unpacking the product
To remove the packaging materials, you will need a cutter knife.
NOTE
Take care not to damage the product when using tools.
Do not cut with the cutter in the cardboard.
5.1.1 Removing the cardboard
Proceed in the following way to remove the cardboard:
•Cut the strap with the cutter knife.
•Remove the strap.
•Lift the cardboard up to remove it and put it aside.

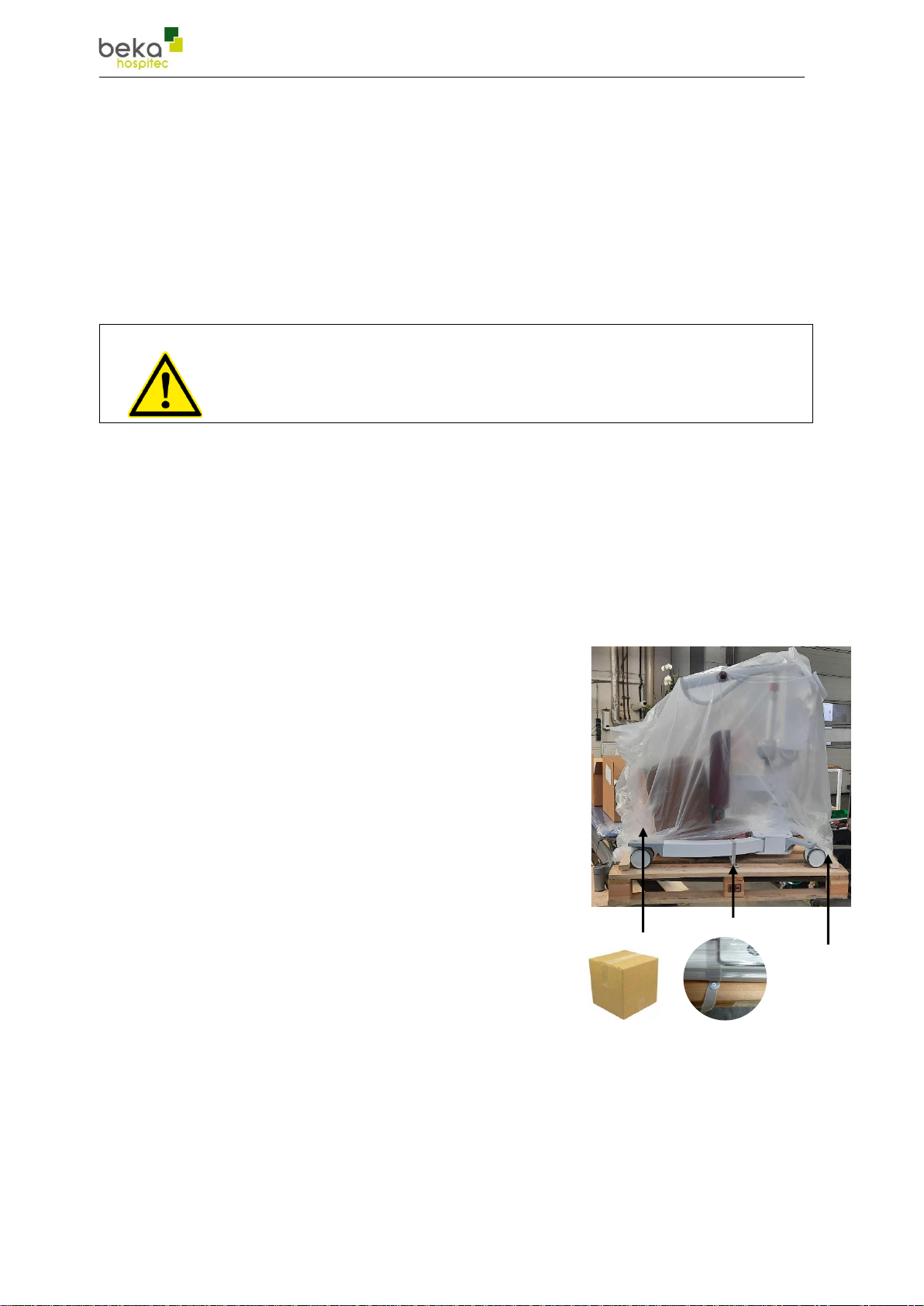

5.1.2 Loosening the product from the pallet
Both sides of the product are strapped to the pallet.
Proceed in the following way to loosen the product
from the pallet:
•Unscrew the fixing screws of the straps.
•Remove the straps and the cardboard underlays (if
present).
•Please make sure that the brakes of the castors are
released.
•After all fixations have been released, the product
can be driven off the pallet.
•Remove the bubble wrap and the stretch film.
The accessories of your product are included in the
supplied cardboard box.
brake

Installation
Operating manual NORA Pro V0.1 E Page 14 of 60
6 Installation
The product is supplied ready for use.
6.1 Electrical connection
Before you start using our products, your electrical installation must be checked in
accordance with the relevant VDE-regulations 0100 and 0100-710. This requirement is
only applicable in Germany. In other countries, other requirements might be applicable.
Ask a qualified electrician to install the charging unit in accordance with the regulations
applicable in your country. The socket must meet the requirements of VDE 0100 and
0100-710.
6.2 First start-up
WARNING
The equipment is to be used exclusively in accordance with the
accompanying documents.
Only when these conditions are met, the manufacturer considers
himself responsible for the impact on the safety, the reliability and the
function of the device.
In the event of a newly connected product, the technical data must
be observed.
HINWEIS
The battery must be completely charged prior to the first use
(initial charging time min. 12 hours).
Please check that the emergency stop switch is released prior
to moving the spreader bar.
The NORA Pro sit-to-stand lift is equipped with an electrical motor. This motor is self-
locking and therefore protected against unintentional lowering of the spreader bar in
case of malfunction or failure. The battery of the NORA must be completely charged
before starting to use the device.
Please check that the emergency stop switch is released (unlatched). To unlatch, turn
the button of the emergency stop switch clockwise (i.e., to the right) until it releases.

Operating elements and their function
Operating manual NORA Pro V0.1 E Page 15 of 60
7 Operating elements and their function

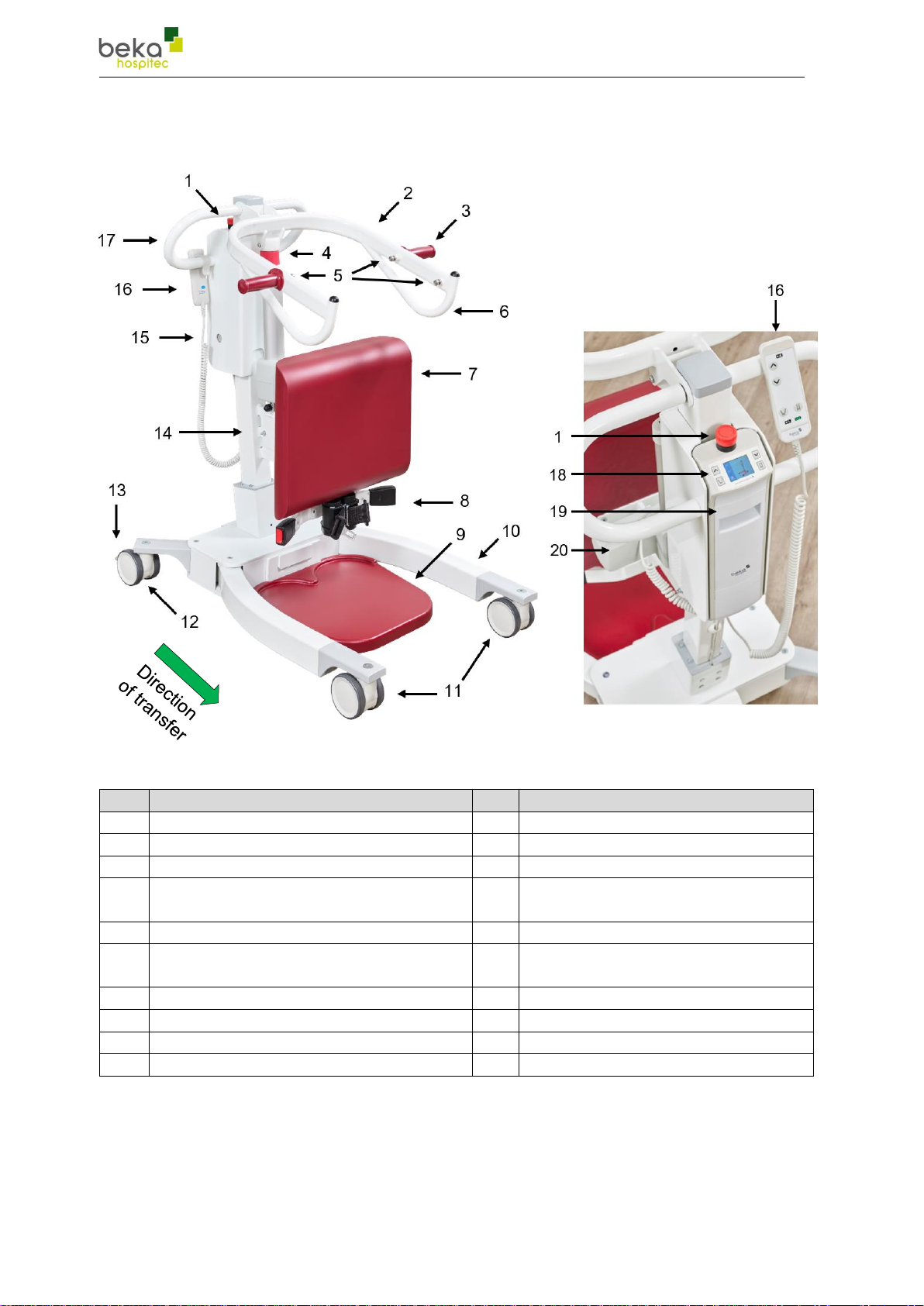

Front view Rear view
N°
Description
N°
Description
1
Emergency stop switch
11
Front castors
2
Spreader bar
12
Rear castors
3
Handles (patient / resident)
13
Parking brake
4
Emergency lowering system
14
Tilting mechanism of the
3D-Comfort-System
5
Sling attachment points
15
Charger cable connection
6
Additional handles (patient /
resident)
16
Hand control
7
3D-Comfort-System (Leg pad)
17
Positioning handle (user)
8
Safety belts for the legs
18
Control panel
9
Detachable footplate
19
Battery
10
Spreadable carrier frame
20
Motor
The contact surfaces of the NORA Pro are designed in a dementia-sensitive red colour
scheme. In addition to the model RUBIN shown here, the dark red coloured model
BAROLO is also available.

Operating elements and their function
Operating manual NORA Pro V0.1 E Page 16 of 60
7.1 Hand control
With the hand control, you can move the spreader bar up or down and spread or close
the carrier frame. Pressing the buttons activates the function; as soon as you release
the button, the function stops.
The LED indicators provide information about the battery status and indicate when
maintenance is due or when the safe working load has been exceeded.
3 bars: Battery is full, no charging required (remaining capacity >75%).
2 bars: Battery is at least half full and can be charged (remaining capacity
>55%).
1 bar: Battery is almost empty and must be charged (remaining capacity
>25%).
No bar: Battery is almost empty and must be charged urgently (remaining
capacity <25%)! In addition, a signal tone sounds when the button is pressed.
LED flashes orange. Please have your sit-to-stand lift checked!
Orange LED, overload, max. weight of 205 kg exceeded.
Functions
“Up” button
“Down” button
Spreading the carrier frame
Closing the carrier frame
Service required
Max. weight reached
Battery charge status

Operating elements and their function
Operating manual NORA Pro V0.1 E Page 17 of 60
7.2 Functions and connections of the control unit
7.2.1 Control panel
With the control panel you can move the lift arm up or down, as well as spread or close
the carrier frame. Pressing the buttons activates the function; as soon as you release
the button, the function stops.
The display shows a dynamic animation of the activated movement. On the left side of
the display are counters that record cycles of the up and down movement and the
exceeding of the maximum load. One minute of motor activation is counted as one cycle.
If no button is pressed for more than 2 minutes, the NORA Pro display switches off to
save energy. As soon as you press any button, the NORA Pro is activated again.
The control panel also provides information about the operating status of your NORA
Pro. The charge level and, if applicable, overload can be read as described below.
3 bars: Battery is full, no charging required (remaining capacity >75%).
2 bars: Battery is at least half full and can be charged (remaining capacity
>55%).
1 bar: Battery is almost empty and must be charged (remaining capacity
>25%).
No bar: Battery is almost empty and must be charged urgently (remaining
capacity <25%)!
In addition, the adjacent warning symbol appears in the display and a
signal sounds when a button is pressed.
The weight symbol appears in the display. Overload: The max. weight of
205 kg has been exceeded.
The symbol for internal charging appears in the display. The battery is being
charged inside the NORA Pro.
Functions
“Up” button
“Down” button
Spreading the carrier
frame
Closing the carrier frame
Max. weight reached
Battery charge status
Counters for lifting /
lowering operations

Operating elements and their function
Operating manual NORA Pro V0.1 E Page 18 of 60

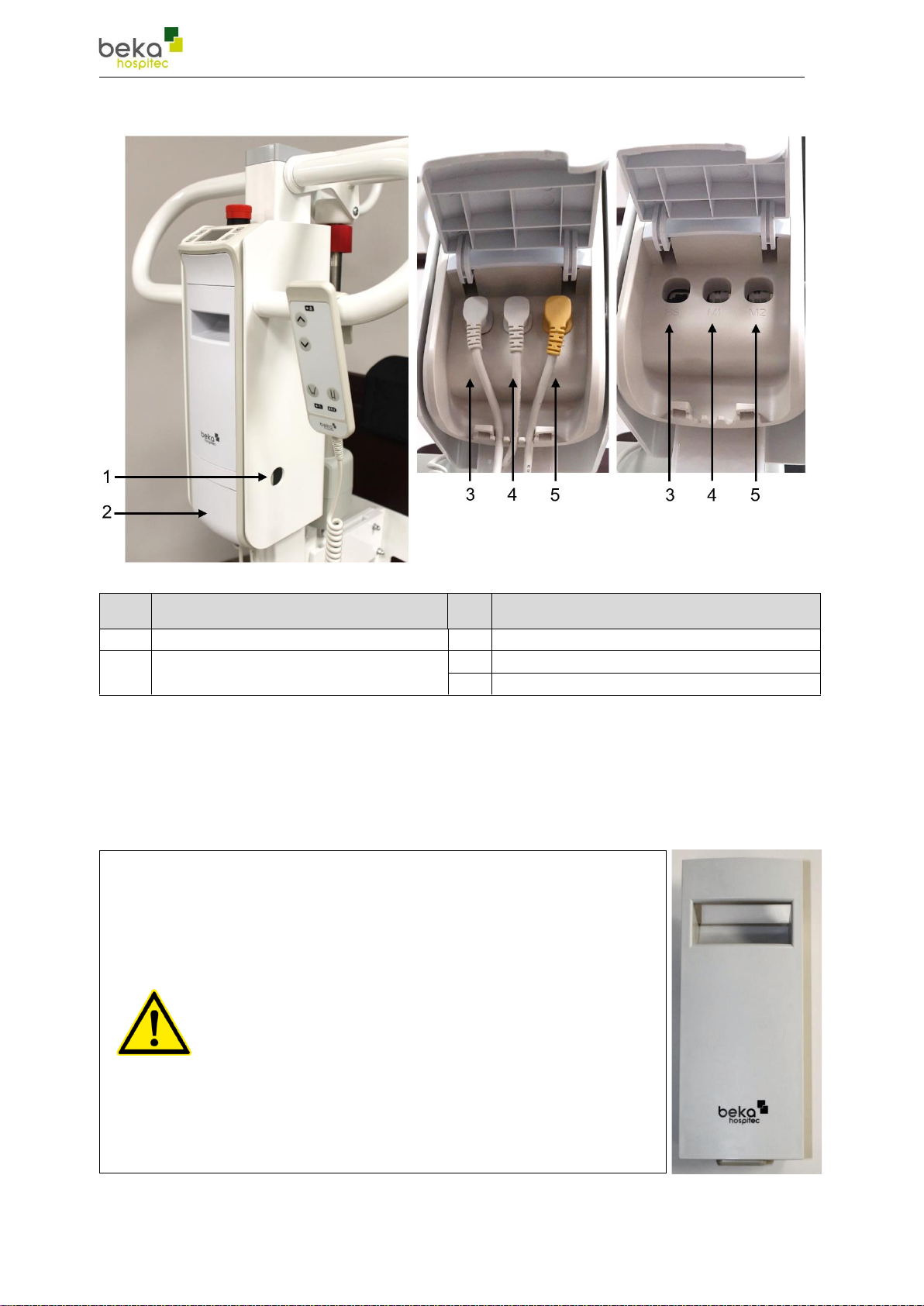

7.2.2 Connections of the control unit
N°
Description
N°
Description
1
Charger cable connection
3
Hand control connection “HS”
2
Flap for concealed connections
(to open, see chap. 13.6)
4
Lifting motor connection “M1”
5
Spreading motor connection “M2”
7.3 Battery unit
The NORA sit-to-stand lift is equipped with a 25V battery. Proceed as described in
chapter 13.6.1 to remove the battery.
WARNING
Hazardous substances are contained in the
batteries. Do not open the batteries or manipulate
them in any way!
If the contents of the battery should come into contact
with skin or clothing, wash the affected areas with
plenty of water as soon as possible.
If any of the ingredients of the battery get into your
eyes, rinse them immediately with plenty of water and
then consult a doctor.
Vapours of the ingredients may cause respiratory
irritation. Bring affected persons into fresh air and then
seek medical advice.

Operating elements and their function
Operating manual NORA Pro V0.1 E Page 19 of 60
WARNUNG
Never expose the battery to open fire or excessive heat! There
is a risk of fire and explosion!
7.4 Charging the battery unit
CAUTION
Do not use the product when the battery is charging.
Make sure that the battery is charged in a well-ventilated room.
CAUTION
Route the mains connecting cable of the charger so that it cannot be
damaged. Damaged mains cables could cause fire or lead to
electrocution and must not be used.

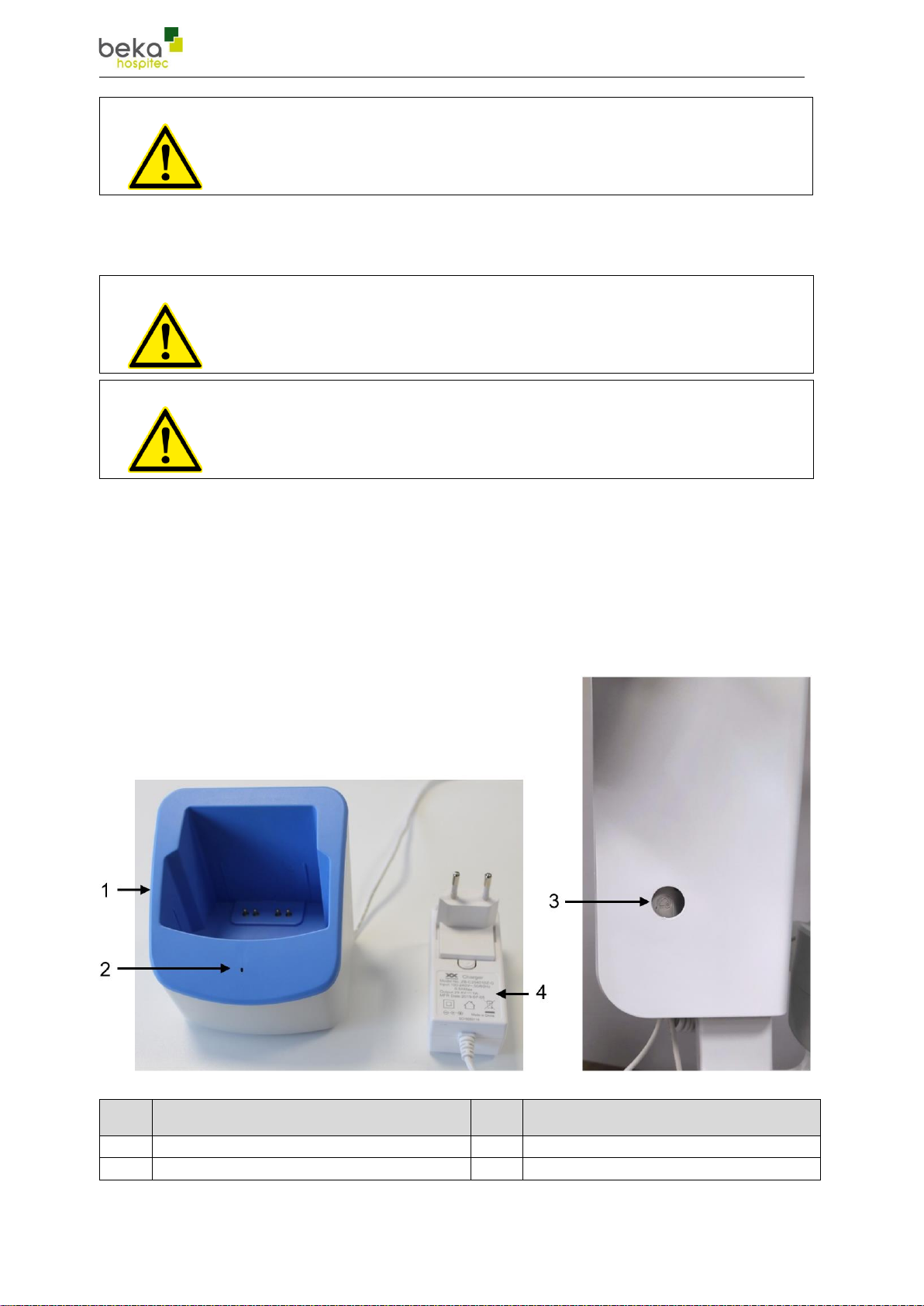

The external charging station can either be placed on a flat surface or attached to a
suitable wall using the included mounting rail. The required power supply unit is a
switched-mode power supply charger and is included in the scope of delivery.
As soon as the charging station is supplied with voltage, the charging indicator LED
lights up green. If a battery is plugged in and charged, the colour changes to orange.
When the battery is fully charged, the colour changes back to green.
The charging time for the battery units is approx. 5 hours.
Nr.
Beschreibung
Nr.
Beschreibung
1
Charging station with battery mount
3
Charger cable connection
2
Charging indicator
4
Power supply unit

Operating elements and their function
Operating manual NORA Pro V0.1 E Page 20 of 60
Alternatively, the plug of the power supply unit can be disconnected from the charging
station and used directly for internal charging of the Nora Pro. To do this, use the
connector on the side of the NORA pro control unit. Remove the rubber plug that closes
the socket of the charging plug and insert the plug of the delivered power supply unit.
For internal charging, make sure that the emergency stop switch is unlocked.
7.5 Manual emergency lowering system
Ensure that the patient / resident can be lowered onto a suitable surface such as a chair
or bed.
Turn the bright red emergency lowering knob clockwise until the spreader bar slowly
lowers, thereby lowering the patient / resident onto the selected surface.
manual emergency
lowering system
