Teledyne T3PS13206P User manual

    





This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Teledyne LeCroy company.
The information in this manual was correct at the time of printing.
However, Teledyne LeCroy continues to improve products and
reserves the rights to change specification, equipment, and
maintenance procedures at any time without notice.

Table of Contents
3
Table of Contents
SAFETY INSTRUCTIONS .................................................. 5
Safety Symbols ......................................................... 5
Safety Guidelines ......................................................6
Power cord for the United Kingdom ..........................8
OVERVIEW ...................................................................... 9
Introduction ........................................................... 10
Key Features ........................................................... 13
Front Panel ............................................................. 15
Rear Panel .............................................................. 22
Constant Voltage/Constant Current Crossover
Characteristics........................................................ 24
GETTING STARTED ........................................................ 25
Start Up .................................................................. 26
Load Connection..................................................... 27
Turning the Output On/Off..................................... 28
BASIC OPERATION ........................................................ 29
Display Change ....................................................... 30
Source Function...................................................... 33
Load Function......................................................... 42
Sequence Function ................................................. 46
Delay Function........................................................ 57
Monitor Function.................................................... 66
Recorder Function .................................................. 69
Enternal I/O Control ............................................... 72
FILE OPERATION ........................................................... 76
Save/Recall ............................................................. 77
Restore Factory Default Settings ............................. 80

T3PSX3200P Series User Manual
4
SYSTEM SETTINGS ........................................................ 81
System Information ................................................ 82
System Settings ...................................................... 83
Firmware Upgrading ............................................... 85
Description of Using Flash Drive ............................ 86
REMOTE CONTROL ....................................................... 87
Connection Usage................................................... 88
Command Syntax .................................................... 96
Command List ...................................................... 100
Command Details ................................................. 107
SCPI Status Registers SCPI ................................... 178
Errors ................................................................... 188
APPENDIX ....................................................................192
Replacing the Fuse................................................ 192
Specifications ....................................................... 193

SAFETY INSTRUCTIONS
5
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to insure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These symbols may appear in the manual or on the instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the T3PSX3200P Series
or to other properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.

T3PSX3200P Series User Manual
6
Safety Guidelines
General
Guideline
CAUTION
Do not place any heavy object on the unit.
Avoid severe impact or rough handling that
leads to damaging the unit.
Do not discharge static electricity to the unit.
Do not block the cooling fan opening.
Do not perform measurements on circuits that
are directly connected to mains power.
Do not connect the measuring terminals of the
unit directly to supply mains.
Note: Measuring terminals of the T3PSX3200P
series have no rated measurement category
(CAT) per IEC/EN 61010-1:2010.
Power Supply
WARNING
AC Input voltage range:
100V/120V/220V/230V ±10%
Frequency: 50Hz/60Hz
To avoid electrical shock connect the protective
grounding conductor of the AC power cord to
an earth ground.
Fuse
WARNING
Fuse type: 100V/120V：T6.3A/250V,
220V/230V：T3.15A/250V
To prevent fire, replace the fuse only with the
specified type and rating.
Disconnect the power cord before replacing the
fuse.
Make sure the cause of fuse blowout is fixed
before replacing the fuse.
Cleaning the
power supply
Disconnect the power cord before cleaning the
power supply.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid

SAFETY INSTRUCTIONS
7
into the power supply.
Do not use chemicals containing harsh products
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: < 80%
Altitude: < 2000m
Temperature: 0°C to 40°C
(Pollution Degree) EN 61010-1:2010 specifies pollution degrees
and their requirements as follows. The T3PSX3200Pseries falls
under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of
dielectric strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-
conductive pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity
caused by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry,
non-conductive pollution occurs which becomes conductive
due to condensation which is expected. In such conditions,
equipment is normally protected against exposure to direct
sunlight, precipitation, and full wind pressure, but neither
temperature nor humidity is controlled.
Storage
environment
Location: Indoor
Relative Humidity: < 70%
Temperature: -10°C to 70°C

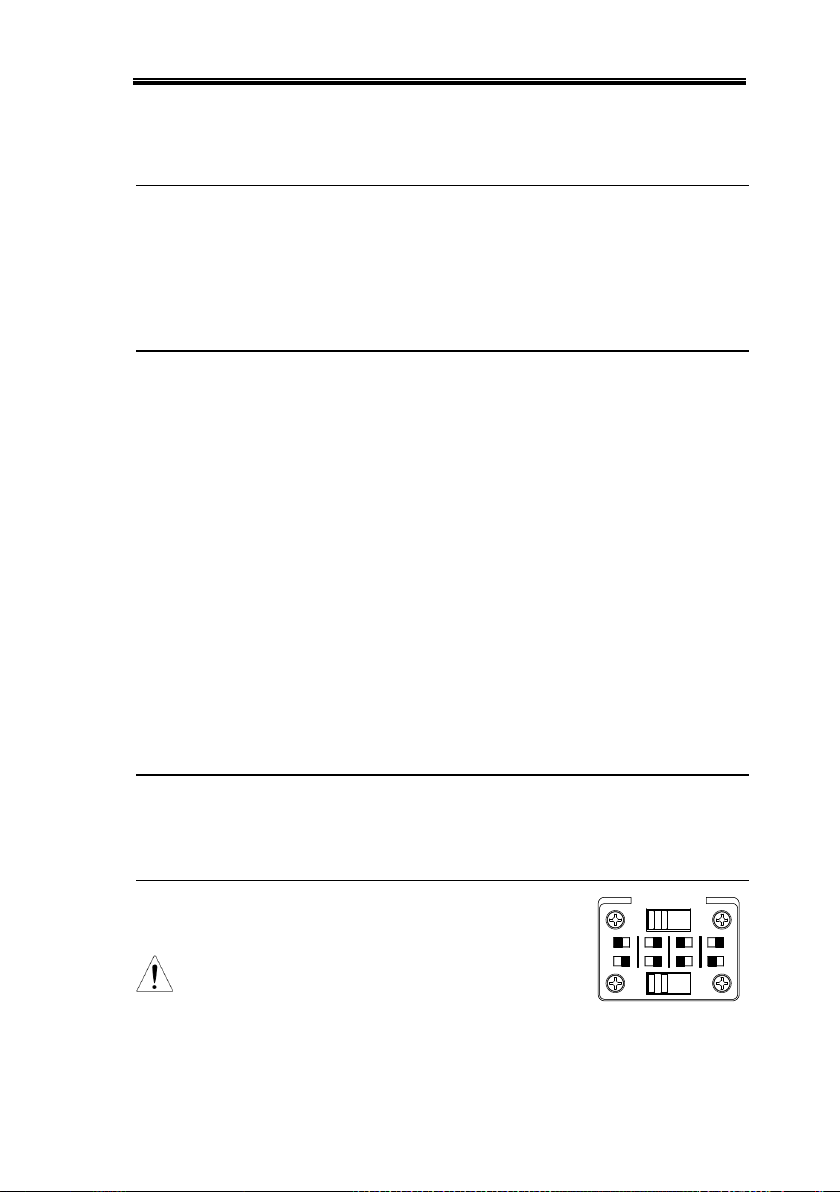

Checking the AC
Voltage
CAUTION
Before the power is turned on,
confirm that the input power
supply meets the following
conditions:
100V/120V/220V/230V ±10%，
50/60Hz
AC SELECTOR
220V230V 120V 100V

T3PSX3200P Series User Manual
8
Power cord for the United Kingdom
When using the power supply in the United Kingdom, make sure
the power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed as
follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or
contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.

OVERVIEW
9
OVERVIEW
This chapter contains a brief introduction to
T3PSX3200P series including the main features
and an overview of the front and rear panel. Use
the Getting Started chapter on page 25 for start up
instructions and how to setup the appropriate
operation environment.
Introduction ........................................................... 10
Key Features ........................................................... 13
Front Panel ............................................................. 15
Rear Panel .............................................................. 22
Constant Voltage/Constant Current Crossover
Characteristics ....................................................... 24

T3PSX3200P Series User Manual
10
Introduction
Overview
The T3PSX3200P series regulated DC power
supply series are light weight, adjustable,
multifunctional work stations. The T3PS13206P
has a 1 independent adjustable voltage outputs
with sense.The T3PS23203P has a 2 independent
adjustable voltage outputs. The T3PS33203P three
independent outputs: two with adjustable voltage
levels and one with fixed level selectable from
1.8V, 2.5V, 3.3V and 5V. The T3PS43203P has four
independent voltage outputs that are all fully
adjustable.
The T3PSX3200P series can be used for logic
circuits where various output voltage or current
are needed, and for tracking mode definition
systems where plus and minus voltages with
insignificant error are required.
Independent /
Tracking Series /
Tracking Parallel
The three output modes of T3PSX3200P series,
independent, tracking series, and tracking parallel,
can be selected through pressing the TRACKING
key on the front panel. In the independent mode,
the output voltage and current of each channel are
controlled separately. The isolation degree, from
output terminal to chassis or from output terminal
to output terminal, is 500V.
In the tracking modes, both the CH1 and CH2
outputs are automatically connected in series or
parallel; no need to connect output leads. In the
series mode, the output voltage is doubled; in the
parallel mode, the output current is doubled.

OVERVIEW
11
Load Mode
The T3PSX3200P series models have additional
Load function on both CH1 & CH2 with 3 modes:
CV (Constanct Voltage), CC (Constant Current)
and CR (Constant Resistance), all of which can be
selected through the function keys on the front
panel. Voltage, current and resistance can be well
regulated in each mode, respectively.
Constant Voltage/
Constant Current
Each output channel works in constant voltage
(CV) or constant current (CC) mode. Even at the
maximum output current, a fully rated,
continuously adjustable output voltage is
provided. For a big load, the power supply can be
used as a CV source; while for a small load, a CC
source. When in the CV mode (independent or
tracking mode), output current (overload or short
circuit) can be controlled via the front panel. When
in the CC mode (independent mode only), the
maximum (ceiling) output voltage can be
controlled via the front panel. The power supply
will automatically cross over from CV to CC
operation when the output current reaches the
target value. The power supply will automatically
cross over from CC to CV when the output voltage
reaches the target value. For more details about
CV/CC mode operation, see page 24.
Automatic
tracking mode
The front panel display (CH1, CH2) shows the
output voltage or current. When operating in the
tracking mode, the power supply will
automatically connect to the auto- tracking mode.
Display Change
Function
The T3PSX3200P series provides up to 7 display
types, each of which can be selected via setting.
For details, see page 29.

T3PSX3200P Series User Manual
12
Output Waveform
Function
Under Source mode of the T3PSX3200P series, user
can customize a certain V/I sequential waveform
output. Under Load mode, it is programmable for
dynamic load (below 1Hz). For details, see page
33.
Remote Control
To meet the various needs of customers, the
T3PSX3200P series is designed for USB and LAN
remote control. For details, see page 87.
Additional
Function
Control signal via external switch is available for
user. For details, see page 72.

OVERVIEW
13
Key Features
Features
Multiple Outputs:
T3PS13206P: 32V/6A x 1
T3PS23203P: 32V/3A x 2 (CH1/CH2)
T3PS33203P: 32V/3A x 2 (CH1/CH2)
1.8V/2.5V/3.3V/5V/5A x 1(CH3)
USB Port Output: 3A
T3PS43203P: 32V/3A x 2 (CH1/CH2)
5V/1A x 1(CH3), 15V/1A x 1 (CH4)
Constant voltage and constant current operation
(CV/CC).
Low noise, thermostatically controlled fan.
4.3 inch TFT display.
Operation
Digital panel control.
Output on/off control (ON/OFF), and each
channel can be controlled separately.
Digital voltage and current settings. (Key &
Encode)
10 groups of save/recall settings and 2 groups of
power-on settings.
10 groups of save/recall Sequence.
10 groups of save/recall Delay.
10 groups of save/recall Record.
CH1/CH2 workable in Load Mode
7 types display modes available with 5 contents
and 2 waveforms respectively
Input/Output terminal (Control I/O)
Alarm buzzer (BEEP).
Key lock function (LOCK).
Multiple remote control interfaces (standard:
RS232, USB and LAN)

T3PSX3200P Series User Manual
14
Protection
Features
Overvoltage and overcurrent protection (OVP/
OCP)
Overtemperature protection (OTP).
Polarity Reverse Protection
Overload Protection (OPP in Load mode)
Interface
Remote Control RS-232
USB remote control
Control I/O
LAN remote control

OVERVIEW
15
Front Panel
0 - 32V , 3A
Memory
0 - 5V , 1A
CH3
CH2CH1
ON/OFFON/OFF
Advance
CH3
ON/OFF
Lock
ALL
ON/OFF
Enter
8
5
2
9
6
3
PARALLEL OUTPUT
MASTER
0 - 32V , 3A
CH4
System
ON/OFF
CH2GND
COM SERIES OUTPUT
SLAVE
CH1CH4
0 - 15V , 1A
0
7
4
1
T3PS43203P
Programmable DC Power Supply
32V 3A
LCD
Number
pad
Scroll wheel/
Arrow keys
Function
keys
USB host
Front panel
output terminals
Power button
*The panel above is the example of T3PS43203P. For other models,
refer to page 21
Display
Display
Interface
T3PS43203P model

T3PSX3200P Series User Manual
16
Channel
distribution
Channel number and distribution vary by models
with different colors identifications:
CH1: Yellow CH2: Blue CH3: Pink CH4：Green
CH1 is master and CH2 becomes yellow under
tracking series and tracking parallel modes.
Single channel
display
Channel/
Status
Power
display
V/I
setting
Voltage display
Current display
OVP/OCP
setting area
Channel no.
Color of channel remains the original when not
being set.
Color of channel blinks between the original and
orange when being set.
Channel status
Display active channel state
Power supply: CH1/CH2/CH3/CH4: green or
red
Load Mode: CH1/CH2: orange
Voltmeter
Indicators
Displays the output voltage with up to 6 digits of
resolution. The default units are Volts (V).
CH1：
CH2：
CH3：(T3PS43203P)
(T3PS33203P)
CH4：

OVERVIEW
17
Ammeter
Indicator
Displays the output current with up to 5 digits of
resolution. The default units are ampere (A).
CH1:
CH2：
CH3：(T3PS43203P)
CH4：
Setting Display
Displays the voltage and current settings.
CH1/CH2/CH3/CH4:
CH3(T3PS33203P) displays setting of voltage only
Display OVP/OCP settings
CH1/CH2/CH3/CH4:
The CH3 OVP of T3PS33203P is a fixed value
(approx. 5.5V), non-configurable and with only on
or off switch available for user. OCP is available
only for USB output port (approx. 3.1A)

T3PSX3200P Series User Manual
18

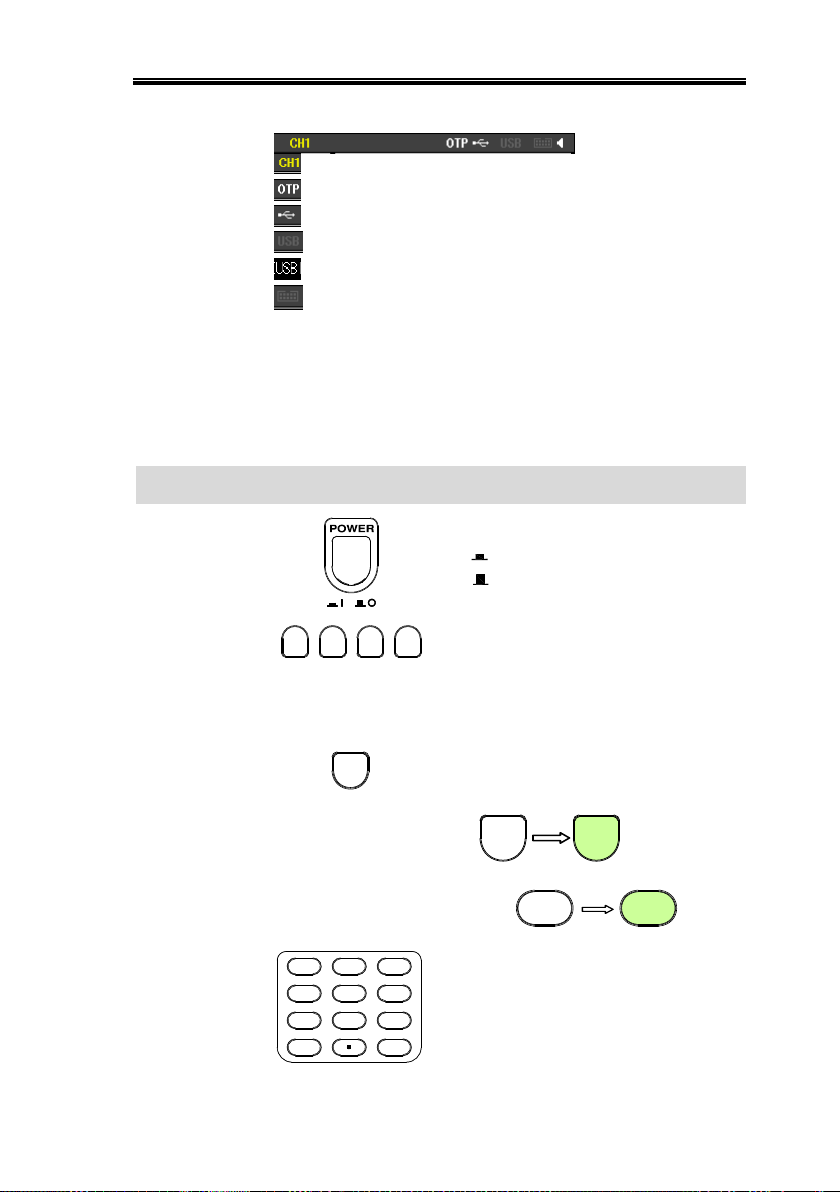

Status
Indicator
Display the set function/remote control interface
: The active channel under setting status
: The status of OTP protection mode
: The status of USB flash drive connected
: USB remotely disconnected
: USB remotely connected
: The status of control I/O connected
Others: when operating in the series/parallel
tracking mode, the corresponding SER/PAR icons
appear on the display.
when Sequence/Delay/Monitor/Recorder is
activated, the corresponding SEQ/DLY/MON/
REC icons appear on the display.
Function Keys
Power Button
Turns the power on or off.
On:
Off:
Channel select
buttons
CH2CH1 CH3CH4
Each channel has its own button
and promptly switchable among
CH1-CH4 setting.
Output buttons
Individual output
ON/OFF
The ON/OFF button is
operational individually by each
channel. The Output key will light
up when the output is on.
ON:
ON/OFF ON/OFF
Output all
All ON:
ALL
ON/OFF
ALL
ON/OFF
Number pad
Enter
8
5
2
9
6
3
0
7
4
1
For parameter value setting

OVERVIEW
19
Scroll wheel &
Arrow keys
Scroll wheel is used to set each
parameter value, whilst arrow
keys are used for parameter,
menu selection and
voltage/current fine adjustment.
It is used to switch or operate the
displayed waveforms under
diagram display mode.
Function keys
The 6 function keys (F1-F6) display varied
functions per different opertations.
System key
System
It is used to set functions including
Interface, Beep, Backlight, etc. For details,
refer to page 83.
Advance key
AdvanceSystem
It is used for certain advanced functions
like Sequence, Delay, Monitor, Recorder,
etc.
Memory key
Memory
Advance
It is used to operate several functions
including save and recall, etc., for set
parameters. For details, refer to page 76.
Lock key
Memory Lock
It is used to disable all the panel keys
except for the Output key.
Unlock
Press the F6 button to unlock, which can
disable remote control and return to panel
operation.

T3PSX3200P Series User Manual
20
Terminals
CH1 terminal
MASTER
0 - 32V , 3A
CH1
Power output terminal or load input
terminal
CH2 terminal
SLAVE
0 - 32V , 3A
CH2
Power output terminal or load input
terminal
CH3 terminal
0 - 5V , 1A
CH3
Power output terminal
3A MAX
Power output terminal (T3PS33203P
only)
Warning
The output current from the 2 terminals should Not
exceed 5A for T3PS33203P.
CH4 terminal
CH4
0 - 15V , 1A
Power output terminal
GND terminal
GND
Ground terminal
Voltage
feedback
terminal
(SENSE)
SS
Sense terminal of power output (for
T3PS13206P only)
