Belden Grass Valley Kayenne How to use

KAYENNE/KARRERA
VIDEO PRODUCTION CENTER
Release Notes
Software Version 8.0
071888306
NOVEMBER 2014

CERTIFICATE
Certificate Number: 510040.001
The Quality System of:
Grass Valley USA, LLC and its Grass Valley Affiliates
Headquarters:
400 Providence Mine Road
Nevada City, CA 95945
United States
15655 SW Greystone Ct.
Beaverton, OR 97006
United States
Kapittelweg 10
4827 HG Breda
The Nederlands
2300 So. Decker Lake Blvd.
Salt Lake City, UT 84119
United States
Including its implementation, meets the requirements of the standard:
ISO 9001:2008
Scope:
The design, manufacture and support of video and audio hardware and software
products and related systems.
This Certificate is valid until: June 14, 2015
This Certificate is valid as of: June 14, 2012
Certified for the first time: June 14, 2000
H. Pierre Sallé
President
DEKRA Certification, Inc
The method of operation for quality certification is defined in the DEKRA General Terms
And Conditions For Quality And Environmental Management Systems Certifications.
Integral publication of this certificate is allowed.
DEKRA Certification, Inc.
4377 County Line Road
Chalfont, PA 18914
Ph: [phone]
Fax: [phone]
CRT 001 042108
Accredited By:
ANAB

KAYENNE/KARRERA
VIDEO PRODUCTION CENTER
Release Notes
Software Version 8.0
071888306
NOVEMBER 2014

4 KAYENNE/KARRERA — Release Notes
Contacting Grass Valley
Copyright
Copyright © 2014 Grass Valley. All rights reserved. This product may be
covered by one or more U.S. and foreign patents.
Belden, Belden Sending All The Right Signals, and the Belden logo are
trademarks or registered trademarks of Belden Inc. or its affiliated compa-
nies in the United States and other jurisdictions. Grass Valley trademarks
or registered trademarks of Grass Valley. Belden Inc., Grass Valley, and
other parties may also have trademark rights in other terms used herein.
Recycling
Visit www.grassvalley.com for recycling information.
International
Support Centers
France
24 x 7 [phone] or [phone] United States/Canada 24 x 7 [phone] or [phone]
Local Support
Centers
(available
during normal
business hours)
Asia
Hong Kong, Taiwan, Korea, Macau: [phone] Indian Subcontinent: [phone]
Southeast Asia/Malaysia: [phone] Southeast Asia/Singapore: [phone]
China: [phone] Japan: [phone]
Australia and New Zealand: [phone] Central/South America: [phone]
Middle East: [phone] Near East and Africa: [phone] or [phone]
Europe
Belarus, Russia, Tajikistan, Ukraine, Uzbekistan: [phone] Switzerland: [phone]
S. Europe/Italy-Roma: [phone]-Milan: [phone]S. Europe/Spain: [phone]
Benelux/Belgium: [phone] Benelux/Netherlands: [phone]N. Europe: [phone]
Germany, Austria, Eastern Europe: [phone] UK, Ireland, Israel: [phone]

KAYENNE/KARRERA — Release Notes 5
Contents
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Recycling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
KAYENNE and KARRERA K-Frame Release Notes. . . . . . . . . . . . . . . . . . . . . . 7
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
New in Release 8.0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
About 2D-DPM Edge Pinning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Create an Edge Pinning Effect (Example) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Adjusting a 2D-DPM Image with Edge Pinning Pan and Scan . . . . . . . . . . . . . 10

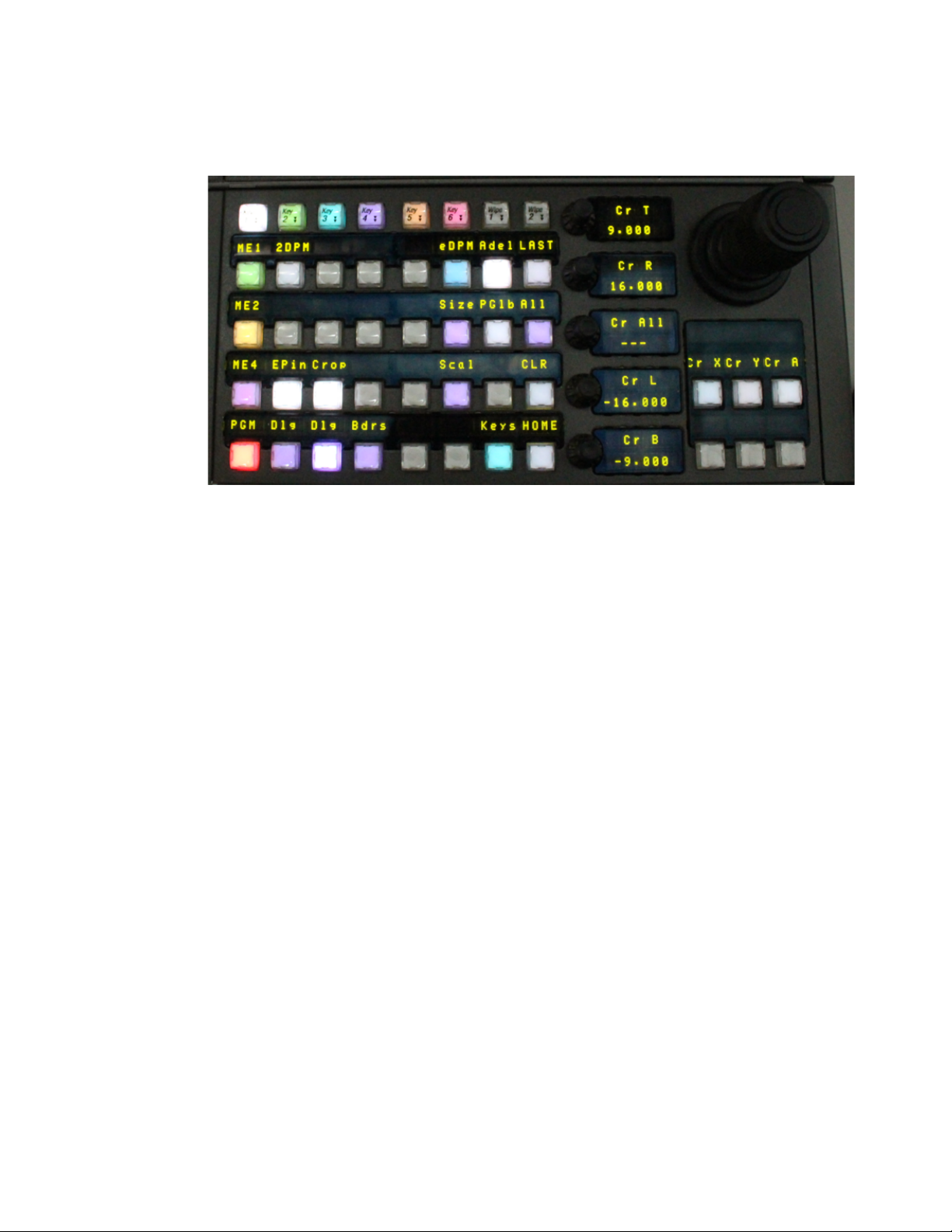

Using Edge Pinning with the Kayenne Multi-Function Module . . . . . . . . . . . . 10
Using Pan and Scan to Adjust a 2D-DPM Image with the Kayenne Multi-Function
Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
About the E-MEM Enables Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Assignable Sub-levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Definable Sub-levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Effects Editing in the E-MEM Enables Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Enabling E-MEM Levels from the E-MEM Enables Tab . . . . . . . . . . . . . . . . . . . 16
Router Source Name Changes are Now Updated in the GV Switcher . . . . . . . . . 16
4K Sample Show Files Available for Download. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

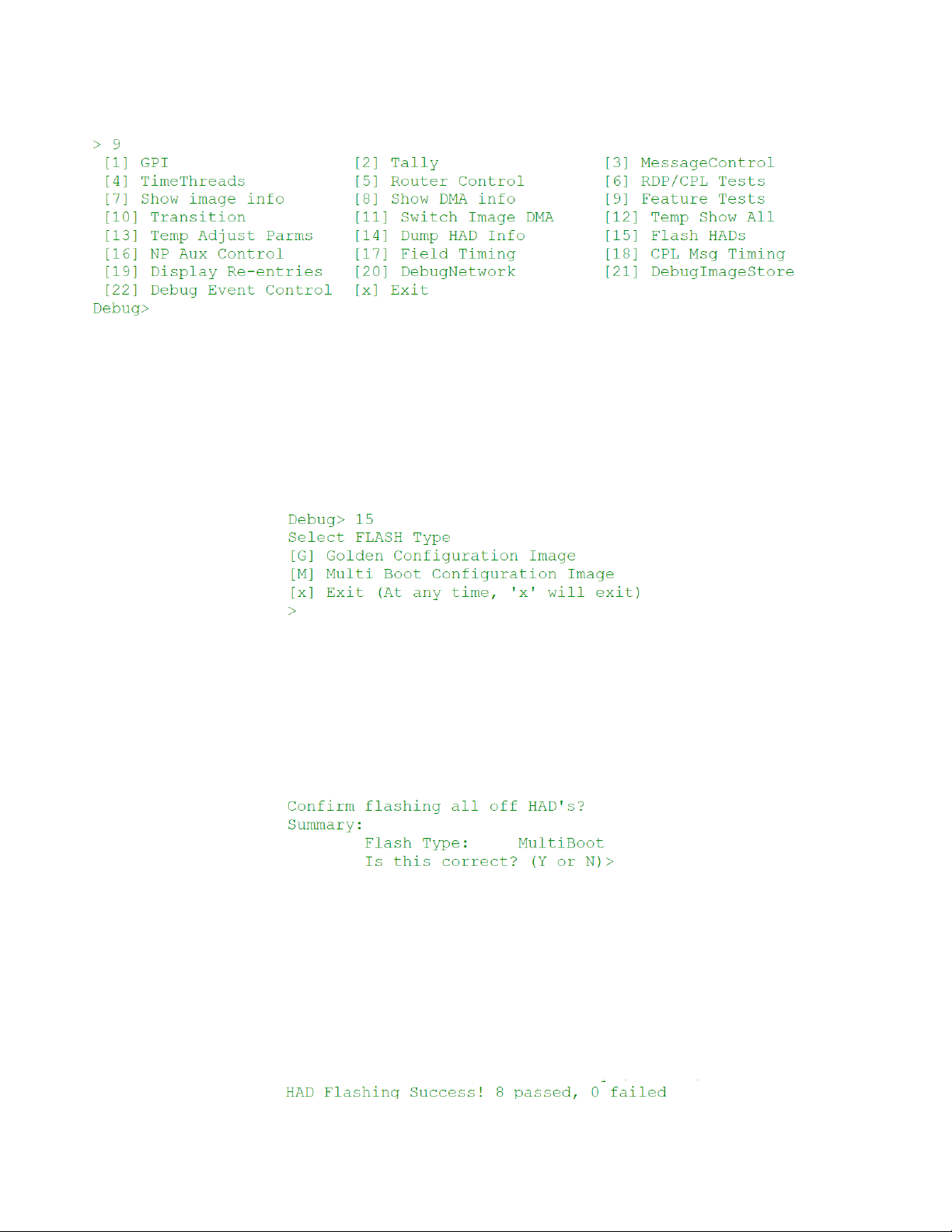

About Updating the HAD FPGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
When to Update the HAD FPGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Update the HAD FPGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Update the HAD FPGA Using a Serial Console . . . . . . . . . . . . . . . . . . . . . . . . 19
Update the HAD FPGA Using a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . 21
About the Kayenne/Karrera K-Frame Software Update . . . . . . . . . . . . . . . . . . . . 24
Third-party Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Sample Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Materials Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Update the Kayenne/Karrera K-Frame Software . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Backup Current Configuration and Effects Files . . . . . . . . . . . . . . . . . . . . . . . . . 25
Deploy Switcher Update Package Files and Installer . . . . . . . . . . . . . . . . . . . . . 26
K-Frame Installer Program Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Update the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
About Updating Spare Kayenne Control Panel Modules . . . . . . . . . . . . . . . . . . 30
Update/Install the Menu Panel Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
About Updating the HAD FPGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Clear NV RAM for Control Panel and Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Install .NET for First Time Menu on PC Installation . . . . . . . . . . . . . . . . . . . . . . 34
Soft Panel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Install NetConfig and Newton Configurator (Optional). . . . . . . . . . . . . . . . . . . 35
Check Software Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Confirm System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Backup New Configuration and Effects Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Update Other Grass Valley Switcher Systems Software . . . . . . . . . . . . . . . . . . . 37
Individual Switcher System Component Update. . . . . . . . . . . . . . . . . . . . . . . . . 37
K-Frame Software Removal With Windows OS. . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6 KAYENNE/KARRERA — Release Notes
Contents
Deployment Archive Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Calibrate the Kayenne Lever Arm and Joystick. . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Calibrate the Karrera Lever Arm and Joystick. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
K-Frame System Default IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
IP Addresses and Single Control Surface Systems . . . . . . . . . . . . . . . . . . . . . . . 40
IP Addresses and Multiple Control Surfaces and Suites . . . . . . . . . . . . . . . . . . 40

KAYENNE/KARRERA — Release Notes 7
Version 8.0
NOVEMBER 2014
KAYENNE and KARRERA
K-Frame Release Notes
Introduction
This document describes installation and other information specific to
Kayenne/Karrera K-Frame Video Production Center Release 8.0 software.
See page 25 for system update instructions.
New in Release 8.0
• 2D-DPM Edge Pinning (see About 2D-DPM Edge Pinning on page 8)
• E-MEM Enables menu (see About the E-MEM Enables Tab on page 14)
•RouterSourceNamesUpdatedAutomatically for NV9000 (see Router
Source Name Changes are Now Updated in the GV Switcher on page 16)
• K-Frame Sample Effect Elements (see Sample Files on page 24)
• 4K Show Sample (see Sample Files on page 24)
• Updating the HAD (Host Address Decoder FPGA (see About Updating
the HAD FPGA on page 18)

8 KAYENNE/KARRERA — Release Notes
Version 8.0
About 2D-DPM Edge Pinning
Edge Pinning is the 2D version of Corner Pinning and is designed to work
in conjunction with cropping. Each time Edge Pinning is turned on, the
pinned edges will be adjusted to match the current 2D-DPM crop settings.
After pinning the edges of an image you can crop it to select the exact
portion of the source video to display or, conversely, you can crop the
image and then pin the edges by stretching the image to the target location.
For example, your source video could contain two people, but you may
want to fly the image of only one person. In this case, you could build an
effect, turn on Edge Pinning, use crop mode, and leave the edges at the
defaults. If you now move the crops maintaining the original aspect ratio
(4x3 or 16x9) you can position these crops so that only the desired person is
shown. If the person or the camera moves, you can adjust the user crops to
keep the person centered between the edges of the crops. This will result in
the person being centered in the video and the effect can be flown around
the screen.
Figure 1. Edge Pinned Cropped Object
Note Toggling Edge Pinning on and off will reset the edges to the current crop
values and change the pinned edges.
Edge Pinning allows you to move the edges of a 2D-DPM source image rel-
ative to the background. Edge Pinning is keyframeable, with all standard
path control functions. Edge Pinning is accomplished by distorting the
source to fit into its newly defined edges. Edge Pinning does not change the
location of the axis of rotation or spin of the source image.
Edge Pinning example: during a basketball game, a camera points at a shot
clock. The 2D-DPM uses Edge Pinning to build a box to contain the clock
and crop adjustments place the clock exactly in the box but the camera is
accidentally moved and the content of the box no longer shows the entire
shot clock. Using Pan and Scan, you can move the camera content to be
shown correctly without moving the edges of the box.
8623267_32

KAYENNE/KARRERA — Release Notes 9
About 2D-DPM Edge Pinning
Crop enables/disables and crop edge parameter changes are reflected
across 2DPM menu tabs. For example, if crops are enabled in the Trans-
form, Keyers 2DPM menu tab and the top crop edge parameter was
changed, the effect would be mirrored in the Pinning, 2DPM menu tab and
vice versa.
Create an Edge Pinning Effect (Example)
In this example of a shot clock box effect, used in a sporting event, a
2D-DPM cropped box effect will be created and the edges of the box’s video
source pinned to the cropped edges. Then, using pan and scan, the video
source will be repositioned inside the 2D-DPM box effect without moving
the box. This effect is very useful if the camera is bumped or moved so the
switcher operator can reposition the video from the switcher.
1. Select a background source.
2. Select iDPM, Transform, 2DPM in the menu and select a keyer with the
source for the box; in this case a camera pointed at a shot clock, and cut
on the key over the background.
3. Enable the Crop On button (highlights green).
4. Enable the Crop Edge data pad (turns light blue), the Crop Edge soft
knobs will be displayed.
5. Adjust the crop edges using the soft knobs to define the portion of the
video you want in the box (key); the shot clock in this example.
6. Enable the Post xform data pad and use the soft knobs to size and
position the key close to the desired area of the background using the
soft knobs.
7. Select iDPM, Pinning, 2DPM and enable the Edge Pinning On button
(highlights green).
Enabling Edge Pinning will pin the video edges to the cropped edges of
the box.
a. Optionally, enable the View Thru Enable button to see the location of
the box effect over the background video; this sets the opacity of the
video in the key to 50%. The opacity can be adjusted by enabling the
View Thru Opac data pad and turning the View Thru Opacity soft knob.
8. Enable the Edge data pad in the Edge Adjust/Crop Adjust pane (lower
right; highlights blue).
9. Use the Edge All,Top, Right, Left, and Bottom soft knobs to pin the edges to
the box; this allows very precise edge adjustment. Repeat for each edge.
Adjusting the 2D-DPM Edge Pinning Edge All acts similar to a zoom.
10. Turn off the View Thru Enable if enabled.

10 KAYENNE/KARRERA — Release Notes
Version 8.0
11. Use the Pan and Scan features to reposition the shot clock if the camera
is moved.
Adjusting a 2D-DPM Image with Edge Pinning Pan and Scan
To ‘Pan’ a cropped image means to move the crop sideways which simul-
taneously trims the value of the Left Crop and Right Crop. To ‘Scan’ a
cropped image means to move the crop up and down, which simultane-
ously trims the Top Crop and Bottom Crop values.
1. Touch the Crop Edge data pad.
2. Touch the Pan or Scan button.
3. Use the Crop Edge Pan or Crop Edge Scan soft knob to pan or scan until the
image is correctly displayed.
Note Panning or scanning beyond (+ 16:9 for example) can have unexpected
results, i.e. the picture may begin to stretch.
Using Edge Pinning with the Kayenne Multi-Function Module
Edge Pinning can be performed from the MFM (Multi-Function Module) of
the Kayenne Control Panel, in the 2DPM (and identically the eDPM), EPin
menu.
In this example of a shot clock box effect, used in a sporting event, a
2D-DPM cropped box effect will be created and the edges of the box’s video
source pinned to the cropped edges. Then, using pan and scan, the video
source will be repositioned inside the 2D-DPM box effect without moving
the box. This effect is very useful if the camera is bumped or moved so the
switcher operator can reposition the video from the switcher.
1. Select a background source.
2. Select a keyer with the source for the box; in this case a camera pointed
at a shot clock, and cut on the key over the background.

KAYENNE/KARRERA — Release Notes 11
About 2D-DPM Edge Pinning
3. On the MFM, press 2DPM, Crop and the Dlg button just below Crop.
Figure 2. Multi-Function Module—2D-DPM Edge Pinning, Crop
4. Adjust the crop edges using the soft knobs to include the portion of the
video you want in the box (key); the shot clock in this example.
5. Press the Size button and use the Size and X and Y positioning soft
knobs to size and locate the cropped key over the background.
a. On the MFM, press Thru to turn it on to see the location of the box
effect over the background video. This will set the opacity of the
video in the key to 50%. The opacity can be adjusted by turning the
Thru soft knob.
6. Turn off the Crop Dlg button.

12 KAYENNE/KARRERA — Release Notes
Version 8.0
7. On the MFM, press EPin and then the Dlg button directly below to turn
on Edge Pinning.
Figure 3. Multi-Function Module—2D-DPM Edge Pinning, EPin
8. Press the All,Top, Right, Left, or Bottom button and use the soft knobs to pin
the edges to the cropped box; this allows very precise edge adjustment.
Adjusting the 2D-DPM with the Edge Pinning All soft knob acts similar
to a zoom.
9. Turn off the View Thru Enable feature if enabled.
10. Use the Pan and Scan features to reposition the shot clock if the camera
is moved.
Using Pan and Scan to Adjust a 2D-DPM Image with the Kayenne
Multi-Function Module
To ‘Pan’ a cropped image means to move the crop sideways which simul-
taneously trims the value of the Left Crop and Right Crop. To ‘Scan’ a
cropped image means to move the crop up and down, which simultane-
ously trims the Top Crop and Bottom Crop values.
1. Press the Crop button to turn it on.
2. Press the All button which toggles from All to Pan and Scan and choose
Pan or Scan.
3. Use the Pan or Scan soft knob to pan or scan until the image is correctly
placed in the cropped box.

KAYENNE/KARRERA — Release Notes 13
About 2D-DPM Edge Pinning
Note Panning or scanning beyond (+ 16:9 for example) can have unexpected
results, i.e. the picture may begin to stretch.
Figure 4. Multi-Function Module—2D-DPM Edge Pinning, Pan/Scan

14 KAYENNE/KARRERA — Release Notes
Version 8.0
About the E-MEM Enables Tab
The E-MEM & Timeline, Timeline Edit, E-MEM Enables menu tab allows
the operator to review and edit each ME level in an E-MEM register, for all
MEs at once. Additionally, the operator can view the states of all ME sub-
levels for an effect from one location. This is sometimes preferable to per-
forming these tasks one ME at a time in the Master E-MEM tab.
Figure 5. E-MEM Enables Menu
Note The menu interface is designed for maximum data so mouse control is rec-
ommended, however levels and sub-levels can be controlled using touch.
Secondary levels and their sub-levels are green when selected for easy
identification.
Assignable Sub-levels
Up to six assignable sub-levels including primary and secondary can be
displayed for each ME. If more than six sub-levels are assigned, the >
symbol will be displayed; white for primary and green for secondary, both
to the immediate right of the sixth assigned sub-level. Use the Master
E-MEM tab to view and change the states of non-visible sub-levels.

KAYENNE/KARRERA — Release Notes 15
About the E-MEM Enables Tab
Figure 6. E-MEM Enables Menu—Assigned Sub-Levels
Definable Sub-levels
Definable sub-levels are not displayed in the E-MEM Enables tab. If there
are defined sub-levels enabled, the > symbol will be displayed; white for
primary and green for secondary, both to the lower right of the ME to which
it is assigned. Use the Master E-MEM tab to define sub-levels.
Figure 7. E-MEM Enables Menu—Definable Sub-Levels
Effects Editing in the E-MEM Enables Tab
Effects can be edited in the E-MEM Enables tab for all MEs by enabling or
disabling levels and sub-levels from the switcher state. An ME level (i.e.
ME4 Pri) can be disabled (turned off), then one sub-level at a time can be
enabled; the ME level is enabled (turned on) once one sub-level is enabled.
Note Disabling then re-enabling an ME in the E-MEM Enables tab resets all sub-
levels to enabled for that ME.
Effects edited in the E-MEM Enables tab will run with the level and sub-
level states as selected, however until the Update Levels button is selected,
the effect’s E-MEM register is not modified. A recall of the register will
return the register to its saved state.

16 KAYENNE/KARRERA — Release Notes
Version 8.0
Enabling E-MEM Levels from the E-MEM Enables Tab
ME levels for an E-MEM can be enabled/disabled from the E-MEM &
Timeline, Timeline Edit, E-MEM Enables menu tab. Proxy eDPM control is
also provided, however eDPM sub-levels are in the eDPM menus. Levels
updated in either the Master E-MEM or E-MEM Enables tab are reflected in
both.
Prerequisite: Read the Define E-MEM section in the User Manual for your
switcher model.
1. Select an E-MEM register.
2. Select E-MEM & Timeline, Timeline Edit, E-MEM Enables in the menu.
3. Enable or disable E-MEM levels and sub-levels for the selected register.
4. Select Update Levels (top right of menu) to save the effect to the register;
the effect can be run without updating the levels. However, when
recalled, the effect will return to the saved state.
Router Source Name Changes are Now Updated in the GV
Switcher
When an NV9000, Encore, or other supported router is connected to a GV
Switcher system using Grass Valley’s Native Protocol (SMS 7000), and
router source names are changed, the system and menu will now be
updated automatically, with a few limitations.
The following areas of the GV Switcher system will continue to require a
manual update for a router source name change:
• R-MEMs—Learn a new R-MEM in the Router, R-MEM menu,
• Macros—Learn a new Macro in the Macro menu,
• Device Control configuration for router sources—Update the router
source name in the Eng Setup, Router menu, and
• Switcher sources configured for router destinations—Update the
Router Destination source name in the Eng Setup, Source Definition
menu.
CAUTION If these areas of the system are not manually updated, the router source may
behave unexpectedly or no longer work.

KAYENNE/KARRERA — Release Notes 17
4K Sample Show Files Available for Download
4K Sample Show Files Available for Download
A sample of a 4K show with video is included with the 8.0 software on the
GV Download site. By downloading, reading the included instructions,
and running the sample show you can learn how to create your own 4K
show. See Sample Files on page 24 for more information.
Note The 4K Show sample will be installed on new K-Frame systems.

18 KAYENNE/KARRERA — Release Notes
Version 8.0
About Updating the HAD FPGA
HAD (Host Address Decoder) FPGA (Field Programmable Gate Array)
updates are to be performed by qualified personnel only, i.e. an EIC (Engi-
neer In Charge).
Each CPU or Image Store board installed in a Grass Valley K-Frame Video
Processing Frame has a PCI Express endpoint for communication with the
host processor. These PCI endpoints are governed by the HAD FPGA. Soft-
ware updates can include firmware updates for these endpoint HADs.
When to Update the HAD FPGA
A HAD update is required if HAD out-of-date notifications appear in the
menu approximately five minutes after the Frame is booted. A software
upgrade or board replacement if the board has an older HAD version, can
cause the out-of-date firmware notification to be displayed. It is recom-
mended that spare CPU/Image Store boards are upgraded before use. Out-
of-date firmware notification can also be seen from a connected serial
console or Telnet connection.
Switcher menu notification:
Figure 8. HAD FPGA Menu Notification Message Example
Serial console message example:
CPU Board in slot 6 HAD firmware is out of date
HAD revision = 1, latest file revision = 2
HAD E5E00000: CPU Board 6, Num.Ver.Rev 2000.b.1, TimeStamp 05/17/2013
14:01, DMA:Yes
Still Store in slot 1 HAD firmware is out of date
HAD revision = 0, latest file revision = 1
HAD E1800000: Still Store 1, Num.Ver.Rev 5000.b.0, TimeStamp 05/21/2013
16:23, DMA:N/A

KAYENNE/KARRERA — Release Notes 19
About Updating the HAD FPGA
Update the HAD FPGA
The HAD FPGA update can be performed using either a serial console
attached to the front edge of the Controller board using the DB9 connector
or a Telnet session.
CAUTION It is recommended that HAD (Host Address Decoder) FPGA (Field Program-
mable Gate Array) updates are performed by qualified personnel only, i.e. an
EIC (Engineer In Charge).
Update the HAD FPGA Using a Serial Console
1. Open the Frame door and attach the serial console cable to the front
edge of the Controller board (see the version 8.0 Installation & Service
Manual for your K-Frame model for more information).
2. Verify and/or set the serial parameters to:
115200 baud
8 data
no parity
1stop
3. To check the HAD status, enter checkHADs at the prompt:
->checkHADs
Result:
HADs up-to-date: value = 1 = 0x1
HADs out-of-date: value = 0 = 0x0
4. Enter the console menu by typing consoleMenu at the prompt:
->consoleMenu
Result:
Figure 9. Console Menu
5. Enter the number nine [9] for the Debug menu, at the prompt: ->9
Result:

20 KAYENNE/KARRERA — Release Notes
Version 8.0
Figure 10. Debug Menu
6. Enter the number fifteen [15] for the Flash HADs menu, at the prompt:
->15
Result:
Figure 11. Flash HADs Menu
7. Enter the letter m [M] for the Multi Boot Configuration menu, at the
prompt: ->M
Result:
Figure 12. Multi Boot Configuration Menu
8. Enter the letter Y to begin the reprogramming of the HADs, at the
prompt: ->Y
Result: HADs are being erased and programmed which can be seen on
the serial console monitor. If successful, a confirmation similar to the
following will be displayed on the serial console monitor.
Figure 13. Successfully Installed HAD Example
