Belkin TuneBase FM LIVE User manual

TuneBase™FM LIVE
for iPhone and iPod
User Manual
8820tt00532 F8Z618tt/F8Z618

TuneBase™ FM LIVE i
SECTIONS 1 2 3 75 64Table of Contents
TABLE OF CONTENTS
1 Introduction ....................................................................................................1
Features ...............................................................................................................1
What’s in the Box ................................................................................................2
Controls ...............................................................................................................2
2 Get the ClearScan LIVE App .......................................................................3
3 Set Up Your TuneBase...................................................................................4
Plug In Your TuneBase ........................................................................................4
Dock Your iPhone/iPod....................................................................................... 5
Dock Your iPhone/Pod After Initial Setup ........................................................ 10
4 Use Your TuneBase...................................................................................... 12
Find a Clear Station........................................................................................... 12
Play Music.......................................................................................................... 14
Use the PRO Button to Boost Sound............................................................... 14
5 Troubleshooting ........................................................................................... 15
6 Safety Warnings ...........................................................................................18
7 Information.................................................................................................... 19

TuneBase™ FM LIVE 1
SECTIONS 2 3 75 64Table of Contents 1
INTRODUCTION
Features
iPhone and iPod
• PlayyouriPhone/iPodthroughyourcar’sFMstereo
• KeepyouriPhone/iPodinitscase
• RotateyouriPhone/iPodtohorizontalview
• One-touchtuningwithClearScan

TuneBase™ FM LIVE 2
SECTIONS 2 3 75 64Table of Contents 1
INTRODUCTION
What’s in the Box Controls
What’s in the Box
1.
2.
3.
pro
2
1
1.
2.
3.
4.
5.
6.
1. TuneBase FM LIVE
2. Fit Ring
3. Cushion for iPod nano
1. ClearScan
2. Tune up
3. Tunedown
4. Memory 1
5. Memory 2
6. PRO button

TuneBase™ FM LIVE 3
SECTIONS 1 3 75 64Table of Contents 2
GET THE CLEARSCAN LIVE APP
ClearScan LIVE lets you control your TuneBase FM directly from your iPhone or iPhone/iPod
touch.ClearScanLIVEalsoprovidesimprovedClearScanresultsby:
• UsingyourGPSlocationtofindthebestFMstationinyourarea
• Recommendingopenstationsbasedonwhatotherpeopleinyourareaareusing
Look for ClearScan LIVE in the App Store on iTunes. See instructions in the app’s Help section
for more information.

TuneBase™ FM LIVE 4
SECTIONS 1 2 75 64Table of Contents 3
SET UP YOUR TUNEBASE

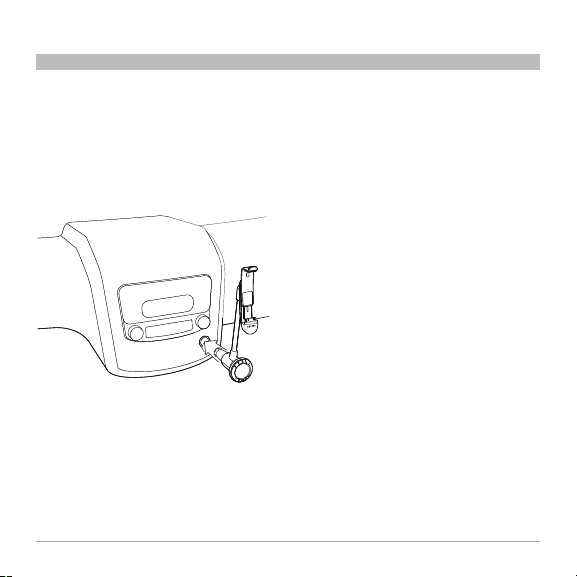

Plug In Your TuneBase
FollowthestepsinthissectiontosetupyourTuneBaseFM(theTuneBase).
1. InsertyourTuneBaseintothepower
outlet in your car.
2. Testthetightnessoffitinthepower
outlet.TheTuneBaseshouldgivesome
resistancewhenyoutrytorotateitinside
thepoweroutlet.Itshouldnotrotateor
moveonitsown.
If the TuneBase is too loose or too
tightinthepoweroutlet,seethe
troubleshooting section for instructions
on adjusting the fit.
Warning: Do not rotate the TuneBase in the
poweroutlet.Ifyouexperienceresistance,
unplug the TuneBase and reinsert it in
the desired position. Failure to do so may
damage the cigarette lighter adapter or
poweroutlet.

TuneBase™ FM LIVE 5
SECTIONS 1 2 75 64Table of Contents 3
SET UP YOUR TUNEBASE
1. Push the button on the springboard and
slide it to its maximum height.
2. IfyouhaveaniPodnano,insertthe
cushion into the slot on the springboard.
Thecushionworkswithmostversions
of the iPod nano.
Dock Your iPhone/iPod
YoucankeepyouriPhone/iPodinitscasewhenyoudockit.

TuneBase™ FM LIVE 6
SECTIONS 1 2 75 64Table of Contents 3
SET UP YOUR TUNEBASE
3. Connect your iPhone/iPod to the
TuneBasedockconnector,makingsureit
is fully seated.
4. Push the front of the iPhone/iPod back
until the back of the iPhone/iPod touches
the front of the springboard.

TuneBase™ FM LIVE 7
SECTIONS 1 2 75 64Table of Contents 3
SET UP YOUR TUNEBASE

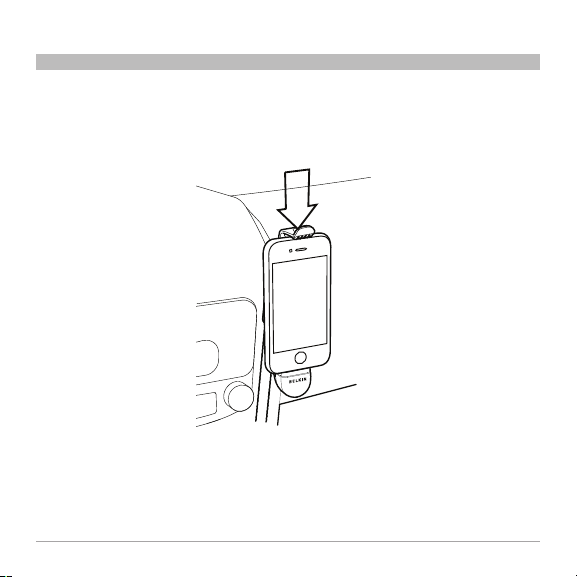

5. PushdownonthetopofthespringboarduntilitholdsyouriPhone/iPodsecurely
in place.
Note: Afteryouhaveadjustedtheheightofthespringboard,thereisnoneedtoadjustthe
TuneBasetoinsertandremoveyouriPhone/iPod.

TuneBase™ FM LIVE 8
SECTIONS 1 2 75 64Table of Contents 3
SET UP YOUR TUNEBASE
6. Bend the flexible neck to position your iPhone/iPod.
Warning:DonotremovetheTuneBasefromthecigarettelighteradapterwhen
an iPhone/iPod is in the cradle.
Do not position your TuneBase as follows:
ok

TuneBase™ FM LIVE 9
SECTIONS 1 2 75 64Table of Contents 3
SET UP YOUR TUNEBASE
Remove Your iPhone/iPod from Your TuneBase
1. PushbackonthefrontofthespringboardandtiltyouriPhone/iPodforwarduntilitclears
the lip of the springboard.
2. Lift your iPhone/iPod out of the cradle.
1 2

TuneBase™ FM LIVE 10
SECTIONS 1 2 75 64Table of Contents 3
SET UP YOUR TUNEBASE

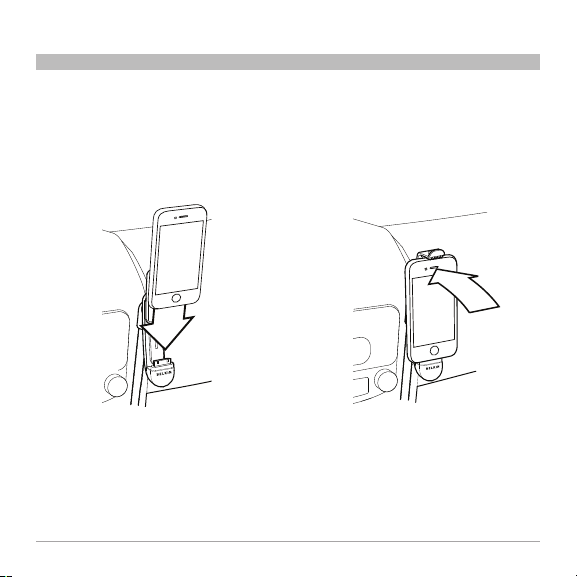

1. Seat your iPhone/iPod on the
dock connector.
2. Push the face of the iPhone/iPod so that
it snaps into place under the lip of the
springboard.
Dock Your iPhone/iPod After Initial Setup
AfteryouhaveadjustedtheTuneBasetofityouriPhone/iPod,youcaninsertandremoveyour
iPhone/iPodwithoutfurtheradjustment.
Youonlyneedtoadjusttheheightofthespringboardwhenyouareusingadifferent
iPhone/iPod or different case.

TuneBase™ FM LIVE 11
SECTIONS 1 2 75 64Table of Contents 3
SET UP YOUR TUNEBASE
Power behavior
YouriPhone/iPodwillautomaticallypausewhenyouremoveitfromtheTuneBase.
YourTuneBasewillautomaticallyturnonwhenyouriPhone/iPodisconnectedandpoweris
available.ItturnsoffwhenyouremovetheiPhone/iPodorpowerbecomesunavailable.
Insomecases,theiPhone/iPodwillremainonandplayingifdockedintheTuneBaseevenif
thereisnopowerorthecarkeysareremoved.BesuretoundockyouriPhone/iPodcompletely
toavoiddrainingthebatterywhennotinuse.

TuneBase™ FM LIVE 12
SECTIONS 2 3 75 64Table of Contents 1
USE YOUR TUNEBASE
SECTIONS 1 2 3 75 64Table of Contents
Find a Clear Station
1. Press (ClearScan). The TuneBase
willsearchforaclearfrequency.
Note: Ifyouimmediatelypresswhen
youturnonyourTuneBase,itmaytake30
secondstolocatethebestfrequency.
2. OntheTuneBasescreen,“Tuneto”will
appearfollowedbyafrequency.
3. Tuneyourcarstereotothefrequency
shownontheTuneBase.
4. Ifyouhearinterferenceonthenew
frequency,repeatsteps1–3orfinda
stationmanually(below).

TuneBase™ FM LIVE 13
SECTIONS 2 3 75 64Table of Contents 1
USE YOUR TUNEBASE
SECTIONS 1 2 3 75 64Table of Contents
USE YOUR TUNEBASE
If you cannot find a clear frequency by
using ClearScan:
1. Onyourcarstereo,tunetoafrequency
thathasaweaksignal.Forbestresults,
findafrequencythathasonlystatic.
2. OnyourTuneBase,press+or-totune
tothesamefrequency.
3. You should be able to hear music from
your iPhone/iPod clearly through your
car stereo.
4. OnyouriPhone/iPod,setthevolume
toyourusualsetting,andthenadjust
yourcarstereo’svolumetogettheright
soundlevel.
Save clear frequencies
Youcansavetwofrequenciesbypressing
and holding buttons 1 and 2.
1. OntheTuneBase,tunetothefrequency
youwanttosave.
2. Press and hold preset button 1 or 2 for
twoseconds.Youwillhearabeepwhen
thefrequencyissavedandthememory
iconwillflashonthescreen.
3. Press and release the preset button to
tune the TuneBase to the station.
4. Tune your car stereo to the same station.

TuneBase™ FM LIVE 14
SECTIONS 2 3 75 64Table of Contents 1
USE YOUR TUNEBASE
SECTIONS 1 2 3 75 64Table of Contents
USE YOUR TUNEBASE
Note:YouriPhone/iPodwillautomatically
pausewhenyouremoveitfromthe
TuneBaseorwhenpowerisunavailable
fromthepoweroutlet.
Play Music
1. OnyouriPhone/iPod,setthevolume
toyourusualsetting,andthenadjust
yourcarstereo’svolumetogettheright
soundlevel.
2. Navigatetothetrackyouwanttoplay.
Use the PRO Button to Boost Sound
Ifyoufindthesoundistooweak,press“PRO”toboostthesoundcomingfromyour
iPhone/iPod.

TuneBase™ FM LIVE 15
SECTIONS 1 2 3 764Table of Contents 5
TROUBLESHOOTING
Your iPhone/iPod is not charging.
Solution
• MakesureyourTuneBasehasagood
connectiontoyourcar’spoweroutlet.
• MakesureyouriPhone/iPodisfully
seated in the cradle.
• Makesurethepoweroutletisreceiving
power.Somevehiclesdonotprovide
powertothepoweroutletunlessthe
vehicleisinignitionmodeortheengine
is running.
Your TuneBase and iPhone/iPod are in the
way of your vehicle’s controls.
Solution
• Usetheflexiblegooseneckandthe
articulation behind the docking cradle
topositionyourTuneBaseawayfrom
yourvehicle’scontrols.Positionthe
gooseneck in as upright a position as
possibleinrelationtothepoweradapter.
YoucanquicklysolvemostproblemswithyourTuneBasebyfollowingtheadviceinthissection.

TuneBase™ FM LIVE 16
SECTIONS 1 2 3 764Table of Contents 5
TROUBLESHOOTING
Solution 1
Be sure to solidly attach the cigarette lighter
adapteroftheTuneBasetothepoweroutlet.
Testthestabilitybypushingitsideways
beforedriving.
Solution 2
Insomevehicles,thepoweroutletiswider
than the cigarette lighter adapter of the
TuneBase.Youmaynoticeawiggleinyour
TuneBasewhenyoupushit.Inthatcase,
slide the fit ring around the cigarette lighter
adapteroftheTuneBase.Then,insertthe
cigarettelighteradapterintothepower
outlet,makingsurethatallfourprongsofthe
fitringsecurelyfitinthepoweroutlet.Ifthe
fitistootight,youcancutoffoneormoreof
the prongs on the fit ring and try the fit again
(seeSolution3).
Solution 3
The fit ring may be too large for some cars’
poweradapters.Usescissorstocarefully
cut as many prongs as you need. Try to fit
yourTuneBaseintothepoweroutletafter
eachcut.Whencuttingmultipleprongs,cut
prongs on opposing sides.
Your TuneBase rotates out of position around the center of the power outlet.
cut
cut
cut

TuneBase™ FM LIVE 17
SECTIONS 1 2 3 764Table of Contents 5
TROUBLESHOOTING
Your TuneBase connects firmly to the
power outlet, but it still rotates.
Solution
Checktoseeifthepoweroutletrotates
initssocket.Ifso,pleaseconsultyour
vehicle’smanufacturer.
You cannot insert the cigarette lighter
adapter into the power outlet.
Solution
The cigarette lighter adapter’s rubber friction
washermayneedtobecentered.Followthe
stepsbelowtocenterthefrictionwasher.
1. Use pliers to loosen the nut on the front
of the cigarette lighter adapter slightly. It
isnotnecessarytoremovethenut.
2. Movethefrictionwasherbackinto
centered position.
3. Tighten the nut firmly.
The rubber friction washer remained in
the power outlet when you removed
your TuneBase.
Solution
Thisisrare,butifitoccursyoucanremove
therubberwasherfromthepoweroutletand
place it back on the cigarette lighter adapter.
Warning: Disconnect the vehicle’s battery.
Any attempt to remove the washer
without disconnecting the battery may
result in physical harm to you or damage
to the vehicle.
Useplierstocarefullyremovethefriction
washerfromthepoweroutlet.Placethe
frictionwasherbackonthecigarette
lighteradapter.Then,reconnectthe
vehicle’sbattery.

TuneBase™ FM LIVE 18
SECTIONS 123 564Table of Contents 7
SAFETY WARNINGS
YourTuneBaserequiresfullconcentration
and both hands to install. Do not attempt
to connect your TuneBase while driving.
Make sure your TuneBase fits securely and
firmlyintothepoweroutletbeforedriving.
Afterinstallation,makesureyourTuneBase
doesnotfreelyrotateinthepoweroutlet.
Do not attempt to adjust or retrieve an
unsecured TuneBase or iPhone/iPod
while driving. Adjust the position of your
TuneBase so that it and your iPhone/iPod
donotinterferewithanyoftheoperating
controlsofthevehicle.
Do not insert any objects other than the
cigarette lighter adapter into the power
outlet without disconnecting the battery
of the vehicle first. Failure to observe
this safety warning can result in injury or
property damage.
Belkin does not assume any responsibility for
personal injury or property damage incurred
duetohazardousdrivingasaresultof
interactionwiththeTuneBase,theiPodand
iPhone,orthevehicle’spoweroutlet.
