Congratulations on your purchase of this high-quality Belkin 16- or
24-Port Network Switch. Backward-compatible with 10Mbps networks,
the Switch easily migrates your network from conventional Ethernet to a
multiple-segment, 100Mbps Fast Ethernet connection. It delivers dedicated
100Mbps links to each directly attached LAN segment or PC, enabling your
servers and workstations to transfer large AV and graphic files efficiently
throughout your network. This makes the Switch an excellent way to
increase the throughput of interconnected Ethernet and Fast Ethernet hubs
or server farms.
Engineered for convenient setup and operation, each Switch features a
durable metal chassis that can be placed on the desktop or integrated into
a 19-inch rack, using the included rack-mount kit. All ports auto-negotiate
between a 10- or 100Mbps network and adjust for straight-through or
crossover cables, so you don’t have to worry about cable type.
3
Introduction
section
1
2
3
4
5
6
7
8

4
Getting to Know your Switch
Features
• High-speed, dedicated 10/100 Ethernet ports
– 16 ports (Belkin 16-Port 10/100 Network Switch F5D5131-16)
– 24 ports (Belkin 24-Port 10/100 Network Switch F5D5131-24)
• Standards
– IEEE 802.3u 100Base-Tx
– IEEE 802.3 10Base-T
• 1U chassis, place on your desk or 19-inch rack
• Internal power supply (100–240VAC/50–60Hz universal input)
• Auto MDI/MDIX ports
• Auto-negotiation between 10- and 100Mbps on all ports
• Auto-negotiation for full and half duplex on all ports
• Collision detection on all ports
• IEEE 802.3x PAUSE frames flow control to prevent packets from being
dropped under heavy loads
• Back-pressure flow control in half-duplex operation
• Support for up to 4K MAC address entries
• Store-and-forward switching to ensure compatibility with standards-
based hubs, switches, and cards from any vendor
• A Belkin Limited Lifetime Warranty and free, 24-hour
technical support
Package Contents
• Belkin 16- or 24-Port 10/100 Network Switch
• AC Power Cord
• Kit for 19” Rack Installation
• Self-Adhesive Rubber Pads for Desktop
• User Manual (CD-Rom)
54
Introduction
5

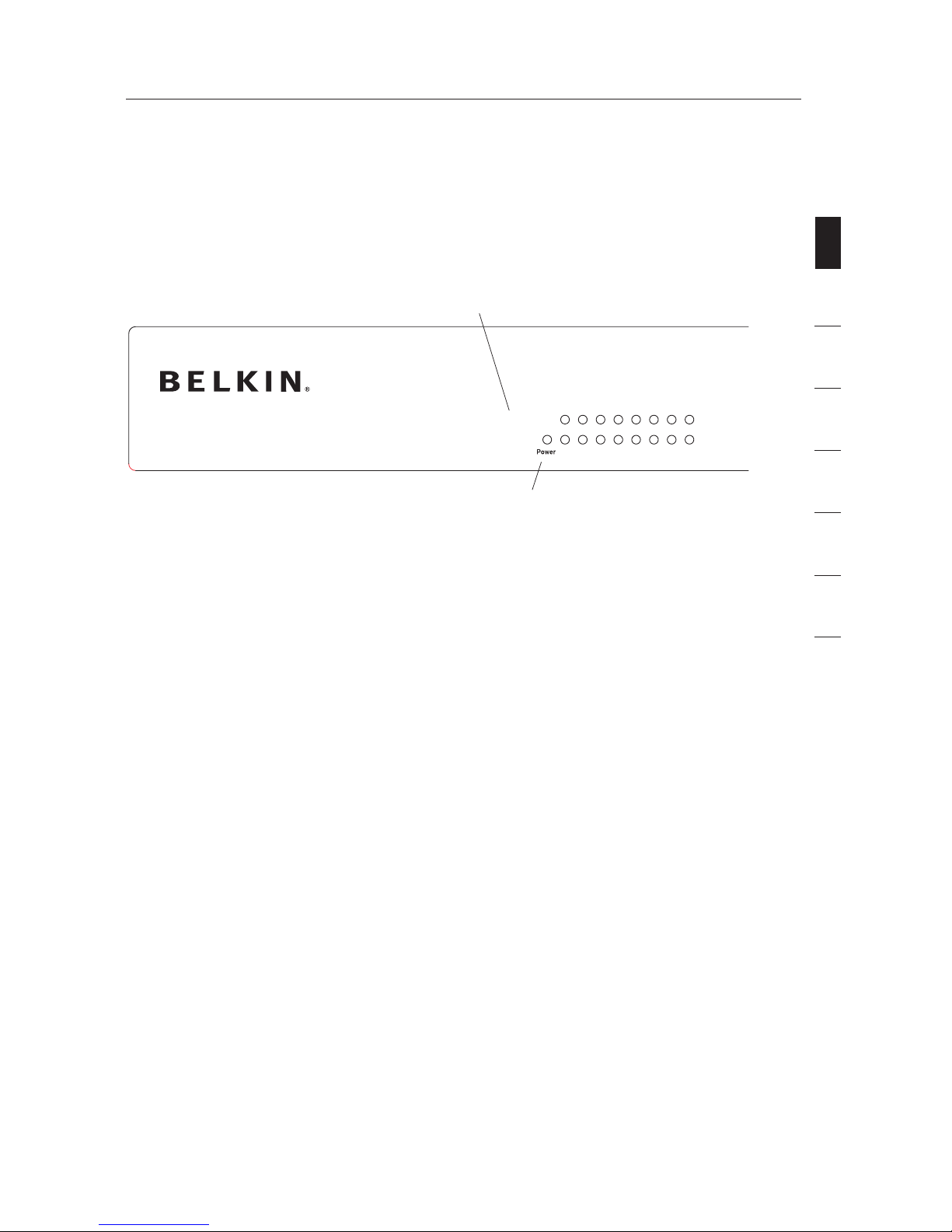

Front-Panel LEDs
Belkin 16- and 24-Port 10/100 Network Switches feature two rows of LEDs
that provide information about connection speed, link/activity, plus a
separate Power LED.


       
       


(a) Power (POWER) LED
• Green – Power on, normal operation
• Off – Power off, no power to the Switch
(b) Link and Activity (Link/Act) LED
• Solid Green – 100Base-Tx network device is correctly connected to the
Switch through this port
• Blinking Green – Data is being transmitted and received through this port
at 100Mbps
• Solid Orange – 10Base-T network device is correctly connected to the
Switch through this port
• Blinking Orange – Data is being transmitted and received through this
port at 10Mbps
• Off – No link is established
(b)
(a)
5
Introduction Getting to Know your Switch
5
section
1
2
3
4
5
6
7
8

76
76
Connecting your Switch to your Computers
1. Power down all your equipment.
2. Connect a Category 5e or 6 Ethernet cable between each computer’s
network interface card (NIC) and one of the numbered ports on the front
of the Switch.
3. All switch ports can automatically negotiate speeds at
full- and half-duplex modes to allow users to attach 10Base-T and
100Base-Tx network devices.
4. Connect the power cord into the power socket in the rear of the Switch;
now plug the other end of the power cord into a power source (wall jack
or power strip).
Connecting Networking Devices to your Switch

7
7
Connecting your Switch to another Switch
1. Connect a Category 5e or 6 cable between one of the numbered ports
on the front of the Switch and one of the numbered ports on the other
Switch to which you are cascading or connecting.
2. All switch ports can automatically negotiate speeds at
full- and half-duplex modes to allow users to attach 10Base-T and
100Base-Tx network devices, network switches, or hubs.
3. All ports support auto MDI and MDIX functionality. When cascading or
connecting switches or hubs, the user can use a straight-through or
crossover cable.
Important: When connecting two switches together, use a single cable.
If multiple cables are used, loops may occur resulting in unwanted
collisions. This will result in poor network performance.
Cabling Distances
• 328 ft. (100m)
Recommended Cabling Standard
• Category 5, 5e, or 6 for Ethernet (10Mbps) and Fast Ethernet (100Mbps)
connections
Connecting Networking Devices to your Switch
1
2
3
4
5
6
7
8
section

988
Placement of the Switch
This Switch segments your network, significantly increasing both bandwidth
and throughput. Each port on the Switch can be attached to any Ethernet,
Fast Ethernet, or Gigabit Ethernet device, such as another switch, or a
server’s network adapter. All ports operate at 10/100Mbps full and half
duplex, providing up to 200Mbps of bandwidth to the attached device.
Bridging Functions
This Switch provides fully transparent bridging functions. It automatically
learns node addresses that are subsequently used to filter and forward
all traffic based on the destination address. When traffic passes between
devices attached to the same shared collision domain, those packets are
filtered from the Switch. But when traffic must be passed between unique
segments (i.e., different ports on the Switch), the high-speed switching
fabric forwards the packets at near-zero latency.
Switching Functions
Store-and-forward switching is used to forward traffic to other ports. This
scheme ensures data integrity and provides a clean data stream.
Sample Application

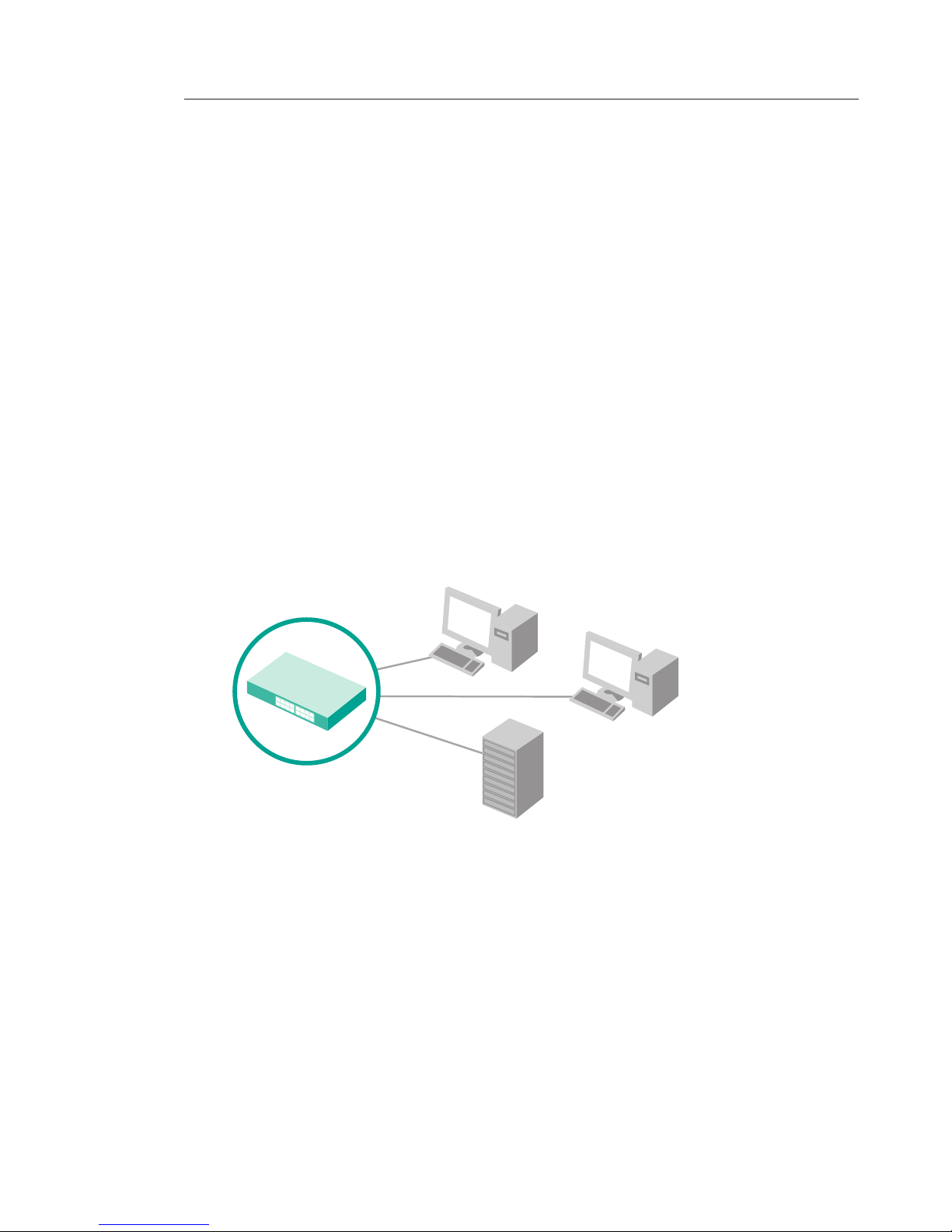

This Switch is designed to operate as a small workgroup switch. It can
provide 10- or 100Mbps connections to workstations and to high-speed
servers. It can also provide a 100Mbps uplink to the network backbone.
9
Applications

9
The Switches can be placed on a flat surface or in a 19-inch rack.
Placement on a Flat Surface
1. Affix the four included rubber feet on the bottom of the Switch in the area
that is clearly marked on each of the four corners.
2. Make sure the Switch is placed in an area
that allows for proper ventilation.
3. Place on a flat surface.
Placement in a 19-Inch Rack
1. Do not affix the four rubber feet on the Switch when
rack-mounting. If already affixed, remove.
2. Attach the mounting bracket to each side of the Switch with
the included screws.
3. Place the Switch in the rack and align the holes of the
mounting bracket with the correct hole in the rack.
4. Place and tighten the screws of each mounting bracket into the rack.
Placement of the Switch
9
section
1
2
3
4
5
6
7
8

1110
1110
Physical Characteristics
Standards Conformance IEEE Std 802.3-2002
Communication Rate 10- and 100Mbps
Communication Mode Full or half duplex at 10/100Mbps
Media Supported 10Base-T: 100-Ohm Category 3 or
better twisted-pair 100Base-Tx: 100-Ohm
Category 5 or better twisted-pair
Number of Ports F5D5131-16: 16 RJ45 100Base-Tx ports
F5D5131-24: 24 RJ45 100Base-Tx ports
Indicator Panel Power
Ports: Link/Act
Power Requirement Input Voltage: 100–240V AC @ 50–60Hz
Power Consumption 7.78W maximum
Temperature Operating: 0 ~ 40° C (32 ~ 98° F)
Storage: -40 ~ 70° C (-40 ~ 158° F)
Humidity 10% to 90% non-condensing
Immunity EN 61000-4-2/3/4/5/6/8/11
Emissions FCC Class A, CISPR Class A,EN 61000-3-2/3
Safety CSA/CUS (CSA 60950-1 & UL 60950-1) TÜV/
GS (EN 60950-1)
Physical Dimensions 17.32 x 6.77 x 1.69 in. (44 x 17.1 x 4.4cm)
Physical Characteristics
Physical Characteristics
Product Specifications

11
11
Switching Criteria
Network Bridging Function Filtering, forwarding, and learning
Switching Method Store-and-forward
MAC Address Table F5D5131-16: 4K entries
F5D5131-24: 4K entries
Packet Buffer F5D5131-16: 256Kb
F5D5131-24: 256Kb
Product Specifications
1
2
3
4
5
6
7
8
section

1312
1312
Diagnosing Switch Indicators
Symptom
Power LED does not light after power on.
Probable Causes
DC power adapter may be defective.
Possible Solutions
• Check for loose connections.
• Check the power outlet by using it for another device.
• Replace the DC power adapter.
Symptom
Port (Link/Act) LED does not light after connection is made.
Probable Causes
Switch port, network card, or cable may be defective.
Possible Solutions
• Check that the Switch and attached device are both
powered on.
• Be sure the network cable is connected to both devices.
• Verify that Category 5 or better cable is used for 10/100Mbps
connections, and that the length of any cable does not exceed
328 feet (100m).
• Check the network card and cable connections for defects.
• Replace the defective card or cable if necessary.
Troubleshooting

13
13
Power and Cooling Problems
If the power indicator does not turn on when the power cord is
plugged in, you may have a problem with the power outlet, power
cord, or internal power supply as explained in the previous section.
However, if the unit powers off after running for a while, check for
loose power connections, power losses or surges at the power
outlet, and verify that the fan on the right side of the unit (F5D5131-
24) is unobstructed and running prior to shutdown. If you still
cannot isolate the problem, then the internal power supply may be
defective.
Installation
Verify that all system components have been properly installed. If
one or more components (e.g., the power cord or network cabling)
appear to be malfunctioning, test them in an alternate environment
where you are sure that all the other components are functioning
properly.
You can find additional support information at www.belkin.com/
networking or www.belkin.com through the tech-support area.
If you want to contact technical support by phone, please call 877-
736-5771. Technical support is available 24 hours a day, 7 days a
week.
Before you Call
If possible, turn on your system before you call Belkin for technical
assistance and call from a telephone at or near the computer. You
may be asked to describe detailed information during operation.
Troubleshooting
1
2
3
4
5
6
7
8
section

1514
1514
EMI Certification
FCC Class A Certification (USA)
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that the interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Industry Canada – Class A
This digital apparatus does not exceed the Class A limits for radio noise
emissions from digital apparatus as set out in the interference-causing
equipment standard entitled “Digital Apparatus,” ICES-003 of the
Department of Communications.
CE Mark Declaration of Conformance for EMI and Safety (EEC)
This information technology equipment complies with the requirements of
the Council Directive 89/336/EEC on the Approximation of the laws of the
Member States relating to Electromagnetic Compatibility and 73/23/EEC for
electrical equipment used within certain voltage limits and the Amendment
Directive 93/68/EEC. For the evaluation of the compliance with these
Directives, the following standards were applied:
Information

15
15
RFI Emission:
• Limit class A according to EN 55022:1998, IEC 60601-1-2
(EMC, medical)
• Limit class A for harmonic current emission according to
EN 61000-3-2/1995
• Limitation of voltage fluctuation and flicker in low-voltage supply
system according to EN 61000-3-3/1995
Immunity:
• Product family standard according to EN 55024:1998
• Electrostatic Discharge according to EN 61000-4-2:1995
(Contact Discharge: ±4kV, Air Discharge: ±8kV)
• Radio-frequency electromagnetic field according to EN 61000-
4-3:1996 (80–1000MHz with 1kHz AM 80% Modulation: 3V/m)
• Electrical fast transient/burst according to EN 61000-4-4:1995
(AC/DC power supply: ±1kV, data/signal lines: ±0.5kV)
• Surge immunity test according to EN 61000-4-5:1995 (AC/
DC line to line: ±1kV, AC/DC line to earth: ±2kV)
• Immunity to conducted disturbances, induced by
radio-frequency fields: EN 61000-4-6:1996 (0.15–
80MHz with 1kHz AM 80% modulation: 3V/m)
• Power frequency magnetic field immunity test according
to EN 61000-4-8:1993 (1A/m at frequency 50Hz)
• Voltage dips, short interruptions, and voltage variations immunity
test according to EN 61000-4-11:1994 (>95% reduction @ 10ms,
30% reduction @ 500ms, >95% reduction @ 5000ms)
LVD:
• EN 60950-1:2001
Information
1
2
3
4
5
6
7
8
section

1716
1716
Safety Compliance
Please read the following safety information carefully before installing the
Switch:
Warning: Do not plug a phone-jack connector into the RJ45 port. This may
damage this device.
Warning: This product does not contain any user-serviceable parts.
Warning: When connecting this device to a power outlet, connect the field
ground lead on the tri-pole power plug to a valid earth ground AC-outlet
line to prevent electrical hazards and to comply with international safety
standards. The appliance coupler (the connector to the unit and not the
wall plug) must have a configuration for mating with an EN 60320/IEC
320 appliance inlet. The socket outlet must be near to the unit and easily
accessible. You can only remove power from the unit by disconnecting the
power cord from the outlet.
Caution: Use only twisted-pair cables with RJ45 connectors that conform
to FCC standards.
Wear an anti-static wrist strap or take other suitable measures to prevent
electrostatic discharge when handling this equipment.
This unit operates under SELV (Safety Extra Low Voltage) conditions
according to IEC 60950. The conditions are only maintained if the
equipment to which it is connected also operates under SELV conditions.
Information

17
17
Belkin Corporation Limited Lifetime Product Warranty
What this warranty covers.
Belkin Corporation warrants to the original purchaser of
this Belkin product that the product shall be free of defects
in design, assembly, material, or workmanship.
What the period of coverage is.
Belkin Corporation warrants the Belkin product
for the lifetime of the product.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product
free of charge (except for shipping charges for the product).
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not provided
to Belkin Corporation for inspection upon Belkin’s request at the sole
expense of the purchaser, or if Belkin Corporation determines that the
Belkin product has been improperly installed, altered in any way, or
tampered with. The Belkin Product Warranty does not protect against acts
of God (other than lightning) such as flood, earthquake, war, vandalism,
theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse,
damage due to low voltage disturbances (i.e. brownouts or sags), non-
authorized program, or system equipment modification or alteration.
How to get service.
To get service for your Belkin product you must take the following steps:
1. Contact Belkin Corporation at 501 W. Walnut St., Compton CA 90220,
Attn: Customer Service, or call (800)-223-5546, within 15 days of the
Occurrence. Be prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2. Your Belkin Customer Service Representative will then
instruct you on how to forward your receipt and Belkin
product and how to proceed with your claim.
Information
1
2
3
4
5
6
7
8
section

1918
1918
Belkin Corporation reserves the right to review the damaged Belkin
product. All costs of shipping the Belkin product to Belkin Corporation for
inspection shall be borne solely by the purchaser. If Belkin determines, in
its sole discretion, that it is impractical to ship the damaged equipment
to Belkin Corporation, Belkin may designate, in its sole discretion, an
equipment repair facility to inspect and estimate the cost to repair such
equipment. The cost, if any, of shipping the equipment to and from such
repair facility and of such estimate shall be borne solely by the purchaser.
Damaged equipment must remain available for inspection until the claim
is finalized. Whenever claims are settled, Belkin Corporation reserves the
right to be subrogated under any existing insurance policies the purchaser
may have.
How state law relates to the warranty.
THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN
CORPORATION, THERE ARE NO OTHER WARRANTIES, EXPRESSED
OR, EXCEPT AS REQUIRED BY LAW, IMPLIED, INCLUDING THE
IMPLIED WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, AND SUCH IMPLIED
WARRANTIES, IF ANY, ARE LIMITED IN DURATION TO THE TERM OF
THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts,
so the above limitations may not apply to you.
IN NO EVENT SHALL BELKIN CORPORATION BE LIABLE FOR
INCIDENTAL, SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR
MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS
OR PROFITS ARISING OUT OF THE SALE OR USE OF ANY BELKIN
PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
This warranty gives you specific legal rights, and you may also have other
rights, which may vary from state to state. Some states do not allow the
exclusion or limitation of incidental, consequential, or other damages, so
the above limitations may not apply to you.
Information

19
19
Following information is only for EU-member states:
The use of the symbol indicates that this product may not be treated as
household waste. By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling of
this product, please visit our web at www.belkin.com (or contact your local
city office, your household waste disposal service or the shop where you
purchased the product)
Information
1
2
3
4
5
6
7
8
section

Belkin Ltd.
Express Business Park
Shipton Way, Rushden
NN10 6GL, United Kingdom
[phone]
[phone] fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk
Netherlands
[phone]
[phone] fax
Belkin Iberia
Avda. Cerro del Aguila 3
28700 San Sebastián de los Reyes
Spain
[phone]
[phone] fax
Belkin SAS
130 rue de Silly
92100 Boulogne-Billancourt
France
[phone]
[phone] fax
Belkin GmbH
Hanebergstrasse 2
80637 Munich
Germany
[phone]
[phone] fax
Belkin Nordic
Knarrarnäsgatan 7
164 40 Kista
Sweden
[phone]
[phone] fax
Tech Support
Europe: 00 800 223 55 460
© 2006 Belkin Corporation. All rights reserved. All trade names are
registered trademarks of respective manufacturers listed.
P74504eiA
16-Port 10/100 Network
Switch
24-Port 10/100 Network
Switch
