Belling IHTK60 Firmware update

Belling IHTK60
UK AU
Part No 083364400 Date 22/07/2014
Users Guide & Installation
Handbook

CONTENTS & INTRODUCTION
CONTENTS
• SAFETY
• USING THE PRODUCT
• CLEANING
• INSTALLATION INSTRUCTIONS
• TECHNICAL DATA
• WEBSHOP
• CUSTOMER CARE
INTRODUCTION AND WARRANTY
INFORMATION (UK/IE)
Inside the paperwork that comes with this
appliance, there is as follows:
• Anextendedwarrantyleaet
• A manufacturers 12 month
registration card
• Aleaetcontainingcookwareand
accessories
Simplyllinthedetailsonthecardand
post it off to the address shown below
BELLING GUARANTEE
REGISTRATION DEPARTMENT
(UK/IE)
Leicester House
17 Leicester Street
Bedworth
Warwickshire
CV12 8JP
To activate your free guarantee call
08444 810 182.
Lines open 365 days a year. Calls cost up to 5p a
minute from a BT Landline. Charges from mobile and
other providers may vary.
INTRODUCTION AND WARRANTY
INFORMATION (AU/NZ)
Inside the paperwork that comes with this
appliance, there is a card explaining our
warranty and guarantee.
Simplyllinthedetailsonthecardand
post it off to the address shown below
(AUSTRALIA)
GLEN DIMPLEX AUSTRALIA Pty Ltd
Reply Paid 84780
Mount Waverley
Vic 3149
(NEW ZEALAND)
GLEN DIMPLEX AUSTRALASIA P/L
38 Harris Road
East Tamaki Auckland 2013
WARRANTY
During the period of guarantee, as
speciedonyourwarrantyregistration
card, your appliance is protected against
electrical and mechanical breakdown.
To register your appliance please call
the number assigned to your country of
purchase, as listed on the back cover of
this guide, register online or complete the
registration card included
Please ensure that you have available
your appliance model number and serial
number, this is a space at the back of this
book for recording that information
For full terms & conditions of the manu-
facturer’s guarantee, refer to the website
on the back of this book
Our policy is one of constant development
and improvement, therefore we cannot
guarantee the strict accuracy of all of our
illustrationsandspecications-changes
may have been made subsequent to
publishing.
Note: Please ensure you only complete the documentation for the relevant
country of purchase

CONTENTS & INTRODUCTION
BEFORE USING THE HOB
Make sure that you have removed all
packaging,wrappings,stickersandlms
from the hob surface.
It is recommended that you clean and
wash the hob surface before using for the
rsttime.
Apply a thin coat of ceramic hob cleaner
to the hob to help maintain and protect it.
Important Notice
Please note there may be a cooling fan
ttedtothisappliance.Itisanintegral
part of its safety and functionality. When
the appliance is installed care must be
taken that the cooling fans performance
is not impeded by any objects coming
into contact with it. (Installation pipes,
leads etc) Care must also be taken that
thereissufcientairowattherearof
the appliance for the cooling fan to run at
itsoptimumefciency,(particularlybuilt

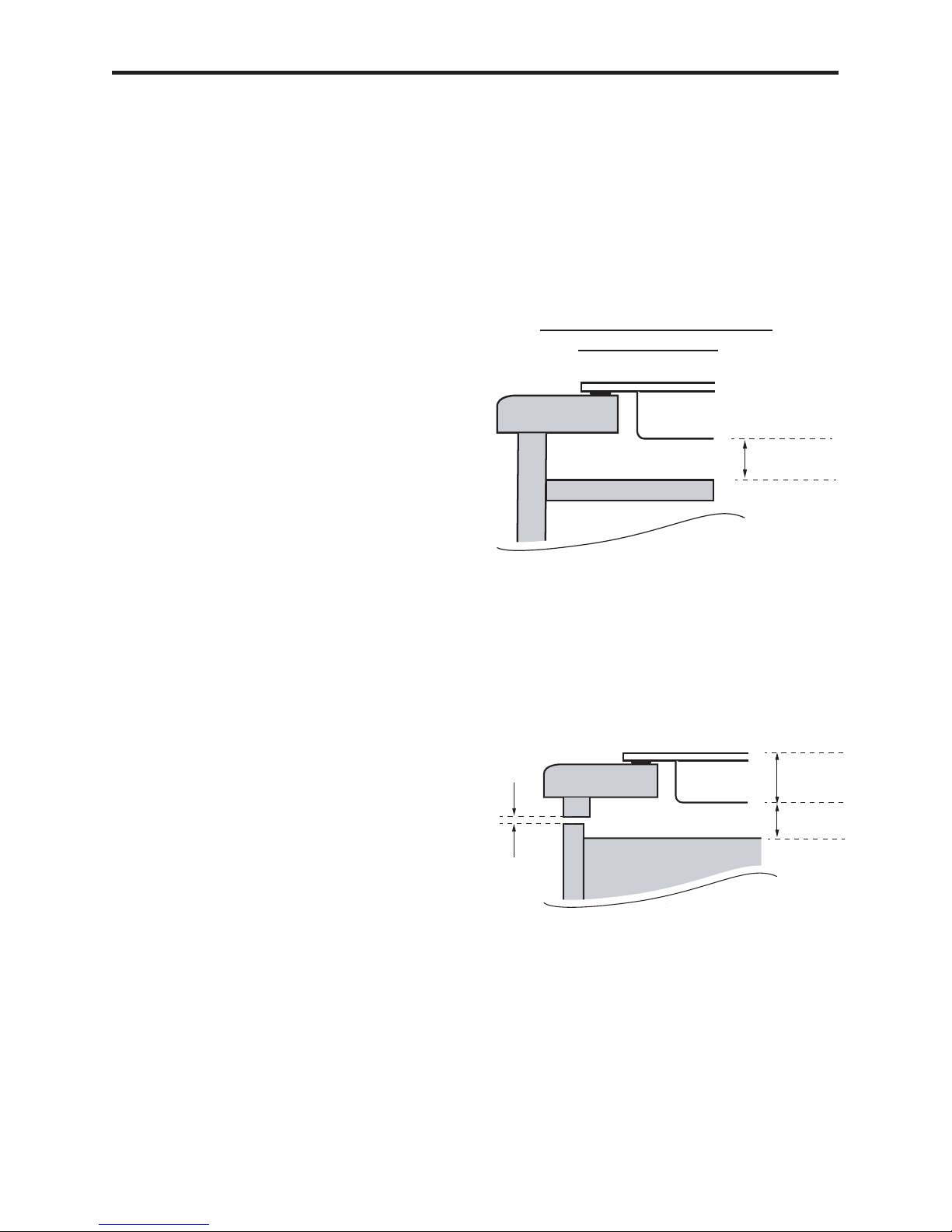

in appliances) see clearance dimensions
in the installation section of the booklet.
During use the appliance must never be
disconnected from the mains supply as
this will seriously affect the safety and
performance of the appliance, particularly
in relation to surface temperatures
becoming hot and gas operated parts
notworkingefciently.Thecoolingfanis
designed to run on after the control knob
has been switched off to keep the front of
the appliance and the controls cool until
the appliance has naturally cooled itself.

SAFETY
5.160
BEFORE USING THE PRODUCT
Make sure that you have removed all
packaging and wrapping. Some of the
items inside this appliance may have
additional wrapping.
GENERAL
WARNING! - The
appliance and its
accessible parts become
hot during use. Care
should be taken to
avoid touching heating
elements. Children less
than 8 years of age shall
be kept away unless
continously supervised.
This appliance can
be used by children
aged from 8 years and
above and persons with
reduced physical sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision
or instruction concerning
the use of the appliance
in a safe way and
understand the hazards
involved. Children
shall not play with the
appliance. Cleaning and
user maintenance shall
not be made by children
without supervision.
WARNING! -
Unattended cooking on
a hob with fat or oil can
be dangerous and may
resultinre.
NEVER try to extinguish
arewithwater,but
switch off the appliance
andthencovertheame
with a lid or damp cloth.
WARNING! - Danger of
re:Donotstoreitems
on the cooking surfaces.
Never leave any cook
zone on without a pan
covering it. This causes a
rehazard.
WARNING! - Servicing
should be carried out
only by authorised
personnel.
WARNING! - The
appliance must never be
disconnected from the
mains supply

SAFETY
5.160
during use, as this will
seriously affect the
safety and performance,
particularly in relation
to surface temperatures
becoming hot and gas
operated parts not
workingefciently.The
coolingfan(iftted)is
designed to run on after
the control knob has
been switched off.
WARNING! -
Do not spray aerosols
in the vicinity of this
appliance while it is in
operation.
WARNING! - Do not
storeoruseammable
liquids or items in the
vicinity of this appliance.
WARNING! -
Do not modify this
appliance.
WARNING! - Do not
operate the appliance
without the glass panel
correctlytted.
WARNING! - There is
a risk of electric shock,
so always make sure
you have turned off
and unplugged your
appliance before
starting. Always allow
the product to cool down
before you change a
bulb.
WARNING! - Do not
modify the outer panels
of this appliance in any
way.
WARNING! - This
appliance must be
earthed.
WARNING! - The top
element gets extremely
hot when in use, so take
care to avoid touching it.
ELECTRIC INDUCTION HOB
WARNING:-
Unattended cooking on
a hob can be dangerous
andmayresultinre.

SAFETY
5.160
NEVER try to extinguish
arewithwater,but
switch off the appliance
andthencoverame
e.g. with a lid or a damp
cloth.
Dangerofre:donot
store items on the
cooking surface.
If the surface is cracked,
broken or shattered,
switch off the appliance
to avoid the possibility of
electric shock and call for
a service engineer’s visit.
Metallic objects such as
knives, forks, spoons and
lids should not be placed
on the hob surface since
they can get hot.
Ensure you switch off
the appropriate cook
zone individually or (by
the central on/off key if
touch control) when you
havenishedcooking,
do not rely upon the
automatic pan detection
system as your means
of switching “off” the
appliance.
This induction hob
complies with the
applicable EMC and EMF
standards. Therefore it
should not interfere with
other electronic units.
Personsttedwitha
pacemaker or any other
electrical implant should
clarify with their doctor
or the producer of the
implant, whether there
implant is adequate and
fail-safe.
The pacemaker
must be designed
in compliance with
the appropriate
regulations.
Caution: This appliance
is for cooking purposes

SAFETY
5.160
only. It must not be used
for other purposes, for
example room heating.
Induction Hob
Parts of the appliance
may become hot while
in use. Always make
sure that children
are supervised when
they are near to the
appliance.
Always position pans
over the centre of the
cook zone, and turn
the handles to a safe
position so they cannot
be accidentally knocked
or grabbed.
Do not leave pans on
the hob when you’re not
around - take them off
the cook zone if you
have to leave the kitchen
even if you think it will
only be for a moment,
while you answer the
door or phone.
If you use a griddle plate
ensure it is completely
cool before attempting
to lift it from the hob as
residual heat may cause
burns, Always use oven
gloves to protect your
hands.
The appliance has a
glass hob top, make
sure you do not drag
pans across the ceramic
surface as this will
lead to scratches and
damage.
Do not use the hob
surface as a chopping
board or food
preparation area as this
may lead to it becoming
damaged.
The glass ceramic can
get hot whilst cooking;
even though the cook
zone itself does not
generate heat. The heat
generated is conducted
back from the hot pans.

SAFETY
5.160
Keep electrical leads
from trailing over or
going near the hob.
The appliance must
never be disconnected
from the mains supply
during use as this will
seriously affect the
safety and performance,
particularly in relation
to surface temperatures
becoming hot and
component parts not
workingefciently.The
coolingfan(iftted)is
designed to run on after
the control has been
switched off.
Fire Safety Advice
Mostkitchenresoccurwhenpeopleare
distracted or leave things unattended, so
remember:
If you’re called away from the cooker - by
the phone or someone at the door, either
take pans off the heat, or switch off your
hob.
Don’t let yourself be distracted while
cooking.
Ifyoudohaveareinthekitchen,don’t
take any risks - get everyone out of your
home and call the Fire Brigade.
Unattended cooking on a hob with fat or
oil can be dangerous and may result in a
re.NEVERtrytoextinguisharewith
water, but switch off the appliance and
thencoveramee.g.withalidorare
blanket.
WARNING - If a pan catches re:
• Do not move it - it is likely to be
extremely hot
• Turn off the heat if it’s safe to do so
- but never lean over a pan to reach
the controls.
• Ifyouhaveareblanket,putitover
the pan.
• Ifyouhaveputthereout,leavethe
pan to cool completely.
Deep-fat frying presents more
dangers in your kitchen.
• Neverllachippan(orotherdeep-
fat fryer) more than one-third full of
oil
• Donotuseareextinguisher
on a pan of oil - the force of the
extinguishercanspreadthereand
createareball.
If you have an electrical re in the
kitchen:
• Pull the plug out, or switch off the
power at the fuse box - this may be
enoughtostopthereimmediately
• Smothertherewithareblanket,
or use a dry powder or carbon dioxide
extinguisher
• Never use water on an electrical or
cookingoilre.
DISPOSAL
Packaging Material
The packaging materials used with this
appliance can be recycled.
Please dispose of the packaging materials
in the appropriate container at your local
waste disposal facilities.

SAFETY
5.160
Old Appliances
The Symbol on the product or on
its packaging indicates that this product
may not be treated as household waste.
Instead it should be taken to the appli-
cable collection point for the recycling of
electrical and electronic equipment.
You will by ensuring the appliance is cor-
rectly disposed of help prevent potential
negative consequences for the environ-
ment and human health.
For additional details regarding the recy-
cling of this product please contact your
localgovernmentofce,yourhousehold
waste disposal service or the retailer
where you purchased the product.

a
e
b
f
c
g
d
h
+=
=
USING THE HOB
Touch Control
The touch controls for your induction hob
have been designed to provide you with
ngertipcontrolofyourhob,providing
accurate and repeatable power settings
for cooking and an easy clean surface that
can be easily wiped over. When a cook
zone is activated the power setting is
displayed for each zone individually.
Using the Touch Controls
Usetheatofyournger,notthetip,the
controls respond to touch, so you don’t
need to apply any pressure.
Always ensure the control area is clean,
dry and free from of any objects (e.g.
utensils, tea towels and cloths), spillages
andwatermaymakethecontrolsdifcult
to operate. A warning will be activated
and will beep to attract your attention.
ER03 will be displayed and the control
will switch off after 10 seconds. Please
remove any objects and clean the control
area as appropriate.
Central On/Off switch.
a
e
b
f
c
g
d
h
+=
=
The central on/off switch enables all of
the cooking zones to be switched off
simultaneously at a touch of a key.
To switch on the hob
The hob is switched On by touching the
“ON/OFF” key for 1 sec. A beep sounds
and all the zone displays show a full stop
in the cook zone display. If the selection
of a zone is not done in 10 seconds, the
hob will turn off automatically.
The hob is switched Off by touching the
“ON/OFF” key for 1 seconds. A beep
sounds and all the zones are switched Off.
Switching on an individual hob cook
zone
To switch on a cook zone it is necessary
to actuate every cooking zone by means
of two operations:
1. Touch the required cook zone key for
approx 1 second a beep sounds and
the heater display shows the power
level with normal brightness.
The zones that are not selected are
dimmed. When the cook zone selec-
tionisnishedafter10seconds,a
beep sounds and all the zone displays
that were dimmed show the power
levels with normal brightness.
2. Select the required power setting us-
ing the up +/down – keys.
Switching off an individual Hob Cook
zone
Once the cook zone is selected, it can be
switched off by touching the down [-] key
until the corresponding display shows “0”.
a
e
b
f
c
g
d
h
+=
=
1
2
3
4
5
Note;
Generic illustration shown above your
appliance may visually dier.
COOK ZONE KEYS
INDIVIDUAL COOK ZONE DISPLAYS
POWER DOWN KEY (-)
POWER UP KEY (+)
ON/OFF KEY
6TIMER DISPLAYS
11
2
6
2 2
3
3 4
5
a
e
b
f
c
g
d
h
+=
=

USING THE HOB
Power Boost
Temporarily boost the power to the front
left and rear right cook zones by approx
15% ‘P’. The zones can be boosted for a
period of up to 5 minutes. After 5 minutes
a beep sounds and the zone will return to
level “9”.
Quick Operation
With the cook zone at power level 0,
touch the down [-] key the power level
will raise straight to 9. With the cook zone
at power level 9, touch the up [+] key the
power level will raise to the Power Boost
level and a beep sounds and the zone
display shows “P”.
Minute Minder
The minute minder uses the displays for
the two rear cook zones, either side of the
clock symbol. The minute minder bleeps
when the set time has expired – it does
not switch off any zone.
To operate:
1. Turn on the hob, using the on/off key.
2. Ensure that no cooking zones have
been selected. Select the minute
minder by pressing the up (+) and
down (-) keys simultaneously – the
display will show 00.
3. Set the minute minder by pressing
the up (+) and down (-) keys. Press-
ingdown(-)rstsetsthetimerto30
minutes. This can then be adjusted
using the up (+) and down (-) keys.
4. The maximum time that can be set is
99 minutes.
5. The minute minder is now set and
begins counting down.
6. You can now use the hob as normal.
7. If the hob is turned off then minute
minderoperationisshownbyashing
dots on the display.
When the time is up
1. The minute minder will bleep and the
timerdisplayashes.
2. Touch any key to stop.
Additional minute minder
information:
To modify or cancel the minute minder:-
1. Follow steps 1 to 5 above if the hob
is turned off.
2. Follow steps 2 to 5 above if the hob
is turned on.
3. Setting back to zero will cancel the
minute minder.
Timer auto switch off
The timer uses the displays for the rear
cook zone, either side of the clock sym-
bol. The timer can be set to automatically
turn off a cooking zone. All four cook
zones can be simultaneously timed to turn
off automatically. Cook zones can be set
for a maximum time of 99 minutes.
Warning!: Never leave the hob unat-
tended when in use, even when you have
set the timer to turn off the cook zone.
To operate
1. Select the cook zone to be timed,
ensuring power level is already set
before selecting timer.
2. Select the timer by pressing the up
(+) and down (-) keys simultaneously
– the timer display will show 00 and
adotwillashintheselectedcook
zone display.
a
e
b
f
c
g
d
h
+=
=

USING THE HOB
3. Set the timer by pressing the up (+)
and down (-) keys. Pressing down
(-)rstsetsthetimerto30minutes.
This can then be adjusted using the
up (+) and down (-) keys.
4. The timer indicator in the display
stopsashingandisnotdisplayed.
Operation of a timer is shown by a
stationary dot in the cook zone dis-
play for the timed cook zone.
When the time is up
1. Thetimerdisplaywillash,thetimer
will beep and the cook zone will auto-
matically turn off.
2. The timed cook zone display will
showaashingdot.
3. Touch any key to stop the beeping.
Additional timer information
To modify or cancel a timer follow steps 1
to 4 above in “To operate”. Setting back to
zero will cancel the timer. To set the timer
for additional zones follow steps 1 to 4
above in “To operate”.
To check the timer setting for a cook zone
select a timed cook zone and then press
the up (+) and down (-) keys simultane-
ously to show the time remaining.
If multiple timers have been set then the
timers can be checked as follows:-
1. Ensure that a cooking zone has not
been selected.
2. Select the timer by pressing the up
(+) and down (-) keys simultane-
ously.
3. Press the up (+) and down (-) keys
as many times as necessary to dis-
play the timer for the required cook
zone (the active cook zone times are
cycled clockwise). The stationary dot
inthecookzonedisplaywillash
when the timer is displayed for that
zone.
4. If the minute minder has also been
setitwillbedisplayedrst.Inthis
case other timed cooking zones are
shown by a stationary dot in the cook
zone display.
Pan detection
As soon as you lift the pan off the zone
the power is automatically reduced, help-
ing to save energy. The above “U” symbol
appears when a zone has been activated
but no pan has been placed on the cook
zone, If the “U” symbol does not disap-
pear when a pan is placed on the zone it
indicates that the pan is not suitable for
induction cooking.
Note: This means the hob only uses
power when a suitable pan is placed on
the zone, this reduces the energy used
during the cooking process, i.e. when
you take your pan off the zone the hob
automatically reduces the power, and only
switches back on when you replace the
pan.
Child Lock “L”
This feature is to help prevent accidental
switching on of the hob, especially by
young children.
To Activate:
1. Select the On/Off Key.
2. Simultaneously touch the RHF cook
zone and the down (-) keys, the hob
should beep.
3. RemovengersandtouchtheRHF

USING THE HOB
cook zone again. (L should appear in
all the cook zone displays).
4. Switch off the hob.
When you now switch on the hob “L” will
appear in all the cook zone displays. The
child lock feature will be permanently acti-
vated, to de-activate follow the procedure
below.
To de-activate the child lock:
1. Select the On/Off Key. (L will be
displayed on all Cook Zones).
2. Simultaneously touch the RHF cook
zone and the down (-) key, the hob
should beep.
3. Removengersandtouchthedown
(-) key again. (The hob should switch
off).
4. When you now switch on the hob
“0” will be displayed in all cook zone
displays, the hob can now be used
normally.
Pans & cookware for induction hobs
Pans and cookware for induction
cooking zones must be made of metal and
have magnetic properties. The base must
also be of the correct diameter.
Suitable Pans and Cookware for
Induction Hobs
Enamelled steel pans with thick base
Cast Iron pans with an enamelled base
Pans made of multi-layer stainless steel,
rustproof ferrite steel or aluminium with
a speical base
Pans marked for use with induction
It’simportantthatgoodqualityatbot-
tomed pans are used, if a pan creates a
large air gap over the middle of the cook-
ing zone, the accuracy of the temperature
sensing can be affected. Always ensure
that pan bases are dry before using them
on the hob.
Get a magnet, if a magnet doesn’t stick to
your pan, it is not suitable for use on the
induction hob.
Enamelled steel pans can have bases
which are magnetic but are not thick
enough! We recommend that you buy
pans that are marked/advertised as being
suitable for induction.
Minimum pan sizes
Cook Zone Smallest
Recommended Pan
Diameter
LHF 145mm
LHR 130mm
RHR 145mm
RHF 130mm
Auto power tuning
Induction hobs have a unique power tun-
ing system that automatically tunes the
power to the size of the pan base, this
ensures energy isn’t wasted.
Overheat protection helps to look after
your pans. The hob is equipped with
additional safety systems that help to
prevent cookware from overheating,
providing an additional level of safety not
available on conventional hobs such as
Unsuitable Cookware
Pots made of copper, stainless steel,
aluminium, oven proof glass, wood,
ceramic and terracotta

USING THE HOB
gas and ceramic.
Thishelpsreducetheriskofrethrough
any misuse of the hob.
Note: The safety temperature control
of the pans is only possible with quality
atbottomedpanssuitableforinduction
cooking; Poor quality pans can create
air gaps between the glass and the
pan, which affects the accuracy of the
temperature control.
Residual heat indicators
If glass surface is above 65ºC when the
cook zone is switched off an “H “will be
displayed in the cook zone display until
the glass surface drops below approx
63ºC.
This feature not only warns you against
hot surfaces but also indicates that there
is residual heat which can be used as
temporary warm zone.
The cook zone itself does not heat up,
but the ceramic glass does get hot
because of the hot pan conducting heat
back onto the hob glass.
Auto stand by
The Hob will automatically switch off if
left (with pan) on for an extended period
of time, see maximum running times
below.
Power Level
Maximum
Operation Time
hours
1 8
2 6
3 5
4 5
5 4
6 1.5
7 1.5
8 1.5
9 1.5
P (Power Boost) Max 5mins
Ensure you switch off the appropriate
cook zone individually or by the central
on/offkeywhenyouhavenished
cooking, do not rely upon the automatic
pan detection system as your means of
switching “off” the appliance.
The appliance must never be discon-
nected from the mains supply during use
as this will seriously affect the safety and
performance, particularly in relation to
surface temperatures becoming hot and
componentpartsnotworkingefciently.
Thecoolingfan(iftted)isdesignedto
run on after the cook zones have been
switched off.
This induction hob complies with the
applicable EMC and EMF standards.
Therefore it should not interfere with
otherelectronicunits.Personsttedwith
a pacemaker or any other electrical
implant should clarify with their doctor or
the producer of the implant, whether
there implant is adequate and fail-safe.
a
e
b
f
c
g
d
h
+=
=
Approx Glass
Surface
Temperature
Intelligent hob
saftey system
225ºC Cooking zone
switches
off the error
message “E2”
265ºC All cooking zones
are
switched off with
the error message
“E2”

USING THE HOB
The pacemaker must be designed
in compliance with the appropriate
regulations.
Troubleshooting
If you encounter a problem, it is often something minor, please read some
of the suggested tips below.
Thehobproducesasmelltherstfew
times it is used
This is normal - Heat a pan full of water
on each zone for half an hour.
Pans make a noise during cooking!! This is caused by vibration due to the
passage of energy from the hob to the
pan. On a high setting this is quite normal
for certain types of saucepan. It will not
damage the hob.
The hob makes a slight clicking sound This is Normal - This is caused by the dis-
tribution of power between two heating
zones on the same side of the hob.
The fan keeps working for a few minutes
after the hob has been turned off
This is Normal - To cool down the
electronics.
The hob won’t work. The indicators don’t
come on
The electricity supply is not reaching the
appliance (faulty supply or connection);
Check the fuses and the cut-out switch.
Refer to Troubleshooting chart and if
problems persist call, the customer ser-
vice hot-line for further assistance.
The hob has turned itself off Check that the main on/off switch has
not been touched or covered accidentally,
remove any objects on the hob and try
turning it back on again.
Repairs Repairs are to be carried out by trained
service technicians.

USING THE HOB
Error Codes
Appliance
Errors Fault Description Action
ER03 and
permanent
tone
Continuous button actua-
tion; control switches off
after 10 s
Clean the user interface.
E2 Over temperature Allow system to cool
E3
1. Pot/pan not suitable,
example Loss of magnetic
properties because of tem-
perature at bottom of pot.
2. Power of cooking zones
permanently exceeded
1. This error is reset after 30 s; the
cooking zones can be used again. The
pot/pan must be removed if the fault
keeps reoccurring.
2. The power unit must be replaced
if the error continues to be displayed
even when no pot/pan is present on the
cooking zone.
E/H Invariable resistor fault Induction module must be cool

CLEANING
ELECTRIC HOB
Ceramic glass hobs
• The ceramic hob top can be cleaned
using a clean, damp cloth or kitchen
paper. Do not use a used dishcloth
orspongeastheycanleavealmof
detergent on the surface which can
lead to discoloration. Please ensure
that the elements are cooled fully to
avoid steam burns.
• You can use a specialist ceramic
cleaner to restore the surface, but
use sparingly to avoid coating the
hob top too thickly. Too much cream
cleaner will lead to discolouration.
Use a dry, clean cloth to polish the
surface.
• For stubborn marks, a specialist hob
scraper can be used.
• Do not use steam cleaners or high
pressure cleaning equipment.
• Regular cleaning will prevent any
salts or minerals from accumulating
on your hob and discolouring the
glass.
• Wipe any spillage as soon as pos-
sible.
• Clean the hob top as regularly as
possible, this will prevent any build
upofgreasewhichmaybeare
hazard.
• Foods with high sugar content (tof-
fee, fruit juice, jam, etc.) that boil
over while cooking, or spattered
sugar stains must be immediately
removed using a scraper even if hot.
Notes:
• The edge of the ceramic glass will
always appear to be a different colour
than the top surface due to the
ground safety edge.
• Scratches or dark stains on the ce-
ramic glass that cannot be removed
do not affect the function of the
appliance.
Safety when Cleaning
• For cleaning, the appliance must be
switched off and cooled down.
Risk of burns from residual heat

INSTALLATION
• We recommend that you install this
appliance in a work top which is a
minimum 38mm deep.
• Thehobcanbettedintoaworktop
less than 38mm deep, but the 20mm
gap between hob base and appliance
or cabinet partition must be main-
tained.
Worktop
25mm
Oven
Hob
INSTALLATION ABOVE AN OVEN
Worktop
25mm
Partician
Hob
Partition
INSTALLATION ABOVE A UNIT WITH
A DRAWER OR DOOR
Installation above an oven
Refer to the manufacturer’s instructions
for clearances above the oven. We recom-
mend a 20mm gap between the bottom
of the hob and appliance, should the work
surface be less than 38mm deep.
In the case of a pyrolytic oven
If installing the hob above a pyrolytic
oven, additional provision for air circula-
tion / ventilation may be required. Due to
the excessive temperatures attained dur-
ing pyrolysis, using the hob at the same
time may cause the thermal safety device
within the hob to operate.
General information
Installation should only be carried out by
aqualiedinstallerorengineer.
Please keep to the following points most-
carefully;
Although every care has been taken to
ensure this appliance has no burrs, or
sharp edges, we recommend that you
wear protective gloves when install-
ing and moving this appliance. This will
prevent injury.
Thehobshouldnotbettedabovea
washing machine, a fridge or a freezer.
Wall surfaces above the work surface and
in the immediate vicinity of the cooking
hob must be heat resistant.
Laminated surfaces and the adhesive
usedforxingthemmustbeheatresis-
tant in order to avoid any damage.
The space for air circulation, located
underneath and at the back of the hob
improves its reliability by ensuring that it
willcooldown,efciently.
Installations should be carried out in line
with the National Regulations applicable
with this product type.
Choosing your installation
Make sure that the air inlets through the
ventilator grids underneath the hob are
never blocked.
Installation above a unit with a
drawer or door
The Hob’s air outlet is underneath work
surface. If necessary, remove the front
crosspiece of the unit to allow suitable
ventilation.
40mm Hob
Worktop
Screw
50mm Hob
Worktop
Screw
30mm Hob
Worktop
Screw
Worktop
20mm
oven or partition
Hob
5mm

INSTALLATION
Clearances and dimensions – re-
quirements
1. No shelf or overhang of combus-
tible material should be closer than
650mm above the hob.
2. There must be a minimum clearance
of 50mm between the edges of the
hob and any side walls; this clearance
must be maintained up to 420mm
above the worktop.
3. There must be a minimum clearance
of 50mm between the rear edge
of the hob and the rear wall. This
clearance must be maintained up to
650mm above the worktop.
4. When installing an extractor hood
above the hob, refer to their Manu-
facturer’s instructions.
side wall 50 mm
rear wall
50 mm
Cutout Required
Width 560mm
Depth 490mm
Clearance Required
Side Wall 50mm
Rear Wall 50mm
Fitting into worktop
Cut a hole in the work surface to the
required size. See table for relevant
dimensions.
A clearance of at least 50mm should be
maintained between the cutout and any
rear or side wall.
The worktop must be of heat-resistant
material or covered with heat-resistant
material.
560mm
50mm Min
50mm min
420mm min
490mm
Minimum distance
between carcasses must
be equal to width of hob
*
Minimum height to extractor
as recommend in extractor
instruction manual
*
50mm min between hob and rear wall
(>60mm to cut out aperture)

INSTALLATION
Protecting the cut-out;
The types of chipboard used for work
surfaces swell relatively quickly in contact
with humidity.
Apply a special varnish or adhesive to
the cut edge to protect it from steam or
condensation which may form under the
work surface under the hob.
This hob can be installed conventionally
(glass above the work top) or recessed
intotheworktopforausht.
Conventional Installation
Apply the self adhesive seal to the un-
derside edges of the hob glass. For best
results, the seal should be adhered along
each side in turn, as close to the edge as
possible, and trimmed at each corner, tak-
ing care to ensure a neat join.
Place the hob in the aperture, checking
the hob glass is covering the work top
along all four sides.
Set the front edge of the appliance paral-
lel with the front of the work top.
Locate and attach the securing clamps
as required, Tighten the screws so that
thehobispulleddownrmlyagainstthe
worktop, thus ensuring a good seal.
Recessed Method (selected models)
Recess the work top to the appropriate
depth(Approx5mm)andshapetotthe
hob (add 1mm to overall glass size.
Apply the self adhesive seal to the
underside of the hob glass. For best
results, the seal should be adhered along
each joint in turn, as close to the edge
as possible, and trimmed at each corner,
taking care to ensure a neat join. Insert
the hob into the recess, ensuring that the
foam seal is sitting correctly.
Locate and attach the securing clamps to
the front and rear underside of the hob,
using the screws provided. Tighten the
screws so that the hob is pulled down
rmlyagainsttheworktop,thusensuring
a good seal.
Youmaywanttollanygapbetweenthe
hob top glass and the work top surface
withsiliconesealant.DONOTtsilicone
sealant under the glass hob instead of
foam seal.
1
1. Self adhesive seal
Worktop Hob
CONVENTIONAL INSTALLATION
1
Worktop Hob
RECESSED METHOD
1. Self adhesive seal
2. Silicone sealant
2 1
1
1. Self adhesive seal
Worktop Hob
CONVENTIONAL INSTALLATION
1
Worktop Hob
RECESSED METHOD
1. Self adhesive seal
2. Silicone sealant
2 1
DO NOT USE POWER
TOOLS TO TIGHTEN BRACKET OR TERMINAL BLOCK SCREWS
- OVER-TIGHTENING COULD RESULT IN DAMAGE TO THE HOB.
