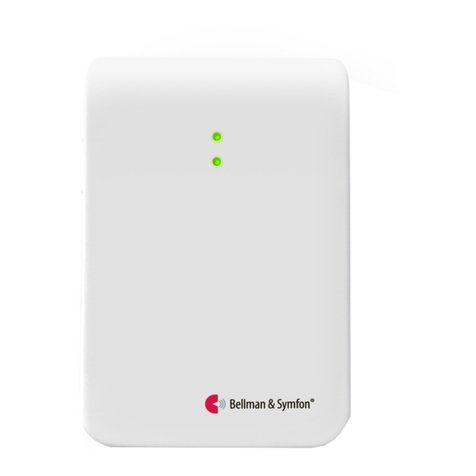

Bellman & Symfon BE1431 Assembly instructions

Montera
1Dra bort batterilappen för att starta telefonsändaren. Rengör väggytan med
våtservett och ta bort skyddsplasten från kardborrebandet.
2Klistra upp telefonsändaren på väggen. Du kan också använda skruv och plugg.
3Anslut mellanproppen mellan telefonkontakten och telefonjacket.
1
2
3
Testa
1Be en vän att ringa upp din fasta telefon eller använd mobiltelefon.
2När din fasta telefon ringer, indikerar Visitmottagaren med ljud, ljus eller
vibrationer (beroende på mottagare) och en upplyst telefonsymbol.
Om den inte reagerar, läs mer i avsnittet Felsökning.
12
SE
45 46

1
2
Tillbehör
Telefonsändaren kan kompletteras med följande tillbehör:
1 Trampmatta – Aktiveras när någon trampar på den
2 Mobilsensor – Aktiveras när mobilen ringer eller tar emot ett meddelande
3 Magnetbrytare – Aktiveras när en dörr eller ett fönster öppnas/stängs
4 Extern trigg kabel – För anslutning till t.ex dörrklocka eller porttelefon
3
Läs mer i
Installer’s Guide
4
Teknisk information
Strömförsörjning Batteridrift: 2 x 1,5 V AA (LR6) litium eller alkaliska batterier
Strömförbrukning Aktiv < 70 mA, Viloläge < 15 μA
Drifttid Alkaliskt batteri ~ 5 år, Litiumbatteri ~ 10 år
Aktivering Via testknappar, telefonuttag, 2,5 mm extern trigg för mobilsensor och 3,5
mmexterntrigg för trampmatta, magnetbrytare eller galvaniskanslutning
Radiofrekvens 868,3 MHz, 433,92 MHz eller 315 MHz beroende på region
Räckvidd 50 – 250 m fri sikt beroende på radiofrekvens. Räckvidden reduceras
av väggar, stora föremål och andra radiosändare som t.ex TV och
mobiltelefon.
Antal radionycklar 64 som standard. Upp till 256 med extra programvara.
Tillbehör BE9251 Mobilsensor, BE9024 Trampmatta
BE9023 Magnetbrytare, BE9253 Extern trigg kabel
Övrig information
Användning och lagring För inomhusbruk.Temperatur :15°-35° C. Relativ luftfuktighet: 5%-95%
Rengöring och underhåll Underhållsfri. Rengör endast med mjuk duk. Använd inte rengörings-
medel, lösningsmedel, ammoniak eller alkohol. Ej återanvändbar.
Säkerhet Information om bestämmelser och säkerhet nns i Installer’s Guide.
Service och support Information om garanti, service och support nns i Installer’s Guide.
SE
47 48

Om Gör så här
Lysdioderna blinkar
orange en gång per
minut
•Bytbatterier.Användendast1,5VAA(LR6)litium
eller alkaliska batterier.
Lysdioden på telefon-
sändaren lyser grönt
men mottagaren
aktiveras inte
• Kontrolleraattbatteriernaimottagarenochtelefon-
sändaren fungerar och att alla kontakter är anslutna.
•Flyttamottagarennärmaretelefonsändaren.
•Kontrolleraattmottagarenochtelefonsändarenär
inställda på samma radionyckel. Läs mer i avsnittet
Changing the radio key i Installer’s Guide.
Lysdioden på telefon-
sändaren tänds inte när
telefonen ringer
eller när tillbehöret
aktiveras
•Trycksamtidigtpåbådatestknapparna.
• Omlysdiodentänds,kontrollerakabelanslutningarna.
•Omlysdiodenintetänds,bytbatterier.Använd
endast 1,5 V AA (LR6) litium eller alkaliska batterier.
Felsökning
Om Gör så här
Lysdioden tänds inte
när jag trycker på
test-knapparna
•Bytbatterier.Användendast1,5VAA(LR6)litium
eller alkaliska batterier. Om lysdioden fortfarande inte
tänds, Kontakta din återförsäljare för information om
garanti och service.
Visitmottagaren
aktiveras utan
anledning
•DetnnstroligenettannatVisitsysteminärheten
som aktiverar din mottagare. Byt radionyckel på alla
enheter. Läs mer i avsnittet Changing the radio key i
Installer’s Guide.
SE
49 50

59 Introduction
61 Installation
62 Testing
63 Advanced testing
65 Customizing the signal
75 Trouble shooting
77 Trigger input
78 Technical information
Installer’s Guide
58

Introduction
Function
The telehone transmitter is part of the Visit alerting system that helps people
with hearing loss to notice signals in their home. It detects landline phones by
default but can also detect a number of other sources.
Connections
Landline telephone
RJ11 input to analogue telephone network: 26 - 120 V RMS, 15 - 100 Hz.
Smartphone or tablet
2.5 mm ext trig input via the BE9251 Mobile phone sensor accessory
BE9024 Contact mat or BE9023 Magnetic switch accessory
3.5 mm ext trig input
Doorbell, intercom, etc.
3.5 mm ext trig input via the BE9253 Cable accessory
Overview
Test buttons LED lights 3.5 mm ext trig Contact mat Magnetic switch
Landline telephone
2.5 mm ext trig Mobile phone sensor
Galvanic connection
59 60

1
2
3
Installation
1Remove the battery pull tag to start the telephone transmitter. Clean the
wall with the wet wipe and remove the protective lm from the Velcro.
2Mount the telephone transmitter on the wall.You can also use a screw and plug.
3Connect the telephone adapter between the telephone plug and the socket.
12
Testing
1Use your mobile phone to call the landline telephone.
2When the landline telephone rings, the Visit receiver lights up a telephone
symbol and indicates with sound, lights or vibrations (depending on the
receiver). If it doesn’t react, read the section Advanced testing.
61 62

Advanced testing
Testing the telephone transmitter is easy. First, make sure that the telephone
transmitter is installed properly. For instructions, read the section Installation.
Using the test button
Press both test buttons simultaneously.
1The transmitter’s LED lights up to show that a radio signal is being transmitted.
2TheVisitreceiver’s telephone symbollightsupto show thatthesignalwas received.
If you have customized the signal, it will react accordingly. See tables on page 67-70.
Using a telephone or a connected accessory
Activate the telephone transmitter using the telephone or any of the accessories.
1The transmitter’s LED lights up to show that a radio signal is being transmitted
2TheVisitreceiver’s telephone symbollightsupto show thatthesignalwas received.
If you have customized the signal, it will react accordingly. See tables on page 67-70.
If it doesn’t work as described above, read the section Trouble shooting.
Transmitter rce Receiver
Source LED LED Sound Vibration Flash
Landline phone Green, top Yellow light 1 x ring, Lo Fast Yes
Smartphone Green, top Yellow blink 2 x ring ring, Hi Fast Yes
Contact mat
Magnetic switch
Doorbell etc.
Green,
bottom
Green light 1 x ding dong, Lo Slow Yes
Default indication and signal
Transmitter indication
When the transmitter is activated, the LED lights up in green. This means that
the batteries are in good condition. Change batteries if the LEDs blink in orange.
Receiver signal
When a receiver is activated, it signals with sound, ashes or vibrations. The
default signal pattern is as follows:
63 64

Customizing the signal
The telephone transmitter controls the signal pattern on the receiver. Use the
signal switches to customize the signal pattern.
How to customize the signal pattern
Move the signal switches on the Telephone transmitter according to
the tables on the following spreads.
Changing the radio key
All Visit products are set to the same radio key from factory and all switches are
positioned down=o per default.You can set a unique radio key for each system
to avoid radio interference when you install multiple Visit systems.
How to change the radio key
Move the desired radio key switches to the up=on position.
Please note: All Visit products within the same system must be set to the same
radio key in order to operate as a group.
1
2
2
1
Signal switches
(See table)
Down = O
Up = On
65 66

Signal output for 868 MHz and 315 MHz
Dip switch Output Test button 1 and
2 Landline phone Mobile phone sensor External trigger
Light Yellow light Blinking in yellow Green light
Vibration Fast pattern Fast pattern Slow pattern
Sound 1 x ring, Lo 2 x ring ring, Hi 1 x ding dong, Lo
Light Yellow light Blinking in yellow 2 x green blinks
Vibration Fast pattern Fast pattern Slow pattern
Sound 1 x ring, Lo 2 x ring ring, Hi 2 x ding dong, Lo
Light Yellow light Blinking in yellow 3 x yellow blinks
Vibration Fast pattern Fast pattern Fast pattern
Sound 1 x ring, Lo 2 x ring ring, Hi 1 x ring, Hi
Light Yellow light Blinking in yellow 2 x orange blinks
Vibration Fast pattern Fast pattern Rapid pattern
Sound 1 x ring, Lo 2 x ring ring, Hi Baby melody
67 68
Dip switch Output Test button 1 and
2 Landline phone Mobile phone sensor External trigger
Light 2 x yellow blinks Yellow light 3 x orange blinks
Vibration Rapid pattern Fast pattern Rapid pattern
Sound 2 x ring ring, Lo 1 x ring, Lo Baby melody
Light 2 x yellow blinks Blinking in orange Blinking in green
Vibration Fast pattern Rapid pattern Slow pattern
Sound 2 x ring ring, Lo Baby melody 2 x ding dong, Hi
Light Blinking in orange 3 x yellow blinks 2 x green blinks
Vibration Fast pattern Fast pattern Slow pattern
Sound Baby melody 1 x ring, Hi 2 x ding dong, Lo
Light 3 x yellow blinks 2 x yellow blinks Blinking in green
Vibration Fast pattern Fast pattern Slow pattern
Sound 1 x ring, Hi 2 x ring ring, Lo 2 x ding dong, Hi

Signal output for 868 MHz and 315 MHz
Dip switch Output Test button 1 and
2 Landline phone Mobile phone sensor External trigger
Light Blinking in yellow Yellow light Green light
Vibration Fast pattern Fast pattern Slow pattern
Sound 2 x ring ring, Hi 1 x ring, Lo 1 x ding dong, Lo
Light Blinking in yellow Yellow light 2 x green blinks
Vibration Fast pattern Fast pattern Slow pattern
Sound 2 x ring ring, Hi 1 x ring, Lo 2 x ding dong, Lo
Light Blinking in yellow Yellow light 3 x yellow blinks
Vibration Fast pattern Fast pattern Fast pattern
Sound 2 x ring ring, Hi 1 x ring, Lo 1 x ring, Hi
Light Blinking in yellow Yellow light 2 x orange blinks
Vibration Fast pattern Fast pattern Rapid pattern
Sound 2 x ring ring, Hi 1 x ring, Lo Baby melody
Dip switch Output Test button 1 and
2 Landline phone Mobile phone sensor External trigger
Light 3 x yellow blinks Yellow light 3 x orange blinks
Vibration Fast pattern Fast pattern Rapid pattern
Sound 1 x ring, Hi 1 x ring, Lo Baby melody
Light Blinking in orange 3 x yellow blinks Blinking in green
Vibration Rapid pattern Fast pattern Slow pattern
Sound Baby melody 1 x ring, Hi 2 x ding dong, Hi
Light Blinking in orange/red Blinking in orange/red Blinking in orange/red
Vibration 50% on/o 50% on/o 50% on/o
Sound VMA VMA VMA
Light Blinking in red Blinking in red Blinking in red
Vibration 50% on/o 50% on/o 50% on/o
Sound Fire alert Fire alert Fire alert
69 70

Dip switch Output Test button 1 and
2 Landline phone Mobile phone sensor External trigger
Light Yellow light Yellow light Green light
Vibration Slow pattern Fast pattern Slow pattern
Sound 1 x ding dong, Hi 1 x ring, Lo 1 x ding dong, Lo
Light Yellow light Yellow light Green light
Vibration Slow pattern Fast pattern Fast pattern
Sound 1 x ding dong, Hi 1 x ring, Lo 1 x ring, Hi
Light Yellow light Yellow light Yellow light
Vibration Slow pattern Fast pattern Slow pattern
Sound 1 x ding dong, Hi 1 x ring, Lo 1 x ding dong, Hi
Light Yellow light Yellow light Orange light
Vibration Slow pattern Fast pattern Slow pattern
Sound 1 x ding dong, Hi 1 x ring, Lo Baby melody
Signal output for 433 MHz
Dip switch Output Test button 1 and
2 Landline phone Mobile phone sensor External trigger
Light Yellow light Yellow light Orange light
Vibration Slow pattern Fast pattern Fast pattern
Sound 1 x ding dong, Hi 1 x ring, Lo 2 x ring, Lo
Light Yellow light Orange light Green light
Vibration Fast pattern Slow pattern Slow pattern
Sound 1 x ring, Lo Baby melody 1 x ding dong, Lo
Light Orange light Yellow light Green light
Vibration Slow pattern Slow pattern Fast pattern
Sound Baby melody 1 x ding dong, Hi 1 x ring, Hi
Light Yellow light Yellow light Orange light
Vibration Fast pattern Slow pattern Slow pattern
Sound 1 x ring, Lo 1 x ding dong, Hi Baby melody
71 72

Dip switch Output Test button 1 and
2 Landline phone Mobile phone sensor External trigger
Light Yellow light Yellow light Green light
Vibration Fast pattern Slow pattern Slow pattern
Sound 1 x ring, Lo 1 x ding dong, Hi 1 x ding dong, Lo
Light Yellow light Yellow light Green light
Vibration Fast pattern Slow pattern Fast pattern
Sound 1 x ring, Lo 1 x ding dong, Hi 1 x ring, Hi
Light Yellow light Yellow light Yellow light
Vibration Fast pattern Slow pattern Fast pattern
Sound 1 x ring, Lo 1 x ding dong, Hi 1 x ring, Lo
Light Yellow light Yellow light Orange light
Vibration Fast pattern Slow pattern Slow pattern
Sound 1 x ring, Lo 1 x ding dong, Hi Baby melody
Signal output for 433 MHz
Dip switch Output Test button 1 and
2 Landline phone Mobile phone sensor External trigger
Light Yellow light Yellow light Orange light
Vibration Fast pattern Slow pattern Slow pattern
Sound 1 x ring, Lo 1 x ding dong, Hi Baby melody
Light Orange light Yellow light Green light
Vibration Slow pattern Slow pattern Slow pattern
Sound Baby melody 1 x ding dong, Hi 1 x ding dong, Lo
Light Blinking in orange/red Blinking in orange/red Blinking in orange/red
Vibration Continous pattern Continous pattern Continous pattern
Sound VMA VMA VMA
Light Red light Red light Red light
Vibration Continous pattern Continous pattern Continous pattern
Sound Fire alert Fire alert Fire alert
73 74

If Try this
Two orange lights
appear every minute
•Change batteries. Only use 1.5 V AA (LR6) lithium or
alkaline batteries.
A green light appears
on the transmitter
but the receiver is not
activated
•Checkthetelephonetransmitter’sandthereceiver’s
batteries and connections.
• Movethereceiverclosertothetelephonetransmitter.
• Checkthatthetelephonetransmitterandthereceiver
is set to the same radio key. For more information, see
Changing the radio key.
No green light ap-
pears on the transmit-
ter when the phone
rings or when the
accessory is activated
•Pressbothtestbuttonssimultaneously.
•Ifagreenlightappears,checkallconnections.
•Ifnogreenlightappears,changebatteries.Only use
1.5 V AA (LR6) lithium or alkaline batteries.
Trouble shooting
If Try this
No green light appears
on the transmitter when
I press the test button(s)
• Change batteries. Only use 1.5 V AA (LR6) lithium
or alkaline batteries. If the green light still doesn’t
appear, contact your retailer for information about
obtaining warranty service.
The receiver is activated
for no reason
•ThereisprobablyanotherVisitsysteminstalled
nearby that triggers your system. Change the
radio key on all units, see Changing the radio key.
75 76

Trigger input
You can use both stereo and mono plugs. The 3.5 mm input is located on the
top right side and the 2.5 mm input under the lid.
Mono
Trig is made by closing the two connectors
Stereo
Trig is made by:
1Closing the outer and middle connector or closing the
outer and inner connector
2Applying 2-30VDC or 3-24VAC 5-150Hz between the
middle and inner connector
Please note
When you use the 2.5 mm ext trig, the event must last for more than 2 seconds
Technical information
Power supply Battery power: 2 x 1.5 V AA (LR6) lithium or alkaline
Power consumption Active < 70 mA, Idle position < 15 μA
Operating time Alkaline ~ 5 years, Lithium ~ 10 years
Activation Via test buttons, RJ11 input to analogue telephone network (26 - 120
V RMS, 15 - 100 Hz), 2.5 mm ext trig, 3.5 mm ext trig
Radio frequency 315 MHz, 433.92 MHz or 868.3 MHz depending on region
Coverage 50 – 250 m depending on radio frequency. Coverage is reduced by
walls, large objects and other radio transmitters.
Number of radio keys 64 as standard. Up to 256 with optional software.
Accessories BE9250 Mobile phone sensor, BE9024 Contact mat
BE9023 Magnetic switch and BE9253 External trig cable
Additional information
Usage and storage For indoor use only. Temperature: 15°-35° C. Relative humidity: 5% -95%.
Maintenance and cleaning Maintenance free. Clean with a dry cloth. Don’t use household cleaners,
aerosol sprays, solvents, alcohol, ammonia, or abrasives. Not reusable.
Warranty and service If your telephone transmitter appears to be damaged or doesn’t func-
tion properly, follow the advice in this booklet and the online resources.
If it still doesn’t function properly, contact your retailer for information
about obtaining warranty service.
77 78

Hereby, Bellman & Symfon decla-
res that this Telephone trans-
mitter is in compliance with
the essential requirements and
other relevant provisions of
directives:
R&TTE 1999/5/EC, LVD 1973/23/EC,
EMC 1989/336/EC, MDD 1993/42/EEC.
Use and disposal of batteries
Replace only with the same or equi-
valent type recommended by the
manufacturer. Please dispose of old,
defective batteries in an environ-
mentally friendly manner in accor-
dance with the relevant legislation in your country.
FCC compliance statement
This device complies with Part
15 of the FCC Rules. Operation
is subject to the following two
conditions: (1) this device may
not cause harmful interference,
and (2) this device must accept
any interference received, includ-
ing interference that may cause
undesired operation.
Warning: Changes or modica-
tions to this unit not expressly ap-
proved by the party responsible
for compliance could void the
user’s authority to operate the
equipment.
Note: This equipment has been
tested and found to comply with
the limits for a Class B digital de-
vice, pursuant to Part 15 of the
FCC Rules. These limits are de-
signed to provide reasonable pro-
tection against harmful interfer-
ence in a residential installation.
This equipment generates, uses
and can radiate radio frequency
energy and, if not installed and
used in accordance with the
instructions, may cause harmful
interference to radio commu-
nications. However, there is no
guarantee that interference will
not occur in a particular installa-
tion. If this equipment does cause
harmful interference to radio or
television reception, which can
be determined by turning the
equipment o and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:
• Reorient or relocate the receiv-
ing antenna.
• Increasetheseparationbetween
the equipment and receiver.
• Connecttheequipmentintoan
outlet on a circuit dierent from
that to which the receiver is con-
nected.
• Consult the dealer or an expe-
rienced radio/TV technician for
help.
For a complete Declaration of
Conformity please contact the
Bellman & Symfon European
oce.
Industry Canada statement
This device complies with Indus-
try Canada Licence-exempt RSS-
210. Operation is subject to the
following two conditions:
European oce
Bellman & Symfon Europe AB
Södra Långebergsgatan 30
421 32 Västra Frölunda
Sweden
Phone: [phone]
E-mail: [email protected]
Asia Pacic oce
Bellman & Symfon Asia Ltd.
1115-16, Main Tower, GD Int’l H.
339 Huanshi Dong Rd
Guangzhou, China, 510095
Phone: [phone]
E-mail: [email protected]
(1) this device may not cause
interference, and (2) this device
must accept any interference,
including interference that may
cause undesired operation of
the device.
Le fonctionnement de cet équi-
pement est soumis aux condi-
tions suivantes:
(1) l’équipement concerné ne doit
pas causer d’interférences, et (2) il
doit accepter toute interférence
reçue, y compris les interfé-
rences risquant d’engendrer un
fonctionnement indésirable. Cet
appareil numérique de la classe
B est conforme à la norme NMB-
003 du Canada.
This Class B digital a paratus com-
plies with the Canadian ICES-003.
Zusätzliche Information
Nur Innen verwenden. Wartungs-
frei. Reinigung mit einem nur
leicht feuchten Tuch.
79 80

DESIGN FOR EARS™
BE1431_049MAN005
bellman.com
