bemodern 2100 User manual

INSET LED Electric Fire
Model No.2100 / 2606
INSTALLATION AND OPERATION INSTRUCTIONS
Please read the instructions carefully before installation or use and keep
for future reference.

CONTENTS
1. Important Safety Information··································································· 1 - 3
2. Technical Specifications··················································································4
3. Parts and Hardware ························································································5
4. Appliance Dimensions·····················································································6
5. Installation Instructions ············································································ 7 - 8
6. Operating Instructions ····················································································9
6a. Manual Control Panel ············································································ 10
6b. Remote Controls············································································· 11 - 16
7. Maintenance································································································ 17
8. Others ·········································································································· 18

1
1. IMPORTANT SAFETY INFORMATION
1.1 Read all of the instructions carefully before using the
appliance.
1.2 For indoor use only. This appliance is not suitable for
use outside the house and only suitable for well
insulated spaces or occasional use.
1.3 Do not use this appliance in the immediate surroundings
of a bath, a shower or a swimming pool.
1.4 Do not use this fire as a free-standing appliance. It must
always be fixed to the wall, fireplace mantel, floor etc.
1.5 This fire must not be located immediately below a
socket-outlet.
1.6 This appliance must be earthed.
1.7 This appliance must not be supplied through an external
switching device, such as a timer, or connected to the
circuit that is regularly switched on and off by utility in
order to avoid a hazard due to the inadvertent resetting
of the thermal cut out.
1.8 A non-rewirable plug fitted with a 13A fuse is supplied.
Should the fuse or plug need replacing, and you are
competent to do so, it must be replaced with a 13A fuse
or plug being 13A BS1363A approved.
1.9 If the power cord is damaged, it must be repaired by the
manufacturer, its authorised service centre or
professional person.

2
1.10 Warning: in order to avoid overheating, do not allow
the appliance to be covered or let the air inlet / outlet
to become obstructed.
1.11 To reduce the risk of fire, keep textiles, curtains, or any
other flammable material a minimum distance of 1
meter from the air outlet.
1.12 Keep the power cord away from hot surfaces and hot
conditions. Do not route the power lead in front of the
appliance.
1.13 Do not use this fire in rooms that have explosive gas in
them (for example petrol), or if you are using solvents,
glue, aerosol spray or in flammable paints, as these may
catch fire.
1.14 This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
1.15 Children and vulnerable people must be supervised at
all times when using this appliance, as some parts can
become very hot and cause burns.
1.16 Do not use this appliance in small rooms when they are
occupied by persons not capable of leaving the room on
their own, unless constant supervision is provided.

3
1.17 Cleaning and user maintenance shall not be made by
children without supervision.
1.18 Children aged from 3 years and less than 8 years only
can switch on / off the appliance provided that it has
been placed or installed in its intended normal
operating position and instructions and supervisions
concerning the safe way of the use of the appliance are
offered. Children aged from 3 years and less than 8
years shall not plug in, regulate and clean the appliance
or perform user maintenance.
1.19 This appliance shall not be played with by children.
1.20 Children of less than 3 years should be kept away unless
continuously supervised.

4
2. TECHNICAL SPECIFICATIONS
Model No.: 2100/2606
Supply Voltage: AC 230-240V 50Hz
Maximum power consumption: 2KW
Power for flame effect: 2100:20.5W (LED 12.5W + Motor for flame 8W)
2606:25W (LED 17W + Motor for flame 8W)
Heat Output:
Nominal heat output (Pnom): 2KW
Minimum heat output (indicative) (Pmin): 1KW
Maximum continuous heat output (Pmax): 2KW
Auxiliary Electricity Consumption:
At nominal heat output (elmax): 12.5W
At minimum heat output (elmin): 12W
In standby mode (elSB): 0.48 W
Type of heat output / room temperature control
Single stage heat output and no room temperature control
No
Two or more manual stages, no room temperature control
No
With mechanic thermostat room temperature control
No
With electronic room temperature control
Yes
Electronic room temperature control plus day timer
Yes
Electronic room temperature control plus week timer
Yes
Other Control Options
Room temperature control, with presence detection
No
Room temperature control, with open window detection
Yes
With distance control option
No
With adaptive start control
Yes
With working time limitation
No
With black bulb sensor
No

5
3. PARTS AND HARDWARE
3.1 Unpacking the fire carefully, make sure that the appliance is intact with no
signs of damage caused by transport and no part has been exposed to water.
If in doubt, do not use the appliance and contact an authorised service centre.
3.2 Keep plastic wrapping away from children.
3.3 Save the original packaging as this may be required in the event of service
complaint with product.
3.4 Check that all parts are removed from the packing.
A
B
C
Remote Handset ( 1 )
AAA Battery ( 2 )
Manual Instruction ( 1 )
D
20 x 10 trim magnets (4)

6
4. APPLIANCE DIMENSIONS
MODEL
A
B
C
D
2100
746.7
762.7
720
717.3
2606
1036.7
1052.7
1010
1007.3
Unit: mm

7

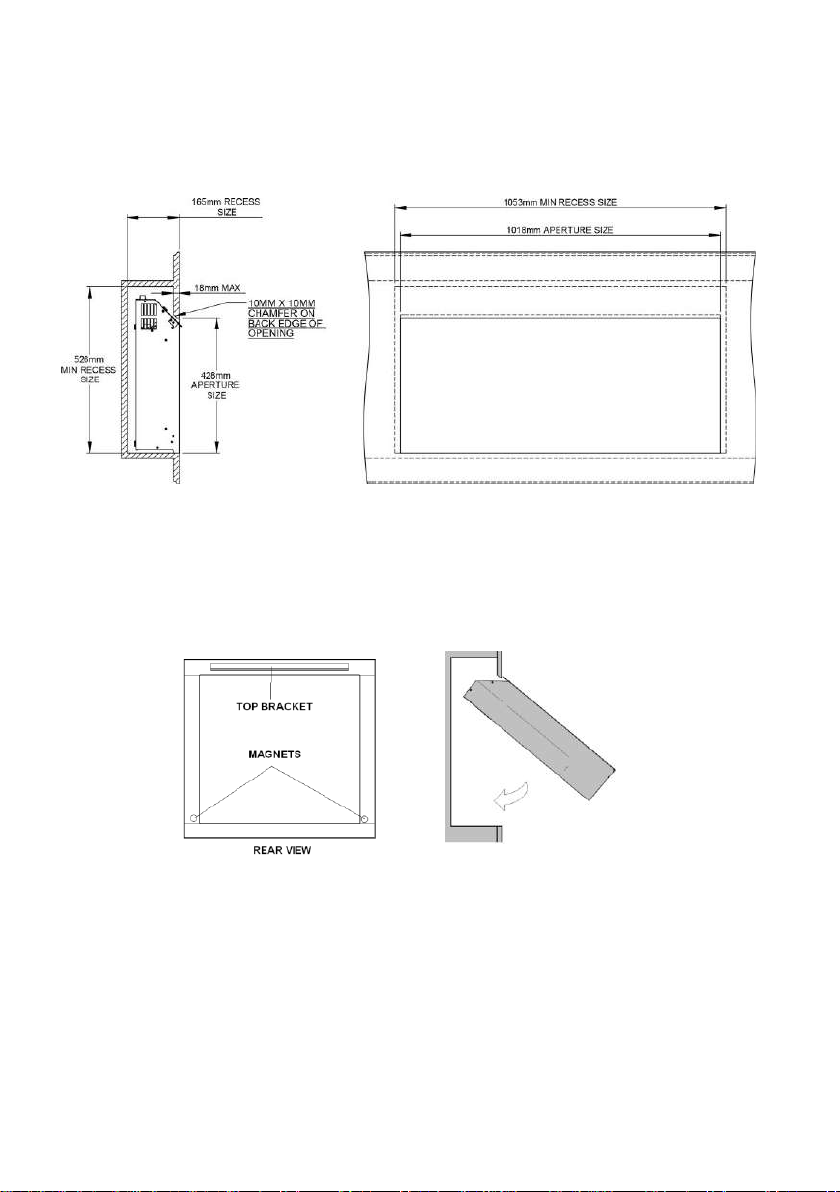

5. INSTALLATION INSTRUCTIONS
Fire Installation
Before You Start
• The appliance Data Plate is located Underneath the Heater box –Disconnect
from the mains supply before removing the Glass as described in the
maintenance section.
• Required for installation: 4 off screws and plugs suitable for the wall media
(Not supplied)
• This fire should not be installed into an open / existing fireplace without the
opening being professionally blanked off to reduce the risk of a back draught,
which could cause the safety cut-out to operate.
• Check that the supply voltage details on your flame effect fire are in
accordance with your electrical supply. Your fire is fitted with a plug
incorporating a 13 Amp fuse. In the event of replacing the fuse in the plug
supplied, a 13 Amp fuse approved by ASTA to BS 1362 must be used. Before
switching on, please read the following fire installation instructions.
• In the event of any problems please contact:
Be-Modern Helpline on 0191 430-0901.
• Fixings supplied (4 off 20 x 10 trim magnets)
Model 2100

8
Model 2606

9
6. OPERATING INSTRUCTIONS
WARNING! Do not operate the appliance if it is damaged or has malfunctioned.
If you suspect the appliance is damaged or has malfunctioned call a qualified
service engineer to inspect the appliance, and replace any part of the electrical
system if necessary, before reuse.
WARNING! To reduce the risk of fire, keep textiles, curtains, or any other
flammable material a minimum distance of 1 meter from the air outlet.
MAKE SURE the plug fits tight in the outlet. Faulty wall outlet connections or
loose plugs can cause the outlet to overheat.
Do not disconnect the power at the mains supply whilst the appliance is running.
Use the functions on the remote to turn the fire off and ensure the mains switch
has been moved to the off position before disconnecting.
PREPARATION FOR USE
6.1 The appliance can be operated by both remote control and the manual
controls on the appliance.
NOTE: To use either the remote or the manual functions the main on / off
switch must be in ‘ON’ position. In order to prevent the product becoming too
hot, there is a 10s delay when turning on the heater and a 10s delay when
turning off the heater fan.
Batteries
Ensure that the handset batteries are new and inserted correctly.
Main Power Switch
6.2 The mains power switch is located on the control panel locating on the right-
hand side of the heater box.
6.3 Switch ON before operating either the remote or manual controls.
6.4 A long beep is heard to indicate the fire is ready for use.

10

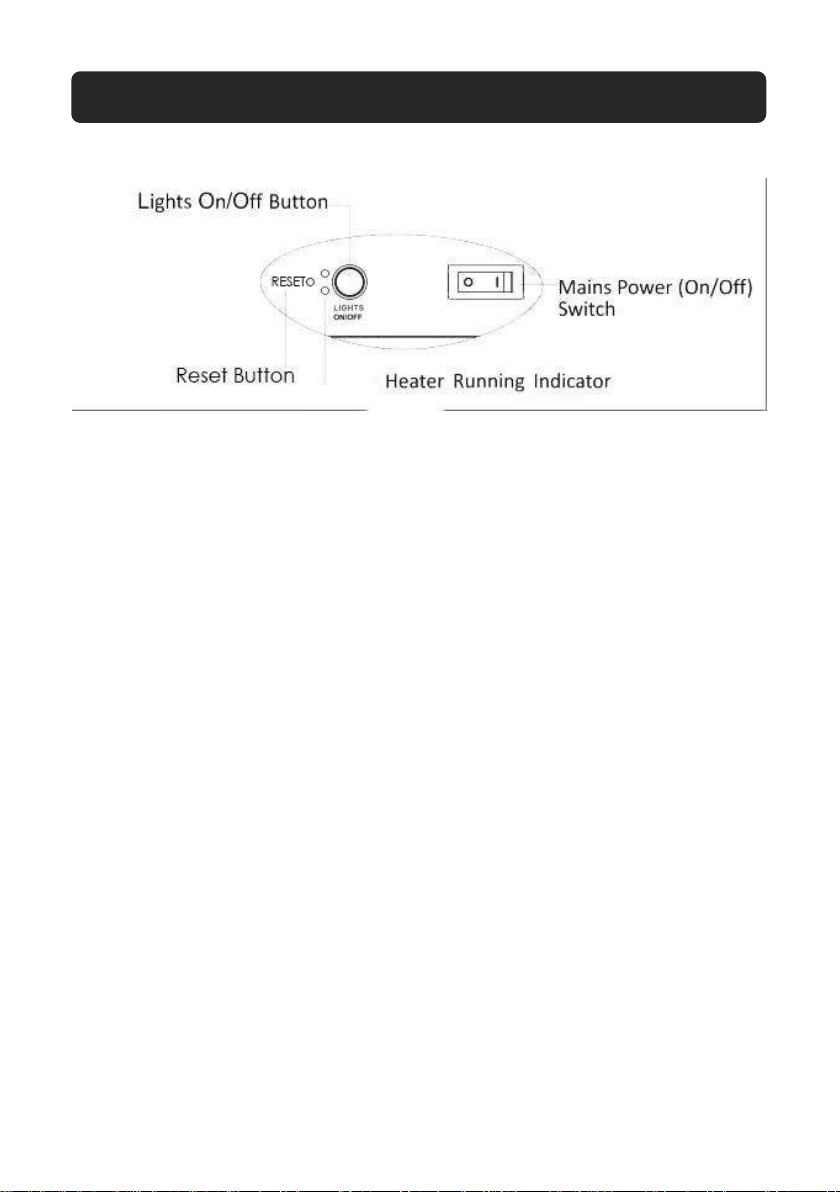

6a. MANUAL CONTROL PANEL
NOTE: The manual buttons control basic functions, not a full range of controls.
Use the remote hand set to carry out all functions.
6a.1 The manual buttons are located at the upper right hand-side of the
appliance.
6a.2 Press “LIGHTS ON / OFF” to turn on or turn off the flame effect.
When the remote runs out of power or when you change the batteries, the
flame function will lose its memory, however this will not affect the timer
settings, the clock and date may need to be adjusted.

11
6b. REMOTE CONTROLS
NOTE: This is thermostatic remote control. The remote should be in the same
room as fireplace and placed on a flat surface. It must be placed away from the
fire so the hot air will not blow on it and affect thermostatic reading.
The communication frequency between the fire and remote has already been set
up. If you cannot use the remote with the fire, please follow instructions
Step.6b31 to initiate the connection.
Standby for Remote Handset
6b.1 The screen shown to the right is when the
remote handset is in standby mode.
Turn on / off
6b.2 Press to turn on the flame effect, or
turn off flame effect and heater when in
normal mode.
6b.3 Press to turn on / off the flame effect
under daily and weekly timer mode.
After Day / Time set up
Before Day/Time set up

12
Flame Effect
6b.4 Press to enter the flame effect adjustment
screen.
6b.5 Press the ‘←’ and ‘→’ button to select the 3
kinds of flame effect.
6b.6 Press the ‘+’ and ‘-’ button to select the 5 brightness settings of the flame
effect or the OFF setting.
Normal Mode
6b.7 Normal control mode is factory set. If it is not,
then press button until the logo
shows up at the upper right corner of the
screen.
6b.8 Press the ‘+’ and ‘-’ button to adjust the temperature from 17℃to 25℃
adjustment is in 2℃intervals.
6b.9 Press button to turn on / off heat, ON、OFF will show at the
lower of the screen.
NOTE: It is normal for the fan heater to stop running for periods of time. This
happens because the room temperature is at or above the temperature set on
the remote control. The heater indicator will be turned off after 10s if you have
the flame ON. The heater indicator will stay ON if you use the heating function
only.
Count Down Timer
NOTE: This setting is only for normal mode. It
allows the appliance to go into standby after a set
period of time.
6b.10 Press to cycle through the settings from
Off and 0.5 hours to 9 hours. The timer logo
and time will show on the screen.
The heater must be in the ON position.

13
The heater can be automatically run by using daily timer and weekly timer on
the remote.
Set up Day, Time and Comfortable temperature.
6b.11 Press to turn on the remote handset.
Hold the button for 3 seconds to enter
the setting screen.
6b.12 Press the ‘←’ and ‘→’ button to choose Day, Time or your comfortable
temperature. The character selected will be highlighted.
6b.13 Pressing the ‘+’ and ‘-’ button will adjust the number.
Time: 24-hour system
Select your comfortable temperature from 15-25℃.
Temperature unit: ℃、℉
Daily Timer Heating
6b.14 The following are pre-set heating periods,
which can be altered if desired
06:00 until 08:30
17:00 until 22:00
6b.15 Press until shows at the upper right
corner of the screen, then enter the daily
timer heating mode.
6b.16 Hold the arrow symbol button for 6
seconds to enter The daily timer setting. Max
3 timed Heating periods per day.
Press ‘←’ or ‘→’ to choose hour or minute, press ‘+’ or ‘-’ to set the time.
Minute will increase / decrease by 15 minutes per press. Hold
for 3 seconds or wait for 10 seconds to save and exit the heating time
period setting.
6b.17 Adjusting the set temperature
Press the ‘+’ or ‘-’ button to increase or decrease the temperature on the
basis of your comfortable temperature setting.
ECO means 2℃lower than your comfortable temperature setting,
ECO- means 4℃lower, COMF+ means 2℃higher, COMF++ means 4℃
higher.

14
6b.18 To check your daily timer settings, press
6b.19 If the heating needs to be turned off, it will be necessary to go back to the
Normal Mode to turn off.
Week Timer Heating
6b.20 The following are pre-set heating periods, which can be altered if desired.
From Monday to Friday From Saturday to Sunday
06:00 until 08:30 06:00 until 09:30
17:00 until 22:00 11:00 until 13:00
17:00 until 22:00
6b.21 Press until shows at the upper right
corner of the screen, then enter the week
timer heating mode.
6b.22 Hold button for 6 seconds to enter the
weekly timer setting.
Press ‘←’ or ‘→’ to move the cursor (a
flashing underline), press the button in
the corresponding week position to select
(the character is highlighted) or cancel (the
character is displayed normally) the current
setting. Several days can be selected together.
Press the ‘→’ button to move the cursor to
the time period setting area. Press ‘←’ or
‘→’ to choose hour or minute, press ‘+’ or
‘-’ to set the number.
Max 3 heating periods for a day.
Minute will increase / decrease by 15 minutes per press.
Press the to set the heating time for the selected day(s) and return to
the week line.
Hold for 3s or wait for 10s to save and exit the heating time period
setting.
6b.23 Press , ‘←’ and ‘→’ to check your week Timer settings.
6b.24 If heating needs to be turned off, it will be necessary to go back to the
Normal Control Mode to turn off.

15
Advance Mode
6b.25 Under the daily and weekly timer mode press :
6b.26 To turn the heater off when the heater is on
during a pre-set heating period.
6b.27 To turn the heater on when the heater is off
in between pre-set heating periods.
Adaptive Start Control
6b.28 According to room temperature and set temperature, the heater will
automatically come on in time to heat the room to the set temperature at
the set time. For example, if your timer is set to start at 18:00 and
temperature is set to 23°C, the fire will come on at 17:30 to ensure the
room is 23°C at 18:00.
Window Open Detection
6b.29 When the transmitter detects a rapid drop in
room temperature, it will be judged as a
window open, the warning icon will be
displayed and the heating will be turned off
automatically.
6b.30 After the indoor temperature has risen or a manual override of the
warning (by operating remote control) has been done, the fire will return
to normal working state.

16
Set up the communication between the remote and appliance
6b.31 The below operations should be carried out before programming, when
changing to a new remote or in the event the appliance cannot be
controlled by the remote:
Hold the reset button on the appliance for 3 seconds (pen Point may
needed) until you hear 3 short beeps from the unit, release the button.
Press the button on the remote, the programming is finished when
you hear 1 long beep from the appliance.
6b.32 Resetting the code for remote control is necessary if the appliance
operates wrongly or the remote control does not operate correctly.
Open the back cover of the remote control.
Press the Reset button on remote handset.
Follow the steps 6b.31
Resetting the Thermal Cut Out
6b.33 This appliance is fitted with an Electronic Safety Control (E.S.). This is a
safety device, which switches off the fire if, for any reason, the appliance
overheats, e.g. if covered. If the heater stops operating while the flame
effect continues working normally, this indicates that the E.S. Control is in
operation. The E.S. Control can only be reset after the appliance has
cooled down, and the appliance has been reset. Resetting of the E.S.
Control proceeds is as follows:
6b.34 Switch off the appliance (Manual On / Off switch) and leave it off for
approximately 10-15 minutes.
6b.35 Remove any obstruction to the fan heater outlet or fan blades etc. Make
sure that the power supply is disconnected with the plug socket outlet
while doing this.
6b.36 Switch on the appliance and the E.S. Control will be re-set.
6b.37 Ensure that the appliance is functioning correctly. If the E.S. Control
operates again, the appliance should be checked by a competent
electrician.

17
7. MAINTENANCE
WARNING: Before any maintenance or cleaning of the exterior of the fireplace,
the unit should be disconnected from the power supply until it has cooled
down.
Remote Handset Battery Replacement
7.1 When the batteries are at full power, the battery symbol will show
7.2 When the batteries are half full, the battery symbol will show
7.3 When the batteries are out of power and need replacing immediately, the
battery symbol will show
7.4 Battery replacement is recommended after 1 year. The batteries are 1.5V
alkaline AAA, batteries.
7.5 Dispose of old batteries at an appropriate recycling facility.
Cleaning the Fireplace
Cleaning or polishing products are not recommended. Fingerprints or other
marks on the front glass panel can be removed by a piece of soft, damp, lint-free
cloth with a good quality household glass cleaner. The glass is held in position by
two glass brackets which are located at the top of the glass on the left and right
hand side. The front glass panel should always be completely dried with a clean,
lint-free cloth or paper towel.
CAUTION: Abrasive cleaners should not be used on the glass panel. Liquids
should not be sprayed directly onto any surface of the unit.

18
8. OTHERS
Environment
Meaning of crossed –out wheeled dustbin:
Electrical appliances should not be disposed as unsorted municipal
waste. Separate collection facilities should be used in the disposal
of electrical appliances. Contact your local government for the
information about the available collection systems. If electrical
appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain, damaging
your health and well-being. When old appliances are replaced by the new ones, it
is a legal oblige for the retailer to take back the old appliance for disposals at
least free of charge.
This fire complies with the Safety Standards EN 60335-1 and EN
60335-2-30 which covers the essential requirements of the Low
Voltage Directive 2014/35/EU and the EMC standards EN 55014-1;
EN 55014-2; EN 61000-3-2 and EN 61000-3-3 which covers the essential
requirements of the European Electro Magnetic Compatibility 2014/30/EU, and
the RED standards EN300220-2, EN301489-1, EN301489-3 and EN6247 which
covers the essential requirements of the European Radio Equipment Directive
2014/53/EU.
Control PCB
Remote Control Receiver
Remote Control Transmitter
Frequency: ASK/OOK 433.92MHZ
Maximum transmit power: 10mW
Hardware:RF290A-TX-V1.3
Software: RF290A_C_V0.6.0.hex
Hardware:
RC01-041B01
Software: VI
Hardware: RF290B V1.2
Be Modern Ltd.
19/34 Bedesway,
Bede Industrial Estate,
Jarrow,
Tyne and Wear
NE32 3BE
Tel: [phone]
Fax: [phone]
http://www.bemodern.com
