bemodern 2893 User manual

1
16” and 22” 75mm Electric Fire
Instructions for use
Patent pending
UK Registered Design
R1 Jan 2020 200797_1
Complete with Remote Control
Model 2893 / 2921

2
Contents
Tech Specs 3
Safety Info 4 –5
Fixing the appliance 6 –7
Attaching the Trim 7
User Instructions 8 -13
Maintenance 14
General information 15
Guarantee 16
200797_1

3
Technical Specification
Model No.: 2893 / 2921
Supply Voltage: AC 230-240V 50Hz
Maximum power consumption: 2KW
Power for flame effect: 13W (LED 5W + Motor for flame 8W)
Heat Output:
Nominal heat output (Pnom): 2KW
Minimum heat output (indicative) (Pmin): 1KW
Maximum continuous heat output (Pmax): 2KW
Auxiliary Electricity Consumption:
At nominal heat output (elmax): 14W
At minimum heat output (elmin): 14W
In standby mode (elSB): 0.48 W
Single
stage heat output and no room temperature control No
Two
or more manual stages, no room temperature control No
With
mechanic thermostat room temperature control No
With
electronic room temperature control No
Electronic
room temperature control plus day timer No
Electronic
room temperature control plus week timer Yes
Room
temperature control, with presence detection No
Room
temperature control, with open window detection No
With
distance control option No
With
adaptive start control Yes
With
working time limitation No
With
black bulb sensor No
Type of heat output / room temperature control
Other Control Options
20797_1

4
Safety Information
Read all of the instructions carefully before using the appliance.
For indoor use only This appliance is not suitable for use outside the house and only suitable for well
insulated spaces or occasional use.
If the fire is to be placed in front of an existing chimney opening and there is any risk of chimney debris
falling down onto the fire or drafts from the chimney it is recommended that the flue or opening is
sealed off with non-combustible non-fibrous insulation materials. Do not place into an existing
fireplace that is prone to dampness. Should it be necessary to cap and seal the chimney to prevent
personal injury, a professional should be hired to do the work
Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool or any
wet area
This fire must not be located immediately below a socket-outlet.
This appliance must be earthed.
This appliance must not be supplied through an external switching device, such as a timer, or
connected to the circuit that is regularly switched on and off by utility in order to avoid a hazard due to
the inadvertent resetting of the thermal cut out.
A non-rewirable plug fitted with a 13A fuse is supplied. Should the fuse or plug need replacing, and you
are competent to do so, it must be replaced with a 13A fuse or plug being 13A BS1363A approved.
If the power cord is damaged, it must be repaired by the manufacturer, its authorised service centre or
professional person.
The meaning of this symbol is “DO NOT COVER”. Warning: in order to avoid overheating, do not
allow the appliance to be covered or let the air inlet / outlet to become obstructed. Please note the
warning symbol on the appliance (see above).
To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance
of 1 meter from the air outlet.
Keep the power cord away from hot surfaces and hot conditions. Do not route the power lead in front
of the appliance.
Do not use this fire in rooms that have explosive gas in them (for example petrol), or if you are using
solvents, glue, aerosol spray or in flammable paints, as these may catch fire.
200797_1

5
Safety Information (continued)
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved.
Children and vulnerable people must be supervised at all times when using this appliance, as some
parts can become very hot and cause burns.
Do not use this appliance in small rooms when they are occupied by persons not capable of leaving the
room on their own, unless constant supervision is provided.
Cleaning and user maintenance shall not be made by children without supervision.
Children aged from 3 years and less than 8 years only can switch on / off the appliance provided that it
has been placed or installed in its intended normal operating position and instructions and supervisions
concerning the safe way of the use of the appliance are offered. Children aged from 3 years and less
than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
This appliance shall not be played with by children.
Children of less than 3 years should be kept away unless continuously supervised.
If the fire is to be placed in front of an existing chimney opening and there is any risk of chimney debris
falling down onto the fire it is recommended that the flue or opening is sealed off with non-
combustible non-fibrous insulation materials. Do not place into an existing fireplace that is prone to
dampness. Should it be necessary to cap and seal the chimney to prevent personal injury, a
professional should be hired to do the work
200797_1

6200797_1
Securing the Appliance
Prior to installation / securing the fire select the preferred fixing method.
A. Securing the fire into position using the fixing holes in the rebate stops.
B. Securing the fire using the back panel clamp.

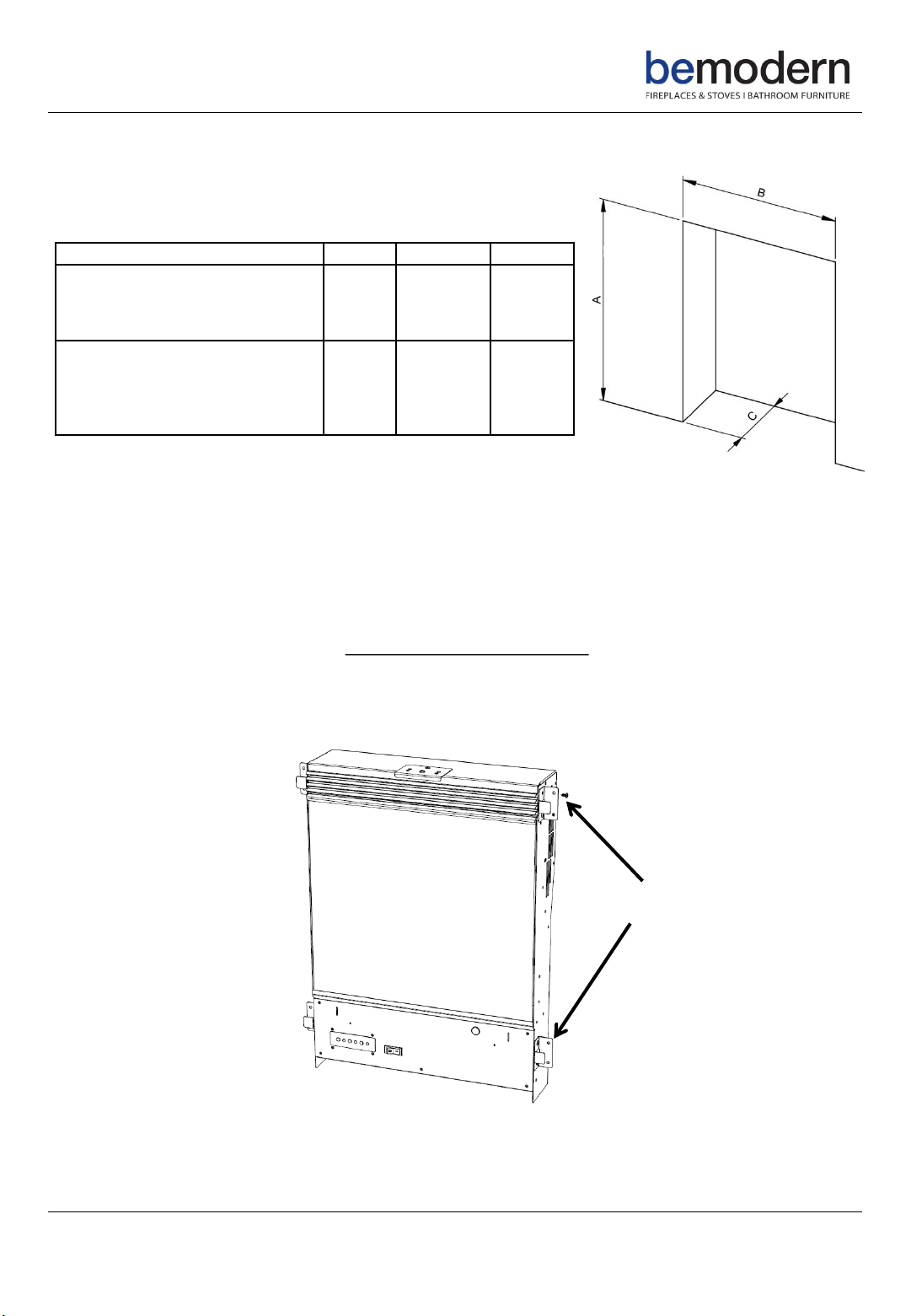

Back panel / cavity opening size
Model A B C
Model 2893 –16” Version 565 413 75 min
Model 2921 - 22” Version 595 570 75 min
Fixing method A.
Position the fire in the back panel opening ensuring it is centralised. Depending on the back panel
medium , mark the hole positions then remove the fire, drill and plug the holes ensuring the correct
fixings are used for the wall medium. *NOTE Fixings are not supplied. Once fixing holes have been
plugged replace the fire and secure in position via the holes in the rebate stops.
Rebate stops
Fixing Method A

601227_1 7
Place the four 10mm magnets on the rebate stop tabs and position the trim over the fire magnetically
securing it to the fire and holding it in position.
Fixing method B.
Loosely attach the back panel clamp to the top of the fire as shown below in Figure 1. Hook the clamp
under the back panel so it site behind the panel and centralise the fire in position. Once in the correct
position hold the fire against the back panel and pull the bracket forwards Figure 2. Tighten the bracket
screws to secure the fire in position
Securing the Appliance
Figure 1 Figure 2
Attaching the Trim

8
User Instructions
WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the
appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance,
and replace any part of the electrical system if necessary, before reuse.
WARNING! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a
minimum distance of 1 meter from the air outlet.
MAKE SURE the plug fits tight in the outlet. Faulty wall outlet connections or loose plugs can cause the
outlet to overheat.
Do not disconnect the power at the mains supply whilst the appliance is running. Use the functions on
the remote to turn the fire off and ensure the mains switch has been moved to the off position before
disconnecting.
PREPARATION FOR USE
The appliance can be operated by both remote control and the manual controls on the appliance.
NOTE: To use either the remote or the manual functions the main power switch must be in the ‘ON’
position. (See below)
Batteries
Ensure that the handset batteries are new and inserted correctly.
Main Power Switch
The mains power switch is located on the control panel behind the door of the stove. This needs to be
switched ON before operating either the remote or manual controls. A long beep will be heard to
indicate the fire is ready for use.
200797_1

9
User Instructions Continued
Manual control panel
200797_1
Use the ON / OFF switch to power on the heater (set it to standby mode).
In standby mode, the heater can be operated either manually by the switches located behind the fret
or by the supplied remote control.
Heater powered off
Heater powered on, set to standby mode
-
Press to switch the flame effect ON
/
OFF
-
Press and hold to toggle between
5
different flame effect brightness levels
-
Press once to activate low level
heating(1000W)
-
Press twice to activate high level
heating(2000W)
-
Press three times to switch off heating
-
Press to toggle between 7 different fuel
bed effect colours
BACKLIGHT
Main
Power
Switch
Appliance Control
Panel

NOTE: The heater should be powered on using the Main Power switch before it can be operated using
remote control
10
User Instructions Continued
Remote control operation
200797_1

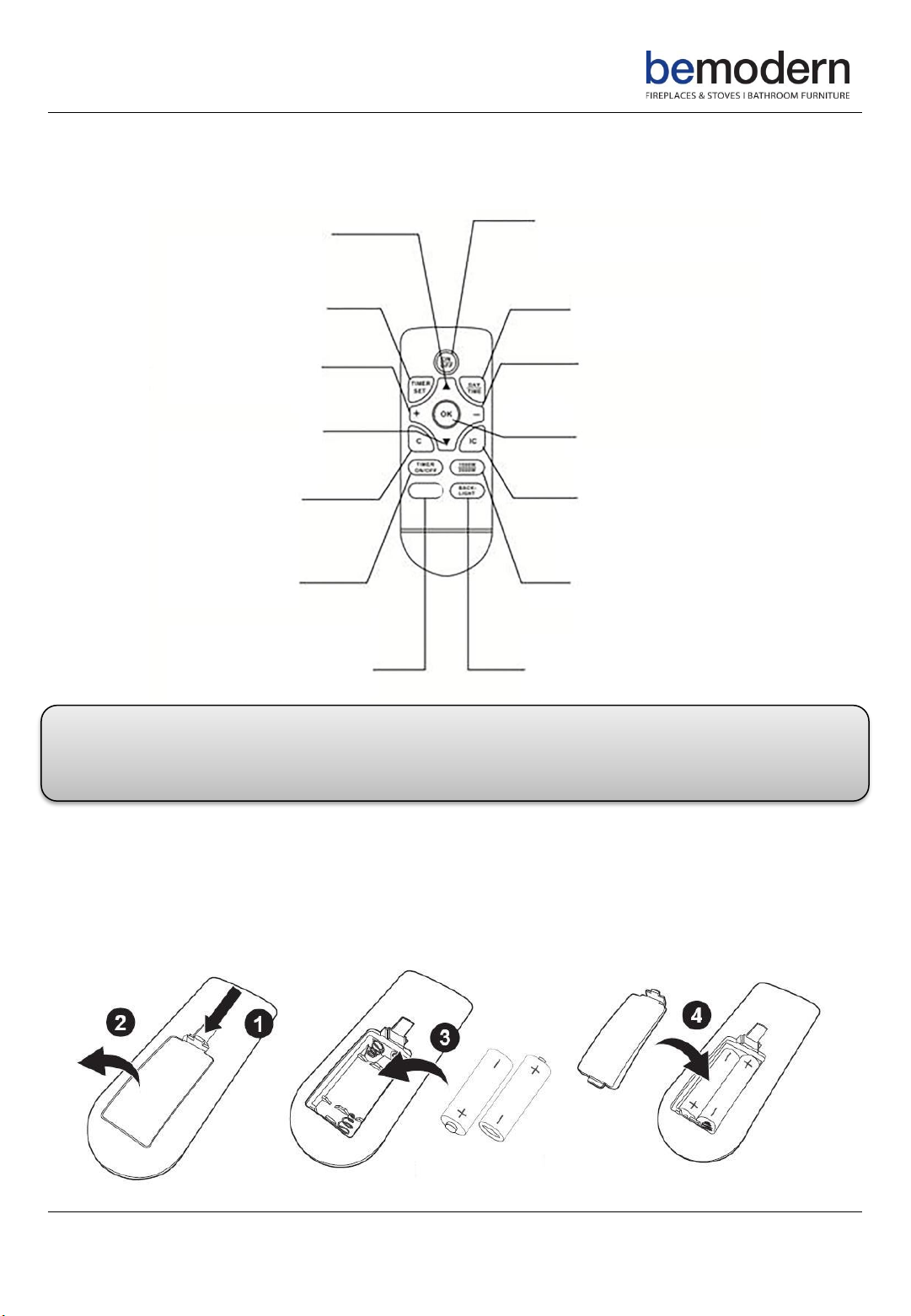

The remote control requires 2 x AAA size batteries.
Open the battery compartment. Pull tab downwards and lift out the cover, insert the batteries noting
the polarity indicated in the battery compartment.
Keep batteries out of reach of children.
Remote control operations are identical to the functions on the control panel.
The remote control must be pointed directly at the sensor on control pad.
Switches the appliance on
Switches the appliance into
standby mode
Set day / time
Decrease temperature
Decrease hour / minute
Confirm selection
Set automatic heating mode
Press once to activate low
heat setting
Press twice to activate high
heat setting
Press three times to switch of heat
Toggle between the 7 different
fuel bed light colours
Toggle between the 5 different
flame brightness levels
Timer on / off
Cancel
Menu down (Change day)
Increase temperature
Increase hour / minute
Timer set
Menu up (Change day)
2 x AAA
DIMMER

11
User Instructions Continued
Display (Shown on the appliance screen)
200797_1
Setting the day of the week and time
Press the DAY / TIME key. When the day is flashing press the ▲or ▼key to select the day.
Press the DAY / TIME key again, then press the + or –key to set the hour.
Press the DAY / TIME key again, then press the + or –key to set the minute.
Press the OK key to confirm the setting.
NOTE: This setting is only applicable for the temperature in standard heating mode, not for the
temperature in the timer mode. The default set temperature is 20℃.
NOTE: The heater will only start working when the set temperature is higher than the room temperature.
Press the + or –key to set the temperature, which ranges from 15 to 30℃.
After the temperature setting has been completed, the display flashes for approximately 5 seconds, then
shows the room temperature.
Timer Standby mode
Day of the week
Heating level
Low heat
High heat
Automatic heating mode
Time / temperature display
Timer on
Timer off
Temperature / timer
Setting the temperature
Note:- The display will stay illuminated for approximately 8 –10 seconds

Viewing the timer setting
Press the TIMER SET key.
Press the + or –key to check the power-on time of the set timers one by one.
To check the power-off time, press the ▲key.
Press the + or –key to check the power-off time of the set timers one by one.
To delete selected setting, press the C key.
12
User Instructions Continued
200797_1
Setting the timer
Up to 10 different timer settings can be programmed.
Each timer setting has a day, power-on time and power-off time.
The maximum duration of each timer setting is 23 hours 50 minutes.
If the power-off time of the timer setting falls on the following day, it is unnecessary to set the day-just
set the power-off time.
Press the TIMER SET key, the timer number starts blinking (01-10).
Press the + or –key to select a timer number.
Press the TIMER SET key, the cursor on the left side of the day blinks.
Press the ▲or ▼key to move the cursor to the corresponding day. Press the + key to add a
corresponding day, or press the - key to delete a day.
Press the TIMER SET key to set the on time. The hour digit will start blinking.
Press the + or –key to set the hour.
Press the TIMER SET key. The minute digit will start blinking.
Press the + or –key to set the minute.
Press the TIMER SET key to set the off time. The hour digit will start blinking.
Press the + or –key to set the hour.
Press the TIMER SET key. The minute digit will start blinking.
Press the + or –key to set the minute.
Press the TIMER SET key. The temperature digit will start blinking.
Press the + or –key to set the temperature.
Press the TIMER SET key to continue with the timer setting or press the OK key to confirm the setting.
Activating the timer
Press the TIMER ON / OFF key to activate the timer function.
NOTE: When the timer is active, the heating level must be manually selected. If the heater function is not
selected; only the flame effect goes on at the set power-on time.
Automatic heating mode
Press the IC key to activate automatic heating mode. The AUTO icon appears on the display.
When the automatic heating is turned on, the heater automatically changes the heating level depending
on the set temperature and the ambient room temperature.

13
User Instructions Continued
Resetting the Thermal Cut Out
The appliance is fitted with an Electronic Safety Control (E.S.). This is a safety device, which switches off
the fire if, for any reason, the appliance overheats, e.g. if covered. If the heater stops operating while the
flame effect continues working normally, this indicates that the E.S. Control is in operation. The E.S.
Control can only be reset after the appliance has cooled down, and the appliance has been reset.
Resetting of the E.S. Control proceeds is as follows:
Switch off the appliance (Manual On / Off switch) and leave it off for approximately
10-15 minutes.
Remove any obstruction to the fan heater outlet or fan blades etc. Make sure that the power supply is
disconnected with the plug socket outlet while doing this.
Switch on the appliance and the E.S. Control will be re-set.
Ensure that the appliance is functioning correctly. If the E.S. Control operates again, the appliance should
be checked by a competent electrician.
200797_1

14200797_1
Maintenance
WARNING: Before any maintenance or whilst cleaning the exterior of the fireplace, the unit should
be disconnected from the power supply until it has cooled down.
Cleaning the Fire
Cleaning or polishing products are not recommended. Fingerprints or other marks on the front glass
panel can be removed by a piece of soft, damp, lint-free cloth with a good quality household glass
cleaner. The front glass panel should always be completely dried with a clean, lint-free cloth or paper
towel.
CAUTION: Abrasive cleaners should not be used on the glass panel. Liquids should not be sprayed
directly onto any surface of the unit.
If the plug has to be changed because it is not suitable for your socket, or due to damage, please follow
the wiring instructions shown below.
The wires in the mains lead are coloured in accordance with the following code:
BROWN : LIVE (L)
BLUE : NEUTRAL (N)
GREEN / YELLOW : EARTH (E)
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, as follows
The BLUE wire is the NEUTRAL and must be connected to the terminal which is marked with the letter
N or coloured BLACK.
The BROWN wire is the LIVE and must be connected to the terminal that is marked with the letter L or
coloured RED.
The wire which is coloured GREEN / YELLOW must be connected to the terminal which is marked E or
the earth symbol or coloured GREEN or GREEN / YELLOW.
Always ensure that the cord grip is positioned and securely fastened.
WARNING: THIS APPLIANCE MUST BE EARTHED.
If a 13A (BS1363) fused plug is used it must be fitted with a BS1362 13A fuse. If in doubt consult a
qualified electrician.
Electrical Connections - UK Plug Wiring Instruction

15
General Information
Environment
Meaning of crossed –out wheeled dustbin:
Electrical appliances should not be disposed as unsorted municipal waste. Separate
collection facilities should be used in the disposal of electrical appliances. Contact your
local government for the information about the available collection systems. If
electrical appliances are disposed of in landfills or dumps, hazardous substances can
leak into the groundwater and get into the food chain, damaging your health and well-
being. When old appliances are replaced by the new ones, it is a legal obligation for
the retailer to take back the old appliance for disposals at least free of charge.
This fire complies with the Safety Standards EN 60335-1 and EN 60335-2-30 which
covers the essential requirements of the Low Voltage Directive 2014/35/EU and the
EMC standards EN 55014-1; EN 55014-2; EN 61000-3-2 and EN 61000-3-3 which
covers the essential requirements of the European Electro Magnetic Compatibility
2014/30/EU, and the RED standards EN300220-2, EN301489-1, EN301489-3 and
EN6247 which covers the essential requirements of the European Radio Equipment
Directive 2014/53/EU.
200797_1
RoHS stands for Restriction of Hazardous Substances, and impacts the entire
electronics industry and many electrical products as well. The Restrictions of the Use
of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations
2012, originated in the European Union in 2002 and restricts the use of six
hazardous materials found in electrical and electronic products. All applicable
products in the EU and UK market since July 1, 2006 must pass RoHS compliance..
This fire complies with the Safety Standards BS 60335-1 and BS 60335-2-30 which
covers the essential requirements of the Electrical Equipment (Safety) Regulations
2016 and the EMC standards BS 55014-1; BS 55014-2; BS 61000-3-2 and BS 61000-3-3
which covers the essential requirements of the Electro Magnetic Compatibility
Regulations 2016, and the RED standards BS 300220-2, BS 301489-1, BS 301489-3 and
BS 6247 which covers the essential requirements of the Radio Equipment Regulations
2017.

16
Be Modern Ltd. (the ‘Company’) provides a twelve month guarantee in respect of electric fire (the
‘Product’) ranges.
1. The twelve month Guarantee applies to:
a. All products in the ranges manufactured by the ‘Company’ (but subject to the exceptions
below): where:
b. The product has been purchased and installed within the UK and in respect of
c. The initial installation: and in favor of
d. The original purchaser
2. Proof of Purchase must be retained by the Purchaser
3. The twelve month Guarantee does not apply to:
a. Damage or inferior workmanship practices whilst the’ Product’ is being installed
b. Damage caused by mis-use of the ‘Product’ or where normal standards of care and use have
not been complied with.
c. Damage through a malfunction or an inadequately installed electric fire.
d. Damage or defects due to mis-use, accident or unauthorised alterations.
4. During the twelve month after the “Product” has been supplied, the Guarantee covers the making
good (whether by repair or replacement at the Company’s option) of defects arising from defective
manufacture of materials of “Product” covered in Para 1 all at no cost to the purchaser on the
provision:
a. The Product has been installed as per Be Modern recommendations. The Purchaser uninstalls
the Product and makes it available for collection
by Be Modern.
This Guarantee does not affect your statutory rights
On requiring service the purchaser should contact the retailer who supplied your product who will
assist and advise you as necessary.
Electric Fire Guarantee
200797_1
Be Modern Ltd.
19/34 Bedesway
Bede Industrial Estate
Jarrow
Tyne and Wear
NE32 3BE
Tel: [phone]
Fax: [phone]
http://www.bemodern.com
