bemodern Arteon 4119 User manual

1
16”, 22-16”, Arteon Electric Fires
Instructions for Use
R1 Aug / 22
Prior to installing this product locate the data label and note the model
and serial number. This is required when registering your guarantee.
Model:____________________
Serial Number:___________________________

2
Technical Specification
200827_1
Model No: 4119 (16”), 4112 (22”-16”), Supply Voltage: AC 230-240V 50Hz, Maximum power consumption: 2016W.
Type of heat output / room temperature control
Single
stage heat output and no room temperature control No
Two
or more manual stages, no room temperature control No
With
mechanic thermostat room temperature control No
With
electronic room temperature control Yes
Electronic
room temperature control plus day timer Yes
Electronic
room temperature control plus week timer Yes
Other Control Options
Room
temperature control, with presence detection No
Room
temperature control, with open window detection Yes
With
distance control option Yes
With
adaptive start control Yes
With
working time limitation No
With
black bulb sensor No
Model: 4119 4112
Power for Flame Effect 2.4w 2.4w
Power for Fuel Bed 4w 3w
Power for Down Light 1w 1w
Power for Mood Light 9w 9w
Heat Output
Model 4119 4112
Nominal heat output (Pnom) 2000w 2000w
Minimum heat output (indicative) (Pmin) 1w 1w
Maximum continuous heat output (Pmax) 9w 9w
Auxiliary Electricity Consumption
Model 4119 4112
At nominal heat output (elmax) 2000w 2000w
At minimum heat output (elmin) 1000w 1000w
In standby mode (elSB) 1.03w 1.03w

Read all the instructions carefully before using the appliance.
For indoor use only. This appliance is not suitable for use outside the house and only suitable for well
insulated spaces or occasional use.
Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool.
Do not use this fire as a free-standing appliance. It must always be fixed to the wall, fireplace mantel, floor etc.
This fire must not be located immediately below a socket-outlet.
Do not use this appliance as a primary heat source
If the fire is to be placed in front of an existing chimney opening and there is any risk of chimney debris falling down
onto the fire or drafts from the chimney it is recommended that the flue or opening is sealed off with non-
combustible non-fibrous insulation materials. Do not place into an existing fireplace that is prone to dampness.
Should it be necessary to cap and seal the chimney to prevent personal injury, a professional should be hired to do
the work
This appliance must be earthed.
In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied
through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off
by the utility.
A non-rewireable plug fitted with a 13A fuse is supplied. Should the fuse or plug need replacing, and you are
competent to do so, it must be replaced with a 13A fuse or plug being 13A BS1363A approved.
If the power cord is damaged, it must be repaired by the manufacturer, its authorised service centre or professional
person.
During normal operation this appliance will emit noise from the internal fan unit
The meaning of this symbol is Warning: in order to avoid overheating, do not allow the
appliance to be covered or let the air inlet / outlet become obstructed.
To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter
from the air outlet.
Do not insert or allow foreign objects to enter any ventilation or exhaust openings as this may cause electric shock,
fire or damage the appliance
Do not block air intakes or exhaust openings in any manner
Do not use on soft surfaces such as a bed, where openings may become blocked.
Keep the power cord away from hot surfaces and hot conditions. Do not route the power lead in front of the
appliance.
3
200827_1
Important Safety Information

4
200827_1
Important Safety Information Continued…..
Do not use this fire in rooms that have explosive fumes in them (for example petrol), or if you are using solvents,
glue, aerosol spray or in flammable paints, as these may catch fire.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
Children and vulnerable people must be supervised at all times when using this appliance, as some parts can
become very hot and cause burns.
Do not use this appliance in small rooms when they are occupied by persons not capable of leaving the room on
their own, unless constant supervision is provided.
Cleaning and user maintenance shall not be made by children without supervision.
Children aged from 3 years and less than 8 years only can switch on / off the appliance provided that it has been
placed or installed in its intended normal operating position and instructions and supervisions concerning the safe
way of the use of the appliance are offered. Children aged from 3 years and less than 8 years shall not plug in,
regulate and clean the appliance or perform user maintenance.
This appliance shall not be played with by children.
Children of less than 3 years should be kept away unless continuously supervised.
Keep the power plug accessible after installation.

5
User Instructions
WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the
appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance,
and replace any part of the electrical system if necessary, before reuse.
WARNING! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a
minimum distance of 1 meter from the air outlet.
MAKE SURE the plug fits tight in the outlet. Faulty wall outlet connections or loose plugs can cause the
appliance to overheat.
Do not disconnect the power at the mains supply whilst the appliance is running. Use the functions on
the remote to turn the fire off and ensure the mains switch has been moved to the off position before
disconnecting.
PREPARATION FOR USE
This appliance can be operated by manual control, remote control or APP. NOTE: To use the appliance
the main power switch must be in the ‘ON’ position.
Batteries
Ensure that the handset batteries are new and inserted correctly.
Main Power Switch
This needs to be switched ON before operating the appliance. A long beep will be heard to indicate the
fire is ready for use.
200827_1

6
User Instructions –Manual Control
200827_1
Main ON / OFF Switch
Heater Low, High, Off
Flame effect On, change colour x 3, Off
All lights On / Off
NOTE: The manual buttons control basic functions, not a full range of controls.
Use the remote handset or APP to carry out all functions.
Turning on the appliance with the main power switch to “—“position. A long beep will be heard.
Press “Heater button” to turn the heater on. The heater will come on low setting, press again to enable high
setting and again to turn off the heater.
Press “FLAME” button to turn on the flame effect and cycle through the 3 colours of flame effect and off. When
you choose to turn the flame effect off it will slowly fade and then turn off
Press “Light button” to turn all the lights on / off.
Note: The controls on appliance will lose the memory for all function settings when the switch is set to the Off
Position.
When the remote runs out of power or when you change the batteries, the flame function will lose its
memory, however this will not affect the timer settings, the clock and date may need to be adjusted.
Wi-Fi pairing button
NOTE: Image below shows location of buttons on 16” and 22-16” version.
Remote Control Pairing
The fire and remote are already paired, however if you need to pair the remote or a replacement remote press
and hold the “All Lights On / Off” button until you here two beeps then press the power button on your
remote control, you will hear a single beep confirming the pairing process has been complete.

7
User Instructions –Remote Control
200827_1
Power
Button
Used to turn on and off all the lighting effects.
Flame
Used to turn on the flame effect function.
There are total three flame effects: high power yellow, high power
yellow + amber, high power red and off. Press “←” “→”buttons to
choose the type of flame, press “+” “
-” buttons to adjust flame
brightness, the brightness can be adjusted in 5 levels (excluding OFF).
Mood
Lighting
Used to turn on the mood lighting function.
There are total 13 mood lighting colours plus a 13 colour cycle. Press “←”
“→”buttons to choose the type of mood light, press “+” “
-” buttons to
adjust background light brightness, brightness can be adjusted in 5 levels
(excluding OFF).
Fuel Bed
Used to turn on the fuel bed lighting function
There are total 8 fuel bed modes, press “←” “→”buttons to choose the
type of fuel bed light, press “+” “
-” buttons to adjust fuel bed brightness,
brightness can be adjusted in 5 levels (excluding OFF).
Downlights
Used to turn on the down lights function
There are total 8 downlight modes and an 8 colour cycle Press “←”
“→”buttons to choose the type of spotlights, press “+” “
-” buttons to
adjust spotlight brightness, brightness can be adjusted in 5 levels
(excluding OFF).
Timer
Used to turn on the timer function.
Timing settings: 0.5H,1H,2H,3H,4H,5H,6H,7H,8H,9H,10H,turn off. A
total of 12 cycles
；
Default timer is set to off. Press the button once to set the timer 0.5H,
press again for the next timing setting. When the heating is in AUTO, turn
on countdown timer. At the end of the countdown, all functions will be
turned off, the smart mode is also turned off.
Heat
Used to turn on the heating. There are two heating modes: LOW and HIGH
then OFF. Press “+”, “
-“ buttons to adjust the set temperature, the
temperature setting range is 6
-35 ℃。
Left/
Right
buttons
Used to move the cursor to select corresponding changes, such as the
selection of lighting types
Plus/Minus
buttons
Used for digital increase and decrease, gear increase and decrease
adjustment when lighting brightness setting, etc.

8
User Instructions - APP Control
200827_1
Download the APP and Register an account
1. Download "My Pryzm" APP 2. Register an account
3. Choose your country. Enter your mobile
number or a valid Email address to get
verification code.
4. Enter the verification code.

9
User Instructions - APP Control
200827_1

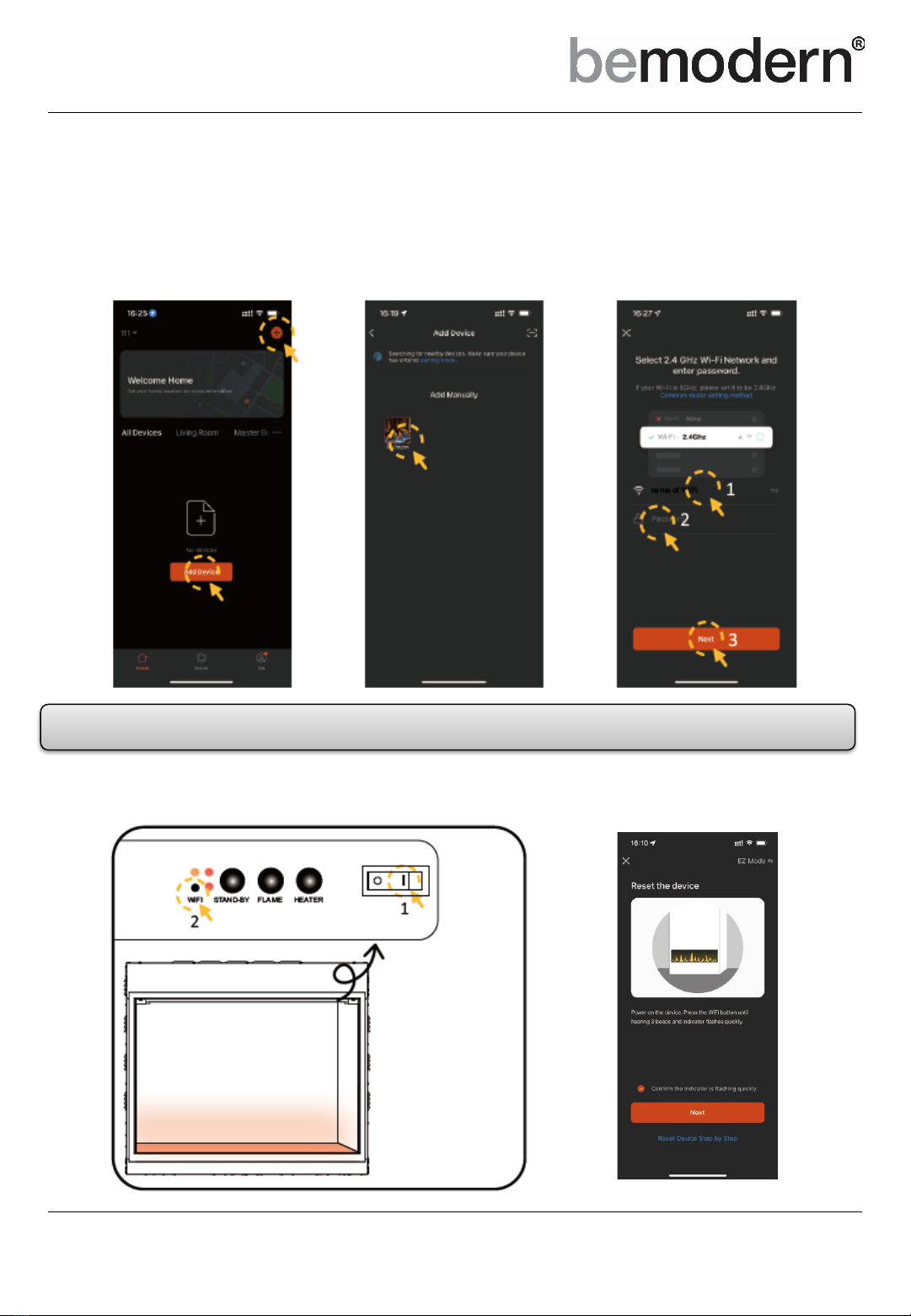

Add a device
1. Click Add Device or “+” 2. Download "My Pryzm" APP 3. Select Wi-Fi network and
enter the password, click
“Next”
Note: Make sure your router is using a 2.4 GHz channel. The distance between the router and fireplace isn't less
than 50cm.
4. Turn on the appliance, then press and hold the Wi-Fi button
until you hear 3 beeps. The Wi-Fi indicator and fuel bed start
to flash.
5. Choose the EZ Mode, confirm
the indicator is flashing
and click "Next".
Button location
different on 16”
and 22-16”
See page 6

10
User Instructions - APP Control
200827_1

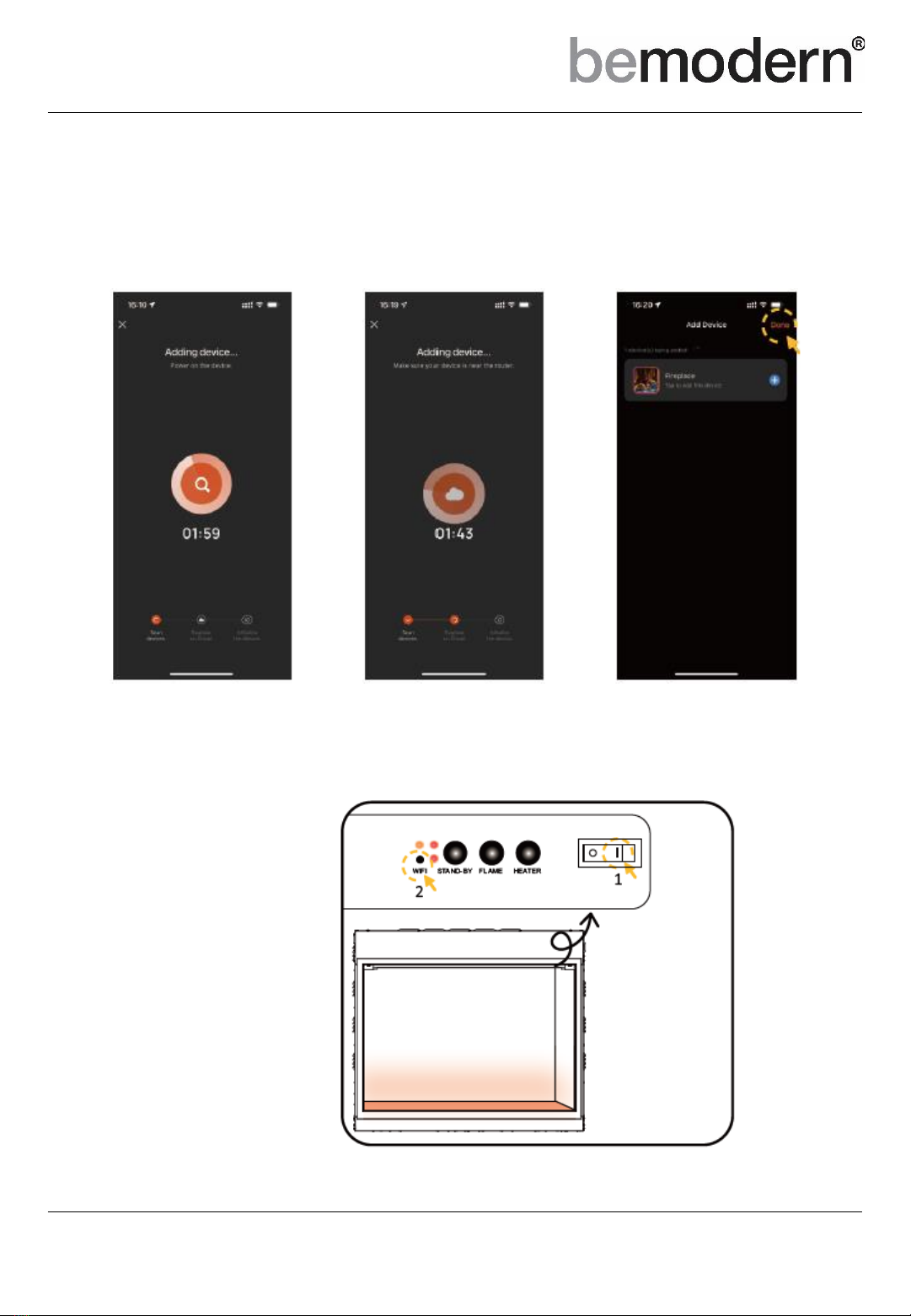

Add a device - continued
6. Start to add device 7. Once added the fuel bed will
turn green and stop flashing
8. Click "Done" to complete
Pairing
8. If the pairing fails in EZ
Mode, please try AP Mode
9. Press and hold the Wi-Fi button, you will hear 3
beeps. Keep pressing until you hear other 5
beeps and the indicator flashes quickly
Button location
different on 16”
and 22-16”
See page 6

11
User Instructions - APP Control
200827_1
Add a device - continued
10. Choose the AP Mode,
confirm the indicator is flashing
and click "Next".
11. Click "Go to Connect" 12. Choose a Wi-Fi called
"SmartLife-XXX".
13. Go back to the APP. Start
to add device
14. Adding device 15. Once added. Fuel bed will
turn green and stop flashing

12
User Instructions - APP Control
200827_1
Add a device - continued

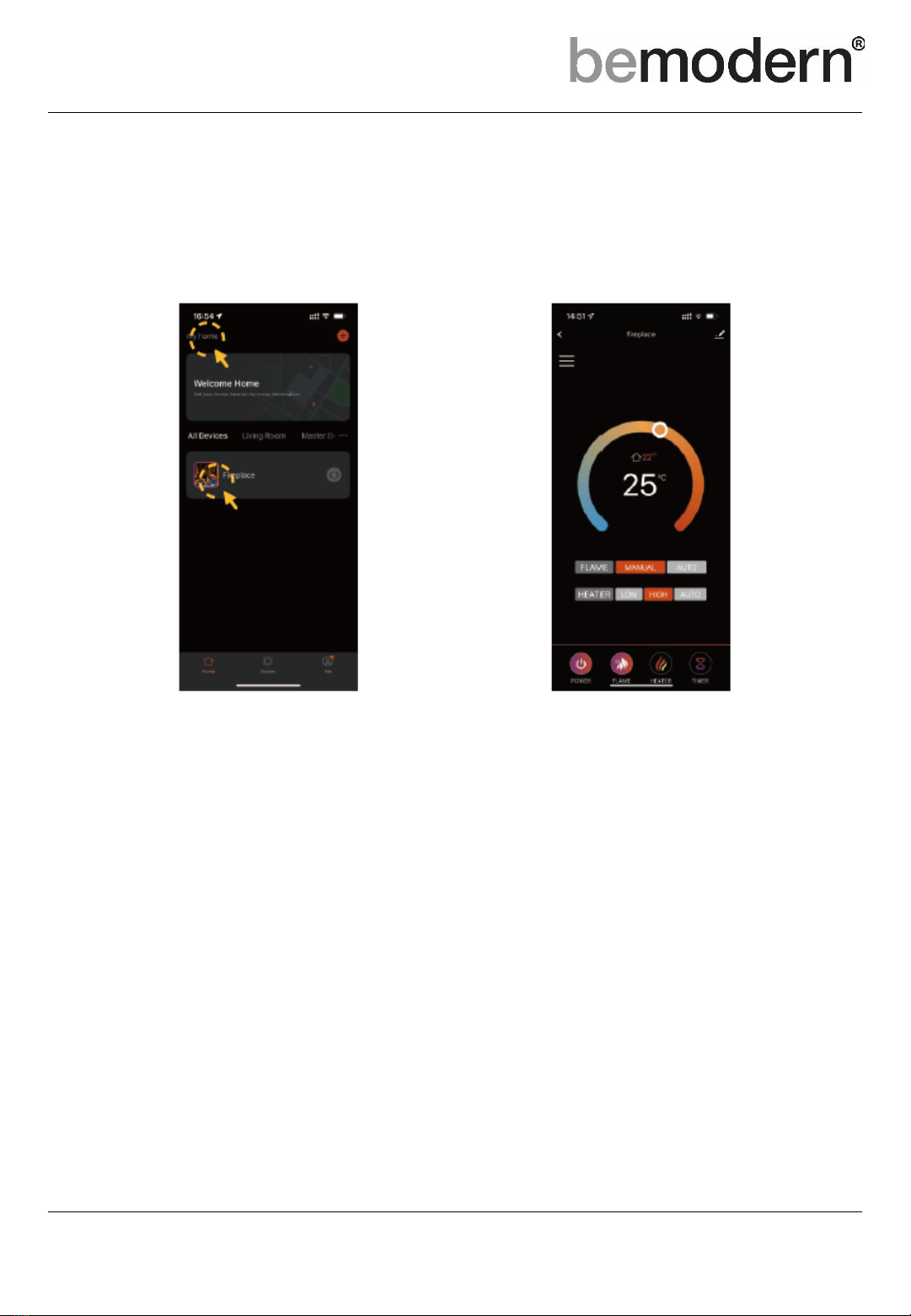

16. Click the name of fireplace to enter the home screen

13
User Instructions - APP Control
200827_1
Using the APP - Home Screen
Flame mode Heater mode
Note: The AUTO mode will only work when you set the daily / weekly timer for the flame effect or heater.
Note: The slider under the flame effect colour options controls the brightness from 0% (off) to 100%.
Using the APP - Changing the Flame Effect Colour Use the slide bar to turn off / on
the lights

14
User Instructions - APP Control
200827_1
Using the APP - Changing the Fuel Bed Colour
Note: The slider under the colour options controls the brightness of the lights from 0% (off) to 100%.
Using the APP - Changing the Downlight Colour
Use the slide bar to turn off / on
the lights
Use the slide bar to turn off / on
the lights

15
User Instructions - APP Control
200827_1
Using the APP - Changing the optional mood light Colour
Note: The slider under the colour options controls the brightness of the lights from 0% (off) to 100%.
Use the slide bar to turn off / on
the lights

16
User Instructions - APP Control
200827_1
Using the APP - Setting a flame effect program. Up to 4 time periods per day
with 3 different weekly schedules can be programmed

17
User Instructions - APP Control
200827_1
Using the APP –Setting temperature unit Manually changing the temperature
Using the APP –Setting a heating program. Up to 4 time periods per day
with 3 different weekly schedules can be programmed

18
User Instructions - APP Control
200827_1

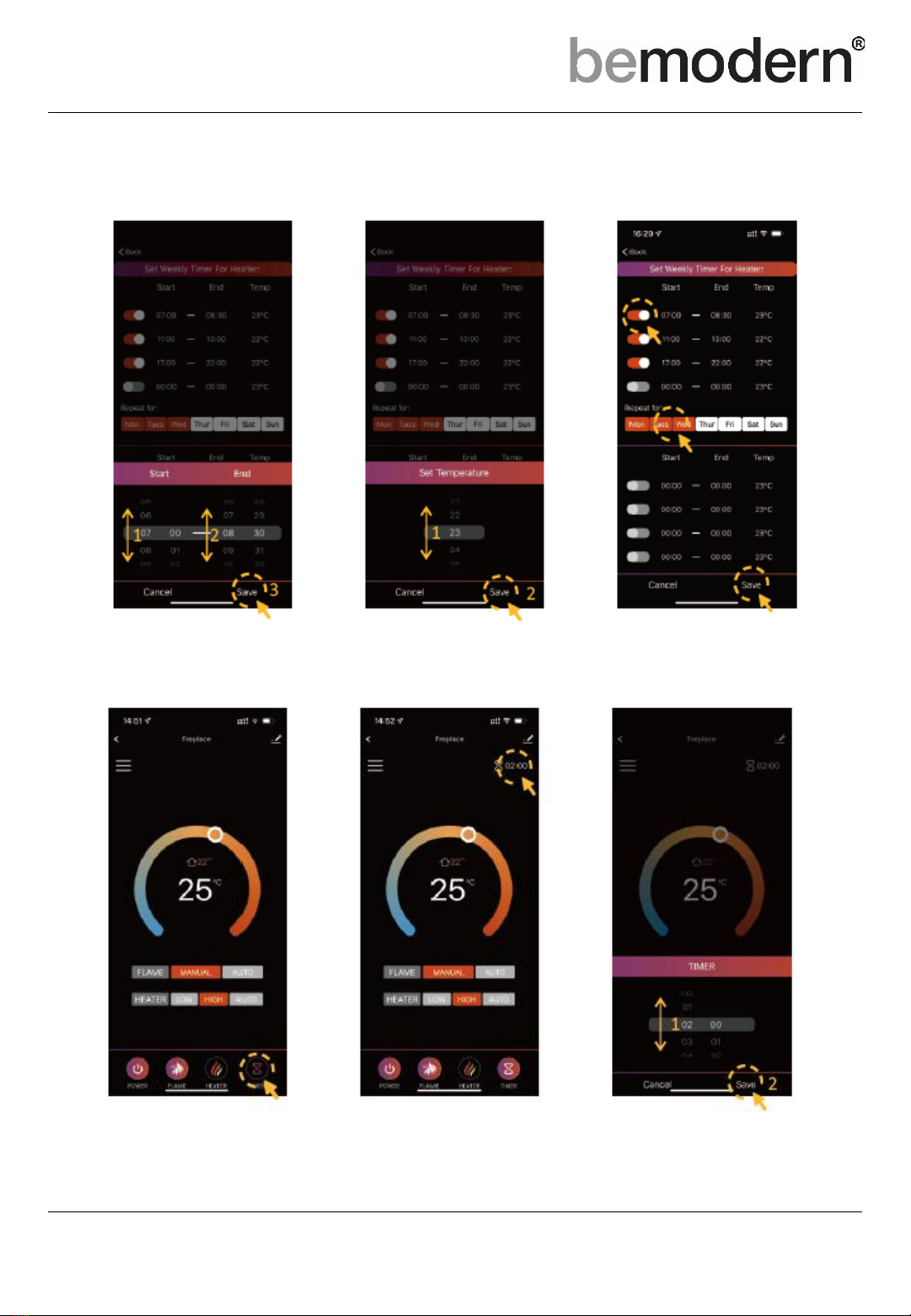

Using the APP - Setting a heating program continued
Using the APP –Setting the timer

19
User Instructions - APP Control
200827_1
Using the APP - Renaming your device
1. Click the 2. Click the you can create a new
name for your device
Using the APP – Creating a “Home”
1. Click the “Home Management” 2. Click “Create a Home” 3. Enter a home name, select the
home location and room(s), then
click "Save"
4. Click “Done”

20
User Instructions - APP Control
200827_1
Using the APP –Adding a Member
1. Select "Me" → "Home Management" → "Name of Home“ → "Home Settings". Select "Add Member".
NOTE: Download the APP for the new member first.
2. Select 1: "APP account".
NOTE: This is to be completed on the new members account not your own
