3 Sided Electric Fire
1000 - 3SL (3083) –1250-3SL (4165)
Instructions For Installation & Operation
Prior to installing this product locate the data label and note the model
and serial number.
Model:____________________
Serial Number:___________________________
200826_1
R1- May 2022

2
Contents
Page
Technical Specification 3
Manual Handling 4
Contents of the Box(es) 5
Unpacking the Fire 6 - 7
Preparing the Fire 8 - 9
Installation –Stud wall 10 -11
Installing the Fire 12
Fuel Bed Layout 13
Log Positioning 13
Replacing the Glass 14
Troubleshooting 15
200826_1

3

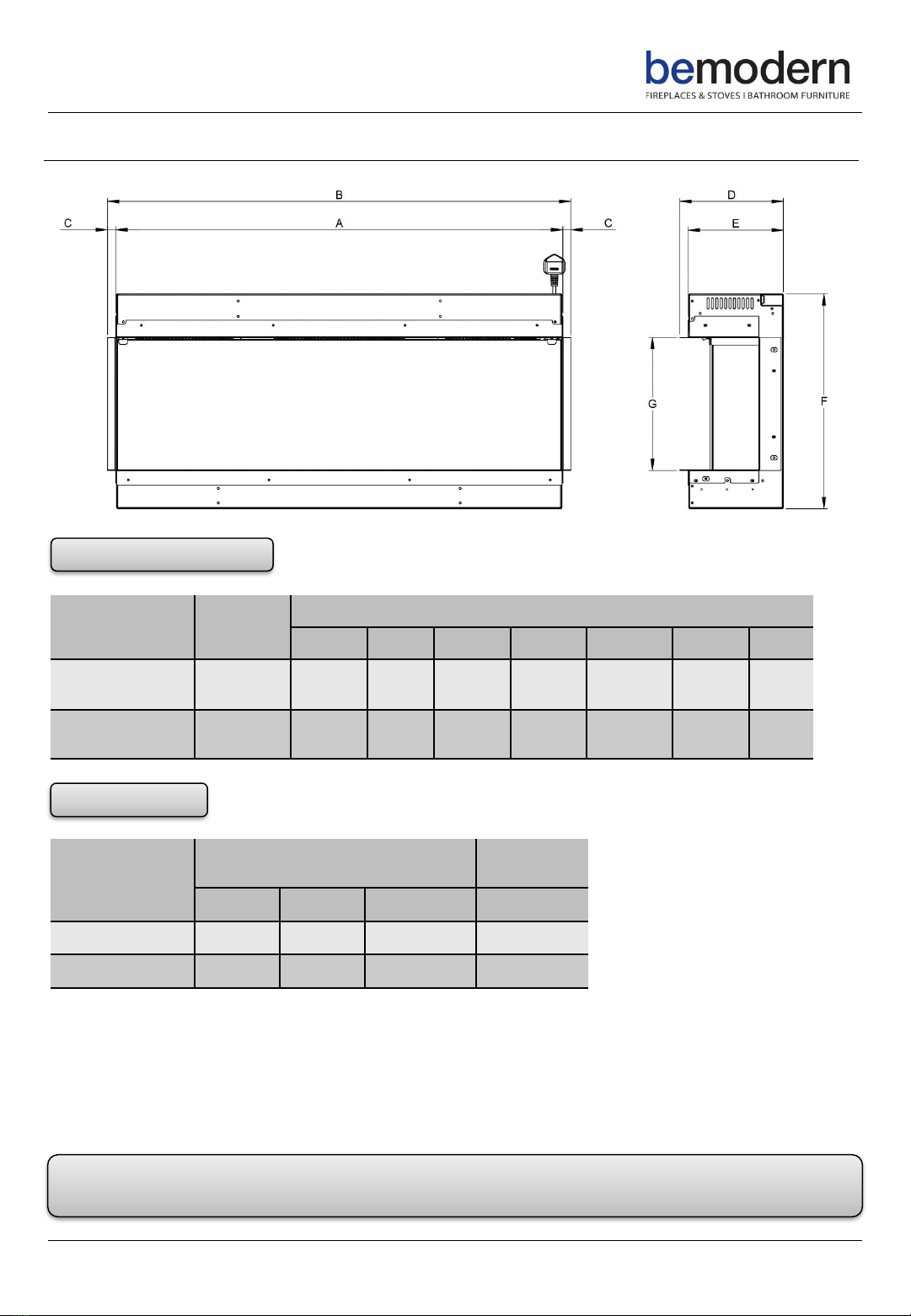

Technical Specification
Fire Logs Dimensions (mm)
A B C D E F G
1000-3SL (3083) 5 SML + 2
LRG 1016 1054 19 236 217 488 302
1250-3SL (4165) 10 SML + 2
LRG 1266 1304 19 236 217 488 302
Note: The above image and dimensions detail the fire set up for a 3 sided installation- adjust the dimensions
accordingly for 2 sided (B-19mm) and 1 sided (B-38mm) installation.
Fire Visible Glass Area (mm) Boxed
Weight
W H D 2/3 Sided (Kg)
1000-3SL (3083) 1008 296 111 36.1Kg
1250-3SL (4165) 1258 296 111 45.2Kg
200826_1
Detailed: 3 Sided Fire Set Up
Tolerance +/- 2mm

4
200826_1
Manual Handling
BEFORE STARTING THE INSTALLATION OF THIS FIRE, PLEASE READ THE FOLLOWING:
CAUTION: This appliance is heavy. Always seek assistance whilst unpacking and / or during installation.
The installation should be carried out by two adults to avoid injury or damage. If for any reason it is considered too
heavy, please obtain assistance.
When lifting the electric appliance, always keep your back straight. Bend your legs and not your back. Avoid
twisting at the waist. It is better to reposition your feet.
Avoid upper body / top heavy bending. Always bend from the knees rather than the waist. Do not lean forward or
sideways while handling the fire.
Always grip the fire with the palm of the hand –do not use the tips of fingers for support.
Always keep the fire as close to the body as possible. This will minimize the cantilever action.
Use gloves to provide additional grip.

5
Contents of the box(es)
200826_1
Please ensure all fixings are present before commencing installation. If anything is missing please call Customer
Services on 01914300901 or email us at customerservi[email protected]k
Quantity Description Quantity Description
11000-3SL (3083)- Electric Fire 1 Foam Strip- (Bagged Separately)
7 5 x Small Logs & 2 x Large Logs (Boxed Inside Fire) 1 Fire Operating Instruction- (Bagged Separately)
1 Bags of Crystals (Boxed Inside Fire) 1 Wall Hanging Bracket- (Supplied fixed to the fire Rear)
1 Bags of Pebbles (Boxed Inside Fire) 2 Side Panels (Boxed Separately at the rear of the fire)- (For 1
Sided Installation)
1 Fire Remote Control & 2 x AAA Batteries (Bagged
Separately) 4 Fixing Brackets (Boxed Separately at the rear of the fire)- (For 1, 2 & 3 Sided Installation)
1000-3SL (3083)
Quantity Description Quantity Description
11250-3SL (4165)- Electric Fire 1 Foam Strip- (Bagged Separately)
10 8 x Small Logs & 2 x Large Logs (Boxed Inside Fire) 1 Fire Operating Instruction- (Bagged Separately)
1 Bags of Crystals (Boxed Inside Fire) 1 Wall Hanging Bracket- (Supplied fixed to the fire Rear)
1 Bags of Pebbles (Boxed Inside Fire) 2 Side Panels (Boxed Separately at the rear of the fire) - For 1
Sided Installation.
1 Fire Remote Control & 2 x AAA Batteries (Bagged
Separately) 4 Fixing Brackets (Boxed Separately at the rear of the fire) - For 1, 2 & 3 Sided Installation.
1250-3SL (4165)
Note: Discard the 2x
Metal Brackets (left) -
Not required for this
Installation.
2 X Side Panels
(For 1 Sided
Installation, boxed
separately at the rear
of the fire).
4 X Fixing Brackets
(For 1, 2 & 3 Sided
Installation, boxed
separately at the rear
of the fire).

Before the fire can be installed, consideration will need to be given to routing the power supply to the fire. This will
affect the stages of the installation process. We advise a qualified electrician conduct any electrical parts of the
installation.
Note: An accessible single socket is required for the operation of the fire.
Unpack your new fire- DO NOT dispose of the packaging until you have checked and made sure all the parts and
fixings listed on Page 7 are present. Note: The Side Panels and Fixing Brackets are boxed separately at the rear.
6
Unpacking The Fire
200826_1
Please ensure all fixings are present before commencing installation. If anything is missing please call Customer
Services on 01914300901 or email us at customerservi[email protected]k
Note: The fire is a two adult person lift. A second person will be required to lift and support the fire during
installation.
Once the fire is unpacked the 1 X Cardboard Box and
packaging inside the fire needs to be removed and the
contents checked, as listed on Page 7.
See Diagram 1.
Note: The fire is a two adult person lift.
To do this, unscrew the 2 X Screws holding the Glass
Brackets in place.
See Diagram 2.
Diagram 1
Diagram 2
Diagram 3
There is 1 X Screw and 1 X Bracket either side of the fire.
See Diagram 3.
BOX
PACKAGING
BOX PACKAGING

7
Unpacking The Fire Continued…..
200826_1
Once the screws are removed - the Glass can be angled
forward from the top of the fire and lifted out of the
channel at the base of the glass.
Note: Place the Glass, 2 x Glass Brackets and 2 x Screws
in a safe place- these will be required later.
See Diagram 4.
Remove the 1 x Cardboard Box and packaging from
inside the fire and depending on the model purchased,
check the contents as listed on Page 7.
Note: Discard all other packaging.
See Diagram 5.
Diagram 4
Diagram 5
Diagram 6
Next remove the 1 x Clamping Bracket and 2 x Screws
from either side of the fire and discard.
See Diagram 6.
Diagram 7
For installation into a floor to ceiling stud wall, the Rear Mounting
Bracket must be first removed from the fire.
Remove the 2 x L- Brackets and 4 x Screws holding the L -Brackets
on the top of the fire in place and discard.
Once the L- Brackets are removed- remove the 2 x Screws holding
the Rear Mount Bracket in place and also discard.
See Diagram 7.
Note: For other methods of installation, the Rear Fixing
Bracket maybe required to fix the fire to the wall. Please
ensure that suitable fixings are used dependent on the
wall medium.
BOX
PACKAGING
Note: There is 1 x Clamping Bracket either side of the
fire.

8
Preparing the Fire
200826_1
Diagram 8
Diagram 9
Diagram 10
Diagram 11
1 Sided (Fully Recessed) Installation
The fire comes out the box, set up for a 3 sided installation.
See Diagram 11
For a 1 Sided Installation. Remove the 6 x Screws and 2 x
Small Side Brackets and 1 x Large Side Bracket from either
side of the fire.
Locate the 2 x Side Panels and using the previously removed
12 x Screws fix the 2 x Side Panels in place.
See Diagram 8
2 Sided Installation- Right Hand
Leaving the 2 x Small Side Brackets and 1 x Large Side
Bracket on the right hand side of the fire fixed.
Remove the 6 x Screws and the 2 x Small Side Brackets
and 1 x Large Side Bracket from the left hand side of the
fire.
Locate 1 x Side Panel and fix in place on the left hand side
of the fire using the previously removed 6 x Screws.
See Diagram 9
2 Sided Installation- Left Hand
Leaving the 2 x Small Side Brackets and 1 x Large Side
Bracket on the left hand side of the fire fixed.
Remove the 6 x Screws and the 2 x Small Side Brackets and
1 x Large Side Bracket from the right hand side of the fire.
Locate 1 x Side Panel and fix in place on the right hand side
of the fire, using the previously removed 6 x Screws.
See Diagram 10
3 Sided Installation
The fire comes out the box, already set up for a 3 sided
installation.
The 2 x Small Side Brackets and 1 x Large Side Bracket
either side of the fire are attached.
See Diagram 11

9

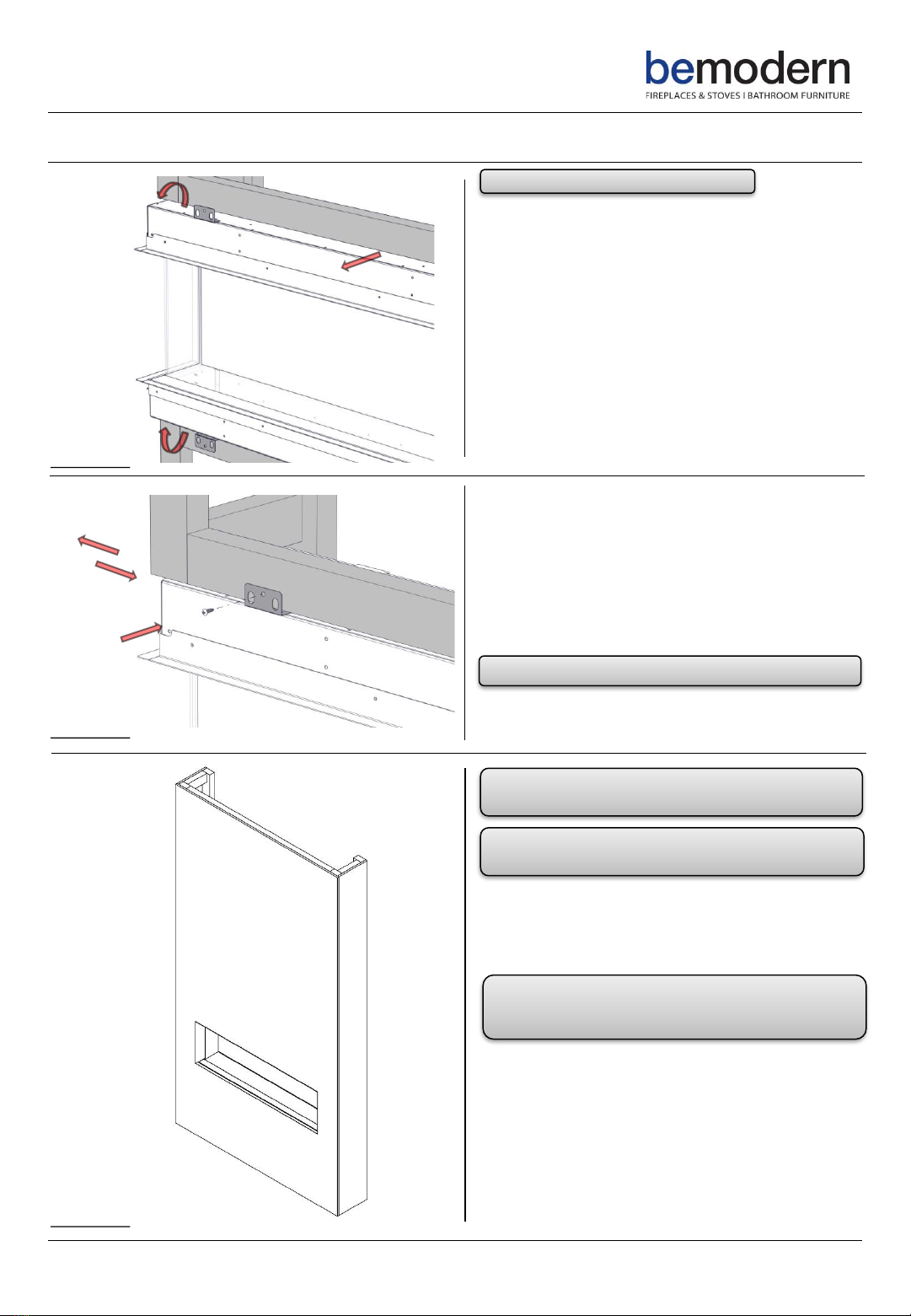

Preparing The Fire Continued…..
200826_1
Diagram 15
Next locate and fit the 2 x Fixing Brackets to the top of
the fire.
Remove the 4 x Screws in the top of the fire and fit the
brackets in the required positions.
Note: Leave the brackets folded down and the screws
backed off slightly until the fire is lifted into the stud wall.
See Diagram 15
Diagram 16
With the fire on its back locate and fit another 2 x Fixing
Brackets to the bottom of the fire.
Remove the 4 x Screws in the bottom of the fire and fit
the brackets in the required positions.
Note: Leave the brackets folded down and the screws
backed off slightly until the fire is lifted into the stud wall
See Diagram 16

10

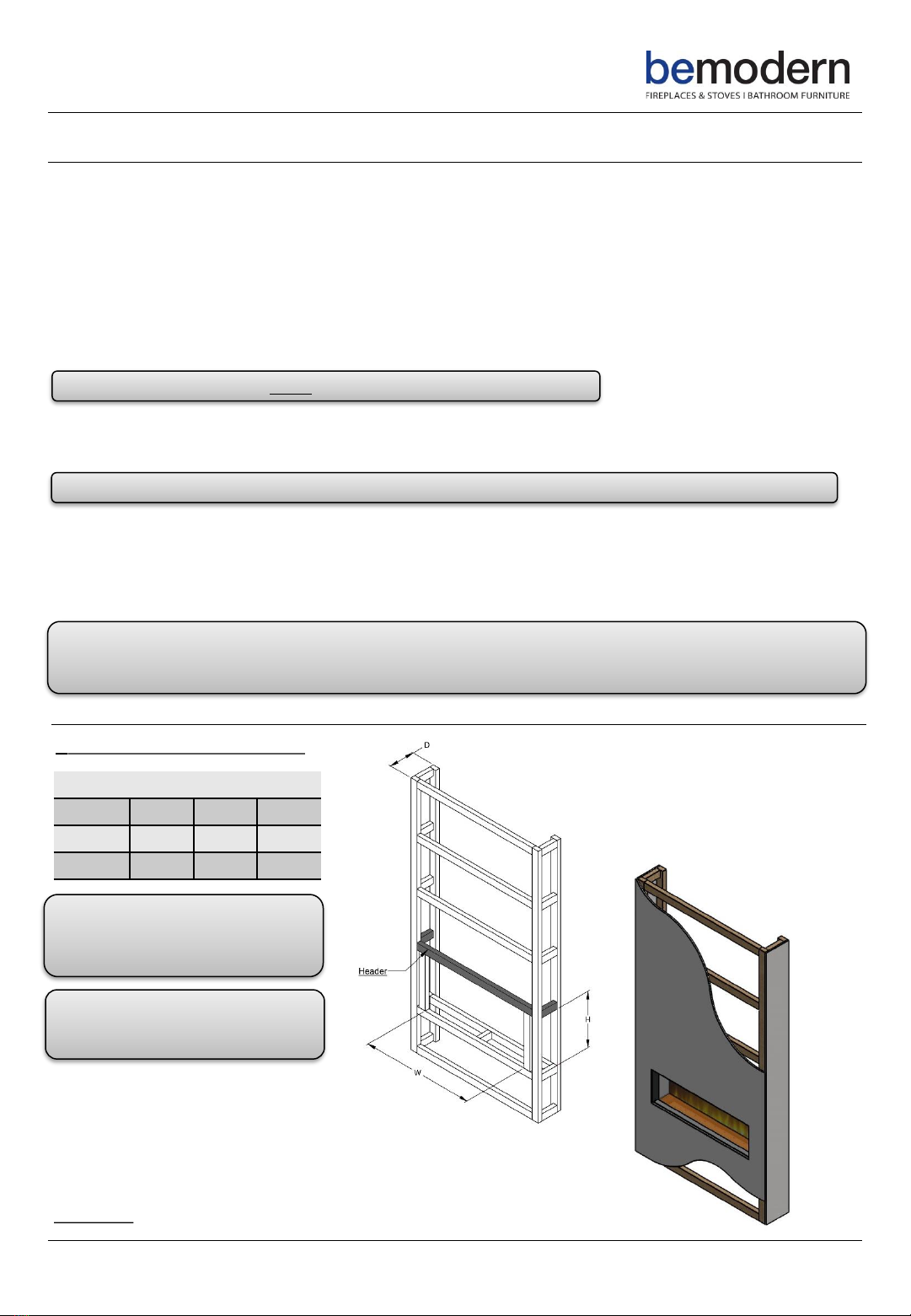

Installation- Stud wall
200826_1
Diagram 12
Once the fire has been prepared, use the following opening dimensions to construct the stud wall which the fire
will be housed in. It is essential to include a header at the required height to ensure the appliance does not support
the weight of the finished wall- See Diagrams 12, 13 and 14. The base of the opening / stud work must also be able
to take the full weight of the fire.
The fire should be positioned on a firm level surface and in a clean ‘dust free’ environment. If the product is to be
installed into an open chimney or flue, it is important that the chimney / flue is blocked off to prevent any up /
down draughts and falling debris which could restrict and alter the airflow of the product.
Note: Any protruding headers MUST be made of a non-combustible material.
To install into a stud wall the mounting bracket must be removed from the rear of the fire as previously shown in
Diagram 7, Page 9.
Note: Before proceeding further ensure there is power to the fire before any cladding / plasterboard is installed.
The product should never be sealed into an opening with the use of silicones or adhesives as this can also alter the
airflow and hinder any future servicing of the product.
Ensure the design of the stud wall allows for the plug or fuse spur to be easily accessible.
Note: The following diagrams are examples of how the stud wall could be constructed and finished with
12.5mm plasterboard. Please adjust to your bespoke design, ensuring the ‘required opening sizes’ detailed in the
following tables are adhered to. This will ensure the minimum clearances are maintained during installation.
REQUIRED OPENING DIMENSIONS (mm)
FIRE W H D
1000 3SL 1025** 505 235
1250 3SL 1275** 505 235
1 Sided (Fully Recessed) Installation
Note: Ensure there is a minimum 10mm
clearance between the fire and the wall
behind.
Note: ** Where possible we recommend
the stud wall is built around the fire to
allow for any manufacturing tolerances.
See P3.

11

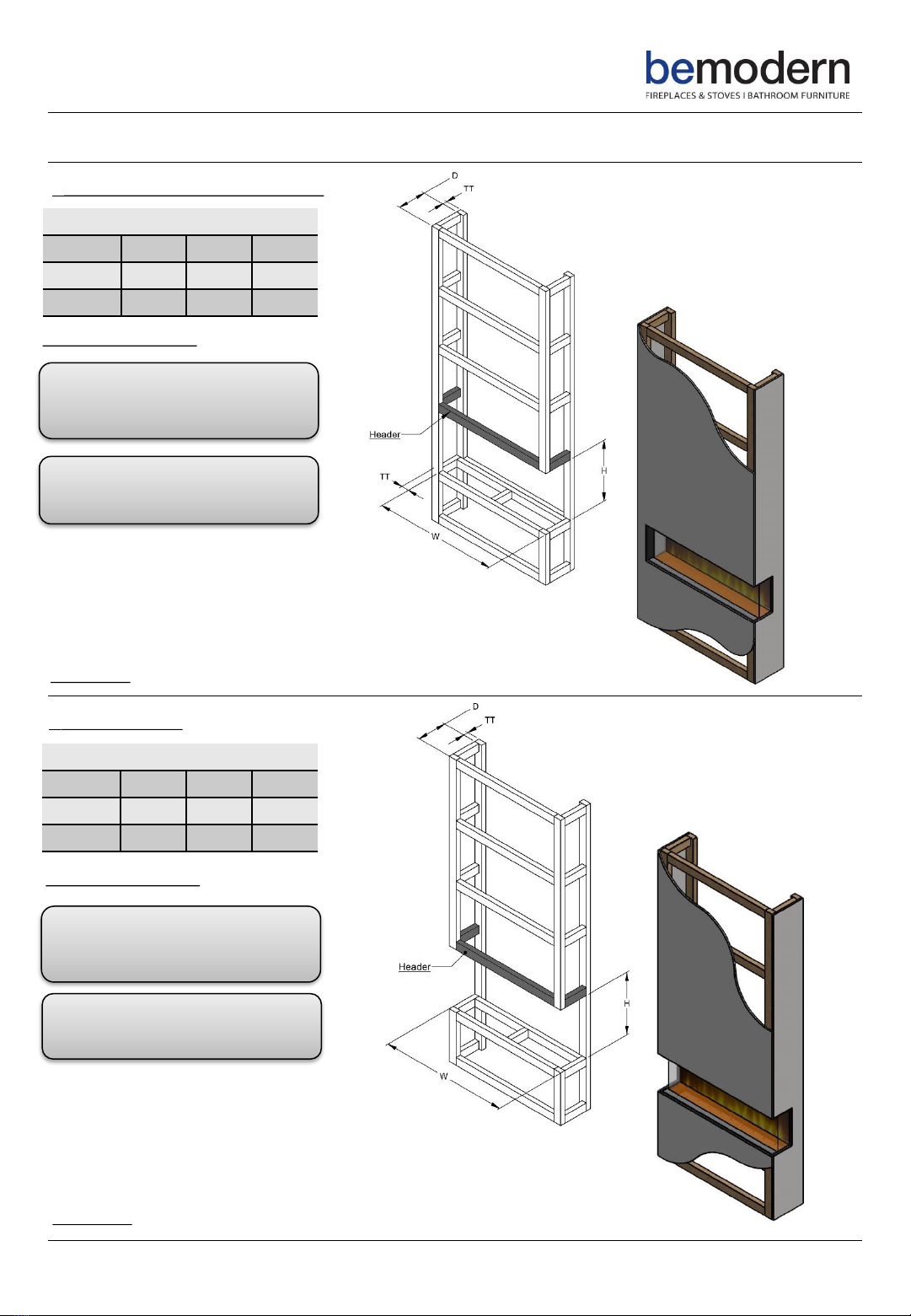

Installation- Stud wall continued…..
200826_1
Diagram 13
REQUIRED OPENING DIMENSIONS (mm)
FIRE W H D
1000 3SL 1025** 505 235*
1250 3SL 1275** 505 235*
2 Sided Installation (Righthand Shown)
* + TT- Timber Thickness
Diagram 14
REQUIRED OPENING DIMENSIONS (mm)
FIRE W H D
1000 3SL 1025** 505 235*
1250 3SL 1275** 505 235*
* + TT- Timber Thickness
3 Sided Installation
Note: Ensure there is a minimum 10mm
clearance between the fire and the wall
behind.
Note: Ensure there is a minimum 10mm
clearance between the fire and the wall
behind.
Note: ** Where possible we recommend
the stud wall is built around the fire to
allow for any manufacturing tolerances.
See P3.
Note: ** Where possible we recommend
the stud wall is built around the fire to
allow for any manufacturing tolerances.
See P3.

12
Installing The Fire
200826_1
Diagram 18
Note: The fire is a two adult person lift
Lift the fire into the stud wall opening- leaving approx.
50mm of the fire protruding to the front.
Unfolded the fixing brackets at the top and bottom of the
fire.
The brackets are on a slot so they can be adjusted
backwards and forwards to suit the stud wall face
finishing material.
Once the position has been decided tighten all the screws
to secure the brackets in place.
See Diagram 18
Once the brackets are secured in place push the fire into
position, ensuring the rear face of the brackets is flush
with the face of the stud wall.
Position the fire in the opening to suit the cladding /
plastered board being used.
Once in position screw through the holes in the fixing
brackets securing the fire to the stud wall.
Note: These screws are not provided.
See Diagram 19
Note: Before proceeding further ensure there is power to
the fire and it is operating correctly.
Note: Ensure the plug / fuse spur can be fully accessible
once the cladding / plasterboard is installed.
Once the above has been checked, clad / plasterboard,
skim and finish the stud wall, as desired.
See Diagram 20
Tip: If using plasterboard position the sealed edge of the
plasterboard against the fire brackets protruding from
the fire. This will help maintain a clean / sharp edge.
The fuel bed can now be dressed and the logs positioned.
See Diagram 21- 25- Page 15
Diagram 19
Diagram 20

Tip: Before dressing the fuel bed. Position the foam
strip (supplied) in the channel in the base of the fire,
this will help to stop the smaller fuel bed material
falling into the channel during installation.
See Diagram 21.
The dressing of the fuel bed can be fully tailored to
the customers individual tastes. A sufficient amount
of each fuel bed finishing material has been provided
to cover the fuel bed in a single type of material.
Diagram 24 - Above shows an example of the 7 x log set up for the 1000 3SL Fire .
13
Fuel Bed Layout & Log Positioning
200826_1
Diagram 21
Fuel Bed Dressing- As a starting point follow the example below:
Diagram 22 - Place a large amount of crystals in the centre of the fuel bed- leaving a gap around the edges.
Tip: The crystals pick up light from the under bed lights to give you a realistic glowing ember effect, so we
recommend using a generous amount.
Diagram 23- Fill the space around the edges of the crystals with the pebbles, as well as randomly in between the
crystals.
Diagram 25 - Above shows an example of the 10 x log set up for the 1250 3SL Fire .
Positioning the logs- As a starting point follow the example below:
Large Log Large Log
Large Log Large Log

14
Replacing the Glass
200826_1
With the rear of the Glass clean and angled forward slightly position the Glass in the channel in the base of the fire
(1), and carefully push back into position. (2) See Diagrams 26 & 27.
Finally the Glass and 2 x Glass Brackets can be refitted, using the previously removed 2 x Screws.
Note: Before proceeding further remove the foam strip and check the channel in the base of the fire is free of
any fuel bed material.
Tip: Ensure the rear of the front and side glass is clean before fixing in place.
Once in the correct position secure with the previously removed 2 X Screws and 2 X Glass Brackets.
1 X Screw and 1 x Glass Bracket either side of the fire. See Diagram 28.
The installation is now complete.
Note: Consult the separate Fire Operating Instructions for manual and remote operation.
Diagram 26 Diagram 27
Diagram 28

15
200826_1
Troubleshooting
Problem Solution
The fire is not switching on Ensure there is power to the fire, is the main electric socket
switched on?.
The fire is not switching on
Check fuse in the plug / spur and also check the main rocker switch
on the fire is in the “ON” position.
The fire is not emitting heat Check the temperature on the fire display is set higher than the
room temperature
The fire Shuts off after a period of time The room has reached the set temperature.
Has the daily timer been set.
Remote not operating the fire Replace the batteries in the remote control handset
Display showing E1 The thermostat sensor is disconnected or broken. Contact
customer services.
Display showing E2 Thermostat sensor broken contact customer services
Display showing E3
Fire has overheated and the safety cut-
out has operated. Check air
inlets and outlets to ensure they are not blocked or obstructed.
Switch power to the fire off for 30 minutes to allow safety cut-
out to reset. Power up the fire and monitor for overheating, if
problem persists contact customer services.
Should you be experiencing any problems with your fire please call Customer Services on 01914300901 or email us at
[e-mail]
