bemodern Pryzm 750 User manual

1
Pryzm 750, 1000
Instructions for use
Patent pending
UK Registered Design
R1 Aug 2019 200788_1

2
Contents
Tech Specs 3
Safety Info 4 –5
Dressing the logs (750 Pryzm) 6 –9
Dressing the logs (100 Pryzm) 10 - 13
User Instructions 14-19
Maintenance 20
General information 21
Guarantee 22
200788_1

3
Technical Specification
Model No.: 2653 / 2681
Supply Voltage: AC 230-240V 50Hz
Maximum power consumption: 2KW
Power for flame effect: 2653: 25W (LED 17W + Motor for flame 8W)
2681: 20.5W (LED 12.5W + Motor for flame 8W)
Heat Output:
Nominal heat output (Pnom): 2KW
Minimum heat output (indicative) (Pmin): 1KW
Maximum continuous heat output (Pmax): 2KW
Auxiliary Electricity Consumption:
At nominal heat output (elmax): 17W
At minimum heat output (elmin): 12.5W
In standby mode (elSB): 0.48 W
Single
stage heat output and no room temperature control No
Two
or more manual stages, no room temperature control No
With
mechanic thermostat room temperature control No
With
electronic room temperature control Yes
Electronic
room temperature control plus day timer Yes
Electronic
room temperature control plus week timer Yes
Room
temperature control, with presence detection No
Room
temperature control, with open window detection Yes
With
distance control option No
With
adaptive start control Yes
With
working time limitation No
With
black bulb sensor No
Type of heat output / room temperature control
Other Control Options
200788_1

4
Safety Information
Read all of the instructions carefully before using the appliance.
For indoor use only This appliance is not suitable for use outside the house and only
suitable for well insulated spaces or occasional use.
Do not use this appliance in the immediate surroundings of a bath, a shower or a
swimming pool.
Do not use this fire as a free-standing appliance. It must always be fixed to the wall,
fireplace mantel, floor etc.
This fire must not be located immediately below a socket-outlet.
This appliance must be earthed.
This appliance must not be supplied through an external switching device, such as a
timer, or connected to the circuit that is regularly switched on and off by utility in order
to avoid a hazard due to the inadvertent resetting of the thermal cut out.
A non-rewirable plug fitted with a 13A fuse is supplied. Should the fuse or plug need
replacing, and you are competent to do so, it must be replaced with a 13A fuse or
plug being 13A BS1363A approved.
If the power cord is damaged, it must be repaired by the manufacturer, its authorised
service centre or professional person.
The meaning of this symbol is “DO NOT COVER”. Warning: in order to avoid
overheating, do not allow the appliance to be covered or let the air inlet / outlet to
become obstructed. Please note the warning symbol on the appliance (see above).
To reduce the risk of fire, keep textiles, curtains, or any other flammable material a
minimum distance of 1 meter from the air outlet.
Keep the power cord away from hot surfaces and hot conditions. Do not route the
power lead in front of the appliance.
Do not use this fire in rooms that have explosive gas in them (for example petrol), or if
you are using solvents, glue, aerosol spray or in flammable paints, as these may catch
fire.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
200788_1

5
Safety Information (continued)
Children and vulnerable people must be supervised at all times when using this
appliance, as some parts can become very hot and cause burns.
Do not use this appliance in small rooms when they are occupied by persons not
capable of leaving the room on their own, unless constant supervision is provided.
Cleaning and user maintenance shall not be made by children without supervision.
Children aged from 3 years and less than 8 years only can switch on / off the
appliance provided that it has been placed or installed in its intended normal
operating position and instructions and supervisions concerning the safe way of the
use of the appliance are offered. Children aged from 3 years and less than 8 years
shall not plug in, regulate and clean the appliance or perform user maintenance.
This appliance shall not be played with by children.
Children of less than 3 years should be kept away unless continuously supervised.
200788_1

6
Dressing the logs
Once the installation of your new suite is complete the logs can be positioned.
4 Log Fuel Bed - 750 Pryzm
Locate the box containing the logs.
Log B
Log D
Log C
Log A
200788_1

7

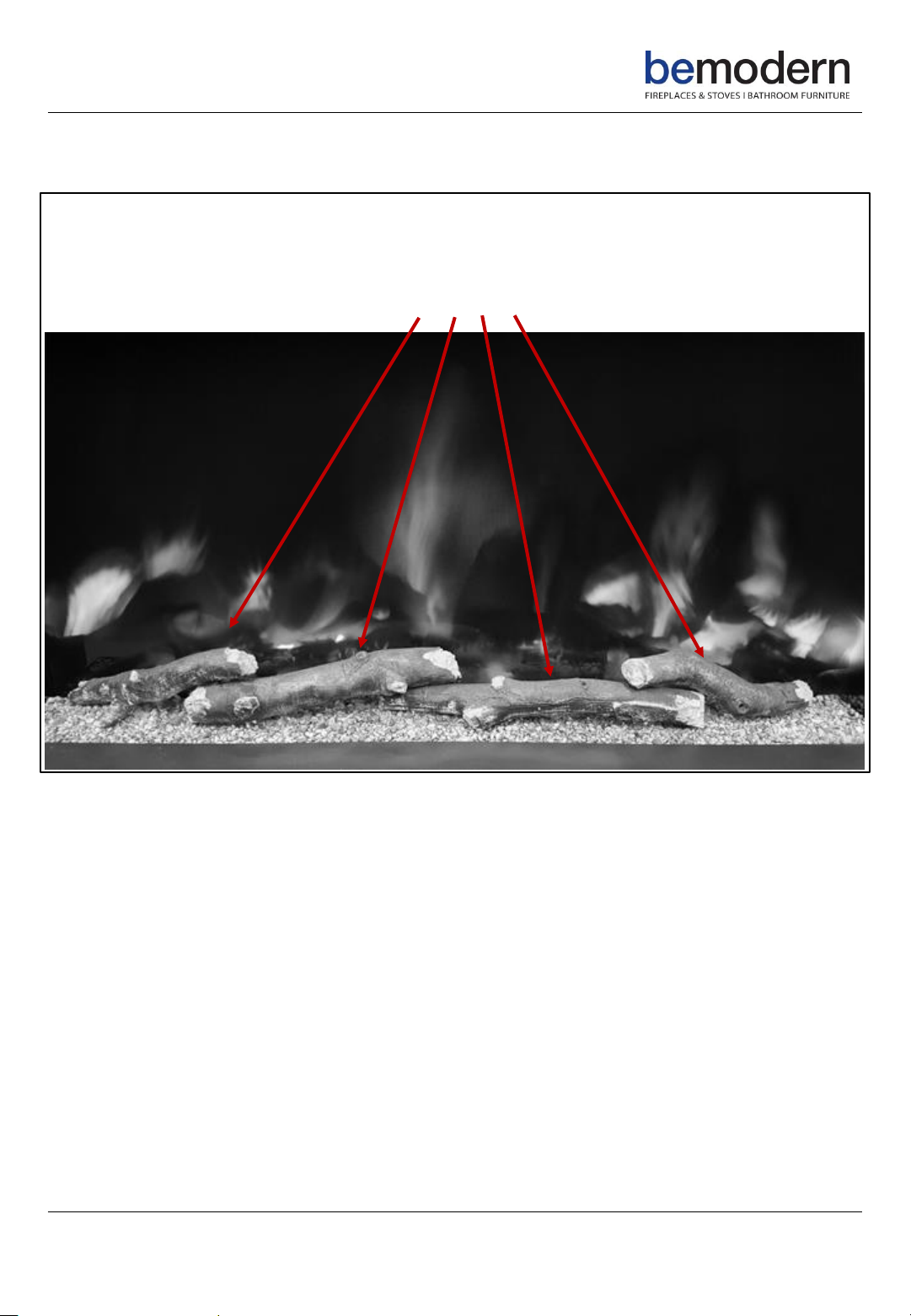

Dressing the logs (4 logs –750 Pryzm)

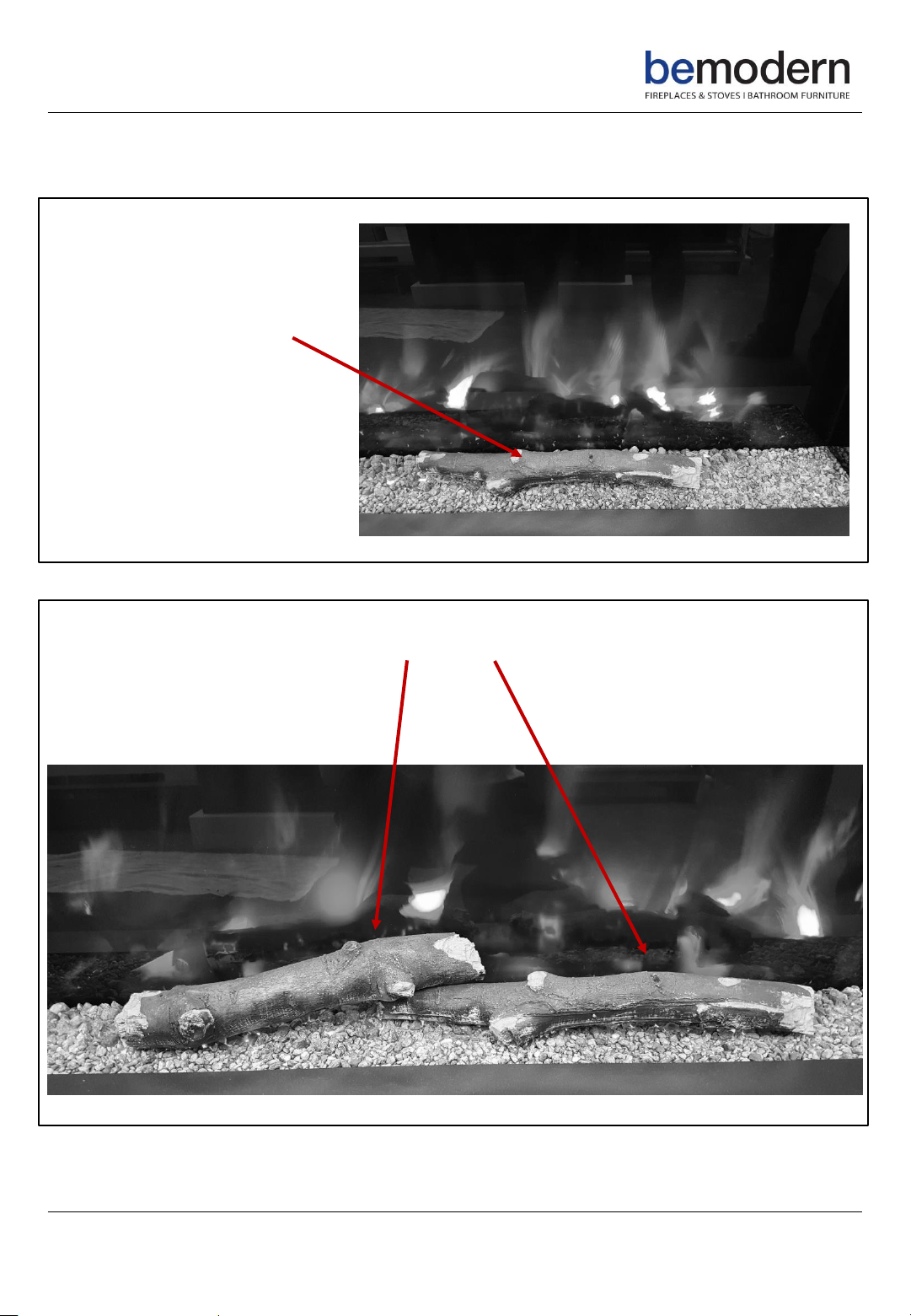

Position log A slightly to the right of the centre of the fire
Locate log B into log A
200788_1

8
Dressing the logs (4 logs –750 Pryzm)
Locate log C into log B
Locate log D into log A
200788_1

9
Dressing the logs (4 logs –750 Pryzm)
Finally twist the interlocked logs into the desired position and centre if required
Log C, B, A & D
200788_1

10
Dressing the logs
Once the installation of your new suite is complete the logs can be positioned.
4 Log Fuel Bed - 1000 Pryzm
Locate the box containing the logs.
Log A
Log B
Log C
Log D
200788_1

11
Dressing the logs (4 logs 1000 PRYZM)
Position log B slightly to
the right of the centre
of the fire
Locate log A into log B
200788_1

12
Dressing the logs (4 logs –1000 Pryzm)
Locate log C into log B
Log A, B and C
Locate log D into log A
200788_1

13
Dressing the logs (4 logs - 1000 Pryzm)
Finally twist the interlocked logs into the desired position and centre if required
Log D, A, B & C
200788_1

14
User Instructions
WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you
suspect the appliance is damaged or has malfunctioned call a qualified service
engineer to inspect the appliance, and replace any part of the electrical system if
necessary, before reuse.
WARNING! To reduce the risk of fire, keep textiles, curtains, or any other flammable
material a minimum distance of 1 meter from the air outlet.
MAKE SURE the plug fits tight in the outlet. Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
Do not disconnect the power at the mains supply whilst the appliance is running. Use
the functions on the remote to turn the fire off and ensure the mains switch has been
moved to the off position before disconnecting.
PREPARATION FOR USE
The appliance can be operated by both remote control and the manual controls on
the appliance. NOTE: To use either the remote or the manual functions the main on /
off switch must be in ‘ON’ position.
Batteries
Ensure that the handset batteries are new and inserted correctly.
Main Power Switch
The mains power switch is located on the control panel on the top right- hand side of
the heater box. This needs to be switched ON before operating either the remote or
manual controls. A long beep will be heard to indicate the fire is ready for use.
200788_1

15
User Instructions Continued
NOTE: The manual buttons control basic functions, not a full range of controls.
Use the remote hand set to carry out all functions.
The user controls on appliance are located on the upper right side of the appliance.
Turning on the appliance with the main power switch to “—“position. A long beep will
be heard.
Press “LIGHTS ON / OFF” to turn on or turn off the flame effect.
Press “FLAME” button to cycle through the 3 colours of flame effect.
Press “FUEL BED” button to cycle through the 13 colours or a colour-cycle mode and
OFF settings.
When the remote runs out of power or when you change the batteries, the flame
function will lose its memory, however this will not affect the timer settings, the clock
and date may need to be adjusted.
Manual control panel
200788_1

16
User Instructions Continued
NOTE: This is a thermostatic remote control. The remote should be in the same room as
fireplace and placed on a flat surface. It must be placed away from the fire so the hot
air will not blow on it and affect thermostatic reading.
The communication between the remote and appliance will already be established.
Please read page 23 “Pairing the handset to the appliance” to set it up if you can’t
operate the appliance with the remote.

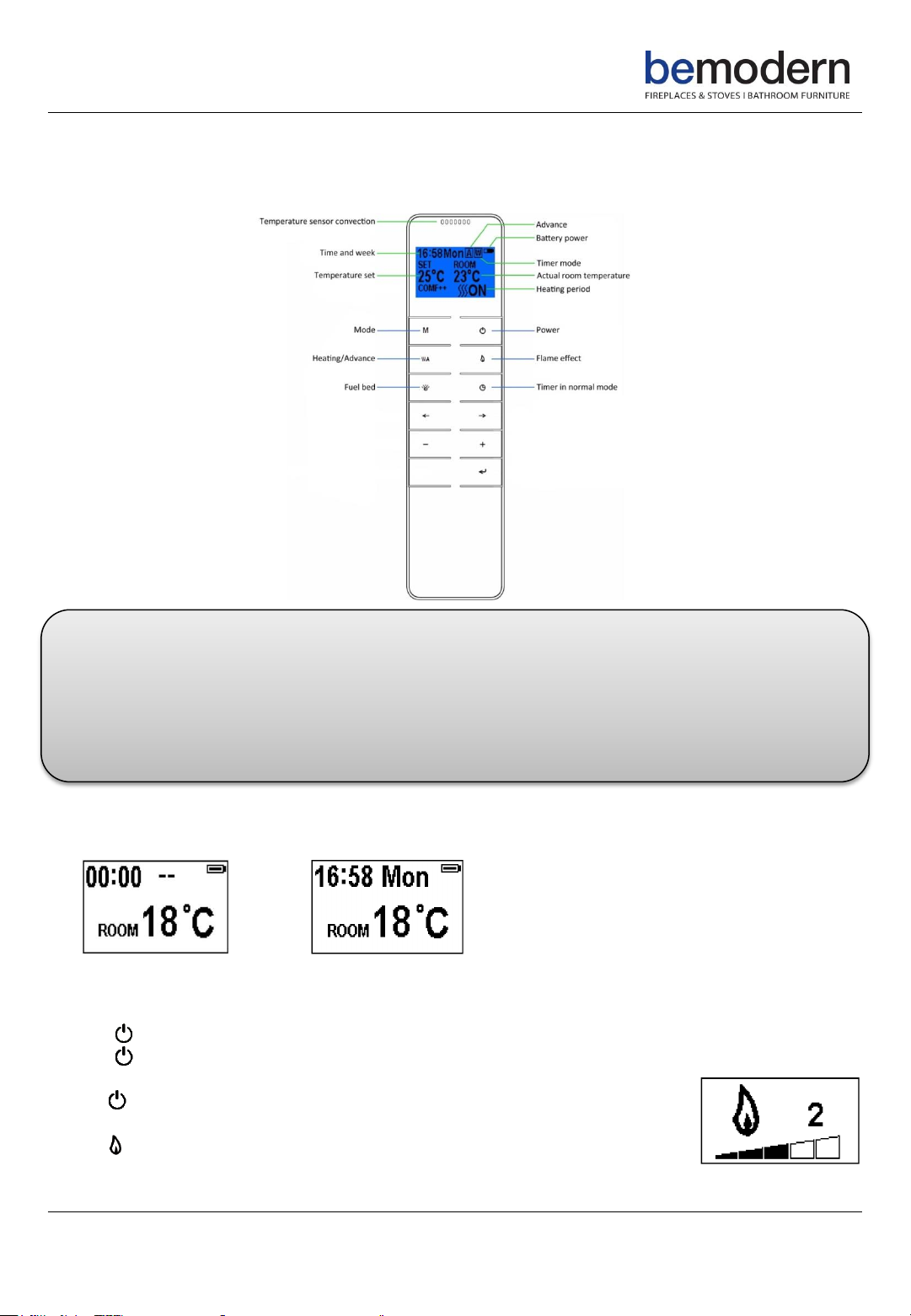

Standby for Remote Handset
The screens shown below are when the remote handset is in standby mode.
Before Day / Time set up After Day / Time set up
Turn On / Off
Press to turn on the flame effect.
Press to turn off all the functions under the normal mode including flame effect and
heater fan.
Press to turn off the flame effect under daily and weekly timer mode.
Flame effect
Press to enter the flame effect adjustment screen.
Press the ‘←’ or ‘→’ button to select 1 of the 3 flame effect colours.
Press the ‘+’ or ‘-’button to select 1 of the 5 brightness levels for the flame effect
Remote control operation
200788_1

17
User Instructions Continued
Fuel bed colour
Press to enter the fuel bed light adjustment screen.
Press the ‘←’ or ‘→’ button to cycle through the 13 colours of fuel bed
or the colour-cycle mode. Setting 14
Press the ‘+’ or ‘-’button to select 1 of the 5 brightness levels
for the fuel bed and the OFF setting
Normal mode
Normal control mode is factory set. Or press Mbutton until the logo shows up at the
upper right corner of the screen.
Press the ‘+’ or ‘-’button to adjust the temperature setting from 17℃
to 25℃(increments of 2℃)
Press button to turn on / off the heat, ON、OFF will show
at the lower right corner of the screen.
In order to prevent the product becoming too hot, there is a 10 second delay when
turning on the heater and a 10 second delay when turning off the heater fan.
Note: It is normal for the fan heater to stop running for periods of time.
This happens because the room temperature is at or above the temperature set on the
remote control.
The heater indicator will be turned off after 10s if you have the flame effect ON.
The heater indicator will stay ON if you use the heating function only and the flame
effect is OFF.
Timer function
Note: This setting is only for normal mode. It allows the appliance to
be returned to Standby after a set period of time.
Press to cycle through the settings from Off, 0.5 hours to 9 hours.
The timer logo and time will show on the screen.
The heater can be automatically run by using daily timer and weekly
timer on the remote.

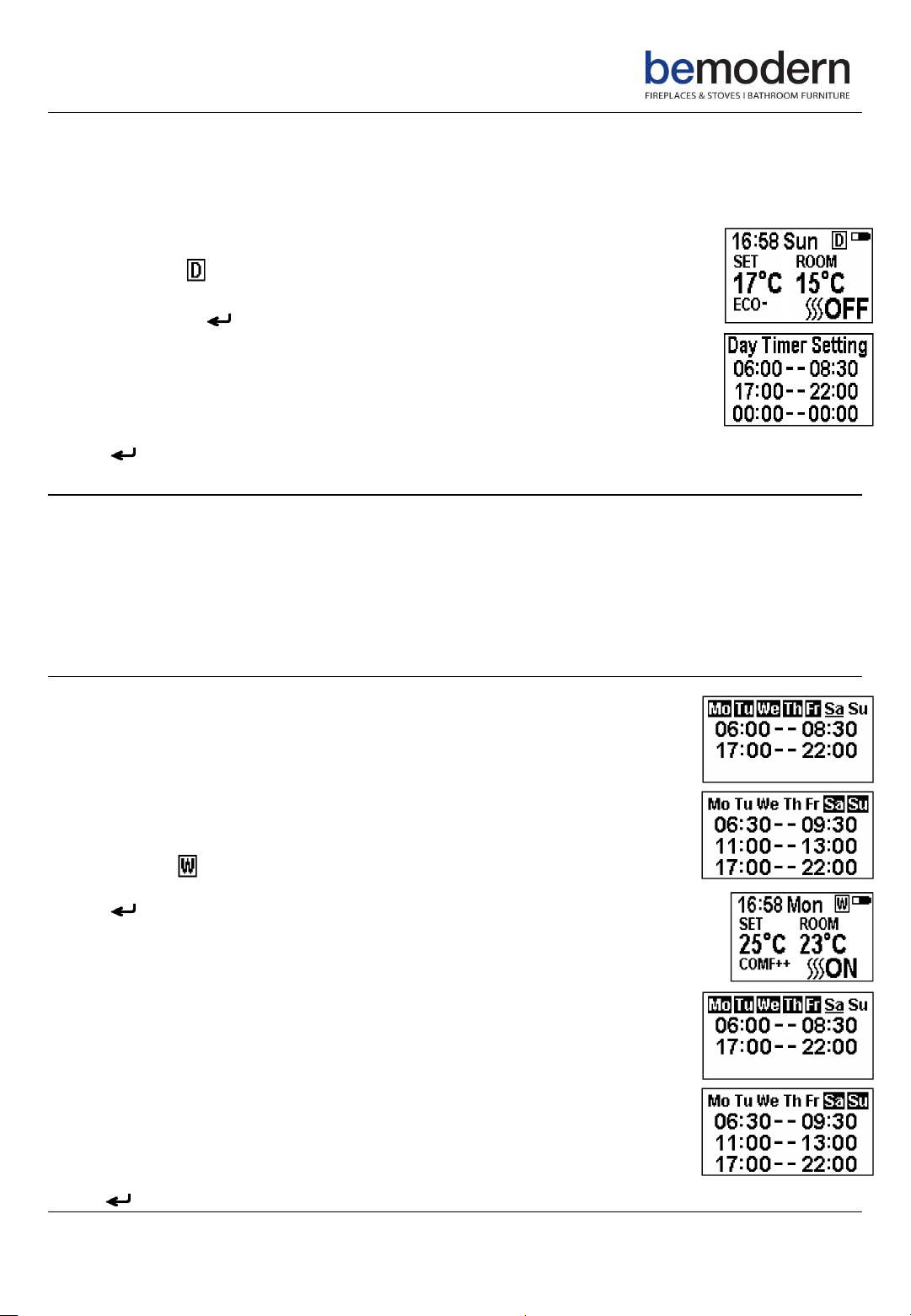

Weekly / daily timer and comfortable temperature setting
Press to turn on the remote handset.
Hold the Mbutton for 3 seconds to enter the setting screen.
Press the ‘←’ or ‘→’ button to choose day, time or comfortable temperature.
The selected character will be highlighted
Press the ‘+’ or ‘-’ button to adjust the number
Time: 24-hour system
Select your comfortable temperature from 15-25℃.
Temperature unit: ℃、℉
Remote control operation
200788_1

Press Muntil shows at the upper right corner of the screen,
then enter the week heating mode.
Hold button for 8 seconds to enter the weekly timer heating mode
setting.
Press ‘←’ or ‘→’ to move the cursor (a flashing underline), press the
button in the corresponding week position to select (the character is
highlighted) or cancel (the character is displayed normally) the current
setting. Several time periods can be selected together.
Press the ‘→’ button to move the cursor to the
time period setting area. Press ‘←’ or ‘→’ to choose hour or minute,
press ‘+’ or ‘-’to set the number.
Max 3 heating periods for a day.
Minute will increase/decrease by 15mins per press.
Press the ‘←’ or ‘→ to move to the next line or time setting on the current
line, press the →on the last line to return to the first time setting line. Hold
3s or wait for 8s to save and exit the heating time period setting.
18
User Instructions Continued
Daily timer mode
Press Muntil shows at the upper right corner of the screen,
then enter the daily timer heating mode.
Hold the button for 8 seconds to enter the daily heating setting.
Max 3 timed heating periods per day.
Press ‘←’ or ‘→’ to choose hour or minute, press ‘+’ or ‘-’to set the time.
Minute setting increases / decreases by 15min per press.
Press the ← or →to move to the next line or time setting on the current line
press the →on the last line to return to the first time setting line.
Hold for 3 seconds or wait for 8 seconds to save and exit the heating time period
setting.
Adjusting the temperature setting
Press the ‘+’ or ‘-’ button to increase or decrease the temperature setting on the basis of
your comfort temperature setting
ECO means 2℃lower than your comfortable temperature setting
ECO- means 4℃lower
COMF+ means 2℃higher
COMF++ means 4℃higher.
Weekly timer mode
The following pre-set heating periods can be altered if desired.
From Monday to Friday
06:00 until 08:30 | 17:00 until 22:00
From Saturday to Sunday
06:30 until 9:30 | 11:00 until 13:00 | 17:00 until 22:00
Remote control operation
200788_1

19
User Instructions Continued
Advance mode
Under the daily and week timer mode Pressing will turn the heater
on or off
Window open detection
When the transmitter detects a rapid drop in room temperature, it will be
judged as a window open, the warning icon will be displayed and the
heater will be turned off automatically. After the indoor temperature has
risen or by manual intervention (by operating remote control), the
heater will return to its normal working state.
Pairing the handset to the appliance
The below operation should be carried out before programming, when
changing to a new remote or in the event the appliance cannot be
controlled by the remote:
Hold the reset button on the appliance for 3 seconds (a pen point may
needed) until you hear 3 short beeps from the unit, release the button.
Press the button on the remote, the programming is finished when
you hear 1 long beep from the appliance.
Resetting the remote control is necessary if the appliance operates
incorrectly or does not respond when operated. Open the back cover
of the remote control.
Press the Reset button. Follow the above steps
Remote control operation
Resetting the Thermal Cut Out
The appliance is fitted with an Electronic Safety Control (E.S.). This is a safety device,
which switches off the fire if, for any reason, the appliance overheats, e.g. if covered. If
the heater stops operating while the flame effect continues working normally, this
indicates that the E.S. Control is in operation. The E.S. Control can only be reset after the
appliance has cooled down, and the appliance has been reset. Resetting of the E.S.
Control proceeds is as follows:
Switch off the appliance (Manual On / Off switch) and leave it off for approximately
10-15 minutes.
Remove any obstruction to the fan heater outlet or fan blades etc. Make sure that the
power supply is disconnected with the plug socket outlet while doing this.
Switch on the appliance and the E.S. Control will be re-set.
Ensure that the appliance is functioning correctly. If the E.S. Control operates again, the
appliance should be checked by a competent electrician.
200788_1

20
Maintenance
WARNING: Before any maintenance or whilst cleaning the exterior of the fireplace, the
unit should be disconnected from the power supply until it has cooled down.
Remote Handset Battery Replacement
When the batteries are at full power, the battery symbol will show
When the batteries are half full, the battery symbol will show
When the batteries are out of power and need replacing immediately, the battery
symbol will show
Battery replacement is recommended after 1 year. The batteries are 1.5V alkaline
AAA, batteries.
Dispose of old batteries at an appropriate recycling facility.
Cleaning the Fire
Cleaning or polishing products are not recommended. Fingerprints or other marks on
the front glass panel can be removed by a piece of soft, damp, lint-free cloth with a
good quality household glass cleaner. The front glass panel should always be
completely dried with a clean, lint-free cloth or paper towel.
CAUTION: Abrasive cleaners should not be used on the glass panel. Liquids should not
be sprayed directly onto any surface of the unit.
200788_1
