bemodern BM-06 2 SLIDE Series User manual

USER INSTRUCTIONS
INSTALLATION INSTRUCTIONS
SERVICE INSTRUCTIONS
It is a regulation that these instructions be handed to the customer after installation is complete. It is
also the responsibility of the installation engineer to ensure that the customer is able to fully operate
the appliance and is aware of any cleaning or maintenance requirements.
WIDESCREEN HE GAS FIRE
Model number: BM- 6XXX2 SLIDE for use on Natural Gas (G2 ) at a supply pressure of 2 mbar in GB / I.E.
(XXX denotes Fret Type, Fuel Bed Type & Trim Type)
P-XX1551 ISSU 5
NOTE: The installation of this appliance requires a
back panel with a specific cut out — See page 5 for details

2
CONTENTS
Regulatory Information and Installation Requirements …………………………... 3
Installation Requirements (continued) ………………………………………………….. 4
Siting the Appliance ……………………………………………………………………………… 5
Installation of ‘fixing plate’ assembly …....………………………………………………. 6
Installing the Back Panel …………………………………………………………………………. 7
Fixing the Appliance ……………………………………………………………………………… 9
Connecting the Appliance to the Gas Supply ……………………………………….. 9
Front glass removal and replacement ……………………………………………………. 10
Checking Operation of Appliance ………………………………………………………… 11
Completing the Installation …………………………………………………………………… 12
Appliance Technical Information ………………………………………………………… 13
Cleaning Instructions ……………………………………………………………………….. 14
Service Instructions ……….……………………………………………………………….. 15
User Instructions ……………………………………………………………………………….. 16
Log Layout Instructions ……………………………………………………………………….. 17
Fit Trim to the Appliance ………………………………………………………………………. 23
Spare Parts List ……………………………………………………………………………….. 24
Manufacturer’s Contact Details ………………………………………………………… 24

3
REGULATORY INFORMATION AND INSTALLATION REQUIREMENTS
THE FOLLOWING MUST BE NOTED PRIOR TO THE INSTALLATION OF THIS APPLIANCE.
This gas appliance MUST be installed by a GAS SAF registered installer by law. It must be installed in
accordance to these installation instructions and the GAS SAF TY (Installation & Use) R GULATIONS 1998 as
amended. Non compliance of this law may lead to prosecution and it is in the interest of you and your
family that this condition is observed.
The installation of this appliance must be in accordance with the relevant parts of the LOCAL AND
NATIONAL BUILDING R GULATIONS as issued by the Department of the nvironment or BUILDING
STANDARD (Scotland Consolidation) R GULATIONS issued by the Scottish Development Department and
the following relevant British Standards:
BS5871 Part 2 Installation of Inset Live Fuel ffect Gas Fires
BS5440 Parts 1 & 2 Installation of Flues and Ventilation
BS6891 Installation of Gas Pipe-work
BS6461 Part 1 Installation of Chimneys and Flues
BS1251 Open Fireplace Components
BS715/BS N 1856-2 Metal Flue Boxes / Metal Flue Pipes for Gas Appliances
BS N 1858 / BS1289 Chimneys Components & Concrete Flue Blocks
IS813:1996 Domestic Gas Installation (Republic of Ireland)
Prior to installation ensure that the gas supply is compatible with the appliance, this appliance must only be
used on natural gas at a supply pressure of 20 mbar as marked on the data plate on the appliance and the
carton.
This appliance is only to be installed into a builders opening which must be constructed of non-combustible
materials confirming to BS1251 or a suitable flue-box complying with the requirements of BS715/BS N
1856-2.
If the product is being installed into a builders opening the chimney must be at least 3 metres in height and
should be swept before installation if it has been used for the burning of solid fuel (e.g. coal or wood). The
chimney must only serve as a flue-way to this appliance and must have no openings to any other room. The
opening should be inspected and any exposed brickwork should be repaired where necessary. The chair-
brick (if applicable) should be removed. nsure that the chimney/flue only serves one fireplace. Remove or
securely fix open any dampers or register plates.
If the product is being installed into a fabricated Flue-box (to BS715) it must be installed onto a non-
combustible surface with a thickness of at least 12mm.
The flue should be checked for draw using a smoke bomb or similar, if there is a definite draw then the
installation of the appliance can proceed.

4
No purpose made ventilation is normally required for this appliance when installed in G.B. If the appliance is
being installed in I. then refer to I.S 813:1996 (Domestic Gas Installation—National Standards Authority of
Ireland). Ventilation areas (if applicable) should be checked periodically to ensure there is no obstruction,
even though none is normally required for this appliance.
SPILLAGE TEST: To check for satisfactory clearance of products of combustion, close all doors and windows
and leave the appliance burning on HIGH for five minutes. Insert a lit smoke match just into the top of the
fire opening and move it left and right, all the smoke must be drawn into the flue. If spillage occurs allow a
further 5 minutes and repeat the test. If spillage still occurs turn off the appliance and seek expert advise . If
an extractor fan is situated in the room the spillage test should be repeated with the fan running. If there is a
connecting room with an extractor fan the test should be repeated with all the doors to that room open and
the extractor fan running. If the appliance spills with the restrictor fitted then the restrictor should be
removed and the spillage test repeated. If the spillage test continues to fail expert advise should be sought
and additional ventilation may have to be provided.
This appliance must only be installed onto a suitable hearth with a minimum thickness of 12mm with an
overall height of 50mm from the floor. The appliance must not be installed directly onto carpet or other
combustible floor materials. The fireplace surround (back-panel) must have a temperature rating of at least
150
o
C.
Do not place soft wall coverings (i.e. embossed papers etc,) furniture or other combustible items too close to
the fires as they may discolour or scorch.
Do not place or throw rubbish or otherwise onto the fuel-bed.
Do not place any combustible materials or flooring (i.e. carpets etc,) on any part of the hearth.
WARNING: This appliance has a naked flame and as with all heating appliances a fireguard should be used
for the protection of children, the elderly and infirm. The fireguard should conform to BS8423 : 2002
(Fireguards or use with Gas Heating Appliances).
Important Note: It is quite normal for a flame effect gas appliance to experience a small amount of soot or
staining to some parts of the fuel effect components. If this becomes excessive it may be because the fuel
bed is not fitted correctly—this should be checked according to these installation instructions prior to
contacting a service engineer.
It is very important that you arrange for a GAS SAF registered engineer to service your appliance every year
– during this service the engineer will remove the appliance and check for debris, check the operation of the
flue and check the operation of the appliance. This is important for you and your families safety.
N V R place any rubbish or otherwise onto the fire—this will affect the way the product operates and may
affect the warranty of the product.
N V R place more ceramic components onto the fuel bed than specified in the instructions.
N V R touch the ceramics when the appliance has recently been switched off—these components retain
heat and may cause burns. Leave the appliance to sufficiently cool prior to any contact of the ceramics.

5
SITING THE APPLIANCE
Fireplace Opening
IMPORTANT NOTE: This appliance DOES NOT seal onto a marble or stone back panel. The fire is installed directly onto the
FIXING PLAT assembly. This is detailed on pages 6 & 7.
This FIXING PLAT is also used to support the marble or stone back panel. This back panel should have the following cut-
out : WIDTH 56 mm—58 mm HEIGHT: 585mm—6 5mm
A non-combustible fireplace back panel is required with a temperature rating of at least 150
o
C. (This is also known as
CLASS”O” - If in doubt please contact the supplier of the back panel to check suitability). It is recommended that the back
panel be constructed of 3 sections with joints across the upper level of the fireplace opening to allow for expansion and
contraction. This back panel should then be bonded to form a single piece using a suitable substrate. The installation of this
appliance into an unsuitable back panel, where this component subsequently cracks, will not be deemed to be a fault of the
appliance.
The fireplace opening (NOT THE BACK PANEL) must be between 405mm and 460mm wide and between 565mm and
590mm high. The FIXING PLAT supplied will fit into this fireplace opening and prepare the installation. If the fireplace
opening is outside these dimensions then the opening should be made good to these dimensions using a suitable non-
combustible material before proceeding. A flat face of a minimum 630mm wide and 630mm high must be provided around
the fireplace opening to ensure a good seal is formed between the FIXING PLAT and the wall. In addition it is important to
ensure that the base of the fireplace opening is flat and level with the hearth surface to ensure a secure and aligned
installation of the appliance.
The minimum hearth dimensions are shown in the diagram above. The upper surface of the hearth must be a minimum of
50mm above the floor and must protrude a minimum distance of 375mm out from the fireplace opening.
Installation into a Brick Chimney
When the appliance is being installed into a brick chimney there must be sufficient depth behind the appliance to
accommodate any falling debris. This debris collection void should be capable of accommodating twelve (12)litres of
volumetric space. The appliance will require a debris collection space behind the firebox of 39mm (total depth of 169mm)
to achieve this if the fireplace opening is 400mm. If the fireplace width is 460mm wide this clearance can be reduced to
17mm (total depth of 147mm).
Installation into a Prefabricated Twin Wall Metal Flue Box
This appliance can be installed into a prefabricated metal twin wall flue box providing it complies to the requirements of
BS715 / BS N 1856-2. The box must have an insulated flue with a minimum diameter of 125mm (5”) diameter and a
minimum effective overall height of 3 metres.
The top outer face of the flue box should be insulated to prevent heat loss with a layer of mineral wool insulation or similar.
The metal flue box (to BS715) must stand on a non-combustible surface with a minimum thickness of 12mm.

6
Checking the Flue
Use a smoke pellet prior to the appliance installation to ensure the viability of the flue and check that the smoke can be
seen being emitted from the terminal / chimney pot outside. There must be no leakage of smoke through the structure of
the chimney/flue during or after the smoke pellet test and it is important to check inside upstairs rooms adjacent to the
chimney/flue. Check the chimney pot / terminal and general condition of the brickwork or masonry. If the chimney or flue is
in poor condition or if there is no up-draught do not proceed with the installation. If there is a history of down-draught
conditions with the chimney / flue, the installation of a tested and certificated flue terminal or cowl suitable for the relevant
flue type should be considered.
A spillage test must be performed—see page 4 of these instructions.
Preparations for Fixing the Appliance
IMPORTANT NOTE: THIS FIXING PLATE IS INSTALLED
BEFORE THE BACK PANEL, FIRE & MANTEL ARE FITTED
When the hearth has been installed and the fireplace opening is prepared as per the details on page 5 of these instructions,
the appliance installation can commence. This appliance MUST be installed with the FIXING PLATE supplied. First, apply the
rubber seal to the
rear face of the FIXING PLATE . This seal should sit within 50mm (2 inches) of the fireplace opening and
run around the entire perimeter of the fireplace opening. This plate is screwed to the wall using the 8 screws and rawl plugs
provided through the fixing holes shown in the diagram.
Fit the rubber seal to the rear face of the FIXING PLAT ,
ensuring that the seal will make contact with the wall
surrounding the fireplace opening over its entire
length.
Secure the FIXING PLAT assembly into the
fireplace opening as shown. Use the eight
(8) screws and rawlplugs provided.
nsure that the FIXING PLAT assembly is
fitted centrally to the hearth.

7
Installing the Back Panel
Ideally the back panel should be constructed from a 3 piece panel and reassembled using suitable materials. This type of back
panel will ensure that no corner cracking occurs over time. A ’loose’ 3 piece panel can be installed but care should be taken
to ensure that the joint line is square.
nsure that the
FIXING PLATE is set to provide a 76mm (3”) distance from the front face of the back panel, to the wall (See
below).
It is recommended that a dry run is performed to ensure that the back panel will in fact be in the correct position when
fitted, and that the mantel will fit correctly to the rebate and maintain contact with the wall.
Carefully position the back panel onto the FIXING PLAT . The front retaining clip will hold the back panel in position while the
mantel legs are positioned and fixed. If necessary this top clip can be removed (after the mantel legs are securely fastened).
This would normally only be the case if the wall had extreme variations causing a gap between the back panel and the leg
rebates.
Front Retaining Clip—Can be
removed later if necessary.

8
Now unroll and fit the rock wool as shown below. This should sit around the perimeter of the FIXING PLAT .
Under NO circumstances should this fireplace be commissioned without the installation of the Rockwool provided.
Combustible Shelf
This appliance may be fitted below a surround with a combustible shelf providing the following dimensional criteria are
met:
There must be a minimum distance of 250mm from the top of the appliance to the underside of the shelf. The shelf must
not project more than 150mm from the mounting surface of the appliance into the room. If the shelf projects more than
150mm then the distance between the top of the appliance and the underside of the shelf must be increased accordingly;
for every 10mm of projection above 150mm the distance between the fire and shelf must be increased by 20mm
Shelf Protrusion Min. Distance Between Fire and Shelf
150mm 250mm
160mm 270mm
170mm 290mm
180mm 310mm
190mm 330mm
200mm 350mm
The mantel can now be fitted, and the back panel adjusted
into the correct position.
No w slide and adjust the four (4) BACK PANEL CLAMPS by
releasing the screws and sliding the clamp forward to secure the
back panel at the correct distance for the mantel rebate.
If necessary the top clip can be removed (after the mantel legs
are securely fastened). This would normally only be the case if
the wall had extreme variations causing a gap between the back
panel and the leg rebates.

9
Connecting the Appliance to the Gas Supply
In all installation conditions the gas connection should be provided using 8mm (O/D) copper tubing. No soldered joints
should be used with the firebox of the appliance. The blind grommet which is supplied in the standard fitting pack should
be used to close up the knock out hole—simply cut a small cross with a sharp knife in the centre of the grommet—this will
then seal around the gas pipe to provide a tight seal. Under no circumstances should this gas entry hole be left open and
unsealed as this can result in flame reversal and can cause damage to the appliance. Should this occur the warranty to
this appliance will be rendered void.
Before connecting the gas supply to the appliance a gas soundness test should be performed to ensure that the existing
pipe work in the property is sound.
The burner tray can now be reinstalled into the firebox using the seven (7) screws and two (2) nuts - see page 14
The gas connection should be made to the appliance by the 8mm restrictor isolation valve supplied with the appliance.
Prepare the Appliance for Installation
Remove the glass front panel and the ceramic components from the unit (see glass removal instructions on page 10).
Remove the burner tray from the appliance. (For instructions see page 14).
If the concealed installation method is chosen, there are three optional entry points at the rear/side of the appliance. The
relevant ‘knock-out’ entry point should be removed to allow the gas supply to enter the appliance.
Carefully slide the firebox into the firebox opening. (Note the rubber seal is pre-fitted to the appliance on the sealing face.
Fix the appliance into position centrally on the hearth using the five (5) securing nuts supplied. Note the appliance has slots
at these positions to allow a small amount of movement left or right to allow it to be secured centrally. See diagram below.

10
Removal of the front glass panel.
The top glass clamp is held in place with 3 screws. This
panel is concealed behind the top cover strip which is held
in place by two magnets. The two magnets are fitted to the
top glass clamp as shown in this diagram.
Carefully remove the 3 fixing screws and whilst supporting
the glass panel, remove the clamp. Now lift the glass from
the appliance. The bottom edge of the glass is retained in
the two supports bottom left and right.
Now the ceramics can be installed, rearranged correctly or
removed for service. Correct installation of ceramics see
pages 17—23.
Installation of the front glass panel.
Before replacing the glass ensure that the seal around the top
and two sides of the firebox is in good condition and is
securely affixed to the appliance. If the seal is damaged or
loose then it should be replaced / reaffixed before the glass is
replaced. This seal is important and if damaged, the appliance
should not be operated.
The glass panel should be undamaged. If the glass panel is
broken or cracked it should not be used. Contact the
manufacturer for a suitable replacement before continuing.
Replace the glass panel into position by locating the bottom
edge into the two lower supports., and securing the top edge
with the top clamp. The top clamp is secured with three (3)
fixing screws (as detailed above).
nsuring the two magnets are in the correct position (see
above) then the top cover can be placed into position. This
component is purely decorative and is used to conceal the
top clamp fixing structure.

11
Install the ceramics into the appliance according to these instructions—see pages 17 through to 23.
Refit the glass panel and the decorative strip to cover the screws and retaining clamp—See page 10
Test the operating pressure of the appliance by attaching a pressure gauge to the test point of the appliance. This
connection should take place when the appliance is OFF. nsure that gas is turned on at the gas meter and purge the air
from the appliance by:
SLID CONTROL UNITS: Push down the control lever fully to the (IGN) position and hold. The spark generator
should spark continuously, ensure the spark is being generated correctly at the pilot
assembly. Continue with this procedure until the air is purged from the appliance and the
pilot is lit. Once lit hold the lever pushed down for up to a further 10-15 seconds. Once the
pilot is established and secure allow the lever to rise to the (LOW) position then lift the
lever to the (HIGH) position. Allow the appliance to run for a minimum period of 5
minutes. Next check that the inlet pressure to the appliance is 20 mbar ±1 mbar. Lift the
lever to the position to turn OFF.
Check the operation of the appliance according to these instructions—see page 16.
Spillage monitoring System
This appliance is fitted with an atmospheric sensing system in the form of an oxygen sensing pilot burner. This is designed
to shut the fire off in the event of products being spilled into the room where the fire is being operated. It is important to
note that this spillage monitoring device should not be disabled or be adjusted by the installer. If the spillage monitoring
device (O.D.S pilot) is replaced it must only be exchanged with a suitable component which is supplied by Be Modern Ltd.
Check the clearance of combustion products
SPILLAGE TEST: To check for satisfactory clearance
of products of combustion, close all doors and
windows and leave the appliance burning on HIGH
for five minutes. Insert a lit smoke match just into
the gap a the top centre of the fire. It is
recommended that a smoke match holder be used.
All the smoke must be drawn into the flue. If spillage
occurs allow a further 5 minutes and repeat the test.
If spillage still occurs turn off the appliance and seek
expert advice. If an extractor fan is situated in the
room the spillage test should be repeated with the
fan running. If there is a connecting room with an
extractor fan the test should be repeated with all the
doors to that room open and the extractor fan
running.
Slide Lever Adjustment
An adjustment is provided to position the slide control lever fore and aft. This is to ensure that there is clearance
behind the lever to allow it to move freely for a smooth operation. To adjust the lever first loosen the upper and
lower screws.
Now rotate the centre screw to reposition the lever. Winding the screw inwards will move the lever outwards and
vice versa. Once the lever is in the correct position, tighten the upper and lower screws to secure.

12
Completing the Installation of the Appliance
Remove the protective covering (if applicable) from the face of the decorative trim. To fit the trim to the appliance the
four adjustable mounting features at the rear of the trim need to be set. To allow for a tolerance with the installation the
trim can be adjusted to sit fore and aft as is required to give a neat fit of the trim. The trim should ideally sit approximately
1mm in front of the back panel. Adjust the mounting features until the best fit is achieved.
This appliance should only be installed with the trim and fret assembly supplied. Installation of any other non-specified
trim/fret may cause the appliance to operate incorrectly and may void the warranty on the appliance.
TH INSTALL R MUST INFORM TH CUSTOM R OF TH FOLLOWING TO COMPL T TH INSTALLATION
Demonstrate the lighting of the appliance and the controls to control the heat settings. Demonstrate how to extinguish
the fire.
Demonstrate the removal of the trim and fret and how to reinstall correctly.
Discuss the removal and reinstallation of the glass and the ceramics. xplain how they should be cleaned and make the
customer aware of the health and safety warning detailed later in these instructions.
xplain to the customer that the ceramics are fragile and must be treated with great care, explain that the ceramics are
not covered by the warranty because of their fragility. Also explain that small hairline cracks will appear in the surface of
the ceramics due to heat expansion and contraction—this is perfectly normal.
During the first several hours of use an odour will be experienced—this is normal and is the starch used in the
manufacturing of the ceramic fuel bed. This odour is non toxic and will eventually disappear with use.
Advise that no rubbish should be thrown onto the appliance and that the appliance should be cleaned regularly.
A vacuum cleaner can be used but it is important that the appliance is turned off and allowed to cool before undertaking
this procedure. See the separate section regarding cleaning the ceramics.
Advise the customer that the appliance should be serviced annually by a GAS SAFE engineer to ensure the safety and
integrity of the appliance.
Advise the customer that the appliance has a naked flame and therefore it is essential that a suitable fireguard be used for
the protection of the elderly, infirm and young children. This fireguard should conform to BS8423 : 2002 (Fireguards or use
with Gas Heating Appliances).
These instructions must be handed over to the customer once installation is complete.

13
Appliance Technical Information
Gas Type : Natural Gas Category : I2H Inlet Pressure: (Cold) 2 mbar
Heat Input Gross : 5.5kW Injector : 69 Destination Countries : GB/ IE
HEALTH AND SAFETY NOTICE
This appliance uses fuel effect pieces manufactured from Refractory Ceramic Fibres (RCF). Care must be taken to avoid
excessive exposure to these materials as they may cause irritation to the eyes, skin, nose and throat. When handling, avoid
inhaling and contact with skin and eyes. It is recommended that disposable gloves are worn in addition to a facemask and
eye protection. After handling, wash hands thoroughly and any other exposed parts which may have come in to contact
with the material.
If a vacuum cleaner is used to clean the fuel bed or areas around the appliance where fragments of the material may have
fallen it is recommended that it be of the type fitted with a H PA filter.
Care should be taken when disposing of RCF materials. It is important to keep any dust to a minimum so it is recommended
that the fuel effect components are placed into a heavy duty plastic bag. The bag should be clearly labelled RCF WASTE.
These materials are not classified as hazardous waste and should be disposed of at a site approved for the disposal of
industrial waste.
Maintenance of the Appliance
The following procedures can and should be performed by the customer at regular intervals depending upon use of the
appliance.
Cleaning the Appliance
Fuel Bed
The fuel effect components supplied with this product are extremely fragile and must be handled with great care. The
ceramics in this appliance are not covered by the warranty due to their fragility. This includes the RCF fibre boards in the fire
box. These components will break or chip if not handled with the greatest of care.
Cleaning of these components should only be undertaken once the appliance is switched off and has been allowed to cool
for a minimum period of one hour. The components should be lifted carefully piece by piece from the appliance and placed
onto a dust sheet or similar. They can be brushed gently with a soft brush to remove any dust or deposits. If you intend to
use a vacuum cleaner then this should only be done once the loose deposits of soot etc have been removed. nsure that the
moulded components are structurally sound and no significant part of the moulding has broken away. If any component has
broken then it should be replaced before using the appliance. Only the correct replacement part as supplied by the
manufacturer shall be used in this appliance. Do not add any additional components to the fuel bed layout. It is important
to note that small hairline cracks will appear in the surface of the ceramics due to heat expansion and contraction—this is
perfectly normal.
Pilot

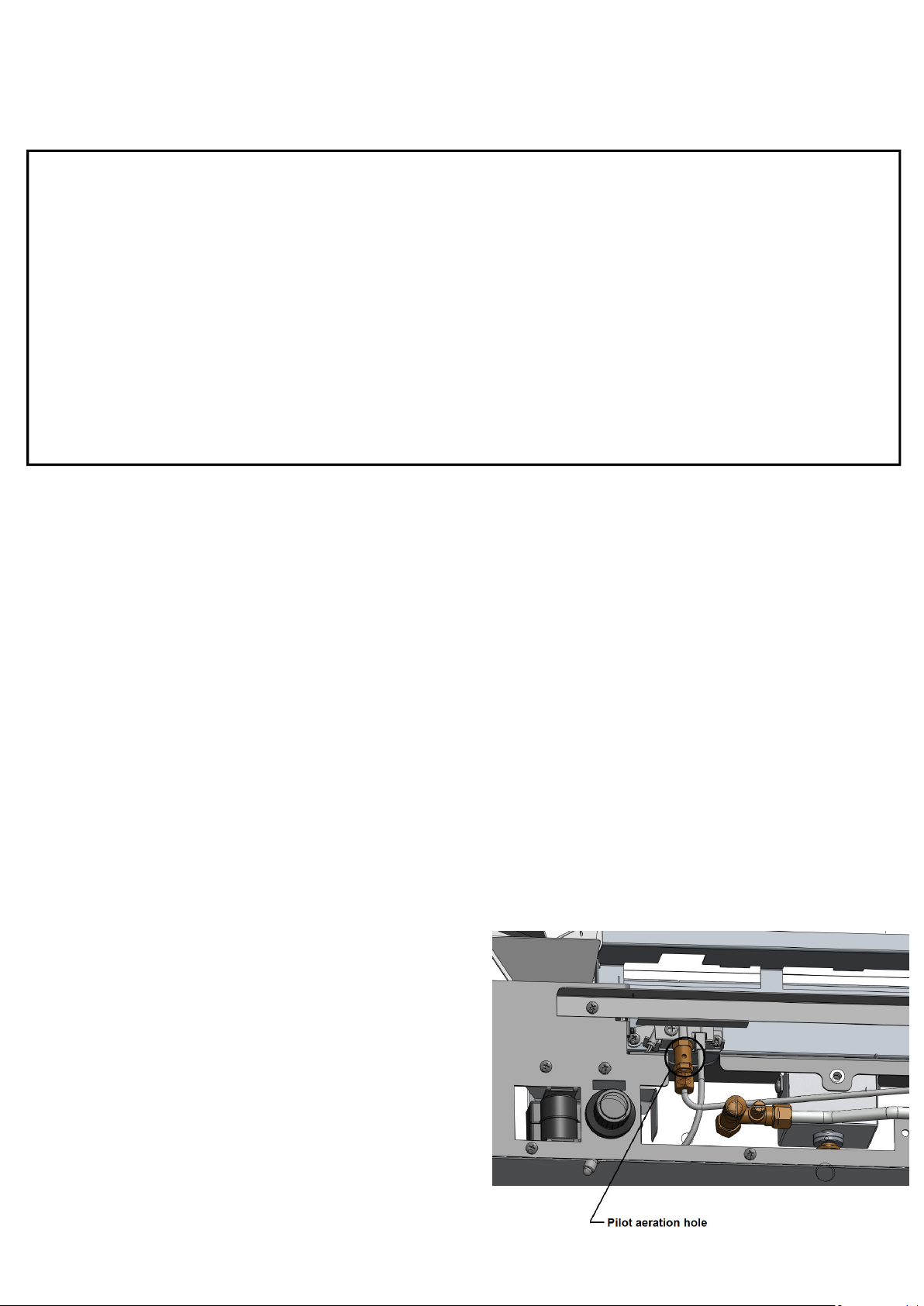

The pilot to this appliance has a small aeration hole at its base. Using a thin nozzle on a vacuum cleaner this area can be
cleaned to prevent a lint build up. This procedure should only be
undertaken when the appliance is off and cold. If excessive lint is
drawn in through this hole due to infrequent cleaning then it may
result in the appliance not lighting or turning itself off
automatically due to a starvation of air at the pilot burner. This
can often be remedied by performing the cleaning operation
detailed here. If this procedure does not resolve such a problem
then the pilot assembly will need to be replaced. This must
involve the installation of the same part as supplied by the
manufacturer. xcessive lint build up which results in appliance
operational problems is not covered by warranty. It is important
to ensure this preventative maintenance is performed regularly
(once a month during the winter period).

14
Cleaning the Appliance (continued)
Trim, Fret and Painted Metal Parts
There are a variety of trim and fret options which may have been supplied with your appliance and these are normally a
plated material on a steel substrate. It is important that no abrasive cleaners or chemical agents are used in the cleaning
of these components. It is recommended that all these surfaces including the painted metal parts are cleaned with a
clean damp (not wet) cloth. Cleaning should only take place when the appliance is switched off and has been switched off
for a minimum period of one hour.
The following procedures can and should only be performed by a GAS SAFE registered installer.
This appliance should be serviced annually by a GAS SAFE registered installer.
Removal / Replacement of Gas Carrying Components.
The removal and replacement of all the gas carrying components will require the removal of the burner tray. The
following information details the removal of this tray. Once removed, refer to the relevant section that follows detailing
the removal of the specific component (s).
 Turn off the gas supply at the isolation valve on the appliance. nsure the appliance is cold.
 Remove the fret and the trim—put in a suitable location where they cannot be damaged or scratched in anyway.
 Remove the glass panel (as described on page 10)
 Remove the fuel effect components - put in a suitable location where they cannot be damaged.
 Disconnect the gas supply from the restrictor elbow.
 Disconnect the two (2) pushrod retaining nuts (shown below ’N’) from the base of the rod.
 Remove the seven (7) screws (shown below ‘S’) securing the burner tray to the firebox as detailed in the diagram.
 Now carefully pull the burner tray from the fire box. The burner tray can now be serviced or repaired
accordingly—see the following pages for information about removing and replacing serviceable components.
 Re-assemble the tray in the reverse order.

15
Removal / Replacement of Gas Carrying Components (continued)
Slide Control Valve
1. Remove the locknut from the front of the valve.
2. Undo the three (3) nuts around the periphery of the valve body—Gas Inlet / Burner / Pilot.
3. Remove the thermocouple nut from the back of the valve.
4. The valve can be removed and serviced / replaced as necessary.
5. Re-assemble in reverse order.
6. Re-assemble the burner tray into the firebox (see previous page).
Replacement of the Pilot
1. Remove the two (2) screws to remove the cover panel.
2. Undo the pilot gas supply from the base of the pilot.
3. Remove the thermocouple nut from the back of the valve.
4. Remove the two (2) quick connect terminals from the switch circuit.
5. Remove the igniter heat shield (slide models only)
6. Remove the HT lead from the electronic igniter unit.
7. Remove the two (2) screws securing the pilot to the burner tray.
8. The pilot assembly can be removed and replaced.
9. Re-assemble in reverse order.
10. Re-assemble the burner tray into the firebox (see previous page).
Replacement of the Injector
1. Remove the brass nut from the injector elbow.
2. Unscrew the injector elbow from the burner assembly.
3. The injector can be removed and replaced.
4. Re-assemble in reverse order.
5. Re-assemble the burner tray into the firebox (see previous page)
Only replacement components supplied by the manufacturer should be used in the service of this appliance.
Contact details for Be Modern Ltd can be found on the back page of these instructions.

16
OPERATING INSTRUCTIONS
This appliance is available with two operating methods, namely manual control and slide control. The following
instructions detail both methods of operation however the basic operation of the appliance involves the ignition of a
pilot burner (See page 11 for spillage monitoring details—ODS), then the control of the main burner with LOW and HIGH
settings.
This appliance has a naked flame and as with all heating appliances a fireguard should be used for the
protection of children, the elderly and infirm. The fireguard should conform to BS8423 : 2002 (Fireguards or
use with Gas Heating Appliances).
SLID CONTROL OP RATION
1. Push the control lever down fully to the IGN symbol . The spark generator should cause a repetitive spark at
the pilot and the pilot should ignite. If the pilot does not light after 10 seconds then lift the control lever upwards
to the OFF symbol and wait for 3 minutes.
2. Once the pilot is lit keep the control lever pushed down fully for up to 15 seconds.
3. Now slowly lift the control lever to the symbol, the pilot should remain lit and the burner will be in the LOW
setting. If it goes out, lift the lever upwards to the OFF symbol and wait for 3 minutes. Then return to step 1.
4. To set the appliance to the HIGH setting, lift the control lever upwards to the flame symbol.
5 It is also possible to adjust the control knob between the and the flame symbols to achieve a mid setting.
6 To turn the fire off, lift the lever to the symbol to turn off.
IMPORTANT NOT : Should the spark generator fail to provide a spark at the electrode it may be that a small amount of
soot has fallen from the fuel bed onto the pilot assembly, causing a short circuit. If this is the case, ensuring the
appliance is off and cold, this area can be cleaned with the thin nozzle from a vacuum cleaner. Alternatively check the
battery is in good condition—the battery access cover is at the base of the appliance just left of centre.
It is also possible to light the pilot burner with a long taper whilst the control lever is being held at the IGN symbol .

17
FUEL BED LAYOUT (COAL)
The following instructions detail how the ceramic fuel bed and loose components are to be installed
onto the appliance. Great care should be taken when handling these ceramic parts as they are fragile
and can easily be broken. Do not force any component into position, if it does not fit easily then you
are not fitting the part correctly. These instructions can also be followed to remove or reinstall the
fuel bed after cleaning. This is a procedure that can be undertaken by the customer as required and
the frequency will be depend upon use. See page 1 for glass panel removal and installation.
Step 1
Fit the fuel bed into the appliance as shown in the picture below.
Step 2
Fit the Left Hand front ceramic rail in front of the burner as shown in the picture below.

18
Step 3
Fit the Right Hand front ceramic rail in front of the burner as shown in the picture below.
Step 4
Fit Log A onto the fuel bed as shown in the picture below.

19
Step 5
Fit Log B onto the fuel bed as shown in the picture below.
Step 6
Fit Log C onto the fuel bed as shown in the picture below.

20
Step 7
Fit Log D onto the fuel bed as shown in the picture below.
Step 8
Fit Log onto the fuel bed as shown in the picture below.
