bemodern Beadnell Owner's manual

INSET LED Electric Fire
Model No.2603 HE900E / 2604 HE950LE
INSTALLATION AND OPERATION INSTRUCTIONS
Please read the instructions carefully before installation or use and keep for future reference

CONTENTS
1.Important Safety Information·····································································1 - 2
2.Technical Specifications·················································································· 3
3.Parts and Hardware························································································ 4
4.Appliance Dimensions····················································································· 5
5.Installation Instructions ············································································· 6 - 8
6.Operating Instructions···················································································· 9
6a. Manual Control Panel················································································· 10
6b. Remote Controls ················································································· 11 - 15
7.Maintenance································································································· 16
8.Guarantee····································································································· 17
9.Others··········································································································· 18

1
1. IMPORTANT SAFETY INFORMATION
1.1 Read all of the instructions carefully before using the appliance.
1.2 For indoor use only. This appliance is not suitable for use outside the house and only suitable
for well insulated spaces or occasional use.
1.3 Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming
pool.
1.4 If the fire is to be placed in front of an existing chimney opening and there is any risk of
chimney debris falling down onto the fire or drafts from the chimney it is recommended that
the flue or opening is sealed off with non-combustible non-fibrous insulation materials. Do not
place into an existing fireplace that is prone to dampness. Should it be necessary to cap and
seal the chimney to prevent personal injury, a professional should be hired to do the work
1.5 Do not use this fire as a free-standing appliance. It must always be fixed to the wall, fireplace
mantel, floor etc.
1.6 This fire must not be located immediately below a socket-outlet.
1.7 This appliance must be earthed.
1.8 This appliance must not be supplied through an external switching device, such as a timer, or
connected to the circuit that is regularly switched on and off by utility in order to avoid a
hazard due to the inadvertent resetting of the thermal cut out.
1.9 A non-rewirable plug fitted with a 13A fuse is supplied. Should the fuse or plug need replacing,
and you are competent to do so, it must be replaced with a 13A fuse or plug being 13A
BS1363A approved.
1.10 If the power cord is damaged, it must be repaired by the manufacturer, its authorised
service centre or professional person.
1.11 The meaning of this symbol is “DO NOT COVER”. Warning: in order to avoid
overheating, do not allow the appliance to be covered or let the air inlet / outlet to become
obstructed. Please note the warning symbol on the appliance (see above).
1.12 To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum
distance of 1 meter from the air outlet.
1.13 Keep the power cord away from hot surfaces and hot conditions. Do not route the power lead
in front of the appliance.
1.14 Do not use this fire in rooms that have explosive gas in them (for example petrol), or if you
are using solvents, glue, aerosol spray or in flammable paints, as these may catch fire.
1.15 This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.

2
1.16 Children and vulnerable people must be supervised at all times when using this appliance, as
some parts can become very hot and cause burns.
1.17 Do not use this appliance in small rooms when they are occupied by persons not capable of
leaving the room on their own, unless constant supervision is provided.
1.18 Cleaning and user maintenance shall not be made by children without supervision.
1.19 Children aged from 3 years and less than 8 years only can switch on / off the appliance
provided that it has been placed or installed in its intended normal operating position and
instructions and supervisions concerning the safe way of the use of the appliance are offered.
Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the
appliance or perform user maintenance.
1.20 This appliance shall not be played with by children.
1.21 Children of less than 3 years should be kept away unless continuously supervised.

3
2. TECHNICAL SPECIFICATIONS
Model No.: 2603 (900) / 2604 (950)
Supply Voltage: AC 230-240V 50Hz
Maximum power consumption: 2KW
Power for flame effect:
2603 (900): 20.5W (LED 12.5W + Motor for flame 8W)
2604 (950): 25W (LED 17W + Motor for flame 8W)
Heat Output:
Nominal heat output (Pnom): 2KW
Minimum heat output (indicative) (Pmin): 1KW
Maximum continuous heat output (Pmax): 2KW
Auxiliary Electricity Consumption:
At nominal heat output (elmax): 12.5W
At minimum heat output (elmin): 12W
In standby mode (elSB): 0.48 W
Type of heat output / room temperature control
Single stage heat output and no room temperature control
No
Two or more manual stages, no room temperature control
No
With mechanic thermostat room temperature control
No
With electronic room temperature control
Yes
Electronic room temperature control plus day timer
Yes
Electronic room temperature control plus week timer
Yes
Other Control Options
Room temperature control, with presence detection
No
Room temperature control, with open window detection
Yes
With distance control option
No
With adaptive start control
Yes
With working time limitation
No
With black bulb sensor
No

4

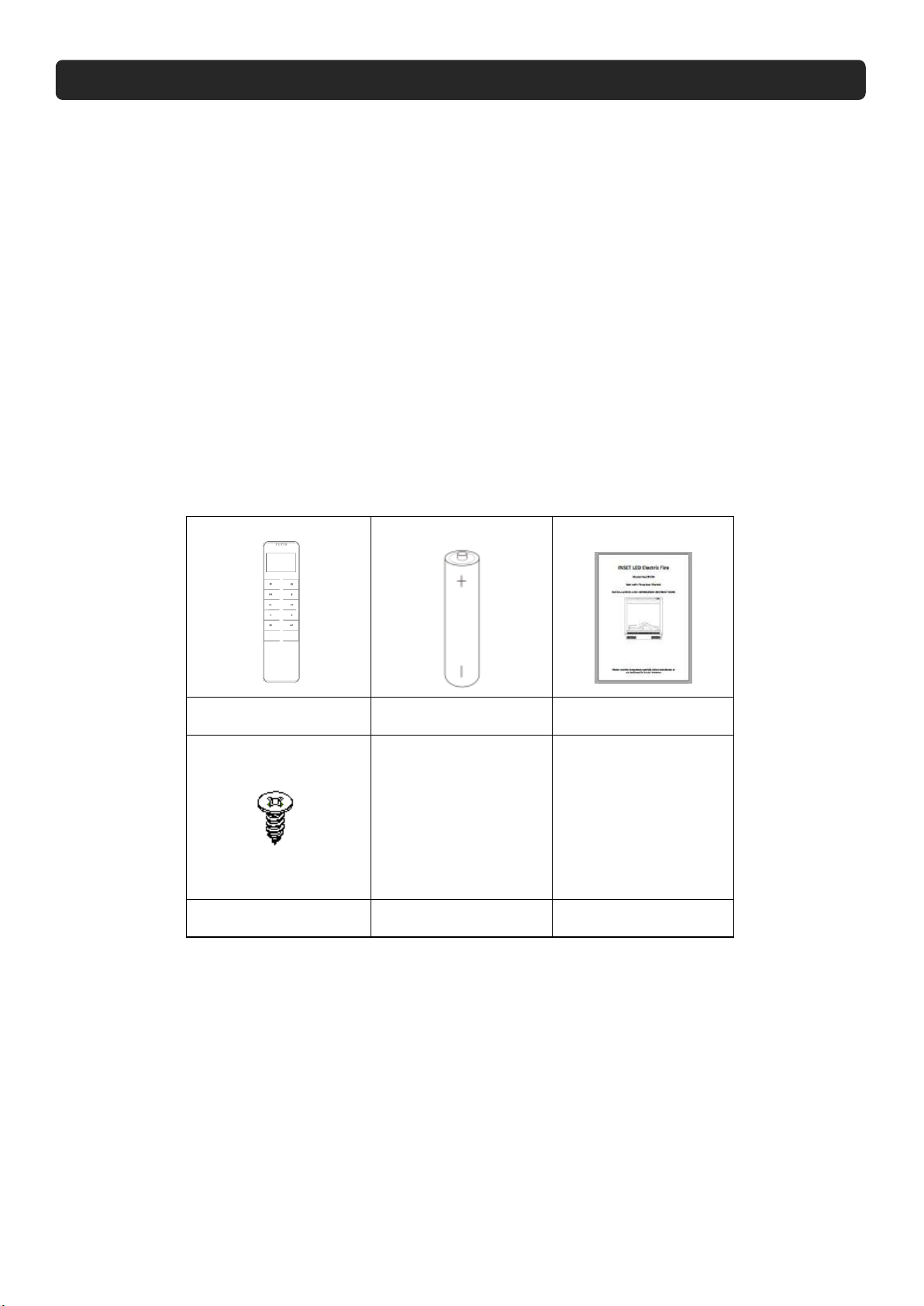

3. PARTS AND HARDWARE
3.1 Unpacking the fire carefully, make sure that the appliance is intact with no signs of
damage caused by transport and no part has been exposed to water. If in doubt, do not
use the appliance and contact an authorised service centre.
3.2 Keep plastic wrapping away from children.
3.3 Save the original packaging as this may be required in the event of service complaint
with product.
3.4 Check that all parts are removed from the packing.
A
B
C
Remote Handset ( 1 )
AAA Battery ( 2 )
Manual Instruction ( 1 )
D
ST4*12 Screws (4)

5

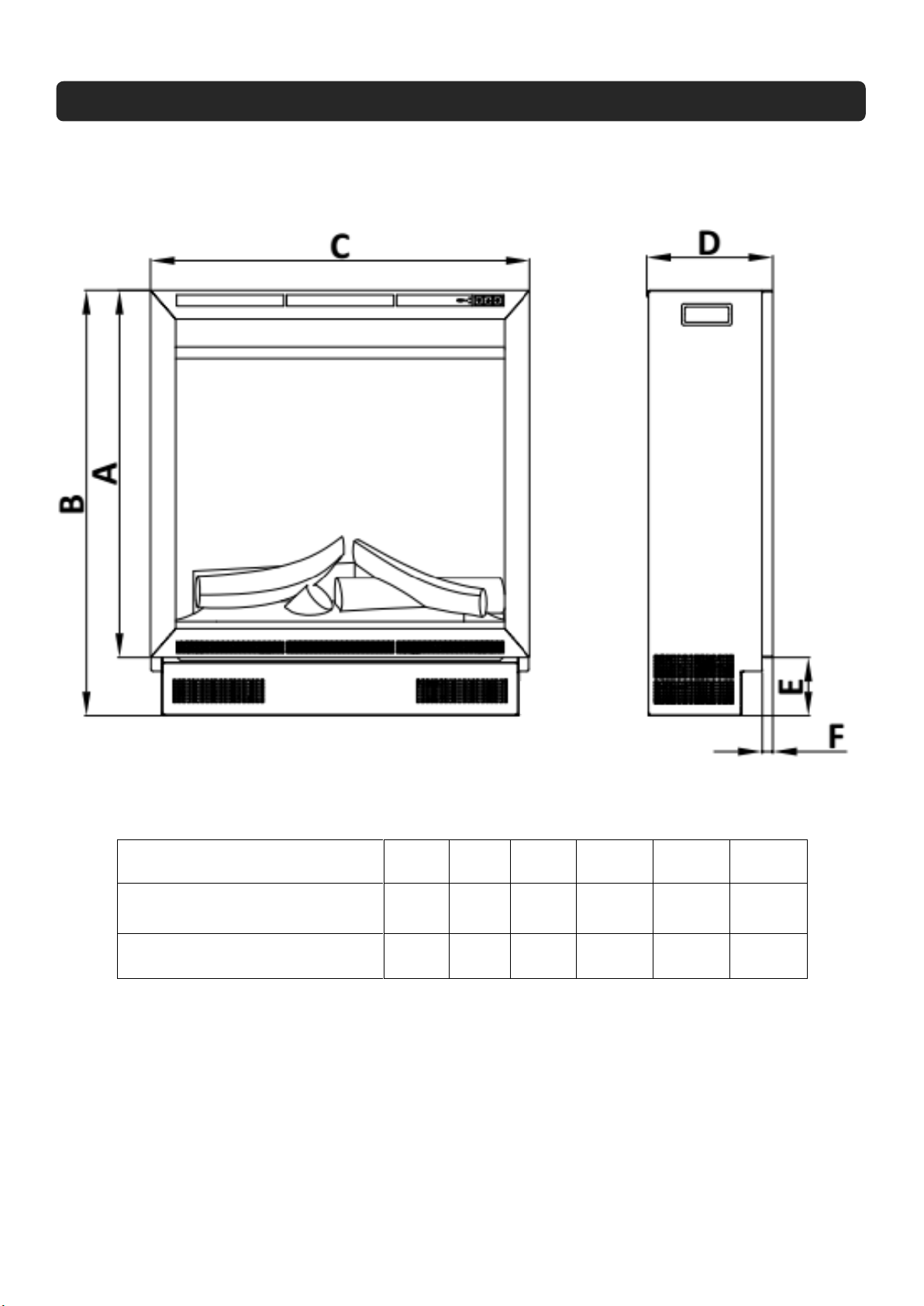

4. APPLIANCE DIMENSIONS
MODEL
A
B
C
D
E
F
2603 –BM900Elec
640
742
660
165
102
18
2604 –BM950Elec
520
622
800
165
102
18
Unit: mm

6
5. INSTALLATION INSTRUCTIONS
Tools Required
A screw driver will be needed.
Locating the Appliance
Your new electric fireplace may be installed virtually anywhere in your home. However,
when choosing a location please ensure that the general instructions are followed.
5.1For best results, install out of direct sunlight.
5.2 The appliance should be connected to an earthed electrical outlet and it must be easily
accessible to allow disconnection.
5.3 If installing in an existing fireplace and chimney always block the chimney with fibreglass
insulation or similar, to prevent it sucking air away through the appliance. Failure to do
this may cause poor performance and loss of heat or make the appliance cut out.
Installation
MODEL
A
B
C
D
2603 (BM900Elec)
744
663
660
633
2604 (BM950Elec)
624
803
800
773
Unit: mm

7

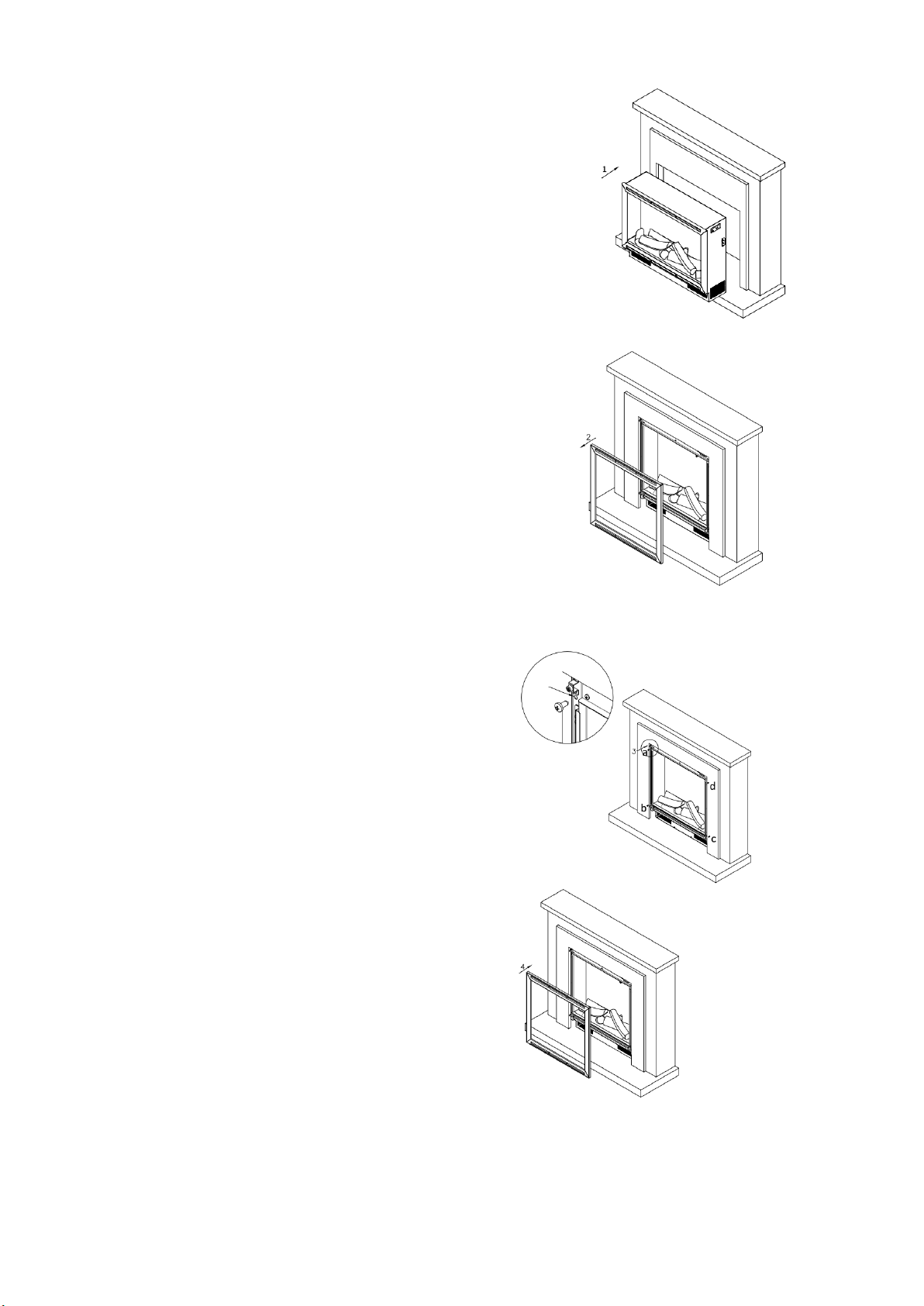

Installation into a fireplace opening / insert:
5.4a Find a safe and proper location and put the mantle
firmly against the wall. Fully recess the appliance from the
front into the mantle making sure the back of the appliance
is firmly against the wall.
5.4b Carefully remove the front trim from the
appliance and put it in a safe place to prevent damage.
5.4c Mark the 4 hole positions a, b, c and d on the
mantle and then fix the appliance with 4 ST4*12
screws.
5.4d Re-install the front trim to the appliance.

8

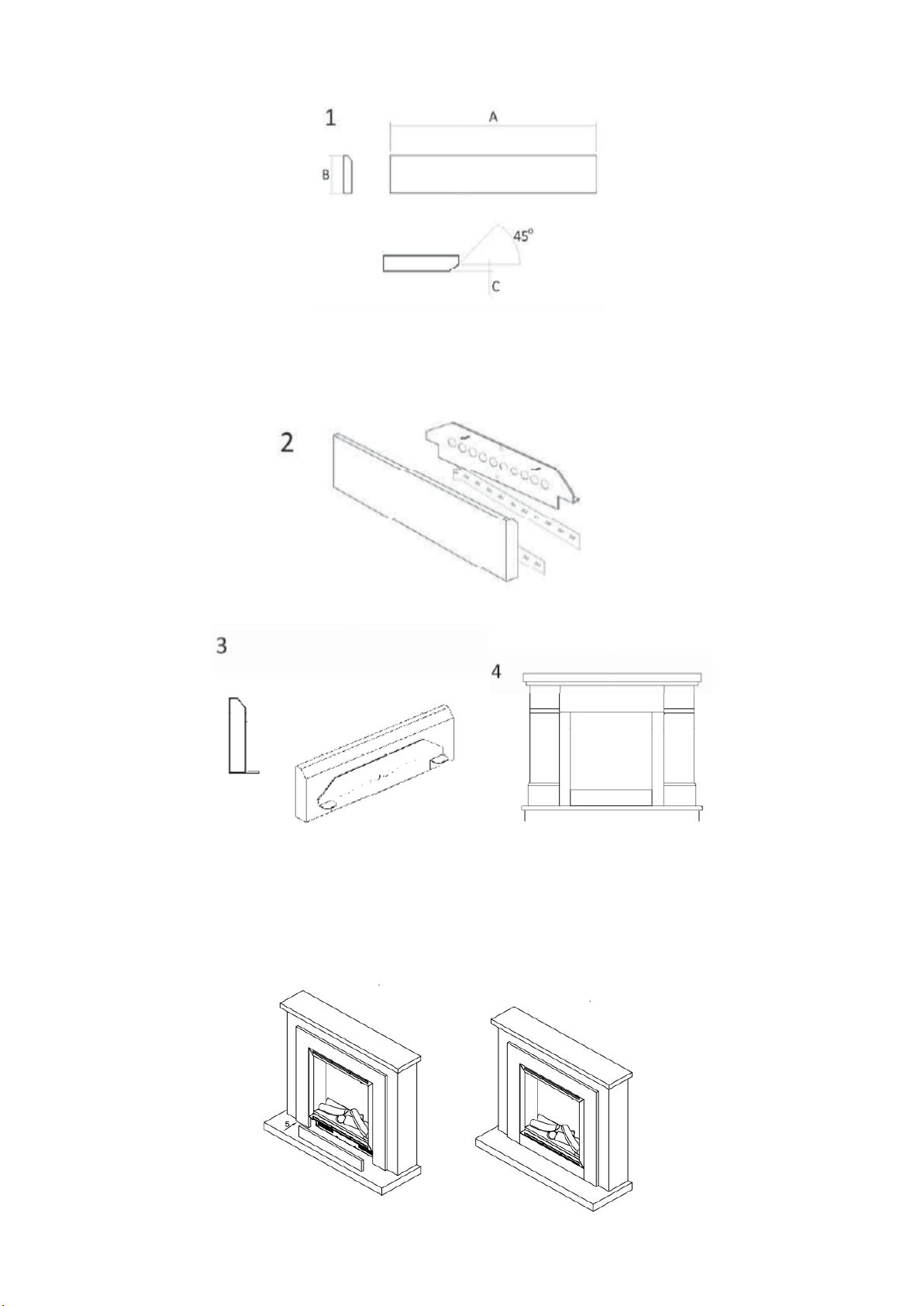

Affix the metal strip to the rear of the marble plinth by following the below steps 1-4
Apply the double sided tape to the rear of the rear face of the metal plate, then affix to the
rear of the marble plinth. Take care to ensure it is fitted centrally with the bottom edges
aligned.
5.4e locate the small board beneath the air outlets of the appliance and then push in the
board upright along the edges of the left and right of the appliance. Make sure the
small board is fully recessed. Use the two adjustable magnets on the appliance to align
the front edge of the marble with the mantel. The installation is completed.

9
6. OPERATING INSTRUCTIONS
WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you
suspect the appliance is damaged or has malfunctioned call a qualified service engineer to
inspect the appliance, and replace any part of the electrical system if necessary, before
reuse.
WARNING! To reduce the risk of fire, keep textiles, curtains, or any other flammable
material a minimum distance of 1 meter from the air outlet.
MAKE SURE the plug fits tight in the outlet. Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
Do not disconnect the power at the mains supply whilst the appliance is running. Use the
functions on the remote to turn the fire off and ensure the mains switch has been moved to
the off position before disconnecting.
PREPARATION FOR USE
6.1 The appliance can be operated by both remote control and the manual controls on the
appliance.
NOTE: To use either the remote or the manual functions the main on / off switch must be
in ‘ON’ position. In order to prevent the product becoming too hot, there is a 10s delay
when turning on the heater and a 10s delay when turning off the heater fan.
Batteries
Ensure that the handset batteries are new and inserted correctly.
Main Power Switch
6.2 The mains power switch is located on the control panel locating on the right- hand side
of the heater box.
6.3 Switch ON before operating either the remote or manual controls.
6.4 A long beep is heard to indicate the fire is ready for use.

10
6a. MANUAL CONTROL PANEL
NOTE: The manual buttons control basic functions, not a full range of controls. Use the
remote hand set to carry out all functions.

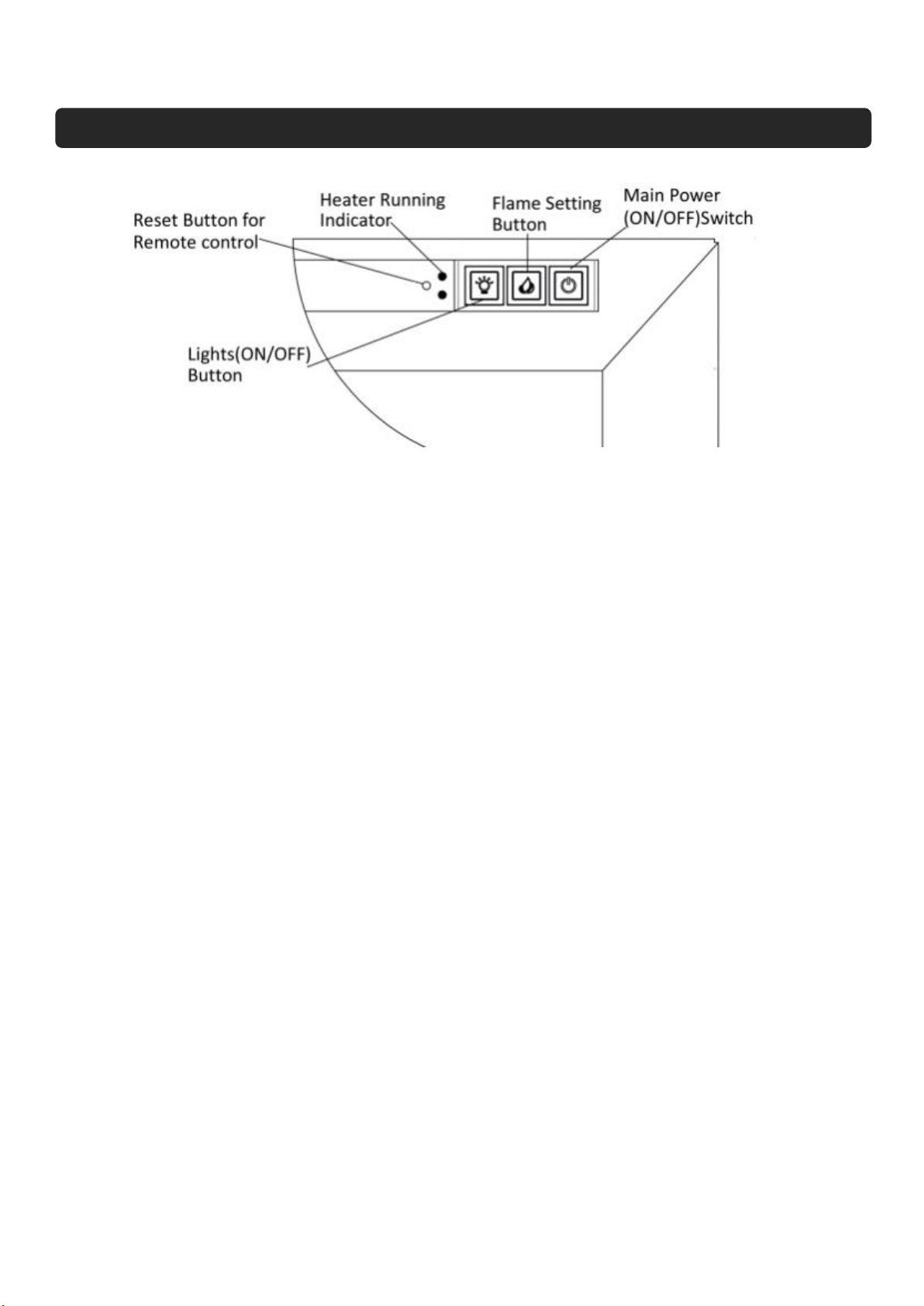

6a.1 The manual buttons are located at the upper right hand-side of the appliance.
6a.2 Press “LIGHTS ON / OFF” to turn on or turn off the flame effect.
6a.3 Press “FLAME” button to select or cycle through the colour of flames (3 kinds).
When the remote runs out of power or when you change the batteries, the flame
function will lose its memory, however this will not affect the timer settings, the clock
and date may need to be adjusted.

11
6b. REMOTE CONTROLS
NOTE: This is thermostatic remote control. The remote should be in the same room as
fireplace and placed on a flat surface. It must be placed away from the fire so the hot air
will not blow on it and affect thermostatic reading.
The communication frequency between the fire and remote has already been set up. If you
cannot use the remote with the fire, please follow instructions Step.6b31 to initiate the
connection.

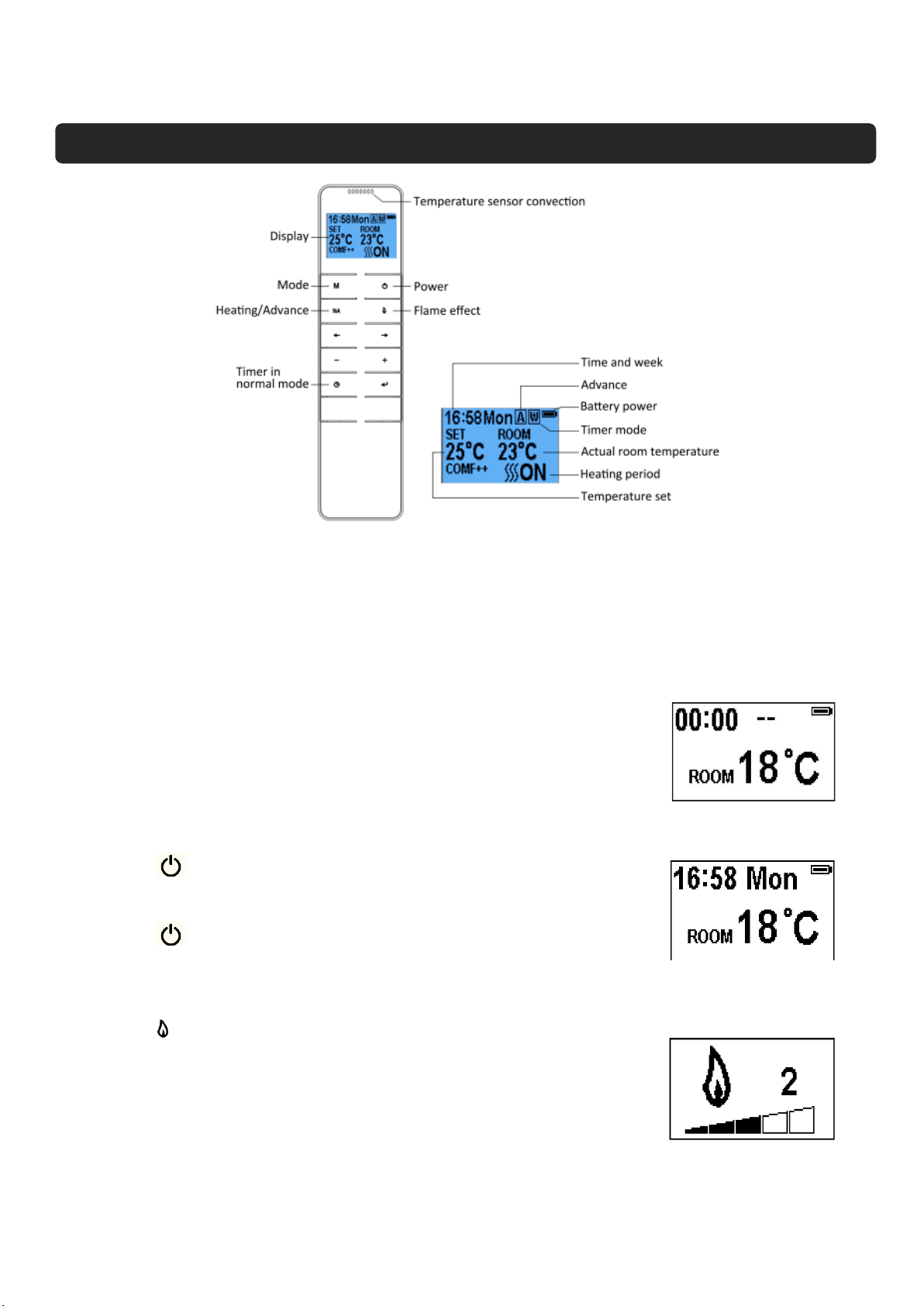

Standby for Remote Handset
6b.1 The screen shown to the right is when the remote handset is in
standby mode.
Turn on / off
6b.2 Press to turn on the flame effect, or turn off flame effect
and heater when in normal mode.
6b.3 Press to turn on / off the flame effect under daily and
weekly timer mode.
Flame Effect
6b.4 Press to enter the flame effect adjustment screen.
6b.5 Press the ‘←’ and ‘→’ button to select the 3 kinds of flame
effect.
6b.6 Press the ‘+’ and ‘-’ button to select the 5 brightness settings
of the flame effect or the OFF setting.
After Day / Time set up
Before Day/Time set up

12
Normal Mode
6b.7 Normal control mode is factory set. If it is not, then press the
button until the logo shows up at the upper right corner of
the screen.
6b.8 Press the ‘+’ and ‘-’ button to adjust the temperature from
17℃to 25℃adjustment is in 2℃intervals.
6b.9 Press button to turn on / off heat, ON、OFF will show at the lower of the
screen.
NOTE: It is normal for the fan heater to stop running for periods of time. This happens
because the room temperature is at or above the temperature set on the remote control.
The heater indicator will be turned off after 10s if you have the flame ON. The heater
indicator will stay ON if you use the heating function only.
Count Down Timer
NOTE: This setting is only for normal mode. It allows the
appliance to go into standby after a set period of time.
6b.10 Press to cycle through the settings from Off and 0.5
hours to 9 hours. The timer logo and time will show on the
screen.
The heater must be in the ON position.
The heater can be automatically run by using daily timer and weekly timer on the remote.
Set up Day, Time and Comfortable temperature.
6b.11 Press to turn on the remote handset. Hold the button
for 3 seconds to enter the setting screen.
6b.12 Press the ‘←’ and ‘→’ button to choose Day, Time or your comfortable
temperature. The character selected will be highlighted.
6b.13 Pressing the ‘+’ and ‘-’ button will adjust the number.
•Time: 24-hour system
•Select your comfortable temperature from 15-25℃.
•Temperature unit: ℃、℉

13
Daily Timer Heating
6b.14 The following are pre-set heating periods, which can be altered if desired
06:00 until 08:30
17:00 until 22:00

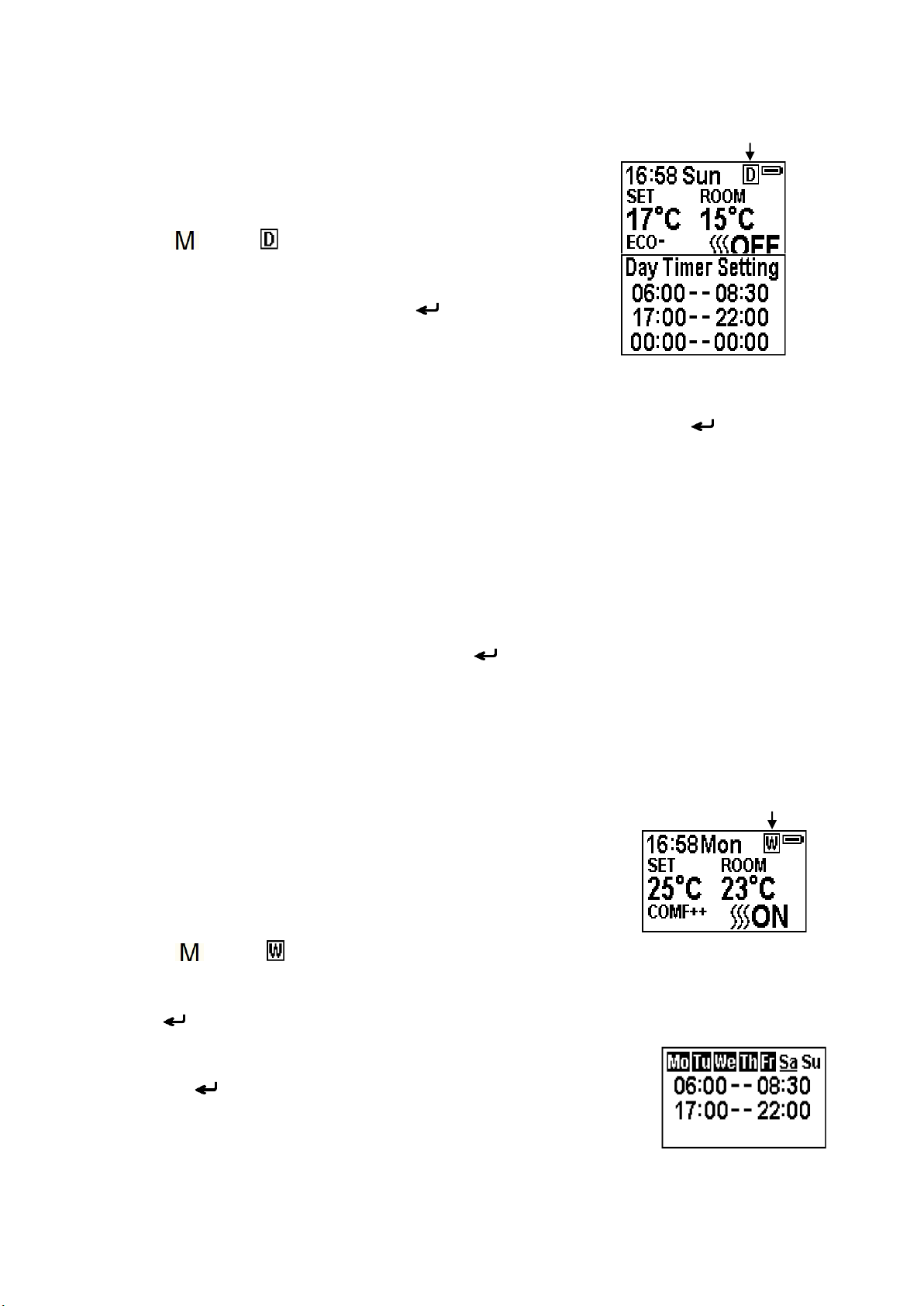

6b.15 Press until shows at the upper right corner of
the screen, then enter the daily timer heating mode.
6b.16 Hold the arrow symbol button for 6 seconds to
enter The daily timer setting. Max 3 timed Heating
periods per day.
•Press ‘←’ or ‘→’ to choose hour or minute, press ‘+’ or ‘-’ to set the time.
•Minute will increase / decrease by 15 minutes per press. Hold for 3 seconds or
wait for 10 seconds to save and exit the heating time period setting.
6b.17 Adjusting the set temperature
•Press the ‘+’ or ‘-’ button to increase or decrease the temperature on the basis of
your comfortable temperature setting.
•ECO means 2℃lower than your comfortable temperature setting
•ECO- means 4℃lower, COMF+ means 2℃higher, COMF++ means 4℃higher.
6b.18 To check your daily timer settings, press
6b.19 If the heating needs to be turned off, it will be necessary to go back to the Normal
Mode to turn off.
Week Timer Heating
6b.20 The following are pre-set heating periods, which can be altered if desired.
From Monday to Friday From Saturday to Sunday
06:00 until 08:30 06:00 until 09:30
17:00 until 22:00 11:00 until 13:00
17:00 until 22:00
6b.21 Press until shows at the upper right corner of the
screen, then enter the week timer heating mode.
6b.22 Hold button for 6 seconds to enter the week timer setting
•Press ‘←’ or ‘→’ to move the cursor (a flashing underline),
press the button in the corresponding week position to
select (the character is highlighted) or cancel (the character is
displayed normally) the current setting. Several days can be
selected together.

14
•Press the ‘→’ button to move the cursor to the time period setting area.
•Press‘←’or ‘→’ to choose hour or minute, press ‘+’ or ‘-’ to set the number.
•Max 3 heating periods for a day.
•Minute will increase / decrease by 15 minutes per press.
•Press the to set the heating time for the selected day(s) and
return to the week line.
•Hold for 3s or wait for 10s to save and exit the heating time
period setting.
6b.23 Press , ‘←’ and ‘→’ to check your week Timer settings.
6b.24 If heating needs to be turned off, it will be necessary to go back to the Normal
Control Mode to turn off.
Advance Mode

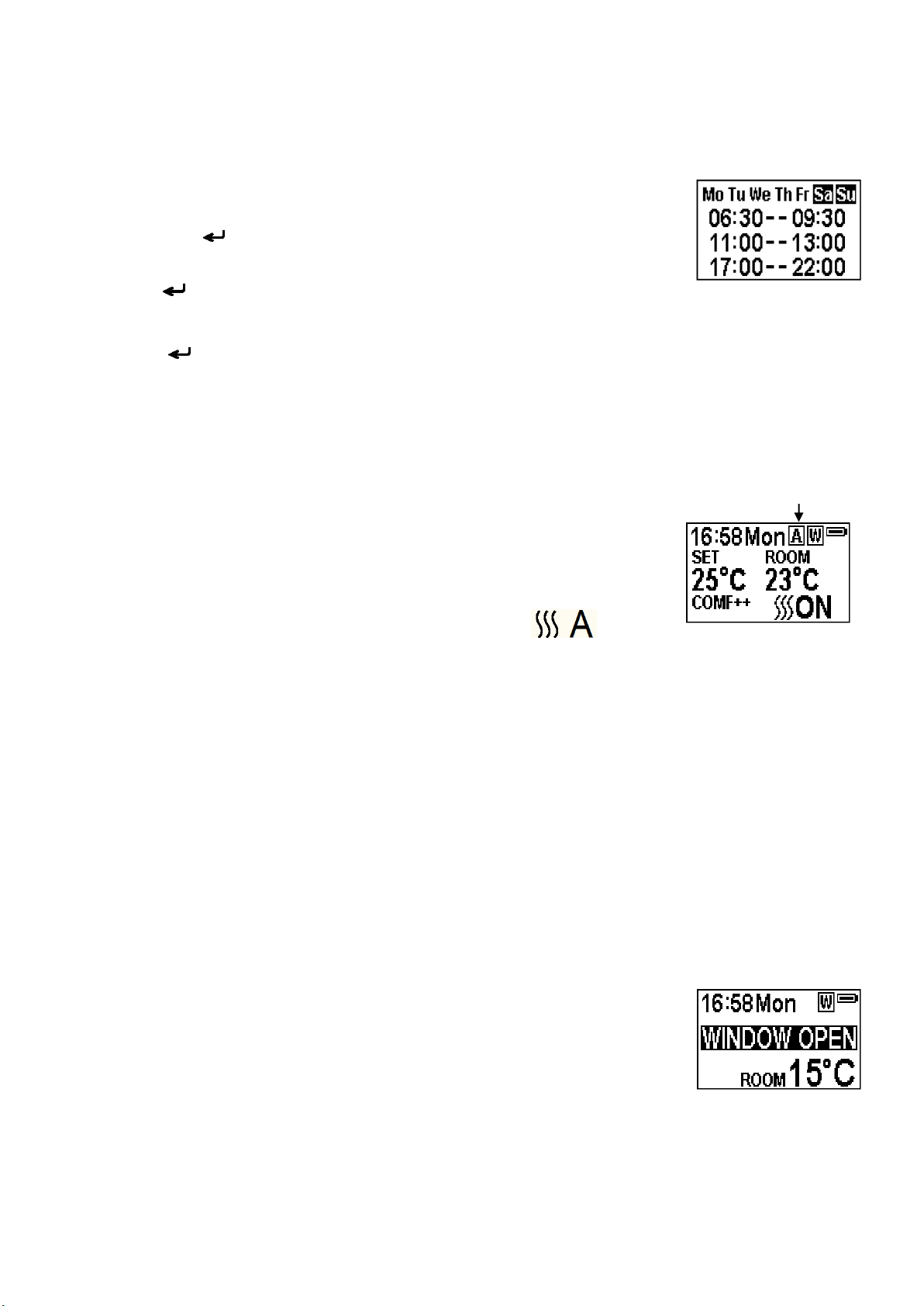

6b.25 Under the daily and weekly timer mode press
6b.26 To turn the heater off when the heater is on during a pre-set
heating period.
6b.27 To turn the heater on when the heater is off in between pre-
set heating periods.
Adaptive Start Control
6b.28 According to room temperature and set temperature, the heater will automatically
come on in time to heat the room to the set temperature at the set time. For example,
if your timer is set to start at 18:00 and temperature is set to 23°C, the fire will come
on at 17:30 to ensure the room is 23°C at 18:00.
Window Open Detection
6b.29 When the transmitter detects a rapid drop in room temperature, it will be judged as a
window open, the warning icon will be displayed on the handset and the heating will
be turned off automatically.
6b.30 After the indoor temperature has risen or a manual override of
the warning (by operating remote control) has been done, the
fire will return to normal working state.

15
Set up the communication between the remote and appliance
6b.31 The below operations should be carried out before programming, when changing to a
new remote or in the event the appliance cannot be controlled by the remote:
•Hold the reset button on the appliance for 3 seconds (a pen point may be needed)
until you hear 3 short beeps from the unit, release the button.
•Press the button on the remote, the programming is finished when you hear 1
long beep from the appliance.
6b.32 Resetting the code for remote control is necessary if the appliance operates wrongly
or the remote control does not operate correctly.
•Open the back cover of the remote control.
•Press the Reset button on remote handset.
•Follow the steps 6b.31
Resetting the Thermal Cut Out
6b.33 This appliance is fitted with an Electronic Safety Control (E.S.). This is a
safety device, which switches off the fire if, for any reason, the appliance overheats,
e.g. if covered. If the heater stops operating while the flame effect continues
working normally, this indicates that the E.S. Control is in operation. The E.S. Control
can only be reset after the appliance has cooled down, and the appliance has been
reset. Resetting of the E.S. Control proceeds is as follows:
6b.34 Switch off the appliance (Manual On / Off switch) and leave it off for approximately
10-15 minutes.
6b.35 Remove any obstruction to the fan heater outlet or fan blades etc. Make sure that
the power supply is disconnected with the plug socket outlet while doing this.
6b.36 Switch on the appliance and the E.S. Control will be re-set.
6b.37 Ensure that the appliance is functioning correctly. If the E.S. Control operates again,
the appliance should be checked by a competent electrician.

16
7. MAINTENANCE
WARNING: Before any maintenance or cleaning of the exterior of the fireplace, the unit
should be disconnected from the power supply until it has cooled down.
Remote Handset Battery Replacement
7.1 When the batteries are at full power, the battery symbol will show
7.2 When the batteries are half full, the battery symbol will show
7.3 When the batteries are out of power and need replacing immediately, the battery
symbol will show
7.4 Battery replacement is recommended after 1 year. The batteries are 1.5V alkaline AAA,
batteries.
7.5 Dispose of old batteries at an appropriate recycling facility.
Cleaning the Fireplace
Cleaning or polishing products are not recommended. Fingerprints or other marks on the
front glass panel can be removed by a piece of soft, damp, lint-free cloth with a good
quality household glass cleaner. The front glass panel should always be completely dried
with a clean, lint-free cloth or paper towel.
CAUTION: Abrasive cleaners should not be used on the glass panel. Liquids should not be
sprayed directly onto any surface of the unit.

17
8. GUARANTEE
ELECTRIC FIRE GUARANTEE
Be Modern Ltd. (the ‘Company’) provides a twelve month guarantee in respect of this
electric fire appliance.
1. The twelve month Guarantee applies to:
a. All products in the ranges manufactured by the ‘Company’ (but subject to the exceptions
below): where
b. The product has been purchased and installed within the UK and in respect of
c. The initial installation: and in favour of
d. The original purchaser
2. Proof of Purchase must be retained by the Purchaser
3. The twelve month Guarantee does not apply to:
a. Damage or inferior workmanship practices whilst the ‘Product’ is being installed
b. Damage caused by mis-use of the ‘Product’ or where normal standards of care and use
have not been complied with.
c. Damage through a malfunction or an inadequately installed electric fire.
d. Damage or defects due to mis-use, accident or unauthorised alterations.
4. During the 1 year after the “Product” has been supplied, the Guarantee covers the
making good (whether by repair or replacement at the Company’s discretion) of defects
arising from defective manufacture of materials of “Product” covered in Para 1 all at no
cost to the purchaser on the proviso:
a. The Product has been installed as per Be Modern recommendations
b. The Purchaser uninstalls the Product and makes it available for collection by Be Modern.
This Guarantee does not affect your statutory rights
On requiring service the purchaser should contact the retailer who supplied your product
who will assist and advise you as necessary.
Control PCB
Remote Control Receiver
Remote Control Transmitter
Frequency: ASK/OOK 433.92MHZ
Maximum transmit power: 10mW
Hardware:RF290A-TX-V1.3
Software: RF290A_C_V0.6.0.hex
Be Modern Ltd.
19/34 Bedesway,
Bede Industrial Estate,
Jarrow,
Tyne and Wear
NE32 3BE
Tel: [phone]
Fax: [phone]
http://www.bemodern.com
Hardware:
RC01-041B01
Software: VI
Hardware: RF29
0B V1.2

18
9. OTHERS
Environment
.
3.EF.204.05.011
Meaning of crossed –out wheeled dustbin:
Electrical appliances should not be disposed as unsorted municipal waste.
Separate collection facilities should be used in the disposal of electrical
appliances. Contact your local government for the information about the
available collection systems. If electrical appliances are disposed of in landfills
or dumps, hazardous substances can leak into the groundwater and get into
the food chain, damaging your health and well-being. When old appliances are
replaced by the new ones, it is a legal obligation for the retailer to take back
the old appliance for disposals at least free of charge.
This fire complies with the Safety Standards EN 60335-1 and EN 60335-2-30
which covers the essential requirements of the Low Voltage Directive
2014/35/EU and the EMC standards EN 55014-1; EN 55014-2; EN 61000-3-2
and EN 61000-3-3 which covers the essential requirements of the European
Electro Magnetic Compatibility 2014/30/EU, and the RED standards EN300220
2, EN301489-1, EN301489-3 and EN6247 which covers the essential
requirements of the European Radio Equipment Directive 2014/53/EU.
This fire complies with the Safety Standards BS 60335-1 and BS 60335-2-30
which covers the essential requirements of the Electrical Equipment (Safety)
Regulations 2016 and the EMC standards BS 55014-1; BS 55014-2; BS 61000-3
2 and BS 61000-3-3 which covers the essential requirements of the Electro
Magnetic Compatibility Regulations 2016, and the RED standards BS 300220-2,
BS 301489-1, BS 301489-3 and BS 6247 which covers the essential
requirements of the Radio Equipment Regulations 2017.
RoHS stands for Restriction of Hazardous Substances, and impacts the
entire electronics industry and many electrical products as well. The
Restrictions of the Use of Certain Hazardous Substances in Electrical and
Electronic Equipment Regulations 2012, originated in the European Union
in 2002 and restricts the use of six hazardous materials found in electrical
and electronic products. All applicable products in the EU and UK market
since July 1, 2006 must pass RoHS compliance.
