bemodern Arteon Pryzm 10003SL User manual

A R T E O N - Pryzm 3 Sided Fire
1000 3SL - 1250 3SL - 1500 3SL –2000 3SL - 600 3SP - 750 3SP
A R T E O N –Pryzm Inset Fire
16” & 22-16”
Instructions For Installation & Operation
Prior to installing this product locate the data label and note the model
and serial number. This is required when registering your guarantee.
Model:____________________
Serial Number:___________________________
200827_3 0

Contents
Page
Technical Specification 2 - 4
Important Safety Information 5 - 6
Contents of the Box(es) 7 - 8
Unpacking The Fire- Arteon 3SL/P 9- 10
Preparing the Fire- Arteon 3SL/P 11 -12
Installation –Stud wall- Arteon 3SL/P 13 -14
Installing The Fire- Arteon 3SL/P 15
Fuel Bed Layout- Arteon 3SL/P 16
Log Positioning- Arteon 3SL/P 16
Replacing the Glass- Arteon 3SL/P 17
Opening Sizes & Installation Introduction- Arteon 3SP 18
Installation in a Timber Back Panel- Arteon 3SP 18
Installation in a Marble Back Panel- Arteon 3SP 19-20
Opening Sizes & Installation Introduction- Arteon Inset 21
Installation in a Timber Back Panel 21
Installation in a Marble Back Panel 22
Spacer Frame Assembly & Installation 23
Devotion Trim Assembly & Installation 24
Ray Trim Assembly & Installation 25
Cast Trim Assembly & Installation 25
Internal Fuel Bed Layout & Log Positioning 26-27
Replacing the Glass 27
Dressing the External Curved Fuel Bed 28
User Instructions - Introduction 29
User Instructions - Manual Control 30
User Instructions - Remote Control 31
User Instructions - APP Control 32 -46
Maintenance & Troubleshooting 47
General information 48
Guarantee 49
200827_3 1

Technical Specification
Fire Logs Dimensions (mm)
A B C D E F G
ARTEON PRYZM
5D 1000 3SL- 2959 61002 1028 13 257 244 422 515
ARTEON PRYZM
5D 1250 3SL-3098 81252 1278 13 282 269 422 515
ARTEON PRYZM
5D 1500 3SL-3099 91502 1528 13 282 269 422 515
ARTEON PRYZM
5D 2000 3SL-4061 12 2002 2028 13 282 269 422 515
ARTEON PRYZM
5D 600 3SP-4025 4586 612 13 257 244 586 720
ARTEON PRYZM
5D 750P 3SP-4024 4736 762 13 257 244 698 793
Note: The above image and dimensions detail the fire set up for a 3 sided installation- adjust the dimensions
accordingly for 2 sided (B-13mm) and 1 sided (B-26mm) installation.
Fire Visible Glass Area (mm) Boxed Weight
W H D 2/3 Sided (Kg)
ARTEON PRYZM 5D
1000 3SL- 2959 995 380 152 50
ARTEON PRYZM 5D
1250 3SL-3098 1245 380 177 60
ARTEON PRYZM 5D
1500L 3SL-3099 1495 380 177 70
ARTEON PRYZM 5D
2000 3SL-4061 1995 380 177 90
ARTEON PRYZM 5D
600 3SP-4025 579 543 152 38
ARTEON PRYZM 5D
750 3SP-4024 729 655 152 48
200827_3
Detailed:
3 Sided Fire
Set Up
Tolerance +/- 1mm
2

Technical Specification Continued…..
200827_3 3
Fire Logs Dimensions (mm)
A B C D E F G H J K
ARTEON PRYZM
16” Inset Fire-4119 3596 494 552 155 141 134 402 N/A N/A N/A
ARTEON PRYZM
16” Inset Fire-4119
Curved 3596 494 552 155 141 134 402 194 N/A N/A
ARTEON PRYZM
22-16” Inset Fire-4112 3596 596 552 155 141 131 402 N/A 504 75
Fire Visible Glass Area (mm)
W H
ARTEON PRYZM
16” Inset Fire-4119 392 317
ARTEON PRYZM
16” Inset Fire-4119 Curved 392 317
ARTEON PRYZM
22-16” Inset Fire-4112 495 325
Detailed: 16” Curved Inset (L) & 22-16” Inset Fire (R)
Tolerance +/- 1mm

200827_3
Technical Specification Continued…..
4
Model No: 4119 (16”), 4112 (22”-16”), 4025 (600), 4024 (750), 2959 (1000), 3098 (1250), 3099 (1500), 4061 (2000)
Supply Voltage: AC 230-240V 50Hz, Maximum power consumption: 2016W.
Type of heat output / room temperature control
Single
stage heat output and no room temperature control No
Two
or more manual stages, no room temperature control No
With
mechanic thermostat room temperature control No
With
electronic room temperature control Yes
Electronic
room temperature control plus day timer Yes
Electronic
room temperature control plus week timer Yes
Other Control Options
Room
temperature control, with presence detection No
Room
temperature control, with open window detection Yes
With
distance control option Yes
With
adaptive start control Yes
With
working time limitation No
With
black bulb sensor No
Model: 4119 4112 4025 4024 2959 3098 3099 4061
Power for Flame Effect 2.4w 2.4w 4.8w 6.4w 6.4w 8.8w 10.4w 15.2w
Power for Fuel Bed 4w 3w 4w 5w 6w 8w 9w 12w
Power for Down Light 1w 1w 1w 1.5w 2w 2.5w 3w 4.5w
Power for Mood Light 9w 9w 9w 9w 9w 9w 9w 9w
Heat Output
Model 4119 4112 4025 4024 2959 3098 3099 4061
Nominal heat output
(Pnom)
2000w 2000w 1500w 1500w 1500w 1500w 1500w 1500w
Minimum heat output
(indicative) (Pmin)
1000w 1000w 750w 750w 750w 750w 750w 750w
Maximum continuous heat
output (Pmax)
2000w 2000w 1500w 1500w 1500w 1500w 1500w 1500w
Auxiliary Electricity
Consumption
Model 4119 4112 4025 4024 2959 3098 3099 4061
At nominal heat output (elmax) 1w 1w 1w 1.5w 2w 2.5w 3w 4.5w
At minimum heat output
(elmin)
9w 9w 9w 9w 9w 9w 9w 9w
In standby mode (elSB) 1.03w 1.03w 1.06w 1.06w 1.06w 1.06w 1.06w 1.06w

Read all the instructions carefully before using the appliance.
For indoor use only. This appliance is not suitable for use outside the house and only suitable for well
insulated spaces or occasional use.
If the fire is to be placed in front of an existing chimney opening and there is any risk of chimney debris
falling down onto the fire or drafts from the chimney it is recommended that the flue or opening is sealed
off with non-combustible non-fibrous insulation materials. Do not place into an existing fireplace that is
prone to dampness. Should it be necessary to cap and seal the chimney to prevent personal injury, a
professional should be hired to do the work
Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool.
Do not use this fire as a free-standing appliance. It must always be fixed to the wall, fireplace mantel, floor etc.
This fire must not be located immediately below a socket-outlet.
This appliance must be earthed.
This appliance must not be supplied through an external switching device, such as a timer, or connected to the
circuit that is regularly switched on and off by utility in order to avoid a hazard due to the inadvertent resetting of
the thermal cut out.
A non-rewireable plug fitted with a 13A fuse is supplied. Should the fuse or plug need replacing, and you are
competent to do so, it must be replaced with a 13A fuse or plug being 13A BS1363A approved.
If the power cord is damaged, it must be repaired by the manufacturer, its authorised service centre or professional
person.
The meaning of this symbol is Warning: in order to avoid overheating, do not allow the
appliance to be covered or let the air inlet/outlet become obstructed.
To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter
from the air outlet.
Keep the power cord away from hot surfaces and hot conditions. Do not route the power lead in front of the
appliance.
Do not use this fire in rooms that have explosive fumes in them (for example petrol), or if you are using solvents,
glue, aerosol spray or in flammable paints, as these may catch fire.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
Children and vulnerable people must be supervised at all times when using this appliance, as some parts can
become very hot and cause burns.
Do not use this appliance in small rooms when they are occupied by persons not capable of leaving the room on
their own, unless constant supervision is provided.
200827_3
Important Safety Information
5

200827_3
Important Safety Information Continued…..
Cleaning and user maintenance shall not be made by children without supervision.
Children aged from 3 years and less than 8 years only can switch on / off the appliance provided that it has been
placed or installed in its intended normal operating position and instructions and supervisions concerning the safe
way of the use of the appliance are offered. Children aged from 3 years and less than 8 years shall not plug in,
regulate and clean the appliance or perform user maintenance.
This appliance shall not be played with by children.
Children of less than 3 years should be kept away unless continuously supervised.
Keep the power plug accessible after installation.
Manual Handling
BEFORE STARTING THE INSTALLATION OF THIS FIRE, PLEASE READ THE FOLLOWING:
CAUTION: This appliance is heavy. Always seek assistance whilst unpacking and/or during installation.
The installation should be carried out by two adults to avoid injury or damage. If for any reason it is considered too
heavy, please obtain assistance.
Always use the handles on the rear of fire where possible.
When lifting the electric appliance, always keep your back straight. Bend your legs and not your back. Avoid
twisting at the waist. It is better to reposition your feet.
Avoid upper body / top heavy bending. Always bend from the knees rather than the waist. Do not lean forward or
sideways while handling the fire.
Always grip the fire with the palm of the hand –do not use the tips of fingers for support.
Always keep the fire as close to the body as possible. This will minimize the cantilever action.
Use gloves to provide additional grip.
6

Contents of the box(es)
200827_3
Please ensure all fixings are present before commencing installation. If anything is missing please call Customer
Services on 01914300901 or email us at [email protected].uk
Quantity Description Quantity Description
1ARTEON PRYZM 1000-3SL- Electric Fire Engine 2 Bags of Grey Slate (Large Box Inside Fire)
6 Logs (Small Box Inside Fire) 1 Fire Remote Control & 2x AAA Batteries (Large Box Inside Fire)
2 Bags of Crystals (Large Box Inside Fire) 4 Short Side Brackets (Large Box Inside Fire)
3 Bags of Pebbles (Large Box Inside Fire) 2 Long Side Brackets (Large Box Inside Fire)
2 Bags of Bark (Large Box Inside Fire) 1 1.8M IEC Power Cable with Molded Plug (Large Box Inside Fire)
Box- 050164-(1000-3SL)
Quantity Description Quantity Description
1ARTEON PRYZM 1250-3SL- Electric Fire Engine 3 Bags of Grey Slate (Large Box Inside Fire)
8 Logs (Small Box Inside Fire) 1 Fire Remote Control & 2x AAA Batteries (Large Box Inside Fire)
3 Bags of Crystals (Large Box Inside Fire) 4 Short Side Brackets (Large Box Inside Fire)
3 Bags of Pebbles (Large Box Inside Fire) 2 Long Side Brackets (Large Box Inside Fire)
3 Bags of Bark (Large Box Inside Fire) 1 1.8M IEC Power Cable with Molded Plug (Large Box Inside Fire)
Box- 050172-(1250-3SL)
Quantity Description Quantity Description
1ARTEON PRYZM 1500-3SL- Electric Fire Engine 4 Bags of Grey Slate (Large Box Inside Fire)
9 Logs (Small Box Inside Fire) 1 Fire Remote Control & 2x AAA Batteries (Large Box Inside Fire)
4 Bags of Crystals (Large Box Inside Fire) 4 Short Side Brackets (Large Box Inside Fire)
3 Bags of Pebbles (Large Box Inside Fire) 2 Long Side Brackets (Large Box Inside Fire)
3 Bags of Bark (Large Box Inside Fire) 1 1.8M IEC Power Cable with Molded Plug (Large Box Inside Fire
Box- 050180-(1500-3SL)
7
Box- (2000-3SL)
Quantity Description Quantity Description
1ARTEON PRYZM 2000-3SL- Electric Fire Engine 6 Bags of Grey Slate (Large Box Inside Fire)
12 Logs (Small Box Inside Fire) 1 Fire Remote Control & 2x AAA Batteries (Large Box Inside Fire)
6 Bags of Crystals (Large Box Inside Fire) 4 Short Side Brackets (Large Box Inside Fire)
6 Bags of Pebbles (Large Box Inside Fire) 2 Long Side Brackets (Large Box Inside Fire)
6 Bags of Bark (Large Box Inside Fire) 1 1.8M IEC Power Cable with Molded Plug (Large Box Inside Fire

Contents of the box(es) Continued…..
200827_3
Please ensure all fixings are present before commencing installation. If anything is missing please call Customer Services on
01914300901 or email us at [email protected]
Quantity Description Quantity Description
1ARTEON PRYZM 600-3SP- Electric Fire Engine 1 Bags of Grey Slate (Box Inside Fire)
4 Logs (Box Inside Fire) 1 Fire Remote Control & 2x AAA Batteries (Box Inside Fire)
1 Bags of Crystals (Box Inside Fire) 4 Short Side Brackets (Box Inside Fire)
1 Bags of Pebbles (Box Inside Fire) 2 Long Side Brackets (Box Inside Fire)
1 Bags of Bark (Box Inside Fire) 1 1.8M IEC Power Cable with Molded Plug (Box Inside Fire)
Box- (600P-3SP)
Quantity Description Quantity Description
1ARTEON PRYZM 16” Inset-Electric Fire Engine 1 Bags of Grey Slate (Box Inside Fire)
3 Logs Box Inside Fire) 1 Fire Remote Control & 2x AAA Batteries (Loose side of Fire)
1 Bags of Crystals (Box Inside Fire) 1 Clamping Bracket (Bagged side of Fire)
1 Bags of Pebbles (Box Inside Fire) 4 8 X 3/4 R/H Pozi Pan Screw (Bagged side of Fire)
1 Bags of Bark (Box Inside Fire) 1 1.8M IEC Power Cable with Molded Plug (Loose side of Fire)
Box- (16” Curved & Flat Inset)
Quantity Description Quantity Description
1ARTEON PRYZM 22-16” Inset-Electric Fire Engine 1 Bags of Grey Slate (Box Inside Fire)
3 Logs Box Inside Fire) 1 Fire Remote Control & 2x AAA Batteries (Loose side of Fire)
1 Bags of Crystals (Box Inside Fire) 1 Clamping Bracket (Bagged side of Fire)
1 Bags of Pebbles (Box Inside Fire) 4 8 X 3/4 R/H Pozi Pan Screw (Bagged side of Fire)
1 Bags of Bark (Box Inside Fire) 1 1.8M IEC Power Cable with Molded Plug (Loose side of Fire)
Box- (22-16” Inset )
Box- 050199- Sold Separately
LED Light Set- 830mm Fly Lead plus 3m LED Lights can be purchased separately.
Note: Compatible LED Light Set are available from Bemodern Ltd. Other makes may not be suitable, and will void the warranty.
8
Quantity Description Quantity Description
1ARTEON PRYZM 750P-3SP- Electric Fire Engine 1 Bags of Grey Slate (Box Inside Fire)
5 Logs (Box Inside Fire) 1 Fire Remote Control & 2x AAA Batteries (Box Inside Fire)
1 Bags of Crystals (Box Inside Fire) 4 Short Side Brackets (Box Inside Fire)
1 Bags of Pebbles (Box Inside Fire) 2 Long Side Brackets (Box Inside Fire)
1 Bags of Bark (Box Inside Fire) 1 1.8M IEC Power Cable with Molded Plug (Box Inside Fire)
Box- (750P-3SP)

Before the fire can be installed, consideration will need to be given to routing the power supply to the fire. This will
affect the stages of the installation process. We advise a qualified electrician conduct any electrical parts of the
installation.
Note: An accessible single socket is required for the operation of the fire.
Unpack your new fire- DO NOT dispose of the packaging until you have checked and made sure all the parts and
fixings listed on Page 7 are present.
Unpacking The Fire- Arteon 3SL/P
200827_3
Please ensure all fixings are present before commencing installation. If anything is missing please call Customer
Services on 01914300901 or email us at [email protected].uk
Note: The fire is a two adult person lift. A second person will be required to lift and support the fire during
installation.
Small
Box
Large
Box
Once the fire is unpacked the 2 X Cardboard Boxes inside
the fire need to be removed and the contents checked, as
listed on Page 7.
See Diagram 1.
Note: The fire is a two adult person lift.

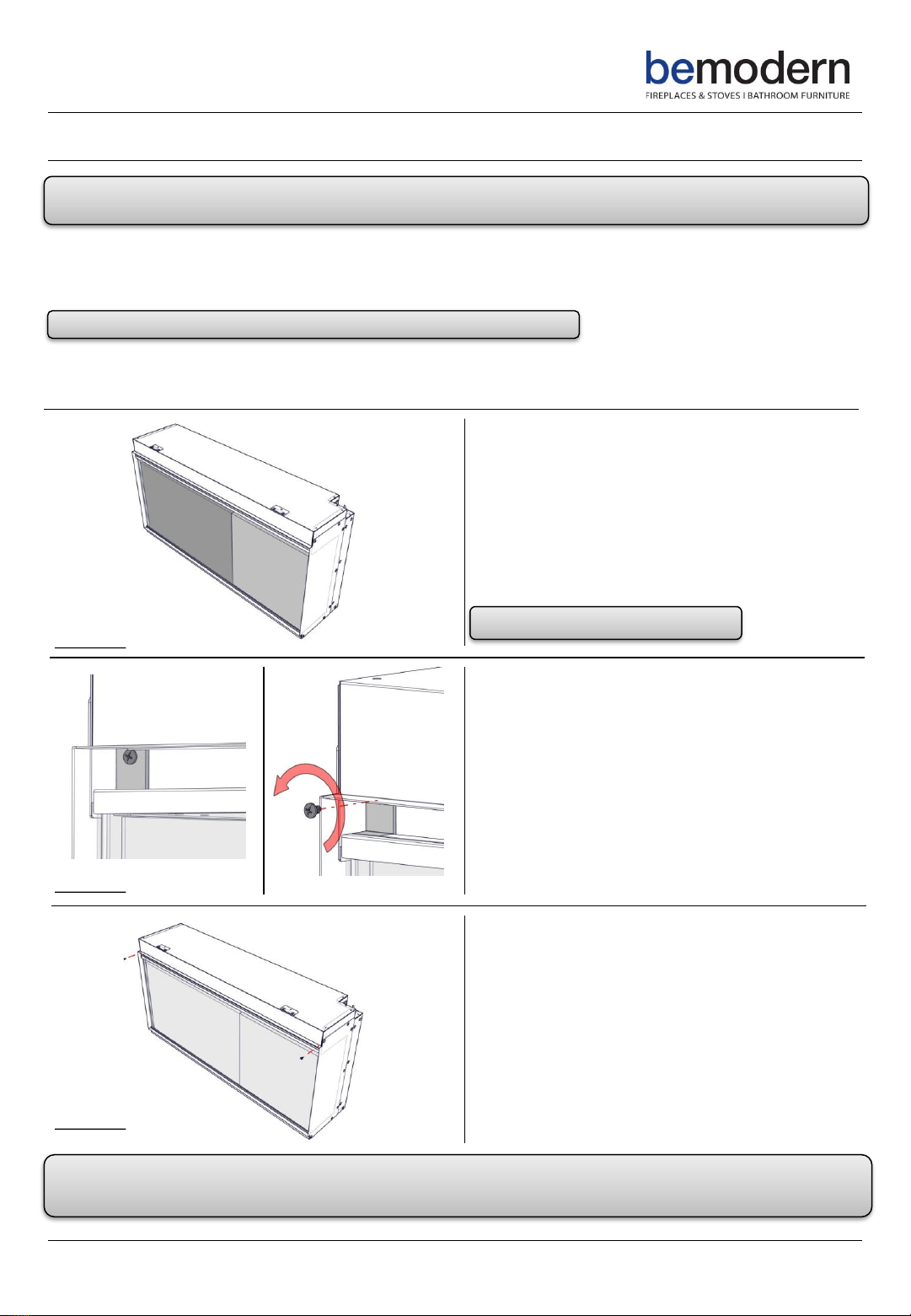

To do this, unscrew the 2 X Screws holding the Glass
Bracket in place.
See Diagram 2.
Diagram 1
Diagram 2
Diagram 3
There is 1 X Screw either side of the fire.
See Diagram 3.
Small
Box
Large
Box
9

Unpacking The Fire Arteon 3SL/P Continued…..
200827_3
Small
Box
Large
Box
Once the screws are removed- the Glass and Glass
Bracket can be angled forward from the top of the fire
and lifted out of the channel at the base of the glass.
Note: Place the Glass, Glass Bracket and 2 X Screws in a
safe place- these will be required later.
See Diagram 4.
Remove the 2 X Cardboard Boxes from inside the fire and
depending on the model purchased, check the contents
as listed on Page 7.
Tip- Leave the protective internal card sleeve in place.
This will help keep the internal of the fire clean during
installation.
See Diagram 5.
Diagram 4
Diagram 5
Small
Box
Large
Box
For installation into a floor to ceiling stud wall, the Rear
Mounting Bracket must be first removed from the fire.
With the fire positioned on the floor lean the fire forward
and remove the 2 X Screws holding the bracket in place.
See Diagram 6.
Note: For other methods of installation, the Rear Fixing
Bracket maybe required to fix the fire to the wall. Please
ensure that suitable fixings are used dependent on the
wall medium.
Diagram 6
Once the screws are removed- lower the bracket and lift
the bracket away from the rear of the fire.
The bracket and screws are no longer required, please
discard.
See Diagram 7.
Diagram 7
10

Preparing the Fire Arteon 3SL/P
200827_3
Diagram 8
Diagram 9
Diagram 10
Diagram 11

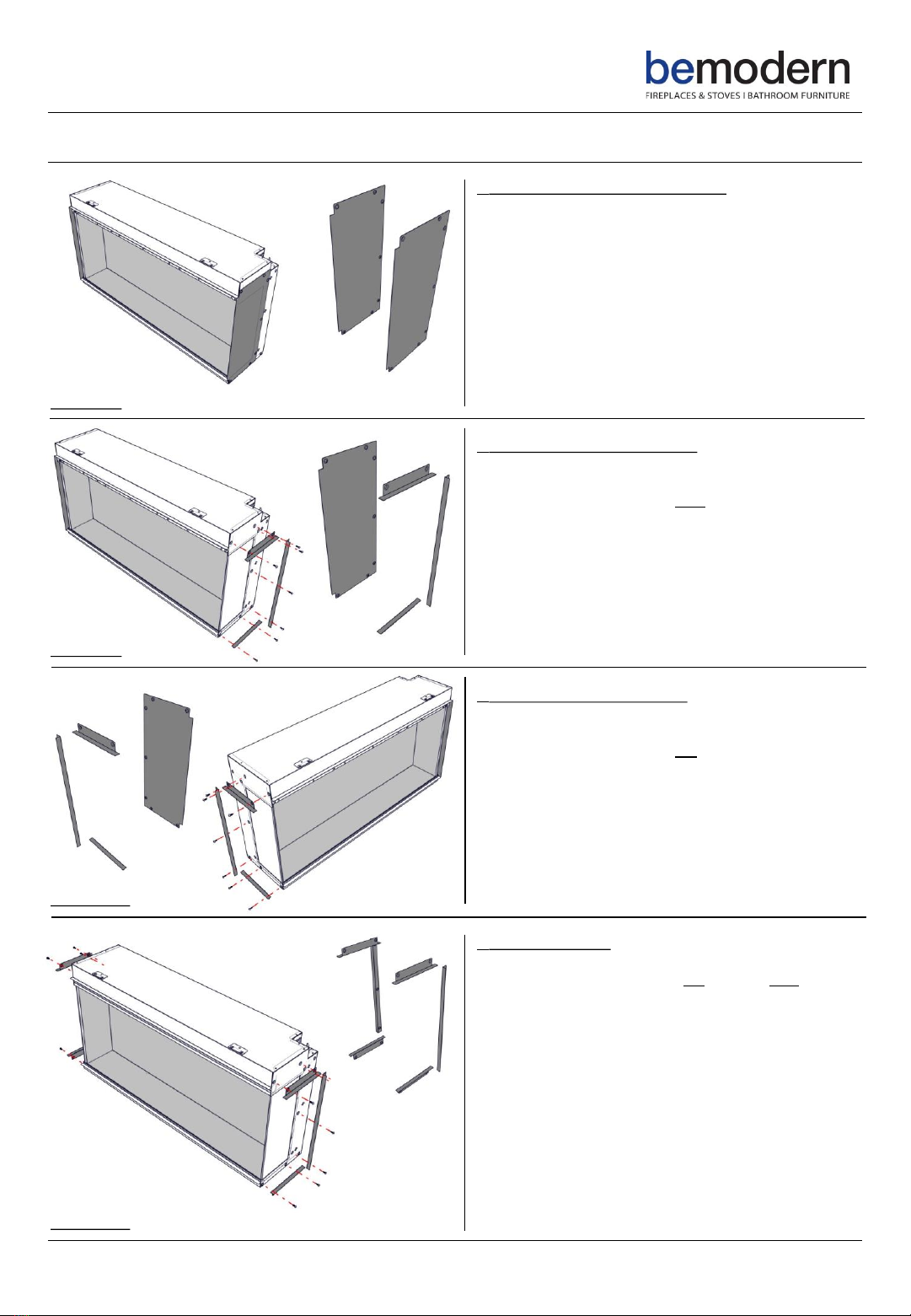

1 Sided (Fully Recessed) Installation
The fire comes out the box, already set up for 1 sided
installation.
The 2 X Side Panels will be fixed to the fire.
See Diagram 8
2 Sided Installation- Right Hand
Leaving the left hand side panel fixed.
Remove the 7 X Screws and the right hand side panel from
the fire.
Locate the 2 XSmall Side Brackets and 1 X Large Side
Bracket and fix in place using the previously removed 7 X
Screws.
See Diagram 9
2 Sided Installation- Left Hand
Leaving the right hand side panel fixed.
Remove the 7 X Screws and the left hand side panel from
the fire.
Locate the 2 X Small Side Brackets and 1 X Large Side
Bracket and fix in place using the previously removed 7 X
Screws.
See Diagram 10
3 Sided Installation
Remove the 14 X Screws and the left hand and right hand
side panels from the fire.
Locate the 4 X Small Side Brackets and 2 X Large Side
Brackets and fix in place using the previously removed 14 X
Screws.
See Diagram 11
Side
Panels
11

Preparing The Fire Arteon 3SL/P Continued…..
200827_3
Diagram 15
Diagram 16
Diagram 17

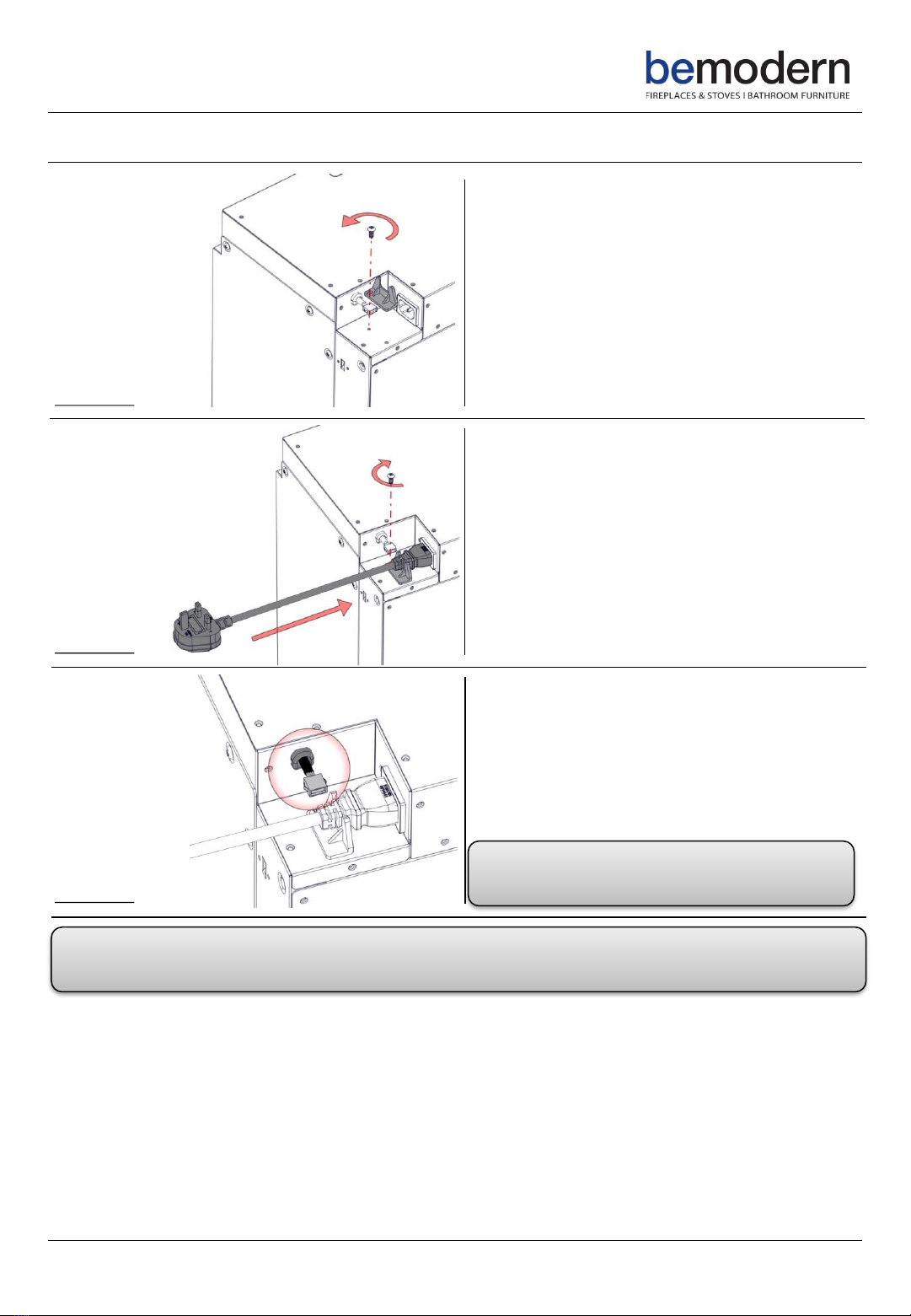

Before fitting the fire ensure the power cable is installed.
Remove the 1 X Screw holding the power cable fixing clip
in place.
See Diagram 15
If installing the Optional LED Light Set, familiarise yourself
with where the LED Light Set connects into the fire. These
must be connected prior to installing the fire.
See Diagram 17
830mm Fly Lead plus 3m LED lights are provided in a set.
Note: A compatible LED Light Set is available from
Bemodern Ltd. (Code: 050199). Other makes may not be
suitable, and will void the warranty.
Once removed place the cable clip under IEC end of the
power cable - insert the IEC into the connector port on
the fire.
Finally screw the cable clip back in place.
See Diagram 16
NOTE: When the LED Light Set is fitted, they should be checked for operation before the access is closed off by the installation.
It is advisable to have an access panel in the installation should you need to access the LED Light Set connection after the
installation.
12

Installation Arteon 3SL/P - Stud wall
200827_3
Diagram 12

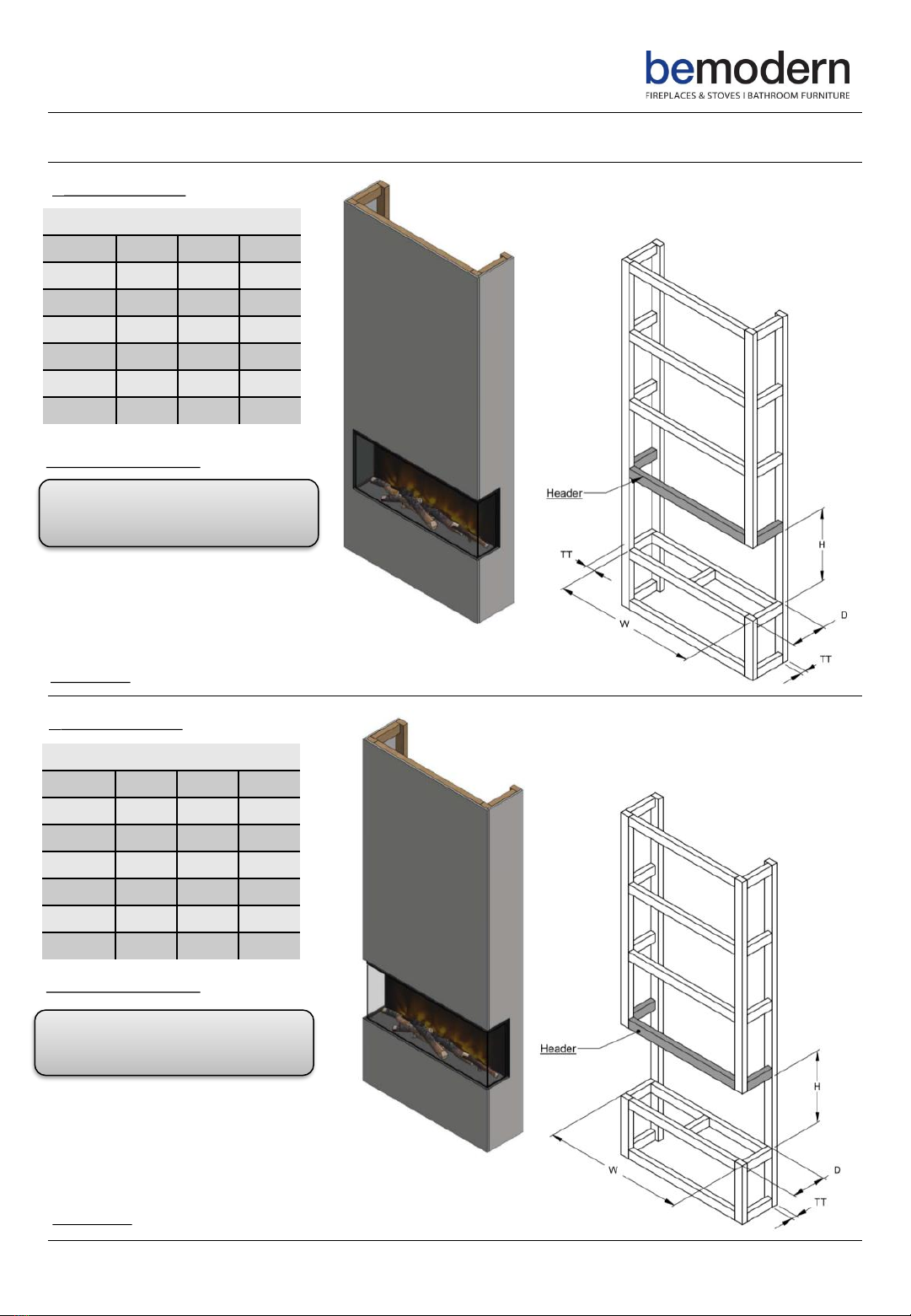

Once the fire has been prepared, use the following opening dimensions to construct the stud wall which the fire
will be housed in.
The stud wall must include a header as specified in the following diagrams. This is to ensure that the weight of the
finished wall is not resting on top of the fire. The base of the opening/stud work must also be able to take the full
weight of the appliance.
The fire should be positioned on a firm level surface and in a clean ‘dust free’ environment. If fitted into an open
chimney, the chimney must be blocked off to reduce the risk of draught and damp through the fire, which may
cause the safety cut out system in the fan heater to operate.
Note: Any protruding headers MUST be made of a non-combustible material.
To install into a stud wall the mounting bracket must be removed from the rear of the fire as previously shown in
Diagram 6 and 7, Page 9.
Once the stud wall has been constructed and secured to the wall and the fire is in its final position, ensure that the
power cable has been installed- See diagrams 15 &16, Page 11 and there is power to the fire before any cladding /
plasterboard is installed.
Ensure the design of the stud wall allows for the plug or fuse spur to be easily accessible.
Note: The following diagrams are examples of how the stud wall could be constructed- Please adjust to your
bespoke design, ensuring the ‘required opening sizes’ detailed in the following tables are adhered to. This will
ensure the minimum clearances are maintained during installation.
REQUIRED OPENING DIMENSIONS (mm)
FIRE W H D
1000 3SL 1003 525 255
1250 3SL 1253 525 280
1500 3SL 1503 525 280
2000 3SL 2003 525 280
600 3SP 587 730 255
750 3SP 737 805 255
1 Sided (Fully Recessed) Installation
Note: Ensure there is a minimum 10mm
clearance between the fire and the wall
behind.
13

Installation Arteon 3SL/P - Stud wall continued…..
200827_3
Diagram 13
REQUIRED OPENING DIMENSIONS (mm)
FIRE W H D
1000 3SL 1003 525 246*
1250 3SL 1253 525 271*
1500 3SL 1503 525 271*
2000 3SL 2003 525 271*
600 3SP 587 740 246*
750 3SP 737 815 246*
2 Sided Installation
* + TT- Timber Thickness
Diagram 14
REQUIRED OPENING DIMENSIONS (mm)
FIRE W H D
1000 3SL 1003 525 246*
1250 3SL 1253 525 271*
1500 3SL 1503 525 271*
2000 3SL 2003 525 271*
600 3SP 587 730 246*
750 3SP 737 805 246*
* + TT- Timber Thickness
3 Sided Installation
Note: Ensure there is a minimum 10mm
clearance between the fire and the wall
behind.
Note: Ensure there is a minimum 10mm
clearance between the fire and the wall
behind.
14

Installing The Fire- Arteon 3SL/P
200827_3
Diagram 18
Internal Card
Sleeve
Note: The fire is a two adult person lift
Lift the fire into the stud wall opening- leaving approx.
50mm of the fire protruding to the front.
Unfolded the fixing brackets at the top and bottom of the
fire.
See Diagram 18
Tip: Leave the protective internal card sleeve in place.
This will help the keep the internal of the fire clean
during the plastering/finishing stage of installation.
Once the brackets are unfolded push the fire into
position, ensuring the face of the fire is flush with the
face of the stud wall.
If the faces are not flush- there is adjustment on the top
and bottom fixing brackets. Adjust accordingly.
Note: The brackets will sit proud of the finished surface.
Once in place screw through the holes in the fixing
brackets- securing the fire to the stud wall. Note: These
screws are not provided.
See Diagram 19
Note: Before proceeding further ensure there is power to
the fire and it is operating correctly.
Note: If the optional Led Light Kit has been purchased
ensure this has been connected to the relevant port on
the fire-before cladding / plasterboard is installed See
Diagram 17- Page 11.
Note: Ensure the plug / fuse spur and optional LED Light
Set can be fully accessible once the cladding /
plasterboard is installed.
Once the above has been checked- Clad / plasterboard,
skim and finish the stud wall and remove the internal card
sleeve and discard.
See Diagram 20
Tip: Position the sealed edge of the plasterboard against
the fire brackets protruding from the fire., This will help
maintain a clean/sharp edge.
The fuel bed can now be dressed and the logs positioned.
See Diagram 21- 24- Page 15
Diagram 19
Diagram 20
15

Positioning the logs- As a starting point follow the example below:
Diagram 24- Above shows an example of the 6 X log set up for the Arteon 1000 3SL .
For the Arteon 1250 3SL, 1500 3SL, 2000 3SL, 600 3SP, 750 3SP- position the logs as required.
Tip: Before dressing the fuel bed- position the previously
removed glass bracket in the channel in the base of the fire,
this will help to stop the smaller fuel bed material falling into
the channel during installation.
See Diagram 21
The dressing of the fuel bed can be fully tailored to the
customers individual tastes. A sufficient amount of each fuel
bed finishing material has been provided to cover the fuel bed
in a single type of material.
Fuel Bed Layout & Log Positioning- Arteon 3SL/P
200827_3
Diagram 21

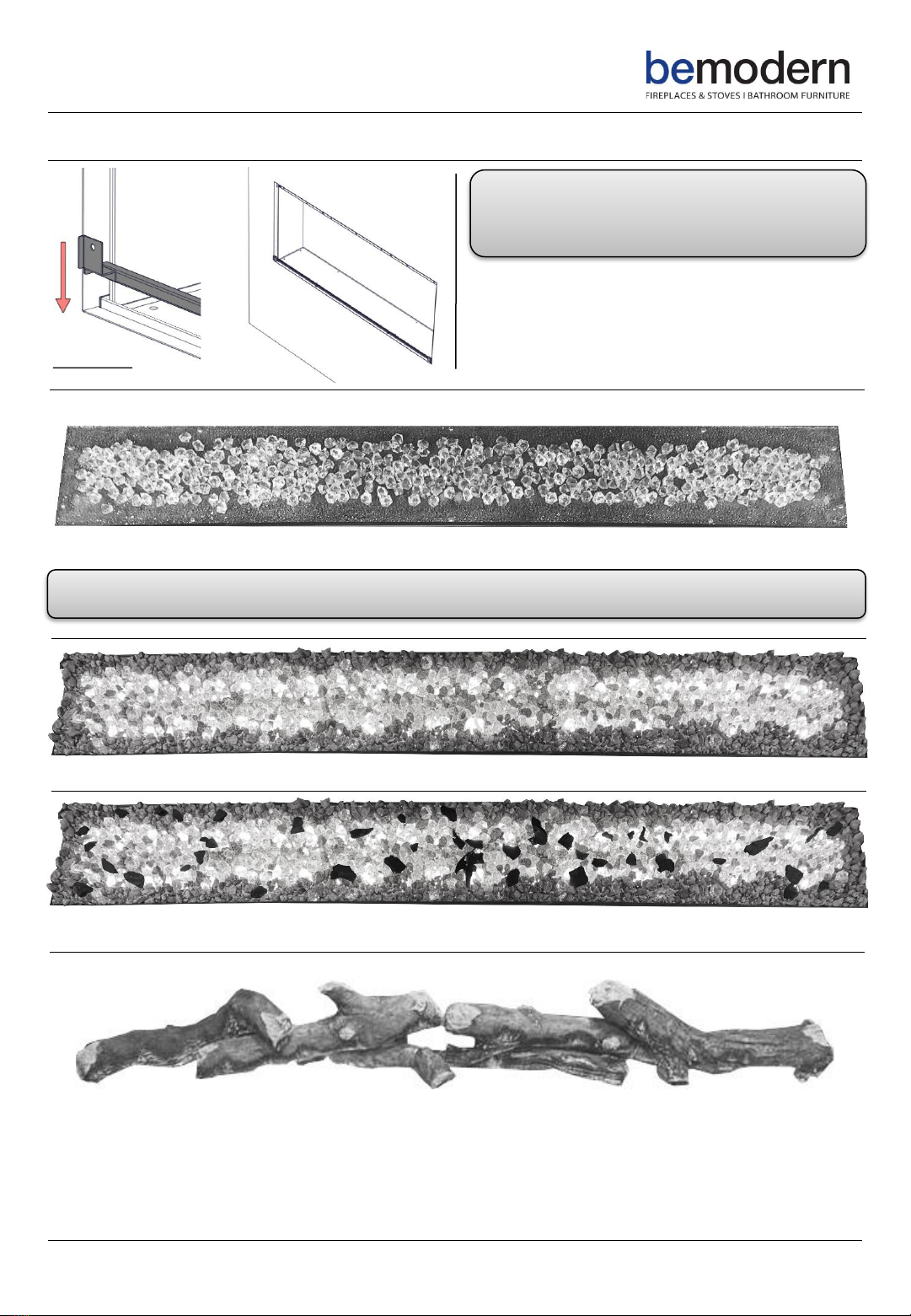

Fuel Bed Dressing- As a starting point follow the example below:
Diagram 22- Place a large amount of crystals in the centre of the fuel bed- leaving a gap around the edges.
Tip- The crystals pick up light from the under bed lights to give you a realistic glowing ember effect, so we recommend using a
generous amount.
Diagram 22- Fill the space around the edges of the crystals with the pebbles, as well as randomly in between the crystals.
Diagram 23 - Add the bark and/or the grey slate sparingly and randomly across the top of the crystals and pebbles. Finally
arrange the logs on top.
16

200827_3
Finally the Glass and Glass Bracket can be refitted, using
the previously removed 2 X Screws.
Tip- Check the channel in the base of the fire is free of
any fuel bed material before proceeding further.
Centralize the Glass Bracket on top of the Glass.
Tip- Ensure the rear of the glass is clean before fixing in
place.
With the cleaned Glass and Glass Bracket angled forward
slightly, position in the channel in the base of the fire.
See Diagram 26
Diagram 26
Carefully push the Glass and Glass Bracket back towards
the installed fire ensuring the tabs on the Glass Bracket
align with the cut outs on the fire and that the holes on
the Glass Bracket align with the holes on the fire.
See Diagram 27
Diagram 27
Replacing The Glass- Arteon 3SL/P
Diagram 28
Once in the correct position secure with the 2 X Screws.
1 X Screw either side of the fire.
See Diagram 28
The installation is now complete.
For manual, remote and APP operating instructions See
pages 30-46
17

Installation in a Timber Back Panel
3. Unpack the surround that the fire will be installed into and
position away from the wall.
4. Remove the rear bracket from the fire. (See P10 Diagram 7)
5. Unfold the top brackets. (see Dia.29).
6. Insert the fire from the back of the surround into the
opening in the back panel on to the base supports. (see Dia.30).
IMPORTANT: If a power cable is to be routed to the rear of the
mantel. Care must be taken not to crush or damage the cable
when positioning the fire.
7. Mark the fixing points in pencil on the back panel (see
Dia.31). Using the marked fixing points drill 2.5mm pilots holes
6mm deep.
200827_3
For efficient safe running of the fire we advise a minimum
aperture opening area for both the 600 3SP & 750- 3SP
Arteon fires as specified in the table below.
Installing the Arteon 3SP Fires
1.Un-pack the fire and all fixings from the packaging.
2. Dependent upon your surround material there are
different options to secure the fire in place. For timber back
panel surrounds the fire will be secured to the back panel
by screwing in place using the fires fixing points (see Fig.1).
For marble construction back panels an extra back brackets
have been provided to allow installation of the fire into
marble surround. See P19
A
B
C
FIRE MODEL A
(mm)
B
(mm)
C
(mm)
600 3SP ARTEON 610 880 215
750 3SP ARTEON 760 955 215
Opening Sizes
Note: Follow the below minimum clearances in order to fit the appliances into a back panel.
Before the fire can be installed, consideration will need to be given to routing the power supply to the fire. We
advise a qualified electrician conduct any electrical parts of the installation.
Note: An accessible single socket is required for the operation of the fire.
18
Arteon 3SP Opening Sizes & Installation Introduction
Dia.29
Dia.30
Dia.31

Arteon 3SP Installation Continued…..
200827_3 19
Installation in a Marble Back Panel
Using the recommended sizes in the table on P18,make a
cut out in the wall to fit the fire into- the opening size
will depend on the model purchased.
Ensure the brick work above the fire is support by a lintel.
If unsure of these requirements please consult
professional trades person expert advice.
See Diagram 32
Fit the L-brackets to the top right and left hand side of the
fire.
See Diagram 33
Diagram 32
Diagram 33
Diagram 34
Diagram 35
Install the hearth centrally to the opening.
See Diagram 34
Working form the hearth upwards- install the wall
brackets so the fire will sit centrally in the opening of the
back panel.
See Diagram 35
