Service Manual
SERVICE PARTS & DIAGRAMS
This guide is a troubleshooting reference used for maintaining and
servicing your Bend Pak product. It provides comprehensive information
on identifying serviceable parts and components and assists in
troubleshooting problems and performing assembly /disassembly
procedures.
BENDPAK
GP-7LCS
PRODUCT SKU
5175995
DRAWING Nº
5260662
CATEGORY
Two Post Li
REV
Version C
DATE
03.11.2022

DIMENSIONS ARE IN MM
☺
2
4
1
5
3
6
7
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5245169 GP-7LCS LIFT SUPERSTRUCTURE 1 B
2 5250374 GP-7LCS PARTS BOX 1 T
3 5215557 GP-7 90° MEDIUM ARM ASSEMBLY R.H. 1 V
4 5215554 GP-7 90° MEDIUM ARM ASSEMBLY L.H. 1 V
5 5215555 GP-7 LONG ARM ASSEMBLY 2 U
6 5765129 GP-7 TRIP STOP TUBE 1 A
7 5300242 GP-7 TRIP STOP BAR CUSHION 1 B
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5261006 09/13/2021 TM 01307
B UPDATED BOM REVISION 01/11/2022 CA 01371
C UPDATED BOM REVISION 03/02/2022 CA 01396
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5260662
GP-7LCS PRODUCTION
LIFT VER B
09/13/2021
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
OR 03/07/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 3.

106.417in
2703.0mm
97.495in
2476.4mm
110.157in
2798.0mm
329-1687.2 [13-66.4"]
WITH 70mm [2.75"] &
140mm [5.5"] ADAPTER
119-1477.9 [4.7-58.2"]
[27.992-47.000in]
711-1194mm
98.307in
2497.0mm
DRIVE THRU
124.724in
3168.0mm
[27.087-43.740in]
688-1111mm
119.449in
3034.0mm
SHEET 2 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5260662
GP-7LCS PRODUCTION
LIFT VER B
1:30
SCALE:

DIMENSIONS ARE IN MM
☺
3
1
2
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE

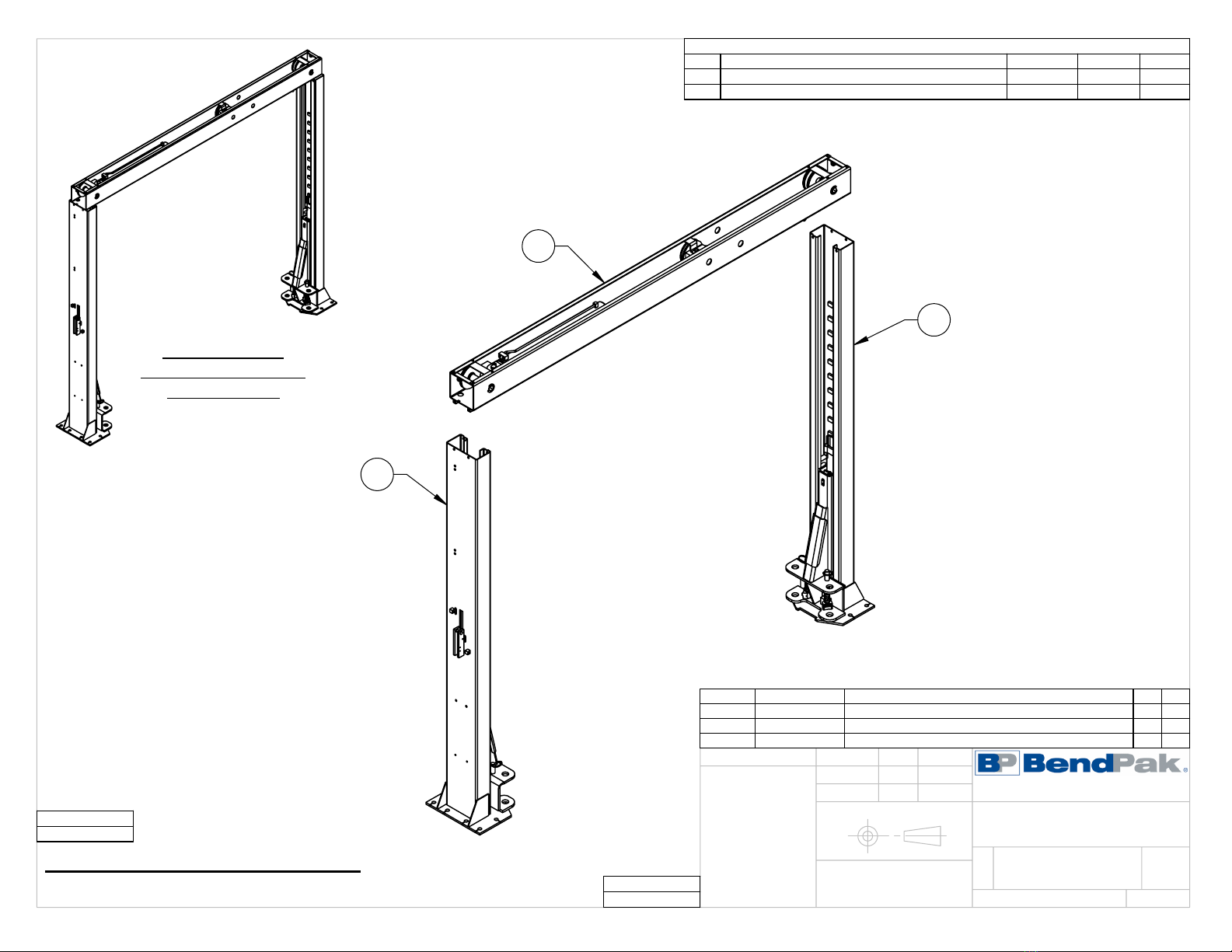

WHERE USED
GP-7LCS
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5215737 GP-7LCS TOP TROUGH ASSEMBLY 1 K
2 5216073 GP-7LCS POWER POST ASSEMBLY 1 A
3 5216076 GP-7LCS OFF SIDE POST ASSEMBLY 1 A
NEXT ASSEMBLY
5260662
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5245421 09/13/2021 TM 01307
B UPDATED BOM REVISION 03/02/2022 CA 01396
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5245169
GP-7LCS LIFT
SUPERSTRUCTURE
09/13/2021
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
OR
03/07/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.

DIMENSIONS ARE IN MM
☺
3
2
1
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5245169
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601177 GP-7LCS POST WELDMENT 1 C
2 5216072 GP-7LC POWER SIDE LIFT HEAD ASSEMBLY 1 A
3 5716172 GP-7 SLIDE BLOCK 4 B
WHERE USED
GP-7LCS
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215736 09/13/2021 TM 01307
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216073
GP-7LCS POWER POST
ASSEMBLY
09/13/2021
DO NOT SCALE DRAWING
1:18
SCALE:
THIRD ANGLE PROJECTION
OR 09/16/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
3
2
1
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5245169
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601177 GP-7LCS POST WELDMENT 1 C
2 5216074 GP-7LC OFF SIDE LIFT HEAD ASSEMBLY 1 A
3 5716172 GP-7 SLIDE BLOCK 4 B
WHERE USED
GP-7LCS
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215740 09/13/2021 TM 01307
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216076
GP-7LCS OFF SIDE POST
ASSEMBLY
09/13/2021
DO NOT SCALE DRAWING
1:18
SCALE:
THIRD ANGLE PROJECTION
OR 09/16/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
1
2
3
4
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600687 GP-7 90° MEDIUM ARM WELDMENT L.H. 1 U
2 5545341 WASHER M10 x Ø20 FLAT 3 -
3 5545200 WASHER M10 x Ø18 SL 3 -
4 5530302 HHB M10 x 1.5 x 40 FULLY THREAD 3 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
T UPDATED BOM REVISION 05/30/2018 TM 00953
U UPDATED BOM REVISION 03/25/2019 TM 01065
V UPDATED BOM REVISION 05/21/2019 TS 01086
NEXT ASSEMBLY
5260660
5260661
5260662
WHERE USED
GP-7 SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
V
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215554
GP-7 90° MEDIUM ARM
ASSEMBLY L.H.
06/12/2012
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
CA
6/17/2019
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
1
2
3
4
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600688 GP-7 LONG ARM WELDMENT 1 U
2 5545341 WASHER M10 x Ø20 FLAT 3 -
3 5545200 WASHER M10 x Ø18 SL 3 -
4 5530302 HHB M10 x 1.5 x 40 FULLY THREAD 3 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
R UPDATED BOM REVISION 05/01/2018 CA 00943
T UPDATED BOM REVISION 05/30/2018 TM 00953
U UPDATED BOM REVISION 05/21/2019 TS 01086
NEXT ASSEMBLY
5260660
5260661
5260662
WHERE USED
GP-7 SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
U
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215555
GP-7 LONG ARM
ASSEMBLY
06/14/2012
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
CA
6/17/2019
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
1
4
3
2
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600684 GP-7 90° MEDIUM ARM WELDMENT R.H. 1 T
2 5545341 WASHER M10 x Ø20 FLAT 3 -
3 5545200 WASHER M10 x Ø18 SL 3 -
4 5530302 HHB M10 x 1.5 x 40 FULLY THREAD 3 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
T UPDATED BOM REVISION 05/30/2018 TM 00953
U UPDATED BOM REVISION 03/25/2019 TM 01065
V UPDATED BOM REVISION 05/21/2019 TS 01086
WHERE USED
GP-7 SERIES
NEXT ASSEMBLY
5260660
5260661
5260662
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
V
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215557
GP-7 90° MEDIUM ARM
ASSEMBLY R.H.
06/12/2012
DO NOT SCALE DRAWING
1:6
SCALE:
THIRD ANGLE PROJECTION
CA
6/17/2019
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
NEXT ASSEMBLY
5260662
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5174660 GP-7 PARTS BAG 1 P
2 5736604
TWO POST LIGHT DUTY BOLT ON ARM RESTRAINT GEAR
4 E
3 5505040 GP-7 LIFT HEAD PIN WELDMENT 4 E
4 5540281 C RING Ø38mm OD 5103-150 4 -
5 5210245 GP-7 OFF SIDE SAFETY LATCH WELDMENT 1 D
6 5210240 GP-7 POWER SIDE SAFETY LATCH WELDMENT 1 H

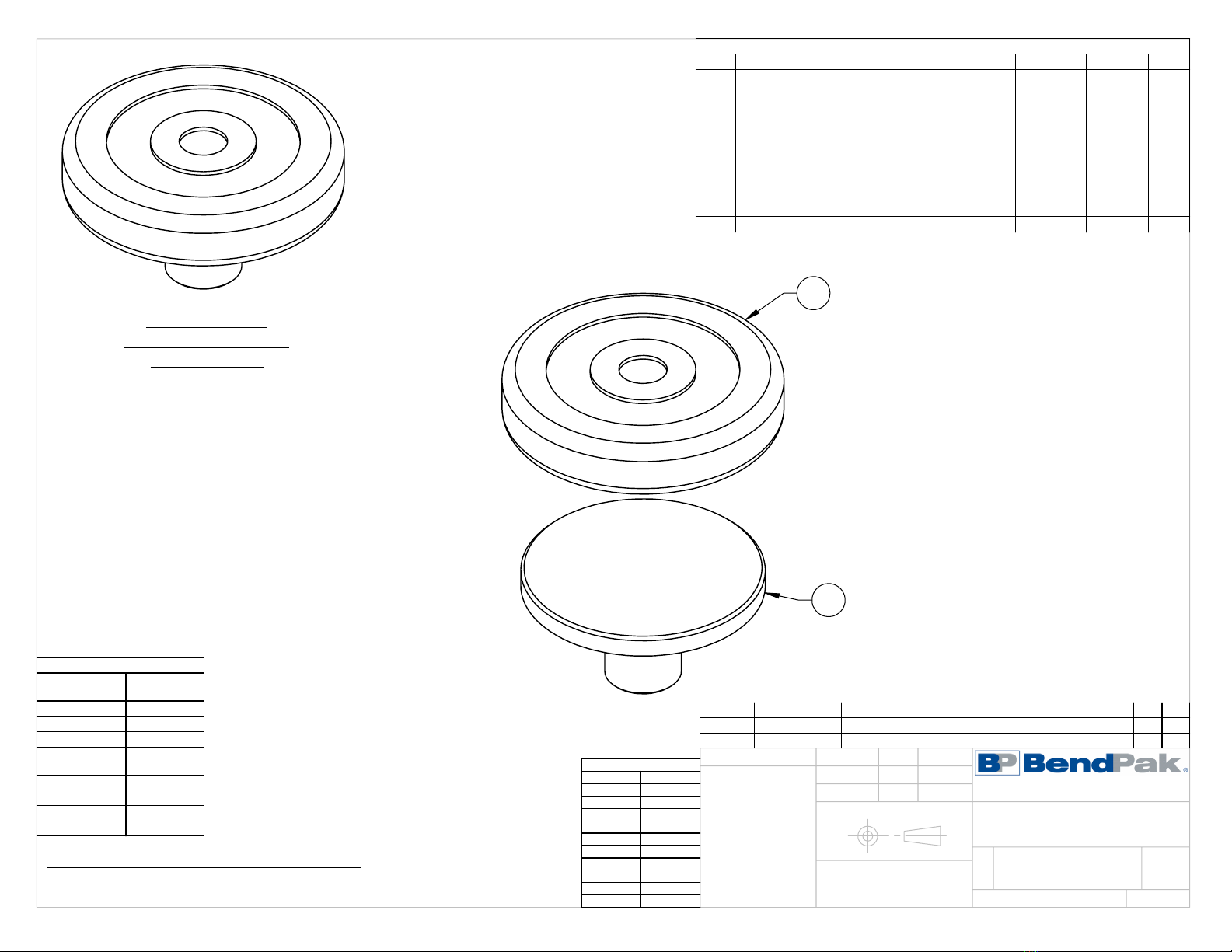

7 5215507 ROUND LIFT PAD ADAPTER ASSEMBLY 4 G
8 5746389 SHORT LIFT PAD EXTENSION (95mm LG.) 4 C
9 5746390
MEDIUM LIFT PAD EXTENSION Ø35 x 113mm
4 E
10 5746395
LONG LIFT PAD EXTENSION Ø35 x 182mm
4 D
11 5730664 GP-7 POST ASSEMBLY LIFT HEAD FOOT GUARD L.H. 2 H
12 5730663 GP-7 POST ASSEMBLY LIFT HEAD FOOT GUARD R.H. 2 H
13 5525112 MICRO SWITCH COVER-5PA2 1 -
14 5525150 SPDT MICRO SWITCH;25A@125VAC 1 -
15 5595936 GP-7LCS CABLE ASSEMBLY Ø10 x 6782mm ST 2 D
16 5595938 GP-7LCS CABLE ASSEMBLY Ø10 x 3785mm ST 2 D
17 5595937 GP-7LCS Ø2.4 x 6556mm SAFETY CABLE 1 A
18 5595551 GP-7LCS Ø1.2 x 1291mm MICRO SWITCH CABLE 1 F

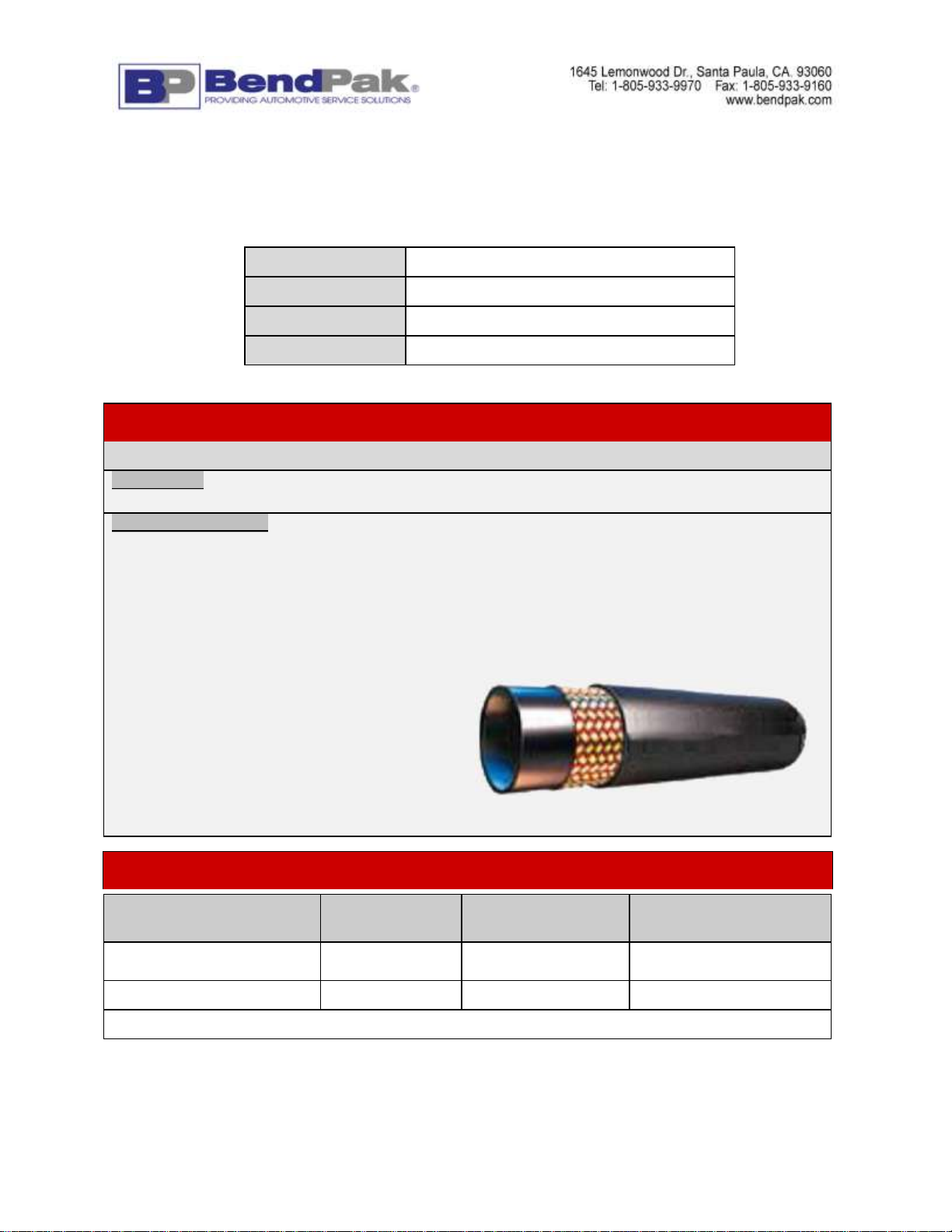

19 5570250 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 2192mm DS 2 A
20 5520116 14-4 SJO UL 62 CABLE 300vac 610mm* -
21 5530337 AB 3/4" x 6.3" 12 -
22 5716173
D2-8/12/15, GP/XPR POWER SIDE PLASTIC SAFETY COVER
1 B
23 5716174 D2-8/12/15, GP/XPR OFF SIDE PLASTIC SAFETY COVER 1 B
24 5746293 GP-7 ARM SPACER 2 E
25 5600718 GP-7 POST STRAP WELDMENT 1 A
26 5736493 GP-7 POST STRAP 1 A
27 5900209 GP-7 SERIES INSTALLATION MANUAL 1 -
28 5701665 D2-8F, GP-7 HEIGHT ADAPTER HOLDER 2 A
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
Q UPDATED BOM REVISION 10/02/2020 TM 01215
R
R-001
REPLACED 5570195 WITH 5570250, UPDATED
BOM REVISION
UPDATED LENGHT FOR 5520116, WAS 400mm
NOW 610mm
02/19/2021
09/16/2021
CA
OR
01273
01307
T UPDATED BOM REVISIONS 01/11/2022 CA 01371
WHERE USED
GP-7LCS
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
T
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5250374
GP-7LCS PARTS BOX
06/14/2017
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
*HOSES AND CABLES AND IN REPRESENTATIONAL FORM 3.
FOR 5220116 SPECIFICATIONS REFER TO PART 4.
SPECIFICATION FORM (*) QTY FOR REFERENCE ONLY

26
23
24
7
20
15
18
17
16
2
9
14
13
622
25
10
3
4
8
12
11
21
27
19
28
1
5
SHEET 2 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
T
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5250374
GP-7LCS PARTS BOX
1:20
SCALE:

DIMENSIONS ARE IN MM
☺
12
13
1
5
4
10
14
15
16
17
9
6
19
20
21
18
22
11
3
2
23
8
24
25
21
20
267
27
28
NEXT ASSEMBLY
5250080
5250373
5250374
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5505113 2 POST SAFETY CLEVIS PIN 2 H
2 5505350 MODEL#211 HAIR PIN/ LARGE 2 -
3 5540075 R.H., 2.5 WIRE DIA., Ø20.5 x 75 LG 2 -
4 5535354 NUT M12 x1.75 2 -
5 5545347 WASHER, M12 FLAT WASHER 2 -
6 5530115 BHS 6-32 x 1.25 2 -
7 5550103 FTG ELB -04 JIC -06 ORB 1 -
8 5550106 FTG ELB -04JIC x 3/8” NPT 1 -
9 5545200 WASHER M10 x Ø18 SL 6 -
10 5530302 HHB M10 x 1.5 x 40 FULLY THREAD 6 -
11 5535013 NUT M10 x 1.5 NL 12 -
12 5505031 ROTOR CLIP 12mm SS 1 -
13 5545535 C WASHER SHIM FOR LIFTS 20 -
14 5575107 Ø40mm SAFETY SHEAVE 3 A
15 5565125 GP-7 SAFETY SHEAVE SPACER, LONG 3 A
16 5530756 HHB M6 x 1 x 25 3 -
17 5575108 GP-7 SERIES POWER UNIT STANDOFF 2 A
18 5530261 PHPS M6 x 1 x 10 4 -
19 5530097 HHB M6 x 1.0 x 50 1 -
20 5545005 M6 FLAT WASHER 9 -
21 5535357 NUT M6 x 1.0 NL 5 -
22 5530738 HHB M10 x 1.5 x 25 4 -
23 5755136 D4-12, HD AIR CYLINDER SPACER 12mm 1 A
24 5550147 FTG NPL -04 JIC x -04 NPT 2 -
25 5580012 LIQUID PTFE THREAD SEALANT 50ml 1 -
26 5530093 HHB M6 x 1 x 20 4 -
27 5505077 DOUBLE PIPE STRAP, Ø10mm 2 A
28 5530267 HHB, M10 x 1.5 x 20 4 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
M
ADDED (2) 5545200, 5580012, 5530093, (4)
5535357, AND (4) 5545005, REPLACED 5550100
WITH 5550147
02/07/2020 TM 01107
N
REPLACED 5505001 WITH 5505113, REMOVED
(2) 5540075
10/01/2020 TM 01215
P
REPLACED 5550183 WITH 5550103, 5550550
WITH 5550106, 5505051 WITH 5505077, AND (2)
5530738 WITH 5530267, ADDED (2) 5535013
AND (2) 5530267, REMOVED 5550061
02/26/2021 CA 01273
WHERE USED
GP-7
GP-7LC
GP-7LCS
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
P
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5174660
GP-7 PARTS BAG
06/19/2012
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
OR 02/22/2021
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.

DIMENSIONS ARE IN MM
☺
2
1
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
E
E-001
E-002
E-003
E-004
E-005
E-006
E-007
E-008
E-009
UPDATE BOM REVISION AND NEXT ASSEMBLY
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLY
12/19/2012
03/14/2013
06/21/2013
10/16/2014
03/24/2015
08/06/2015
11/24/2015
01/21/2016
05/25/2017
09/12/2017
TM
TM
TM
TM
MR
JM
TM
TM
TS
TM
00572
00586
00605
00663
00691
00715
00738
00739
00833
00867
F UPDATED BOM REVISION 02/02/2018 TS 00922
G UPDATED BOM REVISION AND NEXT ASSEMBLY 05/31/2018 TM 00953
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600588 ROUND LIFT PAD WELDMENT 1 C
2 5715017 ROUND LIFT PAD ADAPTER POLYURETHANE PAD 1 E
NEXT ASSEMBLY
5150561 5250273
5210163 5250288
5210194 5250293
5210214 5250297
5215865 5250298
5215866 5250316
5216062
5250080 5250328
5250115 5250331
5250128 5250373
5250271 5250374
WHERE USED
QUICKJACK
SERIES
MAXJAX
P9000 SERIES D2-10 SERIES
MD-6XP DMR-6
DMR-6 D2-8F
SP-7XE SERIES
HD-7BXT
ACCY
GP-7 SERIES
RJ-45LP
RJW SERIES
RBJ7000A
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
G
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5215507
ROUND LIFT PAD
ADAPTER ASSEMBLY
12/30/2010
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
CA 06/18/2018
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
A
B
9
3
1
10 7
4
18
23
22
24
16
6
DETAIL A
SCALE 1 : 6
11
2
30
5
27
25
26
29
28
2
2
DETAIL B
SCALE 1 : 8
19
15
17
15
13
12
14
21 20
NEXT ASSEMBLY
5245169
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5601176 GP-7LC/LCS TOP TROUGH WELDMENT 1 A
2 5601282 GP-7 CYLINDER PULL BLOCK WELDMENT 1 A
3 5600690 GP-7 POST SHEAVE PIN WELDMENT 2 B
4 5502211 CYLINDER ASSEMBLY Ø3.5 x 26.75 PULL CYLINDER 1 C
5 5215802 GP-7 SERIES PULL BLOCK TWIN SHEAVE ASSEMBLY 2 A
6 5216015 GP-7 TWIN SHEAVE ASSEMBLY, 48mm WIDE 2 A
7 5215549 GP-7 SERIES SHEAVE ASSEMBLY 2 D
8 5540010 E RING Ø32mm OD DIN 6799 2 --
9 5746521 GP-7 TWIN SHEAVE SPACER, 57mm LONG 1 A
10 5746283 GP-7 SHEAVE SPACER 1 C
11 5530239 SSS M8 x 1.25 x 20 1 --
12 5575112 D2/GP/PCL/XPR/PL-7000 SAFETY SHEAVE 2 C
13 5565350 D2/GP/PCL/XPR/PL-7000 SAFETY SHEAVE SPACER 2 C
14 5530756 HHB M6 x 1.0 x 25mm 2 --
15 5535357 NUT M6 x 1.0 NL 6 --
16 5736519 GP-7 CABLE RETAINER PLATE 2 C
17 5600693 GP-7 SAFETY SHEAVE BRACKET PLATE WELDMENT 2 A
18 5746285 GP-7 TWIN SHEAVE SPACER, SHORT 2 B
19 5545005 WASHER, M6 x 12mm FLAT 4 --
20 5530093 HHB M6 x 1.0 x 20mm 4 --
21 5530181 HHB M6 x 1.0 x 10 4 --
22 5505350 HAIR PIN 1/8” x 2 9/16” 2 --
23 5701437 GP-7 PULL BLOCK SHEAVE RETAINER 1 C
24 5530031 HHB M6 x 1.0 x 12mm 2 --
25 5736533 GP-7 TOP TROUGH CABLE TIE PLATE, TOP 1 C
26 5530794 FHSS M12 x 1.75 x 45 CL 10.9 2 --
27 5530792 HHB M12 x 1.75 x 45 CL10.9 1 --
28 5535041 NUT M12 x 1.75 NL CL10.9 3 --
29 5746466 GP-7 SERIES INNER SCISSOR BEARING SPACER 2 A
30 5530346 FHSS M10 x 1.5 x 20 CL10.9 2 --
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
H UPDATED BOM REVISION 12/24/2020 CA 01252
J REPLACED 5502530 WITH 5502211 01/14/2021 TM 01261
K UPDATED BOM REVISION 03/02/2022 CA 01396
WHERE USED
GP-7LCS
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5215737
GP-7LCS TOP
TROUGH ASSEMBLY
06/14/2017
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR
03/07/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
APPLY LOCTITE BLUE 242 AND CURE PER 2.
MANUFACTURE SPECIFICATION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 3.
ASSEMBLE ITEMS AS SHOWN 4.
NOTE: UNLESS OTHERWISE SPECIFIED .

DIMENSIONS ARE IN MM
☺
5
4
2
6
1
3
9
7
12
8
13
11
14
10
100
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5216071
5216073
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5746098 GP, D2-8/10, XPR-9/10 Ø25mm GEAR SHAFT 2 F
2 5701052 D2/GP/M6K/XPR ARM INTERNAL GEAR STOP 2 F
3 5540133 GP-7, D2-8/10, XPR-9/10 LIFT HEAD SPRING 2 D
4 5505106 SPRING PIN M6 x 50 2 --
5 5540006 SNAP RING TRUARC 5103-100 2 --
6 5580219 KEYRING 56mm x 3mm 2 --
7 5930185 GP-7 LIFT HEAD GUSSET COVER 1 E
8 5535012 NUT M12 x 1.75 NL 1 --
9 5601725 GP-7LC LIFT HEAD WELDMENT 1 A
10 5601728 GP-7 CABLE BREAK CLEVIS PIN WELDMENT 1 A
11 5540146 SPRING Ø25mm x 178mm GP SERIES 1 A
12 5530796 HHB M12 x 1.75 x 120 CL 8.8 1 --
13 5601726 GP-7 POWER SIDE CABLE BREAK WELDMENT 1 A
14 5530148 BHPS M6 x 1.0 x 16 1 --
WHERE USED
GP-7LC
GP-7LCS
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215729 09/13/2021 TM 01307
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216072
GP-7LC POWER SIDE LIFT
HEAD ASSEMBLY
09/13/2021
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
OR
09/16/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
10
9
4
11
3
5
1
6
12
13
2
14
8
7
100.0
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5216075
5216076
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601725 GP-7LC LIFT HEAD WELDMENT 1 A
2 5601727 GP-7 OFF SIDE CABLE BREAK PLATE WELDMENT 1 A
3 5746098 GP, D2-8/10, XPR-9/10 Ø25mm GEAR SHAFT 2 F
4 5701052 D2/GP/M6K/XPR ARM INTERNAL GEAR STOP 2 F
5 5540133 GP-7, D2-8/10, XPR-9/10 LIFT HEAD SPRING 2 D
6 5930185 GP-7 LIFT HEAD GUSSET COVER 1 E
7 5601728 GP-7 CABLE BREAK CLEVIS PIN WELDMENT 1 A
8 5540146 SPRING Ø25mm x 178mm GP SERIES 1 A
9 5505106 SPRING PIN M6 x 50 2 --
10 5540006 SNAP RING TRUARC 5103-100 2 --
11 5580219 KEYRING 56mm x 3mm 2 --
12 5530796 HHB M12 x 1.75 x 120 CL 8.8 1 --
13 5535012 NUT M12 x 1.75 NL 1 --
14 5530148 BHPS M6 x 1.0 x 16 1 --
WHERE USED
GP-7LC
GP-7LCS
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215738 09/13/2021 TM 01307
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216074
GP-7LC OFF SIDE LIFT
HEAD ASSEMBLY
09/13/2021
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
OR 09/16/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
ASSEMBLE ITEMS AS SHOWN 2.

PART SPECIFICATION FORM
ACP
BENDPAK Number:
5570129
MRP Description:
¼” HYDRAULIC HOSE 31 CL-0400X
Date:
05/24/2018
ECO :
00950
1. Engineering Specification
Application:
¼” HYDRAULIC HOSE
Detailed Description:
ONE or TWO BRAID STEEL WIRE HYDRAULIC HOSE
SIZE: 1/4” / 6mm I.D. MIN
0.53” / 13.4mm O.D. MAX
SPECS: 5700PSI OR 393 BAR WORKING PRESSURE MINIMUM
17100PSI OR 1179 BAR MINIMUM BURST PRESSURE MINIMUM
3” / 80mm MIN BEND RADIUS
COLOR: BLACK
ADDITIONAL CONTACT INFORMATION:
Xin Yurong
Shandong Ningjin High Energy Hose Co., Ltd.
Tel: [phone]
No. 7, Taishan Rd., Industrial Park, Ningjin County, Shandong, China
Approved Vendor
Vendor Part #
Contact #
AUTHORIZED
COMPONENT PROVIDER
1) Ningjin Hydraulic Hose
Co.
5570129
[phone]
X
2)
OR BENDPAK ENGINEERING APPROVED EQUIVALENT
2. Vendor Information (Or for Reference)

2192
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 2126mm* --
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 2 --
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A
PRODUCTION RELEASE, DERIVED FROM
5570195, 5215734, AND 5215735
02/16/2021 CA 01273
WHERE USED
GP-7LCS
NEXT ASSEMBLY
5250374
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
CA
5570250
HYDRAULIC HOSE
ASSEMBLY Ø6.35 x
2192mm DS
02/16/2021
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.

1291.0
5.0
6.0
13.0
213 4
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
D WAS 1044 NOW 1291 02/07/2018 TS 00922
E UPDATED TITLE TO REFLECT SIZE 03/09/2018 TM 00930
F ADDED 5535357 02/17/2020 TM 01107
NEXT ASSEMBLY
5250374
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5595549 CABLE SAFETY Ø1.2mm 1335mm* --
2 5580212 Ø1.2mm OVAL CABLE CRIMP 1 A
3 5530339 GP-7 MICRO SWITCH CABLE CONNECTOR 1 A
4 5535357 NUT M6 x 1.0 NL 1 --
WHERE USED
GP-7LC
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5595551
GP-7LCS Ø1.2 x 1291mm
MICRO SWITCH CABLE
08/24/2017
DO NOT SCALE DRAWING
1:1
SCALE:
THIRD ANGLE PROJECTION
OR 04/09/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED .
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
LENGTH SHOWN IS AFTER SWAGING 2.
ITEM 1 QTY FOR REFERENCE ONLY 3.
CRIMP 5530339 ONTO CABLE 4.
THREAD 5535357 ONTO CABLES FOR SHIPMENT 5.

15.4
6782
19.5
6738
44
3
1
24
5
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B WAS 6101 NOW 6807, WAS 6057 NOW 6763 12/11/2017 TS 00900
C WAS 6807 NOW 6782, WAS 6733 NOW 6708 06/15/2018 TM 00953
D ADDED 5545025 AND 5535008 02/17/2020 TM 01107
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5595011 CABLE, LIFTING Ø10mm 1 --
2 5746158 Ø10 THREADED CABLE CONNECTOR (16mm) 1 A
3 5746021 Ø10 CABLE END CONNECTOR 1 E
4 5545025 WASHER M16 x 30mm FLAT 1 --
5 5535008 NUT M16 x 2 NL 1 --
NEXT ASSEMBLY
5250374
WHERE USED
GP-7LCS
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5595936
GP-7LCS CABLE ASSEMBLY
Ø10 x 6782mm ST
06/15/2017
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR
04/09/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED .
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
LENGTH SHOWN IS AFTER SWAGING 2.
ITEM 1 QTY FOR REFERENCE ONLY 3.
THREAD 5535008 WITH 5545025 ONTO CABLES FOR SHIPMENT 4.
