Service Manual
SERVICE PARTS & DIAGRAMS
This guide is a troubleshooting reference used for maintaining and
servicing your Bend Pak product. It provides comprehensive information
on identifying serviceable parts and components and assists in
troubleshooting problems and performing assembly /disassembly
procedures.
BENDPAK
LR-60P
PRODUCT SKU
5175728
DRAWING Nº
5260168
CATEGORY
Low-Rise Scissor Li
REV
Version AH
DATE
09.27.2022

DIMENSIONS ARE IN MM
☺
A
1
3
4
9
2
4
DETAIL A
SCALE 1 : 5
8
7
5
6
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
AF
ADDED POWER UNIT AND REFERENCE NOTE,
UPDATED BOM REVISION
12/17/2021 CA 01368
AG UPDATED BOM REVISION 03/02/2022 CA 01397
AH UPDATED BOM REVISION 08/16/2022 TM 01433
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5245233 LR-60/60P LIFT SUPERSTRUCTURE 1 N
2 5250020 LR-60P PARTS BOX 1 N
3 5215871 LOW RISE TOW CART ASSEMBLY 1 C
4 5215983 LOW RISE WHEELED POWER UNIT STAND ASSEMBLY 1 C
5 5210907 LR-60P WHEEL BRACKET ASSEMBLY 2 C
6 5530004 FHPS M10 x 1.5 x 30 8 -
7 5545200 WASHER M10 x Ø18 SL 8 -
8 5535998 NUT M10 x 1.5 8 -
9 REF POWER UNIT 1 -
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
AH
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5260168
LR-60P PRODUCTION
LIFT VER A
10/05/2010
DO NOT SCALE DRAWING
1:24
SCALE:
THIRD ANGLE PROJECTION
OR 08/26/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 3.
POWER UNIT REFERENCE ON PURCHASE ORDER 4.

DIMENSIONS ARE IN MM
☺
2
4
5
3
1
7
6
8
9
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
L UPDATED BOM REVISION 11/14/2018 TS 01025
M
REAPLCED 5505350 WITH 5505400, ADDED
5715035 AND 5530366, ADDED LOCK
HEIGHTS (pg2), UPDATED BOM REVISIONS
09/20/2019 CA 01128
N
REPLACED 5715035 WITH 5715048, 5530366
WITH 5530364, ADDED 5535357, MOVED
DIMENSION PAGE TO TOP LEVEL DRAWING,
UPDATED BOM REVISION
07/29/2022 TM 01433
NEXT ASSEMBLY
5260167
5260168
WHERE USED
LR-60 SERIES

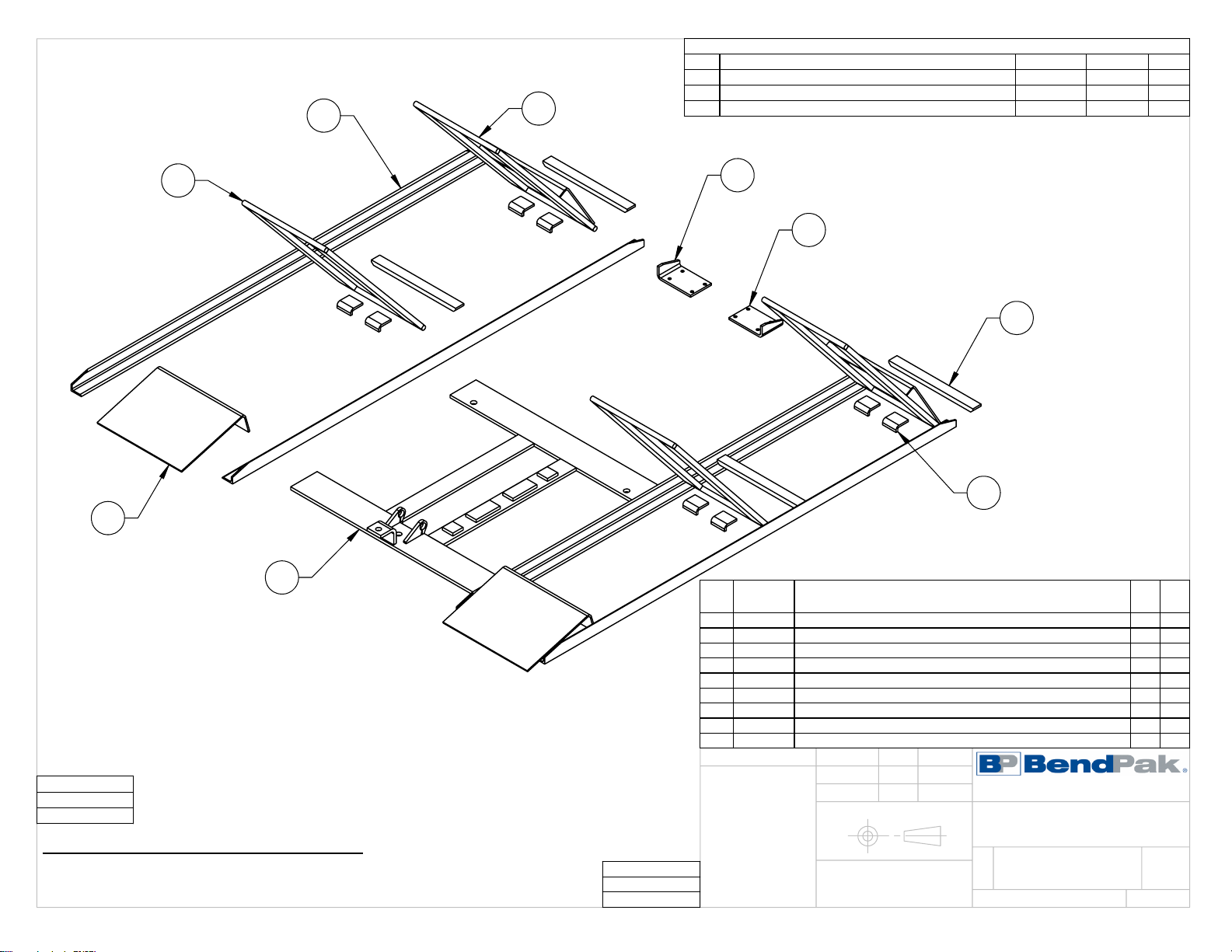

ITEM NO. PART NUMBER DESCRIPTION QTY. REV
1 5210373 LR-60/60P SAFETY BAR ASSEMBLY 1 D
2 5502135 CYLINDER ASSEMBLY Ø3.0 X 18 1 E
3 5746587 UPPER HINGE PIN 1 B
4 5746586 DLR-6/LR-60 LOWER CYLINDER PIN 1 B
5 5505400 COTTER PIN Ø6 x 50mm 4 -
6 5600526 LR-60 LIFT WELDMENT 1 K
7 5715048 DLR-6, LR-60 RAMP BOLT-ON RUBBER PAD 4 A
8 5530364 ELEVATOR BOLT M6 x 1.0 x 25 16 A
9 5535357 NUT M6 x 1.0 NL 16 B
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
N
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5245233
LR-60/60P LIFT
SUPERSTRUCTURE
10/04/2010
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR 08/26/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 3.
ASSEMBLE ITEMS AS SHOWN 4.

DIMENSIONS ARE IN MM
☺
4
1
3
6
8
7
5
9
10
2
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
L
REPLACED 5300002 WITH 5210232,REMOVED
(2) 5530010, (2) 5535001, AND (2) 5545341
09/23/2019 CA 01128
M ADDED 5580012 03/31/2020 TM 01152
N
ADDED 5530031, REPLACED 5550103 WITH
5550413, REPLACED 5570082 WITH 5570244
08/11/2020 TM 01188
NEXT ASSEMBLY
5260168
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5210232 LOW RISE SCISSOR LIFT RUBBER PAD KIT, SET OF 8 1 A
2 5550413 FTG NPL -06 ORB x ¼ NS; QUICK-CON COUP MALE 1 -
3 5570244 HYDRAULIC HOSE ASSEMBLY Ø6.4 x 2873mm DS-M 1 A
4 5550147 FTG NPL -04 JIC x -04 NPT 1 -
5 5900337 LR-60/60P INSTALLATION MANUAL 1 -
6 5530010 HHB M8 x 1.25 x 25 2 -
7 5545341 WASHER M10 x Ø20 FLAT 2 -
8 5535001 NUT M8 x 1.25 NL 2 -
9 5580012 LIQUID PTFE THREAD SEALANT 50ml 1 -
10 5550031
FTG NPL-04 NPT F x 1/4 QUICK-CONNECTOR COUPLER
FEMALE; NON SPILL DESIGN
1 -
WHERE USED
LR-60P
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
N
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5250020
LR-60P PARTS BOX
10/05/2010
DO NOT SCALE DRAWING
1:6
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.

DIMENSIONS ARE IN MM
☺
2
7
8
9
1
4
5
3
6
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
WHERE USED
LR-60P
MD-6XP
DLR-6P
DMR-6
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE 08/11/2020 TM 01188
B UPDATED BOM REVISION AND NEXT ASSEMBLY 12/17/2021 CA 01368
C UPDATED BOM REVISION 03/02/2022 CA 01397
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601407 LOW RISE POWER UNIT STAND WELDMENT 1 D
2 5737141 LOW RISE POWER UNIT STAND EXTENSION PLATE 1 B
3 5716192 QUICKJACK POLYURETHANE WHEEL 2 E
4 5530027 HHB M6 x 1.0 x 35 2 --
5 5545026 WASHER M6 x Ø12 SL 2 --
6 5535357 NUT M6 x 1.0 NL 2 --
7 5530304 HHB M8 x 1.25 x 20mm 2 --
8 5545202 WASHER M8 x Ø15 SL 2 --
9 5535001 NUT M8 x 1.25 NL 2 --
NEXT ASSEMBLY
5260168
5260630
5260632
5260652
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215983
LOW RISE WHEELED POWER
UNIT STAND ASSEMBLY
08/10/2020
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
OR 03/02/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.

DIMENSIONS ARE IN MM
☺
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
3
7
8
2
4
9
10
6
5
1
47.618in
1209.5mm
14.724in
374.0mm
8.414in
213.7mm
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601405 LOW RISE TOW CART BASE WELDMENT 1 B
2 5601406 LOW RISE TOW CART HANDLE WELDMENT 1 A
3 5715363 LOW RISE TOW CART PLASTIC HANDLE COVER 2 B
4 5215872
LOW RISE TOW CART POLYURETHANE WHEEL
ASSEMBLY
2 B
5 5545347 WASHER, M12 FLAT WASHER 2 --
6 5540116 TRUARC Ø12mm 5103-50 2 --
7 5403327 SHCS M6 x 1.0 x 25 4 --
8 5545026 WASHER M6 x Ø12 SL 4 --
9 5545005 M6 FLAT WASHER 4 --
10 5535357 NUT M6 x 1.0 NL 4 --
NEXT ASSEMBLY
5260168
5260630
5260632
5260652
WHERE USED
LR-60P
MD-6XP
DMR-6
DLR-6P
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215263 09/13/2019 TM
01128-
PRE
B UPDATED BOM REVISION 10/29/2019 TM 01128
C
REPLACED 5400959 WITH 5403327, UPDATED
BOM REVISION AND NEXT ASSEMBLIES
07/15/2021 CA 01317
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215871
LOW RISE TOW CART
ASSEMBLY
09/12/2019
DO NOT SCALE DRAWING
1:8
SCALE:
THIRD ANGLE PROJECTION
OR 07/22/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.

DIMENSIONS ARE IN MM
☺
2
1
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5210944 09/18/2019 TM 01128
NEXT ASSEMBLY
ACCESSORY
5250020
5250021
5250034
5250054
5250062
5250063
5250064
5250110
5250174
5250317
5250318
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5300862 LOW RISE SCISSOR LIFT 75mm RUBBER PAD KIT, SET OF 4 1 A
2 5300861 LOW RISE SCISSOR LIFT 38mm RUBBER PAD KIT, SET OF 4 1 A
WHERE USED
LR-60 SERIES
DLR-6 SERIES
MDS-6 SERIES
P9000LT SERIES
SP-7XE SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5210232
LOW RISE SCISSOR LIFT
RUBBER PAD KIT, SET OF 8
09/18/2019
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
CA 11/01/2019
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.

DIMENSIONS ARE IN MM
☺
3
2
1
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5245233
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B UPDATED BOM REVISION 09/18/2015 JM 00726
C UPDATED BOM REVISION 09/18/2018 TM 00996
D UPDATED BOM REVISION 11/14/2018 TS 01025
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5210372 LR-60/60P SAFETY BAR WELDMENT 1 C
2 5736676 DLR-6/LR-60 SAFETY LATCH 1 E
3 5505141 SPRING PIN M6 x 36 2 --
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TS
5210373
LR-60/60P SAFETY BAR
ASSEMBLY
04/14/2014
DO NOT SCALE DRAWING
1:4
SCALE:
THIRD ANGLE PROJECTION
CA 11/26/2018
ASSEMBLE ITEMS AS SHOWN 1.

DIMENSIONS ARE IN MM
☺
9
10
5
3
11
7
6
1
2
4
8
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM T1034 10/05/2010 TM 00406
B REPLACED 5535998 WITH 5535013 02/02/2017 TS 00808
C
REPLACED 5215224 WITH 5215872, UPDATED
BOM REVISION
09/23/2019 CA 01128
WHERE USED
LR-60P
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600527 LR-60P WHEEL MOUNTING ANGLE WELDMENT 1 A
2 5701332 LR-60P MOUNTING ANGLE LH 1 A
3 5600528 LR-60P WHEEL FRAME WELDMENT 1 A
4 5600083 LR-60P WHEEL FRAME STOP WELDMENT 1 A
5 5215872 LOW RISE TOW CART PLASTIC WHEEL ASSEMBLY 1 B
6 5535013 NUT M10 x 1.5 NL 2 -
7 5535012 NUT M12x1.75 NL 1 -
8 5530759 HHB M10 x 1.5 x 50 1 -
9 5530765 HHB M10 x 1.5 x 80 1 -
10 5530141 HHB M12 x 1.75 x 70 1 -
11 5545027 WASHER M12 x Ø37 x 3mm 2 -
NEXT ASSEMBLY
5260168
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5210907
LR-60P WHEEL BRACKET
ASSEMBLY
10/05/2010
DO NOT SCALE DRAWING
1:3
SCALE:
THIRD ANGLE PROJECTION
-- --
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.
5600528 & 5215872 MUST ROTATE FREELY 4.

PART SPECIFICATION FORM
ACP
BENDPAK Number:
5570129
MRP Description:
¼” HYDRAULIC HOSE 31 CL-0400X
Date:
05/24/2018
ECO :
00950
1. Engineering Specification
Application:
¼” HYDRAULIC HOSE
Detailed Description:
ONE or TWO BRAID STEEL WIRE HYDRAULIC HOSE
SIZE: 1/4” / 6mm I.D. MIN
0.53” / 13.4mm O.D. MAX
SPECS: 5700PSI OR 393 BAR WORKING PRESSURE MINIMUM
17100PSI OR 1179 BAR MINIMUM BURST PRESSURE MINIMUM
3” / 80mm MIN BEND RADIUS
COLOR: BLACK
ADDITIONAL CONTACT INFORMATION:
Xin Yurong
Shandong Ningjin High Energy Hose Co., Ltd.
Tel: [phone]
No. 7, Taishan Rd., Industrial Park, Ningjin County, Shandong, China
Approved Vendor
Vendor Part #
Contact #
AUTHORIZED
COMPONENT PROVIDER
1) Ningjin Hydraulic Hose
Co.
5570129
[phone]
X
2)
OR BENDPAK ENGINEERING APPROVED EQUIVALENT
2. Vendor Information (Or for Reference)

2873
31 2
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5570233 08/11/2020 TM 01188
WHERE USED
DLR-6P
LR-60P
ITEM NO. PART NUMBER DESCRIPTION QTY. REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 2811mm* -
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 1 -
3 5550060 FTG NPL Ø1/4 CRIMP x -04 NPT M 1 -
NEXT ASSEMBLY
5250020
5250318
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5570244
HYDRAULIC HOSE ASSEMBLY
Ø6.4 x 2873mm DS-M
08/11/2020
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
OR 8/18/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.

2
1
3
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
J
J-001
UPDATED BOM REVISIONS
UPDATED PAINT WAS BLUE NOW GREY
10/06/2016
06/12/2018
TS
TS
00781
00956
K
K-001
REMOVED 5715290, ADDED 5737142, REMOVED
GLUE NOTE, UPDATED BOM REVISIONS
ADDED 20% GLOSS PAINT NOTE
09/20/2019
08/11/2020
CA
TM
01128
01188
L REMOVED 5737142, UPDATED BOM REVISION 07/28/2022 TM 01433
WHERE USED
LR-60 SERIES
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5620455 DLR-6/LR-60 BASE WELDMENT 1 H
2 5620872 DLR-6/6P/LR-60/60P COVER WELDMENT 1 D
3 5720175 DL-6/6P/LR-60/P HINGE HOLDER 8 C
NEXT ASSEMBLY
5245233
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5600526
LR-60 LIFT WELDMENT
10/01/2010
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
OR 08/25/2022
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 2.
REMOVE ALL WELD SPLATTER 3.
DIMENSIONS SHOWN ARE AFTER PAINTING 4.
PAINT GRAY (RAL-7024) 20% GLOSS 5.
NOTE: UNLESS OTHERWISE SPECIFIED.

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
4
3
2
1
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A
A-001
PRODUCTION RELEASE, DERIVED FROM 5600187
ADDED 20% GLOSS PAINT NOTE
09/12/2019
08/11/2020
TM
TM
01128
-PRE
01188
B
REMOVED 5746130, WAS 55 NOW 45, UPDATED
COLOR, WAS GRAY NOW BLACK, UPDATED
BOM REVISIONS
07/15/2021 CA 01317
NEXT ASSEMBLY
5215871
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5730083 LOW RISE TOW CART BASE PLATE 1 B
2 5746122 LOW RISE TOW CART AXLE 1 B
3 5737140 LOW RISE TOW CART SUPPORT BAR 1 B
4 5746129 LOW RISE TOW CART PIN 1 C
WHERE USED
LR-60P
MD-6XP
DMR-6
DLR-6P
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5601405
LOW RISE TOW CART
BASE WELDMENT
09/12/2019
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 07/22/2021
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 2.
REMOVE ALL WELD SPLATTER 3.
DIMENSIONS SHOWN ARE AFTER PAINTING 4.
PAINT BLACK (RAL-9017) 20% GLOSS 5.
NOTE: UNLESS OTHERWISE SPECIFIED.

7
23
6
5
4
1
8
9
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
F UPDATED BOM REVISION 03/21/2016 TM 00753
G UPDATED BOM REVISION 10/06/2016 TS 00781
H UPDATED BOM REVISION 09/26/2019 CA 01128
NEXT ASSEMBLY
5600526
5601562
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5620456 LR-60/60P CYLINDER CLEVIS AND SAFETY WELDMENT 1 C
2 5721001 BASE ANGLE 4 A
3 5620457 LR-60/60P REAR HINGE ARM WELDMENT 2 D
4 5701331 LR-60 DRIVE ON RAMP 2 B
5 5736343 LR-60P WHEEL SUPPORT ANGLE RH 1 A
6 5736344 LR-60P WHEEL SUPPORT ANGLE LH 1 A
7 5620137 LR-60/60P HINGE ARM WELDMENT 2 D
8 5735422 LR-60/P,P-6/F HINGED ARM STOP BAR 4 B
9 5720175 LR-60/P HINGE HOLDER 8 C
WHERE USED
DLR-6 SERIES
LR-60 SERIES
SHEET 1 OF 4
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
H
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5620455
DLR-6/LR-60
BASE WELDMENT
09/29/2010
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
CA 11/1/2019
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 2.
REMOVE ALL WELD SPLATTER 3.
NOTE: UNLESS OTHERWISE SPECIFIED.

2
3
4
1
5
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B
REPLACED 5620003 WITH 5735422, UPDATED
BOM REVISION
04/15/2014 TS 00654
C ADDED 5735619, UPDATED NEXT ASSEMBLY 10/07/2016 TS 00781
D UPDATED BOM REVISION 07/28/2022 TM 01433
NEXT ASSEMBLY
5600526
5601562
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5736342 LR-60/60P PUSH BAR 1 A
2 5701333 DLR/LR-60/60P RAMP COVER 2 B
3 5736338 LR-60/60P TOP CLEVIS 3 A
4 5735422 LR-60/P,P-6/F HINGED ARM STOP BAR 4 B
5 5735619 LR-60/60P COVER REINFORCEMENT STRIP 2 A
WHERE USED
DLR-6 SERIES
LR-60 SERIES
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5620872
DLR-6/6P/LR-60/60P
COVER WELDMENT
10/01/2010
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
OR 08/25/2022
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 2.
REMOVE ALL WELD SPLATTER 3.
NOTE: UNLESS OTHERWISE SPECIFIED.

PART SPECIFICATION FORM STANDARD
BENDPAK Number:
5900337
MRP Description:
LR-60/60P INSTALLATION MANUAL
Date:
12/09/2020
ECO :
---
1. Engineering Specification
Application:
INSTALLATION MANUAL
Detailed Description:
Print Settings for BendPak Manuals
Unless otherwise specified, use these settings for
printing BendPak manuals:
Color: Black and white.
Size: A4 (210 to 297 mm), 8.5 by 11 inches
(216 to 279 mm), or between
Binding: Saddle stitched
Paper: 100 to 120 gsm (27 to 32 pound),
uncoated
2. Vendor Information (Or for Reference)
Approved Vendor
Vendor Part #
Contact #
PreferredVendor
1)
OR BENDPAK ENGINEERING APPROVEDEQUIVALENT
