Service Manual
SERVICE PARTS & DIAGRAMS
This guide is a troubleshooting reference used for maintaining and
servicing your Bend Pak product. It provides comprehensive information
on identifying serviceable parts and components and assists in
troubleshooting problems and performing assembly /disassembly
procedures.
BENDPAK
HD-7PXW
PRODUCT SKU
5175516
DRAWING Nº
5260514
CATEGORY
Four Post Li
REV
Version AG
DATE
06.14.2022

DIMENSIONS ARE IN MM
☺
1
2
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5245385 HD-7PXW LIFT SUPERSTRUCTURE 1 AB
2 5250166 HD-7PXW PARTS BOX 1 P
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
AE
REPLACED LABELS WITH COLORS &
GRAPHICS NOTE
09/27/2021 TM 01344
AF UPDATED BOM REVISION 12/13/2021 TM 01367
AG UPDATED BOM REVISIONS 05/24/2022 TM 01414
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
AG
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5260514
HD-7PXW PRODUCTION
LIFT VER E (CE CERT)
08/12/2014
DO NOT SCALE DRAWING
1:40
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 3.

4010.0mm
157.874in
145.315in
3691.0mm
3.268in MAX
83.0mm MAX
121.881in
3095.8mm
4.090in
103.9mm
4.764in
121.0mm
A
B
2546.0mm
100.236in
4788.0mm
188.504in
482.0mm
18.976in
197.953in
5028.0mm
224.523in
5702.9mm
[34.921 MIN - 41.142in MAX]
887.0 MIN 1045.0mm MAX
111.870in
2841.5mm
8.996in
228.5mm
138.898in
3528.0mm
DRIVE THRU
FRONT VIEW
4.010in
101.9mm
DETAIL A
SCALE 1 : 10
4.158in
105.6mm
DETAIL B
SCALE 1 : 10
SHEET 2 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
AG
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5260514
HD-7PXW PRODUCTION
LIFT VER E (CE CERT)
1:50
SCALE:

DIMENSIONS ARE IN MM
☺
B
3
6
2
9
5
10
8
7
11
1
4
19
DETAIL A
SCALE 1 : 2
14
12
13
DETAIL B
SCALE 1 : 20
18
17
15
16

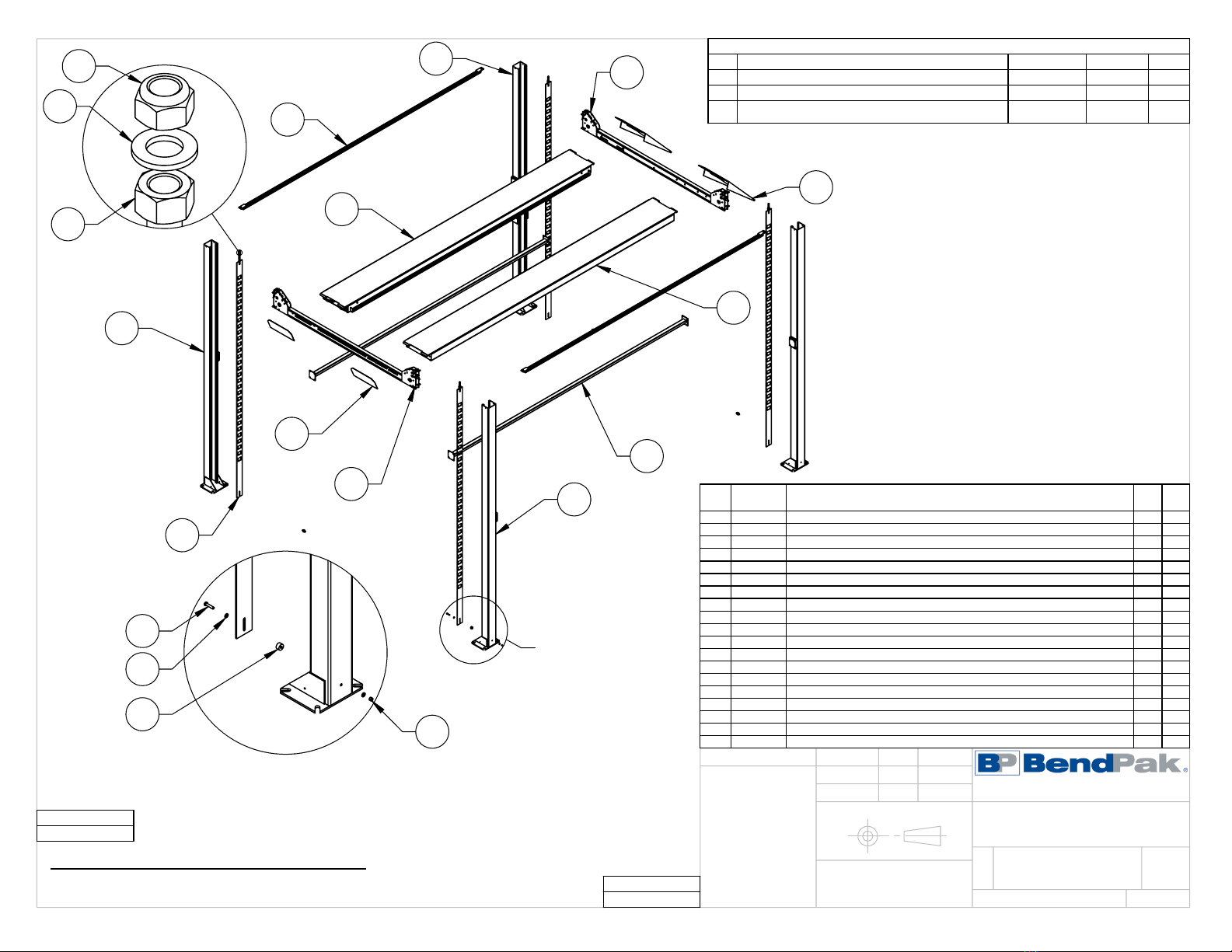

WHERE USED
HD-7PXW
ITEM
NO.
PART
NUMBER
DESCRIPTION QTY REV
1 5216155 HD-7/9/973P CROSSTUBE ASSEMBLY, SMALL WINDOW 1 A
2 5216157 HD-7W/973P CROSSTUBE ASSEMBLY, LARGE WINDOW 1 A
3 5601140 HD-7PX/7500PBX POWER SIDE POST WELDMENT 1 B
4 5601410 HD-7PX/7500 POST WELDMENT, R.H 2 A
5 5601139 HD-7PX/7500PBX POST WELDMENT 1 B
6 5600921 HD-7/973/7500 SAFETY LADDER WELDMENT 4 C
7 5215171 HD-7PX/7500 POWER SIDE RAMP ASSEMBLY 1 AD
8 5600206 HD-7PX/7500 OFF SIDE RAMP WELDMENT 1 H
9 5600890 HD-7/7500/9 TIRE STOP PLATE WELDMENT 2 F
10 5215193 HD-7/9/7500BL DRIVE UP RAMP ASSEMBLY 2 G
11 5601409 HD-7PX/7500 TOP STIFFENER TUBE WELDMENT 2 A
12 5545025 WASHER, M16 x 30mm FLAT 4 -
13 5535021 NUT M16 x 2.0 4 -
14 5535008 NUT M16 x 2 NL 4 -
15 5746381 HD-7/7500/ 9 SPACER, SAFETY LADDER, 17.5mm LG 4 B
16 5535013 NUT M10 x 1.5 NL 4 -
17 5545341 WASHER M10 x Ø20 FLAT 8 -
18 5530167 HHB M10 x 1.5 x 45mm 4 -
19 5601411 HD-7PX/7500 STIFFENER TUBE WELDMENT 2 A
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
Z UPDATED BOM REVISION 07/14/2021 TM 01316
AA UPDATED BOM REVISIONS 12/13/2021 TM 01367
AB
REPLACED 5215621 WITH 5216155, AND
5215624 WITH 5216157
05/24/2022 TM 01414
NEXT ASSEMBLY
5260514
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
AB
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5245385
HD-7PXW LIFT
SUPERSTRUCTURE
08/11/2014
DO NOT SCALE DRAWING
1:60
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
THREAD M16 HARDWARE ONTO LADDER BOLTS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
A
B
7
6
1
2
11
10
DETAIL A
SCALE 1 : 10
3
4
9
DETAIL B
SCALE 1 : 10
5
8
12
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
AB UPDATED BOM REVISION 03/26/2021 TM 01290
AC UPDATED BOM REVISION 07/14/2021 TM 01316
AD UPDATED BOM REVISION 12/10/2021 TM 01367
ITEM
NO.
PART
NUMBER
DESCRIPTION QTY REV
1 5600193 HD-7PX/7500 POWER SIDE RAMP WELDMENT 1 M
2 5502035 CYLINDER ASSEMBLY Ø3.5 x 70 - SLOW 1 C
3 5215122 HD-7/7500/9 SINGLE SHEAVE ROLLER ASSEMBLY 2 E
4 5600900 HD-7/7500/9 RAMP SHEAVE SHAFT WELDMENT 4 E
5 5575103 HD-7/973/7500PBX 76mm DIRECTION SHEAVE ASSEMBLY 2 E
6 5215186 HD-7 PULL BOX ASSEMBLY 1 G
7 5215185 HD-7/7500/973 TWIN SHEAVE ASSEMBLY 2 C
8 5600301 HD-7/7500/973 DIRECTIONAL SHEAVE PIN WELDMENT 2 C
9 5530776 SHCS M8 x 1.25 x 20mm 4 -
10 5535357 NUT M6 x 1.0 NL 4 -
11 5530047 HHB, M6 x 1 x 30mmL 4 -
12 5505032 ROTOR CLIP Ø18mm SS 2 -
NEXT ASSEMBLY
5245244
5245385
5245386
5245391
WHERE USED
HD-7PXN
HD-7PXW
HD-7PXWS
HD-7500PBX
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
AD
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .

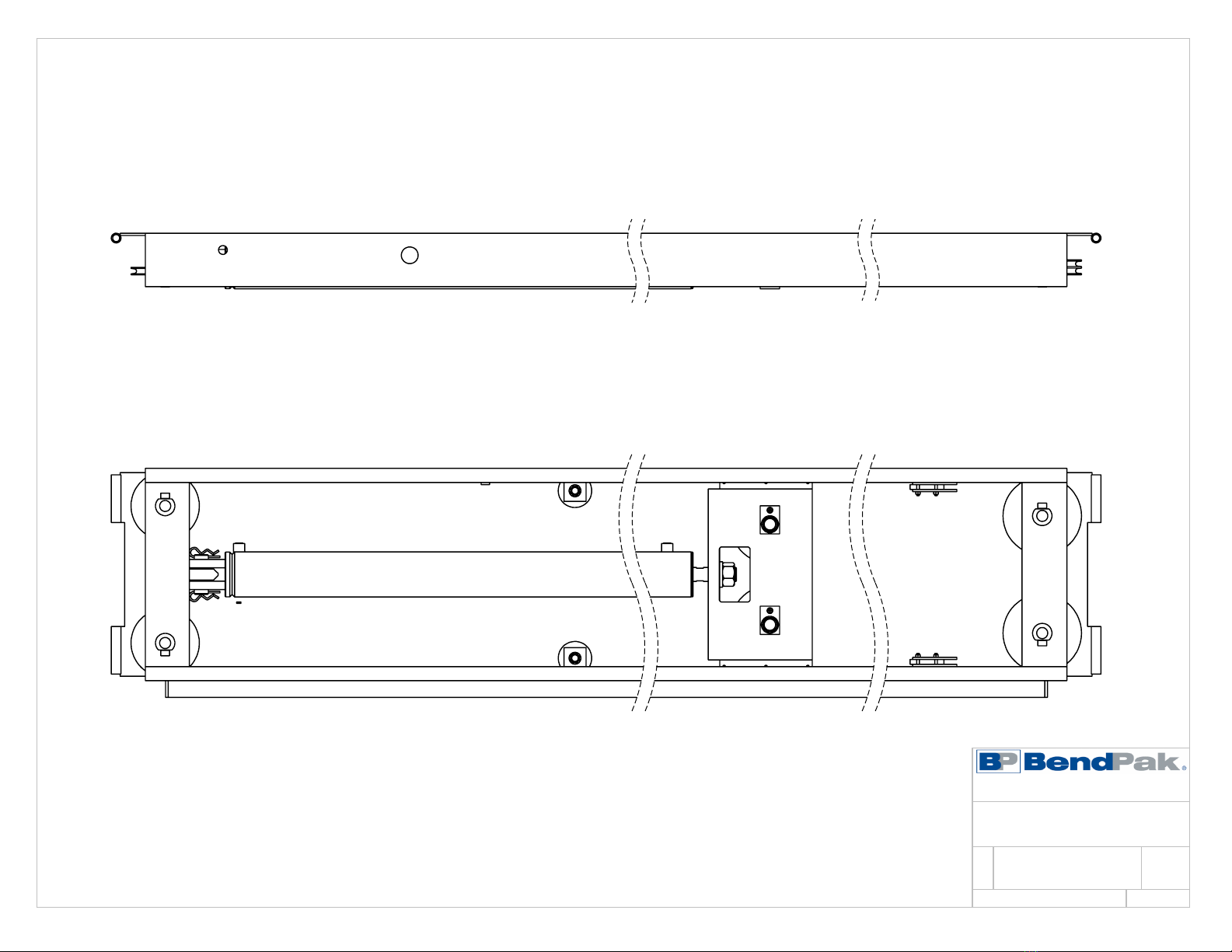

AC
5215171
HD-7PX/7500 POWER SIDE
RAMP ASSEMBLY
11/18/2008
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

SHEET 2 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
AD
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5215171
HD-7PX/7500 POWER SIDE
RAMP ASSEMBLY
1:10
SCALE:

DIMENSIONS ARE IN MM
☺
1
21
DETAIL A
SCALE 1 : 6
6
17
37
8
2
13
16 4
5
14
18
9
15
10
12
20
19
11

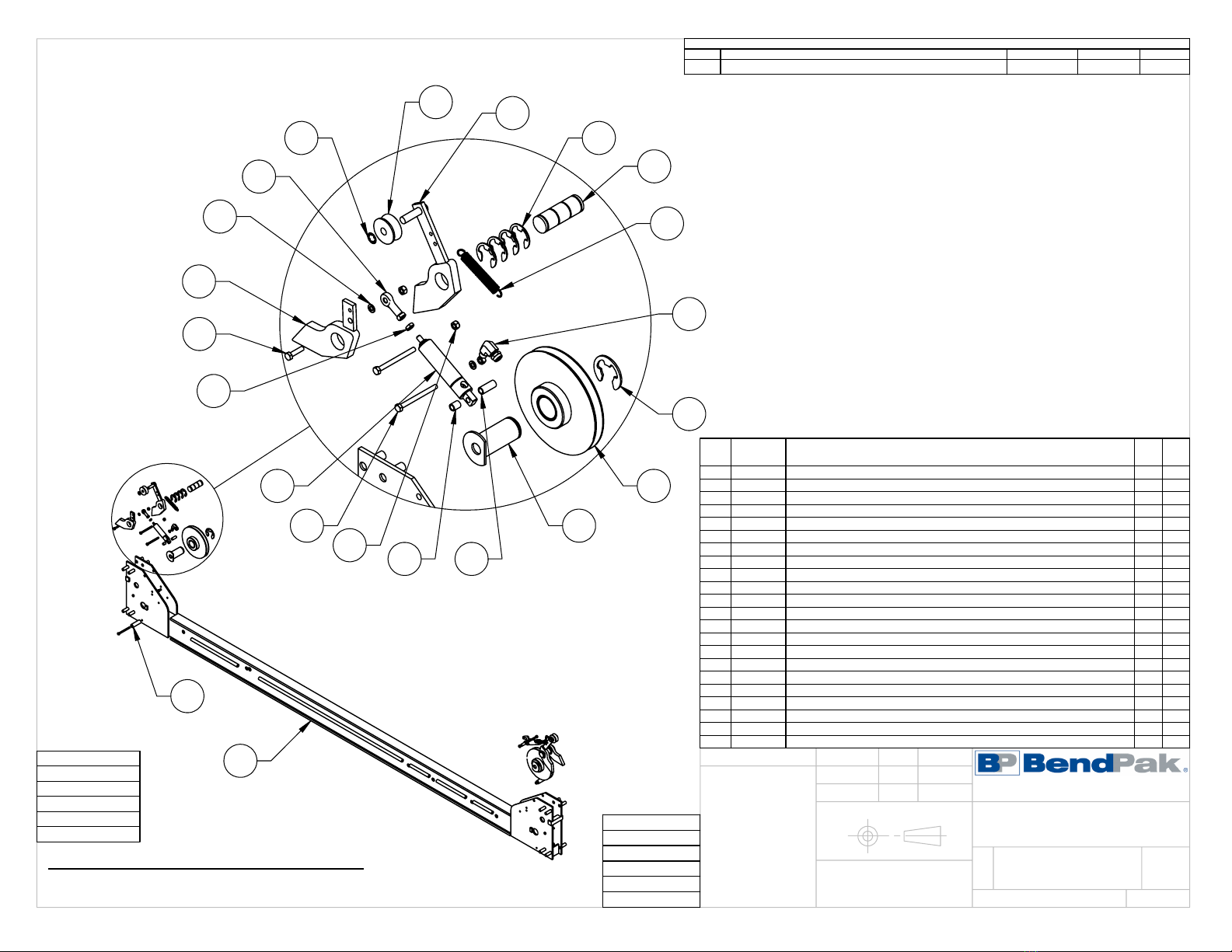

22 ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5601822 HD-7/9/973P CROSSTUBE WELDMENT, SMALL WINDOW 1 A
2 5746008 D4-12, HD/HDS-7/7500/9/14, HDSO-14 SAFETY PIN 2 D
3 5575420 HD-7/7500/9 SAFETY ROLLER 2 C
4 5215122 HD-7/7500/9 SINGLE SHEAVE ROLLER ASSEMBLY 2 E
5 5600160 HD-7/7500/9 CROSSTUBE SHEAVE SHAFT WELDMENT 2 G
6 5600760 D4-12, HD/HDS LIGHT DUTY SAFETY WELDMENT 2 C
7 5600044 4 POST LIGHT DUTY SLACK SAFETY WELDMENT 2 F
8 5540275 E RING Ø25mm OD DIN 6799 0250 8 -
9 5502195 AIR CYLINDER, Ø19mm x 25 STROKE 2 -
10 5530005 HHB M6 x 1 x 70 6 -
11 5545005 WASHER, M6 x 12mm FLAT 4 -
12 5535357 NUT M6 x 1.0 NL 8 -
13 5540065 SPRING Ø13mm x 90mm, SLACK SAFETY 2 A
14 5505625 FEMALE ROD END M6 x 33 2 -
15 5550087 FTG ELB -04 COMP x -02 NPT 2 -
16 5540010 E RING Ø32mm OD DIN 6799 2 -
17 5505030 PUSH-ON CLIP Ø10mm SS 2 -
18 5530756 HHB M6 x 1.0 x 25mm 2 -
19 5755136 AIR CYLINDER SPACER 12mm 2 A
20 5755137 AIR CYLINDER SPACER 25mm 2 A
21 5755157 D4-12, HD-7/7500/9 CROSSTUBE SPACER Ø16 x Ø10 x 50 2 A
22 5535230 NUT 1/4-28 JN 2 -
NEXT ASSEMBLY
5245059
5245068
5245242
5245244
5245381
5245382
5245383
5245384
5245385
WHERE USED
HD-7W
HD-7PXW
HD-7PXWS
HD-9
HD-9XW
HD-9XL
HD-973P
HD-973PX
PL-12000DP
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215621 04/29/2022 TM 01414
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216155
HD-7/9/973P CROSSTUBE
ASSEMBLY, SMALL WINDOW
04/29/2022
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
1
21
DETAIL A
SCALE 1 : 6
6
14
18
37
8
2
5
4
17
12
13
9
16
15
2019
10
11
22

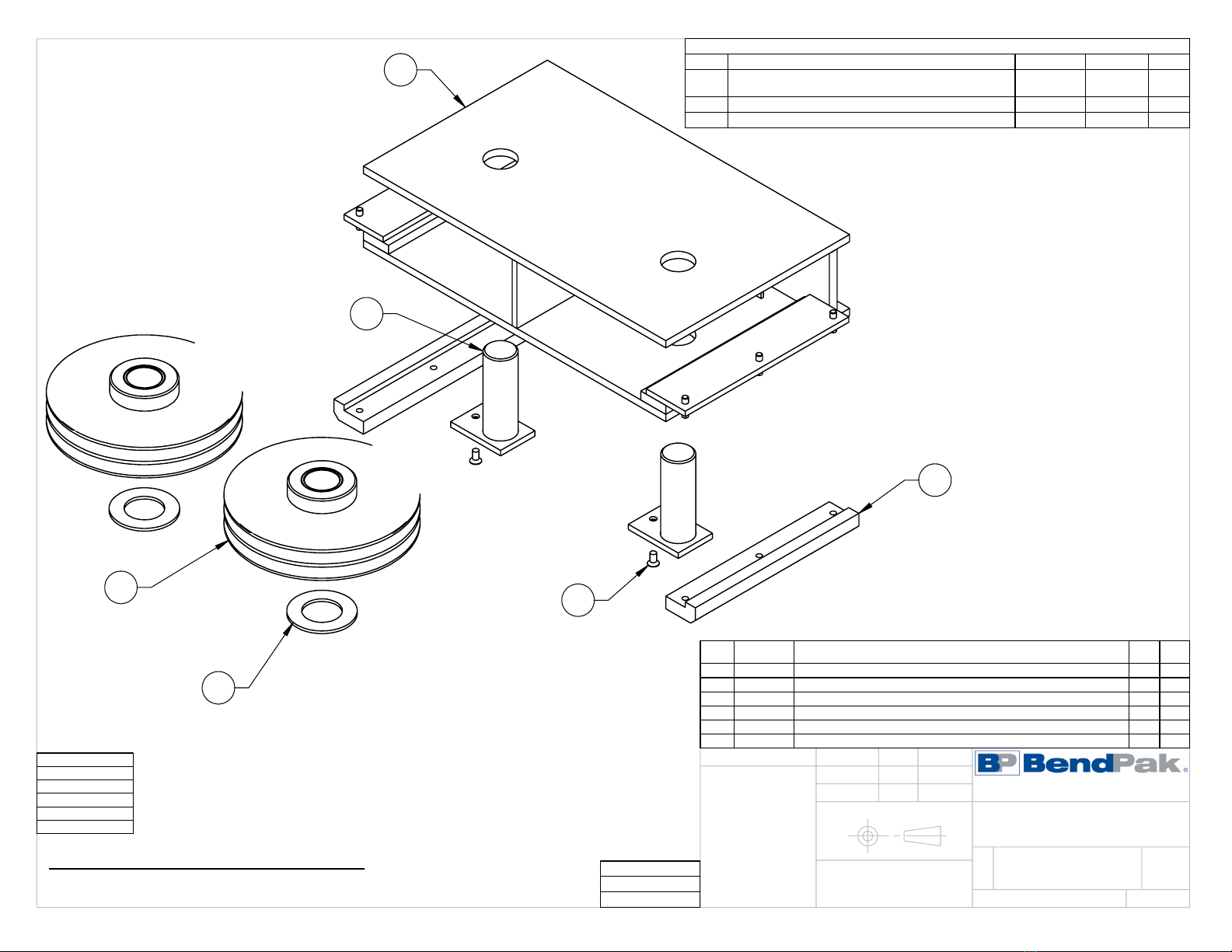

ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5601823 HD-7W/973P CROSSTUBE WELDMENT, LARGE WINDOW 1 A
2 5746008 D4-12, HD/HDS-7/7500/9/14, HDSO-14 SAFETY PIN 2 D
3 5575420 HD-7/7500/9 SAFETY ROLLER 2 C
4 5215122 HD-7/7500/9 SINGLE SHEAVE ROLLER ASSEMBLY 2 E
5 5600160 HD-7/7500/9 CROSSTUBE SHEAVE SHAFT WELDMENT 2 G
6 5600760 D4-12, HD/HDS LIGHT DUTY SAFETY WELDMENT 2 C
7 5600044 4 POST LIGHT DUTY SLACK SAFETY WELDMENT 2 F
8 5540275 E RING Ø25mm OD DIN 6799 0250 8 -
9 5530005 HHB M6 x 1 x 70 6 -
10 5545005 WASHER, M6 x 12mm FLAT 4 -
11 5535357 NUT M6 x 1.0 NL 8 -
12 5540065 SPRING Ø13mm x 90mm, SLACK SAFETY 2 A
13 5502195 AIR CYLINDER, Ø19mm x 25 STROKE 2 -
14 5505625 FEMALE ROD END M6 x 33 2 -
15 5530756 HHB M6 x 1.0 x 25mm 2 -
16 5550087 FTG ELB -04 COMP x -02 NPT 2 -
17 5540010 E RING Ø32mm OD DIN 6799 2 -
18 5505030 PUSH-ON CLIP Ø10mm SS 2 -
19 5755136 AIR CYLINDER SPACER 12mm 2 A
20 5755137 AIR CYLINDER SPACER 25mm 2 A
21 5755157 D4-12, HD-7/7500/9 CROSSTUBE SPACER Ø16 x Ø10 x 50 2 A
22 5535230 NUT 1/4-28 JN 2 -
NEXT ASSEMBLY
5245059
5245068
5245244
5245384
5245385
WHERE USED
HD-7W
HD-7PXW
HD-7PXWS
HD-973P
HD-973PX
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215624 05/02/2023 TM 01414
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216157
HD-7W/973P CROSSTUBE
ASSEMBLY, LARGE WINDOW
05/02/2022
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
19
14
6
18
7
5
2
10
3
1
4
12
13
15
8
11
16
17
20
9
WHERE USED
HD-7PXW
ITEM
NO
PART
NUMBER
DESCRIPTION QTY. REV

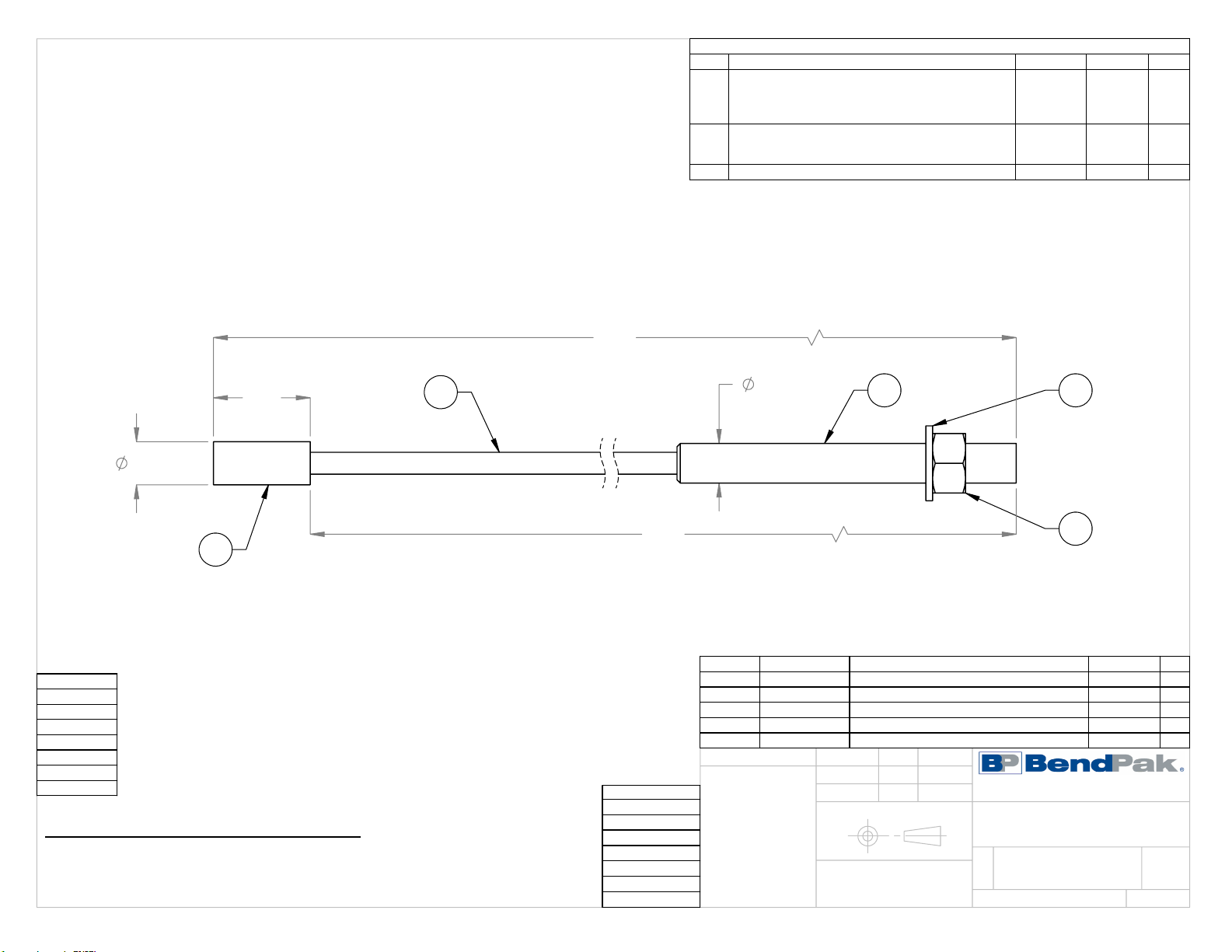

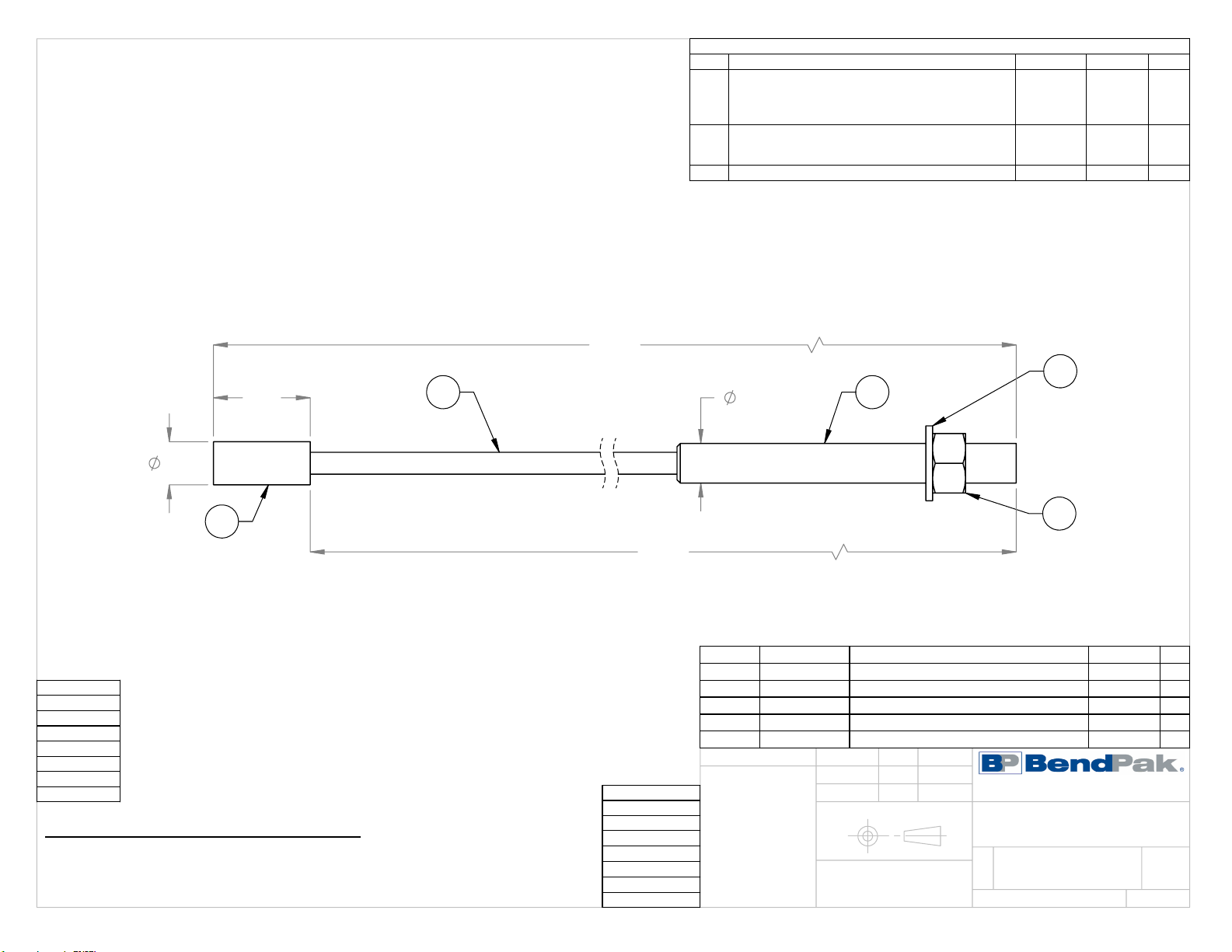

1 5595467
CABLE ASSEMBLY Ø10 x 5704mm ST
1 C
2 5595053
CABLE ASSEMBLY Ø10 x 7301mm ST
1 F
3 5595469
CABLE ASSEMBLY Ø10 x 10484mm ST
1 C
4 5595055
CABLE ASSEMBLY Ø10 x 12072mm ST
1 F
5 5570795 1/4" POLY-FLO TUBING 20000*mm -
6 5216141 FLEX TUBE KIT, UP TO 3000mm 1 A
7 5215155 HD-7/7500 FLEX TUBE BRACKET ASSY 1 G
8 5745014 HD-7/7500/9 DRIVE UP RAMP PIN 4 B
9 5174097 HD-7PX/7500 PARTS BAG 1 H
10 5700033 HD-SERIES FLEX TUBE ANGLE 1 E
11 5700072 WHEEL CHOCK 2 B
12 5570876
HD-7PX SERIES HYDRAULIC HOSE ASSEMBLY Ø6.4 x 4090mm
1 F
13 5530456 AB 3/4" x 4 - 3/4" 16 -
14 5600255 HD-7PX POST TOP PLATE WELDMENT 4 C
15 5900972 HD-7MZ/PXW/PXN INSTALLATION MANUAL 1 -
16 5716630 HD-7/7500/9 CROSSTUBE COVER, PLASTIC 4 A
17 5716005
D4-12, HD-7/7500/9/14/HDSO-14 POLYETHYLENE
SLIDE BLOCK
16 M
18 5715003 POWER UNIT VIBRATION DAMPENER 1 B
19 5210241 4 POST LIGHT DUTY CE PARTS BAG 1 A
20 5930195 ANTI-SLIP TAPE, 6” x 24ft 1 --
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
M
ADDED 5210241, REMOVED 5535358 AND
5545342, UPDATED BOM REVISIONS
07/10/2020 TM 01174
N UPDATED BOM REVISION 07/14/2021 TM 01316
P
ADDED 5930195, REPLACED 5570055 WITH
5216141
05/04/2022 TM
01414
PRE A
NEXT ASSEMBLY
5260514
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
P
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5250166
HD-7PXW PARTS BOX
05/08/2013
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
HOSES AND CABLES IN REPRESENTATIONAL FORM 2.
(*) LENGTH FOR REFERENCE ONLY 3.

DIMENSIONS ARE IN MM
☺
19
20
DETAIL A
SCALE 1 : 4
3
2
DETAIL B
SCALE 1 : 8
12
14
6
5
4
11
DETAIL C
SCALE 1 : 4
8
9
7
10
1
DETAIL D
SCALE 1 : 4
13
DETAIL E
SCALE 1 : 4
18
DETAIL F
SCALE 1 : 2
16
15
17
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
F REPLACED 5550493 WITH 5550070 05/30/2019 TM 01084
G
REPALCED 5550070 WITH 5550106, ADDED
5550025, (16) 5530076, (16) 5535354, (16)
5545347, AND 5580012
09/09/2019 TS 01120
H REMOVED 5550025 07/14/2021 TM 01316
NEXT ASSEMBLY
5250086
5250161
5250166
5250342

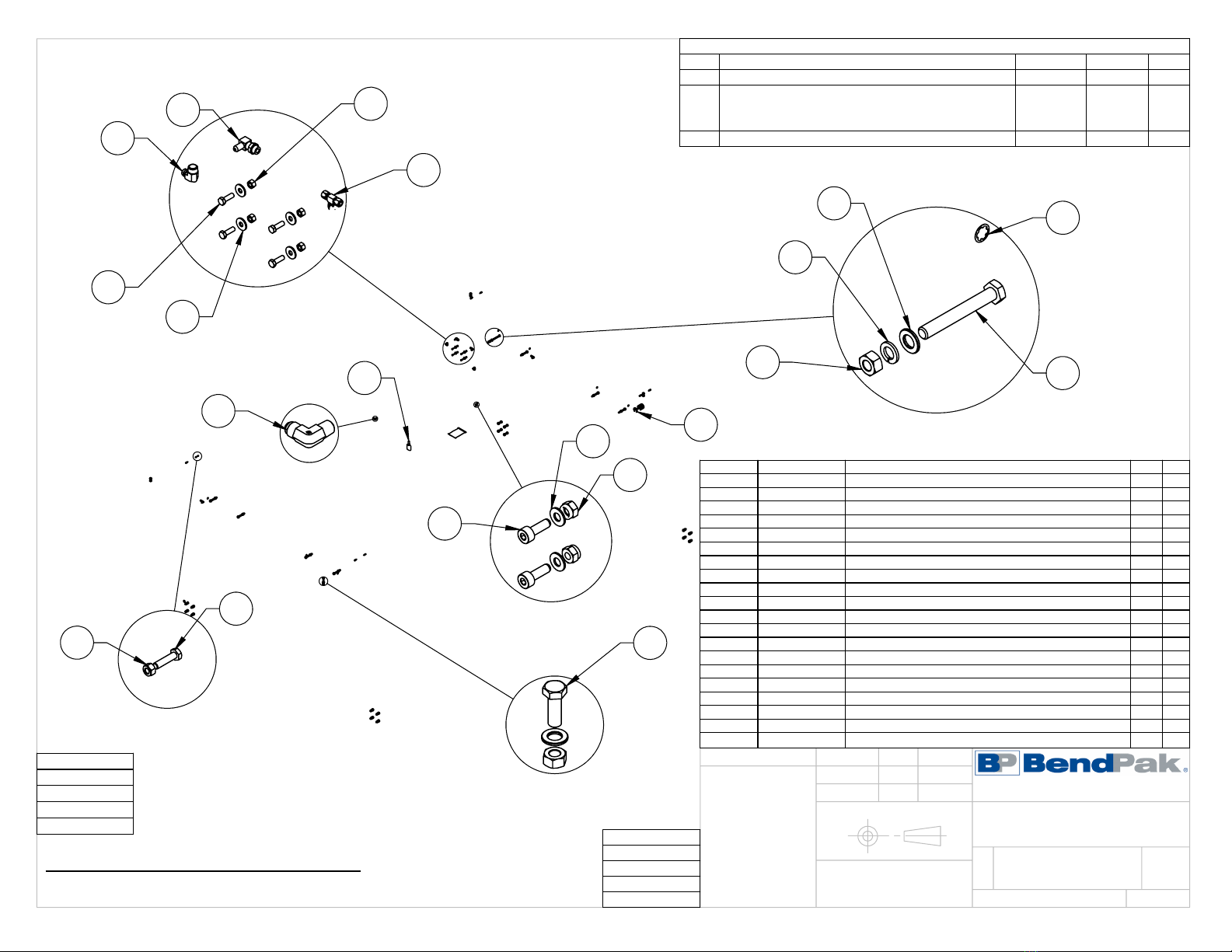

ITEM NO. PART NUMBER DESCRIPTION QTY. REV
1 5505031 ROTOR CLIP 12mm SS 8 -
2 5530756 HHB M6 x 1.0 x 25mm 8 -
3 5535357 NUT M6 x 1.0 NL 8 -
4 5535001 NUT M8 x 1.25 NL 4 -
5 5545340 WASHER M8 x24 FLAT 4 -
6 5530010 HHB M8 x 1.25 x 25mm ZPL 4 -
7 5530009 HHB M12 x 1.75 x 90 CL8.8 8 -
8 5545201 WASHER, M12 SPRING LOCK 8 -
9 5545347 WASHER, M12 FLAT WASHER 28 -
10 5535354 NUT, M12 x1.75 28 -
11 5550395 FTG TEE -04 COMP x -04 COMP x -04 COMP 3 -
12 5550089 FTG ELB -04 COMP x -06 NPT 2 -
13 5550106 FTG ELB -04JIC x 3/8” NPT 1 -
14 5550008 FTG ELB -04 JIC -06L ORB 1 -
15 5545009 WASHER, M4 x 9mm FLAT 2 -
16 5530008 SHCS M4 x 0.7 x 12 BOC 2 -
17 5535010 NUT M4 X 0.7 NL 2 -
18 5530076 HHB M12 x 1.75 x 35mm 20 -
19 5545535 C WASHER SHIM FOR LIFTS 19 -
20 5580012 LIQUID PTFE THREAD SEALANT 50ml 1 -
WHERE USED
HD-7PXN
HD-7PXW
HD-7PXWS
HD-7500PBX
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
H
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5174097
HD-7PX/7500 PARTS BAG
08/08/2009
DO NOT SCALE DRAWING
1:45
SCALE:
THIRD ANGLE PROJECTION
OR 7/26/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.

DIMENSIONS ARE IN MM
☺
1
4
3
7
5
2
6
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
E
E-001
REPLACED 5550481WITH 5550087, UPDATED
NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLY
10/29/2013
10/31/2013
TM
TM
00593
00630
F
F-001
F-002
REPLACED 5590240 WITH 5590175, UPDATED
BOM REVISION
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLES
05/05/2015
04/18/2018
08/21/2018
MR
CA
TM
00683
00941
00972
G UPDATED BOM REVISION 01/29/2020 CA 01120
NEXT ASSEMBLY
5250086
5250161
5250166
5250335
5250342
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5731004 HD-7/7500 FLEX TUBE BRACKET 1 C
2 5590175 PUSH BUTTON AIR VALVE 1 -
3 5545024 WASHER, M3 x 9mm FLAT 2 -
4 5530043 SHCS M3 x 0.5 x 30 2 -
5 5535020 NUT M3 x 0.5 NL 2 -
6 5550486 FTG NPL -02 NPT x -04 F NPT 1 -
7 5550087 FTG ELB -04 COMP x -02 NPT 1 -
WHERE USED
HD-7PX SERIES
HD-7500PBX
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
G
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5215155
HD-7/7500 FLEX TUBE
BRACKET ASSY
07/16/2008
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 4/20/2020
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
1
5
6
3
4
2
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5600300 HD-7/7500 PULL BOX WELDMENT 1 A
2 5215185 HD-7 SERIES TWIN SHEAVE ASSEMBLY 2 C
3 5600199 HD-7P/973 PULLBOX PIN WELDMENT 2 B
4 5716160 HD-7P PULL BOX SHEAVE WEAR RING 2 A
5 5716161 HD-7P SERIES PULLBOX POLYETHYLENE SLIDE BLOCK 2 E
6 5530400 FHPS M6 x 1.0 x 12 2 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
E
E-001
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLY
11/13/2017
04/18/2018
TM
CA
00909
00941
F UPDATED BOM REVISION 05/30/2018 TS 00951
G UPDATED BOM REVISION 07/14/2021 TM 01316
NEXT ASSEMBLY
5215170
5215171
WHERE USED
HD-7P
HD-7W
HD-7PXN
HD-7PXW
HD-7PBX
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
G
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5215186
HD-7 PULL BOX
ASSEMBLY
11/18/2008
DO NOT SCALE DRAWING
1:4
SCALE:
THIRD ANGLE PROJECTION
OR 07/20/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
1
3
2
4
5
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE

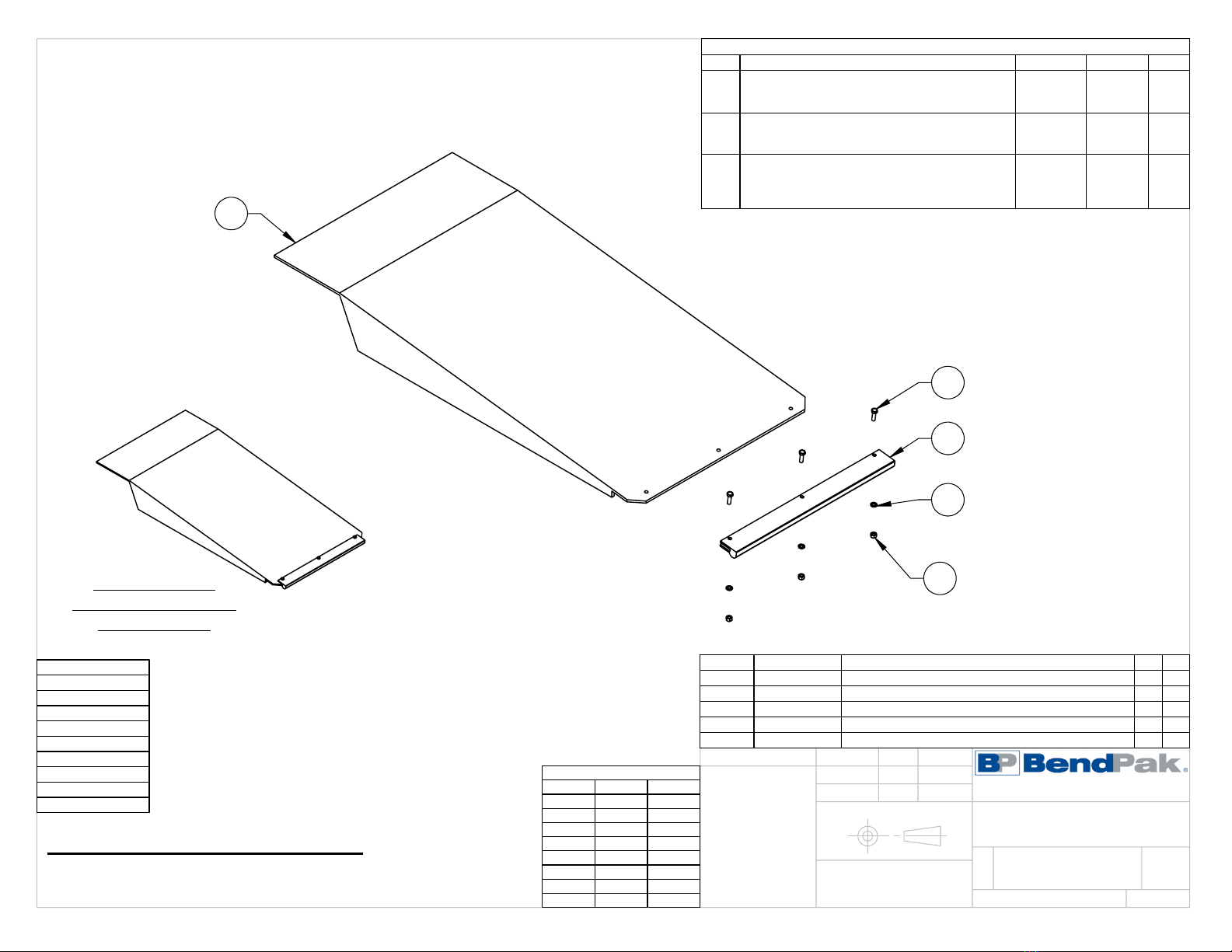

ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600891 HD-7/9/7500 DRIVE UP RAMP WELDMENT 1 E
2 5716054 APPROACH RAMP EDGE GUARD 1 A
3 5530093 HHB M6 x 1.0 x 20mm 3 --
4 5545005 WASHER, M6 x 12mm FLAT 3 --
5 5535357 NUT M6 x 1.0 NL 3 --
NEXT ASSEMBLY
5245059 5245384 5245243
5245068 5245385 5245244
5245144 5245386
5245163 5245388
5245166 5245391
5245380 5245392
5245381 5245393
5245382 5245395
5245383 5245396
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
E
E-001
E-006
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLY
08/22/2012
11/19/2012
04/19/2018
TM
TM
CA
00541
00562
00941
F
F-001
UPDATED BOM REVISION AND NEXT
ASSEMBLY
UPDATED NEXT ASESMBLY
06/01/2018
08/23/2018
CA
TM
00951
00972
G
REPLACED 5716149 AND 5530005 WITH
5716054, 5530093, AND 5545005, ADDED (1)
5535357, UPDATED BOM REVISION AND NEXT
ASSEMBLY
09/09/2019 TS 01120
WHERE USED
HD-7 SERIES
HD-9
HD-9ST
HD-9STX
HD-9XL
HD-9XW
HD-973 SERIES
HD-7500 SERIES
PL-12000DP
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
G
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5215193
HD-7/9/7500BL DRIVE UP
RAMP ASSEMBLY
11/13/2008
DO NOT SCALE DRAWING
1:8
SCALE:
THIRD ANGLE PROJECTION
OR 04/20/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
1
3
2
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5250081 5250336
5250086 5250337
5250161 5250341
5250166 5250342
5250278 5250361
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5570055
AND 5570200
05/06/2022 TM
01414
PRE A

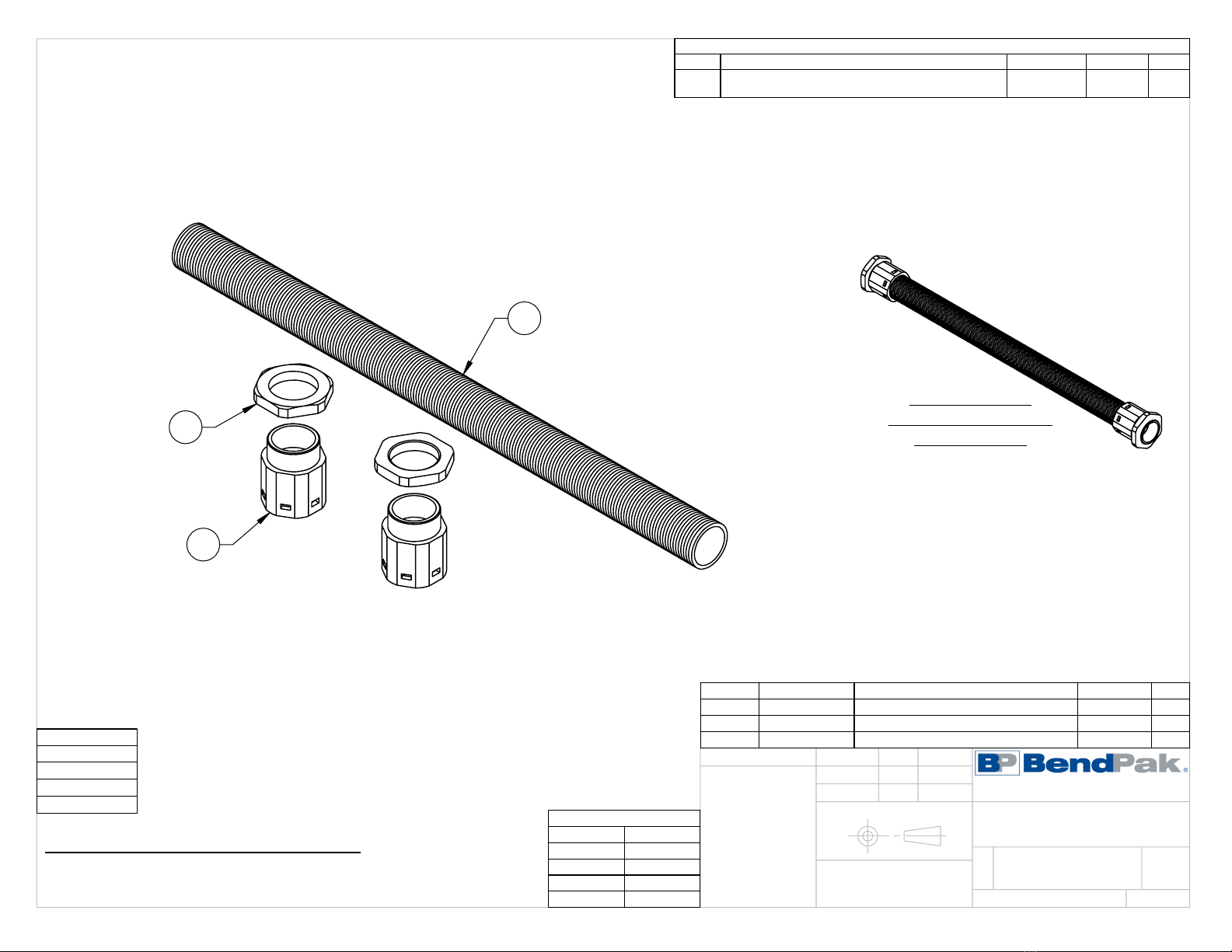

ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570053 PE FLEX TUBE Ø34.5xØ29 3100mm* --
2 5555555 WQG1-M36/AD34.5 CONNECTOR 2 --
3 5535050 PLASTIC NUT M36 x 2 2 --
WHERE USED
HD-7500PBX
HD-7MZ SERIES
HD-7PX SERIES
HD-973 SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216141
FLEX TUBE KIT,
UP TO 3000mm
05/06/2022
DO NOT SCALE DRAWING
1:3
SCALE:
THIRD ANGLE PROJECTION
OR 05/09/2022
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
SHOWN IN REPRESENTATIONAL FORM ONLY 2.
(*)LENGTH FOR REFERENCE ONLY

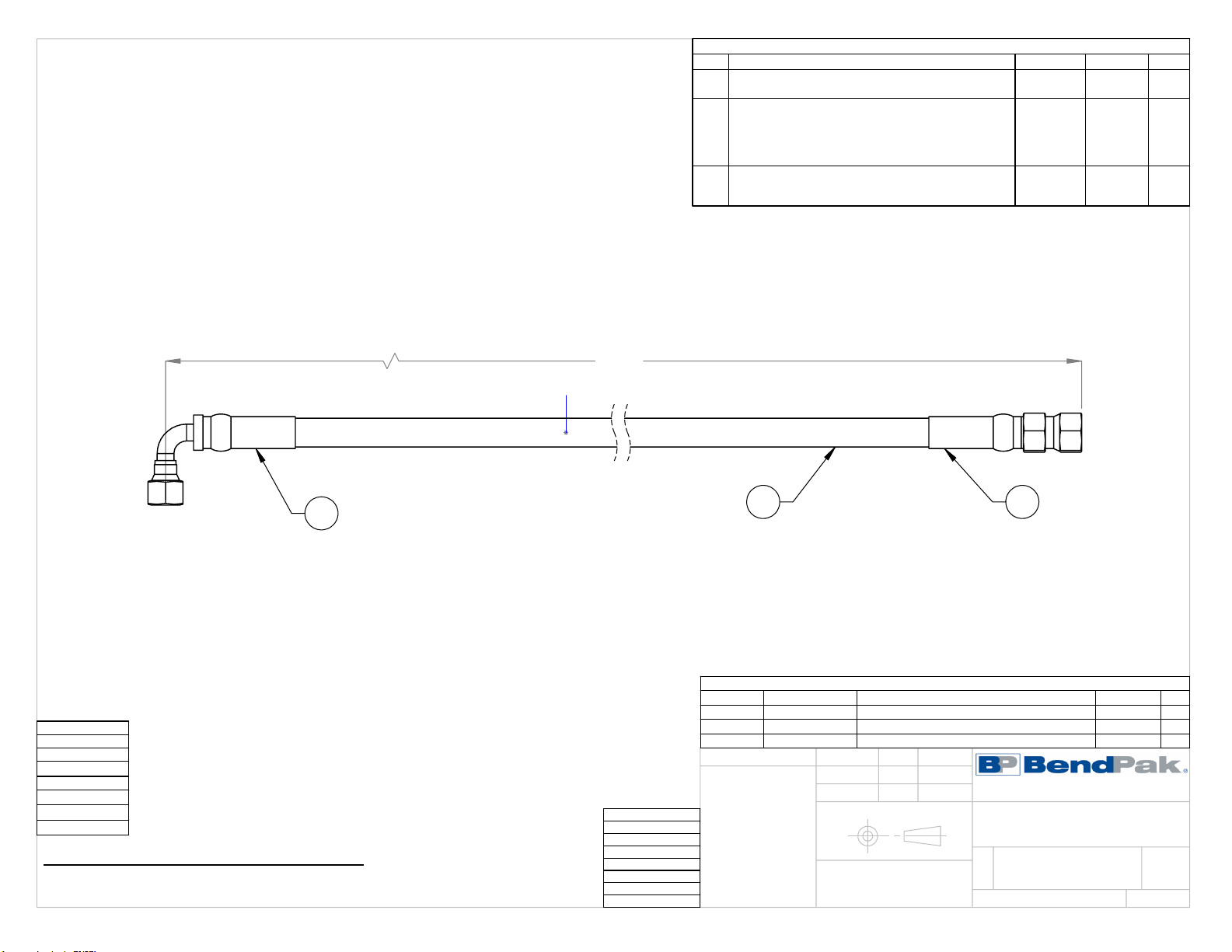

PART SPECIFICATION FORM
ACP
BENDPAK Number:
5570129
MRP Description:
¼” HYDRAULIC HOSE 31 CL-0400X
Date:
05/24/2018
ECO :
00950
1. Engineering Specification
Application:
¼” HYDRAULIC HOSE
Detailed Description:
ONE or TWO BRAID STEEL WIRE HYDRAULIC HOSE
SIZE: 1/4” / 6mm I.D. MIN
0.53” / 13.4mm O.D. MAX
SPECS: 5700PSI OR 393 BAR WORKING PRESSURE MINIMUM
17100PSI OR 1179 BAR MINIMUM BURST PRESSURE MINIMUM
3” / 80mm MIN BEND RADIUS
COLOR: BLACK
ADDITIONAL CONTACT INFORMATION:
Xin Yurong
Shandong Ningjin High Energy Hose Co., Ltd.
Tel: [phone]
No. 7, Taishan Rd., Industrial Park, Ningjin County, Shandong, China
Approved Vendor
Vendor Part #
Contact #
AUTHORIZED
COMPONENT PROVIDER
1) Ningjin Hydraulic Hose
Co.
5570129
[phone]
X
2)
OR BENDPAK ENGINEERING APPROVED EQUIVALENT
2. Vendor Information (Or for Reference)

4090
1
32
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
D
TITLE NOW REFLECTS HD-7PXW SERIES
UPDATED NEXT ASSEMBLY
02/24/2010 AC 00333
E
E-001
E-002
E-003
UPDATED TITLE TO REFLECT WHERE USED AND
NEXT ASSEMBLY
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLY
08/20/2012
11/29/2012
05/20/2013
10/17/2013
TM
TM
TM
TM
00541
00562
00593
00630
F
F-001
F-002
REPLACED 5570110 WITH 5570129
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLY
12/30/2014
04/19/2018
08/21/2018
MR
CA
TM
00675
00941
00972
BOM Table
ITEM NO. PART NUMBER DESCRIPTION QTY. REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 4610mm* A
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 1 -
3 5550345 FTG ELB Ø1/4 CRIMP x -04 JIC 1 -
NEXT ASSEMBLY
5250086
5250161
5250166
5250335
5250341
5250342
5250361
WHERE USED
HD-7500PBX
HD-7MZ
HD-7MZS
HD-7PXN
HD-7PXW
HD-7PXWS
HD-7PSXW
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
GJZ
5570876
HD-7PX SERIES HYDRAULIC HOSE
ASSEMBLY Ø6.4 x 4090mm
03/10/2008
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
CA 9/11/2018
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.

18.0
44.0
19.5
7301
7257
3
125
4
ITEM NO. PART NUMBER DESCRIPTION QTY REV
1 5595011 CABLE, LIFTING Ø10mm 7207mm* -
2 5746022 Ø10 THREADED CABLE CONNECTOR 1 D
3 5746021 Ø10 CABLE END CONNECTOR 1 E
4 5535358 NUT, M18 x 2.5 NL 1 -
5 5545342 WASHER M18 FLAT 1 -
NEXT ASSEMBLY
5250081
5250166
5250336
5250341
5250342
5250361
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
D
D-001
D-002
UPDATED TITLE TO REFLECT WHERE USED
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLIES
08/21/2012
11/21/2012
05/20/2013
TM
TM
TM
00541
00562
00593
E
E-001
E-002
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLY
12/21/2017
04/19/2018
08/21/2018
TM
CA
TM
00909
00941
00972
F ADDED 5535358 AND 5545342 07/10/2020 TM 01174
WHERE USED
HD-7PXW
HD-7PXWS
HD-7MZ
HD-7MZS
HD-973P
HD-973P-G
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
AC
5595053
CABLE ASSEMBLY
Ø10 x 7301mm ST
12/15/2008
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 08/28/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED .
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
LENGTH SHOWN IS AFTER SWAGING 2.
ITEM 1 QTY FOR REFERENCE ONLY 3.
THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT 4.

18.0
19.5
44.0
12072
12028
3
1 2 5
4
ITEM NO. PART NUMBER DESCRIPTION QTY REV
1 5595011 CABLE, LIFTING Ø10mm 11978mm* -
2 5746022 Ø10 THREADED CABLE CONNECTOR 1 D
3 5746021 Ø10 CABLE END CONNECTOR 1 E
4 5535358 NUT, M18 x 2.5 NL 1 A
5 5545342 WASHER M18 FLAT 1 A
NEXT ASSEMBLY
5250081
5250166
5250336
5250341
5250342
5250361
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
D
D-001
D-002
UPDATED TITLE TO REFLECT WHERE USED
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLIES
08/21/2012
11/21/2012
05/20/2013
TM
TM
TM
00541
00562
00593
E
E-001
E-002
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLY
12/21/2017
04/19/2018
08/21/2018
TM
CA
TM
00909
00941
00972
F ADDED 5535358 AND 5545342 07/10/2020 TM 01174
WHERE USED
HD-7PXW
HD-7PXWS
HD-7MZ
HD-7MZS
HD-973P
HD-973P-G
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
AC
5595055
CABLE ASSEMBLY
Ø10 x 12072mm ST
12/15/2008
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 08/28/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED .
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
LENGTH SHOWN IS AFTER SWAGING 2.
ITEM 1 QTY FOR REFERENCE ONLY 3.
THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT 4.

18.0
19.5
44.0
5704
5660
3
12 5
4
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5595011 CABLE, LIFTING Ø10mm 5610mm* -
2 5746022 Ø10 THREADED CABLE CONNECTOR 1 D
3 5746021 Ø10 CABLE END CONNECTOR 1 E
4 5535358 NUT, M18 x 2.5 NL 1 -
5 5545342 WASHER M18 FLAT 1 -
NEXT ASSEMBLY
5250081
5250166
5250335
5250336
5250341
5250342
5250361
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A
A-001
A-002
A-003
PRODUCTION RELEASE, DERIVED FROM 5595052
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLY
11/21/2012
05/20/2013
10/17/2013
09/16/2014
TM
TM
TM
TM
00562
00593
00630
00664
B
B-001
B-002
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLY
12/21/2017
04/19/2018
08/21/2018
TM
CA
TM
00909
00941
00972
C ADDED 5535358 AND 5545342 07/10/2020 TM 01174
WHERE USED
HD-7PXW
HD-7PXWS
HD-7PSXW
HD-7MZ
HD-7MZS
HD-973P
HD-973P-G
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5595467
CABLE ASSEMBLY
Ø10 x 5704mm ST
11/21/2012
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 08/28/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED .
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
LENGTH SHOWN IS AFTER SWAGING 2.
ITEM 1 QTY FOR REFERENCE ONLY 3.
THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT 4.

18.0
19.5
44.0
10484
10440
3
1 2
5
4
ITEM NO. PART NUMBER DESCRIPTION QTY REV
1 5595011 CABLE, LIFTING Ø10mm 10398mm* -
2 5746022 Ø10 THREADED CABLE CONNECTOR 1 D
3 5746021 Ø10 CABLE END CONNECTOR 1 E
4 5535358 NUT, M18 x 2.5 NL 1 -
5 5545342 WASHER M18 FLAT 1 -
NEXT ASSEMBLY
5250081
5250166
5250335
5250336
5250341
5250342
5250361
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A
A-001
A-002
A-003
PRODUCTION RELEASE, DERIVED FROM 5595054
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLY
11/21/2012
05/20/2013
10/17/2013
09/16/2014
TM
TM
TM
TM
00562
00593
00630
00664
B
B-001
B-002
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLY
12/21/2017
04/19/2018
08/21/2018
TM
CA
TM
00909
00941
00972
C ADDED 5535358 AND 5545342 07/13/2020 TM 10174
WHERE USED
HD-7MZ
HD-7MZS
HD-7PXW
HD-7PXWS
HD-7PSXW
HD-973P
HD-973P-G
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5595469
CABLE ASSEMBLY
Ø10 x 10484mm ST
11/21/2012
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 08/28/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED .
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
LENGTH SHOWN IS AFTER SWAGING 2.
ITEM 1 QTY FOR REFERENCE ONLY 3.
THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT 4.
