Beretta IDRA N DS 1500 User manual

SOLAR
STORAGE
CYLINDER
IDRA N DS
SOLAR
INSTALLATION MANUAL
Code 1001_EN rev. 0 05/13

2
Dear Installer
Thank you for choosing a Beretta IDRA N DS solar storage cylinder, a modern high quality product, providing you with the utmost
wellbeing and with a high level of reliability and safety. And this is particularly the case if the storage cylinder is entrusted to a Beretta
TechnicalAssistance Centre which is specifically prepared and trained to carry out routine maintenance, to keep it running at maximum
efficiency, with low running costs and which has original spare parts if required.
This instruction booklet contains important information and suggestions that should be observed for easy installation and better use of
the solar storage cylinder Beretta IDRA N DS.
Thank you once again.
Beretta
MODEL CODE
IDRA N DS 1500 20052790
IDRA N DS 2000 20052791
Range
In some parts of the booklet, some symbols are used:
b WARNING = for actions that require particular caution and adequate preparation
aFORBIDDEN = for actions that absolutely SHOULD NOT be carried out
Contents
GENERAL
General warnings page 3
Basic safety rules “ 3
Description of the appliance “ 4
Identification “ 4
Structure “ 5
Water circuit “ 5
Technical data “ 6
INSTALLER
Receiving the product page 8
Handling “ 8
Assembly of the insulation " 9
Installation room of the storage cylinder “ 9
Installation on appliances that are old or that
need to be updated
“ 9
Hydraulic connections “ 10
TECHNICAL ASSISTANCE CENTRE
First commissioning preparation page 12
First commissioning “ 12
Checks during and after the first
commissioning “ 12
Deactivation for long periods “ 13
Maintenance “ 13
Cleaning of the storage cylinder and dismantling
of the internal components “ 14

3
b After removing the packaging make sure that everything is
there and undamaged, if not contact the Agency that sold
you the appliance.
b The installation of the solar storage cylinder IDRA N DS
should be carried out by a company certified pursuant to
Law no. 46 of March 5, 1990, which when the work is fin-
ished will issue the owner with a declaration of conformity
that the installation is up to standard, i.e. in compliance with
regulations in force and with the recommendations provid-
ed by the instruction booklet.
b The solar storage cylinder IDRA N DS must only be used
for the purpose for which it was specifically designed.
THE manufacturer accepts no liability within or without the
contract for any damage caused to people, animals and
property due to installation, adjustment and maintenance
errors or to improper use.
b If necessary, use a pressure reducer for the water input.
b Use a safety valve calibrated in the manner shown on the
technical data label on the storage cylinder.
b Use an expansion tank of a suitable size for the dimensions
of the storage cylinder (it is recommended that this calcula-
tion be done by a heating engineer).
b Before start-up it would be good to check the tightness of
the flange screws.
b Maintenance of the storage cylinder should be carried out
at least once a year.
b In the event of a water leak, disconnect the storage cylinder
from the main power supply, shut off the water supply and
promptly notify the Technical Assistance Centre or else pro-
fessionally qualified personnel.
b Maintenance of the storage cylinder should be carried out
at least once a year.
b Not using the solar storage cylinder for a long period of
time requires that at least the following operations be car-
ried out:
- Empty the solar heating circuit
- Close the shut-off devices of the sanitary system
- Switch off the boiler in the manner described in the appli-
ance's instruction booklet
- Position the system's master switch to off.
b Mix the anti-freeze (propylene glycol), available separately,
with water in a variable percentage (30÷50%) following the
instructions in the operating and maintenance lrmanual.
b Always fill the solar system with the water/glycol mixture in
the percentage reported in the operating and maintenance
manual.
b This booklet is an integral part of the appliance and so
should be carefully preserved and should ALWAYS accom-
pany the storage cylinder even when it is sold to another
owner or user or when transferred to another system. In
case of loss or damage, please contact your local Technical
Assistance Service for a new copy.
a Children and non-assisted disabled people are not allowed
to use the storage cylinder.
a It is forbidden to touch the storage cylinder while barefoot or
if parts of your body are wet.
a Any cleaning operation is forbidden before disconnecting
the storage cylinder from the main power supply by turning
off the system's main switch as well as the main switch of
the control panel.
a Do not modify adjustment devices without the manufac-
turer's permission and relative instructions.
a It is forbidden to pull, disconnect or twist the electric cables
coming out of the storage cylinder even if it is disconnected
from the main power supply.
a It is forbidden to expose the storage cylinder to the elements
because it is not designed to function outdoors.
a It is forbidden to dispose of the packaging material and keep
within children's reach, as it may be a potential source of
danger.
a It is forbidden, in the event of a drop in pressure of the solar
system, to top up only with water as there is a risk of freez-
ing.
a It is forbidden to use connection and safety devices that
have not been tested or that are not suitable for use in solar
equipment (expansion tanks, piping, insulation) .
Please remember that the use of products using electric power and water involves respect for a few basic safety rules such as:
General Instructions
Basic safety rules

4
The solar storage cylinders IDRA N DS,with a double coil and
a capacity of 1500 and 2000 litres, can be integrated into solar
systems for producing domestic hot water with collectors.
The main technical elements of the design of the solar storage
cylinder are:
- the careful study of the geometries of the tank and the coils that
allow you to obtain the best performance in terms of stratifica-
tion, heat exchange and reactivation times
- the internal vitrification, bacteriologically inert, to ensure maxi-
mum hygiene of the water processed, to reduce the possibility
of limestone deposit and make cleaning easier
- the regulation of the connections to various heights for employ-
ing various types of heat generators, without influencing the
stratification
- the polyurethane insulation without any CFC and the elegant
outer covering to limit dispersion and to improve efficiency
the use of the flange to facilitate cleaning and maintenance,
and the magnesium anode with an "anti-corrosion" function
The IDRA N DS storage cylinders can be equipped with a spe-
cific solar regulator and they can easily be inserted into solar
equipment where the boilers or thermal systems act as auxiliary
producers of heat.
The IDRA N DS solar storage cylinders can be identified by:
b Tampering, removal, lack of identification labels or anything else which does not
permit the safe identification of the product, makes any installation and mainte-
nance operation difficult.
– Technical Label
Lists the technical and performance data of the storage cylinder.
– Product Label
Lists the name of the product.
Beretta Caldaie
Via Risorgimento, 13
23900 Lecco (LC)
BALLON SOLAIRE
Modele Fabrication
Code Année
Maximum puissance absorbée inf. [T° Primaire 80°C]
Pression service max.
Alimentat. élect.
bar
V-Hz
Capacité ballon l
067659IF
Collegamento di terra obbligatorio - Raccordement a la terre obligatoire
W
Puissance élect. absorbée
kW
Débit specifique inf. [∆T 35°C] l/1'
Puissance absorbée serpentin sup.[T° Primaire 80°C] kW
Débit specifique sup. [∆T 35°C] l/1'
BOLLITORE SOLARE
Modello Matricola
Codice Anno
Massima potenza assorbita sup.[T° Primario 80°C]
Portata specifica sup.[∆T 35°C]
Massima potenza assorbita inf. [T° Primario 80°C]
Portata specifica inf. [∆T 35°C]
Press. esercizio max.
Capacità del bollitore
Potenza elettric assorbita
Alimentazione elettrica
– Serial Number
Lists the serial number, the model,
the power consumption and the capacity.
Beretta Caldaie
Via Risorgimento, 13
23900 Lecco (LC)
Fabrication
Modele kW
kW
Puiss.abs.sup.maxi
Pot.ass.sup.max.
Modello
Puiss.abs.inf.maxi
Pot.ass.inf.max.
Description of the appliance
Identification

5

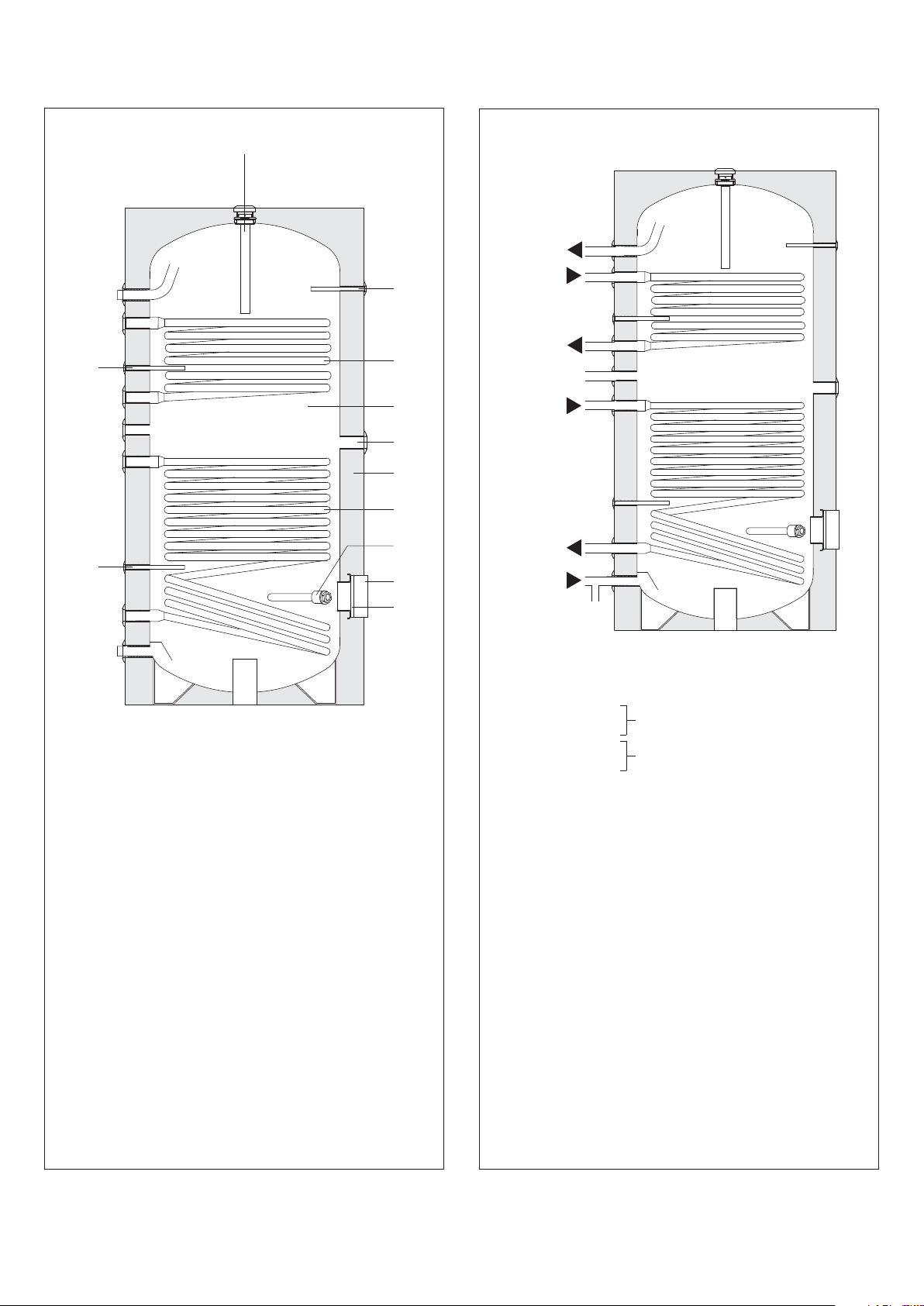

Structure
1
3
4
2
6
5
7
9
8
10
11
12
1 - First magnesium anode
2 - Probe socket
3 - Auxiliary socket
4 - Solar regulator probe socket
5 - Flange for tank inspection
6 - Flange cover
7 - Lower coil
8 - Polyurethane insulation
9 - Upper coil
10 - Tank
11 - Second magnesium anode
12 - Electric heater socket
(not provided)
EAF
UAC
MC
RC
RL
M
R
SB
UAC - DHW outlet
MC - Flow
RC - Return
M - Flow
R - Return
RL - DHW recirculation
EAF - Domestic cold water inlet
SB - Cylinder drain
BOILER
SOLAR
Water circuit
b The solar storage cylinder IDRA N DS 1500-2000 is
not equipped with load circulators which should be
appropriately sized and installed on the system. For
the recommended flow rate of the solar heating cir-
cuit, see the instructions for assembling the solar col-
lector and the BERETTA operation and maintenance
manual of the solar system.

6
Technical data
(*) According to DIN 4708, to get domestic hot water with ΔT 20°C (80°/60°C) on the heat-exchanger, please observe the values showed in the data-
sheet concerning absorbed power and necessary capacity heat-exchanger
(**) With room temperature 20 °C and tank medium temperature 60 °C.
DESCRIPTION IDRA N DS 1500 IDRA N DS 2000
Cylinder type Vitrified
Cylinder layout Vertical
Heat exchangers layout Vertical
Cylinder capacity 1449 2054 l
Cylinder diameter with insulation 1200 1300 mm
Cylinder diameter without insulation 1000 1100 mm
Height with insulation 2185 2470 mm
Insulation thickness 100 mm
First magnesium anode (Ø x length) 32 x 700 mm
Second magnesium anode (Ø x length) 32 x 400 mm
Flange diameter 290/220 mm
Probe socket diameter 8 8 mm
Electric resistor socket (not supplied) 1"1/2 1"1/2 Ø
Lower coil water content 19.4 28.1 l
Upper coil water content 10.4 16.9 l
Lower coil heat exchange surface 3.4 4.6 m2
Upper coil heat exchange surface 1.8 2.8 m2
Lower coil absorbed power (*) 88 120 kW
Upper coil absorbed power (*) 47 73 kW
DHW (*) - bottom coil 2200 2900 l/h
DHW (*) - top coil 1200 1800 l/h
Necessary capacity heat exchanger – lower coil (*) 3,8 5,2 m3/h
Necessary capacity heat exchanger – upper coil (*) 2,0 3,1 m3/h
Storage cylinder maximum operating pressure 8 8 bar
Coils maximum operating pressure 6 6 bar
Maximum operating temperature 99 99 °C
Heat loss (**) 3.93 4.77 kWh/24h
Net weight with insulation 330 544 kg

7
Pressure drop TOP COIL
Pressure drop BOTTOM COIL
PERDITA DI CARICO (mbar)
PORTATA (l/h)
500
550
600
450
400
350
300
250
200
150
100
50
0
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000
Mod. 1500
Mod. 2000
PERDITA DI CARICO (mbar)
PORTATA (l/h)
600
650
700
550
500
450
400
350
300
250
200
150
100
50
0
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000
800
850
900
950
750
Mod. 1500
Mod. 2000
FLOW RATE (l/h)
FLOW RATE (l/h)
PRESSURE DROP (mbar)
PRESSURE DROP (mbar)

8
Receiving the product
The solar storage cylinders IDRA N DS are supplied in a single
package, protected by a nylon bag and put on wood pallets.
Model IDRA N DS 1500 is provided with a foam rubber shock
absorbent protective band.
Model 1500 Models 2000
Model IDRA N DS 2000 is supplied in two separate packages:
- the first package is composed of the painted tank, protected by
a nylon bag and put on wooden pallets.
- the second package, also protected by a nylon bag, is com-
posed of the polyurethane insulation with an elegant outer
covering, the outer trim rings of the pipe coupling, the top cover,
the flange covers, the identification labels and the documenta-
tion.
The following material is supplied in a plastic envelope inside the
package:
- Instruction booklet
- Label with bar code
- Hydraulic test certificate
Once the packaging is removed, the handling of the storage cyl-
inder is carried out manually with equipment that is suitable for
the weight of the appliance.
To separate the IDRA N DS 1500 storage cylinder from the pal-
let cut the band (1) located under the insulation near the hinges.
To lift the IDRA N DS 2000 storage cylinders, after removing the
insulation, bind the high part of the storage cylinder with a cord
that can bear the weight and carefully lift it.
b Use suitable accident-prevention protections.
a It is forbidden to dispose of the packaging material and keep
it within children's reach, as it may be a potential source of
danger.
1
1
Model 1500
Models 2000
Handling
Supplied with the product is the AD2 magnesium anode to be
installed.
b The instruction booklet is an integral part of the storage cyl-
inder and it is recommended that it be read and kept safe.
Installation of the AD2 magnesium anode
- Partially remove the cover (1) and, with a wrench, unscrew the
anode-carrying plug (2)
- Insert the correct anode, tighten with a wrench and then screw
in again the anode-carrying plug (2).
NOTE: the tightening torque of the anode-carrying plug should be
25-30 Nxm.
1
2

9
Assembly of the insulation (IDRA N DS 2000)
Once the tank is positioned in its place in the installation room,
the insulation and the elements completing the solar storage
cylinder can be assembled.
To do this:
- Remove all the material supplied in the second package.
- Assemble the two magnesium anodes on the connections (1)
and (2),.
- Wind the insulation around the tank (3) following the direction
of the holes already present on the inside of the insulation and
secure it with the special zippers (4) located at the ends.
- Pierce the insulation near the holes for the attachments and
attach the outer trim rings (5)
- Attach the flange cover (6).
- Lastly apply the upper part (7) of the insulation and in turn
place the cover (8) on it
3
3
4
4
4
1
2
5
7
8
6
b Having completed the assembly, attach the serial number,
the technical data label and the product label which enable
a secure identification of the storage unit (see positions on
page 6).
The IDRA N DS solar storage cylinders can be installed in all rooms where a level of electrical protection of the appliance above IP
X0D is not required.
bThe room where it is installed should be dry, to prevent rust forming.
b In order to make the installation, assembly, inspection and ordinary and extraordinary maintenance operations easy, the minimum
distances must be maintained and the installation room of the storage cylinder must be easily accessible. In particular, access to
the room must allow, among other things, the possible total removal and re-installation at the end of the storage cylinder's useful
life. The user is, therefore, responsible for any costs for removal of masonry work or anything else making it impossible or hard to
access the installation room of the storage cylinder.
Place of installation
When the IDRA DS solar storage cylinders are installed on appli-
ances that are old or that need to be updated, make sure that:
- The installation comes with the safety and control components
in compliance with the specific regulations
- The appliance has been washed, cleaned of mud and grime,
de-aerated and the water seals have been checked
- There is a treatment system for when the supply/make-up
water is particular (the values in the table can be used as refer-
ence values).
REFERENCE VALUES
pH 6-8
Electric conductivity less than 200 mV/cm (25°C)
Chlorine ions less than 50 ppm
Sulphuric acid ions less than 50 ppm
Total iron less than 0.3 ppm
M alkalinity less than 50 ppm
Total hardness less than 35°F
Sulphur ions none
Ammonia ions none
Silicon ions less than 30 ppm
Installation on old appliances or appliances that need to be updated

10
10
Hydraulic connections
The IDRA N DS solar storage cylinders
can be connected to heat generators, even
those already installed, provided they have
adequate heat output and comply with the
direction of the water flow. Moreover, they
can be easily integrated into BERETTA solar
equipment which include solar collectors,
the fastening system, the hydraulic unit, the
expansion tank and the thermostatic mixer
valve.
Installation on appliances that are old or that
need to be updated
The IDRA N DS storage
cylinders include probe holder wells to insert pos-
sible probes.
We recommend isolating valves in the outlet and return lines.
DESCRIPTION MODEL IDRA N DS
1500 2000
UAC - DHW outlet 1”1/2 F 1”1/2 F Ø
MC - Boiler flow 1”1/4 F 1”1/4 F Ø
RC - Boiler return 1”1/4 F 1”1/4 F Ø
M - Solar flow 1”1/4 F 1”1/4 F Ø
R - Solar return 1”1/4 F 1”1/4 F Ø
RL - DHW recirculation 1” F 1” F Ø
EAF (SB) - Domestic cold water inlet (cylinder drain) 1”1/2 F 1”1/2 F Ø
Psc - Diameter/length boiler probe socket 1/2" F 1/2" F Ø/mm
Psr - Diameter/length solar regulator probe socket 1/2" F 1/2" F Ø/mm
RE - Electric resistor socket (not supplied) 1”1/2 F 1”1/2 F Ø
AD1 - Diameter/length magnesium anode 32 x 700 Ø/mm
AD2 - Diameter/length magnesium anode 32 x 400 Ø/mm
TR - Thermometer 1/2" F 1/2" F Ø
A 1230 1340 mm
B 1820 2000 mm
C 280 260 mm
D 415 400 mm
E 525 660 mm
F 1125 1205 mm
G 1220 1315 mm
H 1315 1425 mm
I 1410 1487 mm
L 1720 1870 mm
M 1870 1990 mm
N 2185 2405 mm
O 1200 1300 mm
Net weight with insulation 330 544 kg
EAF
R
UAC
RC
RL
M
MC
SB
E
F
G
H
L
M
C
D
B
A
AD1
AD2
TR
Psc
Psr
E
I
N
O
The characteristics of the hydraulic connections are as follows:

11
11
3
2
R
M
°C
M
4
4
4
9
8
11
10
13
14
6
5
12
Gruppo idraulico
15
16
7
UAC
EAF
PRIMARIO
MC
RC
RL
SB
11
4
4
11
12
5
10
4
4
44
8
17
18
19
Uscita
4
4
11
10
Ingresso
4
4
12
5
Schematic diagram
b When using unsoftened water, it is recommended that the
maximum temperature of the storage cylinder be set at
60°C, since at higher temperature limestone will deposit
with the resulting deterioration of the heat exchange.
b Before commissioning the solar equipment, the boiler
must be filled with water.
b If a solar storage unit is being used with network pressure
greater than 4 bar, plan to use a pressure reducer.
b Be careful not to get burned when opening the vent valves
of the solar equipment.
b The expansion tank must resist high temperatures and
the membrane must not come into contact with the water-
glycol mixture.
b IT IS OBLIGATORY that the sanitary system include the
expansion tank, the safety valve, the automatic vent valve
and the storage cylinder discharge tap.
b The safety valve outlet must be connected to a suitable
collection and venting system. The manufacturer of the
storage cylinder waives all liability for any flooding caused
by the intervention of the safety valve.
b To limit the temperature of the domestic hot water use a
thermostatic mixer valve.
b If there is a drop of pressure in the solar equipment DO
NOT fill with water but with water-glycol mixture: risk of
freezing.
b All the piping installed including the collectors, the
exchangers and the hydraulic devices, must undergo seal
tests.
b The selection and the installation of the components of
the system is referred to the expertise of the installer, who
must operate according to the rules of good technique and
current Legislation.
1 - Solar collector
2 - Storage cylinder
3 - Collector probe
4 - Isolating valves
5 - Non-return valve
6 - Thermometer
7 - Drain valve
8 - Safety valve
9 - Pressure gauge
10- Discharge
11- Expansion tank
12 -Circulator pump
13 -Flow regulator
14 -Flow meter
15- Drain tap
16- Manual bleed valve (accessory)
17- Softener filter
18 -Pressure reducer
19 - Mixer valve
UAC - DHW outlet
MC - Boiler outlet
RC - Boiler return
M - Flow collector
R - Return collector
RL - DHW recirculation
EAF - Domestic cold water inlet
SB - Storage cylinder discharge

12
12
Before the start-up and before testing the
the storage cylinder, it is absolutely necessary to check that:
- The water supply taps of the domestic water circuit are open
- The water connections to the respective boiler and to the water
unit of the solar equipment have been carried out correctly
- The procedure for washing and filling up of the solar heating
circuit with the water-glycol has been carried out correctly, and
the equipment has been de-aerated at the same time.
The transfer of heat into the solar heating circuit takes place
when the temperature of the solar collector is higher than that of
the storage cylinder. Therefore in managing the solar equipment
the exact temperature is not important, but rather the tempera-
ture difference.
- Set the temperature difference between the collector and the
storage cylinder (see the instruction manual of the regulator).
- Commission the boiler for the auxiliary heating of the storage
cylinder.
prog
A1
prog
First commissioning preparation
First commissioning
Checks during and after the first commissioning
Basic solar control box (accessory)
At the start-up make sure that:
- The flow rate of the solar heating circuit is 30 l/h per m2 of col-
lector surface
- The solar heating circuit is completely vented
- The cold pressure of the equipment is about 3 bar
- The safety valves intervenes at 6 bar
- The piping of the hydraulic supply are insulated in full respect
of current regulations.
If all conditions have been met, restart the boiler and storage
cylinder and check the regulated temperature and the amount of
DHW that can be taken.
1
2
3
4
5
06

13
13
Periodic maintenance, which is essential for safety purposes, the efficiency and the life of the solar storage cylinder, provides reduced
consumption and keeps the product reliable over time. Remember that the maintenance of the storage cylinder, can be carried out by
the Technical Assistance Centre or else by qualified professional personnel and should take place at least once a year.

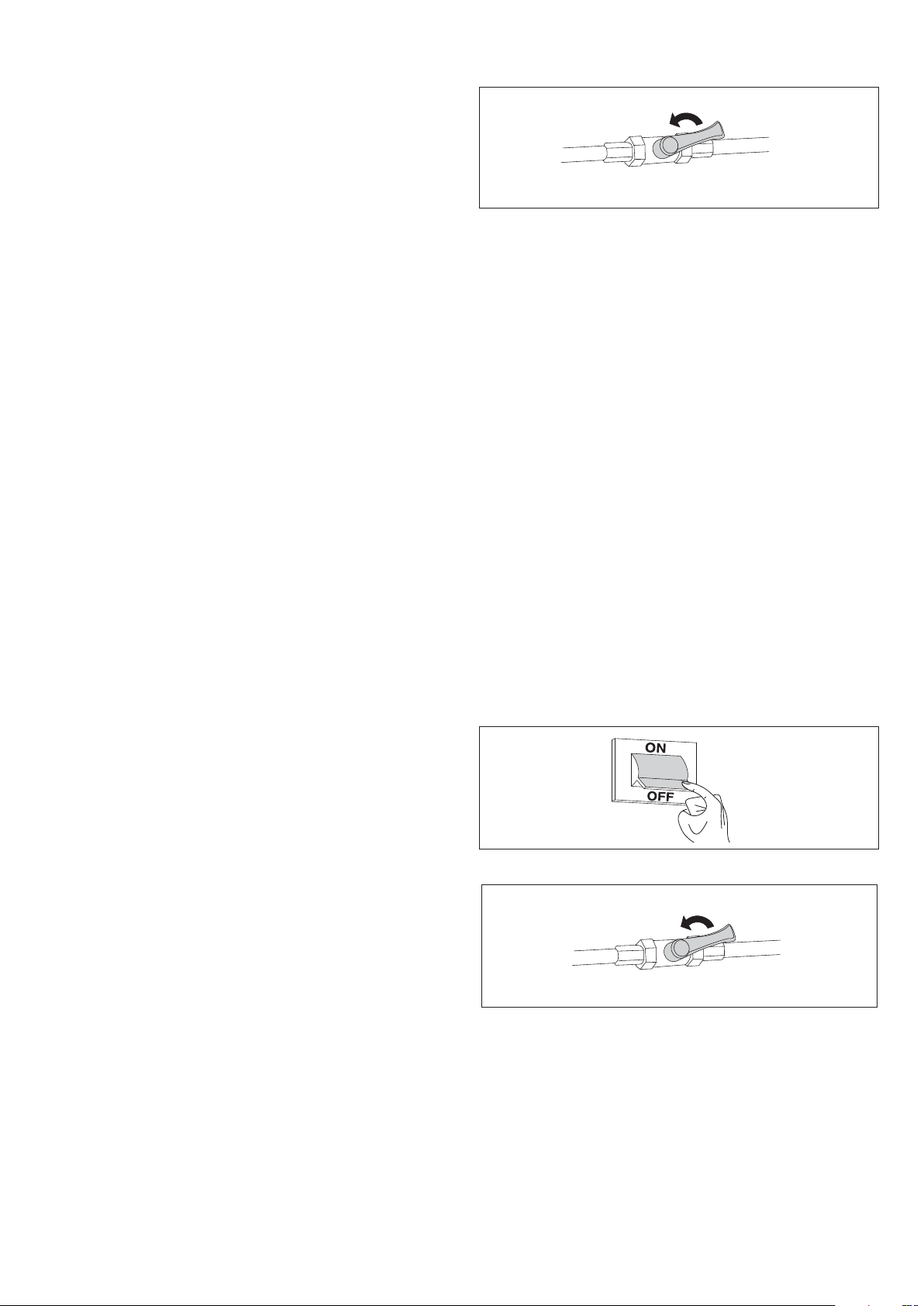

Before doing any maintenance work:
- Disconnect the storage cylinder's hydraulic unit and the
respective generator from the electrical supply, positioning the
main switch and that of the control panel to "off"
- Close the intercept devices of the sanitary system
- Empty the storage cylinder's secondary circuit.
Not using the solar storage cylinder for a long period of time
requires that the following operations be carried out:
- Empty the solar heating circuit
-
Close the intercept devices of the sanitary system
- Switch off the boiler in the manner described in the appliance's
instruction booklet
- Position the system's master switch to off.
b Drain the heating and domestic hot water systems if
there is any risk of freezing.
The Technical Assistance Centre is available if the procedure
reported above is difficult to do.
Deactivation for long periods
Maintenance

Cleaning the storage cylinder and dismantling the internal components
12
OUTSIDE
Cleaning the cover of the storage cylinder should be carried out
with damp cloths and water and soap. In the case of stubborn
stains dampen the cloth with a mixture of 50% water and methyl-
ated spirit or with specific products for the marks. Once the clean-
ing is finished, dry the storage cylinder.
a Do not use abrasive products, gasoline or trichloroethylene.
INSIDE
Removing and checking the magnesium anode
- Remove the plug (1), the cover (2) and the central insulating
disc that covers the anode
- With a 45 mm spanner unscrew the anode holder plug (3).
- Check the state of wear of the magnesium anode and replace
it if necessary.
Perform the same operation on the second magnesium anode,
using a box wrench.
Once the cleaning operations are finished, reassemble all the
components, following the above instructions in the reverse order.
Cleaning the parts inside the storage cylinder
- Remove the flange cover (4).
- Unscrew the fastening nuts (5) of the flange (6) and remove it
together with the gasket
- Clean the inside surfaces and remove the residues through the
opening.
Once the cleaning operations are finished, reassemble all the
components, following the above instructions in the reverse order.
b
Tighten the bolts (5) of the flange fastening (6) with a
“cross-head” system to uniformly distribute pressure on the
gasket.
- Load the storage cylinder's secondary circuit and check the
seal of the gaskets.
- Carry out a performance test.
3
4
6
5

Via Risorgimento, 13 - 23900 Lecco (LC)
Customer Service 199.13.31.31*
Technical Assistance Service Single Number 199.12.12.12*
www.berettaclima.it
Beretta reserves the right to change the characteristics and the information listed in this booklet at any time and without notice, in order to improve the products.
This document cannot be considered to serve as a contract in relation to third parties.
*Call cost from a landline: 0.15 Euro/min. VAT included, from Monday to Friday between 8:00 a.m. and 6:30 p.m., Saturday from 8:00 a.m. to 1:00 p.m. At other times
and on public holidays, the cost is 0.06 Euro/min. VAT included. Mobile phone rates are set by the individual operators.
Code 20055736 - Ed.0 - 05/13
