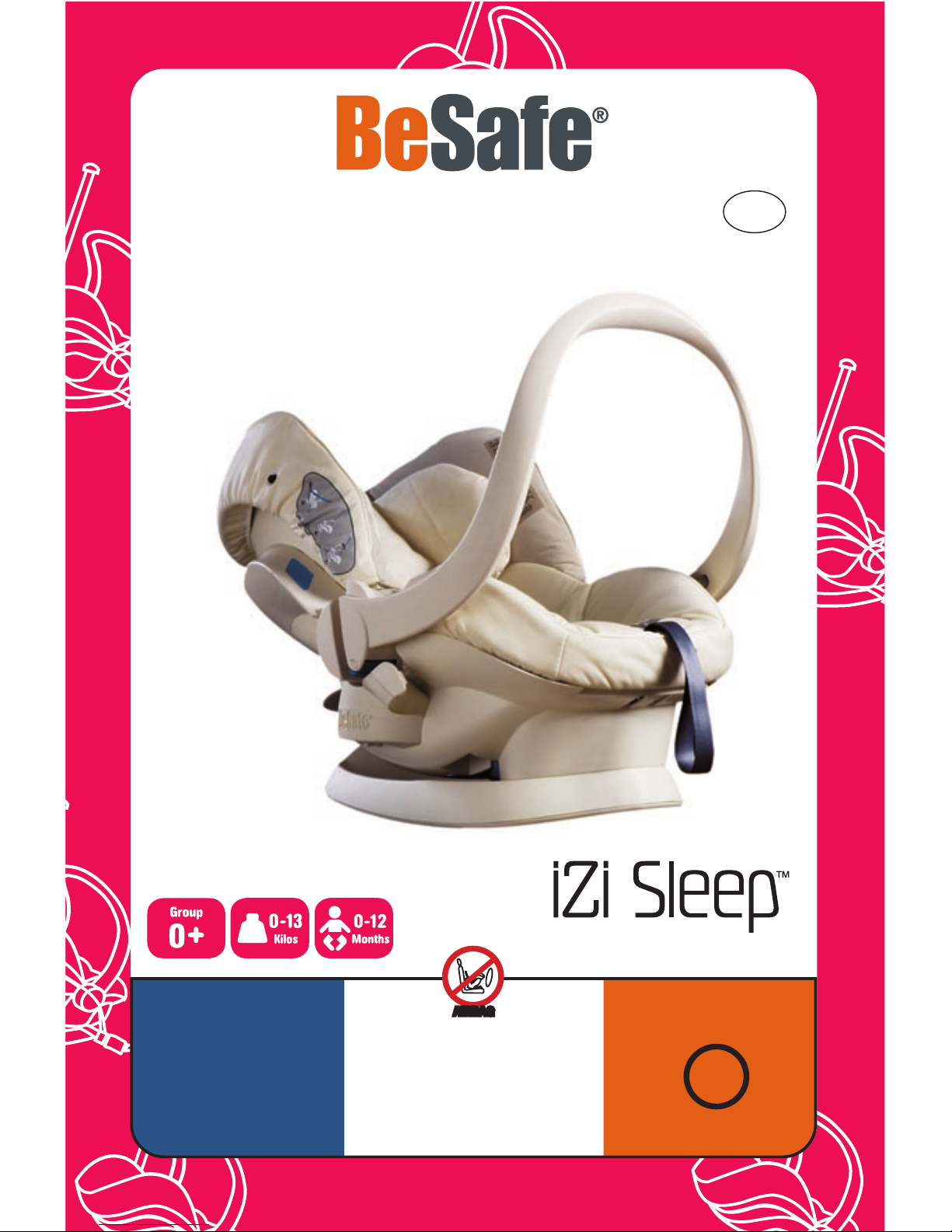

BESAFE IZI SLEEP - V8.0 User manual

E4
universal 0-13 kg
ECE R44/04
AIRBAG
www.besafe.eu
04443548
User manual GB
Complies with revised
standard:
Tested and Approved
EXTREME HAZARD:
Do not use on
passenger seats fitted
with activated airbag
ECE R44/04

2
!
Thank you for choosing BeSafe iZi Sleep
Safety and convenience
As you and we know, safety comes first when children are
involved. For that reason the iZi Sleep complies to and
exceeds the highest safety requirements.
In order to provide as much convenience as possible, the iZi
Sleep seat introduces its innovative reclining-system: outside
the car, your child can comfortably rest and sleep in the iZi
Sleep, being put completely flat.
It is important that you read this user manual BEFORE
installing your iZi Sleep. Incorrect installation could endanger
your child.
don’t drive
‘safe-to-drive’ indication on
handle-rotation knob
DO NOT use the seat in sleeping position when installed in
your car.
safe-to-drive
don’t drive
‘Safe-to-drive’ indication
!

3
iZi Sleep child safety seat usage
Rocking chair,
infant-carrier
Seat placed on top of a
range of strollers (see
www.besafe.eu)
Sleeping chair
Always check the handle is
upright and locked properly
before carrying.
DO NOT use the seat in
sleeping position when
installed in your car.
Be aware of the ‘safe-to-
drive‘ indication.
Car seat
ab
cd
!
!
!

4
4
6
8
10
10
11
11
12
14
16
18
20
Vital information
Preparing to install
Installation in the car
Removing the iZi Sleep from the car
Sleeping position
After an accident
Guarantee
Removing and refitting the cover
Using the iZi Sleep with a stroller
Warning: Potential misuse
Important advice
Point of sale information
Contents
EXTREME HAZARD - DO NOT use on a passenger
seat fitted with activated airbag.
iZi Sleep, only rear facing installation allowed.
DO NOT use the iZi Sleep in sleeping position when
installed in your car.
ONLY use the iZi Sleep on forward facing car seats.
ONLY install the iZi Sleep with a 3-point-belt approved to
UN/ECE regulation No. 16 or other equivalent standards.
-
-
-
-
-
Vital information
AIRBAG

5
AIRBAG
BeSafe advices that child seats should not be bought or sold
second-hand. Many seats sold through local advertising and
car-boot sales have been found to be dangerous.
Second-hand car seats
Important: Correct seat belts
This is a 3-point-belt
OK
This is a 2-point-belt
NO
Positioning in car:
Rear facing installation:
Only rear facing installation
allowed.
Shoulder
belt
Lap belt
Allowed positions in car,
only with 3-point-belt.
iZi Sleep is only approved with 3-point-belt installation.

6
Preparing to install
Crucial parts
1 Sun canopy
2 ‘safe-to-drive’ indication
3 Handle release buttons
4 Internal harness
5 Harness buckle
6 Central adjuster
7 Crotch belt
8 Carrying handle (also tensioner)
9 Upper cover
10 Shoulder belt guide
11 Lower cover
12 Belt slot
13 Shoulder belt guide
14 Base
15 Stroller adapter house
16 Stroller adapter handle
17 Shoulder belt slot (3x)
18 Shoulder belt adjuster
19 Storage compartment
user manual

7
19 18
Fitting your child in the iZi Sleep
Position of the shoulder belt:
Check that the shoulder belt
slots (17) are level with your
child’s shoulders.
Adjusting the schoulder belts:
Open the storage compartment (19)
on the back of the iZi Sleep. Detach
the shoulder belt adjuster (18), and
place it in the correct position by
supporting the belt from the inside.
(see illustration above). Make sure
adjuster is clicked in.
Too high Too low Correct
You must adjust the shoulder belt of the harness to the
correct position for your child before installing the seat.
The harness must be fastened and adjusted correctly at all
times. Children should be encouraged to remain within the
harness system.
When the child weighs over 13kg or the child’s head grows
above the seat, the child should change to the iZi Comfort,
group 1 seat.
!
Lay the shoulder belts (4) over the
sides of the iZi Sleep, before your
child is seated. Put the child in
the seat. Place the belts over the
shoulder and close the harness
buckle (5). Pull the central adjuster
(6). Just two fingers should fit
between child and shoulder belt.
Make sure the belts are not twisted.
a
b
c

8
8
Installation in the car
The iZi Sleep can only be used with a 3-point-belt.
Rear facing installation only.
CHECK the ‘safe-to-drive-indication’
Make sure the iZi Sleep is placed in rear facing position.
Pull the 3-point-belt around the back
of the iZi Sleep, and fasten the seat
belt,‘click’.
Make sure the carrying handle (8) is in the
carrying position.
EXTREME HAZARD - DO NOT use on a passenger
seat fitted with activated airbag. AIRBAG
!
!
!
!
1
3
2

9
12
10
14
8
3
1
2
Make sure the lap belt of
the 3-point-belt is placed
between base (14) and
lower seat shell. Pull the
3-point-belt through the
shoulder belt guide (10)
and belt slot (12), only at
the buckle side. Follow
the blue indications on the
seat.Tighten the 3-point-belt
firmly around the iZi Sleep.
Press the handle release
buttons (3) on the inside of
the handle and move the
carrying handle (tensioner)
(8) to the furthest possible
of the 2 ‘safe-to-drive’
positions.
For better contact, place
the backrest of the car seat
more upright, if possible.
Check the ‘safe-to-drive’
indication (2) on the
carrying handle, near the
handle release button (3). ‘safe-to-drive’ indication on
carrying handle
safe-to-drive don’t drive
4
5

10
3
8
Removing the iZi Sleep from the car
Push the handle release buttons (3) and move the handle
into carrying position. Then, release the 3-point-belt from therelease the 3-point-belt from the
buckle and remove the belt from the belt guide.
Sleeping position
DO NOT use the seat in sleeping position when installed in
your car.
Your child can comfortably rest and sleep in the iZi Sleep,
when put in the sleeping position (only outside the car) . To
put the iZi Sleep into the sleeping position, push both handle
release buttons (3) on the inside of the carrying handle (8)
and move the handle to the head of the iZi Sleep.
!
After an accident
After an accident, the iZi Sleep and your car seat belts
should be replaced. Although they may look undamaged, if
you were to have another accident, the iZi Sleep and your
car seat belts may not be able to protect your child as well
as they should.
