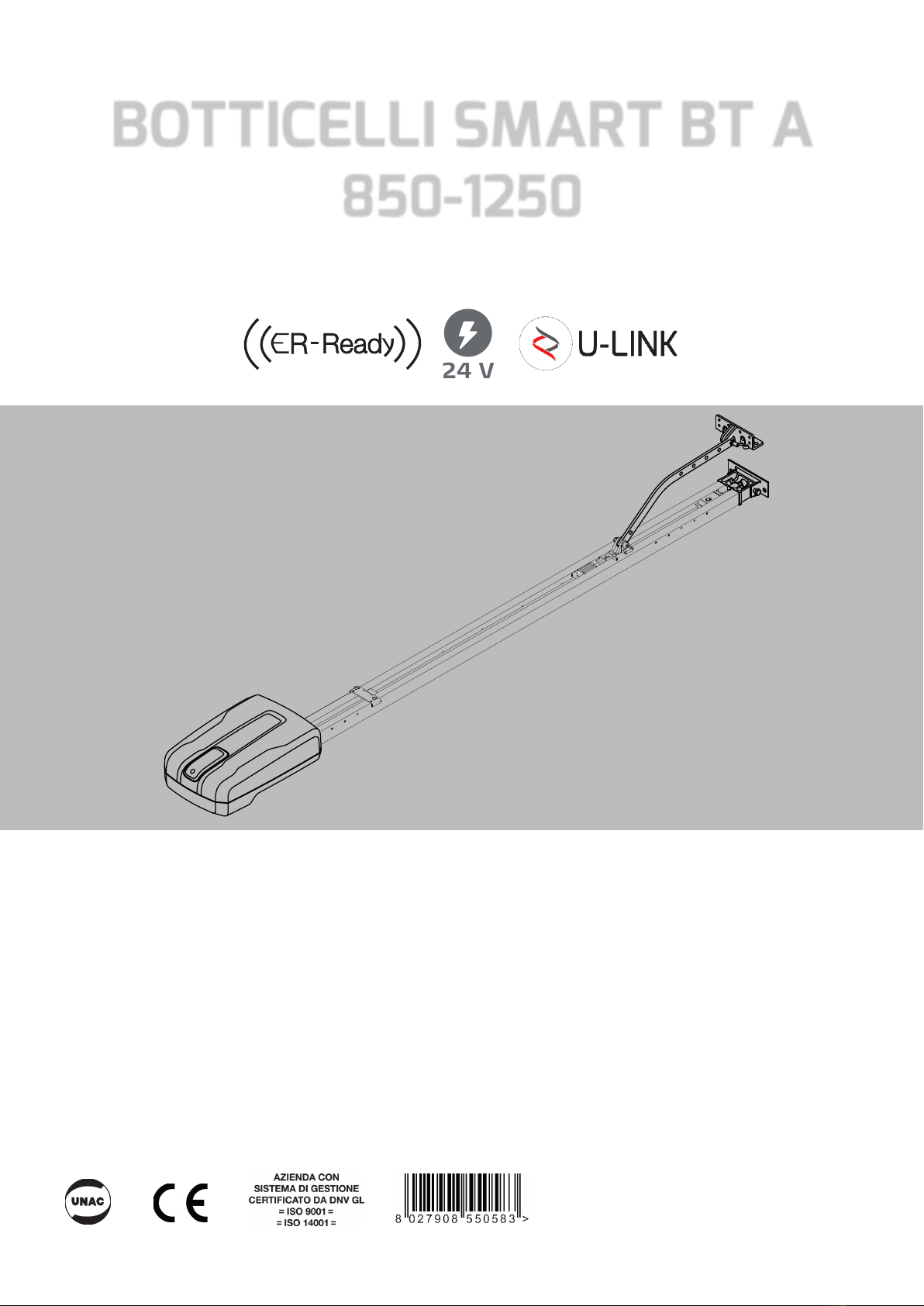

BFT BOTTICELLI SMART BT A 850 User manual

BOTTICELLI SMART BT A
850-1250
D813948 03A00_04 14-05-19
INSTALLATION AND USER’S MANUAL AUTOMATION FOR OVERHEAD AND SECTIONAL GARAGE DOORS
Caution! Read “Warnings” inside carefully!

1 2 3
BRTS
Not supplied
GENERAL OUTLINE
The BOTTICELLI SMART BT A 850-1250 system is suitable for motorising sectional doors (fig. 1), protruding fully retracting spring-operated
over-head doors (fig. 2) and counterweight overhead doors provided with an appropriate towing arm (fig. 3). The overhead door must not be
higher than 3 metres. Its easy installation allows fast fitting without needing the door to be modified. The irreversible gearmotor keeps the
door locked in the closing position.
2 BOTTICELLI SMART BT A 850-1250
D813948 03A00_04

KIT COMPOSITION
* For installations that require the operator to operate at heights greater than 2 meters above the floor level, it is mandatory to use equipment with higher safety levels
such as scaffolding or rolling towers. For activities outside Italy, check the specific local legislation in advance.
Ø5
Ferro
Iron
Fer
Eisen
Hierro
Ijzer
Ø10
Muro
Wall
Mural
Mauer
Pared
Muur
EQUIPMENT
*
13
6
PH1/PH2
PH1/PH2
13/17
S10
M8 M8
M8x16
S10
M8x30
M8X60
M8X40
M8x60
4,8x22
3,9x13
6,3x60
BOTTICELLI SMART BT A 850-1250 - 3
D813948 03A00_04

200 mm
200 mm
108÷116 mm
>116 mm
A
145°~
Motor installation on STANDARD ceiling
Motor installation on HIGHER ceiling (with extension)
It is suggested that the operator be set so that the front branch of the lever
is as horizontal as possible (see figure), considering in any case that the
installer must verify that the regulation concerning impacts must be
complied with.
Balance the sectional door!
*Not supplied
Balance the sectional door!
*Not supplied
4 BOTTICELLI SMART BT A 850-1250
D813948 03A00_04

z
y
OK
1 2 3
456
17 mm
18 mm
4
8
B
C
OK
z
z
z
y
y
3200 / 3800
33.5
2840 / 3440
215
44.5
3150 / 3750
127
127
2290 / 2890*50
2325 / 2925*80
331
214
2905 / 3505
115
115
z
66,5
PH1
RAIL ASSEMBLY
Single rail,
Two piece rail,
DIMENSIONS
* usable travel
Chain
Belt
BOTTICELLI SMART BT A
850-1250 BOTTICELLI SMART BT A 850
New
New Old
BOTTICELLI SMART BT A 850-1250 - 5
D813948 03A00_04

Ø10
13 mm
D
Ø10 mm
Ø10 mm Ø10 mm
*
*
**
*
*
*
*
E1
E2
60
6,3
Ø10 mm
Ø10 mm
F1
8
D1
60
8
V1
16
8
V2
V1
V2
V2
D1
F1
13
*
PH2
Ø10 mm
48 mm
Ø10 mm PH2
Ø10 mm
==
PH2
13 mm
13
max
5,5 mm
FIXING OF THE CEILING “RAIL SUPPORT BRACKET
ASSEMBLY OF TRACK HOLDING BRACKET ONTO THE WALL
CEILING RAIL FIXING WITH BRACKETS
Not supplied.
6 BOTTICELLI SMART BT A 850-1250
D813948 03A00_04

30
8
V3
F
G
H
1
2
4
3
3
1
60
8
8
V1
V1
V1
V2
8
40
V2
V3
V3
D1
D1
D1
V2
2
V1
4,8
25 V2
3,5
25
2
V1
3V2
3,9
13
V1 V2
25
4,8
13
PH2 PH1
PH1
PH2
6
Ø 5 mm
PH2
PH2
1
Ø5
ASSEMBLY OF TRACK ONTO THE TRACK HOLDING BRACKET
HEAD ASSEMBLY TO RAIL
PARTICULAR INSTALLATIONS WITH ROTATED HEAD
For 90° head installations, mount the head to the rail before mounting the rail to the ceiling.
BOTTICELLI SMART BT A 850-1250 - 7
D813948 03A00_04

13
4,2
1
2
4
. . . . . .
. . . . . .
. . . . . .
. . . . . .
KO
>30 s
>30 s
>30 s
KO
KO
KO
OK
5 s
OK
3
H
I
fast
PH2
*
*
*
START UP WITH COVER CLOSED
WARNING!! Check that the force of impact measured at the points provided for by standard EN 12445 is lower than the value laid down by standard EN 12453.
Warning!! While the autoset function is running, the obstacle detection function is not active. Consequently, the installer must monitor the automated system’s
movements and keep people and property out of range of the automated system.
* supplied with the rail
8 BOTTICELLI SMART BT A 850-1250
D813948 03A00_04

DEFAULT
DEFAULT
H
L
JP2
JP7
24V -
24V +
24 VSafe+
IC 1
IC 2
NO
NO
SAFE 1 STOP COM SAFE 2
NC
NC
NC
AUX 3 (MAX 24V 1A)
73 72 71
62 61 51 27 26
60
70 52 21 50 20
2
1TX1 2
1
RX1
4
5
3
50 51
70 72
2
1TX1 2
1
RX1
4
5
3
50 51 52
70 72
24V+ 24V-
50 51
24V+ 24V-
24V+ 24Vsafe+ 24V- 24V+
24Vsafe+ 24V-
24V+
24Vsafe+ 24V-
70 72
5
6
3
2
1
51
50
70
72
51
4
70
72
8,2Kohm 5%
SAFETY EDGE SAFETY EDGE
BAR
50 51
24V+ 24V-
70 73
5
6
3
2
1
51
50
70
73
51
4BAR
70 72
50 51 52
5
6
3
2
1
51
50
70
72
52
4BAR
70 73
50 51 52
5
6
3
2
1
51
50
70
73
52
4BAR
70 72
2
1TX1 2
1
RX1
4
5
3
50 51
70 73
2
1TX1 2
1
RX1
4
5
3
50 51 52
70 73
24V+ 24V-
24V+
24Vsafe+ 24V-
SAFE1= 0,2,4
TEST OFFTEST ONTEST OFFTEST ONTEST ON
SAFE1= 1,3,5SAFE1= 6,9,12SAFE1= 7,10,13
SAFE2= 0,2,4SAFE2= 1,3,5SAFE2= 6,9,12SAFE2= 7,10,13
SAFE1= 8,11,14,16
SAFE1 SAFE2
(1PHOT / 1 PHOT OP/ 1 PHOT CL) (1PHOT / 1 PHOT OP/ 1 PHOT CL)
(1 PHOT / 1 PHOT OP/ 1 PHOT CL) (1 PHOT / 1 PHOT OP/ 1 PHOT CL)
(1 BAR / 1 BAR OP/ 1 BAR CL) (1 BAR / 1 BAR OP/ 1 BAR CL)
(1 BAR / 1 BAR OP/ 1 BAR CL)
(BAR 8K2/ BAR 8K2 OP/ BAR 8K2 CL)
(1 BAR / 1 BAR OP/ 1 BAR CL)
1,25 AT
Courtesy lamp,
Fuse,
Palmtop programmer connector,
Display plus programming keys,
Optional board connector,
BOTTICELLI SMART BT A 850-1250 - 9
D813948 03A00_04

ENGLISH
Terminal Denition Description
Power
supply
JP2 TRANSF SEC Board power supply:
24V~ Transformer secondary winding
Mo-
tor
JP7 MOT + ENCODER Connection motor and encoder
Aux
20
AUX 0 - 24V POWERED
CONTACT (N.O.)
(MAX. 1A)
FLASHING LIGHT output .
The contact remains closed during the movement of the leaves.
21
26 AUX 3 - FREE
CONTACT (N.O.)
(MAX. 24V 1A)
AUX 3 congurable output - Default setting MONOSTABLE RADIO CHANNEL
Output MONOSTABLE RADIO CHANNEL/ SCA GATE OPEN LIGHT/ COURTESY LIGHT command/ ZONE LIGHT command/ STAIR
LIGHT/ GATE OPEN ALARM/ FLASHING LIGHT/ SOLENOID LATCH/ MAGNETIC LOCK/MAINTENANCE/ FLASHING LIGHT AND MAIN-
TENANCE / GATE CLOSED STATUS / BISTABLE RADIO CHANNEL / TIMED RADIO CHANNEL / GATE OPEN STATUS
27
Accessories
power
supply
50 24V- Accessories power supply output.
51 24V+
52 24 Vsafe+ Tested safety device power supply output (photocell transmitter).
Output active only during operating cycle.
Commands
60 Common IC 1 and IC 2 inputs common
61 IC 1 Congurable command input 1 (N.O.) - Default START E. START E / START I / OPEN / CLOSE / PED / TIMER / TIMER PED
Refer to the“Command input conguration”table.
62 IC 2 Congurable command input 2 (N.O.) - Default PED. START E / START I / OPEN / CLOSE / PED / TIMER / TIMER PED
Refer to the“Command input conguration” table.
Safety devices
70 Common STOP, SAFE 1 and SAFE 2 inputs common
71 STOP The command stops movement. (N.C.)
If not used, leave jumper inserted.
72 SAFE 1
Congurable safety input 1 (N.C.) - Default BAR.
PHOT / PHOT TEST / PHOT OP / PHOT OP TEST / PHOT CL / PHOT CL TEST / BAR / BAR TEST / BAR 8K2 / BAR OP / BAR OP TEST / BAR
8K2 OP/ BAR CL / BAR CL TEST / BAR 8K2 CL /STOP 8K2
Refer to the“Safety input conguration”table.
73 SAFE 2 Congurable safety input 2 (N.C.) - Default PHOT.
PHOT / PHOT TEST / PHOT OP / PHOT OP TEST / PHOT CL / PHOT CL TEST / BAR / BAR TEST / BAR OP / BAR OP TEST / BAR CL / BAR CL TEST
Refer to the“Safety input conguration”table.
10 BOTTICELLI SMART BT A 850-1250
