BH FITNESS SK-9000 User manual

BH FITNESS SK-9000 BIKE
Owner�s Manual
BH FITNESS
20155 Ellipse, Foothill Ranch, CA 92610
Phone: [phone] (USA & Canada)
Fax: [phone]
Email: [email protected]
Web: www.bhnorthamerica.com and www.bhfitness.com
Issued: 9 September 2008 (v2)

BH Fitness SK9000B
Page 1
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ..................................................... 2
ASSEMBLY GUIDE ..................................................................................... 4
CONSOLE OPERATION ............................................................................11
Electronic Monitor Illustrations .............................................................. 12
Electronic Monitor Display & Keypad .................................................... 14
Starting the Unit..................................................................................... 17
Personalizing the Electronic Monitor..................................................... 18
PROGRAM MODE (P0 – P13).............................................................. 24
P0 MANUAL ..................................................................................... 24
P1 – P8 ............................................................................................ 25
P9 USER .......................................................................................... 26
P10 MALE – P11 FEMALE............................................................... 27
P12 HEART ...................................................................................... 29
P13 WATT RATE .............................................................................. 32
Program Profile Illustrations.................................................................. 33
Symbols and their Meanings................................................................. 34
PARTS LIST .............................................................................................. 36
EXPLODED VIEW ..................................................................................... 38
WARRANTY .............................................................................................. 39
This manual is compatible with software versions 2.0 and 2.1.
BH RESERVES THE RIGHT TO MODIFY THE PRODUCTS SPECIFICATIONS WITHOUT PRIOR NOTICE

BH Fitness SK9000B
Page 2
IMPORTANT SAFETY INSTRUCTIONS
User Safety
1. Users should pass a full medical examination before they begin an exercise program. Work at the
recommended exercise level. Do not over exert yourself. If you feel any pain or discomfort, stop
exercising immediately and consult your doctor.
2. Before exercising calculate your maximum heart rate using the formula on page 28 (P12 Heart).
3. Do warm up stretching exercises before using the unit.
4. Verify that all of the parts are attached and that the nuts, bolts, pedals and bar are correctly
tightened before use.
5. Do not wear loose clothing or high heels. Tie up shoe laces.
6. The maximum user weight is 418 pounds (190 Kg). The height must not exceed 6 ft., 10 in. (2.1m).
7. Keep hands away from moving parts.
8. Supervise children, invalids or disabled persons at all times. Children are curious and vulnerable to
accidents. Do not use the unit as a toy. Disabled people should not use the exercise equipment
without the assistance of a qualified person or doctor. Keep pets away from unit.
9. The owner is responsible for explaining safety instructions to each user.
10. The unit can only be used by one person at a time.
Bike Safety
1. For safety, maintain a minimum clearance around the unit. Maintain 18 inches on the front and on
each side of the unit plus 24 inches at the rear of the unit.
2. Install and use the unit on a flat, stable surface, with some type of protection for the floor or carpet.
Do not place it alongside walls or furniture. Check the unit before each use.
3. Please read all of the instructions before assembling or using this unit.
4. To reduce the dangers and risk of electric shock always unplug the unit from its electrical power
immediately after using, before cleaning, opening, disassembling or doing maintenance.
5. Do not place sharp objects near the exercise equipment.
6. Do not use the exercise equipment if it is not working correctly.
WARNING: To reduce the risk of fire, electric shock, injury to persons or inflicting the harm of a burn:
7. The unit should never be left unattended when plugged in. Unplug the unit from the electrical power
before leaving the room, when unused and before adding or removing parts.

BH Fitness SK9000B
Page 3
IMPORTANT SAFETY INSTRUCTIONS
8. Do not operate the unit under a blanket or pillow. Excessive heating can occur and cause fire,
electric shock, injury to persons or inflict the harm of a burn.
9. Use the unit only as described in this manual. Only use attachments recommended by the
manufacturer.
10. Never operate this unit if it has a damaged electrical cord or plug. Do not operate this unit if it is not
working properly. Do not operate this unit if it has been dropped or damaged. Do not operate this
unit if it has been immersed into water. Return the unit to a service center for examination and
repair.
11. Do not pull or carry the unit by the electrical cord. Do not use the cord as a handle.
12. Keep the electrical cord away from heated surfaces.
13. Never operate the unit when the air openings are blocked. Keep the air openings free of lint, hair
and the like.
14. Do not drop or insert any objects into any openings.
15. Do not use outdoors or near water.
16. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
Adapter Safety
The Adapter may have a polarized plug (one blade is wider than the other). This plug will fit only one
way into a polarized outlet. If the plug does not fully fit into the outlet, then reverse the plug. If it still
does not fit then contact a qualified Electrician to install the correct outlet. Do not change the plug in
any way.
Please save these instructions.

BH Fitness SK9000B
Page 4
ASSEMBLY GUIDE
Figure 1

A) Main post with Handlebar and Monitor.
B) Main body.
C) Front trim cover.
D) Top trim cover.
E) Rear trim cover.
M) B
ottle holder.
F) Flat washer Φ18X10.5X2.0t. Quantity 4
G) Spring washer M10. Quantity 4
H) Allen bolt M10xP1.5x25. Quantity 4
I) Self tapping screw Φ4x20. Quantity 1
J) Self tapping screw Φ4x15. Quantity 3
K) Allen wrench 8mm.
L) Star driver spanner (wrench).
N) Adapter, 15V, 1Amp.

BH Fitness SK9000B
Page 5
ASSEMBLY GUIDE
Figure 2 Figure 3
Figure 4 Figure 5

BH Fitness SK9000B
Page 6
ASSEMBLY GUIDE
Figure 6 Figure 7
Figure 8 Figure 9

BH Fitness SK9000B
Page 7
ASSEMBLY GUIDE
Figure 10
Connect 15V
A
dapter (N)

BH Fitness SK9000B
Page 8
ASSEMBLY GUIDE
NOTE:The exercise bike is heavy. At least two people are required to ensure the safety of the
people unpacking and moving the bike.
1. CHECK THE PARTS
Figure 1. Take the unit out of the box. Verify that the parts are undamaged and quantities are
correct.
2. ATTACH THE MAIN POST
Figure 2. Bring the main post (A) up to the boss on the main body (B). Connect the terminals
(m), sticking out of the bottom of the post, with terminal (n) coming up out of the top of the tube
on the main body (B).
Figure 2. Slip the main post (A) over the boss on the main body (B), making sure not to
damage any of the cables.
Check that the cables are connected correctly by turning the pedals until the monitor starts to
operate.
Install the flat washers (F), Grower washer (G) and bolt (H) in four places.
Line the main post (A) up with the main body (B) and tighten the bolt securely.
3. FIT THE FRONT TRIM COVER AND BOTTLE HOLDER.
Figure 3. Fit the front trim cover (C) by sliding it onto the side tubes. Install and tighten screw
(I) to secure the cover.
Figure 3. Remove the screws from the main post (B). Position the bottle holder and secure it
by using the screws previously removed.
4. FIT THE TOP TRIM COVER.
Figure 4. Position the top trim cover (D) on top of the side tubes. Slide the cover forward,
inserting it into the slots on the main body (B) then position it onto the seat post.
5. FIT THE REAR TRIM COVER
Figure 5. Position the rear cover (E) onto the saddle post, as shown in the direction of the
arrow. Fasten the rear cover (E) to the top trim cover (D) and the seat post using screws (J).

BH Fitness SK9000B
Page 9
ASSEMBLY GUIDE
6. ADJUST THE SEAT HEIGHT
Figure 6. Loosen the seat height (pop-pin) control knob, a little, by turning it counter clockwise.
Pull and hold the (pop-pin) knob outwards, away from the bike. Lift the seat upwards. When it
is at the correct height, push the (pop-pin) knob inwards and gently slide the seat up and down
until it is trapped. Lock the seat into position by turning the height control (pop-pin) knob
clockwise until secure.
7. VIEW PULSE SENSORS
Figure 9. View the pulse sensors (Y) located on the handlebar. The users pulse rate is
measured by placing both hands on pulse sensors (Y).
NOTE:
You can also use the chest band (optional telemetric pulse sensor) to measure your heart rate.
A chest band such as the POLAR T41 Transmitter may be purchased separately from this unit.
The reading from the telemetric pulse rate takes preference over the pulse sensors (Y) located
on the handlebar.
8. LEVELING
NOTE: For safety, maintain a minimum clearance around the equipment. Maintain 18 inches
on the front and each side plus 24 inches at the rear of the unit.
Figure 7. Once the unit has been placed into its final position for doing exercise, make sure
that it sits flat on the floor and that it is level. This can be achieved by screwing the adjustable
support blocks (R) up or down.
9. MOVEMENT & STORAGE
Figure 8. The unit is equipped with wheels (T) making it easier to move about. The two wheels
at the front of the unit make it easy to store the unit away.
10. BATTERY CHARGE
Verify that the electric supply voltage is 110V-120V.
Figure 10. Install the terminal end of the 15V, 1 Amp Adapter (N) onto the connector located at
the lower end of the chain cover.
Install the plug end of Adapter (N) into an 110V-120V outlet.

BH Fitness SK9000B
Page 10
ASSEMBLY GUIDE
NOTE: This unit is equipped with a generator (dynamo) that converts the mechanical rotation
(produced by the exercising user) into current (electrical energy) to power the electronic
monitor and brake controller.
This unit also includes a set of batteries that store enough energy to keep the electronic
monitor operating for 60 seconds after mechanical rotation from the exercising user has
stopped.
If the battery runs down, it can be recharged by using the 15V Adapter (N) that is supplied with
the unit.

BH Fitness SK9000B
Page 11
CONSOLE OPERATION
Figure 20

BH Fitness SK9000B
Page 12
CONSOLE OPERATION
Figure 21
Figure 22
speed rpm time distance calories watts pulse ♥

BH Fitness SK9000B
Page 13
CONSOLE OPERATION
GENERAL INSTRUCTIONS
This exercise unit is equipped with a generator (dynamo). The generator uses the energy
produced by the user (while exercising) to power the electronic monitor and the brake
controller.
This exercise unit also includes a set of batteries that store enough energy to keep the
electronic monitor operating for 60 seconds after the exercise has finished.
Should the battery run down because of an operational fault, it can be recharged by using the
15V adapter that is supplied with the exercise unit.
To switch the monitor on, begin exercising.
ATTENTION: Plug one end of the 15V adapter into the unit per Figure 9 and the other end into
an appropriate outlet.
The electronic monitor is designed to be easy and intuitive to use. The messages that appear
on the bottom screen (B) will guide the user throughout the whole exercise.
Nevertheless, we recommend that the gym instructor reads through this section carefully to
become fully familiar with the electronic monitor in order to show the user how to operate it
correctly.
NOTE: TO ENSURE THAT THE BATTERIES OPERATE CORRECTLY AND LAST LONGER,
RECHARGE THEM USING THE 15V ADAPTER (N) SUPPLIED WITH THE UNIT.

BH Fitness SK9000B
Page 14
CONSOLE OPERATION

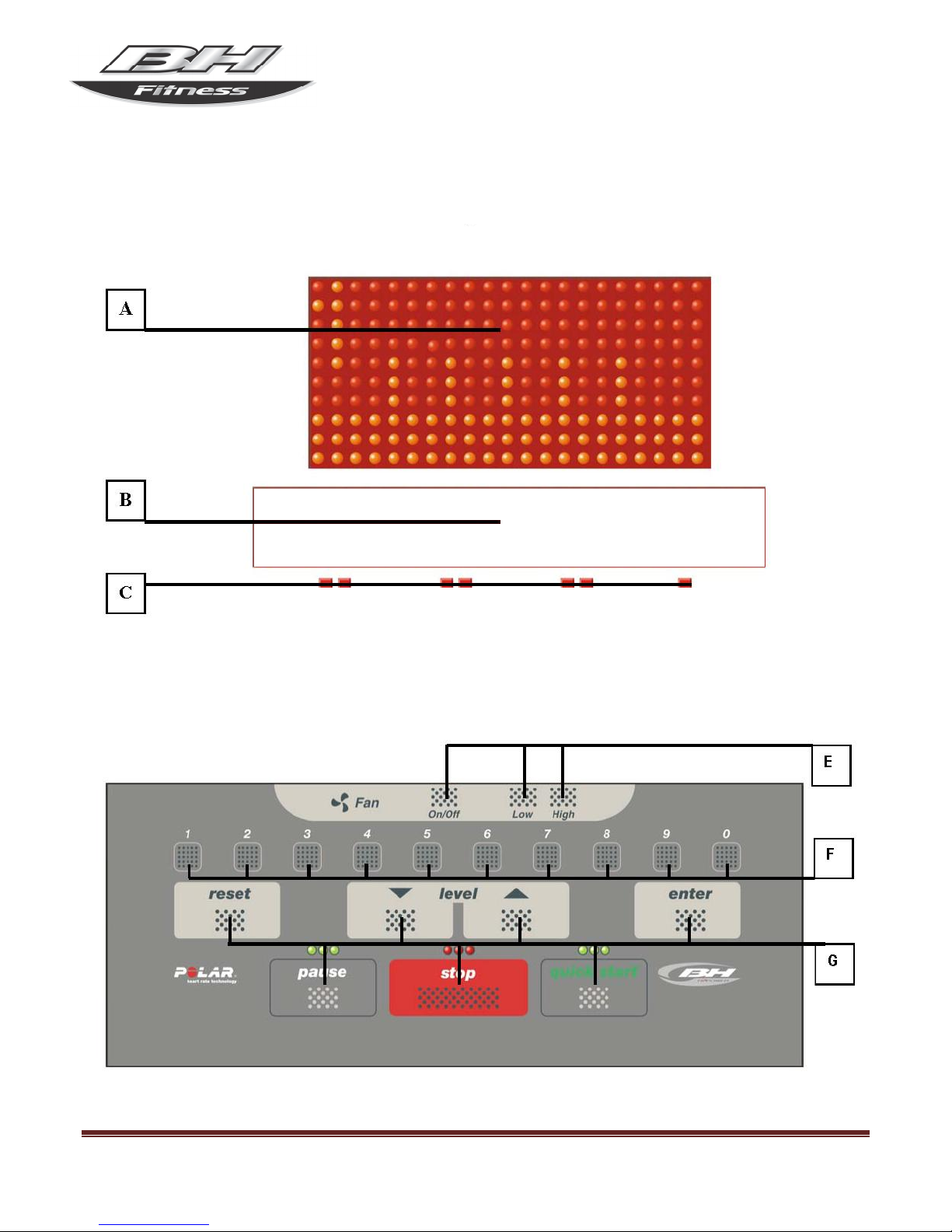

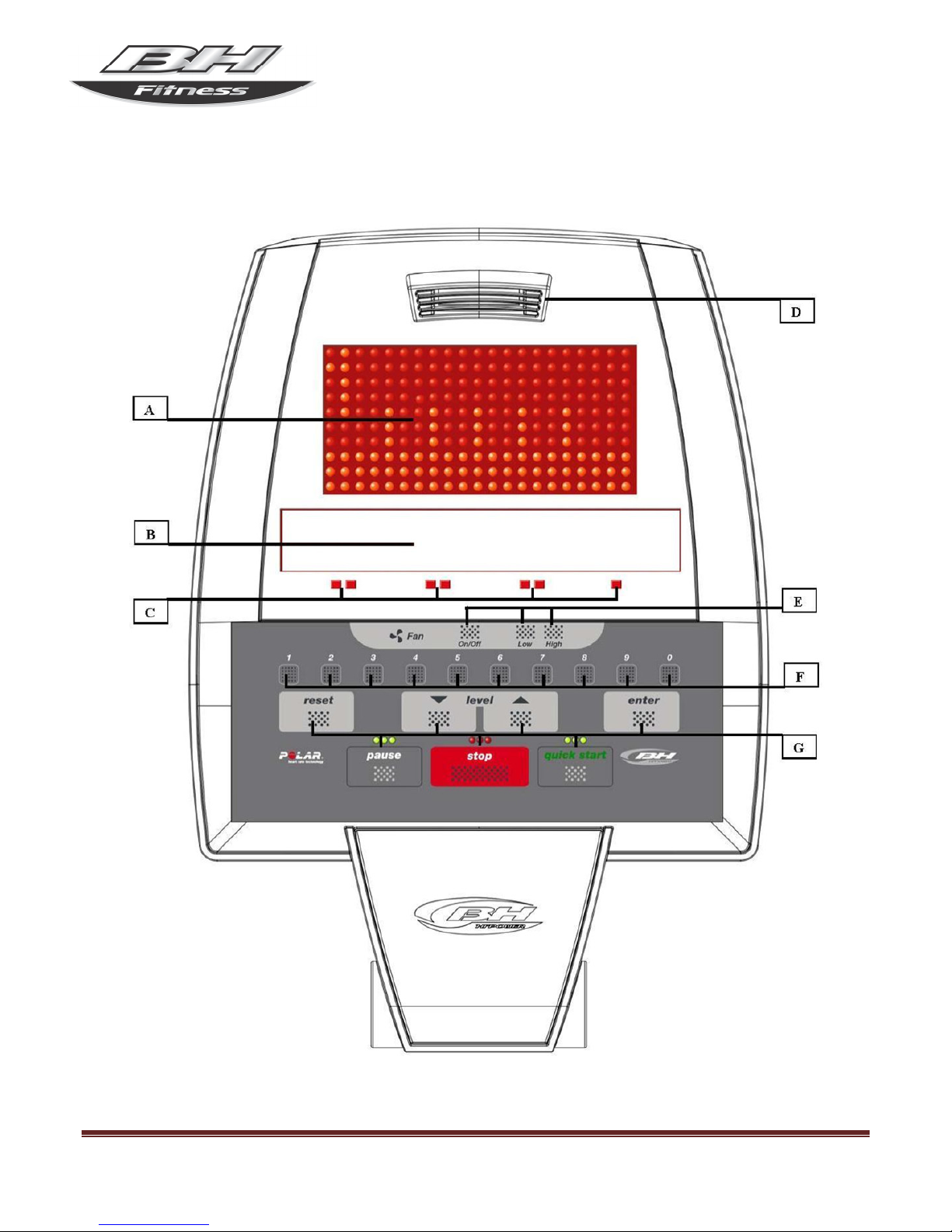

ELEMENTS OF THE ELECTRONIC MONITOR (Figure 20)
The electronic monitor is made up of two distinct areas:
The top area, Figure 21 (A – B – C) for the DISPLAY
The bottom area, Figure 22 (E – F – G) for the KEYPAD
DISPLAY
This area is comprised of two screens.
(A) The top LED array displays real-time exertion levels being produced during the selected
program.
(B) Bottom alphanumeric screen, which guides the user selection options and exercise.
The top screen (A) displays the various pre-programmed exercise profiles (programs) that can
be selected and, during exercise, current exertion levels.
The bottom alphanumeric screen (B) is used to guide the user when selecting the exercise to
do, as well as displaying information about the exercise both during and after the session. The
LED indicators (C) located below the alphanumeric screen give a simultaneous readout of
SPEED, RPM; TIME, DISTANCE; CALORIES, WATTS; PULSE and indicate which information
is being displayed throughout the exercise.
The data that are displayed on the LEDs (C) during exercise are as follows:
SPEED: This shows an estimated value of the linear velocity at which a bicycle will travel
based on the user’s pedaling rate.
RPM: (Revolutions Per Minute) This shows the current pedalling rate during exercise. It
indicates the number of full turns that the crank makes in one minute.
TIME: This shows the time that has elapsed since you started the exercise or, if a time limit
has been established, the amount of time left before the exercise finishes. The time is
displayed in minutes and seconds (mm:ss).
DISTANCE: This shows the distance that you have travelled since beginning the exercise. The
distance is calculated by using the estimated linear speed.
CALORIES: This shows the estimated number of calories that have been burned off up until
now. This calculation is based on the energy being produced and the weight and age values
provided by the user.

BH Fitness SK9000B
Page 15
CONSOLE OPERATION
WATTS: This shows the amount of energy currently being produced during the exercise. This
calculation is based on the exertion level at which the user is working and the pedaling rate.
The information is displayed in Watts.
PULSE: This shows the user’s heart rate recorded through the handlebar pulse sensors or a
telemetric chest belt such as the POLAR T41 transmitter.
KEYPAD
The function of each key is listed below. See Figure 22.
The electronic monitor includes an easy-to-use keypad. This keypad consists of Fan keys ( E ),
numeric keys ( F ) and function keys ( G ).
Fan keys ( E ) – Off / On; Low (minimum speed); High (maximum speed).
Numeric keys (F) - (1- 0) are used to enter the data requested by the monitor.
Function keys ( G ) - reset; level▲; level▼; enter ; pause ; stop ; quick / start - are used
to select a particular exercise, enter requested data, control exercise exertion levels and to
finish the exercise.
RESET - Reset key. This is used to erase the data that have been entered into the monitor
when selecting a program.
LEVEL ▼- Key for decreasing exertion level. When pressed during exercise, this key will
decrease the exertion level by one machine setting. During the selection of pre-programmed
profiles, it is used to move on to the next profile screen.
LEVEL ▲-Key for increasing exertion levels. When pressed during exercise, this key will
increase the exertion level by one machine setting. During the selection of pre-programmed
profiles, it is used to move back to the previous profile screen.
ENTER - Selection and validation key. This is used during pre-programmed profile selection to
select a profile, confirm data that have been entered and to start the exercise. It is also used
during user profile programming to confirm the exertion level settings for each minute.
PAUSE - Pause key. If this is pressed during a session, the exercise is interrupted and the
exercise timekeeper (clock) is halted. To restart the exercise timekeeper (clock) press the
pause key again or continue exercising. Pause will only last for 45 seconds, then the exercise
will stop and the monitor will exit the exercise.
If, the STOP key is pressed, in pause mode, then the exercise will finish.

BH Fitness SK9000B
Page 16
CONSOLE OPERATION
STOP - Stop key. If this is pressed during the session, the exercise will be taken as finished
and exertion settings will drop to minimum level. A summary of all the exercise data will be
displayed and it will then return to the start screen.
Hold the STOP key down for 3 seconds in Start/Ready mode, and the monitor screen will
change to black with a beep. The ON personalized power option may be changed to OFF.
QUICK / START - Quick start key. When this key is pressed, provided that the LED on the key
is flashing, exercise will begin in manual mode.

BH Fitness SK9000B
Page 17
CONSOLE OPERATION
OPERATING INSTRUCTIONS
STARTING THE UNIT
To turn on the monitor, plug the unit in or pedal the unit.
•Plug the 15V adapter (N) that is supplied with the unit into a wall outlet, and select the ON
option in the personalized settings (step 4 POWER).
•Or pedal (spin) the crank at 45 rpm. As soon as it reaches 45 rpm the monitor will come on
and remain on for 60 seconds so that it can be programmed.
Once the monitor is on it will display the profile and the letter “M” for manual on the LED array
( A ) Figure 21, and the “WELCOME TO HI – POWER” message on the bottom alphanumeric
screen ( B ).
You can start the program in manual mode by pressing the QUICK / START key and by
pressing the level ▲▼ keys you can increase or decrease the exertion levels.
STARTING THE FAN
The monitor on this machine is fitted with an air vent (D), Figure 20, through which a FAN
provides two air speeds, LOW and HIGH. To switch the fan on while exercising press the ON /
OFF key on the keypad, Figure 22, and the fan will start. Whenever the monitor is switched to
PAUSE the fan will switch off.
SLEEP MODE
If the 15V adapter (N) is connected to the unit then the console will not switch over to sleep
mode when the POWER option under personalization mode is switched ON.
If the 15V adapter (N) is not connected, the console will switch over to sleep mode even when
the POWER option is switched ON.
This mode is activated if an RPM signal is not received within 45 seconds when in stand-by
mode. Windows are not displayed while in this mode. You have to step on the footplate to
produce a signal and reopen the display window.

BH Fitness SK9000B
Page 18
CONSOLE OPERATION
PERSONALIZED SETTINGS DESCRIPTION
SETTING DESCRIPTION
Unit Change speed unit from km/h to mph.
Wheelsize Select 80 on this model.
Language Define the language in which messages are displayed on the monitor.
Options: Spanish, Portuguese, English, French, German, Dutch, Italian.
Power Defines the method of operating the machine, between self-powered or
connected to the wall outlet. If the ON mode is selected, the machine has to be
plugged into the wall outlet. To switch off the monitor in ON mode, hold the
STOP key down for 4 seconds.
Options:
OFF (Battery operated)
ON (AC wall outlet operated)
IMPORTANT: With the ON option the machine has to be plugged into the
wall outlet, otherwise the batteries will run down and may be rendered
useless.
SWR time Establishes the frequency at which the program calculates the WATTS created
by the user and compares it to the target WATT value. The exertion level will be
increased or decreased automatically.
Options: Value in seconds (minimum 20, maximum 60)
SPR time Establishes the calculation rate for the constant heart rate program.
Options: Value in seconds (minimum 20, maximum 60)
Manual T Establishes a maximum time limit for the Manual Run exercise.
Options:
0 (No maximum time limit established)
Exercise time limit values in minutes (maximum 60)
Text Text cannot be changed on Software version 2.0.
Software version 2.1 Options:
OFF (The welcome message is displayed by default)
ON (Allows the welcome message to be edited) to personalize the welcome
message.
Sounds Enables or disables sounds (beeps) emitted by the monitor.
Options:
ON (Enabled)
OFF (Disabled)

BH Fitness SK9000B
Page 19
CONSOLE OPERATION
PERSONALIZING THE ELECTRONIC MONITOR
Follow the steps below to access the monitor’s personalization mode:
Press and hold the RESET key and the 0 key at the same time until “FACTORY SETTINGS”
appears on the alphanumeric screen (B), Figure 20.
In general use these rules when personalizing the monitor:
•The word that is flashing can be revised.
•Pressing the ENTER key moves the flashing to a different word.
•Pressing the LEVEL key displays the choices.
NOTE: If you wish to exit the personalization mode, press the STOP key and the manual
program will be displayed on the LED array (A).
1. CHANGING UNITS (Mile or km)
Once the words “FACTORY SETTINGS” appear on the alphanumeric screen (B), Figure
20, press the ENTER key and the word “UNITS” will flash. Press the ENTER key and the
word ENGLISH or METRIC starts flashing. Select the unit of distance by using the LEVEL
▲▼ keys, (ENGLISH / Miles - METRIC / Km.). Press the ENTER key and the word
“UNITS” will start flashing again.
Press the LEVEL ▲key to edit the “WHEELSIZE” Distance per Revolution.
If you wish to exit the personalization mode, press the STOP key and the manual program
will be displayed on the LED array (A).
2. CHANGING WHEELSIZE (DISTANCE PER REVOLUTION)
“WHEELSIZE” will be flashing. Press the ENTER key and a figure between 0 and 80 will
start flashing. Select the value 80 using the LEVEL ▲▼ keys. Press the ENTER key and
the word “WHEELSIZE” will start flashing again.
Press the LEVEL ▲key to edit the “LANGUAGE”.
If you wish to exit the personalization mode press the STOP key.
