- SOD CUTTER MANUAL -
CONTENTS

4
370406 F103104A
OPERATING AND SAFETY INSTRUCTIONS
SOD CUTTER MODEL SC121H
FOREWORD
This machine may only be utilized for the purpose for which it was designed, i.e. to cut
30cm-wide strips of turf.
Any other use other than that stated, not covered or deducible from this Ma-nual and the
enclosed Engine Manual is “PROHIBITED”.
Failure to comply with instructions in this Manual and in the Engine Manual releases the
manufacturer from all liability, in particular for any damage resulting from improper or
incorrect use, through negligence, superficial interpretation or flagrant disregard for the
safety requirements herein.
Get your dealer to explain how to use the machine in optimum safety conditions.
Always perform the checks as prescribed herein before each work session with the machine.
Should any information given in the following pages be unclear or not straightforward
please contact the manufacturer directly.
1. USE OF THE MANUAL
This Manual consists of numbered pages and enclosures featured in the list of contents.
Before operating the machine the user must read the instructions in the Operator’s Manual
carefully as well as those of the Engine Manual enclosed.
Use of the turf cutter by more than one operator (individually), means that they must have
carefully read the Operator’s Manual and the Engine Manual before using it.
The aforementioned manuals form an integral part of the machine and must therefore be
kept intact and in good condition, in a known, easily accessible place for the entire working
life of the machine, even if the turf cutter is passed on to another owner. The purpose of
these manuals is to provide the information necessary for the safe and competent use of
the product. In the instance of wear or purely for a greater technical working knowledge,
the manufacturer may be contacted directly. The Notes Section at the end of the Turf
cutter Manual is for the addition of any complementary notes.
In this Manual all safety information appears in special boxes headed “WARNING”.
WARNING
This heading is used to draw the user’s attention to hazardous areas or moving parts of
the machine. It is also used in instances where failure to comply with the instructions given
may result in injury to persons and animals or damage to property.

5
370406 F103104A
2. NOTICES ON THE MACHINE
WARNING
The Engine Exhaust from this product contains chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm.
The symbols affixed to the machine serve to warn of danger during its use and maintenance.
It is vitally important to understand the meaning of the danger notices and all messages
should be kept in legible condition. In the instance of wear these notices should be replaced
and use of the machine suspended while without such notices.
The operator is advised to observe the warnings given on the affixed notices.
The symbols affixed to the machine serving to warn of danger during its use and
maintenance are as follows:

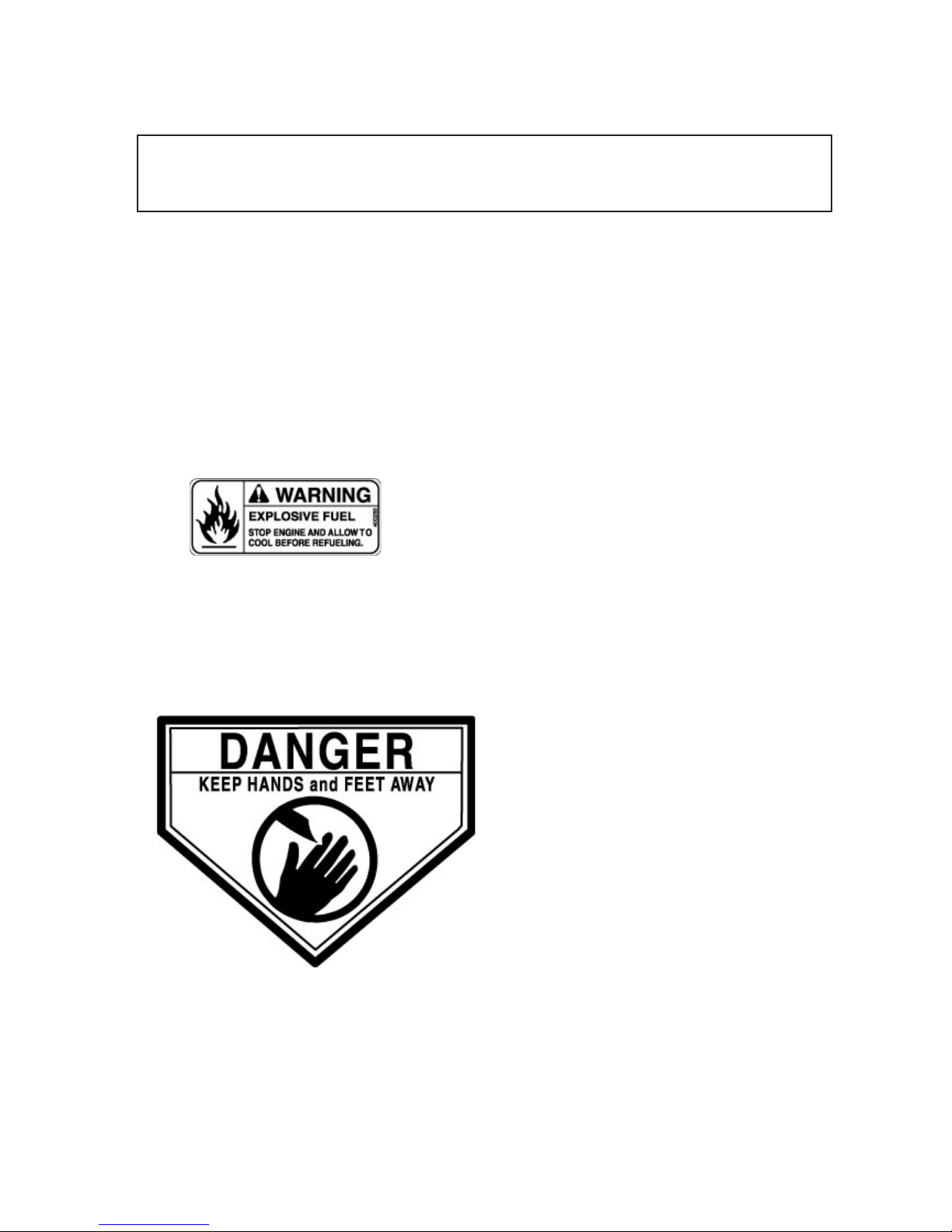

400268 - Label Hot Engine, Qty. 1
400424 - Label Warning, Qty. 2

6
370406 F103104A
370300 - Label Instructions, Qty. 1
370405 - Label Controls Instuction, Qty. 1

7
370406 F103104A
3. TECHNICAL DATA FOR THE SOD CUTTER SC121H
ENGINE : Gasoline, HONDA GX 160 K1
ENGINE CAPACITY : 5.5 Hp (4.0 kW)
CUTTING WIDTH : 12” (30 cm)
CUTTING HEIGHT : adjustable up to 35 mm
SPEED GEARS : 2 forward gears
TRANSMISSION : mechanical
GEARS : in oil bath
START : recoil
HANDLEBARS : height-adjustable
TYRES : front tyres GARDEN 3.00-4
rear tyres TRACTOR 3.00-4
DIMENSIONS L x W x H (mm) : 780 x 420 x 610 mm
WEIGHT (kg) : 73
ACOUSTIC PRESSURE, measured according to EN 12733: 86,2 dBA
ACOUSTIC POWER, measured according to EN 12733: LWA 97 dBA
VIBRATION LEVEL TRANSMITTED TO THE HANDLEBAR ( EN 12 733) AW: 1,8 m/s²
Environmental conditions
Unless otherwise stated at the time of ordering it is understood that the machine is to work
normally in the environmental conditions covered by the following points.
Environmental conditions other than those described may cause mechanical breakage
resulting in the creation of dangerous situations for persons.
ALTITUDE
The altitude of the place in which the machine is to be used must not exceed 1500 m
above sea level.
TEMPERATURE
Minimum ambient temperature: -5°C
Maximum ambient temperature: +50°C
ATMOSPHERIC CONDITIONS
The electrical equipment will function correctly in atmospheric conditions with a relative
humidity up to 50% at a temperature of 40°C and at 90% with a temperature up to 20°C
(without condensate).
ATMOSPHERE WITH RISK OF EXPLOSION AND/OR FIRE
The standard machine herein described is not designed to work in explosive atmospheres
or in those with risk of fire.

8
370406 F103104A
4. LIFTING AND TRANSPORTATION
All material is carefully checked by the manufacturer before shipping. The turf cutter is
delivered in a cardboard box with the handlebars and end part of the cutting height
adjustment lever disassembled.
Upon receipt of the machine make sure that it has not been damaged during transit and
that the packaging has not been tampered or any parts removed. Report any damage or
missing parts immediately to the carrier and the manufacturer with photographic
documentation.
After assembling the handlebars and the end part of the cutting height adjustment lever
as per the instructions given in paragraph 7 of this manual, the machine may be moved
on its own wheels.
The manufacturer is not liable for any damage caused by transportation of the machine
after its delivery.
WARNING
Extreme care must be taken during handling to prevent overturning. Avoid steep gradients
to prevent loss of control.
Make sure that there are no persons present within the danger area.

9
370406 F103104A

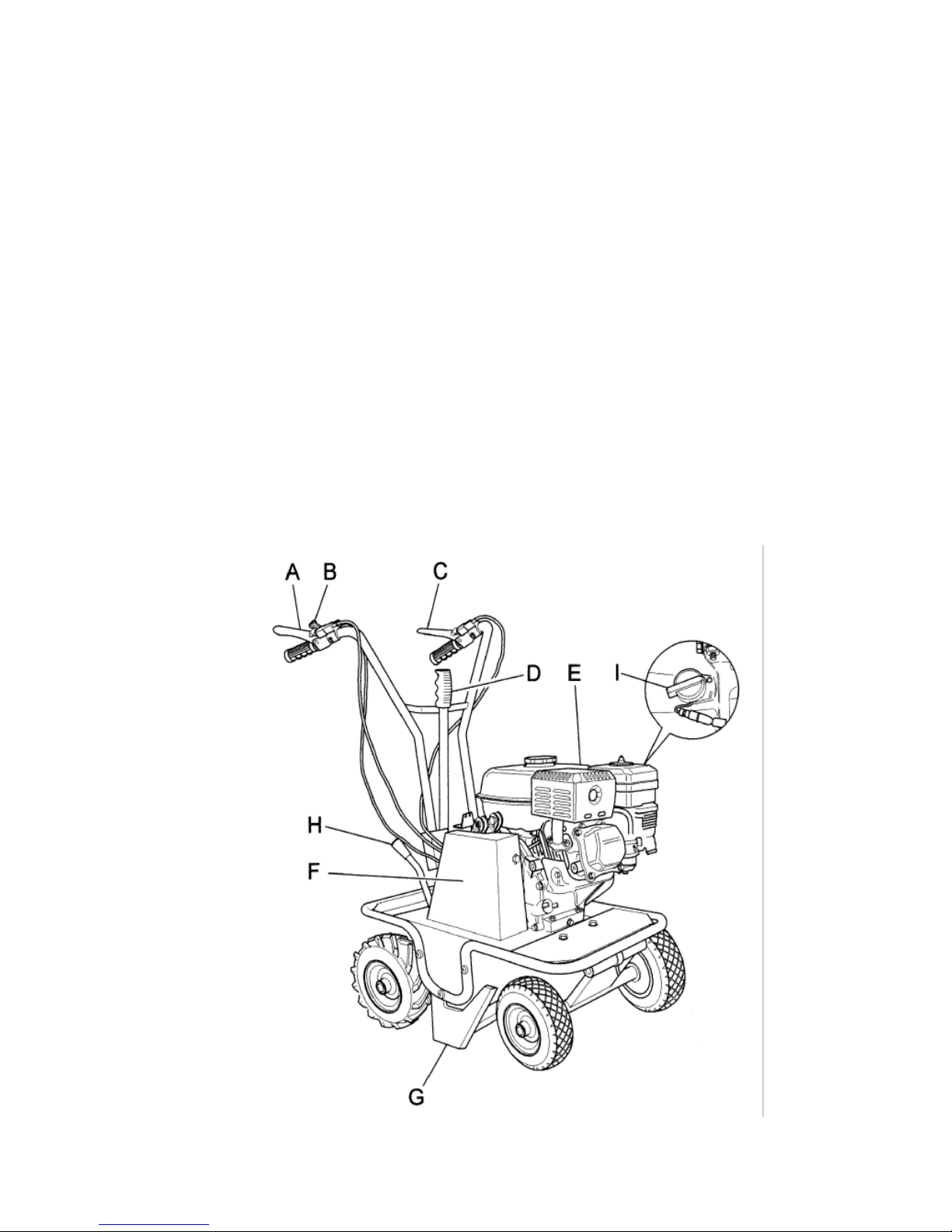

5. MAIN PARTS OF THE MACHINE
The machine consists of the following main parts:
A - BLADE CLUTCH CONTROL LEVER
B - ACCELERATOR CONTROL LEVER
C - FORWARD CLUTCH CONTROL LEVER
D - CUTTING HEIGHT ADJUSTMENT LEVER
E - ENGINE
F - COVER
G - BLADE
H - FORWARD-NEUTRAL GEAR SELECTOR LEVER
I - ON/OFF SWITCH (1/0)
Figure 1

10
370406 F103104A
6. CONTROL AND ADJUSTMENTS
A) BLADE CLUTCH CONTROL LEVER
This is used to engage and disengage the blade movement. Lowering the lever engages
the clutch and releasing it disengages the clutch.
WARNING
The blade will continue to move if the engine is running and the blade clutch is engaged,
regardless of the position of the forward clutch.
B) ACCELERATOR CONTROL LEVER
This is used to adjust the number of engine revolutions according to the operations to be
carried out. Hence at switch on the lever will be positioned on the minimum setting whilst
during work operations it will be positioned as required by use.
C) FORWARD CLUTCH CONTROL LEVER
This lever only has two positions: engage and disengage. Lowering the lever engages
the clutch and releasing it disengages the clutch.
This lever automatically operates the service brake: when released the lever engages the
brake, when engaged the lever disengages the brake.

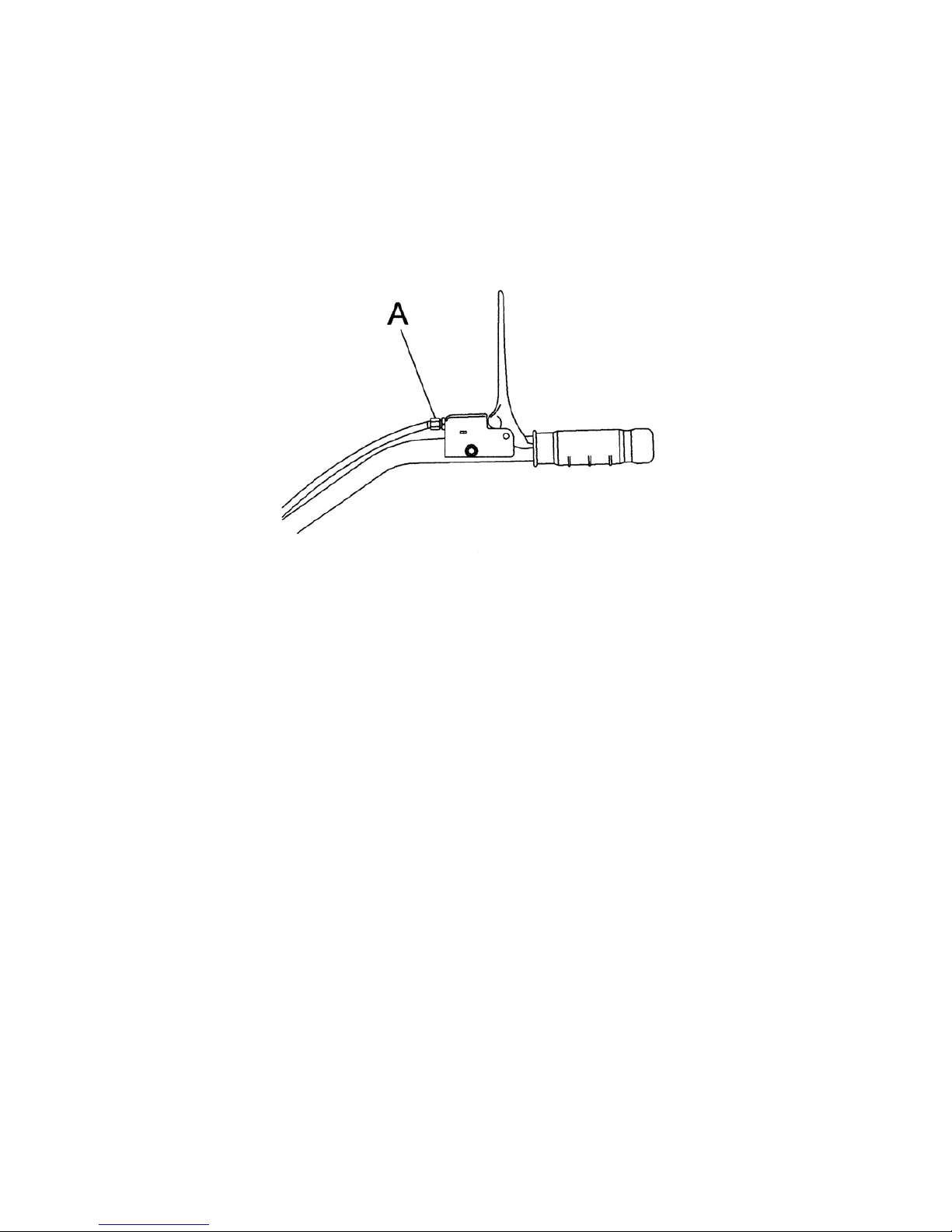

Figure 2
D) CUTTING HEIGHT ADJUSTMENT LEVER
This lever serves to adjust the cutting height according to the type of terrain and the
thickness of the turf to be cut. (Fig.2 Ref. A)
F) COVER
The cover ( Fig. 1, ref. F) prevents any contact with the moving parts of the machine. Use
of the machine without the said cover is strictly prohibited.

11
370406 F103104A
I) ON SWITCH
Two-position switch:
(1) for starting the engine
(0) for switching off the engine
L) FORWARD-NEUTRAL GEAR SELECTOR LEVER
This lever selects the gear forward (1st, 2nd) or neutral.
WARNING
Select the required gear only after disengaging the forward clutch by releasing the relative
lever (Fig. 1, ref. C).
7. ASSEMBLY INSTRUCTIONS FOR THE HANDLEBARS AND
END PART OF THE CUTTING HEIGHT ADJUSTMENT LEVER
The turf cutter is delivered with the handlebars and the end part of the cutting height
adjustment lever disassembled. Remove the cardboard packaging (to be disposed of in
an appropriate manner, in accordance with current regulations in force).
To assemble proceed as follows :

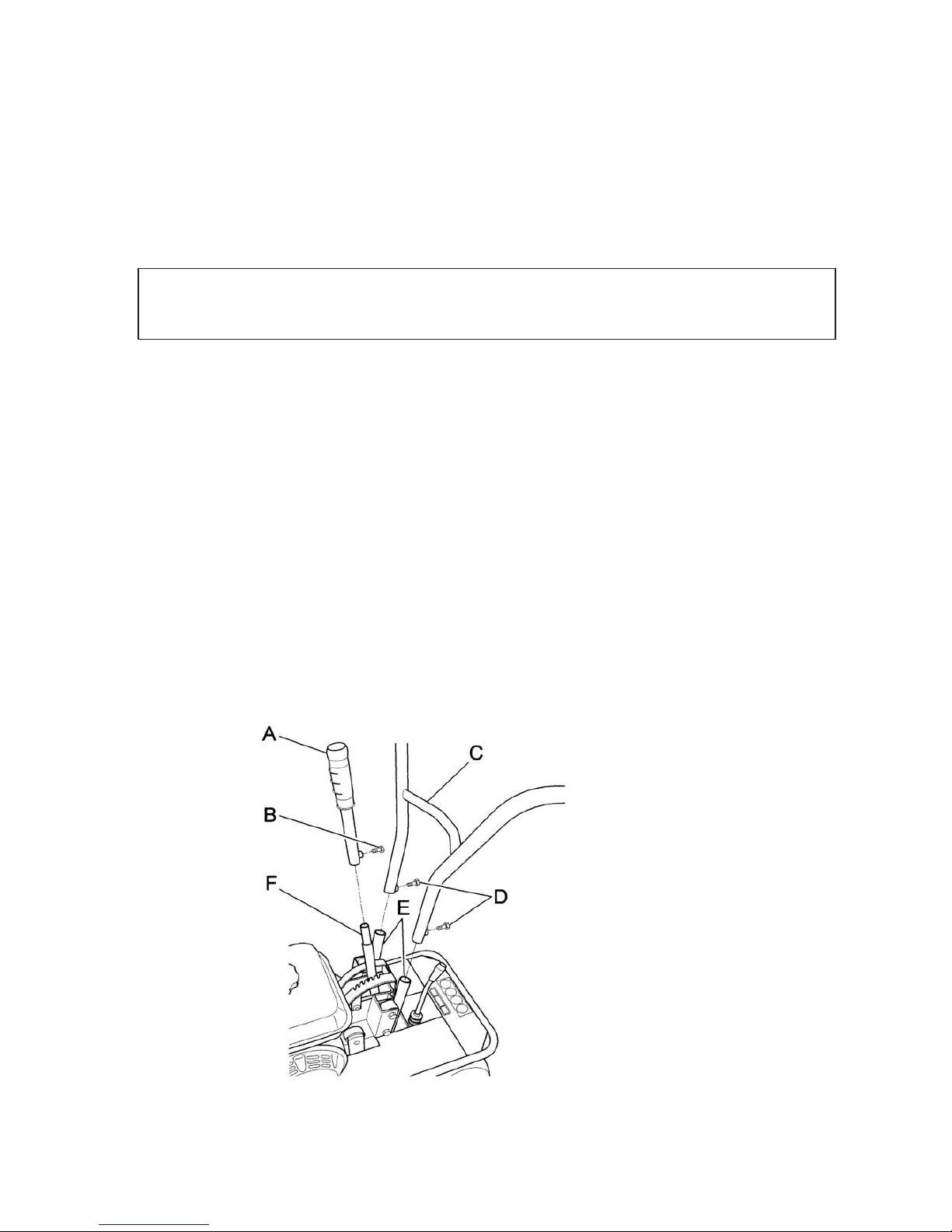

Lift the handlebar (Fig. 3 Rif. C) and insert it in the supports shown in Fig. 3 rif. E.
Select the required cutting height and secure the setting using the screws provided
(Fig. 3 ref. D).
Fit the end part of the cutting height adjustment lever (Fig. 3 Ref. A) into its relative
support (Fig. 3 ref. F) and secure using the screw provided (Fig. 3 Ref.B).
Figure 3
Before switching on ensure that the machine has been fully assembled correctly.

12
370406 F103104A
8. SAFETY INFORMATION
Before using the turf cutter it is essential that the operator has understood the warnings,
do’s and don’ts and precautionary measures given in this manual and in the engine manual:
the prevention of injury to the operator, third parties, animals or objects directly depends
on observance of these instructions.
A) GENERAL INSTRUCTIONS
Use of the turf cutter for purposes other than those envisaged is strictly prohibited.
Climbing aboard and/or riding on the turf cutter is strictly prohibited.
Tampering with the safety systems and guards is strictly prohibited.
Modifications to devices/components not envisaged by the manufacturer are strictly
prohibited.
The electrical parts of the engine must be protected at all times.
B) TRAINING
Read the Operator’s Manual and the Engine Manual before using the machine.
Use of the machine by minors under the age of 16 years or by persons without the
necessary psychological and physical capabilities is forbidden.
Do not use the machine near other persons or within enclosed areas.
The placing of hands, other parts of the body and clothing in the moving parts of the
machine is prohibited.
It is forbidden to approach the moving parts.
Before carrying out any inspection or servicing operations make sure that the engine
has been switched off and the spark plug wire removed.
C) PREPARATION
Make sure that the working area around the machine is free of obstacles and has
sufficient lighting.
Before switching on the engine make sure there are no persons, animals or vehicles in
the vicinity .
Before switching on the engine make sure that both engagement levers (forward clutch
control lever - Fig. 1, ref. C and blade clutch control lever - Fig. 1, ref. A) are in the
disengaged position (released) ; then place the gear lever in neutral (Fig. 2, ref. C )
Before switching on the machine make sure that the screws, fixing elements and
protection devices are in place and that the affixed notices are legible.
Then: Make sure that the wheel fixing bolts have been tightened fully.
Secure all blade nuts and fixing bolts to prevent their loss during work operations.
Replace any old or worn blades.
The cover ( Fig. 1, ref. F) should not be moved for any reason whatsoever while the
machine is in use.
When switching on the engine check the position of the various control levers (see the
section on “Controls and adjustments”).

13
370406 F103104A
Take care when handling fuel. Fuel is highly flammable and its vapours explosive :
-Only use an approved container
-Take care not to remove fuel caps or top up the tank with the engine running.
-Allow the engine to cool before proceeding with fuel-filling operations.
-Do not smoke during this operation.
-Never fill the machine with fuel in an indoor ambient
-It is advisable to use a wide funnel to prevent spillage of fuel on the engine and
on other surfaces of the turf cutter.
-If any fuel is spilled do not attempt to switch on the engine; simply move the
machine away from the area of spillage before switching on.
-After filling up with fuel reposition and screw the fuel tank cap right down.
 Do not rest the turf cutter or the fuel container in indoor environments with naked
flames
D) WORKING USE
When working keep everyone at a minimum distance of 10 metres from the machine.
Keep the engine well ventilated and clog-free (materials and other residue) to prevent
demage to the engine and risk of fire. Clean the cooling fan and fins regularly.
Clean the air filter at the same time as well.
Drive smoothly, avoiding brusque starts, braking and turns.
Take care not to touch the silencer when hot.
If a slipping belt causes abnormal noise, smells or overheating, switch off the engine
immediately and check the machine to prevent the outbreak of fire and damage to the
transmission.
The blade is extremely dangerous. Take great care during operation. Do not use feet
or hands to push the machine down into the turf and do not allow anyone to stand
either in front of the machine or in its direction of travel.
Safety goggles and ear protection devices must be worn. Safety gloves must also be
worn during machine operation and maintenance.
Do not switch on and operate the turf cutter in enclosed areas since the engine gives
off carbon monoxide fumes which are colourless, odourless, tasteless and extremely
dangerous.
Supervise the clothing of personnel operating the machine: a long-sleeved jacket with
close-fitting cuffs, long, close-fitting trousers, heavy-duty footwear, and a protective
cap or helmet should be worn. Avoid wearing loose-tailed clothing, unbuttoned jackets
or torn, undone or partially zipped up items to prevent them from being caught up in
the moving parts.

14
370406 F103104A
WARNING
During operation the lawn and turf are cut into strips. Should the cutter's wheels skid
during use it is advisable to adjust the cutting height using the special lever (Fig. 3, ref.A).
If this operation does not prevent this occurence check the state of the terrain. If it is too
dry it should be wetted so that the blade encounters a slight resistance, thus making
cutting operations easier.
WARNING
When working in a stony or obstacle-riddled area try to remove as many objects as possible
before commencing cutting. Then work at a greater cutting height than usual.
WARNING
Stones and other objects may be thrown outwards in direction of the perator or of other
persons in the vicinity. Keep at a safe distance from persons, nimals and objects.
If the cutting mechanism accidentally comes into contact with an object (stump or
stone), switch off the engine and carry out the following operations:
-Inspect the damage
-Do not attempt to repair it if unskilled to do so
-Check that no parts have come loose
Do not use the machine if it does not work properly or is broken: seek authorized
service.
It is strictly prohibited to leave the turf cutter running whilst unsupervised.
It is strictly prohibited to transport the machine with the engine running. When loading
the machine onto a vehicle, the inclination of the ramps must not exceed 15°.
WARNING
EXERCISE CAUTION WITH GRADIENTS. Danger of machine overturning.
Given its outdoor use, it is advisable not to use the turf cutter when it is raining.
The area next to the engine exhaust may reach a high temperature.
WARNING
Danger of burns.
Do not go near water fountains or precipices and do not cross narrow bridges during
work operations to prevent the risk of falling.
Do not work on steep banks.
In the instance of difficulty or emergency stop simply release the forward clutch control
and blade movement levers and return the gear lever to neutral position.
Work on flat ground for the utmost safety.

15
370406 F103104A
9. TRANSPORTATION OF THE MACHINE
LOADING AND UNLOADING FROM A VEHICLE
For transportation it is preferable to use a vehicle with an open bed.
Choose firm, flat ground.
Switch off the vehicle’s ignition, put into reverse gear, pull on the hand brake and block
the tyres with chocks to prevent accidental movement of the vehicle.
WARNING
Raise the blade to maximum height to prevent danger of its catching the ramp edges.
Do not stand in front of the machine
Firmly hook the loading ramps onto the vehicle bed.
Use stable load ramps with a non-slip surface strong enough to take the weight of the
machine. The inclination of the ramps must not exceed 15°.
Recommended length : at least 31/2times the vehicle bed’s height from the ground.
Recommended width : to be chosen according to the tyre width of the machine
Proceed with the loading of the machine, manoeuvring it carefully. Set the accelerator
lever at minimum (Fig. 1, ref. B)and using the lever as shown in figure 2, ref. C, engage
the forward gear for loading, or the reverse gear for unloading.
During loading/unloading operations on the ramps avoid operating the blade clutch
(Fig. 1, ref. A) and the gear lever (Fig. 1, ref. H) because such actions may prove
extremely dangerous.
Line the front wheels up with the centre of the loading ramps.
Take care when the machine passes from the loading ramps to the vehicle bed, because
a shift in balance occurs.
E) AFTER USE
Before moving away from the machine, place the gear lever in neutral (Fig. 2, ref. C)
and switch off the engine by moving the switch (Fig.1,ref.I) to the 0 position.
For greater safety shut off the feed cock (Fig. 4).
Once loaded, turn off the engine using the relative switch (Fig. 1, ref. I), make sure
that the service brake has automatically come into operation upon release of the forward
clutch control lever ( fig. 1, ref. C), block the machine wheels using chocks and firmly
tie the machine to the vehicle.

16
370406 F103104A
10. DESCRIPTION OF THE SAFETY AND GUARD SYSTEMS
WARNING
The safety devices must never be tampered with. It is necessary to understand how they
work and safeguard their efficiency and correct operation. In the instance of doubt, problems
or malfunction contact your dealer.
FORWARD CONTROL AND BLADE MOVEMENT LEVERS
When released both of these levers instantly disengage the transmission connected to
them. In this way they act as safety devices.
In the instance of difficulty or sudden emergency, the quick release of these levers will
return them to their standard position (raised).
COVER
The cover ( Fig. 1 point F) partially protects the machine from any projected objects and
contact with the moving blade. Use of the machine without the said cover is strictly
probhited.
The cover should only be removed when replacing belts with the machine switched off.
11. OPERATIONS TO BE CARRIED OUT BEFORE SWITCHING ON
Position the turf cutter outdoors on sufficiently firm, flat soil. Read the instructions provided
by the engine manufacturer in the relative manual and follow them carefully to prevent
situations arising which may endanger either persons or the machine.
WARNING
New machines straight from the factory do not have any engine oil.
Then check:
-the state of the blade by inspecting them;
-that all the screws are tightened, particularly those securing the blade;
-that the guards and safety devices are securely tightened.
-Before switching on the turf cutter make sure that there are no persons in the vicinity.
-During operation do not allow persons near the machine, especially children. The
operator is responsible for any harm done persons in the working area of the machine.
Oil recommendations
The engine is supplied without oil. Before starting up the engine fill with oil and check the
oil level with the engine in a horizontal position. Do not overfill.
Use of a high-grade detergent oil is recommended (refer to the enclosed engine manual).
Fuel recommendations
Use of fresh, clean lead-free petrol is advised.
WARNING
It is advisable to consult the engine manual before switching on the machine.

17
370406 F103104A
12. STARTING AND DRIVING THE TURF CUTTER
The machine can be switched on once all the aforementioned preliminary operations
have been carried out.
Place the feed cock in the OPEN position (direction shown by the arrow, Fig. 4).
Bring the choke to the CLOSED position for a cold start (direction shown by the arrow,
Fig. 4a).
Set the accelerator lever at the minimum position.
Grip the engine pull lead handle ( fig. 4b ) and pull gently until you feel the “bite”, then pull
on the lead sharply to overcome the pressure, prevent kickback and switch on the engine.
Repeat the procedure, if necessary, with the accelerator lever in INTERMEDIATE position.
Once the engine is running, set the accelerator in the MINIMUM position and gently return
the choke to the OPEN position (Fig. 4a).
Cleaning of the machine is recommended after use (see the section “Cleaning the
machine”).

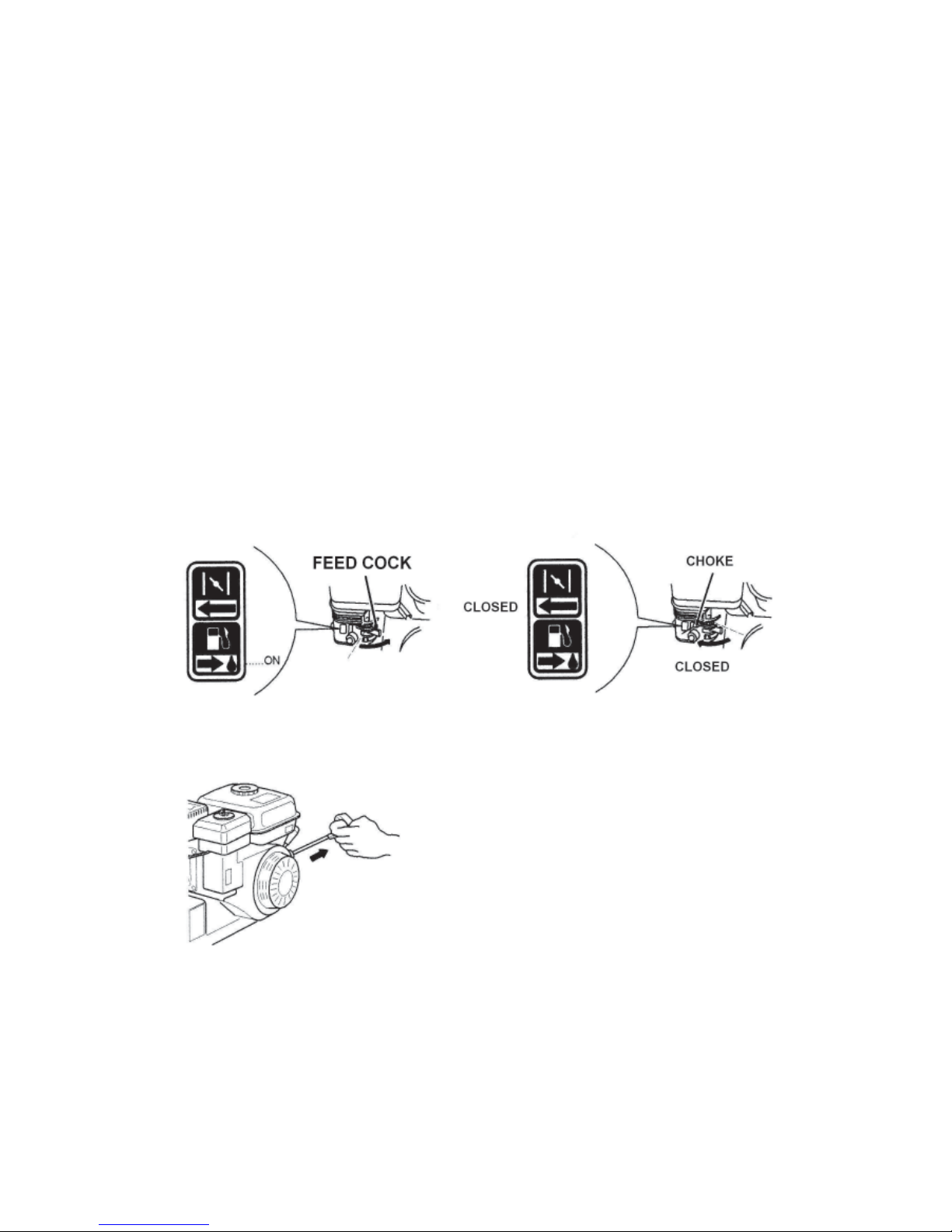

Figure 4 Figure 4a
Figure 4b

18
370406 F103104A
After switching on the engine following the instructions given in the previous paragraph:
1. Move the gear lever ( fig. 2) to the 1st speed position.
WARNING
If the gear engages with difficulty, partially engage the clutch for an instant before trying to
engage the gear again.
2. Engage the blade control level using the relative lever ( Fig. 1, ref. A).
WARNING
Choose a cutting height suitable for the type of terrain the machine is to be used on.
3. To move the machine, accelerate and then engage the forward clutch using the relative
lever (Fig. 1, ref. C).
4. To select a different gear the forward clutch and the blade clutch must first be
disengaged by releasing their levers (Fig. 1, ref. C and Fig. 1, ref. A). Then select the
desired FORWARD position (1°- 2°, in fig. 2) using the gear lever (Fig. 2), then re-
engage the forward clutch control lever (Fig. 1, ref. C) to set the machine in motion
again.
5. To stop the blade release the relative lever ( Fig. 1 ref. A).
6. To stop forward movement of the machine release the relative lever ( Fig. 1, ref. C),
then switch off the engine by moving the switch to the position (O) (Fig. 1, ref. I).
DRIVING THE MACHINE
WARNING
When using the machine for the first time it is advisable to get the feel of it by executing
manoeuvres on flat ground free of foreign objects.

19
370406 F103104A
13. CUTTING TIPS
1. Before commencing cutting operations, read the safety instructions given in the previous
sections.
2. At first the setting of a relatively high cutting height is recommended (using the relative
lever in figure 2, ref. A), lowering it gradually according to working conditions.
3. Engage the blade clutch (Fig. 1, ref. A) only after having carried out the machine
switch-on and gear engagement operations.
4. Before engaging the blade clutch (Fig. 1, ref. A), gradually move the accelerator (Fig.
1, ref. B) until the required speed is reached.
WARNING
Take great care because the blade moves at very high speed.
14. CHECKS
-Adjust the belt and cable control tension after the first few working hours to compensate
initial loosening.
-Briefly operate all the machine’s components to detect any abnormal noises or
overheating.
-During the initial running in period avoid heavy-duty usage to encourage proper settling
of the mechanical parts.
-Never neglect maintenance operations after work and carry out all prescribed checks
regularly.
A) TYRE PRESSURE
Regularly check the tyre pressure. If both two tyres are not inflated to average pressure
the machine will tend to travel sideways during operation.
B) CABLE CONTROL ADJUSTMENT
To adjust the cables place the machine on flat ground, switch off the engine and disconnect
the wire from the spark plug.
B1)BLADE CONTROL CABLE
Make sure that there is no play between the upper end of the cable and the adjustment
screw. If there is, or if the cable has stretched, restore to ideal position using the relative
adjustment screw(Fig. 5, ref. A).
If adjustment using the relative screw proves ineffective, the belts, and hence the engine
mounting, must be adjusted. To perform this operation refer to section 14C “ BELT
REPLACEMENT AND ADJUSTMENT” of this manual.

20
370406 F103104A
B2) FORWARD CONTROL CABLE
Make sure that there is no play between the upper end of the cable and the adjustment
screw. If there is, or if the cable has stretched, restore to ideal position using the relative
adjustment screw ( Fig. 5, ref. A).
If adjustment using the relative screw proves ineffective, the belts, and hence the engine
mounting, must be adjusted. To perform this operation refer to section 14 C “ BELT
REPLACEMENT AND ADJUSTMENT” of this manual.
Figure 5
C) BELT REPLACEMENT AND ADJUSTMENT
Switch off the engine and disconnect the spark plug wire before carrying out any
maintenance or repair work on the machine.
If a belt is worn or breaks it should be replaced as follows:
- remove the metal guard ( fig. 6 ref. A), by unscrewing and taking out the screws shown
in figure 6 ref. B and C.
C1)BLADE BELT
Disconnect the connecting rod (Fig. 7 Ref. B) by removing the nut and loosening the
screw that secure it to the arm (Fig. 7 Ref. C)
- Once the connecting rod has been disconnected the belt can be slipped off (Fig. 7
Ref. A) by manually turning the relative lower pulley anticlockwise (Fig. 7 Ref. D).
- To fit the new belt follow the procedure in the reverse order.
- Afterwards check that the belt is correctly positioned by using the relative blade control
lever. When this lever is lowered and the belt is at maximum tension, the distance
between the belt and the relative belt guides (Fig. 7 Ref. E) should be approximately 2
mm.
- Then make sure that the belt works properly by tugging lightly on the self-winding
starter cable with the engine switched off and the spark plug wire disconnected. If
everything is working properly the pulley will turn on the engine but will not engage the
belt.
If the belt engages push the engine back slightly towards the rear of the machine (in
the direction of the handlebars) until the belt is in the correct position.
