Billy Goat MV650SPHEU User manual

MVSPEU Owner’s Manual
Part No 840286 1 840286_B_HI
Self-Propelled Multi-Vac Owner’s Manual
MV650SPHEU, MV601SPEEU, and MV650SPHDSEU
Accessories
Original Instructions
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
CASTER KIT
Use on hard surface
for maneuverability.
P/N 840129
HOSE KIT
For vacuuming hard
to reach areas.
P/N 840116
BAG LINER KIT
To collect leaves,
thatch, and grass.
P/N 840134
FELT BAG KIT
Use on all dusty
conditions.
P/N 840194
LINER KIT
Interior housing liner
to decrease housing
wear.
P/N 840201
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 2 840286_B_HI
CONTENTS
SPECIFICATIONS AND SAFETY3
INSTRUCTION LABELS 4
ASSEMBLY INSTRUCTIONS 5-6
OPERATION 7-9
MAINTENANCE AND TROUBLESHOOTING 10-15
ILLUSTRATED PARTS LIST 16-24
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 3 840286_B_HI
SPECIFICATIONS
MV650SPHEU MV601SPEEU MV650SPHDSEU
Engine Type Honda GSV190LN1L Briggs and Stratton
Professional Series
125P070039H5
Honda GSV190LN1L
Horsepower 6.5 (4.85 kW) 5.0 (3.73 kW) 6.5 (4.85 kW)
Fuel Capacity 1.6 qt (1.5 L) 1.0 qt. (0.95 L) 1.6 qt (1.5 L)
Oil Capacity 0.58 qt (0.54L) 0.625 qt. (0.59 L) 0.58 qt (0.54L)
Unit Weight 179 lbs (81.2 kg) 204 lbs (92.5 kg) 179 lbs (81.2 kg)
Overall Dimensions 28” Wide x 62.5” Long x
45.5” High
28” Wide x 62.5” Long x
45.5” High
28” Wide x 62.5” Long x
45.5” High
Maximum Operating Slope 20o20o20o
SAFETY
WARNING
This product can expose you to chemicals including gasoline engine exhaust, which is known to the State
of California to cause cancer, and carbon monoxide, which is known to the State of California to cause
birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 4 840286_B_HI
INSTRUCTION LABELS
The labels shown below were installed on your BILLY GOAT®MV Vacuum. If any labels are damaged or missing, replace them
before operating this equipment. For your convenience in ordering replacement labels, part numbers are included in the Illustrated
Parts List. The correct position for each label may be determined by referring to the Figure and Item numbers shown.
LABEL FUEL WARNING LABEL EAR EYE BREATHE READ LABEL HEIGHT ADJUST LABEL CLUTCH
ITEM 55 P/N 400268 ITEM 162 P/N 100346 ITEM 34 P/N 840054 ITEM 120 P/N500176
LABEL DANGER LABEL DANGER LABEL DOOR OPENING LABEL GUARDS
ITEM 11 P/N 400424 ITEM 174 P/N 810736 ITEM 175 P/N 840080 ITEM 118 P/N 900327
ENGINE LABELS CONTROLS
Throttle Drive
P/N 840045 P/N 510127
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 5 840286_B_HI

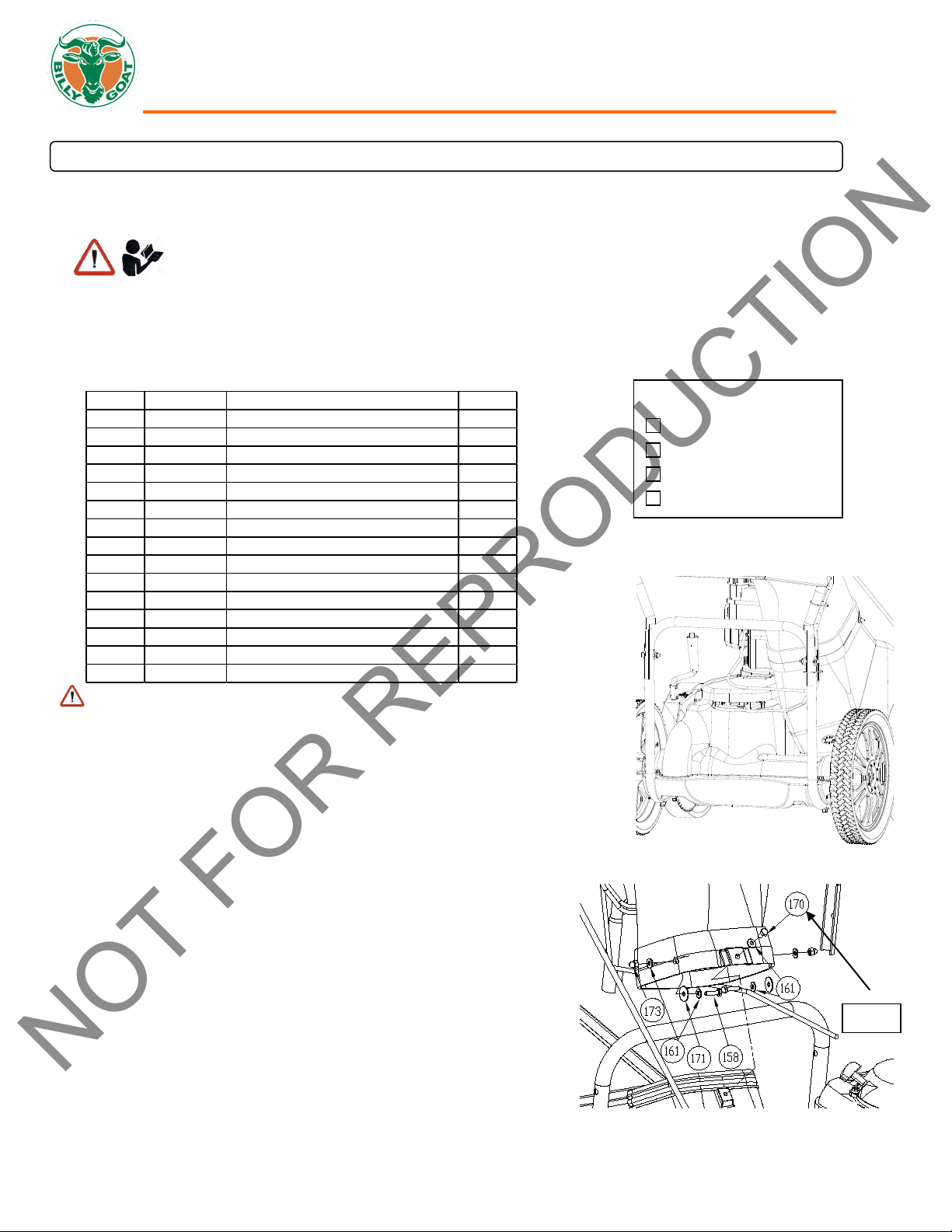

ASSEMBLY INSTRUCTIONS
Your BILLY GOAT®MV Vacuum was shipped in one carton, completely assembled except for the Hood/Upper Handle Assembly.
Mounting hardware for the Hood/Upper Handle Assembly is temporarily installed on the lower handle and the Housing Assembly.
PARTS BAG HARDWARE
DISCONNECT spark plug wire before assembling unit.
1st
ITEM NO. PART NO. DESCRIPTON QTY
139 840061 ROD LIFT NOZZLE DOOR 1
150 900407 TY- WR AP 2
152 8171003 WASHER 5/16" FLAT ZP 4
153 8160002 NUT LOCK 5/16"-18 2
158 8041006 SCREWCAP 1/4"-20 X 1" ZP 2
159 8041031 SCREWCAP 5/16" X1 3/4" ZP 2
160 8171004 WASHER 3/8 FLAT 4
161 8172007 WASHER 1/4" SAE ZP 5
164 400886 ROD END BALL JOINT 3/8" NF 2
165 8041052 SCREWCAP 3/8"-16 X 1 1/2" ZP 1
166 8160003 NUT LOCK 3/8"-16 2
167 8041056 SCREWCAP 3/8"-16 X 2 1/2" ZP 1
170 8041004 SCREWCAP 1/4"-20 X 3/4" HCS ZP 1
171 8172019 WASHER FENDER 1/4" ZP 2
173 840071 NUT ACORN 1/4"-20 2
READ all safety instructions before assembling unit.
TAKE CAUTION when removing the unit from the box. The Hood/Upper Handle Assembly is attached to the
unit by cables.
Boxing Parts Checklist
Honda 6.5 Engine
B&S 6 Engine
Parts bag P/N-840187
Ty-wraps (2 ea)
PARTS BAG & LITERATURE ASSY
Warranty card P/N- 400972, Owner’s Manual P/N-840245, General Safety and Warnings Manual P/N-100294, Declaration of
Conformity P/N-840204

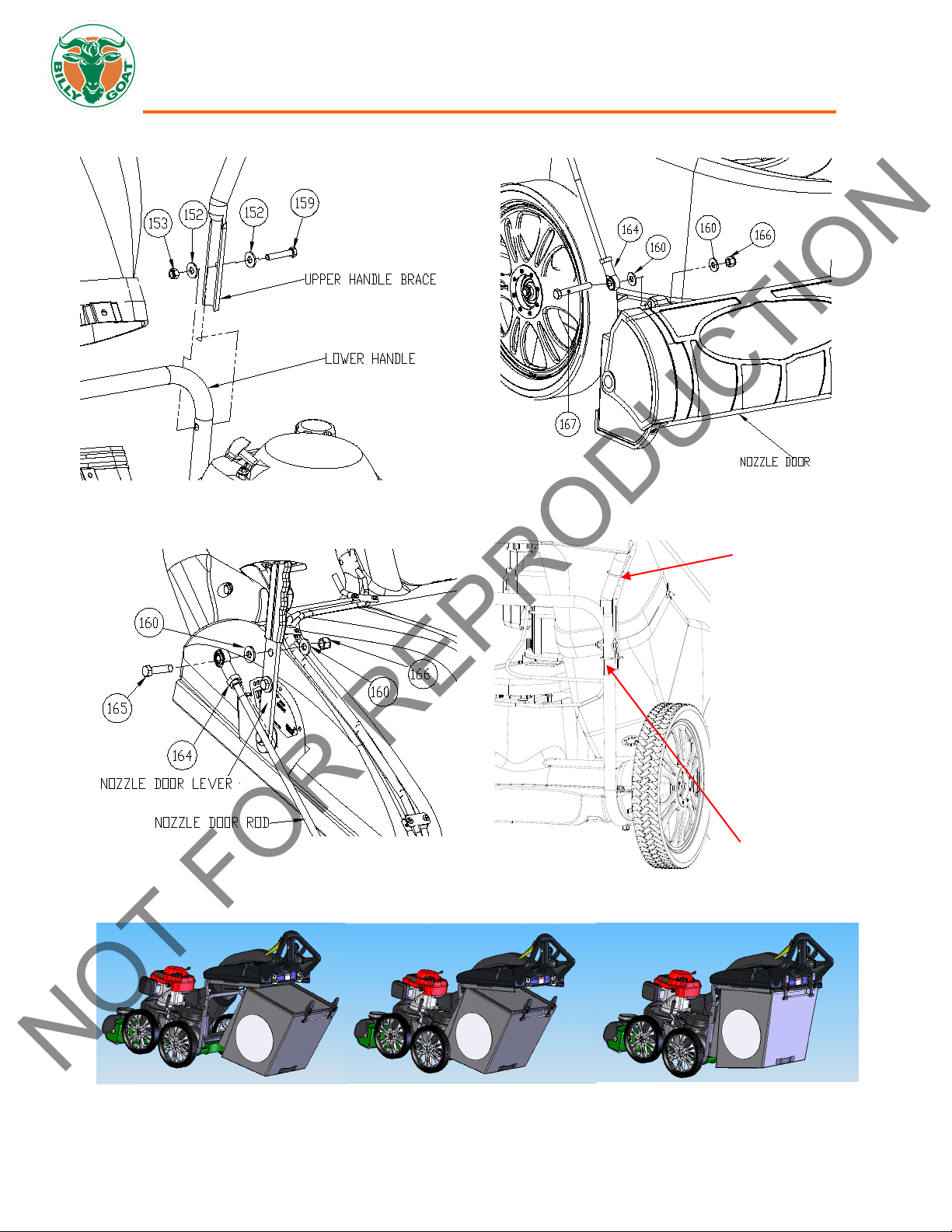

Fig. 1
1. Attach hood assembly to the housing then hold in place during step 2.
NOTE: be sure all cables are routed on the underside of the hood and
housing. (See Fig. 1)
2. Install (item 170) center bolt first when aligned with a nut on the housing.
(See Fig. 2)
3. Attach rest of hood assembly to the housing using corresponding
hardware. NOTE: You will have to insert the bolt/washer from the inside
by reaching through the hood. (See Fig. 2)
4. Attach upper handle brace to lower handle using corresponding hardware.
Then repeat this step on the other side. (See Fig. 3 next page)

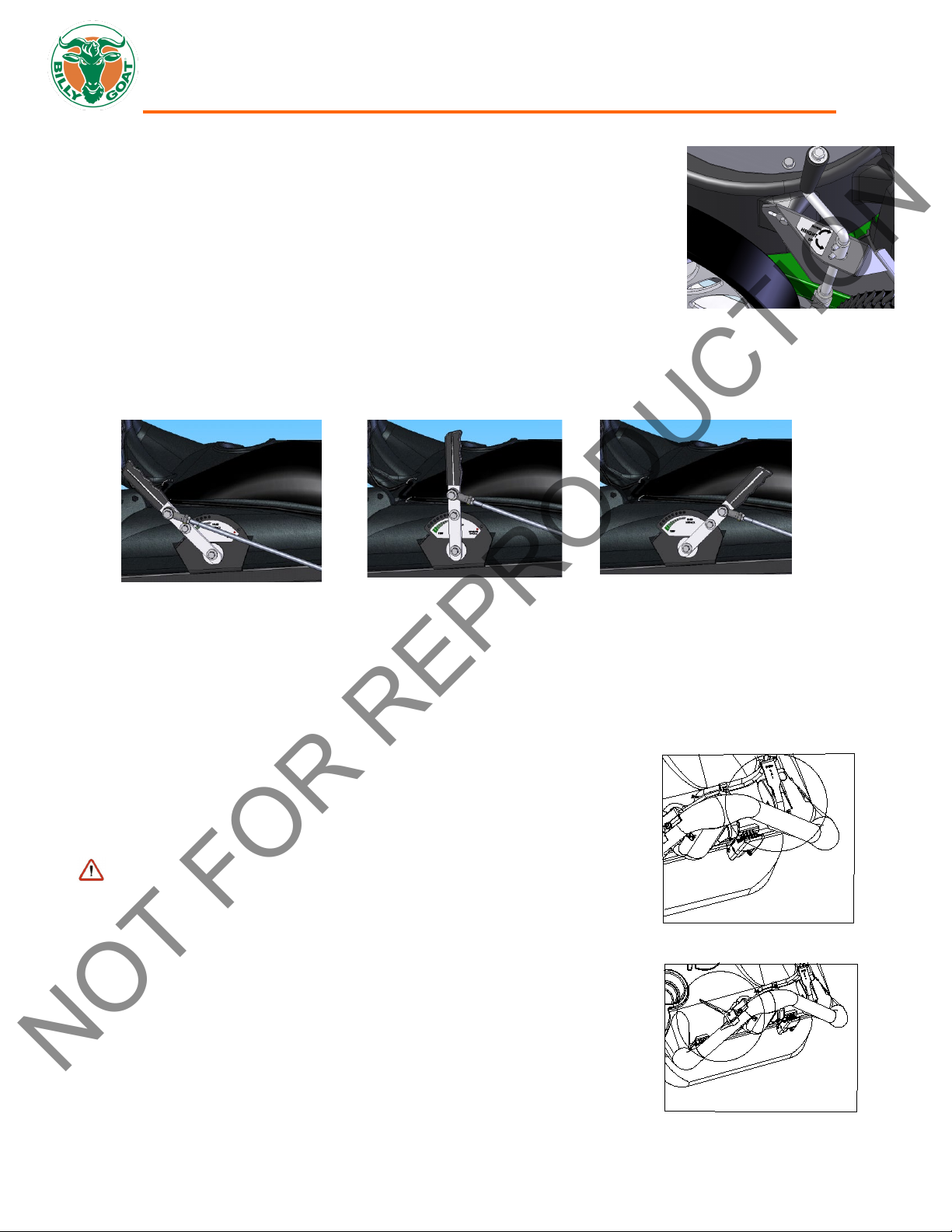

5. Attach rod end (item 164) to the nozzle door rod then secure in place by
tightening jam nut. (See Fig. 4 next page)
6. Attach nozzle door rod to the nozzle door using corresponding hardware.
NOTE: It is easier to do this with nozzle door closed.
7. Attach rod end to rod (See Fig. 5 next page).
8. Attach nozzle door rod to the lever with nozzle door closed and lever in
hose kit position. NOTE: Check to see that the nozzle door opens and
closes all the way (see page 15). Tighten or loosen the rod end (item 164)
for any adjustments. (See Fig. 4 and 5 next page)
9. Install cable ty wraps.
10. Reconnect spark plug wire.
11. Attach the bag. (See Fig. 7)
Fig. 2
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 6 840286_B_HI
HERE
HERE
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 7 840286_B_HI
OPERATION
This vacuum is designed for picking up trash, organic material and other similar debris. It should not be used for other purposes
than what is intended.

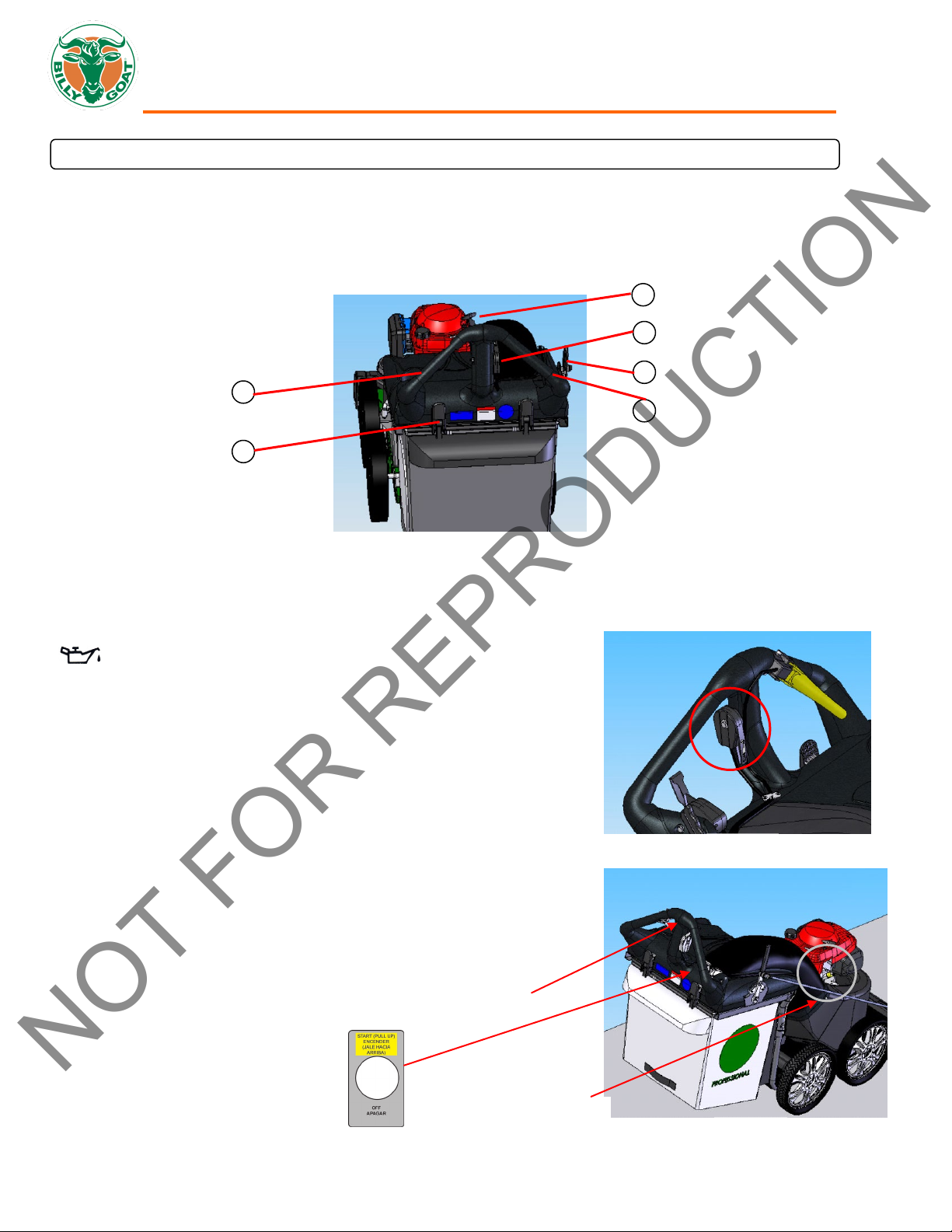

OPERATOR CONTROLS
The operator’s position is at the rear of the machine between the handlebars. The operator should STAND in a position to allow
both handlebars to be grasped firmly, which allows sufficient leverage to steer the machine. Operator’s controls are shown below.
Operator Control Locations
1 Drive Clutch Lever 2 Bag Latch 3 Pull Starter
4 Throttle Control 5 Drive Shifter Control 6 Nozzle Door Adjuster
STARTING
CHECK engine oil level before operating machine.
1
2
3
4
6
5
Secure unit at the handle with left
hand during start.
Pull rope starter with right
hand.
On Electric
models only.
DO NOT START equipment without the debris bag in place.
1. Place equipment on a level, firm surface that is free of rocks or other
debris.
2. Place throttle in START position.
3. Secure the unit with left hand at the handle then pull starter rope with right
hand to start engine. NOTE: Pull starter cord slowly until resistance is felt.
Then pull cord rapidly to avoid kickback.
4. Move throttle control back to FAST position and allow engine to reach
correct operating speed.
5. For Electric models: Set the throttle to the fast position, then pull up and
push forward on the start switch. Choke if needed.
SHUT DOWN
1. Release the drive clutch lever to disengage the drive.
2. Pull the throttle control all the way back to the STOP position.
Fig. 8
Fig. 9
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 8 840286_B_HI
VACUUM NOZZLE HEIGHT ADJUSTMENT
VACUUM NOZZLE DOOR ADJUSTMENT
The vacuum nozzle door adjusts for the maximum performance under various applications.
•With the handle fully back the nozzle is fully opened. This is ideal for turf application. (See Fig. 11)
•For hard surface applications, set the handle midway. (See Fig. 12)
•Close nozzle for use with the Optional Hose Kit (P/N 840116). This adjustment is ideal to use with the Hose Kit. (See
Fig. 13)
VACUUMING OPERATION
This machine is designed for vacuuming leaves, grass clippings, and other types of organic litter.
Debris mixed with cans, bottles, and small amounts of sand can be vacuumed; however, it is not this machine's primary purpose.
Vacuuming cans, bottles, and sand will affect the longevity of your machine. In dusty conditions it maybe necessary to purchase
Felt Bag Kit (P/N 840022).
Do not operate if excessive vibration occurs. If excessive vibration occurs, shut engine off immediately and check for damaged or
worn impeller, loose impeller bolt, loose impeller key, loose engine or lodged foreign objects. Note: See parts list for proper
impeller bolt torque specifications. (See page 13 Impeller removal).
CLEARING ACLOGGED NOZZLE
DISCONNECT spark plug wire before servicing unit.
1. Shut engine off and wait for impeller to stop completely.
2. Disconnect spark plug wire.
3. Wearing durable gloves, remove clog. Caution: clog may contain sharp materials.
4. Reconnect spark plug wire.
For maximum pickup:Adjust nozzle height as close to debris as possible, but
without blocking airflow into the nozzle. NOTE: Never bury nozzle into debris. The
vacuum nozzle is raised and lowered by turning the crank handle clockwise and
counter-clockwise. (See Fig. 10)
Fig. 10
Fig. 11
Fig. 12
Fig. 13
Fig. 14
1. Move shift lever (right side) to correct position (1, 2, or 3) for desired gear. (See Fig. 14)
2. Squeeze the drive clutch lever against the handle to engage the drive. (See Fig. 15)
Fig. 15
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 9 840286_B_HI
DEBRIS BAG
Debris bags are normal replaceable wear items.
Bag liners are available for use in various conditions where debris will be vacuumed. (See Bag Liner Accessories shown on pg 1).
MV650SPHDSEU Only – The dust sock provided will trap dust when vacuuming up dry debris only. The dust sock will need to
be removed periodically and the dust will need to be dumped out as it will accumulate over time. The dust sock can be easily
removed and reattached by separating it from the Velcro strip on the bag underneath.
DO NOT place bag on or near hot surface, such as engine.
Be sure engine has come to a complete stop before removing or emptying bag!
DUST SOCK CARE AND MAINTENANCE (MV650SPHDSEU only)
Purpose: The dust sock acts as a secondary filter lowering the amount of dust that escapes the bag.
Dust socks are to be used in dry and dusty conditions ONLY. Using the dust sock in damp or wet conditions may damage the
dust sock and decrease the effectiveness of the filter.
The dust sock may be installed by simply attaching the mating Velcro strips between the bag and the dust sock. Over time the
dust sock will begin to fill with dust during use. Periodically remove the dust sock, empty the loose dust out and clean the sock.
For a light clean, simply shake the sock, for a deep clean, see below. To remove the sock, simply separate the Velcro.
Dust Sock Care Information:
DO NOT STRIKE THE BAG WITH OR AGAINST OBJECTS DO NOT SNAG THE BAG
Dust Socks are normal replaceable wear items. Replacement P/N 840261
LIGHTLY CLEAN WITH COMPRESSED AIR ONLY, FROM THE OUTSIDE IN.
KEEP THE NOZZLE 6-12 INCHES FROM FABRIC
6”-12”
(152mm-
305mm)
*****TIPS*****
Frequently empty debris to prevent bag overloading with more weight than you can lift.
Many vacuums are used where dust is mixed with trash. Your unit can intermittently vacuum in dusty areas. However, following
these rules will help maintain your machine's ability to vacuum in dusty conditions:
• Run machine at idle to quarter throttle.
• Machine or pressure-wash debris bag if normal cleaning does not fully clean bag. Bag should be thoroughly dry before use.
Having one or more spare bags (P/N 840189) is a good way to reduce down time while dirty bags are being cleaned.
Felt Bag (P/N 840194) accessory is great when used in dusty conditions.
DO NOT GET WET
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 10 840286_B_HI
MAINTENANCE
PERIODIC MAINTENANCE
Periodic maintenance should be performed at the following intervals:

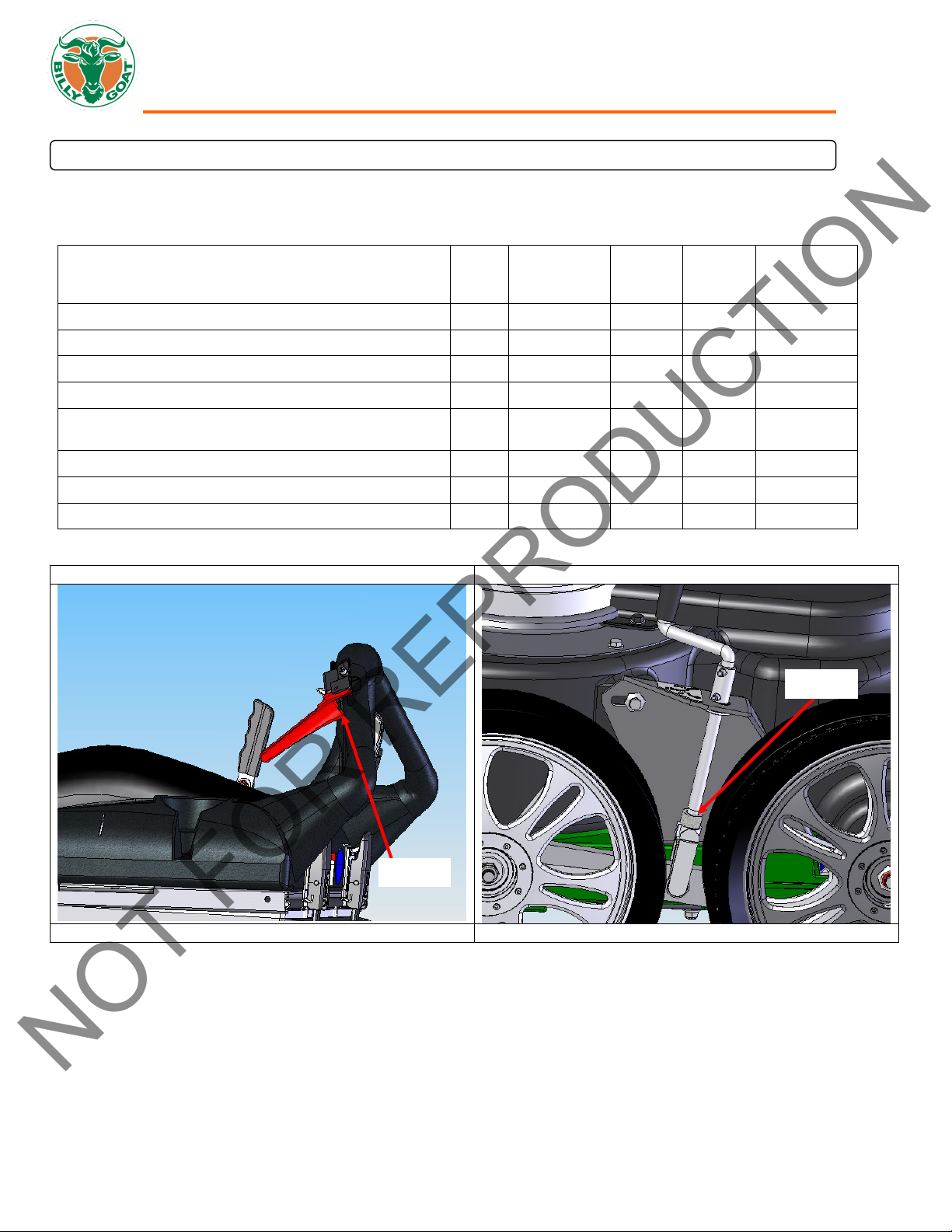

Maintenance Operation Every
Use
Daily or
Every 5
Hours
Every 25
Hours
Every 50
Hours
Every 100-
150 Hours
Inspect for worn or damaged parts 
Check for excessive vibration 
Inspect for loose parts 
Clean debris bag 
Lubricate clutch control lever. NOTE: Use white lithium
grease or equivalent. (See Fig. 16)

Lubricate height adjuster. (See Fig. 17) 
Check drive clutch cable tension 
Replace drive belts 
Apply lubricant on the zinc die cast barrel.
Apply lubricant on the thread.
Fig. 16
Fig. 17
COMMON REPLACEMENT PARTS
•Bag; P/N 840189 Original Equipment Replacement Bag.
•(MV650SPHDS) Bag P/N 840260
•(MV650SPHDS) Dust sock P/N 840261
•Skid; P/N 840041 Nozzle Wear Guard Skid.
•Drive Belt; P/N 840066 Original Equipment Replacement Belt.
HERE
HERE
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 11 840286_B_HI

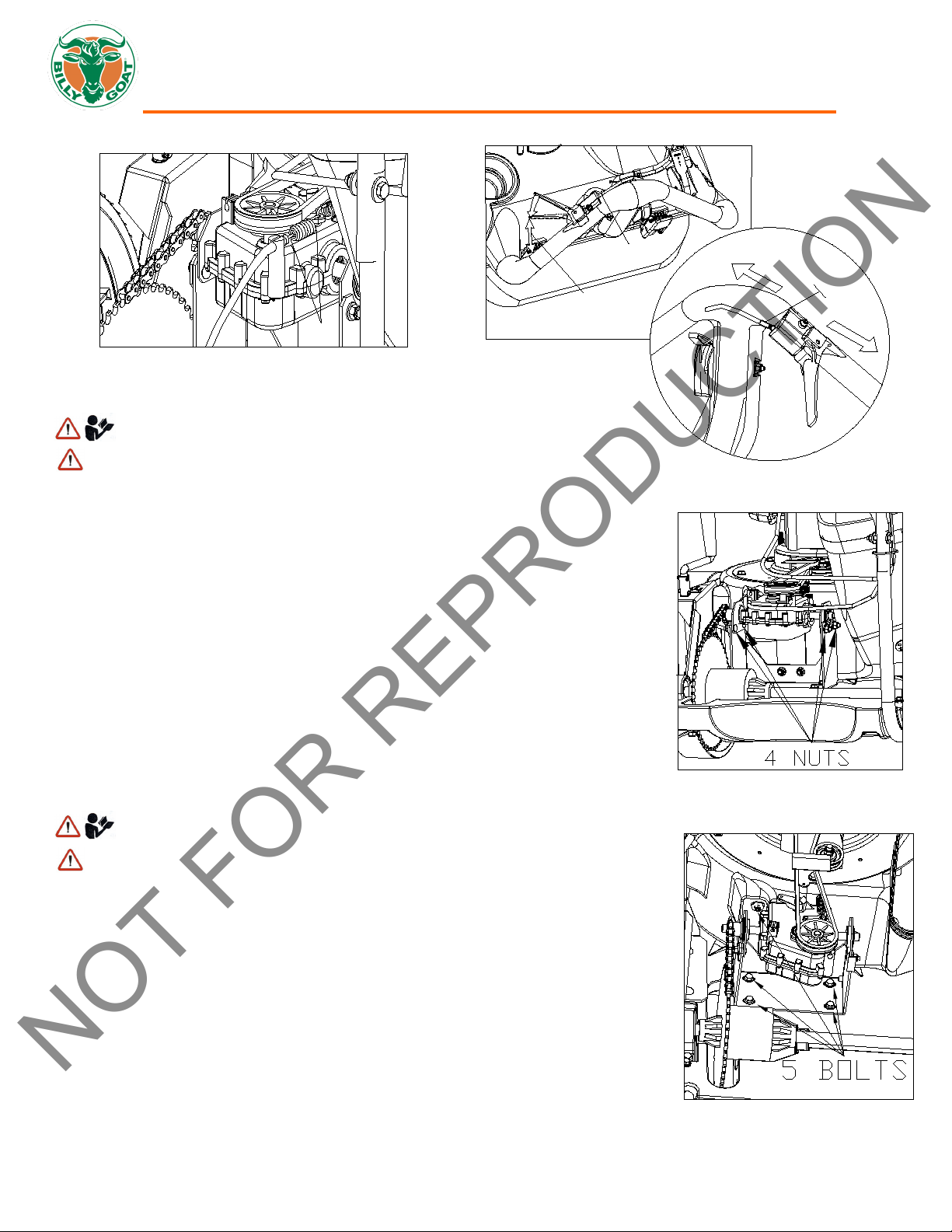

IMPELLER REMOVAL
READ all safety instructions before servicing unit.
DISCONNECT spark plug wire before servicing unit.
1. Wait for engine to cool and disconnect spark plug.
2. Drain fuel and oil from the engine.
3. Remove belt cover by removing 5 screws.
4. Detach drive belt from the transmission pulley by rotating the transmission assembly to relieve belt tension.
5. Remove engine, impeller and mounting plate by removing bolts around outside of housing.
6. Leaving engine fastened to plate, remove impeller bolt and lock washer and slide impeller off crankshaft ( A puller may
be required). CAUTION: Do not drop impeller.
7. If impeller does not slide off crankshaft, place two crowbars between impeller and housing on opposite sides. Pry impeller
away from engine until it loosens. Using a penetrating oil can help loosen a stuck impeller.
8. If the impeller cannot be loosened, obtain a 1” (25.4mm) longer bolt of the same diameter and thread type as the impeller
bolt. Invert engine and impeller and support engine above ground to prevent recoil damage. Thread longer bolt by hand
into the crankshaft until bolt bottoms. Using a suitable gear or wheel puller against the bolt head and the impeller back-
plate (near the blades), remove impeller from shaft.
9. To reinstall impeller, use a new impeller bolt and lockwasher
10. Tighten impeller bolt. Torque impeller bolt to 33-38 Ft. Lbs. (45-52 N.m).
11. Reinstall engine, impeller, and mounting plate onto housing in reverse order of removal.
12. Before connecting spark plug wire, slowly pull engine starting rope to insure that impeller rotates freely.
13. Reconnect spark plug wire.
DRIVE CLUTCH CABLE ADJUSTMENT
READ all safety instructions before servicing unit.
DISCONNECT spark plug wire before servicing unit.
1. Wait for engine to cool and disconnect spark plug.
2. Engage the clutch lever then pull the unit back until it stops freewheeling. The clutch lever should engage around 2 5/16”
of travel or 4 inches from tip of lever to handle.
3. Tighten or loosen cable adjuster nut next to the clutch lever until drive engages at 4” from handle. (See Fig. 19 next
page)
4. Holding the adjuster nut in place with one wrench tighten cable lock nut firmly.
5. Readjust as needed.
6. Reconnect spark plug.
7. Test run unit to insure proper operation after this or any other maintenance procedure.
8. If clutch still will not engage at 4” from handle, remove guard retaining screws and guard.
9. Measure the amount of spring stretch. Spring should measure 1 1/8” when engaged (Lever 4” from handle). (See Fig. 18
next page.)
10. Release clutch lever and then move it to engagement position again and hold it, check the spring length to assure it
stayed in adjustment.
11. Re-install guard and fasteners.
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 12 840286_B_HI
cable adjustment
4"
from
handle
Tighten
Loosen
DRIVE BELT REMOVAL AND REPLACEMENT
READ all safety instructions before servicing unit.
DISCONNECT spark plug wire before servicing unit.
INSTALLING NEW DRIVE CHAIN/ALIGNMENT/TENSION
READ all safety instructions before servicing unit.
DISCONNECT spark plug wire before servicing unit.
1 1/8"
Fig. 21
Fig. 20
1. Wait for engine to cool completely and disconnect spark plug.
2. Remove guard fasteners and guard.
3. Remove throttle control cable from engine.
4. Unplug wiring harness wire at engine.
5. Tilt transmission input pulley toward engine and remove the belt by pulling it
upward.
6. Remove all six screws fastening the engine base plate to the housing.
7. Lift engine assembly from housing.
8. Slide belt inward under the engine and off downward around impeller.
9. Install new belt in reverse order of belt removal. NOTE: before placing new belt on
transmission pulley look under the engine to insure the belt is properly in the
groove of the engine pulley.
10. Install engine assembly in reverse order of removal.
11. Reconnect the spark plug
Allow the engine to cool completely and disconnect the spark plug.
1. Unfasten and remove the guard.
2. Rotate left rear wheel to bring the chain “master link” into view on the axle sprocket.
3. Using the needle nose pliers carefully remove master link retaining spring clip.
4. Slide the master link from the chain and remove the chain.
5. Thread the new chain onto the sprockets, place the ends of the chain on the axle
sprocket, this makes it easier to hold the chain in place when you slide the new
master link in place.
6. Install the new master link and CAREFULLY install the retaining clip.
7. Rotate left rear wheel to find the location where the chain is tightest (there are always
slight variations in the sprockets that make the chain tighter at places in its rotation).
Continued next page
Fig. 18
Fig. 19
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 13 840286_B_HI
WIRING DIAGRAMS

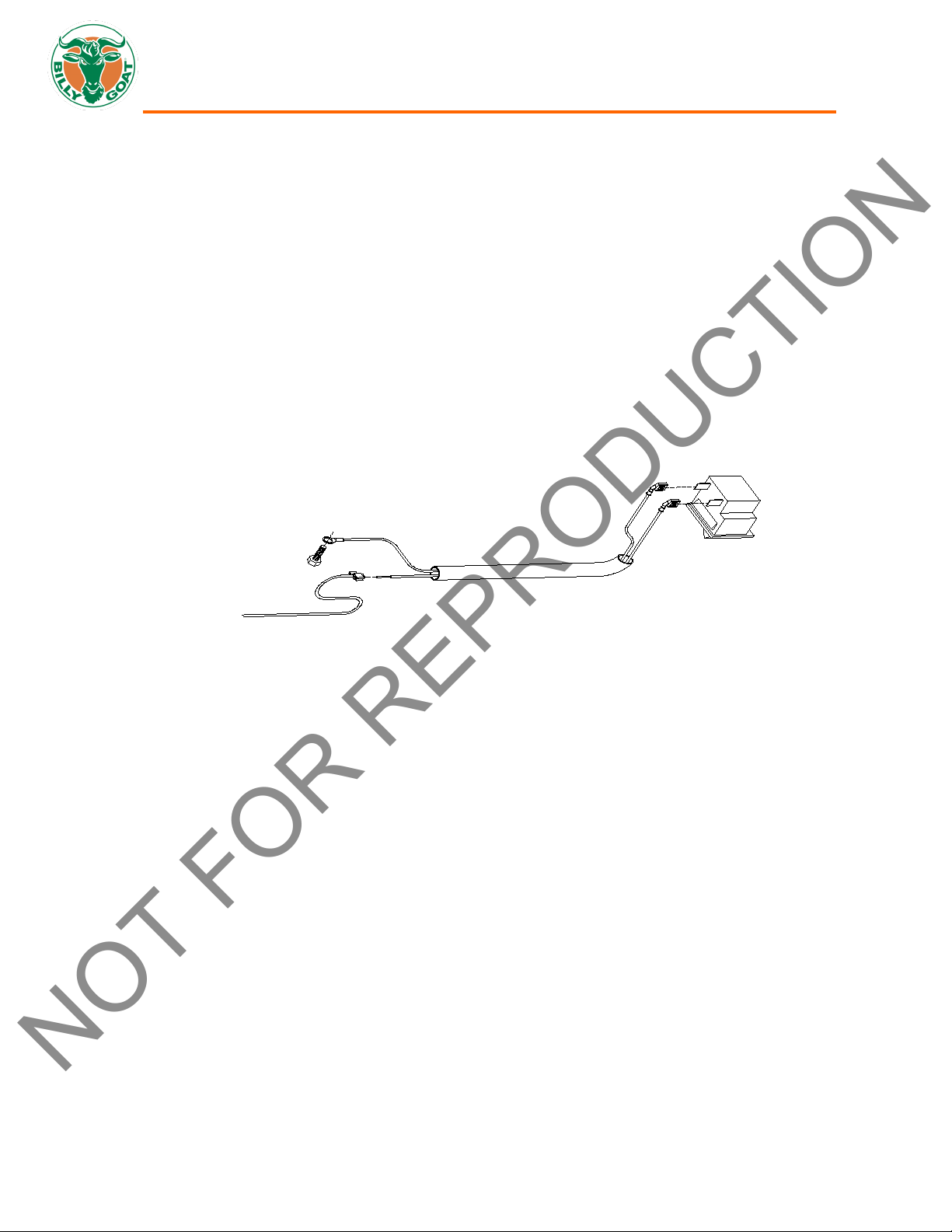

Bag Switch Circuit Schematic Diagram
Battery Care (For Electric-Starting Models)
Proper care can extend the life of a battery. Follow these recommendations to ensure your battery’s best performance and long
life:
• Do not allow the battery charge to get too low. If the machine is not used, charge the battery every 4 – 6 weeks. Operate the
engine for at least 45 minutes to maintain proper battery charge.
• Store an unused battery in a dry area that does not freeze.
• Do not charge an already charged battery. In theory, you cannot overcharge our battery with a trickle charger; however,
when a battery is fully charged and the charger is still on, it generates heat that could be harmful to the battery. A fully
charged battery will read 12V-13.2V with a voltmeter.
• Do not continue to crank your engine when the battery charge is low.
Charging the Battery
Operate the engine for at least 45 minutes to maintain proper battery charge. If the battery loses its charge, you will need to use a
trickle charger to recharge it. Caution: The charger should have an output of 12 volts at no more than 2 amps. Using a charger
with higher amps will cause significant damage to the battery.
• At 1 amp, the battery may need charging for as long as 48 hours.
• At 2 amps, the battery may need charging for as long as 24 hours.
NOTE:Using the Recoil Starter and then running the engine will not recharge a dead or significantly discharged battery.
When you are finished charging the battery, disconnect the charger from the outlet first, and then disconnect the battery
charger wires from the battery. If you leave the battery charger wires connected to the battery, the battery will discharge
itself back into the charger.
8. Rotate the axle several times and listen for “popping” or “clacking”. This indicates too much tension on the chain or
misalignment of the chain. Skip to Step 12 if no “popping” or “crackling” occurs.
Improper Chain Tension
9. At the point where the chain is tightest, check the chain for ¼” to ½” total slack halfway between the axle sprocket
and the transmission sprocket. Skip to Step 11 if the deflection is correct.
10. Loosen 4 nuts holding the bearing bracket (see Fig. 20) slide it very slightly forward to tighten the chain or slide
backward to loosen. Tighten 4 nuts back then check the chain deflection. Repeat this step if necessary.
Improper Chain Alignment
11. Loosen 5 bolts securing the drive system (see Fig 21). Slide it left or right then check the alignment using straight
edge. Tighten 5 bolts then repeat Step 8.
12. Reinstall the guard and all of its fasteners.
13. Reconnect the spark plug.
FROM
ENGINE KILL
SWITCH
BAG
SWITCH
WHITE
BLACK
WHITE
BLACK
GROUND
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 14 840286_B_HI
TROUBLESHOOTING
Problem Possible Cause Solution
Will not vacuum or has poor
vacuum performance
Dirty or full debris bag or filter.
Clean debris bag and filter. Shake bag
clean or wash.
Nozzle height set too high or too low. Adjust nozzle height (see page 8).
Hose kit cap missing. Check for hose kit cap.
Clogged nozzle or exhaust. Unclog nozzle or exhaust (see page 8).
Excessive quantity of debris. Allow air to feed with debris.
Abnormal vibration Loose or out of balance impeller. Check impeller and replace if required.
Loose engine. Check engine.
Engine will not start Throttle in off position. Check throttle control (see page 7).
Engine not in full choke position. Check throttle, choke position (see page 7).
Out of gasoline or bad, old gasoline. Check gasoline.
Spark Plug wire disconnected. Connect spark plug wire.
Gas valve off. Turn on gas valve.
Dirty air cleaner.
Clean or replace air cleaner. Contact a
qualified service person.
Safety Interlock disengaged on bag
plate.
Latch the bag properly or check the bag rod
to see if it is bent.
Engine is locked, will not pull over Impeller plugged or clogged. Remove debris (see page 8).
Engine problem.
Contact an engine servicing dealer for
engine problems.
No self-propelling Drive clutch not engaged. Engage the drive clutch lever.
Transmission not in gear.
Check transmission shift control (see page
8).
Drive belt worn or broken. Check the drive belt.
Drive clutch cable out of adjustment or
broken.
Check the drive clutch cable (see page 11).
Spring tension too loose. Check spring length (see page 11).
Drive chain off the sprocket. Check the drive chain (see page 13).
Self propelled drive will not
release
Improper drive clutch cable adjustment
or cable is kinked.
Check the drive clutch cable (see page 20).
Noisy or broken chain No chain lubrication. Lubricate chain.
Chain misalignment or tension. Check the drive chain (see page 22).
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 15 840286_B_HI
MAINTENANCE RECORD
Date Service Performed
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 16 840286_B_HI

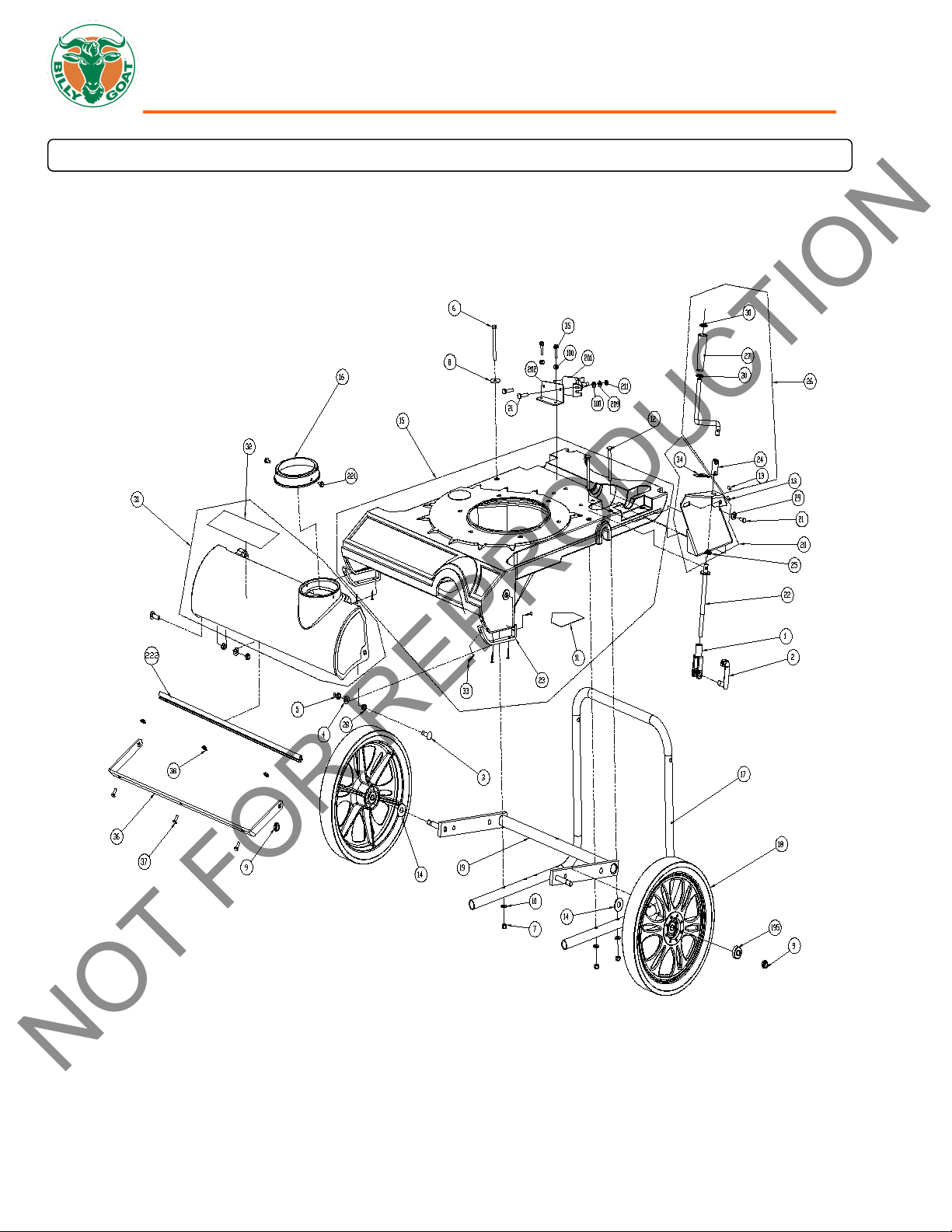

MVSPEU NOZZLE PARTS DRAWING
Nozzle Assembly
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 17 840286_B_HI
MVSPEU NOZZLE PARTS LIST
ITEM NO.
PART
NUMBER
DESCRIPTION
MV650SPHEU
QTY.
MV601SPEEU
QTY.
MV650SPHDSEU
QTY.
1350127 YOKE 1/2 - 20 1 1 1
2350128 PIN YOKE 1/2" 1 1 1
3840243 SCREWCAP BUTTON HEAD 3/8"-16 X 1 1/4" PL 2 2 2
48172009 WASHER 3/8" SAE ZP 2 2 2
58161042 NUT LOCK 3/8-16 LT WT THIN ZP 2 2 2
68041038 SCREWCAP 5/16 -18 x 3 1/2 1 1 1
78160002 NYLON INSERT LOCKNUT 5/16-18 UNC 3 3 3
88172020 WASHER FLAT FENDER 5/16 1 1 1
98161044 NYLON INSERT LOCKNUT 1/2-13 UNC THIN 2 2 2
10 8171002 WASHER 1/4" FC ZP 3 3 3
11 400424 LABEL WARNING OPEI 1 1 1
12 8024050 BOLTCARRIAGE 5\16-18X3 1\2 2 2 2
13 520156 ROLL PIN 1/4 X 1 LONG 2 2 2
14 8172011 WASHER 1/2" SAE ZP 2 2 2
15 840118 NOZZLE MV VAC ASSEMBLY 1 1 1
16 840019 CAP 5 IN HOSE VAC 1 1 1
17 840024 HANDLE LOWER MV VAC 1 1 1
18 840101 WHEEL 14" ASSEMBLY WITH BEARING AND TIRE 2 2 2
19 840104 AXLE FRONT WA MV VAC 1 1 1
20 840155 BRACKET HGT ADJ WA W/LABEL MV VAC 1 1 1
21 8041004 SCREWCAP 1/4 - 20 x 0.75 HWH 1 3 1
22 840034 LINK HGT ADJ MV VAC 1 1 1
23 840041 BRACKET NOZZLE WEAR GUARD MV VAC 2 2 2
24 840029 ROD CONNECT HGT ADJ 1 1 1
25 840073 BUSHING 0.5" ID 0.625 OD X X 0.250 1 1 1
26 840119 ROD HANDLE CRANK ASSEMBLY 1 1 1
27 840057 HANDLE CRANK 0.5 ID X 3.72 LONG 1 1 1
28 840078 BUSHING 3/8" ID 1/2" OD X 3/8" LONG 2 2 2
29 840158 WASHER LOCK 1/4" TWISTED TOOTH 1 1 1
30 840207 NUT PAL 0.5" ID x 0.75 OD 2 2 2
31 840135 NOZZLE COVER MV VAC 1 1 1
32 840259 LABEL MV BADGING 1 1 1
33 840035 SCREW PLASTIC 5/8 8 8 8
34 840054 LABEL HGT ADJ MV VAC 1 1 1
35 8122082 SCREW SELF-TAP 5/16 NC X 3/4 HEX - 4 -
36 840088 BRACKET NOZZLE COVER REINFORMENT MV 1 1 1
37 8024021 BOLT CARRIAGE 1/4-20X0.75 3 3 3
38 900455 NUT FLANGE 1/4-20 3 3 3
100 8172007 WASHER 1/4" SAE ZP - 4 -
195 840017 MV WHEEL BEARING 2 2 2
201 840117 SOLENOID ELEC START - 1 -
202 840198 BRACKET SOLENOID MOUNT MV - 1 -
209 8181007 WASHER LOCK 1/4" EXT TOOTH - 2 -
211 8142001 NUT 1/4" FIN HEX ZP - 2 -
221 840082 SCREW PLASTITE 1/4"-10 X 3/4" 2 2 2
222 840271 EXTRUSION SEAL DOOR 1 1 1
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 18 840286_B_HI

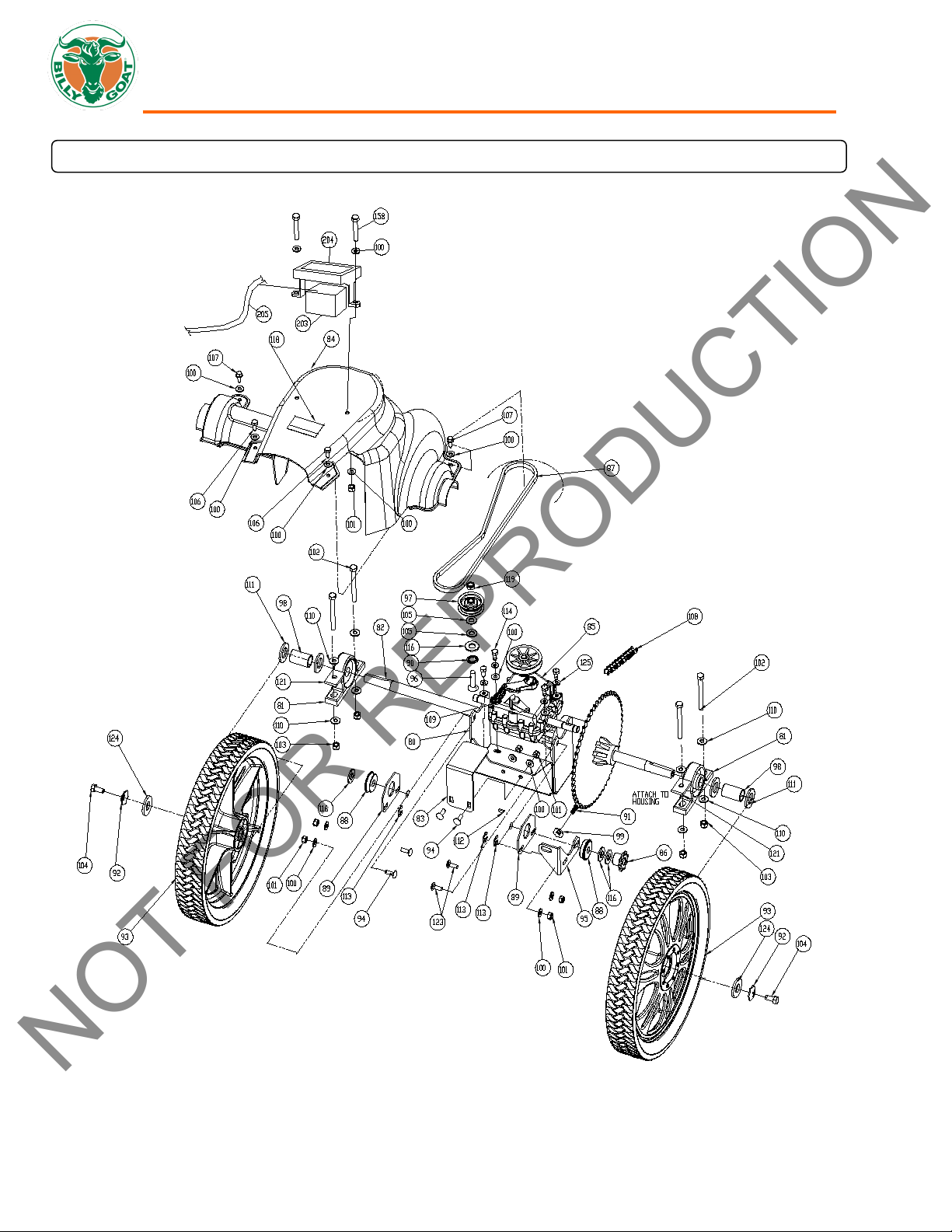

MVSPEU TRANS PARTS DRAWING
Drive /Rear Axle Assembly
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 19 840286_B_HI
MVSPEU TRANS PARTS LIST
ITEM NO.
PART
NUMBER
DESCRIPTION
MV650SPHEU
QTY.
MV601SPEEU
QTY.
MV650SPHDSEU
QTY.
80 840110 BRACKET TRANS MOUNT WA MV VAC 1 1 1
81 350133 BEARING 3/4" W/PILLOW BLOCK 2 2 2
82 840009 DIFFERENTIAL 54 TOOTH D-CUT 1 1 1
83 840086 BRACKET TRANS ANTI ROTATION MV 1 1 1
84 840010 GUARD DRIVE SP VAC 1 1 1
85 840085 TRANSMISSION 3 SPD GENERAL TRANS. 1 1 1
86 510126 SPROCKET 8 TOOTH 1 1 1
87 840066 BELT 3L34 1 1 1
88 510125 BEARING 1/2" CLIP 2 2 2
89 840011 PLATE TRANS BEARING MOUNT MV VAC 2 2 2
90 520025 WASHER LOCK INTERNAL TOOTH 1/2" 1 1 1
91 8041004 1/4 - 20 x 0.75 HWH 1 1 1
92 430298 WASHER 5/16 LOCK TWISTED TOOTH 2 2 2
93 840102 WHEEL 14" ASSEMBLY DRIVE MV VAC 2 2 2
94 8024021 BOLT CARRIAGE 1/4-20X0.75 4 4 4
95 840028 BRACKET TRANS REINFORCE MV VAC 1 1 1
96 8024060 CARRIAGE BOLT 3/8 - 16 X 1 1/2 1 1 1
97 840087 PULLEY IDLER 2" OD X 3/8" ID 1 1 1
98 840027 TUBE 0.75 ID WHEEL SPACER SP MV VAC 1 1 1
99 840158 WASHER LOCK 1/4 TWISTED TOOTH 1 1 1
100 8172007 WASHER 1/4" SAE ZP 14 14 14
101 8160001 NYLON INSERT LOCKNUT 1/4-20 UNC 6 6 6
102 8041036 SCREWCAP 5/16"-18X3" HCS ZP 4 4 4
103 8160002 NYLON INSERT LOCKNUT 5/16-18 UNC 4 4 4
104 8041026 SCREWCAP 5/16"-18 X 3/4" LONG ZP 2 2 2
105 8172009 WASHER 3/8" SAE ZP 2 2 2
106 890359 1/4 - 20 x 5/8 HWH 2 2 2
107 8122082 SCREW SELF-TAP 5/16 NC X 3/4 HEX 2 2 2
108 840072 CHAIN #41 X 42 PITCH 1 1 1
109 800242 SPRING TENSION 1 1 1
110 8171002 WASHER 1/4" FC ZP 8 8 8
111 8172015 WASHER 3/4" SAE ZP 2-6 2-6 2-6
112 510180 WOODRUFF KEY 1/8 X 1/2 1 1 1
113 350146 CLIP 1/2" 3 3 3
114 840213 SCREWCAP 1/4-20 X 5/8 GR. 5 4 4 4
116 8171006 WASHER 1/2" FLAT CUT 3 3 3
118 900327 LABEL DANGER GUARD 1 1 1
119 8161042 NUT LOCK 3/8-16 LT WT THIN ZP 1 1 1
121 840188 BRACKET BEARING FIX 2 2 2
123 8024022 CARRIAGE BOLT 1/4 - 20 X 1 ZP 2 2 2
124 8172020 WASHER FENDER 5/16 2 2 2
125 8177010 SPLIT LOCK WASHER 1/4" 4 4 4
158 8041006 SCREWCAP 1/4"-20 X 1" HCS ZP - 2 -
195 840017 MV WHEEL BEARING 2 2 2
203 840170 BATTERY 12 V - 1 -
204 840095 BATTER HOLD DOWN - 1 -
205 840228 CABLE HARNES ELECTRIC START ONE PIECE - 1 -
NOT FOR REPRODUCTION

MVSPEU Owner’s Manual
Part No 840286 20 840286_B_HI

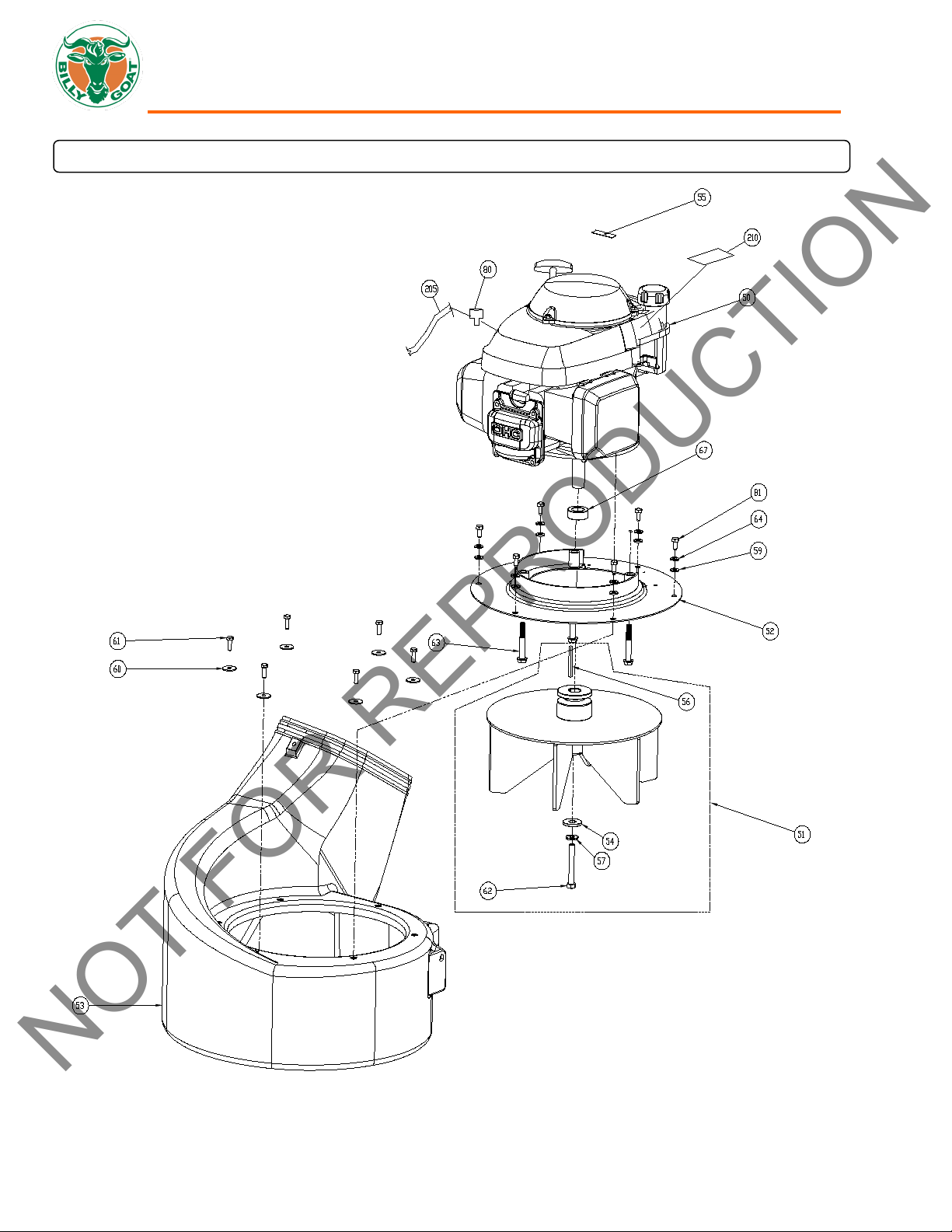

MVSPEU ENGINE PARTS DRAWING
Engine Assembly
NOT FOR REPRODUCTION
