Biolase Waterlase User manual

Waterlase Fractional Handpiece

Instructions for Use

Introduction

The Waterlase Fractional Handpiece™is designed to work exclusively with a Fractional-ready Waterlase iPlus All-Tissue Laser. It utilizes Waterlase advanced laser

technology to atomize water and ablate skin and/or reshape soft tissue with minimal trauma and leverages the absorption properties of the Er,Cr:YSGG 2780nm

laser wavelength in skin, generating 10 microbeams in a single line per laser pulse. Treatment is always performed in contact mode; the Disposable Applicator

(attached to the distal end of the Fractional Handpiece) is in contact with the skin when the laser is activated.

Section 1: Indications for Use

This Fractional Handpiece is indicated for use in dermatology for skin resurfacing.

Section 2: Contraindications, Warnings, and Precautions

Contraindications, Warnings, and Precautions related to the use of the Waterlase iPlus laser are provided in the Waterlase iPlus User Manual. Clinician must know

and adhere to state guidelines and regulations when purchasing and using this accessory. Check with your state and/or local government for required permits or

other applicable laws. The Fractional Handpiece is for skin resurfacing, this is an extra-oral Handpiece and is not intended for intra-oral use.

Only licensed professionals who have reviewed and understood this Instruction for Use should use this device. Practioners must use their own clinical judgment and

professionalism in determining all aspects of treatment, technique, proper power settings, interval, duration, etc. BIOLASE assumes no responsibility for parameters,

techniques, methods, or results.

• Do not use the Fractional Handpiece on patients who are pregnant

• Do not use the Fractional Handpiece on patients undergoing treatment for skin cancer

The laser emits both visible and invisible laser radiation which could cause eye damage if proper safety measures are not taken. Doctor, patient, assistant, and all

others inside or entering the operatory must always wear appropriate laser protection eyewear for the laser wavelength (2780nm, OD4) whenever the laser is in use.

Patient-speciﬁc goggles (Biolase p/n 2201293) are included and must be worn by the patient at all times during treatment.

CAUTION: Prior to use, inspect eyewear for pitting and cracking; do not use if damaged. Always check the eyewear speciﬁcations etched on the glasses to

ensure they offer the protection required for the laser wavelength.

• Do not look directly into the beam or at specular reﬂections while the laser is operational

• Do not point the laser beam towards reﬂective surfaces, including jewelry or protective goggles

CAUTION: Laser plume may contain viable tissue particulates; special care must be taken to prevent infection from the laser plume generated by vaporization

of virally or bacterially infected tissue when using minimal water spray. Ensure that all appropriate protective equipment, including ﬁltration masks, are used

at all times during procedures performed with this laser device.

Use caution when treating patients who have the following conditions:

• History of keloids or hypertropic scarring

• History of herpes

• Isotretinoin (Accutaine/Raccutane) use

• History of vitiligo

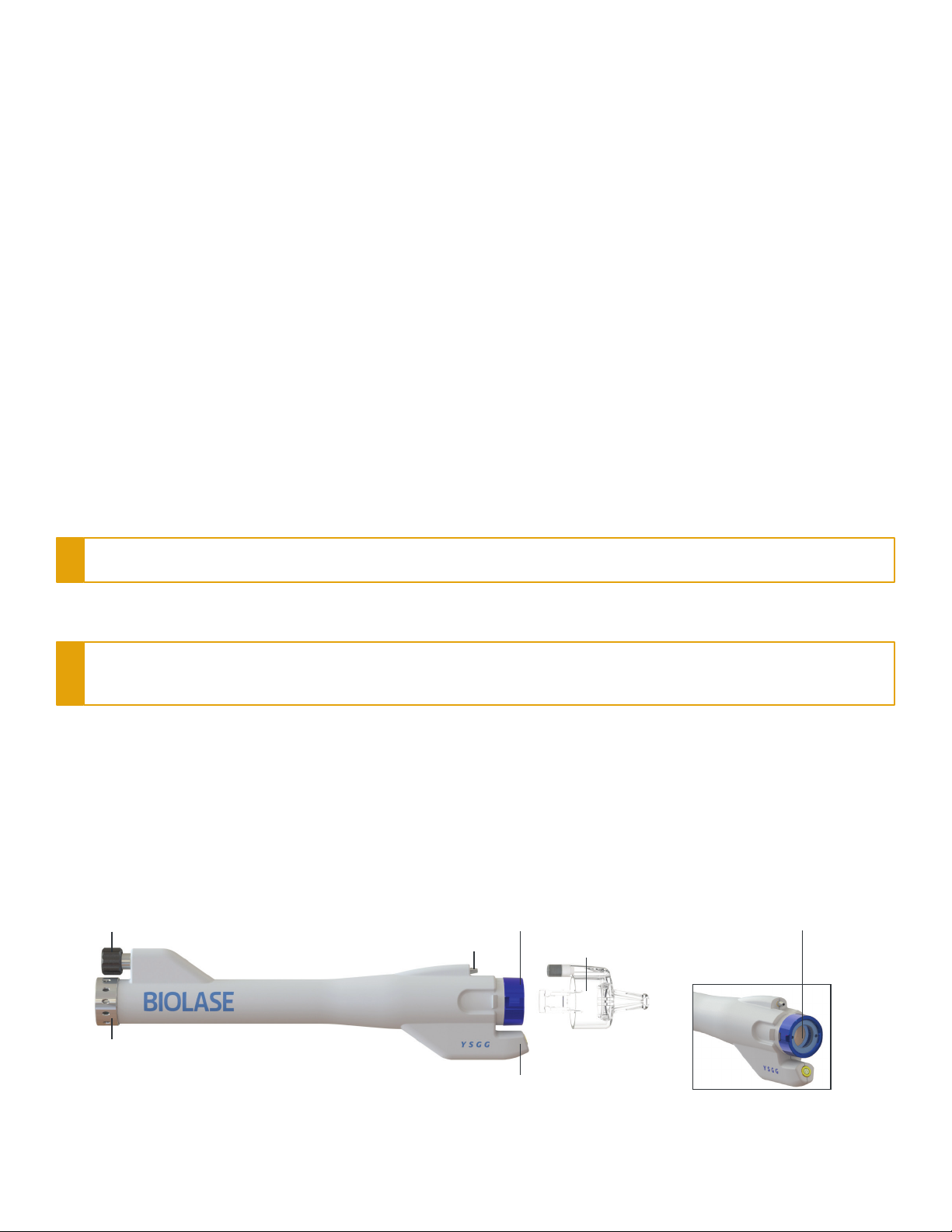

AUXILLARY AIR INPUT AUXILIARY AIR OUTPUT

(PLUME REMOVAL)

SPRAY MIXER (AIR/WATER)

LASER OPTICS HOUSING

DISPOSABLE APPLICATOR

COLLAR

OPTICAL LENS

Figure 1

Section 3: Overview

Fractional Handpiece and Disposable Applicator

Specications

Maximum

power Setting:

Up to 9 W at 15 Hz Spot spacing: 0.9 mm & 1.0mm* in Y direction (*based on movement speed of 1.5 cm/second)

Total energy/pulse: 100 - 400 mJ Fluence per spot: 20 - 82 J/cm2

Energy per spot: 10 - 40 mJ Surface coverage 5% (single pass; *based on movement speed of 1.5 cm/second)

Spot Diameter: 250 μm

The Fractional Handpiece Assembly includes:

• (1) Fractional Handpiece

• (5) Single-use disposable applicators

• (1) Auxiliary air hose assembly with fastener clips

• (1) Handpiece holder attachment

• (1) Patient safety goggles

• Instructions for Use

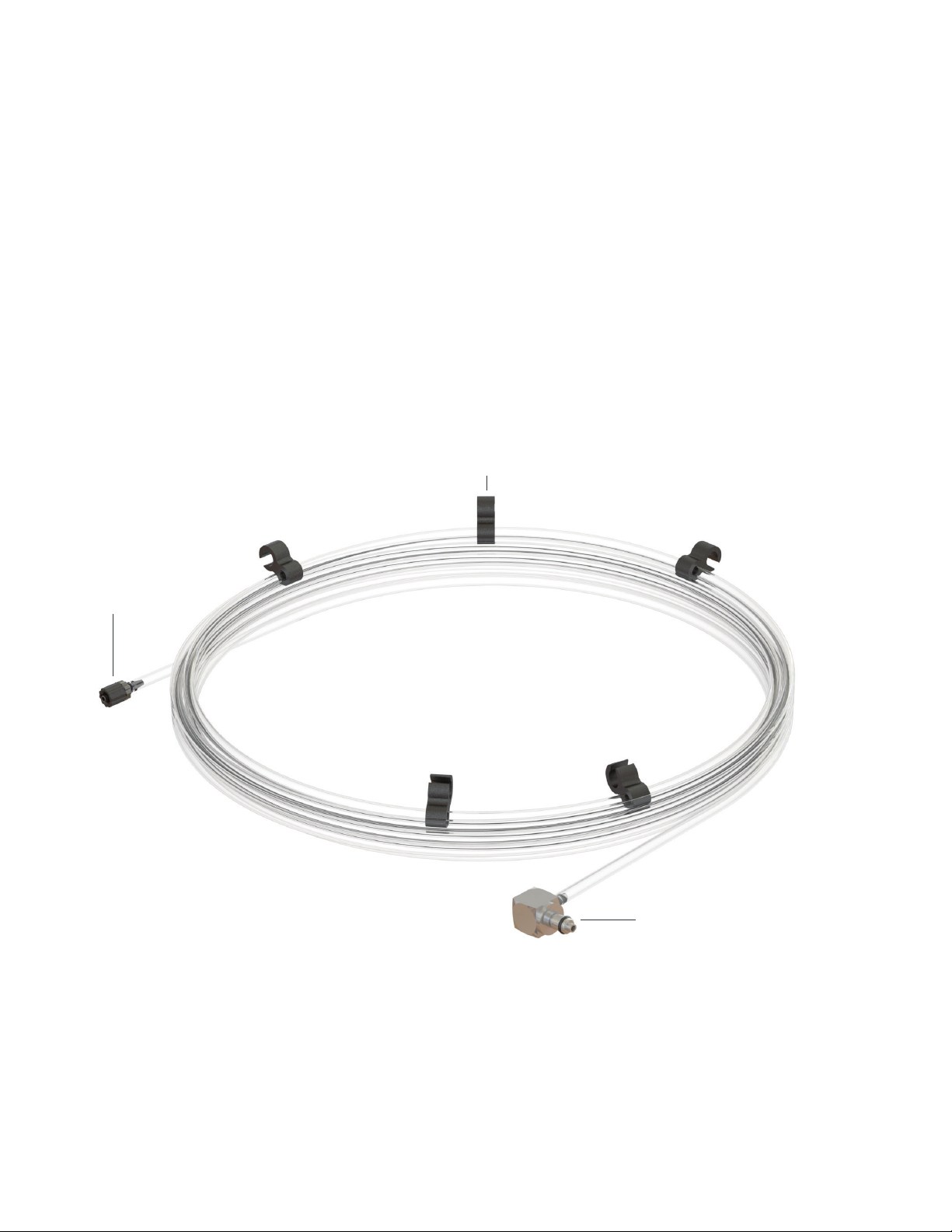

Auxiliary Air Hose Assembly

LUER CONNECTOR TO

AUXILIARY AIR INPUT

ON HANDPIECE

CONNECTOR TO AUXILIARY AIR

OUTPUT ON LASER

FASTENER CLIPS

Figure 2

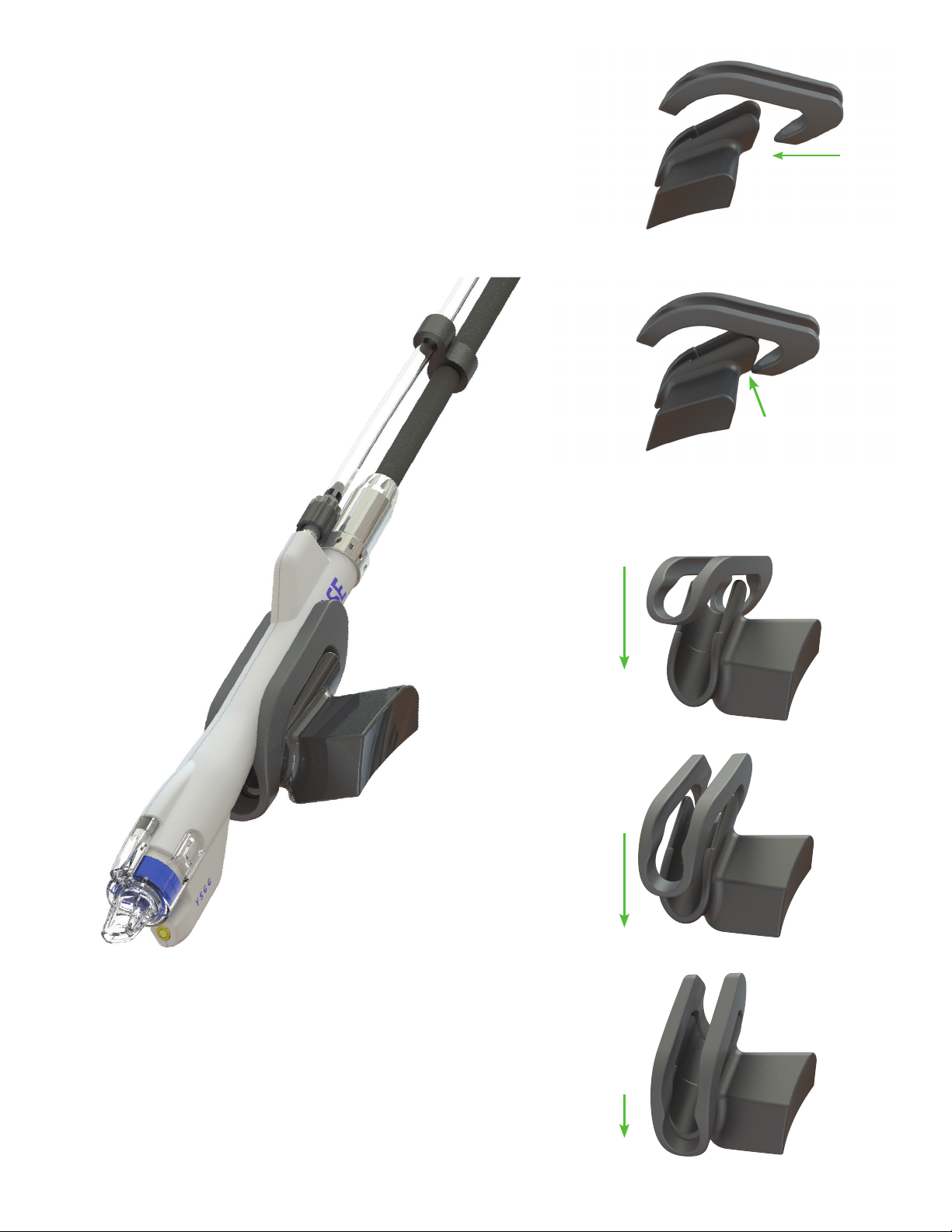

HANDPIECE HOLDER

The Handpiece Holder Attachment is designed to ﬁt over the built-in Waterlase iPlus Handpiece

Holder on the laser console and, once in place, will support the Fractional handpiece as well as all

other Waterlase iPlus handpieces.

ASlide the attachment from the back toward the front onto the existing Handpiece Holder on the

laser console.

BClip the back under the edge of the existing holder.

CLower over the existing holder and snap into place.

Figure 3A

Figure 3

Figure 3B

Figure 3C

Section 4: Cleaning and Disinfection

CAUTION: The Waterlase Fractional Handpiece is non-sterile when shipped from the factory. DO NOT AUTOCLAVE. Doing so will damage the internal

optics. However, the Handpiece must be cleaned and disinfected prior to initial use and between patients to avoid cross-contamination.

The Handpiece

To clean and disinfect the Waterlase Fractional Handpiece, wipe the entire outer surface up to the laser optics housing using a cotton gauze and an appropriate

disinfecting solution, such as Cavicide™, or a similar quaternary ammonium compound product (containing 20% alcohol or less), and follow the manufacturer’s

instructions. Avoid getting any liquid or debris on the optical lens inside the laser optics housing.

CAUTION: Always inspect the optical lens for dirt and debris between uses; if any debris is visible on the lens, clean by gently wiping with a cotton swab

dampened with isopropyl alcohol. The isopropyl alcohol must be allowed to evaporate before the laser equipment is used.

CAUTION: Check the Handpiece for damage or wear prior to each use. It should be free of nicks, distortion, corrosion, or other signs of mechanical

degradation. If damage or wear is observed, discard the Handpiece as required by local recycle/waste disposal regulations.

THE DISPOSABLE APPLICATOR

As with the Fractional Handpiece, the Applicator is sold non-sterile and must be wiped with an appropriate disinfecting solution, such as Cavicide, or a similar

quaternary ammonium compound product (containing 20% alcohol or less), and follow the manufacturer’s instructions, prior to assembly.

CAUTION: DO NOT AUTOCLAVE, as the autoclave process may damage the Applicator and make it unusable.

CAUTION: The disposable Applicator is intended for single-use only to avoid cross-contamination between patients and to ensure the Handpiece performs

as indicated; re-using the Applicator will result in a less effective treatment outcome.

DO NOT REUSE. After one-time use, detach it from the Fractional Handpiece and discard in a medical waste sharps container.

CAUTION: High temperatures produced in the normal use of the Waterlase iPlus laser system may ignite some materials (e.g., cotton wool when saturated

with oxygen); ﬂammable solutions or solvents used for cleaning and disinfecting must be allowed to evaporate before the laser equipment is used.

THE FIBER & AUXILIARY AIR HOSE

Always disinfect the Fiber Optic Cable and Auxiliary Air hose between patients by wiping them completely with an appropriate disinfecting solution such as Cavicide

or a similar quaternary ammonium compound product (containing 20% alcohol or less) and follow the manufacturer’s instructions.

CAUTION: DO NOT AUTOCLAVE. Autoclaving will damage the Fiber and air hose and make them inoperable.

Section 5: Set-Up

Refer to the Waterlase iPlus User Manual for detailed instructions on system set-up, installation and operation.

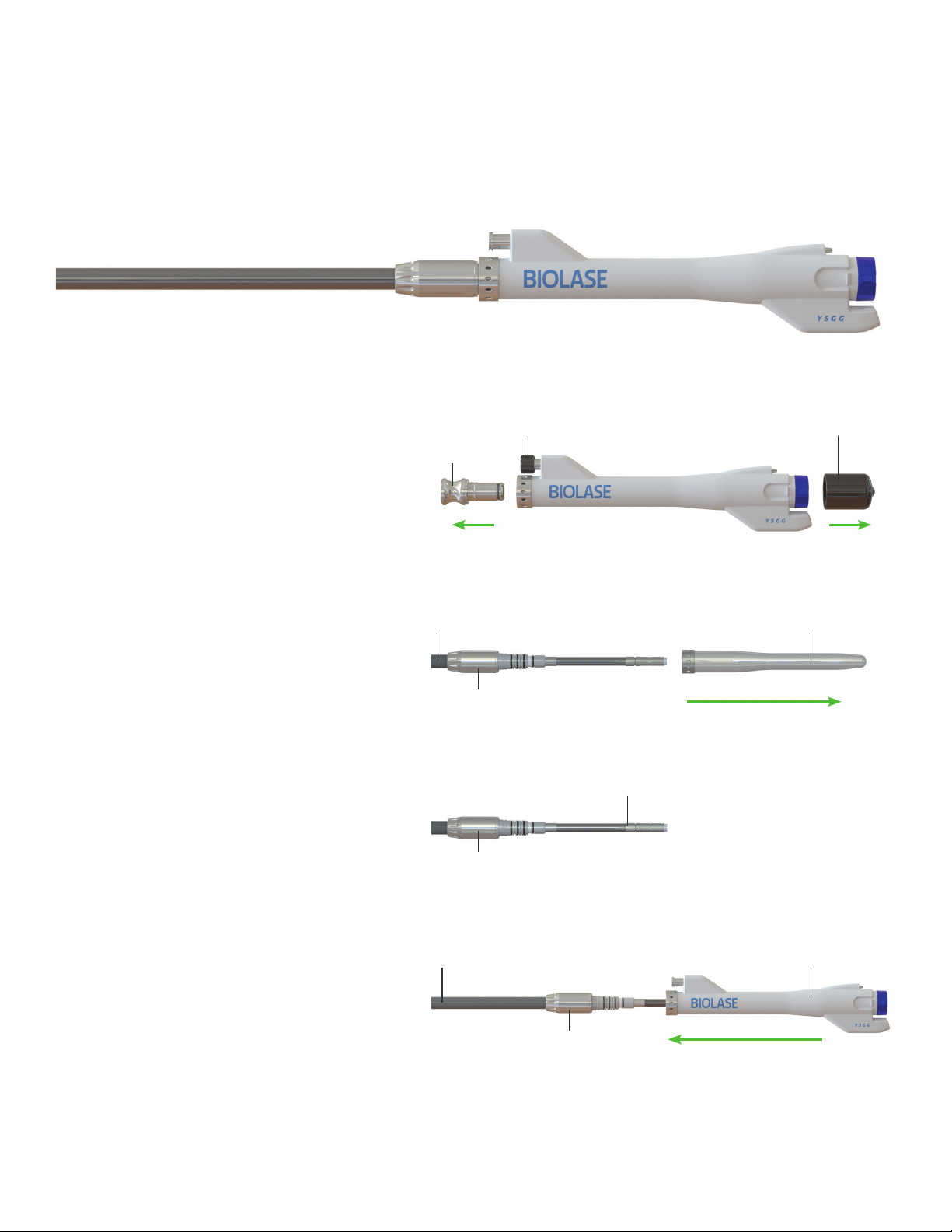

CONNECTING THE FRACTIONAL HANDPIECE TO THE FIBER OPTIC CABLE

• If switching from a Gold or Turbo Handpiece to the Fractional Handpiece, always purge the Handpiece before disconnecting it from the Fiber Optic Cable.

• Make sure the system is in STANDBY mode, not in READY mode.

Figure 4C

FIBER SHAFT

CONNECTOR

Figure 4B

FIBER OPTIC CABLE PROTECTIVE COVER

CONNECTOR

Figure 4

A. Gently, but ﬁrmly, pull the laser optics protective cap and rear

plug from the Fractional Handpiece; be sure to save these, as

they will always be required when preparing the Handpiece for

cleaning and disinfection, and storage.

B. Hold the Fiber Optic Cable by the connector; remove the ﬁber

protective cover from the ﬁber shaft by ﬁrmly pulling it. Do not

apply excessive force. Be sure to save the cover.

C. Check the ﬁber shaft for any moisture and wipe with a dry, lint-

free tissue if any is present.

D. Carefully insert the Fractional Handpiece onto the ﬁber shaft

until it sits ﬁrmly against the connector and clicks into place.

(To disconnect the Fractional Handpiece, hold the Fiber Optic

Cable by the connector and ﬁrmly pull on the Handpiece until it

comes completely off the shaft. Do not apply excessive force.)

Figure 4A

REAR CAP

LASER OPTICS CAP

CONNECTOR

FIBER OPTIC CABLE HANDPIECE

Figure 4D

AUXILLARY AIR INPUT CAP

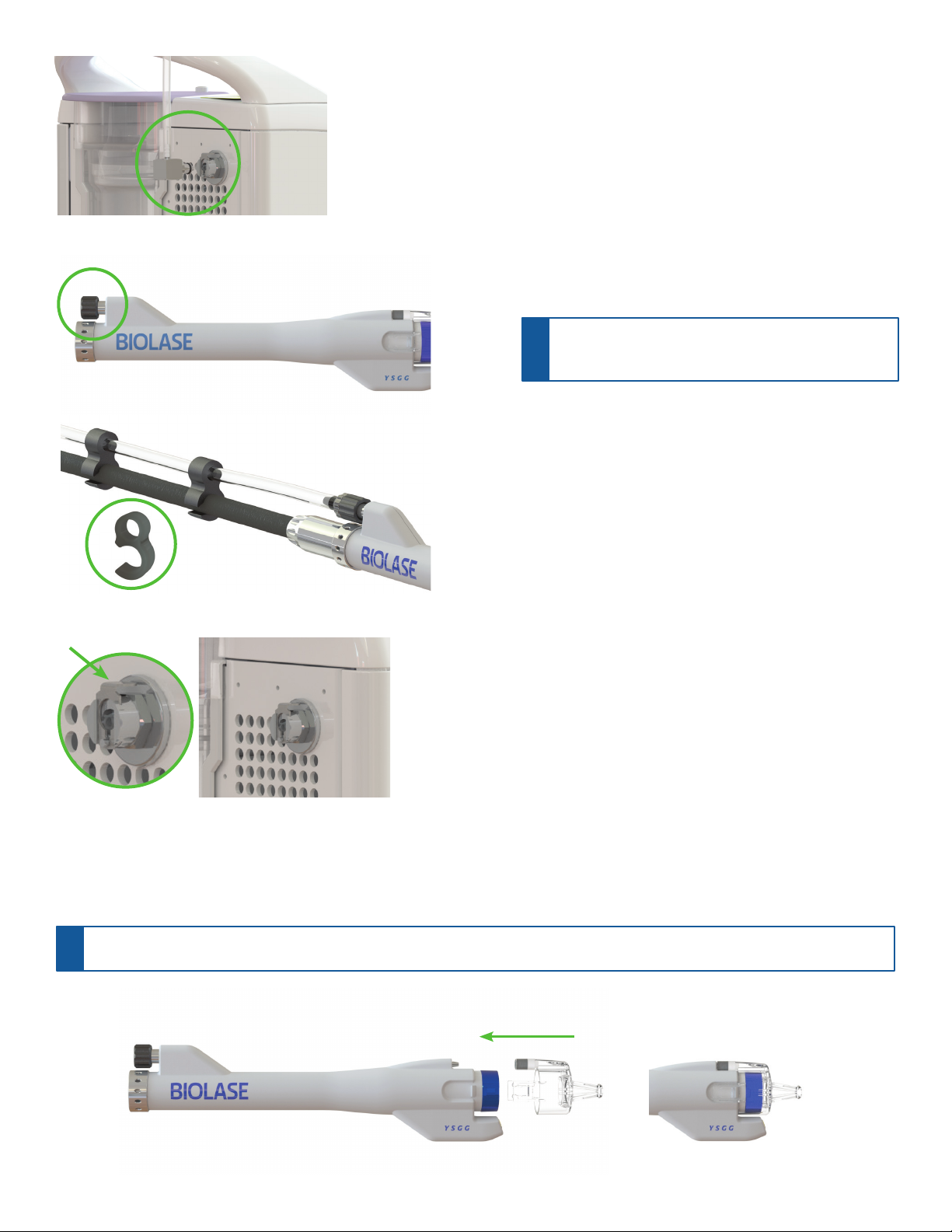

INSTALLING THE AUXILIARY AIR OUTPUT LINE ON THE

WATERLASE IPLUS

A. Insert the metal connector attached to one end of the auxiliary air hose

into the auxiliary air output port on the back of the iPlus laser.

B. Unscrew the auxiliary air input protective cap from the auxiliary air

input port and save; attach the end of the auxiliary air hose with the

black luer connector to the auxiliary air input port.

C. For ease of use, attach the clips threaded on the auxiliary air hose to

the Fiber Optic Cable.

D. To unplug the auxiliary air hose from the Waterlase iPlus laser, press

down on the release tab at the top of the of the auxiliary air output port

and gently pull on the connector to detach.

NOTE: The handpiece optics may become permanently

damaged if the auxiliary air output is not connected when

performing procedures using the Fractional Handpiece.

Figure 5A

Figure 5D

Figure 5C

Figure 6

ATTACHING THE DISPOSABLE APPLICATOR TO THE FRACTIONAL HANDPIECE

Attach the single-use disposable applicator to the Fractional Handpiece by pushing it onto the distal end of the Handpiece until it snaps into place. To remove the

applicator, lift either tab and pull; the tab will break off.

NOTE: Do not use a disposable applicator if it has been dropped on a hard surface or is cracked or damaged in any way. Sharp edges may cause injury to

the patient.

Figure 5B

Section 6: Operation

Refer to the Waterlase iPlus User Manual for instructions on how to turn on and activate the Waterlase iPlus All-Tissue Laser.

Make sure the Handpiece is properly connected to the Fiber Optic Cable and the auxiliary air hose is connected to the Waterlase iPlus.

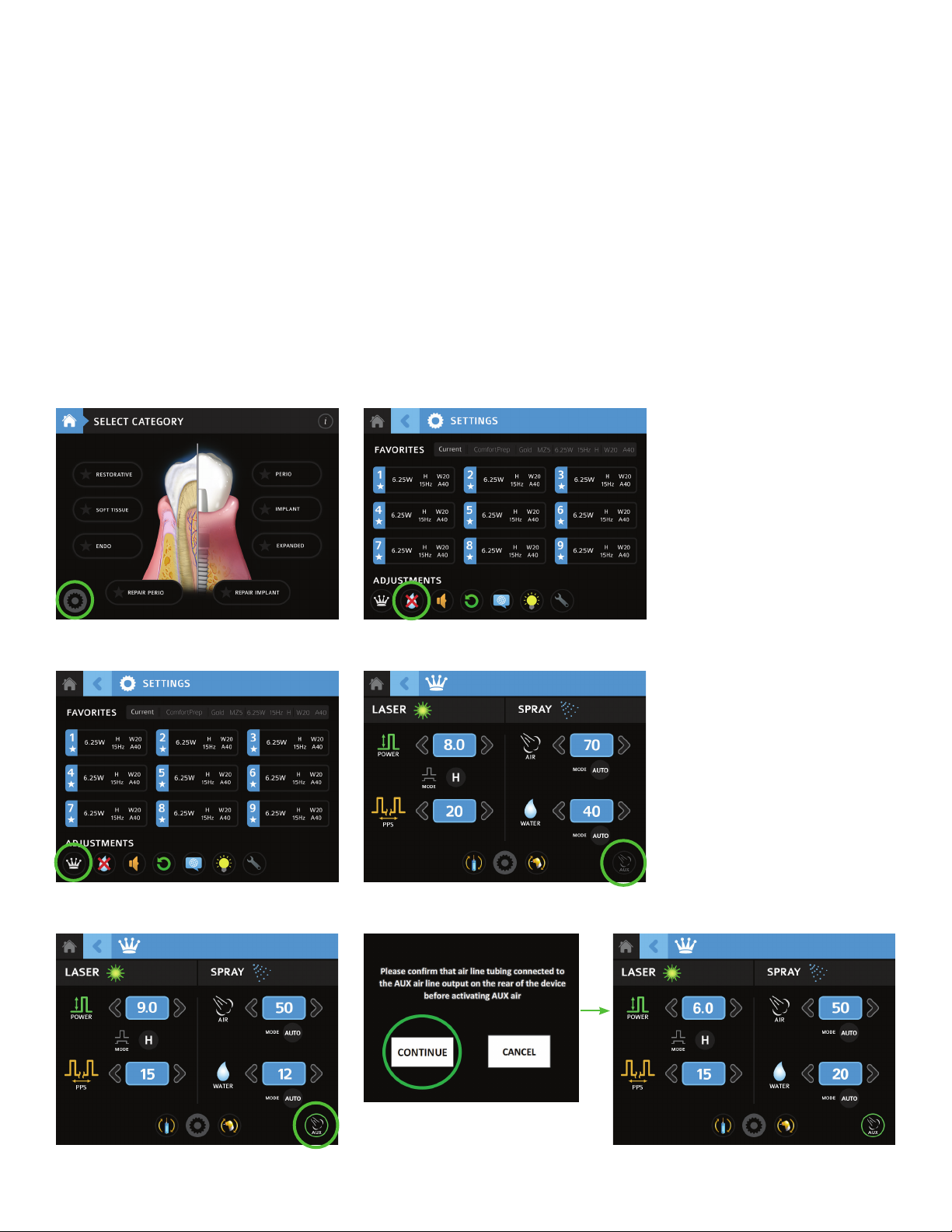

A. From the Home Menu, select Settings. (Figure 7A)

B. Press the Purge/Prime icon on the Settings screen, then select Prime. Press and hold Prime until the Fiber Optic Cable and Handpiece are primed with water;

water will spray from the end of the Handpiece. (Figure 7B)

C. Once the Prime function has completed, press the back arrow and then proceed to the Advanced screen by pressing the Advanced icon (crown). (Figure 7C)

D. The Auxiliary Air icon on the bottom right of the screen turns the Fractional function on and off. When it is off, the icon will appear dark. (Figure 7D)

E. Press the Auxiliary Air icon to initiate the Fractional function. (Figure 7E)

F. A screen will appear asking the user to conﬁrm that the Auxiliary Air Output tubing is connected to the Auxiliary Air Output connector; if connected, press

“Continue;” the icon will light up. If “Cancel” is selected, the system will not initiate the Fractional function (the icon stays dark). (Figure 7F)

G. Default settings for Fractional will automatically appear on the screen. Place the system in READY mode to activate the Fractional air ﬂow and begin lasing.

(Figure 7G)

To turn off the Fractional function, press the Auxiliary Air icon again; the icon will go dark.

Figure 7A Figure 7B

Figure 7C Figure 7D

Figure 7E

Figure 7F

Figure 7G

Section 7: Clinical Applications

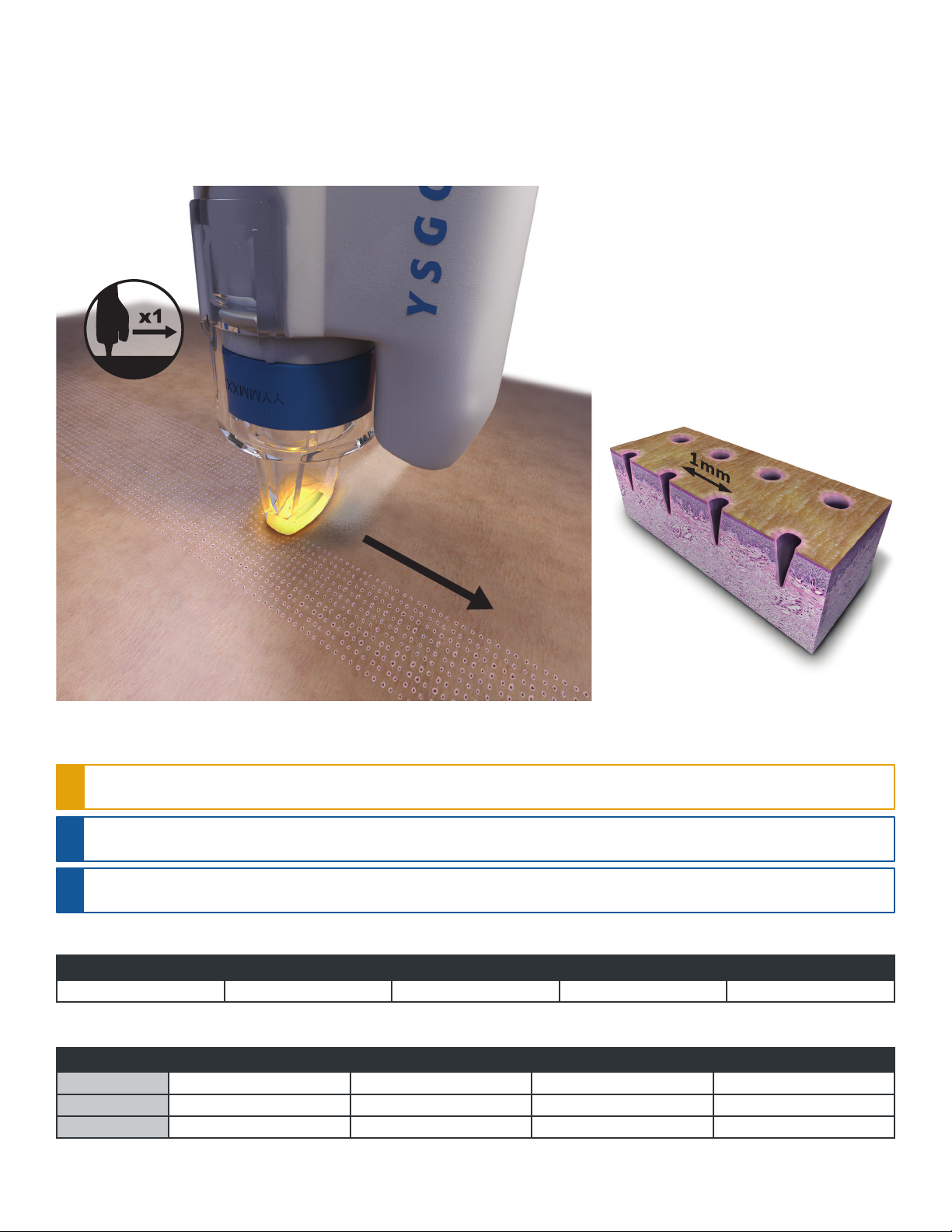

The Waterlase Fractional Handpiece generates 10 microbeams in a single line per laser pulse. Treatment is always in contact mode, i.e., the Applicator attached to

the distal end of the Fractional Handpiece is applied directly to the skin while the laser is activated.

A uniform, one-dimensional pattern of micro-holes is generated on the tissue surface. For maximum efﬁcacy, the Handpiece needs to be constantly moving across

the skin surface at approximately 1.5cm/sec.

Figure 8

CAUTION: To avoid damaging the skin, DO NOT keep the Handpiece in a ﬁxed position. Always keep the Handpiece constantly moving across the skin

surface. DO NOT make more than one pass per treatment session

NOTE: For optimum results, place the Applicator in contact with the treatment area and begin moving the Handpiece before ﬁring the laser.

NOTE: If the Applicator has not been properly installed, the pattern of micro-holes will not be uniform or will be less than 10. Remove the Applicator and

replace it with a new one.

When the Fractional function is activated, the system will default to the following settings:

Power Frequency Air Water Mode

6W 15Hz 50% 20% H

However, some parameters may be adjusted by the user, within set boundaries:

Setting Min. Max. Options Mode

Power 2W 9W — H or S

Water 1% 20% ON/OFF/AUTO H or S

Air 1% 50% ON/OFF/AUTO H or S

It is also possible to switch from H mode (narrow coagulation zone) to S mode (shallow penetration in tissue), as needed, based on the patient’s skin type.

NOTE: Water, when combined with air, creates a spray that cools the treatment site and facilitates the effects of the laser energy applied.

Frequency cannot be modiﬁed, and remains ﬁxed.

Refer to the Fitzpatrick Skin Type Scale before performing Fractional procedures to determine the best settings for use on a patient. For example, darker skin (Type

IV and above) may necessitate a higher power setting for the treatment to be effective, as well as a wider spot density (i.e., moving the handpiece faster than

1.5 cm/s), for preventing post-inﬂammatory hyperpigmentation (PIH).

Power settings should also be adjusted to compensate for the thickness of thinness of the tissue being treated. Periorbital tissue will require a lower setting, while the

forhead and cheek area require a higher setting.

CAUTION: Always monitor patient response; adjust power/water/air settings as needed for patient comfort.

Fitzpatrick Skin Type Scale

Type I Highly sensitive, always burns, never tans (pale white skin)

Type II Very sun-sensitive, burns easily, tans minimally (white skin).

Type III Sun-sensitive skin, burns moderately, tans uniformly (light brown skin)

Type IV Minimally sun-sensitive, burns minimally, always tans well (moderate brown skin)

Type V Sun-insensitive skin, rarely burns, tans profusely (dark brown skin)

Type VI Sun-insensitive, never burns (deeply pigmented dark brown to black skin)

• Always use a test spot prior to the initial treatment to assess the suitability of the selected settings and effect of the Fractional procedure for the individual patient.

• Adjust power and water settings, as needed, based on the patient’s skin type and condition, as well as the desired outcome of the procedure.

• Treatment normally causes minimal pain or discomfort to the patient. However, if the patient does experience pain or discomfort, stop treatment, and/or decrease

the power, increase the air setting or the water setting, or both; ice or a topical anesthetic may be applied prior to treatment if necessary.

For optimum results:

• Prior to treatment, make sure the skin has been thoroughly cleansed of all residual oil and/or dirt.

• Immediately post-treatment, wash the treatment area with water and apply a moisturizing cream or gel.

• Instruct the patient to apply moisterizier to the treatment area as often as necessary throughout the day for at least 2 weeks to keep the skin from drying out.

• The patient should avoid sun exposure as much as possible for 1 to 2 weeks after treatment and use a high SPF (>35) sunscreen for at least 3 weeks.

• No makeup should be worn for at least 1 week post-treatment to minimize inﬂammation and the risk of infection; the treatment area should be kept clean at all

times.

What to Expect Post-Treatment

• Short-term erythema (redness)

• Short-term edema (swelling)

• Short-term itching

• Scabbing

Adverse Eects

If the power level used is too high, or the air and water levels are not optimized for the patient’s skin type, the following may occur:

• Hyperpigmentation

• Hypopigmentation

• Blistering

• Erosion

Always monitor the patient for any sign of irritation or infection; if either occurs, promptly treat the condition with the appropriate medications to avoid delayed

healing, scarring, or the spead of infection.

Section 8: Warranty and Liability

Limited Warranty

For warranty information, refer to separate equipment warranty.

Limited Liability

BIOLASE, Inc. will not be liable for incidental, consequential, indirect or special damages of any kind including, but not limited to, damages for loss of revenue, loss of business

or business opportunity or other similar ﬁnancial loss arising out of or in connection with the performance, use or interrupted use of the BIOLASE laser system(s) or any

BIOLASE materials.

Section 9: Reordering Accessories
