Bischoff & Bischoff Pyro light Optima User manual

Enjoy mobility.
Bedienungsanleitung
Enjoy mobility.
Instruction Manual
Pyro Light Optima
Pyro Light Optima XL

Bischoff & Bischoff GmbH | 12.05.2016
EN
32
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
5. Options 24
5.1. Horizontally adjustable legrests 24
6. Accessories 24
6.1. Tip protection and anti-tip wheels 24
6.2. Safety belt 25
7. Use 25
7.1. Entering and leaving from the side 25
7.2. Entering and leaving from the front 26
7.3. Negotiating stairs and high steps 26
7.4. Driving the wheelchair 27
8. Technical data 28
9. Transport 30
9.1. Transporting the wheelchair 30
9.2. Seat in disabled vehicle 30
10. Maintenance tips for users 31
10.1. Cleaning and disinfection 31
10.2. Check before use 31
11. Maintenance tips for retailers 32
12. Use by others 32
13. Storage/shipping 32
14. Disposal 33
15. Warranty 33
Index
1. Preliminary remark 04
1.1. Signs and symbols 04
2. Important safety instructions 05
2.1. General safety instructions 05
2.2. Anti-tip wheels (optional) 07
2.3. Use on public roads 07
2.4. Purpose 07
2.5. Indication 07
2.6. Contraindications 08
2.7. Declaration of conformity 08
2.8. Responsibility 08
2.9. Service life 08
3. Description of product and contents 09
3.1. Inspection on delivery 09
3.2. Type plate and serial number 10
3.3. Contents 10
3.4. Summary 11
4. Assembly/Adjustments 12
4.1 Folding and unfolding 12
4.2. Legrests 13
4.3. Side parts 15
4.4. Armrests 16
4.5. Seat 16
4.6. Wheel base 19
4.7. Brakes 20
4.8. Backrest 21
4.9. Push handles 21
4.10. Wheels and tyres 22
4.11. Quick-release axles 23
4.12. Tipping aid 23

Bischoff & Bischoff GmbH | 12.05.2016
EN
54
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
2. Important safety instructions
2.1. General safety instructions
• To avoid falls and dangerous situations, you should first practice
driving your new wheelchair on level, unobstructed ground. We
recommend having an assistant with you.
• The accompanying person should be physically and mentally
capable of operating a wheelchair.
• Never use the wheelchair under the influence of alcohol or other
drugs.
• Please make sure that all parts have been properly installed before
using the wheelchair.
• Never lift up the wheelchair at parts which are not fixed firmly (the
armrests or legrests).
• Make sure that the screwing axle/floating axle are tightly in the
axle holder, otherwise there is risk of injuries.
• Please note, displacing the center of gravity by shifting the body
or by adding loads may increase the risk of tipping over the
wheelchair to the side or backwards.
• Please note there is a risk of entrapment between moving parts
when adjusting, using and maintaining the wheelchair.
• Please seek the help of an assistant person when going over
obstacles, steps, etc. Use the tip assist (see overview of wheelchair)
to tip the wheelchair appropriately.
• Steps and larger obstacles may only be crossed with the help of at
least two assisting persons. For this, use lifting points 1 and 2 (see
overview of the wheelchair). If equipment such as ramps, lifts or
step climbing aids are available, these should be used.
• When driving on an incline or slope, it is necessary to be aware that
a risk of tipping exists even at low angles, depending on the axle
position setting. The use of anti-tippers is highly recommended.
• Avoid running against obstacles (steps, kerbs) without braking or
moving down steps.
• When getting into or out of the wheelchair, apply both parking
brakes.
1. Preliminary remark
Dear user,
By purchasing your Bischoff & Bischoff Pyro light Optima folding
wheelchair, you are getting a top German product which sets new
standards with its variability. The Pyro Start Plus is made for indoor
and outdoor use.
The wheelchair is offered in the Pyro Light Optima (model no.: 1331)
and Pyro Light Optima XL (model no.: 1321) models. The Pyro Light
Optima XL is popular due to the high user weight with double cross-
brace and reinforced frame.
These operating instructions intend to help you to familiarise yourself
better with the operating and the handling of your wheelchair. Before
using your new wheelchair for the first time, please read and follow
the instructions in this manual carefully. The instruction manual is an
integral and necessary part of the wheelchair. This is why you should
keep it close by and include it when passing on the wheelchair to
someone else.
For visually impaired users, this document is available as a PDF file at
our website www.bischoff-bischoff.com.
1.1. Signs and symbols
Important! This is especially useful information on
a given subject.
Warning! These are especially safety-relevant
instructions. Follow the directions in the manual!

Bischoff & Bischoff GmbH | 12.05.2016
EN
76
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
• Avoid using on uneven, loose surfaces.
• All road traffic regulations must be observed when driving on
public roads.
• The wheelchair may not be used for transport of more than one
person or any additional load. Make sure to only use it for the
intended purpose.
• You must not use the handbrake to stop the wheelchair.
• The passive lighting (reflectors) of your wheelchair must always be
visible to other road users.
• When braking at fast speeds or on long downward slopes when
using the push rims, fingers and hand surfaces become hot.
Caution! Danger of burning!
• We recommend leather gloves for outdoor use. These increase grip
and protect fingers and hands from dirt and injury at the same
time.
• Please note, the upholstery will heat up if directly exposed to
sunlight and may cause injuries to your skin when touched.
Therefore you should cover these parts or protect the wheelchair
from exposure to direct sunlight.
• Please note, the frame and pad parts may cool down significantly
in winter. If possible, do not park the wheelchair outdoors in cold
weather.
• The dimensions of the wheelchair exceed the recommended values
of DIN EN 12183:2014/A.1 and PRM TSI Annex M in terms of size
and manoeuvring range.
• When transferring between wheelchair and bed, always ensure that:
• both parking brakes are applied
• the side part on the side for getting in/out is swung backwards.
• the foot plates (for getting in/out) are folded upwards, swing
inwards/outwards or are removed.
2.2. Anti-tip wheels (optional)
The anti-tip wheels prevent the wheelchair from tipping backwards.
Note that driving with anti-tip wheels on terraced terrain, lift platforms
and ramps is only possible to a limited extent. Ensure sufficient
clearance above, below and on the sides.
2.3. Use on public roads
The wheelchair is designed for indoor and outdoor use. Please keep in
mind that you are using public roads and therefore have to observe all
road traffic regulations.
Do not endanger other road users through inconsiderate driving,
especially on walkways.
2.4. Purpose
The wheelchair is produced solely to increase mobility and to transport
people with impaired mobility in accordance with the above-mentioned
indications. The maximum user load is 125 kg for the Pyro Light Optima
model and 170 kg for the Pyro Light Optima XL model.
To be noted:
We are only able to provide a warranty if the product is used in
accordance with the specified conditions and for the intended
purposes.
2.5. Indication
Inability to walk or severe walking disability as a result of:
• paralysis
• loss of limbs
• meromelia/limb deformation
• joint contractures/joint damage
• other ailments

Bischoff & Bischoff GmbH | 12.05.2016
EN
98
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
The use of a reinforced wheelchair is indicated, if the weight of the
disabled person is 125 kg or more, and a standard wheelchair no
longer provides the required safety.
2.6. Contraindications
The use of the wheelchair is not suitable for:
• perception disorders
• severe disturbances of equilibrium
• loss of limbs on both arms
• contractures/damage to joints on both arms
• inability to sit
• reduced or insufficient eyesight
2.7. Declaration of conformity
As manufacturer of the product, B&B declares „Pyro light Optima
model 1331“ and „Pyro light Optima model 1321“ wheelchairs are
meeting all the requirements of the 93/42/EEC directive.
2.8. Responsibility
We are only able to provide a warranty if the product is used in
accordance to the specified conditions and for the intended purposes.
If modifications, repairs or maintenance works are made, please make
sure only authorised persons perform these works in accordance to the
instructions of B+B.
2.9. Service life
If used as intended, and the safety, care and maintenance instructions
are observed, the expected service life is up to 5 years. Beyond this
time the wheelchair can be used continuously, provided it is in a safe
condition.
3. Description of product and
contents
3.1. Inspection on delivery
All B+B wheelchairs are subject to a proper final inspection in our
house and receive the CE mark.
The wheelchair is supplied in a special box. After unpacking, please
save the box, if possible. You may need it later for storage or to return
the product.
Assembly, adjustment to your body size and first instructions are taken
care of by your mobility dealer.
If delivered by rail or a forwarding agent, the product is to be checked
with regard to transportation damage at once in the presence of the
shipper.
Check the contents for completeness and make sure nothing is
damaged. Should you find any irregularities or damage, please contact
our customer service (Tel.: [phone]).

Bischoff & Bischoff GmbH | 12.05.2016
EN
1110
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
3.2. Type plate and serial number
The type plate (fig. 01) and serial number are located under the frame.
3.3. Contents
After receiving the goods, please check the contents for completeness
right away. The content consists of:
• Outer package
• Pre-assembled wheelchair
• Instruction manual

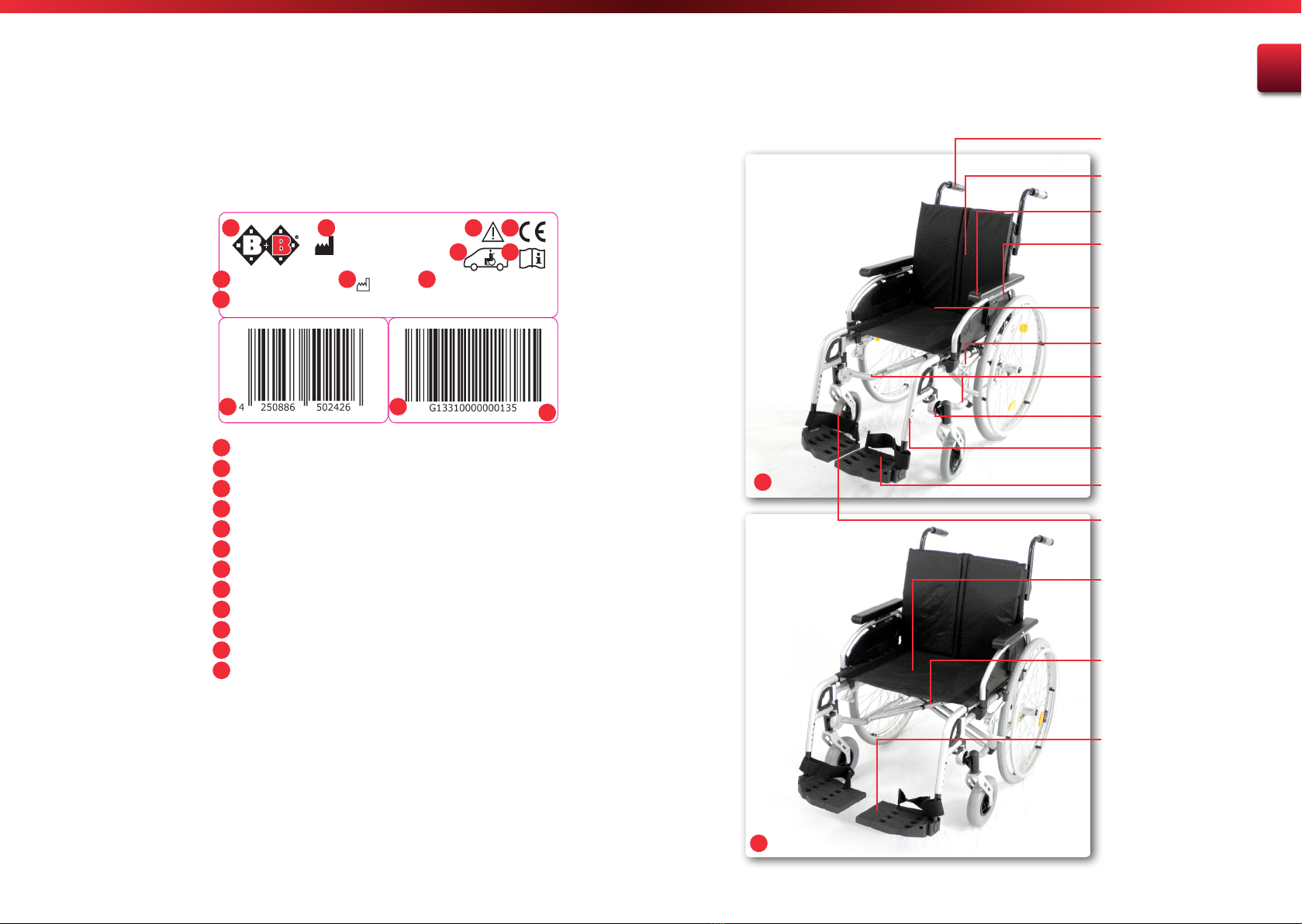

3.4. Summary Push handles
Backrest cover
Armrest upholstery
Height- and depth
adjustable side part
Seat cushion
Parking brake
Lifting points
Castor bushing
Foot rests
Foot plate
Steering wheel
1a
Wider seat width
Double crossbrace
Foot plate extendible
1b
Model Pyro Light Optima
Model Pyro Light Optima XL
Bischoff & Bischoff GmbH
Becker-Göring-Straße 13
D - 76307 Karlsbad
Telefon 0700 - 60007070
GB
CE Sticker & EAN Codes (Size 80 mm x 23 mm)
Manual Wheelchairs (crash tested)
EAN 13 SN
Model: Pyro Light Optima
Model no.: 1331 2015-07 Max. weight capacity : 125kg
B CA D
E F
G H I
Manufacturer logo
Manufacturer information
Caution! - Follow instructions for use
CE mark
Follow instructions regarding securing the product in the vehicle
Important - Adhere to the operating instructions
Model number
Date of manufacture
Maximum weight capacity
Model designation
EAN 13 item number
Serial number
A
B
C
D
E
F
G
H
I
J
01
J
LK
K
L

Bischoff & Bischoff GmbH | 12.05.2016
EN
1312
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
4. Assembly/Adjustments
You can carry out the adjustments of your wheelchair yourself with a
little manual dexterity. You need a set of 5 mm to 8 mm Allen keys and
ring spanners, SW10 and SW13. You can contact your mobility dealer
if you have questions.
4.1 Folding and unfolding
Delivery
Your new B+B wheelchair is delivered fully assembled and folded in an
original B+B carton. To prevent damage during transport, attachable
mounting parts are delivered separately (fig. 2).
Unfolding
Position your wheelchair next to you. Tip it towards you until the load is
taken off one driving wheel (fig. 3). Now press with the flat of the hand
against the seat tube nearest you to unfold the wheelchair (fig. 4).
When unfolding it, keep your fingers on the seat
cover; otherwise there is a risk of pinching!
Folding
Position your B+B wheelchair next to you. Tip it by pulling the backrest
to you until the weight is taken off the opposite driving wheel. At the
same time, pull the seat cover upwards until the chair is completely
folded (fig. 5).
5
3
4
To prevent injuries, do not hold the wheelchair at
the armrest while folding. If legrests are fitted, the
foot plates should first be folded up.

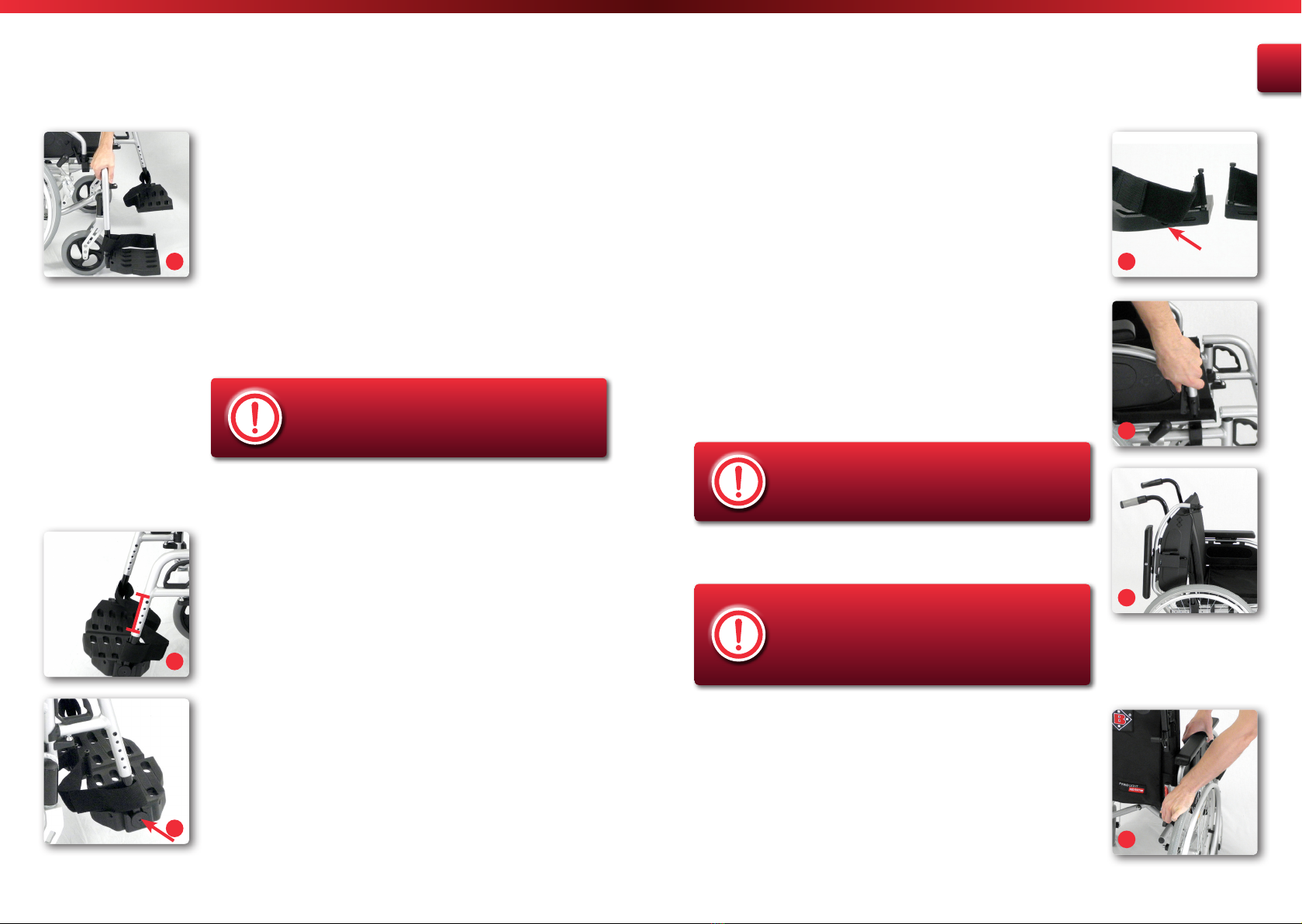

4.2. Legrests
4.2.1 Legrests with foot plate
Both legrests are supplied with the foot plates attached. The foot
plates on both legrests can be folded upwards.
4.2.2 Attaching legrests
•Hold the legrests on the upper part such that this part points
outwards. Operate the handle for the quick-release axle and push
the legrests with the guide profile into the hole in the frame (fig. 6).
•Now the legrest is simply folded forwards and locks automatically
into place.
Before moving off, check for firm attachment of
the legrests!
4.2.3 Removing the legrests
To transport your wheelchair as compact as possible, you
can completely remove the legrests and foot plates
(fig. 7).
•Pull the handle, that opens the locking device.
•Swing the legrest 90° outwards and pull it upwards.
6
7
2
Please be careful with your fingers when making
adjustments. Risk of entrapment!

Bischoff & Bischoff GmbH | 12.05.2016
EN
1514
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
8
9
4.2.4 Swinging away the legrests
To make it as easy as possible to get into and out of your B+B folding
wheelchair, you can easily swing the legrests outwards or inwards if
needed without having to remove them (fig. 8).
•Pull the handle. This opens the locking device.
•Now you can swing the legrests outwards or inwards.
•If necessary, fold the foot plates upwards first.
To return to the original position, simply swing the legrest forwards
until it locks into place.
When standing up/sitting down on your
wheelchair, never stand on the footrest, danger of
falling or tipping!
4.2.5 Setting the legrest length
The length of the legrests can be adjusted in five 20 mm steps up to
a total of 80 mm. To do so, remove the Allen bolt (4 mm) and set the
legrest as required (fig. 9)
4.2.6 Angle-adjustable foot plates
The angle of the foot plates can be adjusted:
•Unscrew the Allen bolt and adjust the foot plate to the required
position by rotating the toothed ring.
•Retighten the Allen bolt.
10
80 mm
4.2.7 Width of the foot plates
You can adjust the width of the foot plates.
•Loosen the fastening screw on the foot plate, then you can adjust
the foot plate to a narrower or wider setting (105 mm to 155
mm).
•Then secure the foot plate by firmly tightening the fastening
screw (Fig . 11).
4.3. Side parts
In order to be able to get in and out more easily, both side parts and
the arm rests can be swung backwards. Operate the locking lever using
light finger pressure (fig. 12) and swing the side part backwards at the
same time (fig. 13).
Do not use the side parts to lift the wheelchair!
To lock the side part, first swing it forwards and allow it to click into
place with light pressure on the armrest
When moving the side parts, ensure that no items
of clothing or other items can get jammed. Before
use, check for firm attachment of the side parts!
4.3.1 Removing the side parts
To get in or out the wheelchair, removing a side part can be helpful. To
do this, loosen the front locking lever as described previously. You can
then loosen the back lock by pulling on the lever. Now you can simply
remove the side part. Re-assembly is then carried out in reverse order.
12
11
14
13

Bischoff & Bischoff GmbH | 12.05.2016
EN
1716
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA

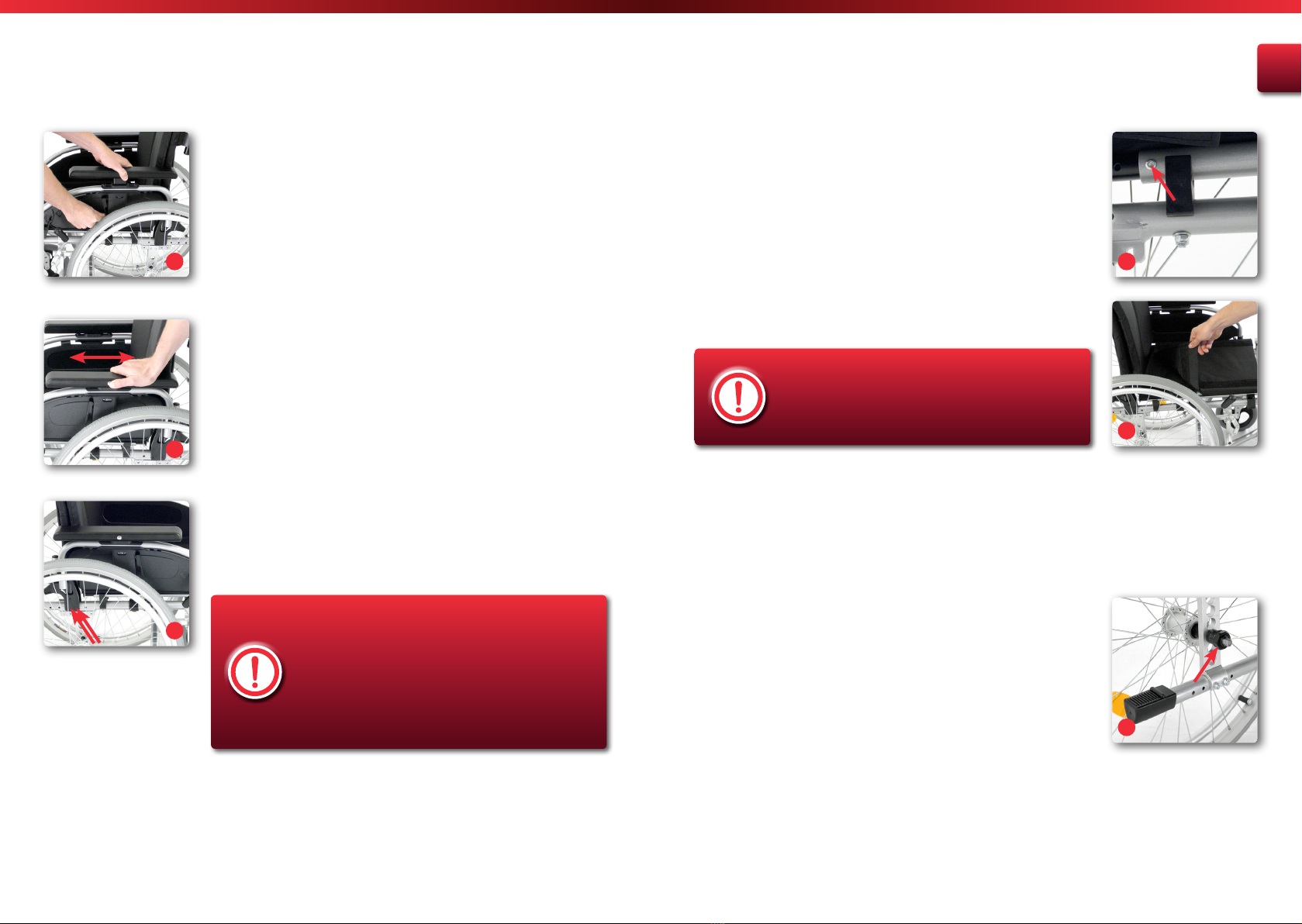

4.4. Armrests
4.4.1 Height of the armrests
You can easily adjust the height of the armrest. To do so, pull the height
adjustment lever on the side part and pull the armrest up or down
(Fig. 15). When you release the lever, the armrest latches automatically.
4.4.2 Position of the armrests
You can shift the armrests further forwards or backwards. To do this
you operate the knob located at the side of the armrest and pull this
towards the front or the back. When you let go of the knob, the armrest
automatically locks into position.
4.5. Seat
4.5.1 Seat depth
The seat depth can be adjusted in five steps. This allows the seat depth
to be changed up to 50 cm. First remove the side part bracket and the
backrest bracket by loosening the fastening screws (fig. 17).
Caution. Danger of tipping! If you adjust the
driving wheel forwards or the backrest backwards,
the danger of tipping is increased significantly.
Anti-tip wheels or a wheelbase extension are
necessary. Check the settings first with a
helper. Only use settings that you feel safe with.
15
16
17
Afterwards, remove the Allen bolts at the back on the seat cover
(fig. 18).
Pull the adapter out to the required position and then retighten the
bolt. Then pull back the rear part of the seat cover and connect this
again with the front seat cover using the Velcro tape (fig. 19).
Reattach the backrest to the wheelchair frame. Position it as close as
possible to the seat. Afterwards, mount the bracket so that the side
parts click into place correctly.
For your safety, please use the wheelbase extention
when the largest adjustments for seat depth 50 cm
are used.
4.5.2 Seat height
In only a few steps you can adjust the seat height to suit your needs.
1. Drive wheel height
Take off the drive wheel (see 4.11) to make it easier. To adjust the
height of the drive wheel and, consequently, to raise or lower the
height of the whole wheelchair, you first have to remove the drive
wheel brackets. You can loosen the fastening nuts of the axle bracket
with a spanner (fig. 20).
Now you can remove the bracket and fasten it at the desired height.
Screw the nut tight again and fasten the drive wheel.
19
20
18

Bischoff & Bischoff GmbH | 12.05.2016
EN
1918
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA

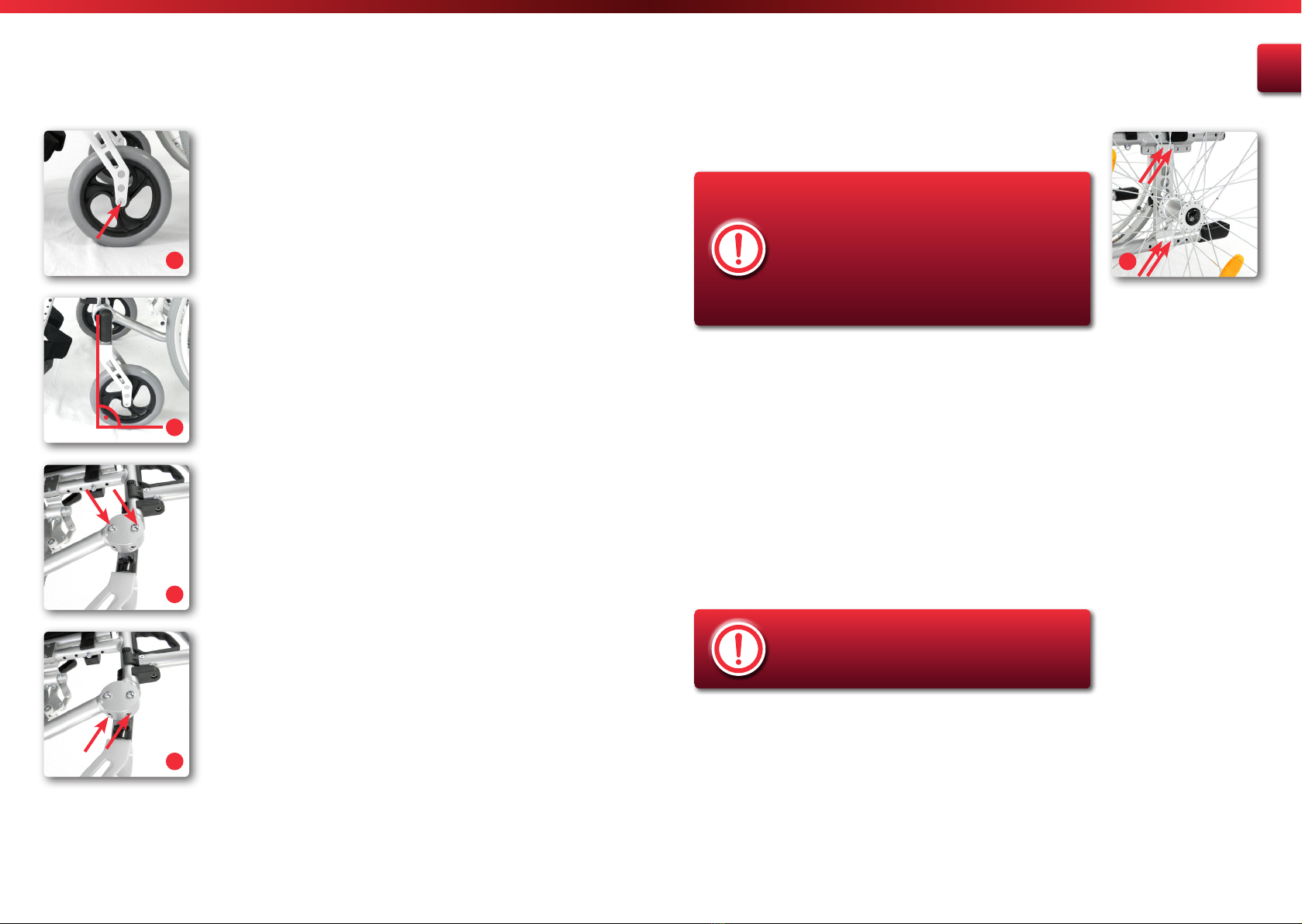

2. Front wheel height
The height of the front wheels can be adjusted to three levels. Loosen
the Allen bolt (fig. 21) and pull out the wheel axle. Move the front
wheel to the desired height, then tighten the bolt again.
3. Angle of the steering wheel axle
The angle of the steering wheel axle can change as a result of changing
the height of the drive wheel and/or the front wheel. This should,
however, always be at right angles (90°) to the floor (fig. 22).
First loosen the locking device by loosening both Allen bolts on the
interior side (fig. 23).
You can then adjust the angle with the aid of the two grub screws
(fig. 24). Subsequently both attachment bolts on the inside are to be
tightened up.
4. Adjusting the parking brake
With any change to the height of the drive wheel, the parking brake
has to be newly adjusted (see 4.7).
4.5.3 Seat Angle
If you incline the seat of the wheelchair towards the back, you will be
sitting more deeply and firmly in the chair. To incline the seat towards
the back, attach the quick-release axle in a higher position. If you wish
to incline the seat towards the front, fix the quick-release axle in a
lower position. Fixing the quick-release axle is done in the same way
as in 4.5.2.1.
21
22
23
24
90°
25
4.6. Wheel base
Caution. Danger of tipping! If you adjust the
driving wheel forwards or the backrest backwards,
the danger of tipping is increased significantly.
Anti-tip wheels or a wheelbase extension are
necessary. Check the settings first with a
helper. Only use settings that you feel safe with.
The stability of the wheelchair is improved by lengthening the
wheel base. On the other hand, shortening the wheel base improves
manoeuverability. A shortening of the wheelbase is only recommended
for practised wheelchair users.
To set the wheelbase, loosen the four fastening screws that secure the
wheel attachment.
The wheelbase can be adjusted in four stages. Fasten the wheel
attachment afterwards in the cut-outs provided. Ensure that all four
screws are securely tightened. To increase the wheelbase, a wheelbase
extension can also be used.
When changing the wheel base, a subsequent
adjustment of the parking brake is also absolutely
necessary!

Bischoff & Bischoff GmbH | 12.05.2016
EN
2120
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
4.7. Brakes
4.7.1 Setting the parking brake
To lock the brake, simply push the brake lever forwards until it locks
(fig. 26). To release the locking brake, simply pull the brake lever
backwards (fig. 27).
4.7.2 Adjusting the brakes
If you notice that the available braking effect is no longer sufficient or
is uneven, proceed as follows:
• Check the tyre profile depth. At the same time, check for even wear
of the tyres. If the profile depth in the middle of the tread is less
than 1mm, the tyre must be changed. If you have the necessary
technical experience you can change the tyre yourself, if you do not
feel confident to do this yourself, your specialist retailer will be able
to help you.
• Now check the adjustment of the brake. This must be set so that
the gap between the surface of the wheel and the braking bolt
is 15 mm with the brake off (fig. 28). The braking bolt must be
aligned horizontally, that is parallel to the ground surface.
• After unscrewing the two rounded head bolts with 5 mm Allen
head on the brake mounting (fig. 29), you can position the brake
correctly.
The brakes only operate on one driving wheel each!
Ensure that both drive wheels have the same tyre
pressure with pneumatic tyres to achieve good
directional stability!
After completion of the setting process, retighten
the loosened bolts and test the brakes!
26
28
29
27
31
33
32

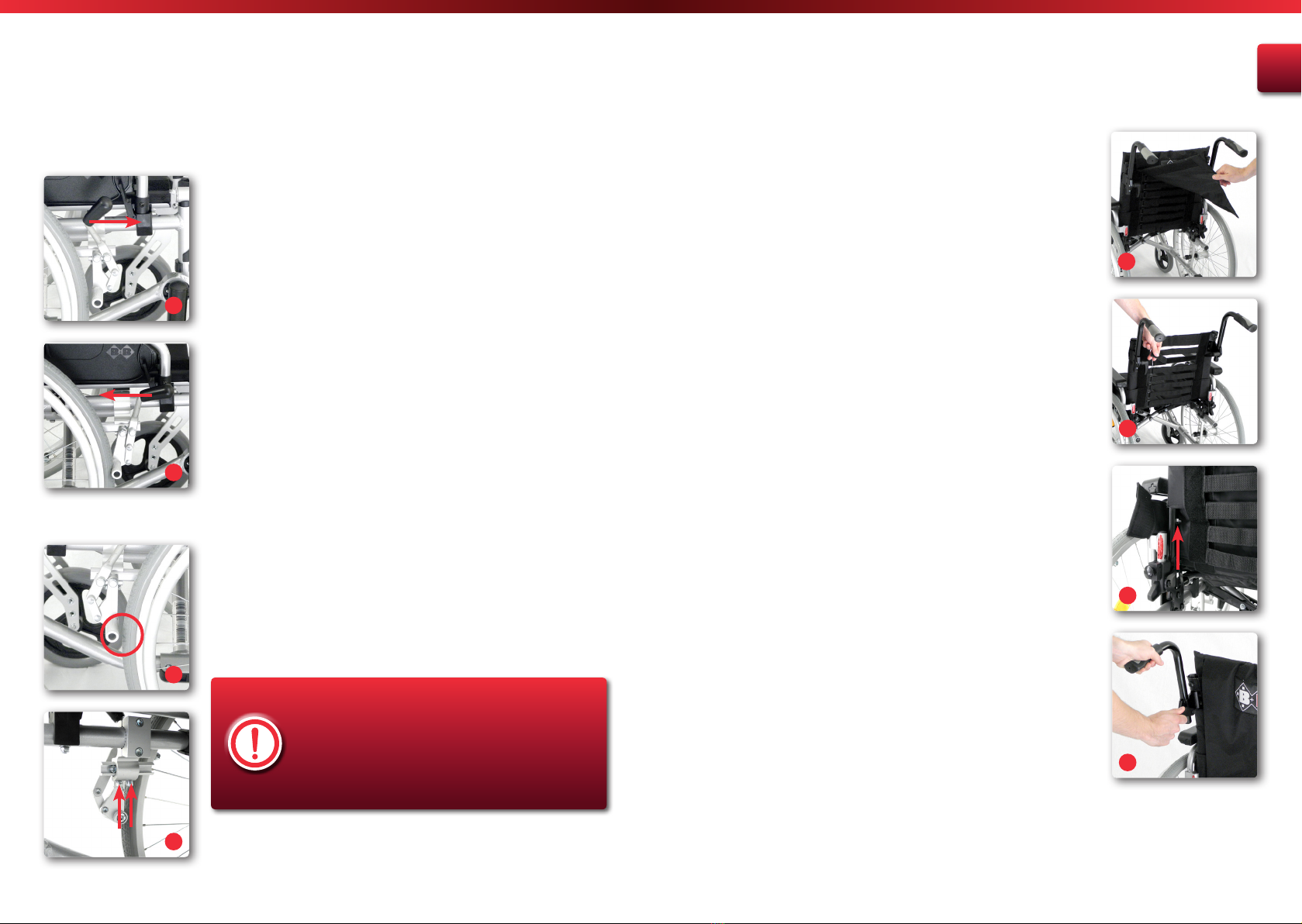

4.8. Backrest
The tension of the backrest can be adjusted to enable you to sit
comfortably in the wheelchair. Additionally the height of the backrest
can also be adjusted.
4.8.1 Backrest cover
The tauter you adjust the backrest cover, the harder it feels. First remove
the backrest padding that is attached by Velcro tape (fig. 30).
Then you can adjust each of the belts so that they are firmer or less firm
(fig. 31). To lessen the tension on particular parts of your back, loosen
the belt there a little. Now you have to re-secure the back padding by
means of the Velcro tape.
4.8.2 Backrest height
To adjust the backrest height it is recommended that the side parts and
the back padding are removed first. You can then loosen the screws on
both sides (fig. 32) and adjust the frame to the desired height. Then
put the screws back into the holes provided and screw them firmly in.
4.9. Push handles
The height of the push handles can be adjusted to make it comfortable
for an accompanying person to push you. Loosen the lever screw
(fig. 33) on the push handles and adjust them to the required height.
Then firmly tighten the lever screws again to lock the push handles.
30

Bischoff & Bischoff GmbH | 12.05.2016
EN
2322
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
34
4.10. Wheels and tyres
The spoked wheels are attached to the frame by means of quick-release
axles (Ø12mm) (fig. 34). The Pyro light Optima model comes with
quick-release axles as standard. (For quick-release axles, see Section
4.11)
Check that the wheels sit firmly each time they
are attached!
4.10.1 Drive wheels
Rubber tyres with an inner tube or PU tyres (puncture proof, no valve)
size 24“ x 1 3/8“ are fitted as standard on your Pyro Light. If they
become worn or defective, themobility dealer should be requested to
undertake the repair.
To ensure optimum operating safety of the brakes,
the pneumatic tyres must have a
pressure of 300-400 kPa (3-4 bar).
4.10.2 Steering wheels
Rubber tyres with an inner tube or puncture proof tyres (without valve)
with a diameter of 8“ x 1 1/4“ (Pyro Light Optima XL 200 x 50 mm)
are mounted on your Pyro light Optima as standard. If they become
worn or defective, the authorised mobility dealer should be requested
to undertake the repair.
35
37
36
4.11. Quick-release axles
To achieve significantly easier transport of your wheelchair, the wheels
are equipped with quick-release axles as standard:
• Press on the locking button of the quick-release axle with a finger
and remove the wheel (fig. 36).
• When reattaching the wheel, simple push the wheel back into the
mount. At the same time, press the locking button.
Ensure when pushing back in that the quick-release axle is pushed!
Check after pushing back in that the wheel is firmly attached by
pulling it towards you without operating the locking button of the
quick-release axle.
4.12. Tipping aid
The tip assist can be used to help an accompanying person overcome
obstacles such as kerbs. Hold the wheelchair firmly at the push handles
with both hands. Then with one foot you press on one of the tip assist
(fig. 37), at the same time pushing downwards with both hands.

Bischoff & Bischoff GmbH | 12.05.2016
EN
2524
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
5. Options
5.1. Horizontally adjustable
legrests
To attach, remove, swing away and adjust the legrests and the legrest
length, please refer to section 4.2.
Horizontal adjustment functions as follows (fig. 38):
• Pull lever backwards
• Bring the legrest into the position required by raising or lowering
the support tube for the legrest.
• Release the lever. The legrest locks automatically.
6. Accessories
6.1. Tip protection and anti-tip
wheels
Always use the anti-tip wheels in pairs.
To mount the anti-tip wheels, proceed as follows.
• Remove the rubber profiles of the anti-tip wheels.
• Push the round profile for the anti-tip wheels onto the lower side
frame tube.
• Attach the tilt protection with the M6x35 bolt and locknut M6 in
the hole in the frame provided. (fig. 39).
When the anti-tip wheels are raised, they can also be used for tipping
assistance. (fig. 40).
40
41
6.2. Safety belt
If required, a safety belt is available as an accessory. This is mounted on
the side frame of the wheelchair with the side part either temporarily
removed or swung away (fig. 41). Take the open end of the belt once
around the side frame tube and fix it with the belt buckle.
Length adjustment is also carried out with the belt buckle. Adjust the
belt length such that the belt sits firmly but does not apply pressure.
7. Use
7.1. Entering and leaving from the
side
• Move the wheelchair as close as possible to the present or future
seat so they are side by side.
• If you wish to move from another wheelchair or room chair, lock it
by setting the parking brakes.
• Secure the Pyro Light Optima against rolling away accidentally by
activating the parking brake.
• Pivot the armrest backwards and away, or remove the side part with
the armrest.
• Fold the foot plates to the side or remove the leg rests.
• Now slide sideways onto the other seat.
• Make sure that you are sitting as far back in the seat as possible.
• Finally, return the leg rest to their original position and reinsert the
side parts if necessary.
38
39
Never stand on the footrest!
Risk of tipping!
Please be careful of your fingers during use. Risk of
entrapment!

Bischoff & Bischoff GmbH | 12.05.2016
EN
2726
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
• When going down stairs, the helper who is below brakes by pushing
the wheelchair right against the steps. The helper above holds the
wheelchair at the push handles, secures it and holds it in the right
position. The wheelchair should roll down step by step.
7.4. Driving the wheelchair
Sit in your B+B wheelchair. Make sure you are sitting as far back as
possible. The push rims on the drive wheels are used to move the
wheelchair.
Moving and braking are achieved via the push rims on the drive wheels.
Practice moving the wheelchair carefully at first until you are familiar
with it and the way it behaves.
Wheelchairs have only a limited ability to resist tipping and sliding.
Particular care is necessary when braking and moving onto, or turning
on inclines. Leaning a long way out of the wheelchair increases the
danger of tipping.
To overcome obstacles more easily, the wheelchair must be tipped by
the accompanying person.
You can hang shopping bags or a rucksack on the backrest frame.
Never stand on the footrest!
Risk of tipping!
For obstacles and stairs with more than three steps,
two accompanying people must help.
7.2. Entering and leaving from the
front
• First fold the foot plates up or remove the leg rests.
• Move the Pyro Light Optima and the current or intended seat
together front to front if possible and decelerate the Pyro Light
Optima.
• If you wish to move from another wheelchair or room chair, lock it
by setting the parking brakes.
• Now slide onto the seat by turning your body around.
• Then move the arm rest and leg rests to the original position.
7.3. Negotiating stairs and high
steps
• Helpers must only take hold of securely fitted parts of the frame.
The lifting points are shown in Figure 42 depending on the model
equipment.
• When going up stairs, the helper behind the wheelchair pulls
the wheelchair over the step, holding it by the securely mounted
handles.
• The helper who is below takes hold of the front frame tubes and
stabilises the position. At the same time, he pushes the rear wheels
of the wheelchair against the steps.
42
Frame and push handles are the only places where
you can get hold of the wheelchair to transport it.
Never lift up the wheelchair at the armrests!
Please note that the risk of tipping over backwards
is significantly increased by hanging bags and
rucksacks on the backrest.

Bischoff & Bischoff GmbH | 12.05.2016
EN
2928
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
To get over obstacles more easily, the assisting person must position
the wheelchair at the correct angle to the obstacle by pressing on the
tip assist.
Before getting in or out, the parking brake should get locked. Use
outside of the home should only be undertaken with sufficient
experience. When possible, somebody should accompany you.
The static stability of the basic model is 7° (ca. 8 %). The critical
obstacle height at the basic model in unfavourable situations is 23
mm (maximum centre of gravity shift)
The critical obstacle height is the height in which the centre of gravity
(with the user) is right vertical over the obstacle rim. If the user tries to
put the wheelchair with the help of the driving wheels on the obstacle
without having shifted the centre of gravity forwardly, the wheelchair
will tip over backwardly.
According to STVZO 66/1 (German Road Traffic Act) of 01.01.1981,
hand propelled wheelchairs require permanently attached lighting to
participate in public road traffic (including on footpaths).
This consists of (passive):
• two red reflectors to the rear
• two amber reflectors on both sides.
If the wheelchair is used after dark, the following are necessary in
addition (active):
• one white light forwards
• one red light backwards.
These lights must work from an electrical circuit independent of the
movement (batteries) power.
8. Technical data
Dimensions
Total length with leg rests
(mm):
1090
Width (mm): Seat width + 150
Height (mm): 850 - 950
Folded (BxHxL) (mm): 360 x 850 x 1090
Lower leg length (mm): 410
Seat width (mm): 370, 400, 430, 460, 490, 520*
520, 550, 580**
Seat depth (mm): 400, 425, 450, 475, 500
Seat height (mm): 425, 450, 475, 500
Seat angle (°) 3°
Backrest angle (°): 7° optional adjustment function
Backrest height (mm): 400, 420, 440, 460
Height of armrest (mm): 190 - 265
Length of armrest (mm): 400
Front armrest attachment
(mm):
400
Position of the rear axle
with respect to the backrest
(mm):
+40 bis -20

Bischoff & Bischoff GmbH | 12.05.2016
EN
3130
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
Weigths
Max. weight capacity (kg): 125*
170**
Unloaded weight (kg): 17,12*
21,20**
Weight of attachments
- Legrest (kg):
- Side parts (kg):
- Drive wheels (kg):
1,8 (2)
2,2 (2)
3,6 (2)
Driving characteristics
Turning radius (mm): 1060
Stability
Static uphill/downhill (°): 15,4 / 18,5
Static sideways (°): 13,7
Dynamic uphill (°): 7
Dimensions
Knee angle (°): 90° optionally adjustable
Wheel camber (°): 0
Ambient conditions
Temperature (°C): 35
Air humidity (%): 80
Storage conditions
Temperature (°C): 40
Air humidity (%): 80
Tyres
Drive wheels: 24“ x 1 3/8“ (610 x 35 mm) PU
Steering wheels: 8“ x 1 1/4“ (200 x 50 mm) PU
Equipment
Folding mechanism: single cross-brace*
double cross-brace**
Side parts: height and depth adjustable
Legrests: removable/swing-away, lower leg
length is adjustable (optionally
horizontally adjustable), angle
and width of the foot plates are
adjustable.
Brakes: Parking brakes (compact brakes)
Drive wheel axles: quick-release axle as standard
Frame: Aluminium, powder-coated
Components:: Aluminium plastic-coated
Seat and back covers: high-quality, washable, breathble and
easy-care nylon with foam inserts,
flame-resistant
Armlehne: PU with foam inserts
Colours: metallic silver
Standard equipment for:
*Pyro Light Optima / **Pyro Light Optima XL

Bischoff & Bischoff GmbH | 12.05.2016
EN
3332
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
9. Transport
9.1. Transporting the wheelchair
To transport the wheelchair as convenient as possible, all detachable
parts (footrests, wheels, accessories) must be removed and the wheelchair
folded.
9.2. Seat in disabled vehicle
You can determine whether or not your wheelchair is approved for use
as a seat in a vehicle for transporting disabled people by referring to
the symbols on the CE sticker on the product:
Wheelchair suitable for use as a seat in a vehicle for
transporting disabled people (fig. A)
Wheelchair not suitable for use as a seat in a vehicle for
transporting disabled people (fig. B)
The wheelchair has also been marked with symbols on the frame which
quickly show you and your transport service provider if it is suitable for
transport in wheelchair accessible vehicles and where the fastening
points are located:
Wheelchair not suitable for use as a seat in a vehicle for
transporting disabled people (fig. C)
Fixation points on the restraint system (fig. D)
All products approved by B+B for use as seats in vehicles are tested in
accordance with ISO 7176-19. The tests in accordance to ISO 7176-
19 were performed using restraint systems from AMF-Bruns. The
correct mounting of the restraint system is a prerequisite for the safe
transportation of the products in a vehicle for transporting disabled
people and the basis for the approval.
The restraint systems from AMF-Bruns provide the ideal points for the
provision of restraint force for the purpose of securing the products in
the vehicle for transporting disabled people (known by the German
term „Kraftknoten“, which is defined in the standard DIN 75078-2).
For the purpose of providing restraint in the vehicle for transporting
disabled people (fig. D), the products must only be secured at these
specific points („Kraftknoten“ points). If possible, use a permanently
installed car seat and its belt system. Stow the wheelchair in the
luggage space. The person responsible for the transportation should be
familiar with the current regulations for transportation as well as with
the method of operating the vehicle for transporting disabled people
and the restraint system.
Anchored 4-point restraint systems must be used to secure the
wheelchair in the vehicle.If you have any queries about securing your
product in a vehicle for transporting disabled people, please contact
the B+B customer service department on +49 (0)700/60007070.
10. Maintenance tips for users
10.1. Cleaning and disinfection
• The frame and the paneling of the wheelchair can be cleaned with
a moist cloth. You can use a mild detergent for more stubborn dirt
• The wheels can be cleaned with a wet synthetic fiber brush (do not
use a wire brush!)
• Push handles, arm pads, and seat and back pads can be washed
off. Use mild detergent.
• Use a disinfectant listed by VAH for disinfection.
Observe our included overview of the most important care, hygiene and
maintenance work.
A
B
C
D

Bischoff & Bischoff GmbH | 12.05.2016
EN
3534
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
10.2. Check before use
10.2.1. Brake Inspection
• Make sure your brakes are operating properly before each use.
• It should not be possible to push the wheelchair away while the
brakes are activated.
• The wheelchair should be easy to drive without grinding noises and
with good direction stability when the brakes are released.
• If you notice unusual behaviour when braking, inform your
qualified mobility dealer immediately and do not use the
wheelchair.
10.2.2. Checking the tyres
Before embarking on any journey, check that the tyres are in good
condition.
The wheelchair must be inspected in accordance to
the service plan and must be in good condition.
11. Maintenance tips for retailers
We recommend having the wheelchair inspected by your qualified
mobility dealer at least once a year. If faults or defects at the wheelchair
are found, it must be returned to the dealer for repair immediately.
The dealer can receive the required information and documentation
for repair and service on request. A training program is also available
for dealers.
Repair and replacement of parts are carried out by the qualified
mobilty dealer.
B+B customer service is available at +49 (0)700/60007070.
12. Use by others
The Pyro Light Optima is appropriate for use by others. For use by
others, the wheelchair must first be thoroughly cleaned and disinfected
according to the accompanying care and hygiene instructions.
The product shall get checked by an authorised dealer for general
condition, wear and shall get repaired if necessary.

Bischoff & Bischoff GmbH | 12.05.2016
EN
3736
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
13. Storage/shipping
If the wheelchair is to be stored or shipped, all attachable and
unsecured parts, apart from the drive wheels, must be removed and
packed individually in appropriate cartons. The individually packed
parts can then be packaged together in a larger carton. We recommend
to keep the original carton and store it for those purposes so that it is
available if required. Your wheelchair will have an optimum protection
against environmental influences during storage and transport.
14. Disposal
If the wheelchair is no longer used and you wish to dispose it, please
contact your dealer.
15. Warranty
The warranty covers all defects of the wheelchair that are demonstrably
due to material or manufacturing defects. Any claim must be
accompanied by the completely filled-out warranty certificate.
Warning! Non-observance of the instruction
manual, improper maintenance and in particular
any technical changes and supplements (added
fittings) without the approval of B+B will generally
lead to forfeiture of warranty and product liability
claims.
Our products comes with a statutory guarantee of 2 years. For
replacement devices and repairs, a warranty period of 1 year applies.
Please also observe the B+B care, warranty, hygiene and maintenance
instructions. Your qualified mobility dealer will be happy to provide
these to you.
If you wish to dispose the wheelchair yourself,
please contact a local recycling company for the
disposal regulations of your local jurisdiction.

Bischoff & Bischoff GmbH | 12.05.2016
EN
3938
PYRO LIGHT OPTIMA | Lightweight wheelchair Lightweight wheelchair | PYRO LIGHT OPTIMA
Warranty-Certificate
Model: Pyro Light Optima/ Pyro Light Optima XL
Modellnummer:
Serial number:*
* (to be filled in by authorized dealer)
Dealer:
Date and stamp
(Please note our general business terms and conditions)
*The serial number is located on the side frame.
Notes
Tip!
In spite of careful research and editing, incorrect information may have
crept into our operating manuals. The current version of each of the
operating manuals can be found in the download area of our website:
www.bischoff-bischoff.com
