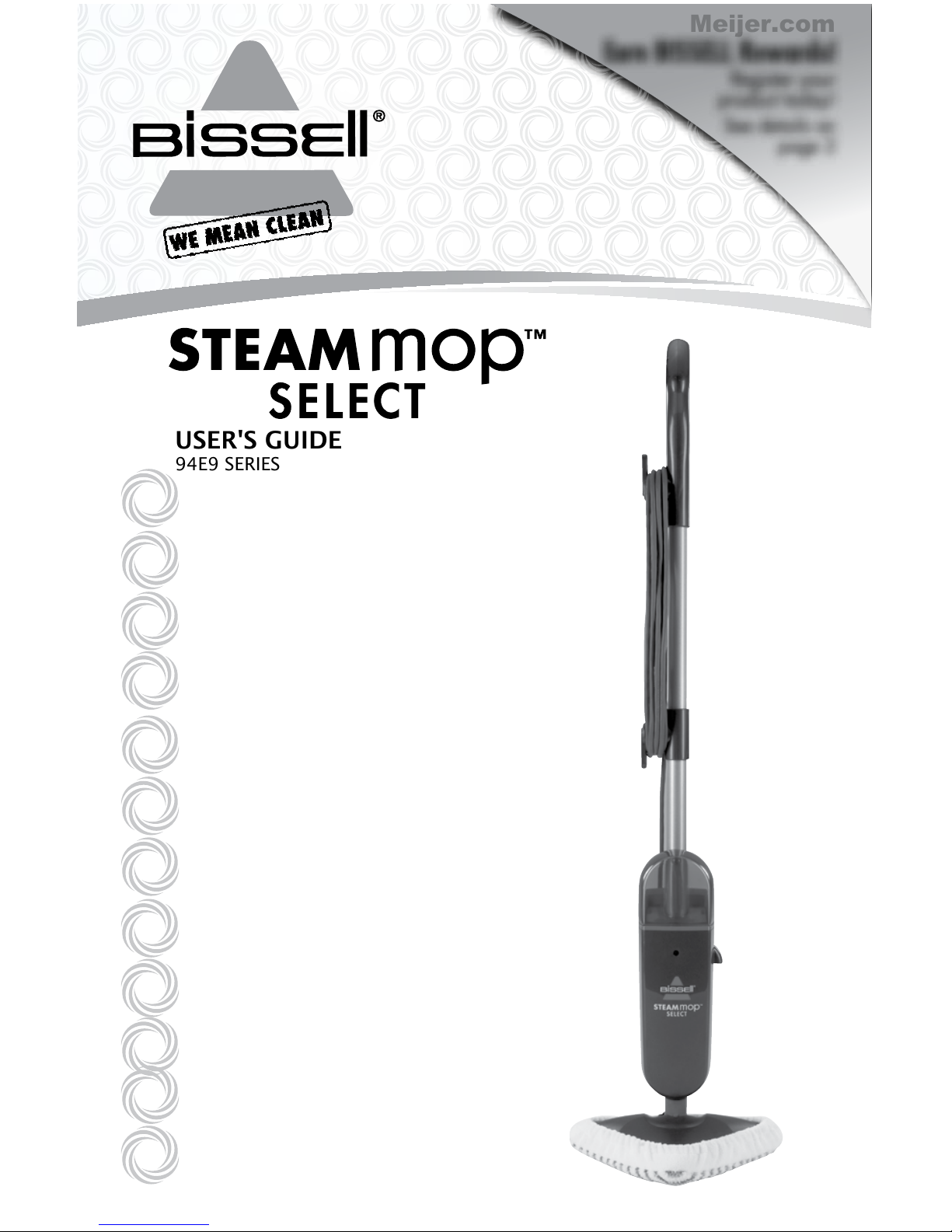

USER'S GUIDE
94E9 SERIES
Earn BISSELL Rewards!
Register your
product today!
See details on
page 2
2Thank You
Safety Instructions
Product View
Assembly
Operations
Maintenance and Care
Consumer Services
Troubleshooting
3
4
5
7-8
9
12
10
Replacement Parts
Additional Accessories
Warranty
Product Registration
10
10
11
12
Meijer.com

www.bissell.com 800.237.7691
Thanks for buying a BISSELL Steam Mop™Select
We’re glad you purchased a BISSELL Steam Mop Select. Everything
we know about floor care went into the design and construction of
this complete, high-tech home cleaning system.
Your BISSELL Steam Mop Select is well made, and we back it with a
limited one year warranty. We also stand behind it with a knowl-
edgeable, dedicated Consumer Services department, so, should you
ever have a problem, you’ll receive fast, considerate assistance.
My great-grandfather invented the floor sweeper in 1876. Today,
BISSELL is a global leader in the design, manufacture, and
service of high quality homecare products like your
BISSELL Steam Mop Select .
Thanks again, from all of us at BISSELL.
Mark J. Bissell
Chairman & CEO
2
Meijer.com

www.bissell.com 800.237.7691
IMPORTANT SAFETY INSTRUCTIONS
3
When using an electrical appliance, basic
precautions should be observed,
including the following:
Read all instructions before using your
Steam Mop™Select.
WARNING: To
reduce the risk of fire, electric shock, or injury:
■Do not direct steam at people, animals, or
at electrical outlets.
■Do not expose to rain.
■Store indoors.
■Unplug from outlet when not in use and
before conducting maintenance
or troubleshooting.
■Do not leave steam cleaner unattended.
■Do not expose hair, loose clothing, fingers
or body parts to openings or moving parts.
■Do not service steam cleaner when it is
plugged in.
■Do not handle steam cleaner with wet hands.
■Do not use steam cleaner if it has been
dropped, damaged, left outdoors or
dropped into water, return it to a service
center.
■Do not pull or carry by cord, use cord as
a handle, close door on cord, pull cord
around sharp corners or edges, or expose
cord to heated surfaces.
■Do not unplug by pulling on cord.
■Do not use appliance in an enclosed space
filled with vapor given off by oil-base paint,
paint thinner, some moth proofing sub-
stances, flammable dust, or other explosive
or toxic vapors.
■Do not allow to be used as a toy.
■Do not use on leather, wax polished furniture
or floors, synthetic fabrics, velvet or other
delicate, steam-sensitive materials.
■Do not immerse.
■Do not use for any purpose other than
described in this User’s Guide.
■Use only manufacturer’s recommended
attachments - use of attachments not pro-
vided or sold by BISSELL may cause fire,
electric shock or injury.
■Never put descaling, aromatic, alcoholic or
detergent products into the steam cleaner, as
this may damage it or make it unsafe for use.
■Unplug by grasping the plug, not the cord.
■Close attention is necessary when used by
or near children.
SAVE THESE
INSTRUCTIONS
Commercial use of this unit void the
manufacturer's warranty.
THIS APPLIANCE
HAS A
POLARIZED
PLUG.
To reduce the risk of electric shock, this
appliance has a polarized plug (one
blade is wider then the other) This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully into the outlet,
reverse the plug. If it still does not fit,
contact a qualified electrician to install a
proper outlet. Do not change the plug in
any way.
This model is for household use only.
Meijer.com

www.bissell.com 800.237.7691
4
Product view
Washable Mop
Pads-2 Pack
Strain Reliever
Handle™
Steam on
Demand Trigger
Lower Cord
Wrap
Mop Pad
Quick Release™
Cord Wrap
Power Cord
Steam Mop Scented Water-
Eucalyptus Mint
Optional Accessories:
Removable
Water Tank
Indicator Light
Meijer.com

www.bissell.com 800.237.7691
Assembly
5
Your Steam Mop Select assembles
quickly and easily. Your Steam Mop
Select is packaged with the following
items:
Handle Assembly
Lower Body
Maneuverable Mop Head
Removable Water Tank
2 Steam Mop Select Mop Pads
1. Attach lower body to mop head by
snapping it into place.
2. Slide handle assembly down into
lower body until it snaps into place.
3. Slide water tank onto lower body and
gently push tank into place.
Steam Mop Select assembly is now complete.
Handle Assembly
Maneuverable Mop Head
Removable
Water Tank
2 Microfiber Mop Pads
1
3
Lower Body
Meijer.com

www.bissell.com 800.237.7691
Special features
6
Removable water tank
The water tank is located on the top of
the Steam Mop Select. It can be refilled
with water any time during use. Distilled
or demineralized water is recommended
in place of tap water.
Do not use chemicals with your
Steam Mop Select.
Indicator light
The indicator light will glow when the
Steam Mop Select is plugged in.
Steam on demand trigger
Press to release steam.
Microfiber Mop Pads
Reusable microfiber mop pad is machine
washable and safe for all
hard floor surfaces. Your Steam Mop
Select may have come with two different
pads. The all-white "soft" pad is best for
everyday use on delicate flooring like
sealed hardwoods and laminate. The
gray and white striped pad can be used
for scrubbing heavily soiled floors and
tougher messes.
Tip:
Do not attempt to use
your Steam Mop Select
without water in the tank.
Meijer.com

www.bissell.com 800.237.7691
7
Operations
1A 1B
Getting ready
The mop pad may have already
come attached to the mop head, if
not follow steps 1A and 1B below.
1. Attach mop pad
A. Set mop head in mop pad, making
sure toggle is located on the back.
B. Tighten mop pad by pulling on elastic
cord while pressing on toggle.
2. Fill the water tank
A. Remove tank by lifting straight up
and away from unit.
B. Unscrew cap at bottom of water tank.
C. Fill water tank with water. For best
results, water should be at
room temperature.
D. Replace the cap, tighten until snug.
E. Replace water tank by gently sliding
tank into place.
3. Twist the quick release cord wrap clock-
wise to unwrap the power cord com-
pletely and plug into a 120-Volt outlet
as described on the Important Safety
Instructions, page 3.
4. The indicator light will illuminate when the
Steam Mop Select is plugged in.
NOTE: Upon first use of the Steam
Mop Select or first use after refilling
the water tank, the pump may make
a "knocking" sound. This is normal
and should only last a few seconds.
While in use, the pump will continue
to make a soft "knocking" sound.
This is also normal.
2A
2D
2B
2E
Tip:
Use of distilled water is recommend-
ed to prolong the life of your Steam
Mop Select
Meijer.com

www.bissell.com 800.237.7691
Operations
8
Before you clean
Thoroughly sweep or vacuum floor
prior to cleaning with the Steam Mop
Select.
Cleaning hard floors
Your Steam Mop Select is designed to
clean hard flooring such as ceramic
tile, vinyl, laminate, marble, stone and
sealed hard wood floors. Use of your
Steam Mop Select on waxed or some
unwaxed floors may result in a dimin-
ished glossiness. The Steam Mop Select
is not for use on unsealed wood floors.
For best results test in an inconspicu-
ous area and check the care instructions
from your flooring manufacturer.
1. Plug the unit in and wait 30 seconds for it to
heat up. Begin cleaning by slowly passing
over surface while pressing the steam on
demand trigger to emit steam as needed.
2. To sanitize an area of your floor, (attack
invisible germs and bacteria) place the
Steam Mop Select over the spot for a
minimum 15 seconds using continuous
steam, but no longer than 20 seconds
using continuous steam. For larger areas,
overlap swivel head placement.
3. When the Steam Mop Select stops emitting
steam, unplug the unit. Simply remove the
water tank, refill, and continue cleaning.
WARNING:
Never put descaling, alcoholic,
or detergent products into the steam
cleaner, as this may damage it or
make it unsafe for use. Only use
BISSELL authorized aromatic
products
Meijer.com

www.bissell.com 800.237.7691
9
Maintenance and care
CAUTION:
Upright storage of the
Steam Mop Select with a
wet mop pad may result
in the formation of white
marks on your floor. To
remove the white marks,
clean area with vinegar.
When you're done
1. Unplug power cord from outlet.
2. Carefully remove mop pad from flip
head, as mop pad and lower assembly
may be hot.
3. Any water remaining in the water tank
should be emptied prior to machine
storage.
4. Mop pad can be machine washed in
warm water. Use only liquid detergents.
Do not use fabric softeners. For best
results, air dry.
5. Wrap power cord around quick release
cord wrap on side of Steam Mop Select.
6. Wipe all surfaces of Steam Mop Select
with a soft cloth. Store upright in a
protected, dry area.
Meijer.com

www.bissell.com 800.237.7691
Troubleshooting
10
Item Part No. Part Name
1 203-7738 Handle Assembly
2 203-7734 Water Tank with Cap and Insert
3 203-7735 Cap and Insert Assembly
21 3
23 4
1
Additional Accessories
Item Part No. Part Name
1 76B2-A Replacement Mop Pads - 2 pack
2 3252-1 Eucalyptus Mint Natural Aroma
3 59V4 Steam Mop Scented Water Eucalyptus Mint 32 FL oz
4 203-2168 Storage Hook with Screws
Replacement parts- BISSELL Steam Mop™Select
Reduced steam or no steam.
Possible Causes Remedies
1. Water tank empty 1. Fill tank
Other maintenance or service not included in the manual should
be performed by an authorized service representative.
Thank you for selecting a BISSELL product.
Please do not return this product to the store.
For any questions or concerns, BISSELL is happy to be
of service. Contact us directly at 1-800-237-7691.
Meijer.com

www.bissell.com 800.237.7691
11
Warranty
This warranty gives you specific legal rights, and you may also have other rights which
may vary from state to state. If you need additional instruction regarding this warranty or
have questions regarding what it may cover, please contact BISSELL Consumer Services by
E-mail, telephone, or regular mail as described below.
Limited One Year Warranty
Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the
product BISSELL will repair or replace (with new or remanufactured
components or products), at BISSELL’s option, free of charge from the date of purchase by
the original purchaser, for one year any defective or malfunctioning part.
See information below on "If your BISSELL product should require service".
This warranty applies to product used for personal, and not commercial or rental service. This
warranty does not apply to routine maintenance components such as mop pads. Damage or
malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in
accordance with the product's use instructions is not covered.
If your BISSELL product should require service:
Contact BISSELL Consumer Services to locate a BISSELL Authorized Service Center in your
area.
If you need information about repairs or replacement parts, or if you have questions about
your warranty, contact BISSELL Consumer Services.
Website or E-mail:
www.bissell.com
Or Call:
BISSELL Consumer Services
1-800-237-7691
Monday - Friday 8 a.m. - 10 p.m. ET
Saturday 9 a.m. - 8 p.m. ET
Or Write:
BISSELL Homecare, Inc.
PO Box 3606
Grand Rapids, MI 49501
ATTN: Consumer Services
BISSELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE
ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED THE
PURCHASE PRICE OF THE PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequen-
tial damages, so the above limitation or exclusion may not apply to you.
*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER ORAL
OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION OF LAW,
INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION FROM THE DATE OF
PURCHASE AS DESCRIBED ABOVE.
Some states do not allow limitations on how long an implied warranty last so the
above limitation may not apply to you.
NOTE: Please keep your original sales receipt. It provides proof of date of pur-
chase in the event of a warranty claim.
Meijer.com

www.bissell.com 800.237.7691
BISSELL consumer services
www.bissell.com 800.237.7691
12
For information about repairs or replacement parts, or questions about your warranty, call:
BISSELL Consumer Services
1-800-237-7691
Monday - Friday 8 a.m. — 10 p.m. ET
Saturday 9 a.m. — 8 p.m. ET
Or write:
BISSELL Homecare, Inc.
PO Box 3606
Grand Rapids MI 49501
ATTN: Consumer Services
Or visit the BISSELL website - www.bissell.com
When contacting BISSELL, have model number of cleaner available.
Please record your Model Number: ___________________
Please record your Purchase Date: ___________________
NOTE: Please keep your original sales receipt. It
provides proof of purchase date in the event of a
warranty claim. See Warranty on page 11 for details.
©2011 BISSELL Homecare, Inc
Grand Rapids, Michigan
All rights reserved. Printed in China
Part Number 120-4423
Rev 10/11
Visit our website at:
www.bissell.com
Registering is quick, easy and offers you benefits over the lifetime of your product.
You’ll receive:
BISSELL Rewards Points
Automatically earn points for discounts and free shipping on future purchases.
Faster Service
Supplying your information now saves you time should you need to contact us with
questions regarding your product.
Product Support Reminders and Alerts
We’ll contact you with any important product maintenance reminders and alerts.
Special Promotions
Optional: Register your email to receive notice of offers, contests, cleaning tips and more!
Visit www.bissell.com/registration now!
Don't forget to register your product!
Meijer.com
