Bistos BT-780 User manual

BT-780 Patient monitor
Operation Manual
Keep this manual for future reference
P/N : 780-ENG-OPM-EXP-R00

BT-780 Operation manual
1
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
Proprietary Material
Information and descriptions contained in this manual are the property of Bistos Co., Ltd. and may not be copied,
reproduced, disseminated, or distributed without express written permission from Bistos Co., Ltd.
Information furnished by Bistos Co., Ltd is believed to be accurate and reliable. However, no responsibility is assumed
by Bistos for its use, or any infringements of patents or other rights of third parties that may result from its use. No
license is granted by implication or otherwise under any patent or patent rights of Bistos Co., Ltd.
The information contained herein is subjects to change without notice.
Prepared by:
Bistos Co., Ltd.
7th FL., A Bldg., Woolim Lions Valley 5-cha,
302, Galmachi-ro, Jungwon-gu, Seongnam-si,
Gyeonggi-do, Korea
Telephone: [phone]
Fax: [phone]
Revision R00
March, 2020
Printed in Korea
Copyright © Bistos Corporation 2020. All rights reserved.

BT-780 Operation manual
2
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
Contents
0. Safety information ·····························································································································································4
0.1 General precautions, warnings and cautions ························································································································ 5
0.2 Shock hazards········································································································································································· 7
0.3 Battery warnings ···································································································································································· 7
0.4 General precautions on environment ··································································································································· 7
1. System basics ·····································································································································································8
1.1 Intended use············································································································································································· 8
1.2 Operating principle··································································································································································· 9
1.3 System configurations ····························································································································································· 9
1.4 Product outlook ······································································································································································· 10
1.5 Description of monitor ···························································································································································· 10
1.6 Understanding the display ······················································································································································· 12
1.7 Smart Hotkeys ········································································································································································· 12
1.8 Essential performance······························································································································································ 13
2. Preparing for operation ······················································································································································13
2.1 Installation ··············································································································································································· 13
2.2 Connecting to power ······························································································································································· 14
3. Basic operations ·································································································································································14
3.1 Turn on ····················································································································································································· 14
3.2 Turn off ···················································································································································································· 14
3.3 Basic operations ······································································································································································ 15
3.4 Operation mode ······································································································································································ 15
3.5 Measurement setup ································································································································································ 16
3.6 Freezing waves ········································································································································································ 16
3.7 Other common setup ······························································································································································ 16
4. Patient information management ······································································································································17
4.1 Patient setup menu ································································································································································· 17
4.2 Admitting a patient ·································································································································································· 17
4.3 Patient information ·································································································································································· 18
4.4 Discharging a patient································································································································································ 18
4.5 Clear alarms ············································································································································································· 18
4.6 Clear trend················································································································································································ 18
4.7 Clear NIBP trend ······································································································································································ 18
5. Display format ····································································································································································18
5.1 Selecting user interface ··························································································································································· 19
5.2 Display description ·································································································································································· 19
6. Alarm ·····················································································································································································20
6.1 Alarm types ·············································································································································································· 20
6.2 Alarm condition priorities ························································································································································ 20
6.3 Alarm mode ············································································································································································· 21
6.4 Alarm states ············································································································································································· 21
6.5 Alarm setup ·············································································································································································· 22
6.6 Latch alarm ·············································································································································································· 23
6.7 Manual event ·········································································································································································· 24
6.8 Alarm record ············································································································································································ 24
7. ECG ·······················································································································································································24
7.1 Overview ·················································································································································································· 24
7.2 Safety information ··································································································································································· 24
7.3 Monitoring steps ····································································································································································· 25
7.4 ECG display ·············································································································································································· 26
7.5 ECG setup ················································································································································································ 27
7.6 Alarm setup ············································································································································································· 27
8. RESP ······················································································································································································27
8.1 Overview ·················································································································································································· 27
8.2 Safety information ··································································································································································· 28
8.3 Placing electrodes for respiration monitoring ························································································································· 28
8.4 Respiration display ·································································································································································· 28
8.5 Respiration setup ····································································································································································· 29
8.6 Alarm setup ············································································································································································· 29
9. PR ··························································································································································································29
9.1 Overview ·················································································································································································· 29
9.2 Display ····················································································································································································· 29
9.3 Setting PR sound······································································································································································· 29

BT-780 Operation manual
3
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
9.4 Alarm setup ············································································································································································· 29
10. SpO2····················································································································································································30
10.1 Overview ················································································································································································ 30
10.2 Safety information ································································································································································· 30
10.3 Monitoring steps ··································································································································································· 30
10.4 Display ··················································································································································································· 30
10.5 Setting SpO2··········································································································································································· 31
10.6 Measuring influencing factors ··············································································································································· 31
10.7 Alarm setup ··········································································································································································· 32
10.8 Technical description ····························································································································································· 32
11. NIBP ····················································································································································································32
11.1 Overview ················································································································································································ 32
11.2 Safety information ································································································································································· 32
11.3 Measurement limits ······························································································································································ 33
11.4 Measurement procedure ······················································································································································ 33
11.5 NIBP display ··········································································································································································· 34
11.6 Setting inflation pressure ······················································································································································ 34
11.7 NIBP reset ·············································································································································································· 34
11.8 Clean and disinfection method of NIBP cuff ·························································································································· 34
11.9 Alarm setup ··········································································································································································· 34
12. TEMP ···················································································································································································34
12.1 Overview ················································································································································································ 34
12.2 Safety information ································································································································································· 35
12.3 Measurement steps ······························································································································································· 35
12.4 Measurement requirements ················································································································································· 35
12.5 Temperature display ······························································································································································ 35
12.6 Setting temperature unit ······················································································································································· 35
12.7 Alarm setup ··········································································································································································· 35
13. Review ················································································································································································35
13.1 Reviewing trend chart ···························································································································································· 36
13.2 Reviewing trend table ···························································································································································· 36
13.3 NIBP measurement review ···················································································································································· 36
14. Battery ················································································································································································37
14.1 Overview ················································································································································································ 37
14.2 Battery usage guide ······························································································································································· 37
14.3 Checking battery performance ·············································································································································· 37
14.4 Battery recycling ···································································································································································· 37
15. Caring and cleaning ·····························································································································································38
15.1 Overview ················································································································································································ 38
15.2 Cleaning ················································································································································································· 38
15.3 Disinfection ············································································································································································ 38
16. Maintenance ·······································································································································································38
16.1 Checking ················································································································································································ 39
16.2 Viewing software version information ·································································································································· 39
16.3 Maintenance plan ·································································································································································· 39
16.4 ECG calibration ······································································································································································ 39
17. Accessories ··········································································································································································39
18. Specifications ······································································································································································40
18.1 Safety specification ································································································································································ 40
18.2 Hardware specifications ························································································································································ 40
18.3 Functional specification ························································································································································· 41
19. Alarm information ·······························································································································································43
19.1 Physiological alarm ································································································································································ 44
19.2 Technical alarm ···································································································································································· 45
20. Default parameter configuration ·········································································································································45
21. Common faults and maintenance ········································································································································46
22. Manufacturer’s declaration on EMC ····································································································································47
22.1 Electromagnetic emissions ···················································································································································· 47
22.2 Recommended separation distances between portable and mobile RF communications equipment and BT-780 …..…………47
22.3 Electromagnetic immunity ···················································································································································· 48
Product Warranty ·······································································································································································50

BT-780 Operation manual
4
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
0 Safety information
Before using BT-780 Patient monitor, read this entire manual and be fully understood the following safety information to prevent
injury of patient and user.
Symbols Used
The following symbols identify all instructions that are important to safety. Failure to follow these instructions can lead to injury or
damage to the patient monitor. When used in conjunction with the following words, the symbols indicate:
WARNING
Can lead to serious injury or death.
CAUTION
Can lead to minor injury or product/property damage
The following symbols are placed on product, label, packaging and this manual in order to stand for the information about:
Used to identify safety information.
Be well-known this information thoroughly before using BT-780.
Used to identify safety information.
Be well-known this information thoroughly before using BT-780
IPX1
Indicates the protection level against the ingress of liquid.
IPX1 is protection against some water drops falling vertically.
It correspond the device, patient monitor and accessory, temperature sensor
IPX2
Indicates the protection level against the ingress of liquid.
IPX2 is protection from some water drops when the device is tilted up to and including 15°.
It correspond the accessories for SpO2 and ECG.
Refer to operation manual. Read manual before placing the device.
Indicates AC power supply
Indicates the device is in the battery operation mode.
Fuse
Equipotentiality
Indicates nurse call interface.
Indicates network interface.
Indicates USB interface.
Indicates the production date.
Indicates the manufacturer.
Indicates the serial number of the device.
Indicates the authorized representative in the European Community of manufacturer.
Indicates a defibrillation-proof type BF applied part.
Indicates a defibrillation-proof type CF applied part.
Indicates the date after which the medical device is not to be used.

BT-780 Operation manual
5
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
Indicates to keep the device dry.
Indicates the medical device that can be broken or damaged if not handled carefully.
Indicates to keep upright
Indicates the maximum stacking limit.
Indicates the temperature limitation for operation, transport and storage.
Indicates the humidity limitation for operation, transport and storage.
Indicates the range of atmospheric pressure to which the medical device can be safely exposed.
Indicates the device contains natural rubber latex.(Accessories)
Indicates the packing material is recyclable.
Indicates to not dispose the device together with unsorted municipal waste (for EU only).
0.1 General precautions, warnings and cautions
•Examine the patient monitor and any accessories periodically to ensure that the cables, adapter cords and instruments
do not have visible evidence of damage that may affect patient safety or performance. The recommended inspection
interval is once per week or less. Do not use the patient monitor if there is any visible sign of damage.
•Only the AC power cord supplied with the BT-780 is approved for use with the device.
•Do not attempt to service the BT-780 patient monitor. Only qualified service personnel by Bistos Co. Ltd. should attempt
any needed internal servicing.
•Perform periodic safety testing to insure proper patient safety. This should include leakage current measurement and
insulation testing. The recommended testing interval is once per year.
•If the hospital or healthcare institutions using this device fail to implement a satisfactory maintenance schedule, it will
result in device failure and may endanger the patient’s safety.
•Use the patient monitor under the conditions specified in this operation manual. Beyond the conditions, the patient
monitor may not function properly and the measurement results may not accurate and may result in device failure or
endangering the patient’s safety.
•Do not operate the BT-780 patient monitor if it fails to pass the power on self-test procedure.
•During the operation, do not disconnect any cable.
•The BT-780 patient monitor is intended to be used by clinical professionals or trained doctors, nurses or laboratory
assistant.
•Do not service and maintain or clean the device including accessories while in use with a patient.
•Using the device to one patient at a time.
WARNING
•Thoroughly read and understand the manual prior to use of the BT-780. Failure to do so could result in personal injury
or equipment damage.
•The device is intended for clinical patient monitoring, and only trained and qualified doctors and nurses should use the
device.
•
The alarm volume, upper and lower alarm limits should be set according to the actual situation of the using
environment. Do not just rely on audio alarm system while monitoring the patient, because too low alarm volume or
muted alarm may result in notice failure of alarm situation and endanger the patient’s safety. Please pay close attention
to the actual clinical status of the patient.
•Use only the power cord supplied with monitor.
•Position the monitor where it is easy to de-energize the monitor when needed.

BT-780 Operation manual
6
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
•Do not open the enclosure to avoid an electric shock. Any repair and upgrade of monitor should be done by service
personnel trained and authorized by Bistos. Co., Ltd.
•When handling packaging materials, abide by local laws and regulations or hospital waste disposal regulations. Keep the
packaging materials away from children.
•Do not use in the presence of flammable anesthetics to prevent explosion or fire.
•Install the power lines and cables of accessories carefully to avoid patient entanglement or suffocation, cables tangled or
electrical interference.
•When the monitor is used together with electrosurgical devices, the user (a doctor or a nurse) should ensure the safety
of the patient and instrument.
•The physiological wave, physiological parameters and alarm information displayed on the monitor are only for the
doctor’s reference and should not be directly used as the basis for clinical treatment.
•This is not a therapeutic device.
•For patients with pacemakers, the cardio tachometer may count the pacemaker pulse in case of a cardiac arrest or
arrhythmias. Never rely solely on the cardio tachometer alarm. Closely monitor the patients with pacemaker. For the
inhibition of the device on pacemaker, refers to this manual.
•Use of accessories other than those listed and approved for use with this product may result in increased emissions or
decreased immunity.
•Medical electrical equipment needs special precautions regarding EMC and needs to be installed and put into service
according to the EMC information provided in this manual. In addition, portable and mobile RF communications
equipment can affect medical electrical equipment.
•The equipment shall not be used adjacent to other devices unless verification of normal operation in the configuration in
which it is to be used can be achieved.
•Keep matches, and all other sources of ignition, out of the room in which the patient monitor is located. Textiles, oils,
and other combustibles are easily ignited and burn with great intensity in air enriched with oxygen. Personal injury or
equipment damage could occur.
•A fire and explosion hazard exists when performing cleaning or maintenance procedures in an oxygen-enriched
environment.
•The patient monitor has been validated with the accessories and options listed in this manual and found to comply with
all relevant safety and performance requirements applicable to the device. It is therefore the responsibility of the person
or organization who makes an unauthorized modification, or incorporates an unapproved attachment to the device.
•An operator may only perform maintenance procedures specifically described in this manual.
•Do not remove the covers of a BT-780 yourself to avoid damage to the equipment and unexpected electrical shock. Only
qualified Bistos service engineer must repair or replace components.
CAUTION
•Please install or carry the instrument properly to prevent damage due to falling, collision, strong vibration or other
mechanical force.
•Avoid instrument splashed by water.
•Avoid high temperatures, the instrument should be used within a temperature range of 5 ℃~ 40 ℃。
•Avoid using instrument in the environment such as pressure is too high, poor ventilation, dusty, or contain salt, sulfur
gas and chemical.
•Before using the monitor, check the monitor and accessories if there is damage that may affect patient safety. If there is
obvious damage or aging, replace the parts before use. The replacement should be made with same parts of original
parts.
•Before powering on the device, make sure that the power used by the device complies with the supply voltage and
frequency requirements on the equipment label or in the Operator’s Manual.
•Equipment should be tested at least once a year, the test should be done and recorded by trained, have security testing
knowledge and experienced personnel. If there are any problems in the tests, they must be repaired.
•When the instrument and accessories are about to exceed the useful life (expected service life: 5 years), it must be
treated in accordance with relevant local laws and regulations or the hospital's rules and regulations.
•Do not connect to other equipment or network which not specified in the instruction for use, in risk of external high
voltage.
•Do not connect any equipment or accessories that are not approved by the manufacturer or according to IEC 60601-1 to
the monitor. The operation or use of non-approved equipment or accessories with the monitor is not tested or
supported, and monitor operation and safety are not guaranteed in such a case.
•Any non-medical equipment (such as the external printer) is not allowed to be used within the patient vicinity
(1.5m/6ft.).
•Parts and accessories used must meet the requirements of the applicable safety standards, and/or the system
configuration must meet the requirements of the medical electrical systems standard.
•Ensure that the conductive parts of electrodes and associated connectors, including neutral electrodes, do not come in
contact with earth or any other conducting objects.
•Protection of ME EQUIPMENT against effects of discharge of a cardiac defibrillator depends on use of proper cables.

BT-780 Operation manual
7
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
0.2 Shock hazards
WARNING

Unplug the monitor from its power source prior to cleaning or maintenance to prevent personal injury or equipment
damage.
Some chemical cleaning agents may be conductive and leave a residue that may permit a build-up of conductive dust
or dirt. Do not allow cleaning agents to contact electrical components and do not spray cleaning solutions onto any of
these surfaces. Personal injury or equipment damage could occur.
Do not expose the unit to excessive moisture that would allow for liquid pooling. Personal injury or equipment damage
could occur.
Do not touch the patient and signal input/output parts simultaneously
Due to the risk of electrical shock hazard, only qualified personnel with appropriate service documentation should
service the monitor.
0.3 Battery warnings
WARNING

Improper operation may cause the internal lithium ion battery to be hot, ignited or exploded, and it may lead to the
decrease of the battery capacity. It is necessary to read the operation manual carefully and pay more attention to
warning message.
Do not open the battery compartment. Only the qualified service personnel authorized by the manufacturer can open
the battery compartment and replace the battery, and batteries of same model and specification should be replaced.
Be careful when connecting the battery with polarity.
Do not use the battery near fire or environmental temperature exceeds 60 ℃. Do not heat or splash the battery or
throw it into fire or water.
Do not destroy the battery. Do not pierce battery with a sharp object such as a needle. Do not hit with a hammer, step
on or throw or drop the battery. Do not disassemble or modify the battery. The battery can heat, smoke, deformation
or burning.
When leakage or foul smell is found, stop using the battery immediately. If your skin or cloth comes into contact with
leaked liquid, cleanse it with clean water at once. If the leaked liquid splashes into your eyes, do not wipe them.
Irrigate them with clean water first and go to see a doctor immediately.

Properly dispose of or recycle the depleted battery according to local regulations.
0.4 General precautions on environment
Do not keep or operate the equipment under the environment listed below.
Avoid placing in an area exposed
to moisture. Do not touch the
equipment with wet hand.
Avoid exposure to direct sunlight
Avoid placing in an area where
high variation of temperature
exists. Operating temperature
ranges from 5℃~ 40℃. Operating
humidity ranges from 30% ~ 85 %.
Avoid in the vicinity of electric
heater.
Avoid placing in an area where
there is an excessive humidity rise
or ventilation problem.
Avoid placing in an area where
there is an excessive shock or
vibration.
Avoid placing in an area where
chemicals are stored or where
there is in danger of gas leakage.
Avoid dust and especially metal
material enter into the equipment
Do not disjoint or disassemble the
device. Bistos Co., Ltd. does not
have liability of it.
Power off when the equipment is
not fully ready to operate.
Otherwise, the equipment could be
damaged.

BT-780 Operation manual
8
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
1 System basics
1.1 Intended use
The BT-780 Patient Monitors acquire the physiological signals such as ECG, respiratory rate, non-invasive blood pressure (NIBP),
blood oxygen saturation (SpO2) and temperature. The signals are converted into digital data and processed, examines the data for
alarm conditions and display them. The patient monitor intend to use in hospital clinical area such as intensive care units, cardiac
care units, operating room, emergency department, to provide additional information to the medical and nursing staff about the
physiological condition of the patient. The BT-780 patient monitors are intended to be used only under regular supervision of
clinical personnel. It is suitable for adult and pediatric, neonate. The intended locations of use are hospitals and clinics.
1) Intended patient population
-Adult (>18 years adults) and Pediatrics (30 days < and <18 years) and Neonate (0 days＜and ＜30days)
2) Intended user profile
-Doctor, physicians or nursing staff who is qualified personnel
-Basic experiences or knowledge on medical field, especially on patient monitoring
-Trained or requested to read IFU before use
3) Environment of use
-Hospital and clinic
-Requirements: Stable power source
4) Scope of application
This monitor is suitable for bedside monitoring of patient. This monitor enables ECG, respiration (RESP), pulse rate (PR), blood
oxygen saturation (SpO2), noninvasive blood pressure (NIBP) and temperature (TEMP) monitoring. It is equipped with a replaceable
built-in battery to provide convenience for the patient movement in hospital.
5) Indications and contraindications
Blood oxygen saturation (SpO2)
Indication:
- Monitoring effectives of oxygen therapy
- A reading is needed to facilitate the completion of an early warning score to inform clinical assessment
- Sedation or anesthesia
- Transport of patients who are unwell and require oxygenation assessment
- Haemodynamic instability (e.g. cardiac failure or Myocardial Infarction)
- Respiratory illness e.g. asthma, chronic obstructive pulmonary disease
- Monitoring during administration of respiratory depressant drugs, e.g. opiate epidural or patient-
controlled analgesia.
- Assessing oxygen saturation during physical activity e.g. in pulmonary rehabilitation
Contraindications
- Pulse oximetry does not give an indication of haemoglobin so if the patient is profoundly anaemic then
their oxygen saturation may by normal but they may still be hypoxic
Source: NHS. “Clinical Procedure_ Procedure for Pulse Oximetry/SPO2”. Wirral Community NHS Trust. Sep, 2013
Non-invasive blood pressure (NIBP)
Indication:
- To determine a patient’s blood pressure
- Screen for hypertension
- Following the effect of anti-hypertensive treatments in a patient to optimize their management
- Assessing a person’s suitability for a spot or certain occupations
- Estimation of cardiovascular risk
- Determining for the risk of various medical procedure
- Figuring out whether a patient is clinically deteriorating or is at risk.
Contraindications
- Oscillometric blood pressure devices may not be accurate in patients with weak or thready pulse
- In patients with heart beats below 50 beats/minutes, even if the rhythm is regular, some of the semi-
automatic devices are unable to reduce their deflation rate sufficiently so that too rapid a falling in cuff
pressure results in underestimation of systolic blood pressure and overestimation of diastolic blood
pressure.
- Do not apply to limb with AV fistula, significant injury or burn, or lymph node removal post mastectomy.
Source: [1] NHS. “Clinical Procedure_ Procedure for Blood Pressure Monitoring”. Wirral Community NHS Trust. Dec,
2013
[2] Clinical Quality& Patient Safety Unit, QAS. Clinical Practice Procedures: Assessment/Non-invasive blood
pressure. Queensland Government, 2016. https://www.ambulance.qld.gov.au/clinical.html
Electrocardiography (ECG)
Indication:
- The electrocardiogram (ECG) has proven to be among the most useful diagnostic test in clinical medicine.
It is routinely used in the evaluation of patients to detect myocardial injury, ischemia and the presence
of prior infarction, in the assessment of patients with electrolyte abnormalities, drug toxicities and
implanted defibrillators and pacemakers.

BT-780 Operation manual
9
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
- In addition to its usefulness in the evaluation of ischemic coronary disease, the ECG, in conjunction with
ambulatory ECG monitoring, is of particular use in the diagnosis of disorders of the cardiac rhythm and in
the evaluation of syncope. Other common uses of the ECG include the assessment of metabolic
disorders and side effects of pharmacotherapy, as the evaluation of primary and secondary
cardiomyopathic processes, among others.
Contraindications
- No absolute contraindications to performing an ECG exist, other than patient refusal. Some patients may
have allergies or, more commonly, sensitivities to the adhesive used to affix the leads; in these cases,
hypoallergenic alternatives are available from various manufacturers.
Source: Tarek, A. “Electrocardiography”,<Medscape>, Apr 17, 2017
Temperature (TEMP)
Indication:
- To obtain the baseline temperature to enable comparisons to be made with future recordings
- To enable close observation in resolving hypothermia/hyperthermia
- To observe and monitor patients for changes indicating an infection
- To monitor the effect of treatment for antimicrobial therapy for infection
- Using before and during a blood transfusion to monitor for signs of a reaction
Contraindications
- No known contraindications
1.2 Operating principle
Refer to the chapters for every physiological parameter from chapter 7 to chapter 12.
1.3 System configurations
Basic configuration of BT-780
•Main body with 15.6 inch touch screen and built-in lithium-ion battery
•ECG cable and electrode
•Adult SpO2 probe and extension cable
•Non-invasive blood pressure cuff
•Temperature probe
•AC power cord
Options of BT-780
•External plug-in printer
Name
Description
Qty
ECG cable and lead
wire
(standard)
Measures ECG 1ea
ECG electrode
(standard) Electrode for ECG measurement 1ea
Adult SpO2 sensor
(standard) SpO2 sensor for adult 1ea
SpO2extension cord
(Standard)
Cord to connect the SpO2 sensor and main
body 1ea
Adult NIBP cuff
(standard)Measures NIBP for adult 1ea
NIBP extension tube
(standard)
Tube to connect the NIBP cuff and main
body 1ea

BT-780 Operation manual
10
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
Temperature sensor
(Standard)Measures the body temperature 1ea
Grounding cable
(Standard) For safe using 1ea
Power cord
(Standard) For power supply 1ea
1.4 Product outlook
<Left> <Right>
Figure1-1: Front view
Figure1-2 : Side view
Figure1-3 : Rear view
1.5 Description of monitor
Figure1-4: Front view
Name
Description
1 Alarm indicator
Indicates the priority of physiological alarm and technical alarms in
different colors and flashing frequencies.
-High priority: Red, fast flashing (1.4 - 2.8 Hz)
-Medium priority: Yellow, slow flashing (0.4 - 0.8 Hz)
-Low priority: Yellow, constant on
2
Light sensor
To adjust the brightness from the light of environment.
3
Display area
-Display the waveform and measured value

BT-780 Operation manual
11
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
4
[Power]
-Power On: Press down the key more than 1 second.
-Power Off:
Press down the keys more than 2 seconds and the
system will display the alarm message “
The system will shut down 3
seconds”.
5
AC power indicator
Turned on when the monitor is being powered by the Power cord.
6 Battery indicator
-On: The battery is being charged or has been fully charged.
-Off: The battery has not been installed.
-Flashing: The monitor is being powered by the battery.
Figure1-5: Side view
Figure1-6: Rear view
Name
Description
1
Air outlet
Heat dissipation
2
Handle
Handle for main body transport
3
Speaker holes
For alarm and synchronizing sound
4
ID label
Identify the monitor information
5
USB port
For trend export or software upgrade
6
Network port
For CMS
7
Auxiliary output
interface Nurse call
Name
Description
1
SpO2
SpO2 cable interface
2
ECG
ECG cable interface
3
T1
Temperature probe interface
4
T2
Temperature probe interface
5
NIBP
NIBP cuff interface
6
C.O.
C.O. cable interface (Optional function)
7
CO2/AG
CO2&AG cable interface (Optional function)
8
IBP1
IBP cable interface (Optional function)
9
IBP2
IBP cable interface (Optional function)
10
IBP3
IBP cable interface (Optional function)
11
IBP4
IBP cable interface (Optional function)

BT-780 Operation manual
12
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
8
Grounding post
Connect grounding cable
9
Power cord
Supply AC power
1.6 Understanding the display
Figure 1-7: Standard display
Name
Description
1Information area
Include patient information, alarm status icon, physiological and technical
alarms. In DEOM mode, it displays “DEMO”.
2Waveform area
Mainly display the waves of physiological parameters with name of the
parameter on the left side.
3Parameter area
Show the corresponding parameter measured value and current upper and
lower alarm limits of each parameter module. The parameters are shown in
fixed position, that is, from top to bottom and from left to right:
-ECG, NIBP, SpO2and PR, TEMP, RESP
4
Information Tip
Area
Display the network status, battery status, automatic identification screen
brightness icon.
5Hot key icons Shows the hotkeys, which are frequently used for some common operations.
6Date and Time area
Display the current date and time.
1.7 Smart Hotkeys
Smart hotkeys are graphic hotkeys displayed at the bottom of the main screen of the monitor, and enable the user to use specific
features conveniently.
Key Name Description
[Pause] Alarm pause
[Pat. Set] Patient information setting
[NIBP] NIBP measurement start and stop
[Event] Manual event mark
[Displays] Change the display format
[Freeze] Freeze the waveform

BT-780 Operation manual
13
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03

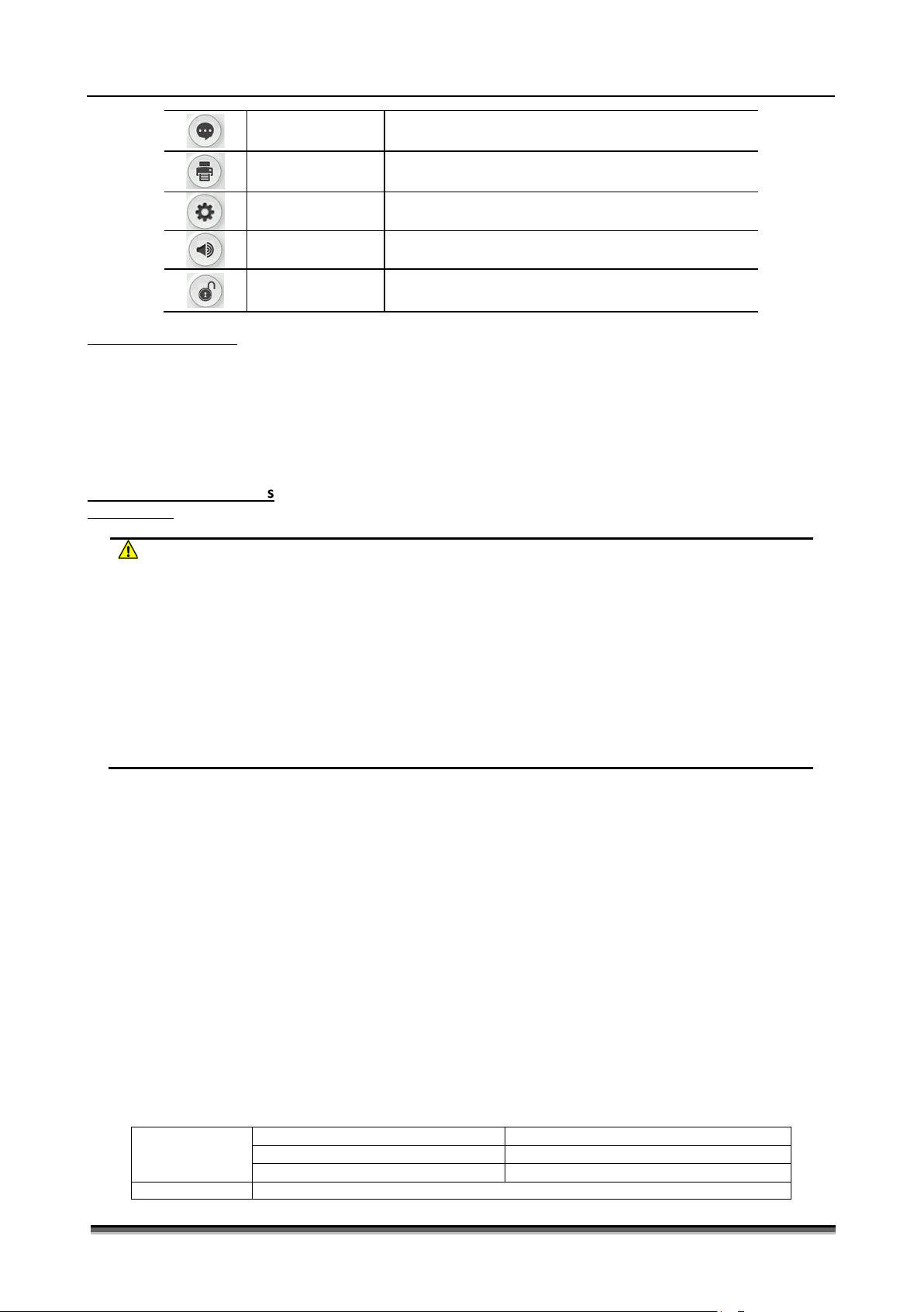

[Trend] Trend display
[Print] Print key
[Settings] Setup menu
[Volume] Volume setup key
[Unlock] Touch screen lock key
1.8 Essential performance
This device Multi-parameter Patient Monitor provides various patient vital signs such as pulse rate, ECG, respiration, blood oxygen
saturation, blood pressure and temperature by placing or inserting the various sensors to the appropriate site of patient. The device
is composed with display and control circuit, and input part for various sensors. It detects ECG, SpO2, NIBP, etc. using ECG cable and
specific probes and sensors. The detected analog signal amplifies and converted to digital. This concerted data feed to the CPU and
converted to the display format as number and waveform. This device is incorporated with alarm system. The alarm generated
when the detected signal range is beyond the user set alarm limits.
2 Preparing for operations
2.1 Installation
To ensure normal working of the monitor, read this chapter before use, and install as required.
WARNING

All analog and digital devices connected to the monitor must be certified by IEC standards (e.g. IEC 60950 Data
processing equipment standard and IEC 60601-1 Medical equipment standard). Furthermore, all configurations
shall comply with valid version of IEC 60601-1 standard. The personnel connecting additional devices to the input /
output signal ports are responsible for the compliance with IEC 60601-1 standard. If there is any question, please
contact Bistos.
If the patient cable interface and network interface are connected with multiple devices, the total electric leakage
current cannot exceed the allowable value.
The copyright of monitor software belongs to our company. Without permission, any organization or individual
shall not interpolate, copy or exchange by any means or form.
When the monitor is combined with other devices, it must comply with IEC 60601-1:2005 + A1:2012, and should
not be connected with multiple socket outlet or extension cord.

Do not connect the device on other equipment or network, to which a signal input/output part may be connected.
Prior to installation, the operator must ensure that the following space, power, environmental requirements are met.
2.1.1 Unpack and check
BT-780 patient monitor was inspected rigorously at the factory before delivery, in order to avoid being hit when transported, carried
out careful packaging. Before unpacking, carefully inspect the package. If any damage, please immediately contact the Bistos.
Unpack in the correct way, carefully remove the monitor and accessories from the box and check with the packing list. Check if
there is any mechanical damage, the all listed are completely packed. If you have questions, please contact the marketing
department of Bistos or agency.
Please keep the packing box and materials for use in future transporting or storage.
2.1.2 Placement requirements
Equipment installation must meet:
-The left and right side of the monitor should have space more than 100 cm from the wall
-Back on the monitor should have space more than 50 cm.
-Ensure that the operating floor and the monitor have enough space for connecting the accessory wires.
2.1.3 Power requirements
-AC power supply power cord
Input voltage: A.C. 100 V - 240 V,
Input current: 0.8-0.3A
Frequency: 50/60 Hz
-Built-in rechargeable lithium-ion battery: D.C. 11.1 V, 4400 mAh
2.1.4 Environmental requirements
The storage, transport and use of the monitor must meet the following environmental requirements.
Operating
environment
Ambient temperature
5
℃
~ 40
℃
Relative humidity
30 % ~ 85 % (Non-condensing)
Atmospheric pressure
700 ~ 1060 mbar (hPa)
Transportation
Prevent severe shock, vibration, rain and snow splashing during transport.

BT-780 Operation manual
14
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
Storage
The packaged monitor should be stored in well-ventilated room with ambient temperature
-20 ℃~ 60℃, relative humidity 0 ~ 95 % (Non-condensing), atmospheric pressure 700 ~
1060 mbar(hPa), and without corrosive gases.
The operating environment of the monitor should avoid noise, vibration, dust, corrosive or flammable and explosive materials. In
order to allow air flowing smoothly and achieve good heat dissipation, at least 2 inches (5cm) clearance should be kept around the
device.
When the device is moved from one environment to another, the device may have condensation due to the differences in
temperature or humidity. In this case, wait until the condensation disappears before using the device.
WARNING

Ensure that the monitor is used under specified environment. Fail to do this, the technical specifications declared in
this manual may not be met and it may result in damage to equipment and other unforeseen consequences.
2.2 Connecting to power
WARNING

Do not try to open the monitor when the power is connecting.

During the operation, do not disconnect any cable.
Connect to power cord in the following steps:
-Make sure that the AC power supply meets the following specifications: a.c.100V-240V, 50/60Hz.
-Use the power cord provided with the monitor. Plug the power cord into the power connector of the monitor, and plug
the other end of the power cord into the mains (low voltage power supply network facilities) power outlet with
protective earth.
3 Basic operations
3.1 Turn on
3.1.1 Check the monitor
-Before turn on the monitor, check whether there is mechanical damage to the monitor, and whether the external cables and
accessories are connected correctly.
-Plug the power adapter into the AC power outlet. If using battery power, make sure the battery is fully charged.
-Check all the functions required for patient monitoring to make sure that the monitor operates properly.
WARNING

If the monitor is damaged, or fails to work normally, do not use it for patient monitoring. Please contact the
maintenance personnel or Bistos immediately.
3.1.2 Start the monitor
If finish to check the monitor, it is ready to start the monitor.
Press the [Power] key, the yellow warning lights flash once and the system enter the program reading interface; finally the
system makes a “tick” sound, the boot screen disappears, and the system enters the main interface.
-If any fatal error occurs during self-test, the system will alarm. If this case persists, please stop to using the monitor and
contact the maintenance personnel or Bistos.
-Check all available monitor functions to ensure that the monitor operate properly.
-If the monitor equipped with a battery, charge the battery after each use to ensure sufficient power.
-After unpacking, when use the monitor first time, the monitor should be powered with adapter.
3.1.3 Connect the sensors
Connect the required sensor to the monitor and the monitoring site of patient.
3.1.4 Start monitoring
Start monitoring in the following steps:
-Check if the patient cable and the sensor are connected properly.
-Check if the settings of the monitor are corrects, such as patient type.
-For the details of parameter measurement or monitoring, see the appropriate section.
-The operator can operate according to their own habits, standing in front, left or right of the monitor, easy to observe
and operate the monitor.
3.2 Turn off
Turn off the monitor in the following steps
-Disconnect the cables and sensors connected to the patient.
-Press and hold the [Power] key for 2 seconds to pop up the 3 seconds countdown window, and the monitor turns
off in 3 seconds.
CAUTION
•
If the monitor is not turned off properly, you can simply disconnect the power to shutdown forcibly. But the

BT-780 Operation manual
15
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
forced shutdown may cause data loss, and it is not recommended.
3.3 Basic operations
3.3.1 Using keys
The monitor has three types of keys:
-Soft keys: Within the display these keys allow quick access to certain menus or performing certain actions, including:
•Parameter hotkeys: Select a parameter area and enter the appropriate parameter setup menu, including drug
calculation and time setup.
•Wave hotkeys: Select a wave area and enter the appropriate parameter setup.
•Smart hotkeys: The shortcut keys that the user can operate quickly are displayed at bottom of the screen. Refer to ‘1.7
Smart Hotkeys’.
-Popup keys: Menu keys relevant to the tasks that automatically appear on the monitor screen when need, such as, the
confirmation key popped up when you need to confirm the change.
3.3.2 Using the touch screen
Click on the touch screen to quickly and easily perform specific operation.
3.3.3 Using soft keyboard
If you choose a menu which needs to enter characters, the system will display the soft keyboard on the screen. If you finish
entering, press [Enter] key to confirm that you have finished entering and close the soft keyboard.
3.3.4 Using menu
Select the [Settings] smart key on the monitor to open the “Settings” mode as shown below. You can set-up the monitor.
Figure 3-1: “Setting” menu
The style of other menus is basically similar to the “Settings” mode as shown below. You can set-up the monitor screen if you need.
•Menu title: A title of the current menu.
•Close menu: Close the current menu. Exit the current menu or close the current menu and return to the previous menu.
•Main display area: Display options, buttons or prompt messages. The symbol “>>” indicates that selecting this option can
enter the corresponding submenu.
•Confirmation key area: Some menus contain a confirmation key area to confirm the menu operations, including
confirmation and cancel key.
3.4 Operation mode
The style of other menus is basically similar to the mode is protected by a password. Demo mode contains a password key area to
access the operations, including confirmation and cancel key.
1. Monitoring mode (operating mode)
This is the daily operating mode of patient monitoring; you can change some settings in accordance with the patients, such as alarm
limits. However, when the patient is discharged, the monitor will restore these settings to default according to pre-set configuration.
2. Demo mode
This mode is protected by a password for demonstration purpose only.
•Enter the demo mode:
Select [Settings]Smart Hotkey →“Settings”;
Select “Demo Mode>>” →enter the password and confirm, and the monitor enters the demo mode.
•Exit demo mode:
Select [Settings]Smart Hotkey →“Settings”;
Select “Exit Demo >>” and the monitor exits the demo mode.
WARNING

The demo mode is mainly used to show the monitor’s performance and for user training. In
actual clinical use, the demo function is prohibited in order to avoid mistaking the displayed

BT-780 Operation manual
16
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
waves and parameters as those of the patient, thus affecting patient monitoring, and delaying
diagnosis and treatment.
3.5 Measurement setup
This section only describes the general settings of measuring wave in monitor mode; for other specific settings of each parameter,
please refer to the appropriate section.
Select the wave area of a parameter to enter the appropriate setup menu. The setup menu defines the specific wave setup of the
parameter, such as wave gain and wave speed. You may set the waves of different parameters as needed.
3.6 Freezing waves
In the patient monitoring process, you can freeze the wave on the screen, review and carefully observe the patient's condition
during this time. Freeze / unfreeze the wave as follows:
Select 【Freeze】hotkey to freeze the displayed wave of the monitor.
Select 【Freeze】hotkey again to release the freezing state.
3.7 Other common setup
The common setup of the monitor is the general setup that defines how the monitor works, for example: alarm volume setting.
They may affect the setup of multiple measurements or display interfaces.
3.7.1 Defining the monitor
When install the monitor or change the usage occasion, the monitor should be defined as follows:
Select [Settings]Smart Hotkey →“Settings”.
Select “User Maintenance >>” →enter the password and confirm →“User Maintenance” menu.
Select “Device Name”: Enter device name through the soft keyboard on the screen.
Select “Department”: Enter the sector and department using the device through the soft keyboard on the screen.
Select “Bed Number”: Enter the bed number through the soft keyboard on the screen.
3.7.2 Language setup
Set the monitor language in the following steps:
Select [Settings]Smart Hotkey →“Settings”.
Select “User Maintenance >>” →enter the password and confirm →“User Maintenance” menu.
Select “Language”, and select the option as needed:
“English”: The interface language of the monitor is English.
“Türkçe”: The interface language of the monitor is Turkish.
“Español”: The interface language of the monitor is Spanish.
“Français”: The interface language of the monitor is French.
“Polski”: The interface language of the monitor is Polish.
“Italiano”: The interface language of the monitor is Italian.
“Deutsch”: The interface language of the monitor is German.
3.7.3 Date and time
Set the monitor time in the following steps:
Select [Settings]Smart Hotkey →“Settings”;
Select “User Maintenance >>” →enter the password and confirm →“User Maintenance” menu.
Select “Time Setup >>” →enter “Time Setup>>” menu.
Or you can enter the “Time Setup” directly by touching the time display area on the display.
“Date (YYYY-MM-DD)”: Set the year, month, and day.
“Time (24H)”: Set the hour, minute and second.
Select “Date Format”, and set the date format in accordance with custom
“YYYY-MM-DD”: Year- Month-Day.
“MM-DD-YYYY”: Month -Day-Yea r.
“DD-MM-YYYY”: Day-Month-Yea r.
“Time Format”, set the time format is 24H.
3.7.4 Volume control
1. Alarm Volume
Select 【Volume】smart hotkey →“Volume Setup” menu.
Select “Alarm Volume”: Set alarm volume from 1 to 9.
2. QRS Volume
Select 【Volume】smart hotkey →“Volume Setup” menu.
Select “QRS Volume”: Set QRS volume from 0 to 9. 0 means off.

BT-780 Operation manual
17
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
3. Pulse Volume
Select 【Volume】smart hotkey →“Volume Setup” menu.
Select “Pulse Volume”: Set pulse volume from 0 to 9. 0 means off.
4. Touch Volume
Select 【Volume】smart hotkey →“Volume Setup” menu.
Select “Touch Volume”: Set touch volume from 0 to 9. 0 means off.
5. Key Volume
Select 【Volume】smart hotkey →“Volume Setup” menu.
Select “Key Volume”: Set key volume from 0 to 9. 0 means off.
3.7.5 Setting parameter unit
You can select a preferred unit through the following operations
Select [Settings]Smart Hotkey →“Settings”.
Select “User Maintenance >>” →enter the password and confirm →“User Maintenance” menu.
Select “Unit Setup >>” →“Unit Setup” menu.
Select “Height Unit”, and select the unit “cm” / “inch” as needed.
Select “Weight Unit”, and select the unit “kg” / “lb” as needed.
“ST Unit” fixed as “mV”, is not optional.
Select “Pressure Unit”, and select the unit “mmHg” / “kPa” as needed.
Select “TEMP Unit”, and select the unit “℃” / “℉”as needed.
4 Patient information management
Connect the patient to the monitor, and the monitor will display and store the physiological data of the patient, so the patient can
be monitored without admitting the patient. However, admitting the patient correctly is very important.
If the monitor has admitted the patient, it is recommended to operate the monitor to discharge the current patient before
connecting to (not admitted) the next patient. Otherwise, the data of the previous patient will be stored in the data of the current
patient.
WARNING

Whether the patient is admitted or not, the system will give a default value to “Patient Type” and “Pace Maker”,
“Patient Type” default “Adult”, “Pace Maker” default “No”, and the user must confirm that the default value is
appropriate for the patient being monitored.
For patients with pacemakers, “Pace Maker” must be set to “Yes”. Otherwise, the pacing pulse will be treated as
normal QRS wave group, and the system is unable to detect the alarm status of “ECG Signal weak”.
For patients without a pacemaker, “Pace Maker” must be set to “No”. Otherwise, the system is unable to detect
the arrhythmias (including PVCs count) related to ventricular premature beats, and fails to perform ST segment
analysis.
4.1 Patient setup menu
You can manage the patient through the “Patient” menu. To enter “Patient” menu, operate as follows:
Select [Settings]Smart Hotkey →“Settings”→“Patient >>”→“Patient”menu;
Or Select [Pat. Set] Smart Hotkey to enter “Patient” menu, as shown in Fig. 4-1.
Figure 4-1 “Patient” menu
4.2 Admitting a patient
Admit a patient as follows:
In “Patient” menu, select “Quick Admit” →“Warning” message →“OK” →“Quick Admit” menu, as shown in Figure 4-2.

BT-780 Operation manual
18
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03

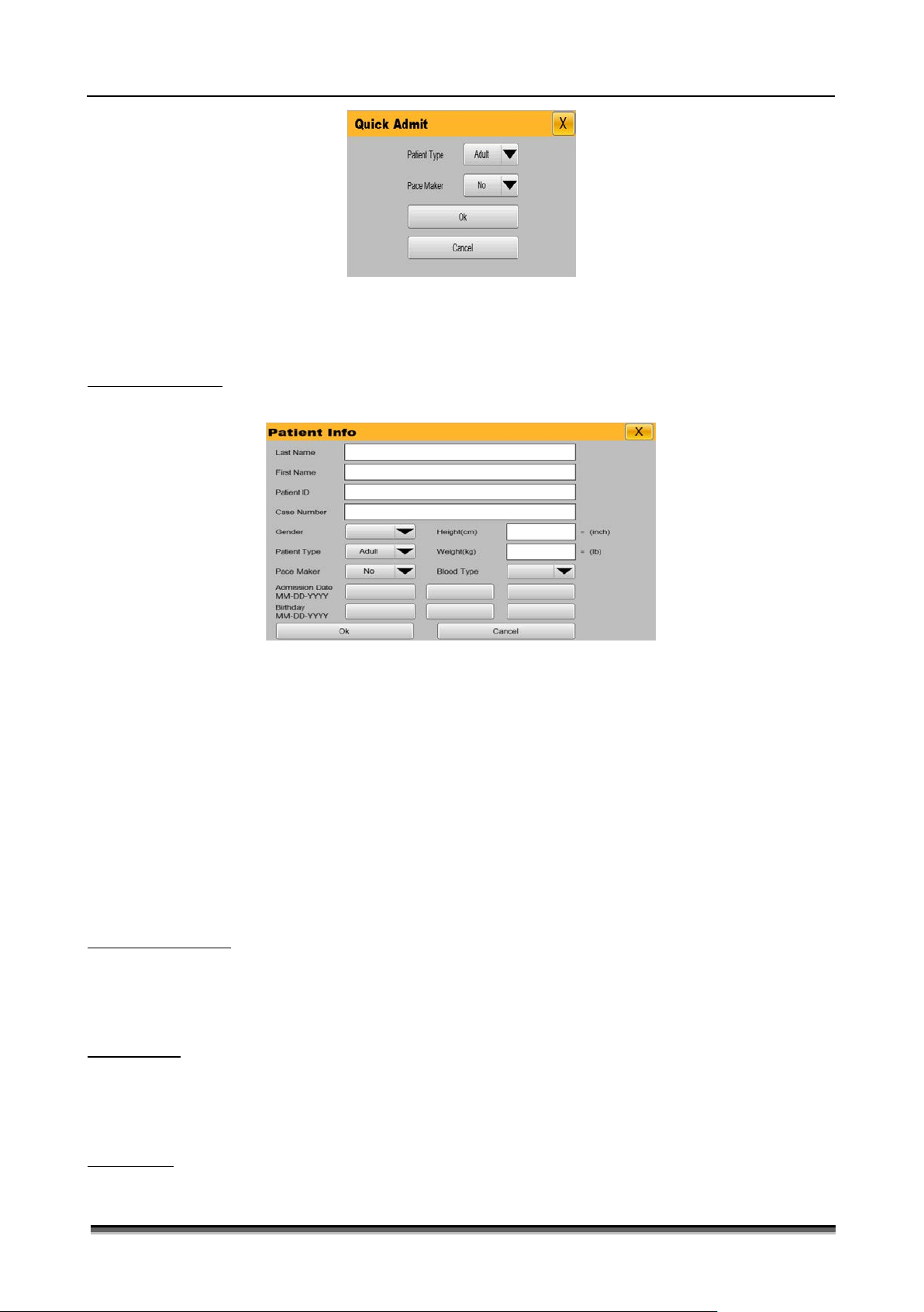

Figure 4-2 “Quick Admit” menu
Select “Patient Type”, and set the patient category as needed: “Adult” and “Pediatric” and “Neonate”.
Select “Pace Maker”, and set whether the patient wears a pacemaker according to the patient condition: “Yes” or “No”.
After setting, select “OK” to save the current setup or select “Cancel” and do not save the current setup.
4.3 Patient information
To edit patient information, operate as follows:
In the “Patient” menu, select “Patient Info”. The “Patient Info” menu as shown in Figure 4-3 will be displayed.
Figure 4-3. “Patient Info” menu
1. Select “Last Name”, and enter patient’s surname through the soft keyboard（Letters: not more than 20 characters）.
2. Select “First Name”, and enter patient name through the soft keyboard（Letters: not more than 20 characters）.
3. Select “Patient ID”, and enter the patient ID through the soft keyboard (Letters: not more than 20 characters).
4. Select “Case Number”, and enter the case number through the soft keyboard（Letters: not more than 20 characters）.
5. Select “Gender”, and set the patient’s gender.
6. Select “Patient Type”, and set the patient category as needed: Adult and Pediatric and Neonate.
7. Select “Pace Maker”, and set whether the patient wears a pacemaker.
8. Select “Height(cm)”, and set the patient’s height via the pop-up keyboard on the screen(Range: 0～250).
9. Select “Weight (kg)”, and set the patient’s weight via the pop-up keyboard on the screen(Range: 0～350).
10. Select “Blood Type”, and set the patient’s blood type: A, B, AB or O.
11. Select “Admission Date (MM-DD-YYYY)”, and set the date of admitting the patient.
12. Select “Birthday (MM-DD-YYYY)”, and set the birth date of the patient.
After setting, select “OK” to save the current setting or select “Cancel” and do not save the current setting.
4.4 Discharging a patient
To discharge a patient, operate as follows:
In the “Patient” menu, select “Discharge Patient” →“Warning”message →“OK”to finish the operation of discharging a patient.
After the patient is discharged, all the information of the patient stored in the monitor will be cleared. Therefore, discharge the
patient only when needed.
4.5 Clear alarms
To clear alarms, operate as follows:
In the “Patient” menu, select “Clear Alarms” →“Warning” message →“OK” to finish the operation of clear alarms.
After the alarm is cleared, all the information of alarms stored in the monitor will be cleared. Therefore, clear alarm only when
needed.
4.6 Clear trend
To clear trend, operate as follows:
In the “Patient” menu, select “Clear Tabular Trend” →“Warning” message →“OK” to finish the operation of clear tabular trend.

BT-780 Operation manual
19
P/N : 780-ENG-OPM-EXP-R00
Bistos Co., Ltd.
2020.03
After the tabular trend was cleared, all the information of tabular trend stored in the monitor will be cleared. Therefore, clear
tabular trend only when needed.
4.7 Clear NIBP trend
To clear NIBP trend, operate as follows:
In the “Patient” menu, select “Clear NIBP Trend” →“Warning” message →“OK” to finish the operation of clear NIBP trend.
After the NIBP trend was cleared, all the information of NIBP trend stored in the monitor will be cleared. Therefore, clear NIBP trend
only when needed.

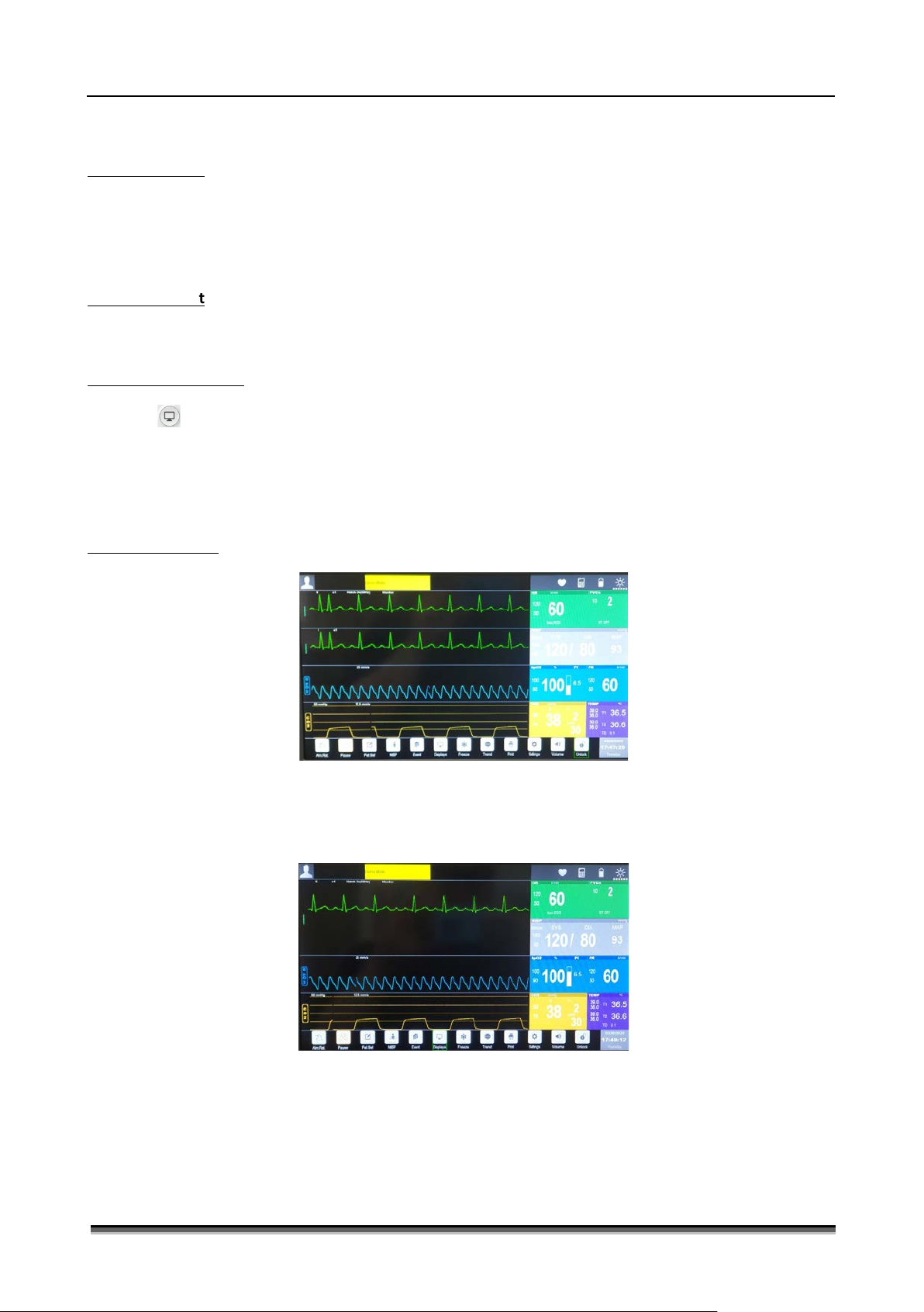

5 Display format
The monitor has four display format, which are “Normal Screen”, “Big ECG Screen”, “Big font Screen”, and
“ECG 7-Lead Full-Screen”. The user can select the display format according to needs, and get different
screen information.
5.1 Selecting user interface
Select the user interface as follows:
Select [Displays] smart hotkey→Screen Select;
Select the display format according to needs:
“Normal Screen”: Standard interface
“Big ECG Screen”: Big ECG interface.
“Big font Screen”: Big font interface.
“ECG 7-Lead Full-Screen”: ECG 7-Lead Full interface.
5.2 Display description
5.2.1 Normal display format
Figure 5-1: Standard Display
The normal display provides the parameter wave being monitored and the parameters displayed in the parameter area. This is the
basic display of the monitor. In this display mode all parameters, two ECG waves, one blood oxygen saturation percentage wave,
one respiratory wave are displayed.
5.2.2 Big ECG format
The big ECG format is as shown in Figure 5-2.
Figure 5-2: Big ECG format
5.2.3 Big font format
The big font format is as shown in Figure 5-3.
