Bistos BT-710 User manual

BT-710 Hand held pulse oximeter
Operation Manual
Keep this manual for future reference
P/N : 710-ENG-OPM-EUR-R02

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
1
Proprietary Material
Information and descriptions contained in this manual are the property of Bistos Co., Ltd.
and may not be copied, reproduced, disseminated, or distributed without express written
permission from Bistos Co., Ltd.
Information furnished by Bistos Co., Ltd is believed to be accurate and reliable. However,
no responsibility is assumed by Bistos for its use, or any infringements of patents or other
rights of third parties that may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Bistos Co., Ltd.
The information contained herein is subjects to change without notice.
Prepared by:
Bistos Co., Ltd.
7th FL., A Bldg., Woolim Lions Valley 5-cha,
302, Galmachi-ro, Jungwon-gu, Seongnam-si,
Gyeonggi-do, Korea
Telephone: [phone]
Fax: [phone]
Revision R02
March, 2020
Printed in Korea
Copyright © Bistos Corporation 2018. All rights reserved.

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
2
Contents
0. Safety information……………………………………………………………………………………………………….4
0.1 General precautions, warnings and cautions……………………………………………………………………5
0.2 Shock hazards………………………………………………………………………………………………………………….8
0.3 Battery warnings……………………………………………………………………………………………………………..8
0.4 General precautions on environment…………………………………………………………………………….9
1. System basics …………………………………………………………………………………………………………….9
1.1 Intended use………………………………………………………………………………………………………………….9
1.2 Operating principle………………………………………………………………………………………………………..11
1.3 System configurations……………………………………………………………………………………………………11
1.4 Product outlook…………………………………………………………………………………………………………….11
1.5 Description of pulse oximeter………………………………………………………………………………………..11
1.6 Understanding the display ……………………………………………………………………………………………12
1.7 Essential performance…………………………………………………………………………………………………..13
2. Preparing for operation ………………………………………………………………………………………………13
2.1 Installation ……………………………………………………………………………………………………………………13
2.2 Connecting to power…..…………………………………………………………………………………………………15
3. Basic operations ………………………………………………………………………………………………………….15
3.1 Turn on…………………………… …………………………………………………………………………………………..15
3.2 Turn off………………………………………………………………………………………………………………………….16
4. Setup the pulse oximeter ……………………………………………………………………………………………….16
5. SpO2……………………………………………………………………………………………………………………………….17
5.1 Overview ………………………………………………………………………………………………………………………17
5.2 Safety information ………………………………………………………………………………………………………..18
5.3 Monitoring steps …………………………………………………………………………………………………………..19
5.4 Setting SpO2………………………………………………………………………………………………………………….19
5.5 Measuring influencing factors ………………………………………………………………………………………20
5.6 Technical Description ………………………………………………………………………………………….………..21
6. Review ……………………………………………………………………………………………………………………………21
7. Alarm ……………………………………………………………………………………………………………………………..22
7.1 Alarm types . ………………………………………………………………………………………………………………..23
7.2 Alarm condition priorities ……………………………………………………………………………………………..23
7.3 Alarm mode ………………………………………………………………………………………………………………….24

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
3
7.4 Alarm state……………………………………………………………………………………………………………………25
7.5 Alarm information…………………………………………………………………………………………………………25
8. Battery…………………………………………………………………………………………………………………………….26
8.1 Overview……………………………………………………………………………………………………………….………26
8.2 Battery usage guide……………………………………………………………………………………………………….27
8.3 Checking battery performance………………………………………………………………………………………28
8.4 Battery recycling……………………………………………………………………………………………………………28
9. Caring and cleaning…………………………..……………………………………………………………………………28
9.1 Overview……………………………………………………………………………………………………………………….28
9.2 Cleaning…………………………………………………………………………………………………………………………28
9.3 Disinfection……………………………………………………………………………………………………………………29
10. Maintenance…………………………………………………………………………………………………………………30
10.1 Checking………………………………………………………………………………………………………………………30
10.2 Trouble shootings………………………………………………………………………………………………………..30
10.3 Maintenance plan……………………………………………………………………………………………………….31
11. Accessories…………………………………………………………………………………………………………………..31
12. Specifications………………………………………………………………………………………………………………..32
12.1 Safety specification……………………………………………………………………………………………………..32
12.2 Hardware specifications………………………………………………………………………………………………32
12.3 Functional specification……………………………………………………………………………………………….32
13. Manufacturer’s declaration on EMC…………………………………………………………………………….34
13.1 Electromagnetic emissions………………………………………………………………………………………….34
13.2 Recommended separation distances between portable and mobile RF communications
equipment and BT-710………………………………………………………………………………………………………..35
13.3 Electromagnetic immunity…………………………………………………………………………………………..35
Product Warranty……………………………………………………………………………………………………………….37

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
4
0 Safety information
Before using BT-710 Pulse oximeter, read this entire manual and be fully understood the
following safety information to prevent injury of patient and user.

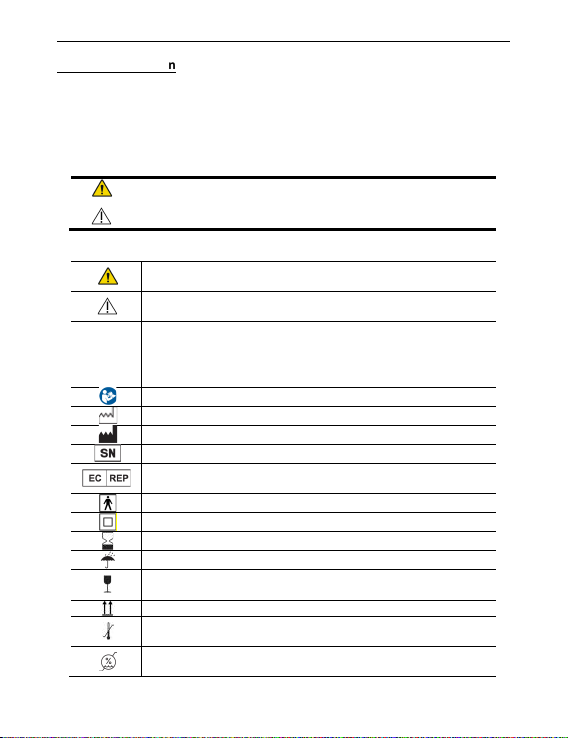

Symbols Used
The following symbols identify all instructions that are important to safety. Failure to follow
these instructions can lead to injury or damage to the pulse oximeter. When used in con-
junction with the following words, the symbols indicate:
WARNING Can lead to serious injury or death.
CAUTION
Can lead to minor injury or product/property damage
The following symbols are placed on product, label, packaging and this manual in order to
stand for the information about:
Used to identify safety information.
Be well-known this information thoroughly before using BT-710.
Used to identify safety information.
Be well-known this information thoroughly before using BT-710
IPX2
Indicates the protection level against the ingress of liquid.
IPX2 is protection from some water drops when the device is tilted
up to and including 15°.
It correspond the device and the accessory for SpO2.
Refer to operation manual. Read manual before placing the device.
Indicates the production date.
Indicates the manufacturer.
Indicates the serial number of the device.
Indicates the authorized representative in the European Community
of manufacturer.
Indicates a BF applied part.
Indicates CLASS II equipment.(Adapter)
Indicates the date after which the medical device is not to be used.
Indicates to keep the device dry.
Indicates the medical device that can be broken or damaged if not
handled carefully.
Indicates to keep upright
Indicates the temperature limitation for operation, transport and
storage.
Indicates the humidity limitation for operation, transport and
storage.

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
5
Indicates the packing material is recyclable.
Indicates to not dispose the device together with unsorted munici-
pal waste (for EU only). The solid bar symbol indicates that mains
adapter is put on the market after 13 August 2005.
0.1 General precautions, warnings and cautions
•Examine the pulse oximeter and any accessories periodically to ensure that the cables
including adapter cords and instruments do not have visible evidence of damage that
may affect patient safety or performance. The recommended inspection interval is
once per week or less. Do not use the pulse oximeter if there is any visible sign of
damage.
•Only the DC power adapter supplied with the BT-710 is approved for use with the de-
vice.
•Do not attempt to service the BT-710 pulse oximeter. Only qualified service personnel
by Bistos Co. Ltd. should attempt any needed internal servicing. There is no user ser-
viceable part.
•Perform periodic safety testing to insure proper patient safety. This should include
leakage current measurement and insulation testing. The recommended testing inter-
val is once per year.
•If the hospital or healthcare institutions using this device fail to implement a satisfacto-
ry maintenance schedule, it will result in device failure and may endanger the patient’s
safety.
•Use the pulse oximeter under the conditions specified in this operation manual. Be-
yond the conditions, the pulse oximeter may not function properly and the measure-
ment results may not accurate and may result in device failure or endangering the pa-
tient’s safety.
•During the operation, do not disconnect any cable.
•Do not operate the BT-710 pulse oximeter if it fails to pass the power on self-test pro-
cedure.
•The BT-710 pulse oximeter is intended to be used by clinical professionals or trained
doctors, nurses or laboratory assistant.
•Do not service and maintain or clean the device including accessories while in use with
a patient.
•Using the device to one patient at a time.
WARNING
•Thoroughly read and understand the manual prior to use of the BT-710. Failure
to do so could result in personal injury or equipment damage.
•The device is intended for measure the clinical blood oxygen saturation via

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
6
pulse oximeter, and only trained and qualified doctors and nurses should use
the device.
•The alarm volume, upper and lower alarm limits should be set according to the
actual situation of the using environment. Do not just rely on audio alarm sys-
tem while monitoring the patient, because too low alarm volume or muted
alarm may result in notice failure of alarm situation and endanger the patient’s
safety. Please pay close attention to the actual clinical status of the patient.
•Use only the power adapter supplied with pulse oximeter.
•Do not open the enclosure to avoid an electric shock. Any repair and upgrade
of pulse oximeter should be done by service personnel trained and authorized
by Bistos. Co., Ltd.
•When handling packaging materials and the device, abide by local laws and
regulations or hospital waste disposal regulations. Keep the away from chil-
dren.
•Do not use in the presence of flammable anesthetics to prevent explosion or
fire.
•Install the power lines and cables of accessories carefully to avoid patient
entanglement or suffocation, cables tangled or electrical interference.
•When the pulse oximeter is used together with electrosurgical devices, the
user (a doctor or a nurse) should ensure the safety of the patient and instru-
ment.
•The physiological wave, physiological parameters and alarm information dis-
played on the pulse oximeter are only for the doctor’s reference and should
not be directly used as the basis for clinical treatment.
•This is not a therapeutic device.
•Use of accessories other than approved for use with this product may result in
increased emissions or decreased immunity.
•Medical electrical equipment needs special precautions regarding EMC and
needs to be installed and put into service according to the EMC information
provided in this manual. In addition, portable and mobile RF communications
equipment can affect medical electrical equipment.
•The equipment shall not be used adjacent to other devices unless verification
of normal operation in the configuration in which it is to be used can be
achieved.
•Keep matches, and all other sources of ignition, out of the room in which the
pulse oximeter is located. Textiles, oils, and other combustibles are easily ig-
nited and burn with great intensity in oxygen rich environment. Personal injury
or equipment damage could occur.
•A fire and explosion hazard exists when performing cleaning or maintenance
procedures in an oxygen rich environment.
•The pulse oximeter has been validated with the accessories listed in this man-
ual and found to comply with all relevant safety and performance require-

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
7
ments applicable to the device. It is therefore the responsibility of the person
or organization who makes an unauthorized modification, or incorporates an
unapproved attachment to the device.
•An operator may only perform maintenance procedures specifically described
in this manual.
•Do not remove the covers of a BT-710 yourself to avoid damage to the equip-
ment and unexpected electrical shock. Only qualified Bistos service engineer
must repair or replace components.
CAUTION
•Please install or carry the pulse oximeter properly to prevent damage due to
falling, collision, strong vibration or other mechanical force.
•Avoid instrument splashed by water.
•Avoid high temperatures, the instrument should be used within a temperature
range of 5 ℃~ 40 ℃。
•Avoid using pulse oximeter in the environment such as pressure is too high,
poor ventilation, dusty, or contain salt, sulfur gas and chemical.
•Before using the pulse oximeter, check the pulse oximeter and accessories if
there is damage that may affect patient safety. If there is obvious damage or
aging, replace the parts before use. The replacement should be made with
same parts of original parts.
•Before powering on the device, make sure that the power used by the device
complies with the supply voltage and frequency requirements on the equip-
ment label or in this manual.
•Equipment should be tested at least once a year, the test should be done and
recorded by trained, have safety testing knowledge and experienced person-
nel. If there are any problems in the tests, they must be repaired.
•When the instrument and accessories are about to exceed the useful life
(expected service life: 5 years), it must be treated in accordance with relevant
local laws and regulations or the hospital's rules and regulations.
•Do not connect to other equipment or network which not specified in the
instruction for use, in risk of external high voltage.
•Do not connect any equipment or accessories that are not approved by the
manufacturer or according to IEC 60601-1 to the pulse oximeter. The opera-
tion or use of non-approved equipment or accessories with the pulse oximeter
is not tested or supported, and pulse oximeter operation and safety are not
guaranteed in such a case.
•
Any non-medical equipment (such as the external printer) is not allowed to be

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
8
used within the patient vicinity (1.5m/6ft.).
•Parts and accessories used must meet the requirements of the applicable
safety standards, and/or the system configuration must meet the require-
ments of the medical electrical systems standard.
•Ensure that the conductive parts of electrodes and associated connectors,
including neutral electrodes, do not come in contact with earth or any other
conducting objects.
0.2 Shock hazards
WARNING
•Unplug the pulse oximeter from its power source prior to cleaning or mainte-
nance to prevent personal injury or equipment damage.
•Some chemical cleaning agents may be conductive and leave a residue that
may permit a build-up of conductive dust or dirt. Do not allow cleaning agents
to contact electrical components and do not spray cleaning solutions onto any
of these surfaces. Personal injury or equipment damage could occur.
•Do not expose the pulse oximeter to excessive moisture that would allow for
liquid pooling. Personal injury or equipment damage could occur.
•Do not touch the patient and signal input/output parts simultaneously
•Due to the risk of electrical shock hazard, only qualified personnel with appro-
priate service documentation should service the pulse oximeter.
0.3 Battery warnings
WARNING
•Improper operation may cause the internal lithium ion battery to be hot,
ignited or exploded, and it may lead to the decrease of the battery capacity. It
is necessary to read the operation manual carefully and pay more attention to
warning message.
•Do not open the battery compartment. Only the qualified service personnel
authorized by the manufacturer can open the battery compartment and re-
place the battery, and batteries of same model and specification should be re-
placed.
•Be careful when connecting the battery with polarity.
•Do not use the battery near fire or environmental temperature exceeds 60 ℃.
Do not heat or splash the battery or throw it into fire or water.
•Do not destroy the battery. Do not pierce battery with a sharp object such as a
needle. Do not hit with a hammer, step on or throw or drop the battery. Do

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
9
not disassemble or modify the battery. The battery can heat, smoke, defor-
mation or burning.
•When leakage or foul smell is found, stop using the battery immediately. If
your skin or cloth comes into contact with leaked liquid, cleanse it with clean
water at once. If the leaked liquid splashes into your eyes, do not wipe them.
Irrigate them with clean water first and go to see a doctor immediately.
•Properly dispose of or recycle the depleted battery according to local regula-
tions.
0.4 General precautions on environment
Do not keep or operate the pulse oximeter under the environment listed below.
Avoid placing in an area
exposed to moisture. Do not
touch the pulse oximeter with
wet hand.
Avoid exposure to direct
sunlight
Avoid placing in an area where
high variation of temperature
exists. Operating temperature
ranges from 5℃~ 40℃.
Operating humidity ranges
from 30 % ~ 85 %.
Avoid in the vicinity of
electric heater.
Avoid placing in an area where
there is an excessive humidity
rise or ventilation problem.
Avoid placing in an area
where there is an exces-
sive shock or vibration.
Avoid placing in an area where
chemicals are stored or where
there is in danger of gas
leakage.
Avoid dust and especially
metal material enters into
the pulse oximeter.
Do not disjoint or disassemble
the pulse oximeter. Bistos Co.,
Ltd. does not have liability of
it.
Power off when the pulse
oximeter is not fully ready
to operate. Otherwise,
the pulse oximeter could
be damaged.
1 System basics
1.1 Intended use
The BT-710 pulse oximeters acquire the blood oxygen saturation (SpO2) and pulse rate (PR).
The signals are converted into digital data and processed, examines the data for alarm

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
10
conditions and display the data. The pulse oximeter also provides operating control for the
user. The pulse oximeter intend to use in hospital clinical area such as general ward, to
provide additional information to the medical and nursing staff about the blood oxygen
saturation of the patient. The BT-710 pulse oximeters are intended to be used only under
regular supervision of clinical personnel. It is suitable for adult and pediatric, neonate. The
intended locations of use are hospitals and clinics.
1) Intended patient population
-Adult (>18 years adults) and Pediatrics (30 days < and <18 years) and Neo-
nate (0 days＜and ＜30days)
2) Intended user profile
-Doctor, physicians or nursing staff who is qualified personnel
-Basic experiences or knowledge on medical field, especially on patient moni-
toring
-Trained or requested to read IFU before use
3) Environment of use
-Hospital and clinic
-Requirements: Stable power source
4) Scope of application
This pulse oximeter is suitable for bedside monitoring of patient. This pulse oximeter enables
the monitoring of blood oxygen saturation (SpO2) and pulse rate (PR). It is equipped with a
replaceable built-in battery to provide convenience for the patient movement in hospital.
5) Indications and contraindications
Blood oxygen saturation (SpO2)
Indication:
- Monitoring effectives of oxygen therapy
- A reading is needed to facilitate the completion of an early warning score to
inform clinical assessment
- Sedation or anesthesia
- Transport of patients who are unwell and require oxygenation assessment
- Haemodynamic instability (e.g. cardiac failure or Myocardial Infarction)
- Respiratory illness e.g. asthma, chronic obstructive pulmonary disease
- Monitoring during administration of respiratory depressant drugs, e.g. opiate
epidural or patient-controlled analgesia.
- Assessing oxygen saturation during physical activity e.g. in pulmonary rehabilita-
tion
Contraindications
- Pulse oximetry does not give an indication of haemoglobin so if the patient is
profoundly anaemic then their oxygen saturation may by normal but they may still
be hypoxic
Source: NHS. “Clinical Procedure_ Procedure for Pulse Oximetry/SPO2”. Wirral Community
NHS Trust. Sep, 2013

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
11
1.2 Operating principle
Refer to the chapters for every physiological parameter from chapter 5.
1.3 System configurations
Basic configuration of BT-710
•Main body with 4.3” touch screen and built-in lithium-ion battery
•Adult SpO2sensor probe
•AC/DC adapter
1.4 Product outlook
Figure1-3 : Top view
Figure1-1: Front view
Figure1-2 : Rear view
Figure1-4 : Bottom view
1.5 Description of pulse oximeter
Figure1-5: Front view
Name
Description
1 DC power indicator
Turned on when the pulse oximeter is being powered by the
adapter.
2
Display area
Display the waveform and measured value
3
-Power On: Press down the key more than 2 seconds.

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
12
[Power]
-Power Off: Press down the keys more than 2 seconds and
the system will display the alarm message “The system
will shut down 3 seconds”.
4
[Alarm reset]
To reset the alarm condition.
5
[Setting]
Enter to the setting mode. Press again to
close the setting
mode.
Figure1-6: Top view
Name
Description
6
SpO2
SpO2sensor probe interface
Figure1-7: Bottom view
Name
Description
7
SD card interface
For software upgrade
8
Power adapter
5V, 2A adapter
9
Lanyard eyelet
For convenient hand held
1.6 Understanding the display
Figure 1-8: Standard display

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
13
Description
1
Current alarm message. When an alarm occurs, this area will displayed yellow or
red depending on the alarm type.
2
SpO2value. Display the measured SpO2value.
3
SpO2upper alarm limit. Display the user set upper alarm limit
4
SpO2 lower alarm limit. Display the user set lower alarm limit
5
SpO
2
waveform. Display the measured SpO
2
waveform. The waveform is not
normalized.
6
Pulse rate value. Display the measured pulse rate per minute.
7
Sleep mode. Touch this area makes the pulse oximeter to enter the sleep mode.
To exit "sleep mode", press [Power] or [Alarm reset] or [Setting]
8
Perfusion Index. Display the measured perfusion index.
9
Pulse rhythm strength.
10
Battery Status
11
Patient type.
12
The unit of SpO2.
1.7 Essential performance
This device Pulse oximeter provides patient vital signs such as pulse rate, blood oxygen
saturation and perfusion index by placing the sensors to the appropriate site of patient. The
device is composed with display, control circuit and panel, and input part for SpO2sensors. It
detects SpO2 and PR using specific sensors. The detected analog signal amplified and con-
verted to digital. This converted data feed to the CPU and converted to the display format as
number and waveform. This device is incorporated with alarm system. The alarm generated
when the detected signal range is beyond the user set alarm limits.
2 Preparing for operations
2.1 Installation
To ensure normal working of the pulse oximeter, read this chapter before use, and install as
required.
WARNING
•All analog and digital devices connected to the pulse oximeter must be certi-
fied by IEC standards (e.g. IEC 60950 Data processing equipment standard and
IEC 60601-1 Medical equipment standard). Furthermore, all configurations
shall comply with valid version of IEC 60601-1 standard. The personnel con-
necting additional devices to the input / output signal ports are responsible for
the compliance with IEC 60601-1 standard. If there is any question, please con-
tact Bistos.

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
14
•The copyright of pulse oximeter software belongs to Bistos. Without permis-
sion, any organization or individual shall not interpolate, copy or exchange by
any means or form.
•When the pulse oximeter is combined with other devices, it must comply with
IEC 60601-1:2005 + A1:2012, and should not be connected with multi-socket
outlet or extension cord.
Prior to installation, the operator must ensure that the following space, power, environmen-
tal requirements are met.
2.1.1 Unpack and check
BT-710 pulse oximeter was inspected rigorously at the factory before delivery, in order to
avoid being hit when transported, carried out careful packaging. Before unpacking, carefully
inspect the package. If any damage, please immediately contact the Bistos. Unpack in the
correct way, carefully remove the pulse oximeter and accessories from the box and check
with the packing list. Check if there is any mechanical damage, and the all listed components
are completely packed. If you have questions, please contact the marketing department of
Bistos or agency.
Please keep the packing box and materials for use in future transporting or storage.
2.1.2 Power requirements
-DC power supply adapter (Model: UE10WCP1-050200SPA)
Input: A.C. 100 V ~ 240 V, 50/60 Hz
Output: D.C. 5 V, 2.0 A
-Built-in rechargeable lithium-ion battery: D.C. 3.7 V, 3000mAh (Model: JHY605085)
2.1.3 Environmental requirements
The storage, transport and use of the pulse oximeter must meet the following environmental
requirements.
Operating
environment
Ambient temperature
5
℃
~ 40
℃
Relative humidity
30 % ~ 85 % (Non-condensing)
Atmospheric pressure
700 ~ 1060 mbar (hPa)
Transportation
Prevent severe shock, vibration, rain and snow splashing during
transport.
Storage
The packaged pulse oximeter should be stored in well-ventilated
room with ambient temperature -20 ℃~ 60℃, relative humidity 0
~ 95 % (Non-condensing), atmospheric pressure 700 ~ 1060
mbar(hPa), and without corrosive gases.
The operating environment of the pulse oximeter should avoid noise, vibration, dust, corro-
sive or flammable and explosive materials. In order to allow air flowing smoothly and achieve
good heat dissipation, at least 2 inches (5cm) clearance should be kept around the device.
When the device is moved from one environment to another, the device may have conden-
sation due to the differences in temperature or humidity. In this case, wait until the conden-
sation disappears before using the device.

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
15
WARNING
•Ensure that the pulse oximeter is used under specified environment. Fail to do
this, the technical specifications declared in this manual may not be met and it
may result in damage to equipment and other unforeseen consequences.
2.2 Connecting to power
WARNING
•
Do not try to open the pulse oximeter when the power is connecting.
Connect to power adapter in the following steps:
-Make sure that the AC power supply meets the following specifications: A.C. 100V-240V,
50/60Hz.
-Use the power adapter provided with the pulse oximeter. Plug the power adapter into the
power connector of the pulse oximeter, and plug the other end of the power adapter into
the mains (low voltage power supply network facilities) power outlet.
NOTE
•The operation of pulse oximeter after the supply mains has been interrupted
and is restored after a period of time that is longer than 30s.
3 Basic operations
3.1 Turn on
3.1.1 Check the pulse oximeter
-Before turn on the pulse oximeter, check whether there is mechanical damage to the
pulse oximeter, and whether the external cables and accessories are connected correctly.
-Plug the power adapter into the AC power outlet. If using battery power, make sure the
battery is fully charged.
-Check all the functions required to make sure that the pulse oximeter operates properly.
WARNING
•If the pulse oximeter is damaged, or fails to work normally, do not use it.
Please contact the maintenance personnel or Bistos immediately.
3.1.2 Start the pulse oximeter
If finish to check the pulse oximeter, it is ready to start the pulse oximeter.
Press the [Power] key and the system enters the main interface within seconds.
-Once the power is supplied, the system performs a power-on self test to check the func-
tions before start-up. If any fatal error occurs during boot up, the system will alarm. If this
case persists, please stop to using the pulse oximeter and contact the maintenance per-
sonnel or Bistos.
-Check all available pulse oximeter functions to ensure that the pulse oximeter operate
properly.

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
16
-If the pulse oximeter equipped with a battery, charge the battery after each use to ensure
sufficient power.
-After unpacking and use the pulse oximeter at first time, the pulse oximeter should be
powered with adapter.
3.1.3 Connect the sensors
Connect the SpO2sensor probe to the pulse oximeter and the monitoring site of patient.
3.1.4 Start monitoring
Start monitoring in the following steps:
-Check if the patient cable is connected properly.
-Check if the settings of the pulse oximeter are corrects, such as patient type.
-For the details of parameter measurement or monitoring, see the appropriate section.
-The operator can operate according to their own habits, standing in front, left or right of
the monitor, easy to observe and operate the monitor.
3.2 Turn off
Turn off the pulse oximeter in the following steps
-Disconnect the sensor probe connected to the patient.
-Press and hold the [Power] key for 2 seconds to pop up the 3 seconds countdown
window, and the pulse oximeter turns off in 3 seconds.
CAUTION
•If the pulse oximeter is not turned off properly, you can simply disconnect the
power to shutdown forcibly. But the forced shutdown may cause data loss,
and it is not recommended.
4 Setup the pulse oximeter

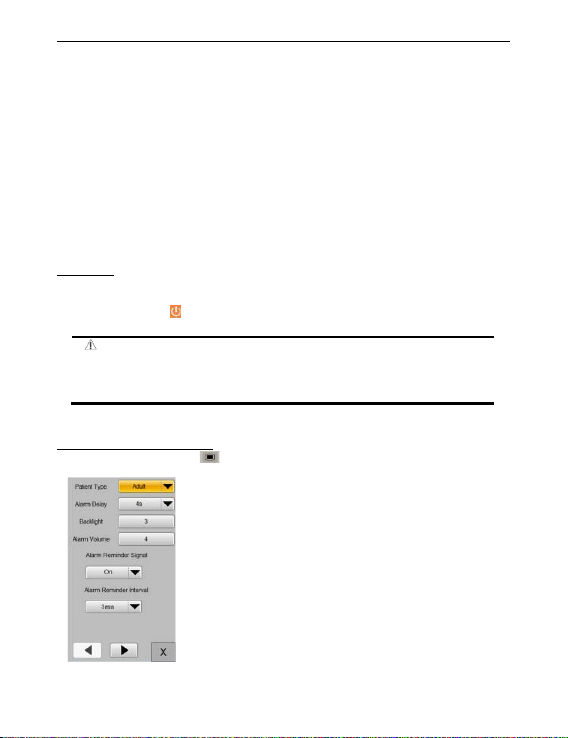

In the main screen, Press the key enter the setup menu.
Select “Patient Type”, you can choose “Adult” or “Pediatric” or
“Neonate”. According to patient type, the settable PR alarm limit and
default are changed.

Select “Alarm Delay”, you can choose “off”, “1s”, “2s”, “3s”, “4s”,
“5s”, “6s”, “7s” or “8s”. It sets the time from the occurrence of a trig-
gering event either in the patient, for physiological alarm conditions
to when the alarm system determines that an alarm condition exists.
Technical alarm conditions are not delayed.
Select “Backlight”, and enter value（Range: 0-5）. It can set bright-
ness of the background according to needs of use. “5” is the bright-
est.
Select “Alarm Volume”, which is alarm tone volume and settable
among（Range: 0-9）. “0” is alarm sound off.

Select “Alarm Reminder Signal”, you can choose “On”, or “Off”. It is
periodic signal that reminds the operator that the alarm system is in
an alarm signal inactivation for both physiological alarm conditions

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
17
and technical alarm conditions.

Select “Alarm Reminder Interval”, when the “Alarm Reminder Signal”
sets “On”, you can choose alarm interval to “1min”, “2min”or “3min”.
Select key to display the following interface.


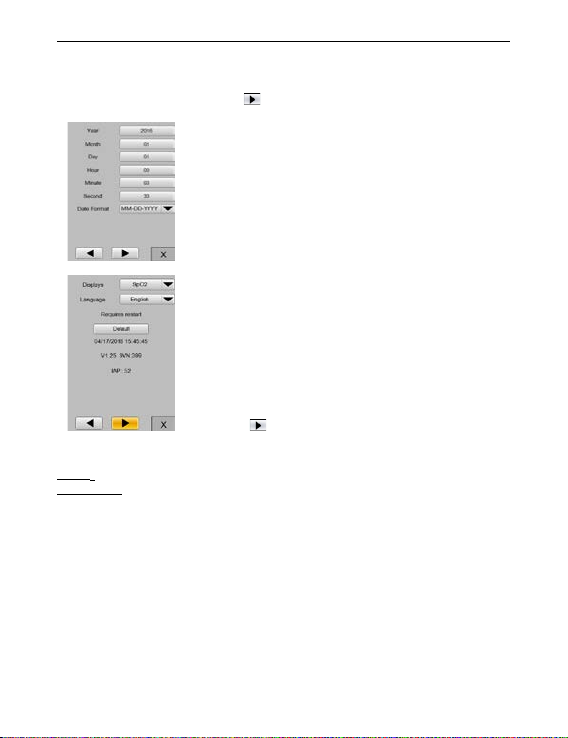

Select “Year”, “Month”, “Day”, “Hour”, “Minute” and
“Second”, and set the current date.
Select “Date Format”, and set among the below date
formats in accordance with custom.
“YYYY-MM-DD”: Year- Month-Day.
“MM-DD-YYYY”: Month -Day-Year.
“DD-MM-YYYY”: Day-Month-Year.
Select key to display the following interface.
Select “Displays”, set “SpO2”.
Select “Language”, and select the option as needed:
“English”: The interface language of the pulse oximeter is English.
“Türkçe”: The interface language of the pulse oximeter is Turkish.
“Español”: The interface language of the pulse oximeter is Spanish.
“Français”: The interface language of the pulse oximeter is French.
“Polski”: The interface language of the pulse oximeter is Polish.
“Italiano”: The interface language of the monitor is Italian.
“Deutsch”: The interface language of the monitor is German.
Select “Default”, clears all the setting except the date and
time and go back to the initial factory setup.
Select key to display the following interface.
5 SpO2
5.1 Overview
Blood oxygen saturation (SpO2) is the percentage of oxyhemoglobin (HbO2) capacity bound
by oxygen in the blood in the total hemoglobin (Hb) capacity that can be combined, that is,
the concentration of oxygen in the blood.
The principle for monitoring the pulse SpO2is to fix the probe fingerstall on the patient’s
finger, use the finger as a transparent container for hemoglobin, use 660nm wavelength red
light and 905nm near-infrared light as the incident light, maximum output power is 300 mW,
measure the light transmission intensity through the tissue bed, and calculate the concen-
tration of hemoglobin and SpO2.
The passing lights depend on a variety of factors, most of which are constant. However, one
of these factors, the arterial blood flow, changes with time, as it is pulsating. By measuring
the light absorbed during pulsating, it is possible to obtain the arterial blood SpO2. Detection
pulsation can give a “plethysmography” wave and pulse rate signal.

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
18
The main screen displays “SpO2” value and “plethysmography” wave. While the monitor gets
and displays the physiological signal from a patient, the pulse tone which is the auditory
information signal. The volume of this pitch tone is user adjustable.
This pulse oximeter applies to measure SpO2of adults (>18 years), pediatric (<18 years,>30
days), neonate (<30 days). Contact SpO2probe to Patient’s finger to get “SpO2” value and
“plethysmography” wave.
SpO2function of this pulse oximeter has been calibrated in factory.
NOTE
•
Information about wavelength range can be especially useful to clinicians.
5.2 Safety information
WARNING
•Please use SpO2 sensor supplied from Bistos, operate in accordance with the
Manual, and observe all warnings and precautions.
•Before monitoring, check whether the sensor probe is normal. When SpO2
sensor probe is unplugged from the socket, the screen will display “SpO2 No
Sensor connected” error message, and trigger an audible and visual alarm sim-
ultaneously.
•If the sensor or sensor packaging has signs of damage, do not use this SpO2
sensor; return it to the manufacturer.
•If there is carboxyhemoglobin, methemoglobin or dye diluted chemical, the
SpO2value will have deviation.
•When the patient has a tendency to hypoxia, use the oximeter to analyze
blood samples in order to fully grasp the patient's condition.
•Do not put the sensor on limbs with arterial duct or intravenous tube.
•Do not intertwine electrosurgical equipment cable with the patient cable.
•Avoid using the pulse oximeter and sensors while using the NMR equipment,
in order to avoid severe burns to the patient as a result of induced currents.
•During long time continuous monitoring of a patient, check the position of
SpO2sensor once every 2 hours, and move properly when the skin changes or
every four hours. Some patients may require more frequent inspection, such
as patients with perfusion disorders or sensitive skin, because persistent and
prolonged monitoring may increase unpredictable skin changes, such as aller-
gies, redness, blistering or pressure necrosis.
•Before using, verify compatibility between the monitor and probe, otherwise it
may cause injury to the patient.
•Functional testers cannot be used to evaluate the accuracy of pulse oximetry.

BT-710 Operation manual
P/N : 710-ENG-OPM-EUR-R02 Bistos Co., Ltd. 2020.03
19
NOTE
•Do not put the oxygen probe and blood pressure cuff on the same limb, be-
cause blood flow occlusion during blood pressure measurement will affect the
SpO2readings.
•The pulse oximeter cannot be used to verify the accuracy of SpO2probe and
SpO2equipment.
5.3 Monitoring steps
(1) Act the appropriate SpO2sensor according to the patient.
(2) Turn on the pulse oximeter, and connect the SpO2sensor probe to the pulse oximeter.
(3) Clean the measurement site, such as finger with nail polish.
(4) Put the SpO2sensor probe on the patient’s finger.
(5) Select the appropriate alarm settings.
(6) Start monitoring.
NOTE
•When you turn on the pulse oximeter, plug in SpO2probe and connect pa-
tient’s finger (or toe), monitor displays SpO2 wave, “SpO2Pulse Search” dis-
played in the technical alarm area until the monitor measured SpO2value and
pulse rate. “SpO2Search Timeout” displayed in the technical alarm area until
the pulse oximeter measured pulse rate. Check the sensor mounting position,
whether the sensor is damaged or sensor type. Reconnect the sensor or use
new sensor.
•The alarm message for signal inadequacy such as “SpO2 No Sensor connect-
ed”, “SpO2 Sensor Off”, “SpO2 Search Timeout”, “SpO2 Signal Unstable”,
“SpO2 Sensor Error” and low priority alarm and indication for signal instability
like “---” are meaning that the value of SpO2 or PR might be inaccurate.
5.4 Setting SpO2
Select the main screen to enter the SpO2 set interface
Select “Wave Speed” and set wave speed to “12.5mm/s” or “25mm/s”. The faster speed,
the smoother wave.
